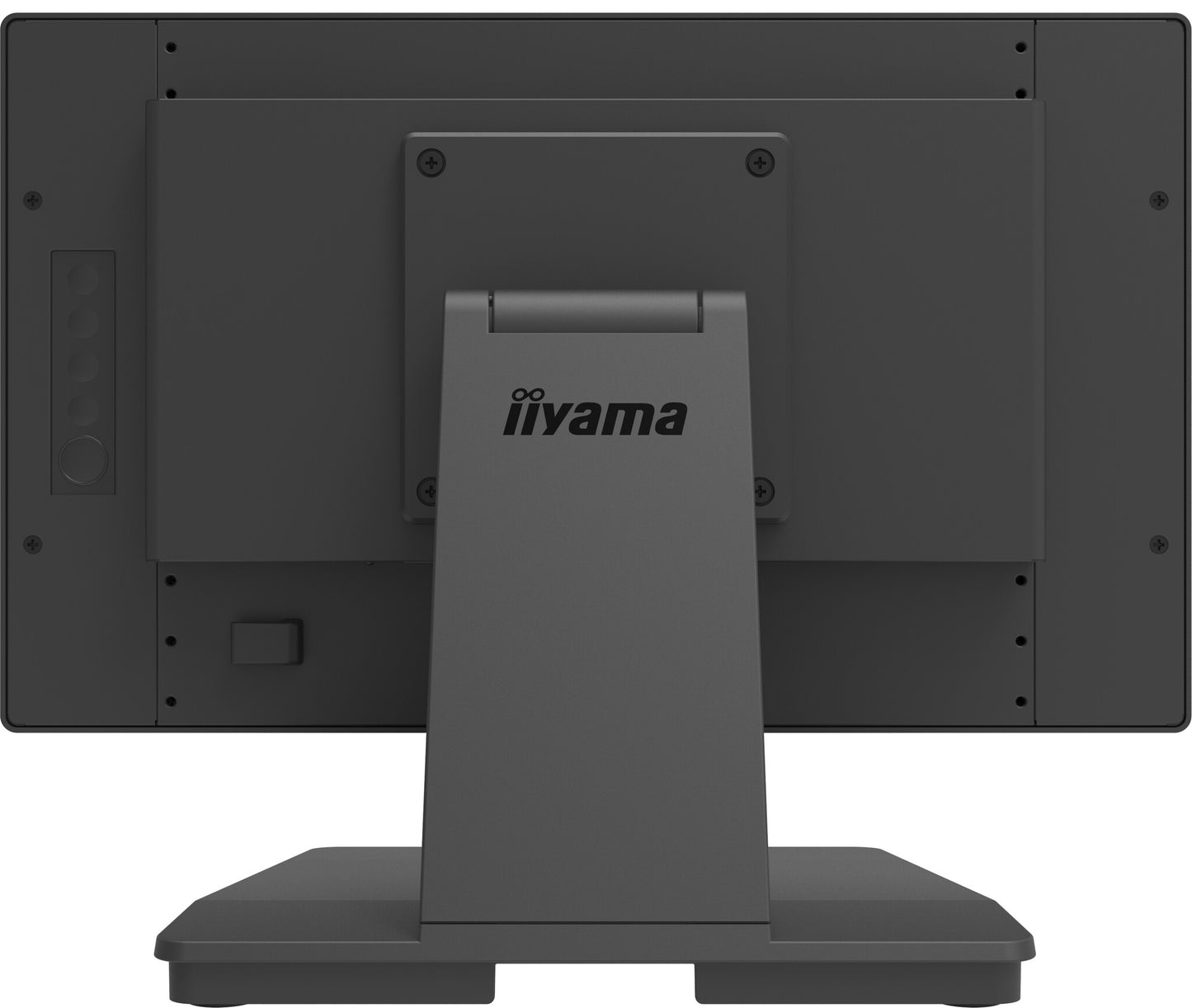

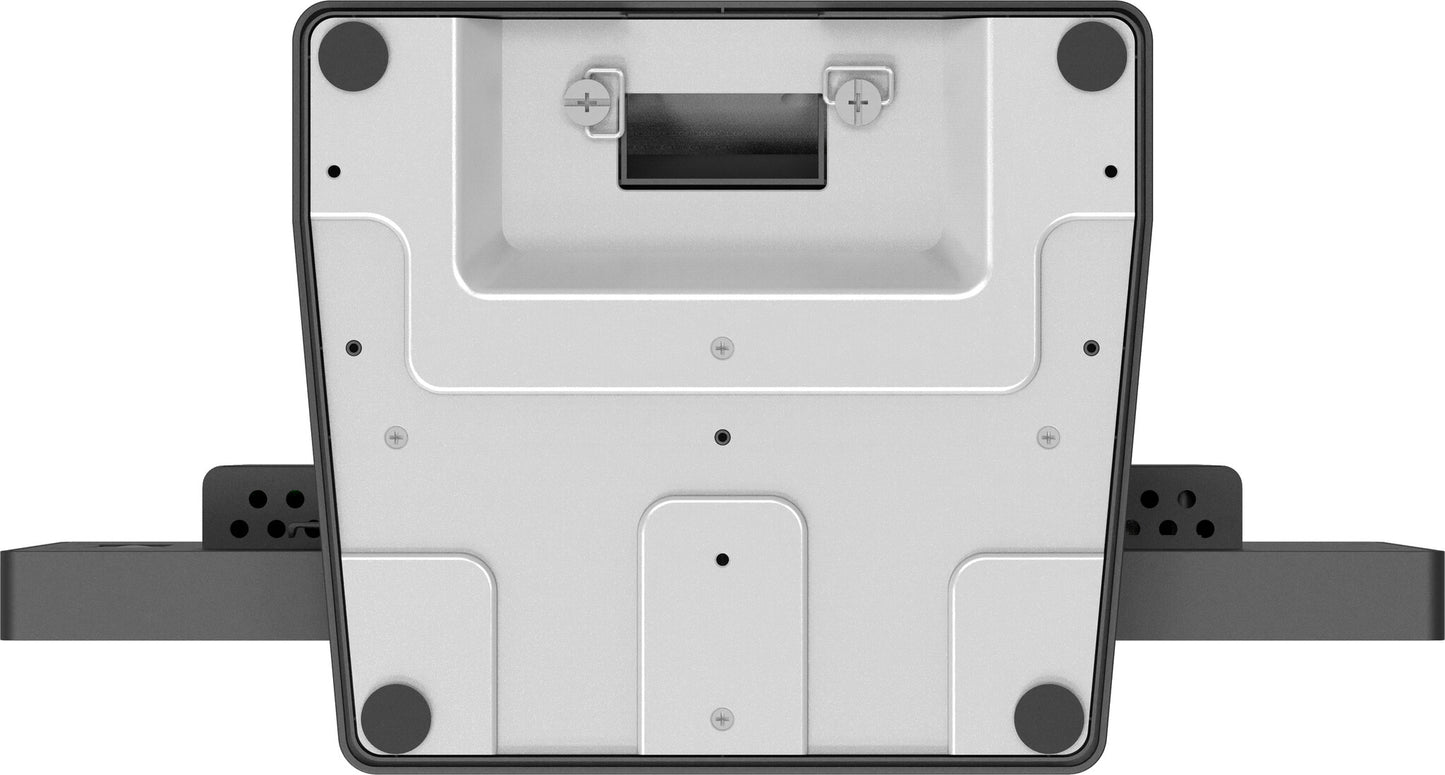

iiyama T1634MC-B1S

iiyama T1634MC-B1S

15.6", 39.5cm, IPS, LED, 1920 x 1080, 16:9, 450 cd/m², 90%, 25ms, 381 x 285.5 x 200mm, 445 x 355 x 150mm, 3.4kg, 5.18kg

  • Office Touchscreen 39.6 cm (15.6") LED IPS
  • Full HD 1920 x 1080 pixels 16:9
  • 60 Hz 405 cd/m² 700:1
  • E 10 kWh 18 W
  • SKU:4948570122110
  • GTIN/EAN:4948570122110
  • MPN:T1634MC-B1S

You need to login to view the price.

Add To Favorite
View full details

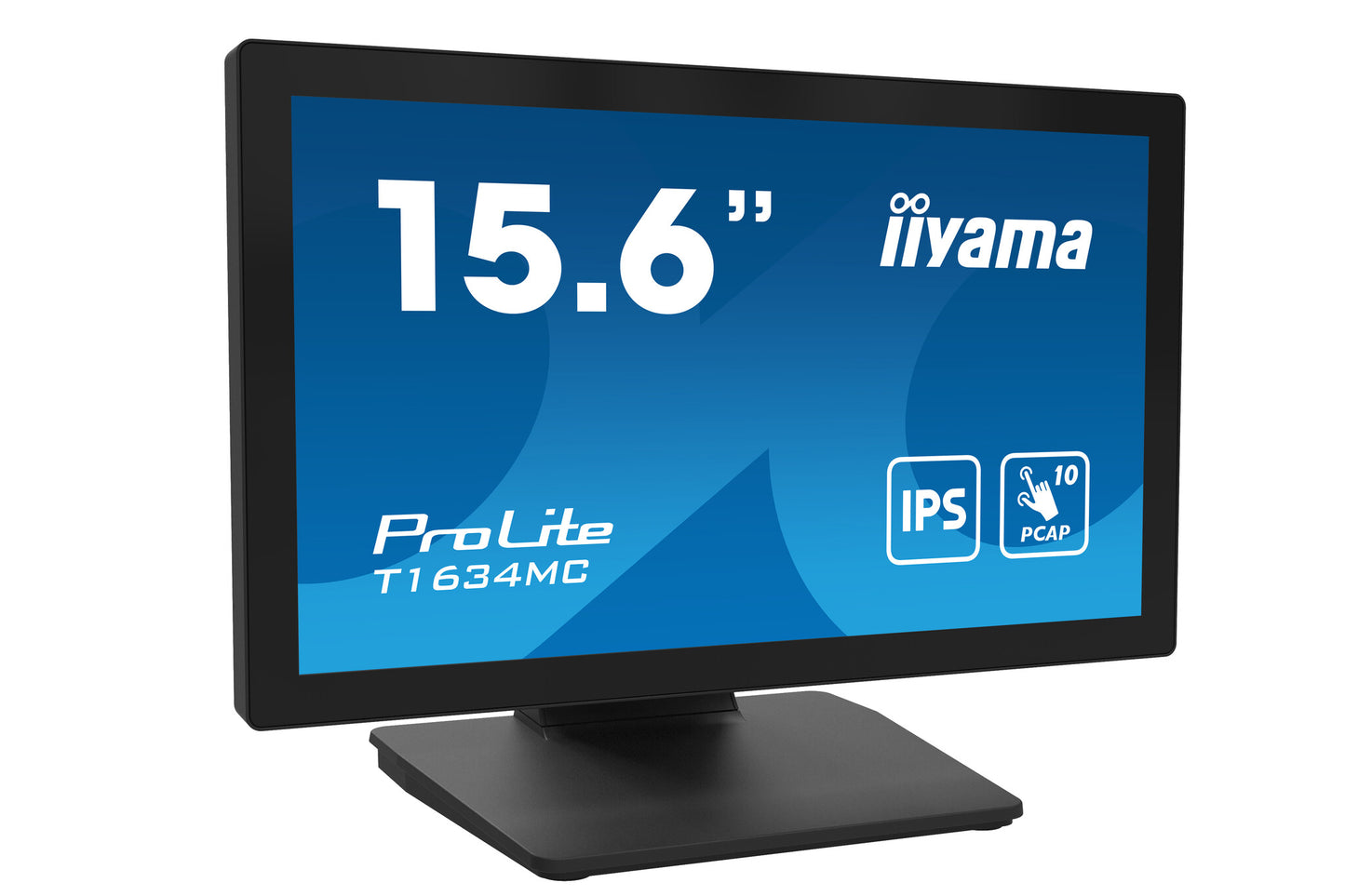

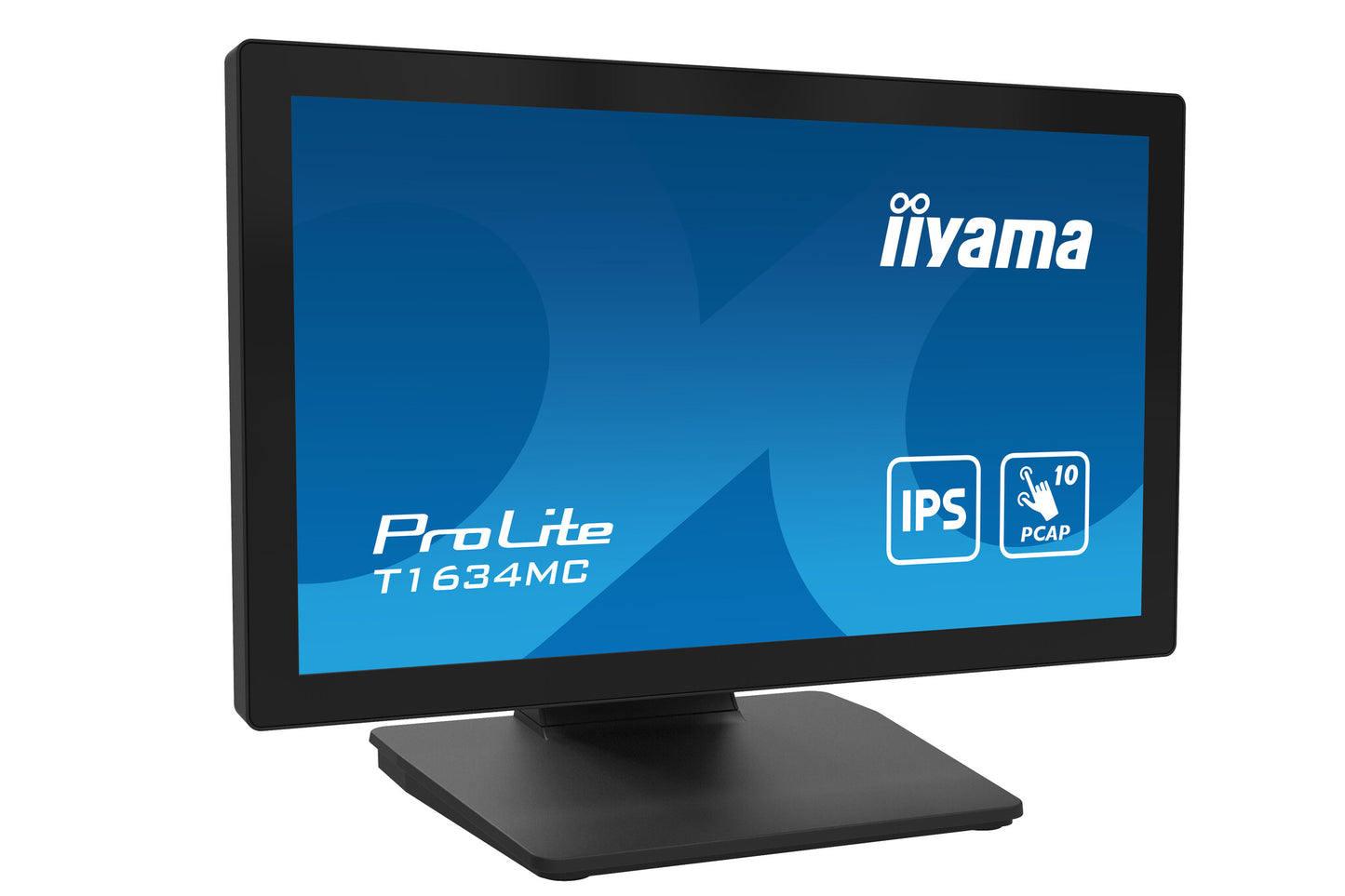

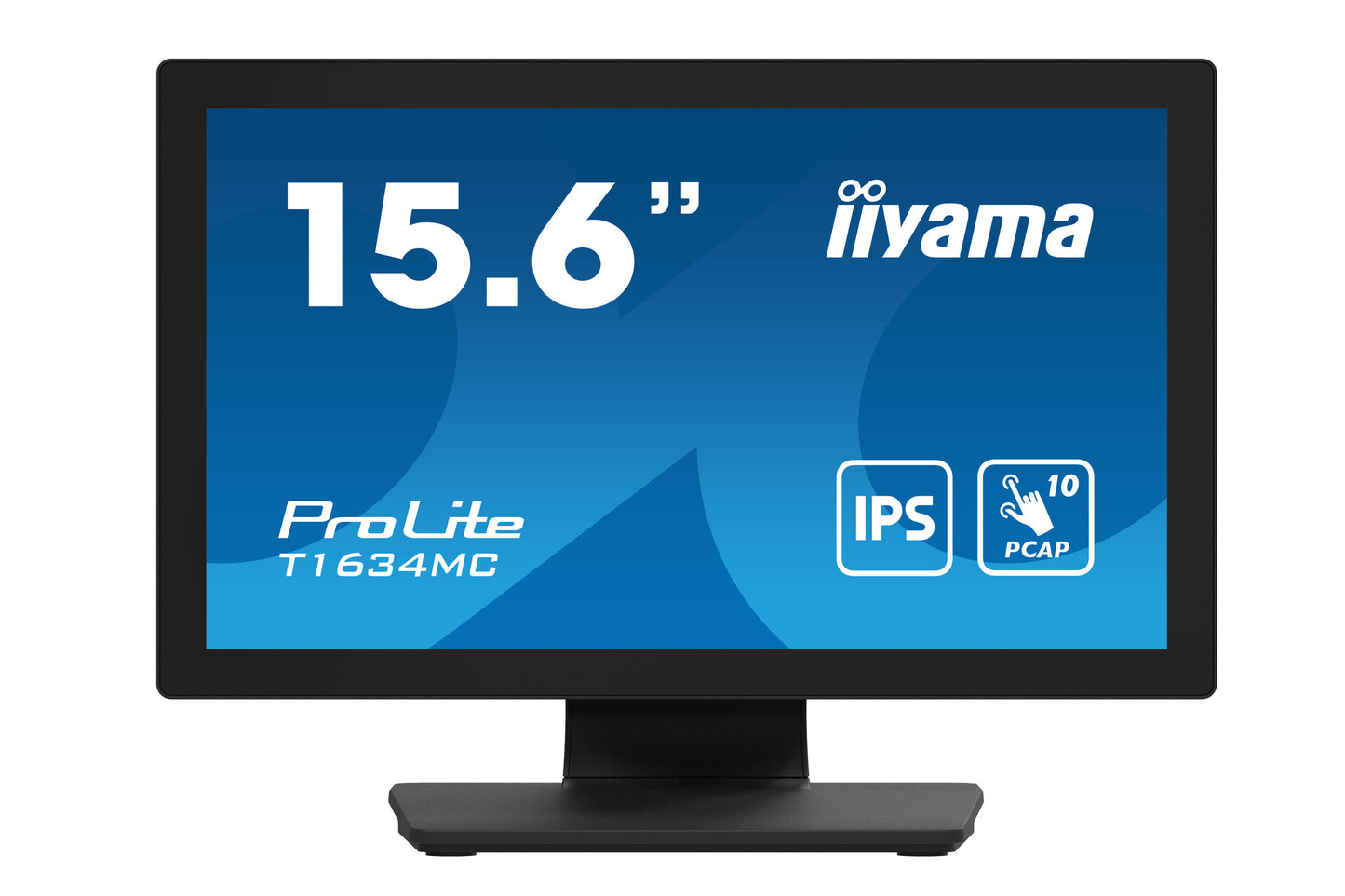

15.6" Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function

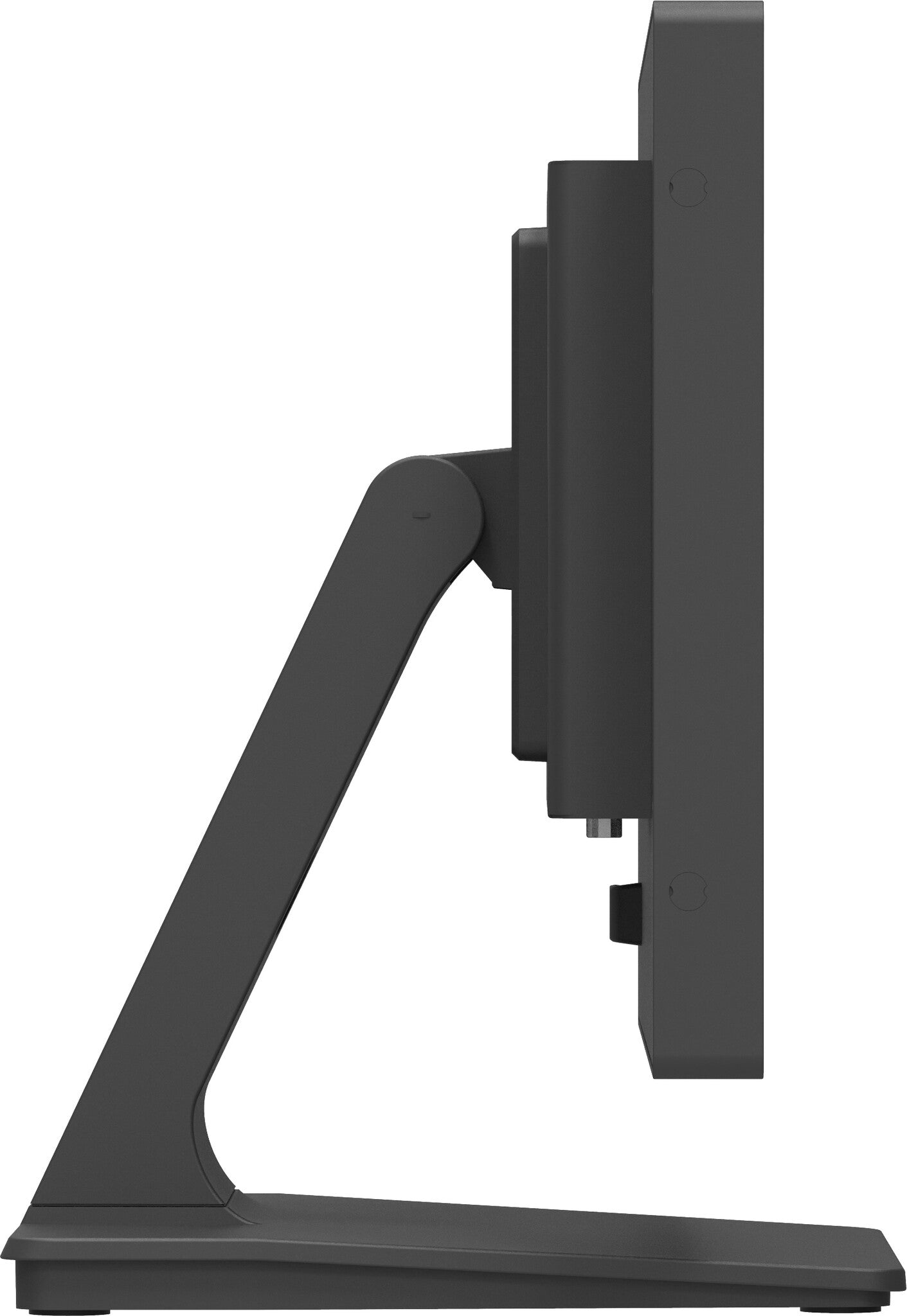

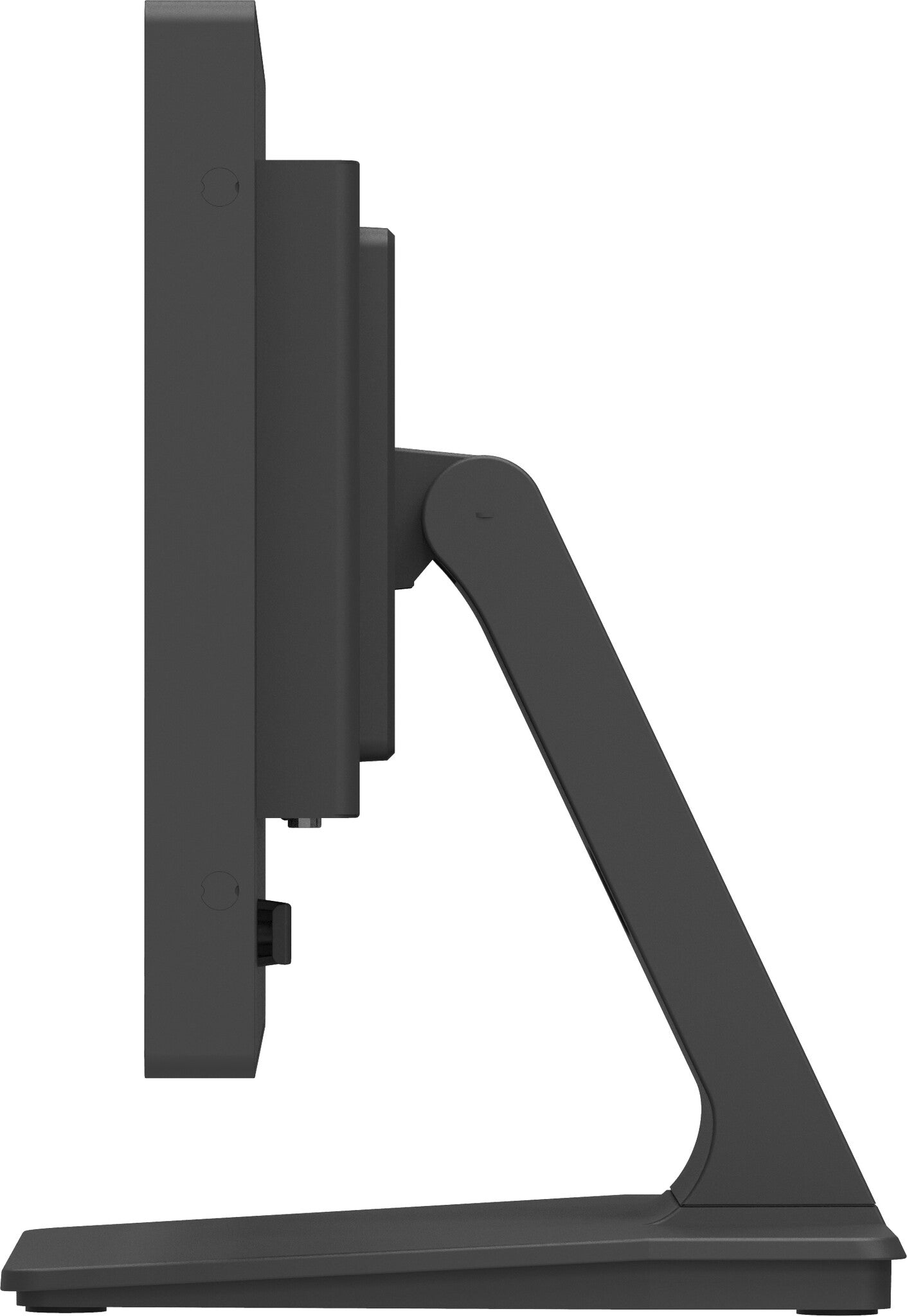

The ProLite T1634MC-B1S uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications.

Display
Colour gamut
90%
Digital horizontal frequency
30 - 84 kHz
Display number of colours
16.2 million colours
Maximum refresh rate
60 Hz
Contrast ratio (typical)
700:1
Screen shape
Flat
Display surface
Matt
Second display effective viewing area
344.2 x 193.6 mm
Colour depth
6 bit
Response time (fast)
25 ms
Display brightness (typical)
405 cd/m²
Display brightness (peak)
450 cd/m²
Touchscreen technology
Projected capacitive system
Panel type
IPS
Display resolution
1920 x 1080 pixels
Display diagonal
39.6 cm (15.6")
Design
International Protection (IP) code
IP65
Glass thickness
2.4 mm
Product colour
Black
Market positioning
Office
Ergonomics
Tilt adjustment
Yes
On Screen Display (OSD)
Yes
Tilt angle range
90 - 5°

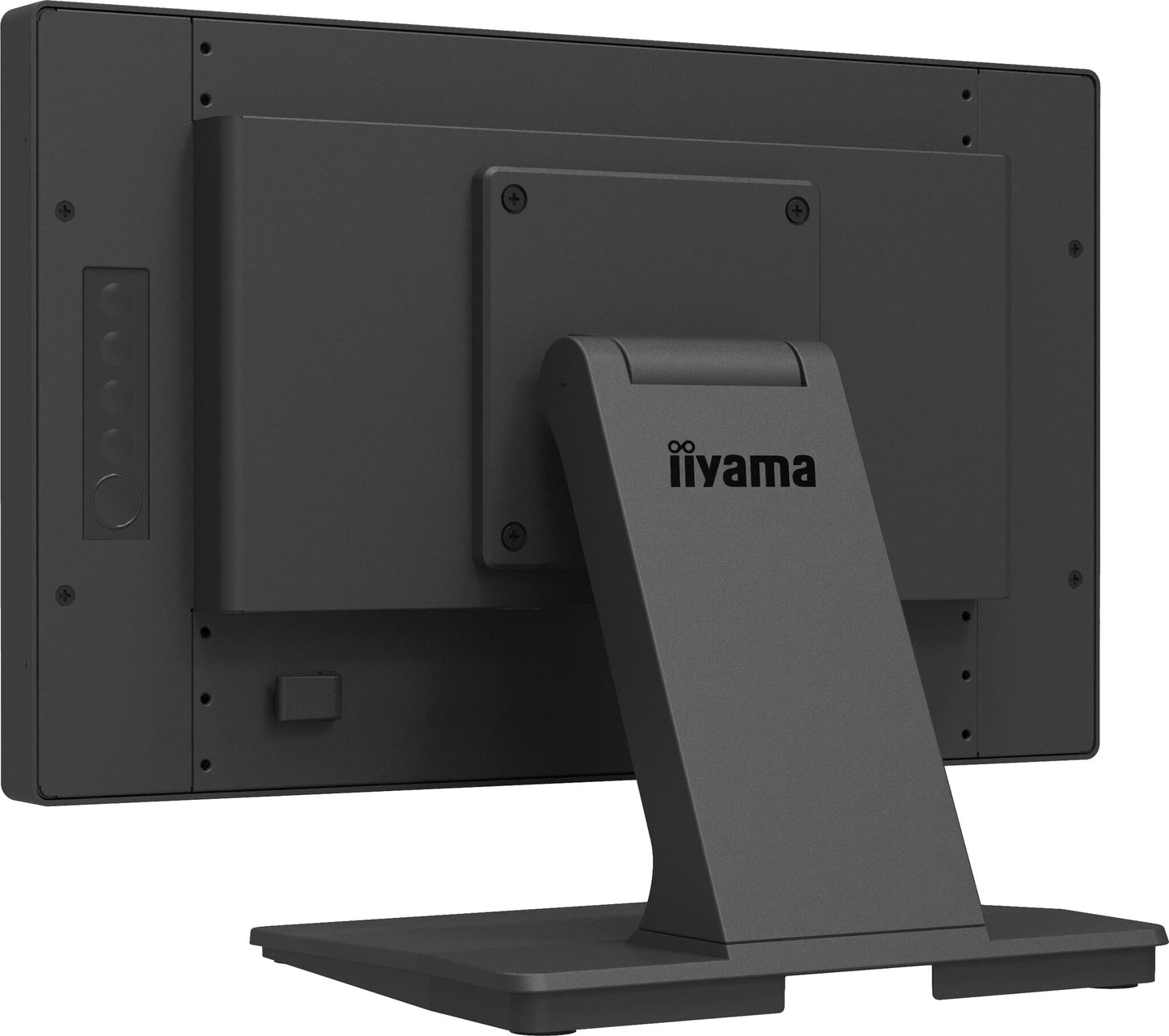

Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
Power supply type
External
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
18 W
Energy consumption (SDR) per 1000 hours
10 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
E
Sustainability
European Product Registry for Energy Labelling (EPREL) code
1530736
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (with stand)
3.4 kg
Height (with stand)
285.5 mm
Depth (with stand)
200 mm
Width (with stand)
381 mm
Packaging data
Package weight
5.18 kg
Package height
355 mm
Package depth
150 mm
Package width
445 mm

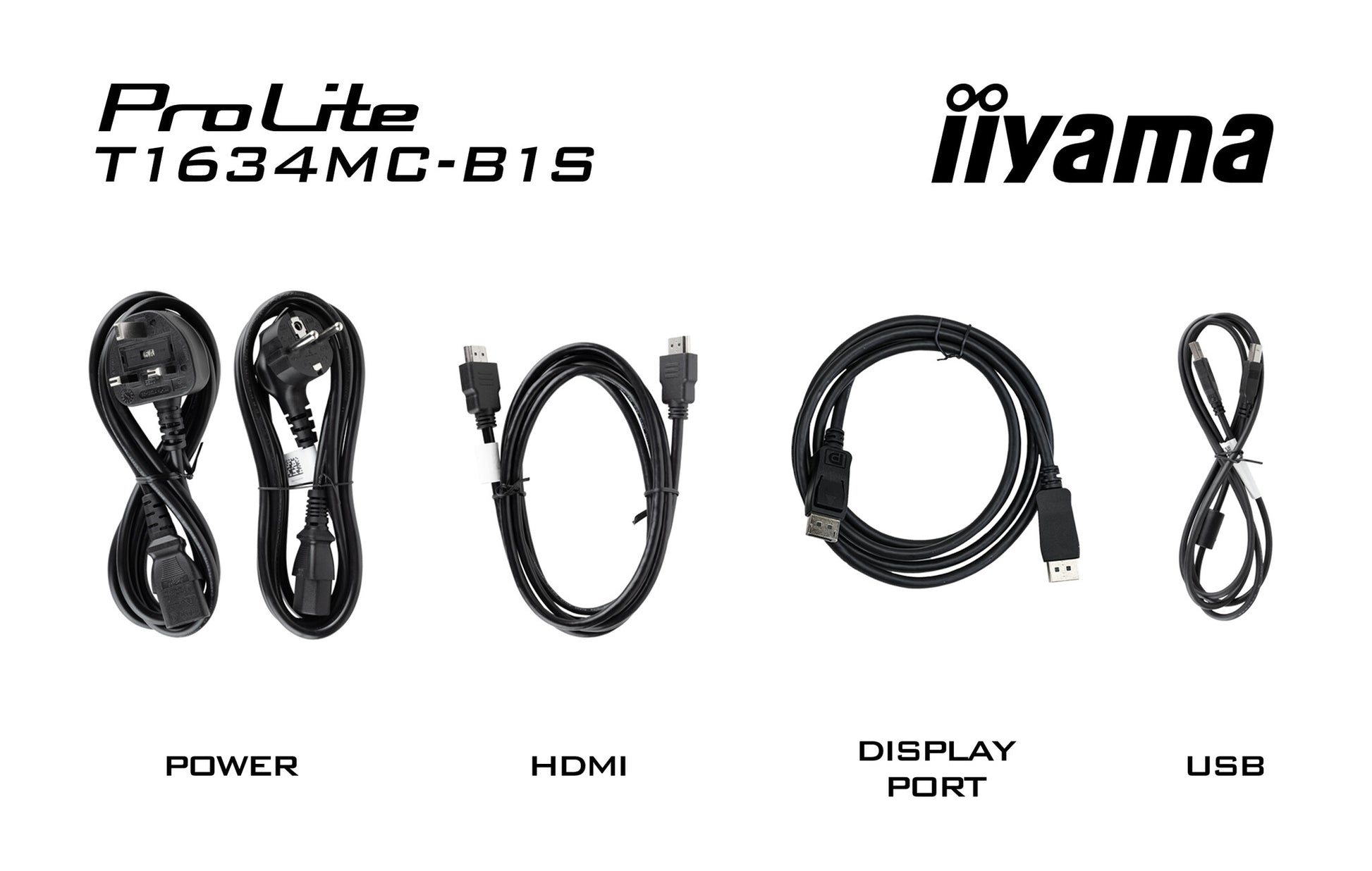

Cables included
AC, DisplayPort, HDMI, USB
Surface hardness
HDCP
Yes
Display diagonal (metric)
39.5 cm
Pixel pitch
0.179 x 0.179 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
Number of simultaneous touchpoints
10
Display technology
LED
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Yes
