TW1625LASC-B3PNR

TW1625LASC-B3PNR

  • Indoor Interactive flat panel Black
  • 39.6 cm (15.6") 1920 x 1080 pixels LED 450 cd/m²
  • Touchscreen 20 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 4 W
  • SKU:4948570125692
  • GTIN/EAN:4948570125692
  • MPN:TW1625LASC-B3PNR
Add To Favorite

You need to login to view the price.

View full details

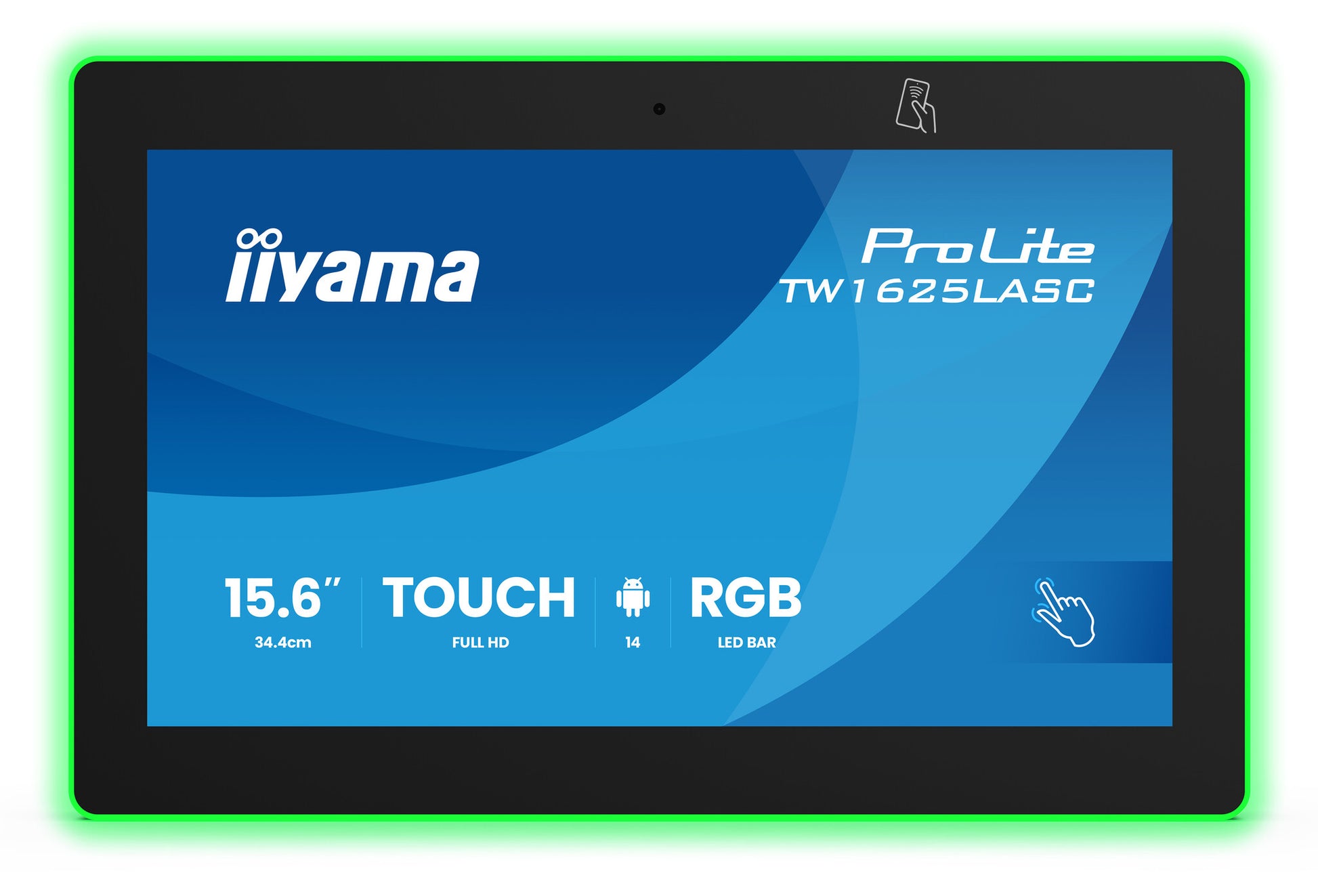

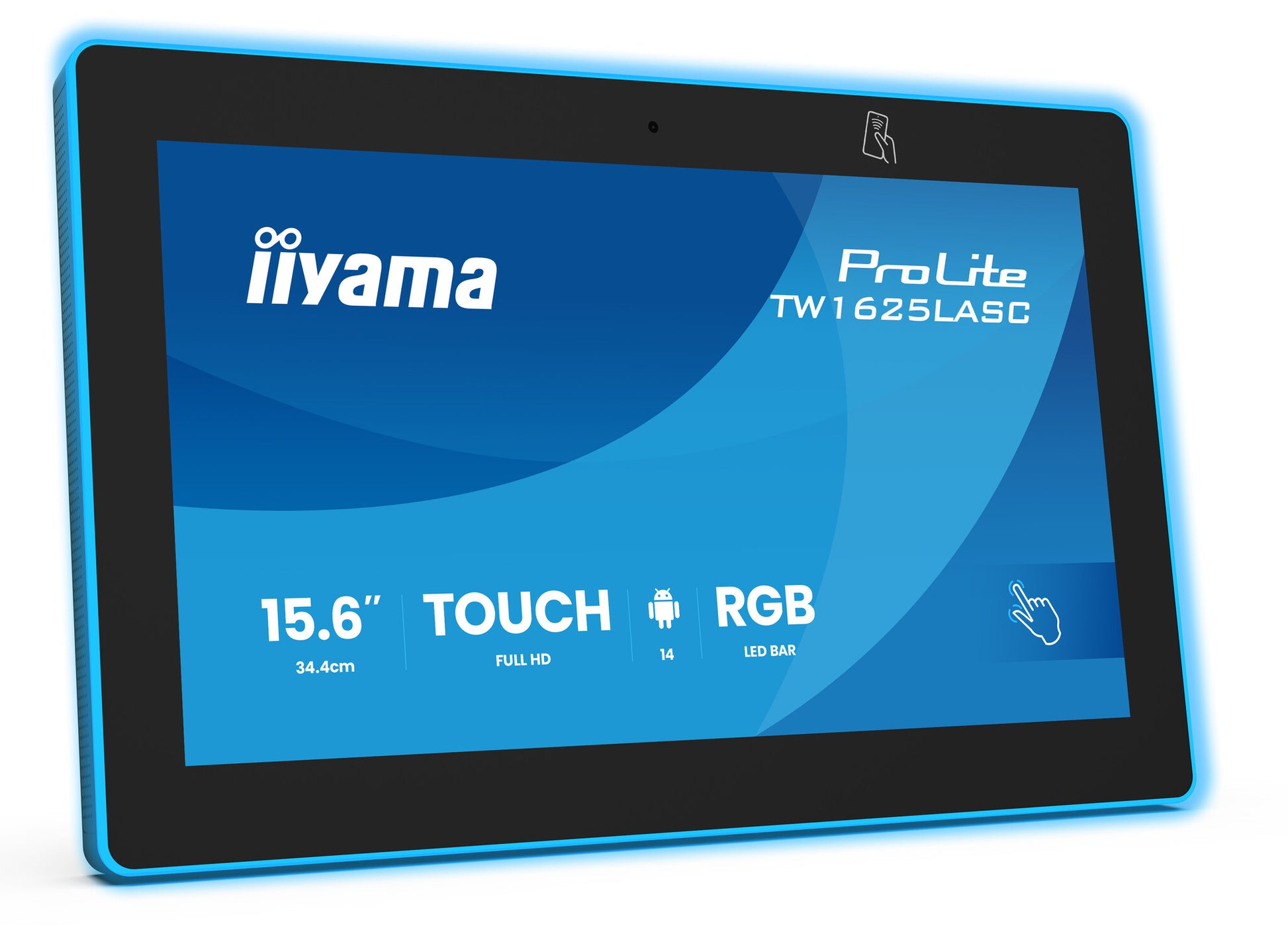

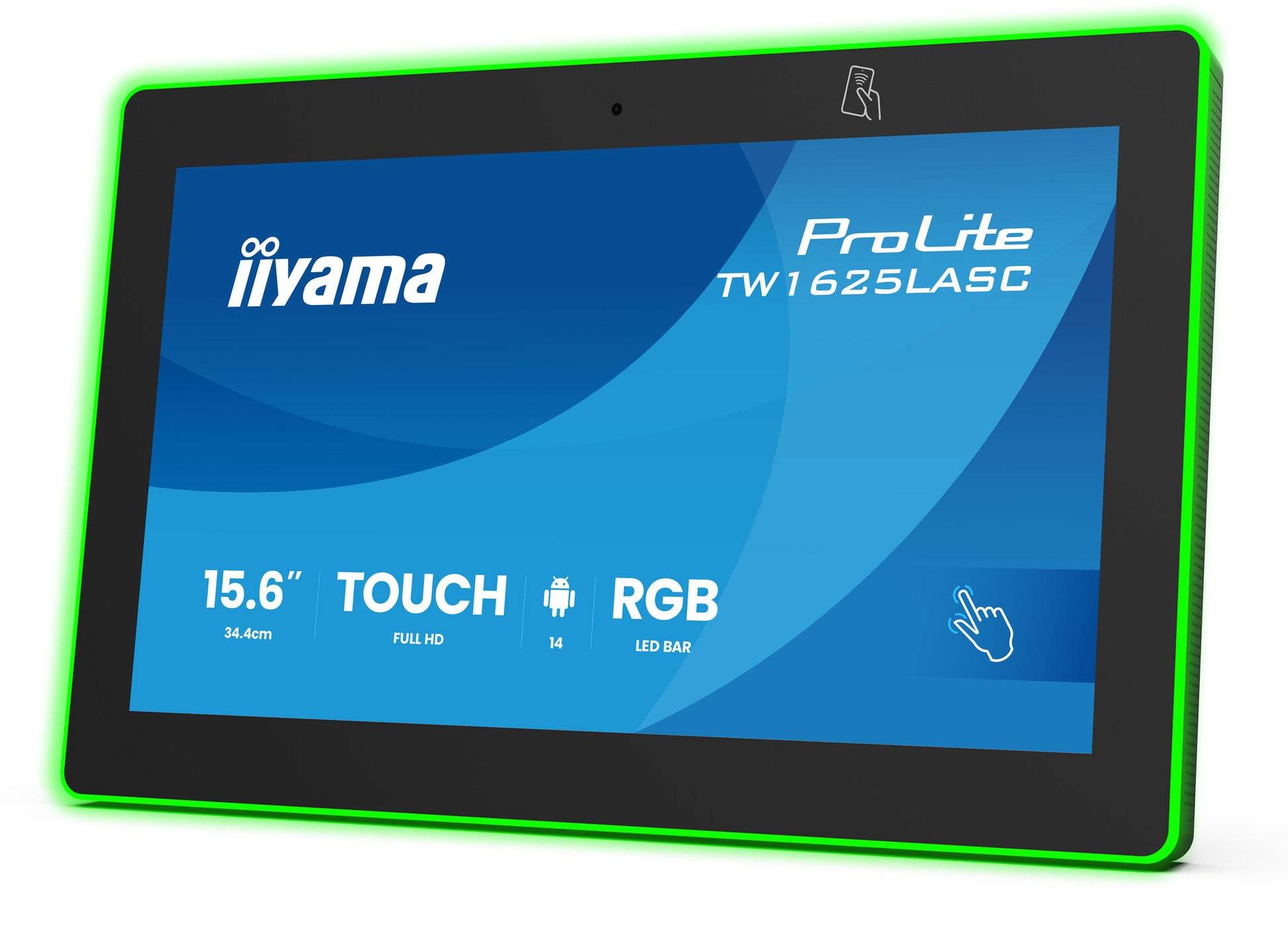

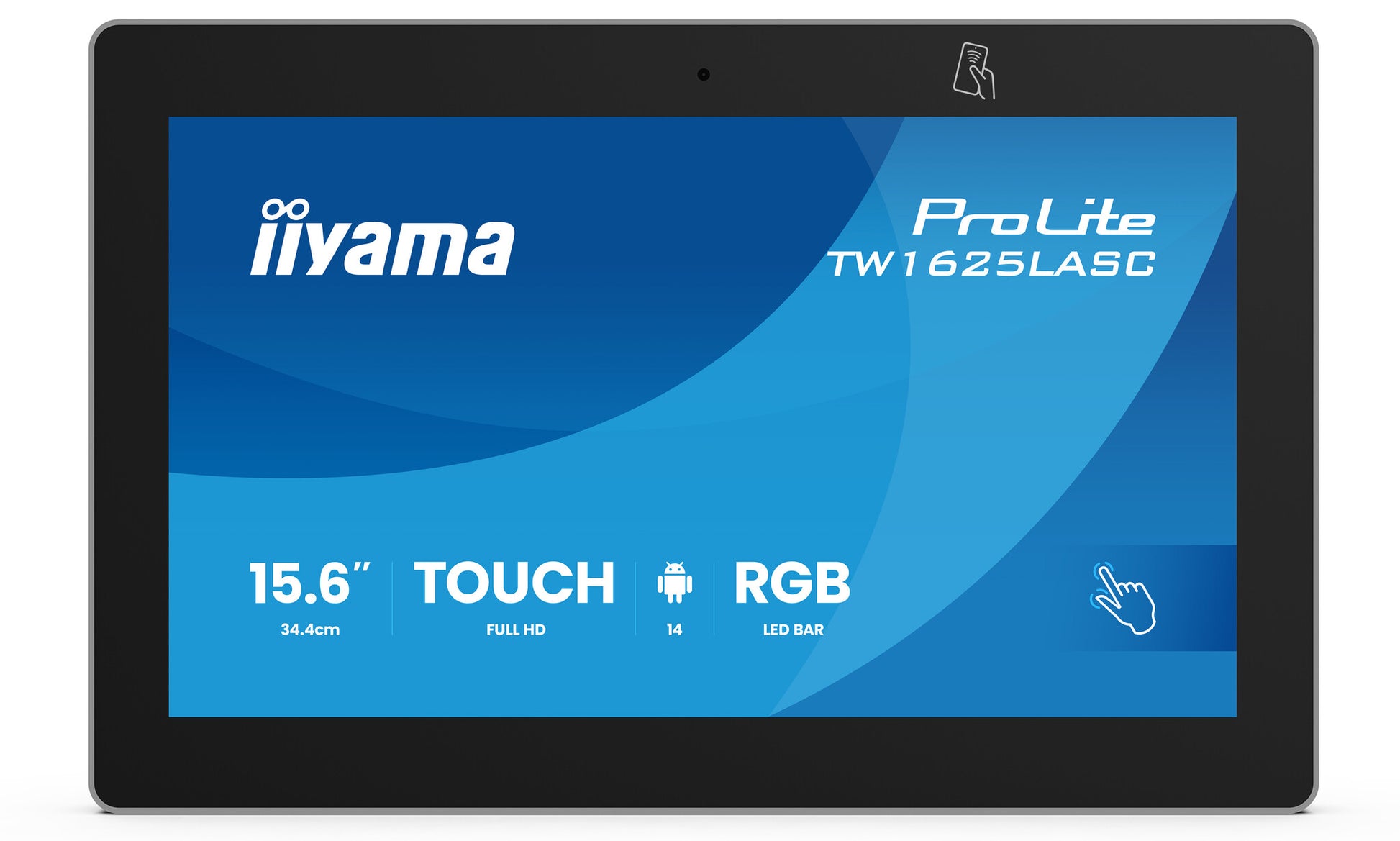

iiyama 15.6” PCAP 10pt touchscreen PC with Android, Power over Ethernet Technology, NFC/RFID reader and a RGB LED bar around the screen. Product design: Interactive flat panel. Display diagonal: 39.6 cm (15.6"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 450 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

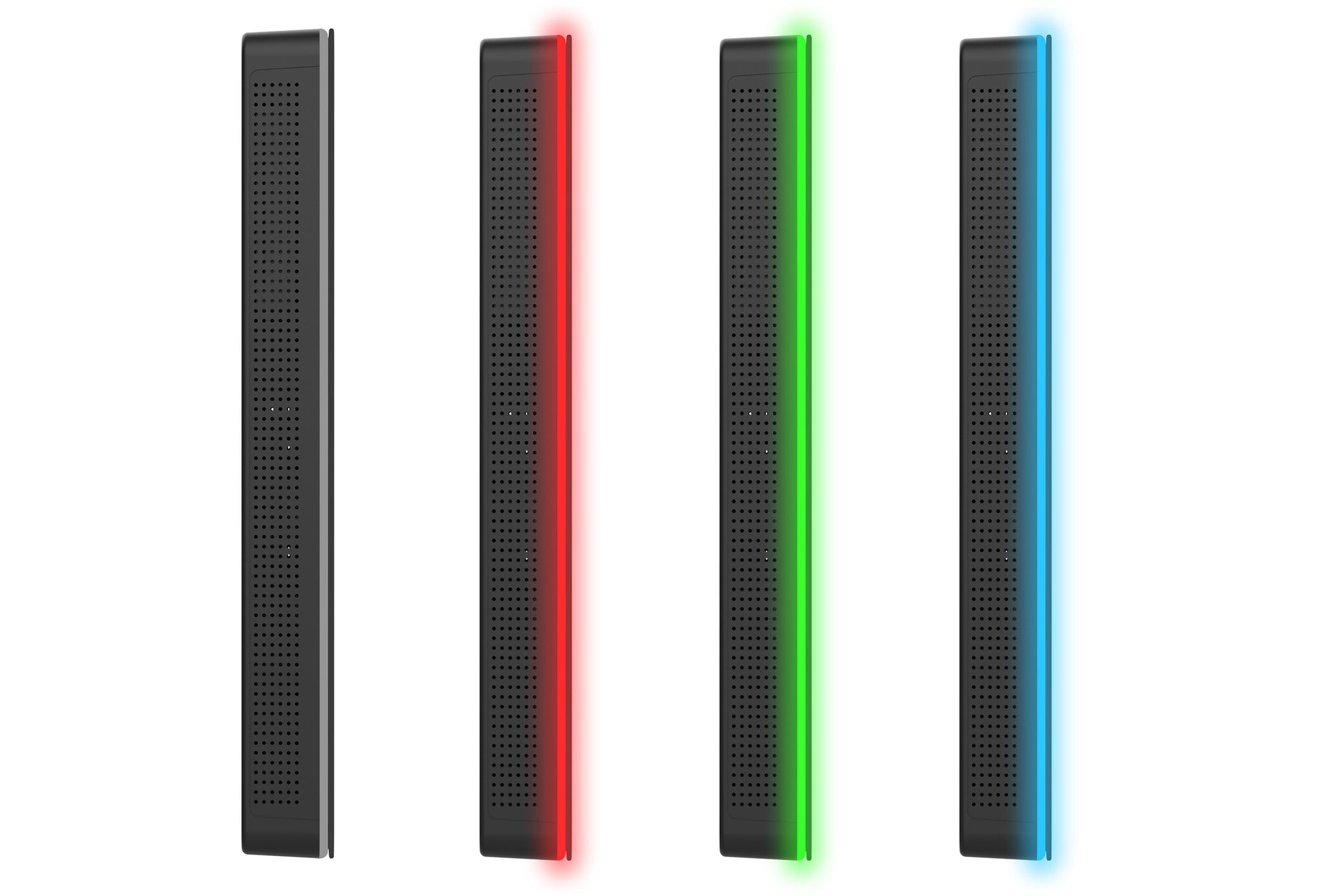

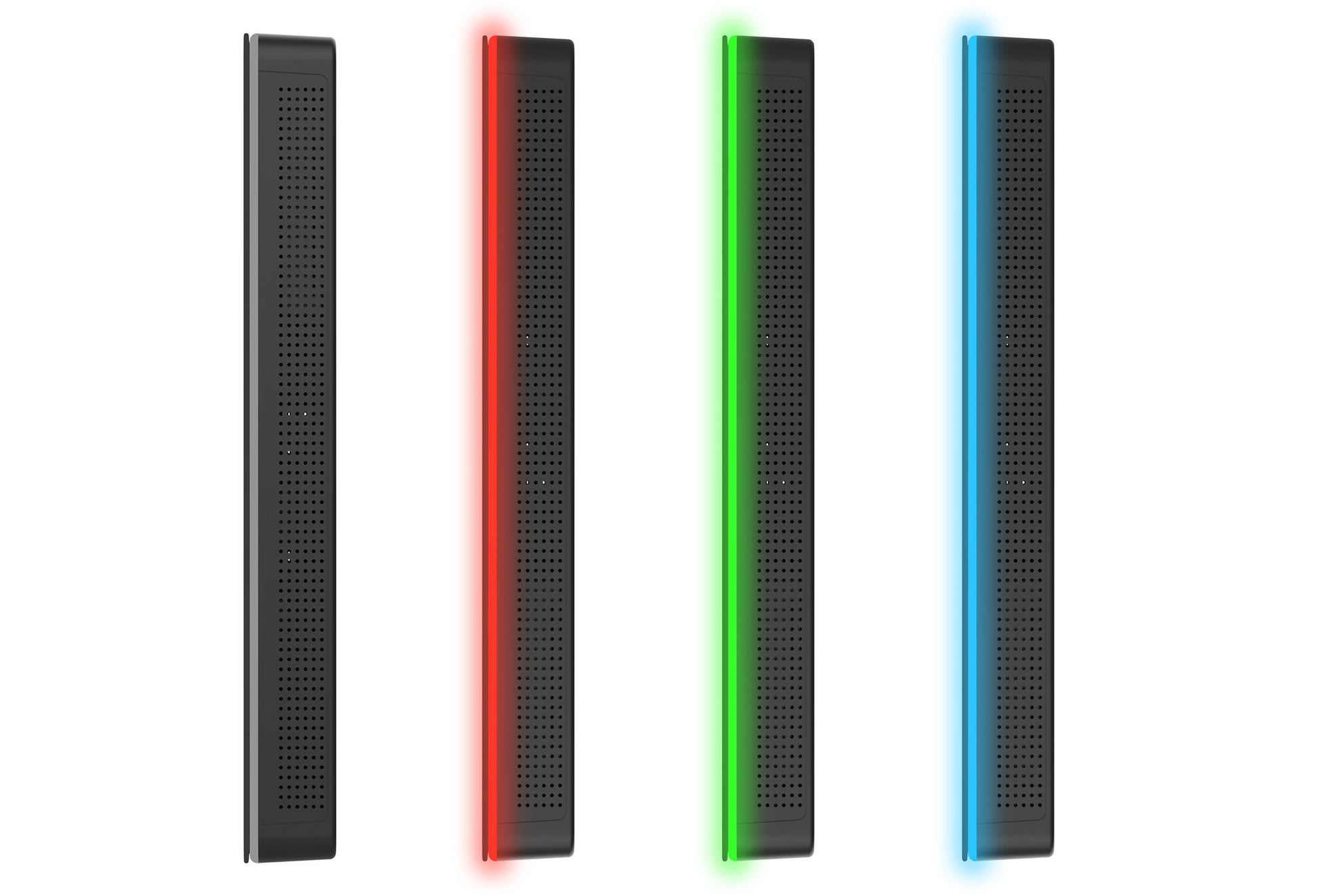

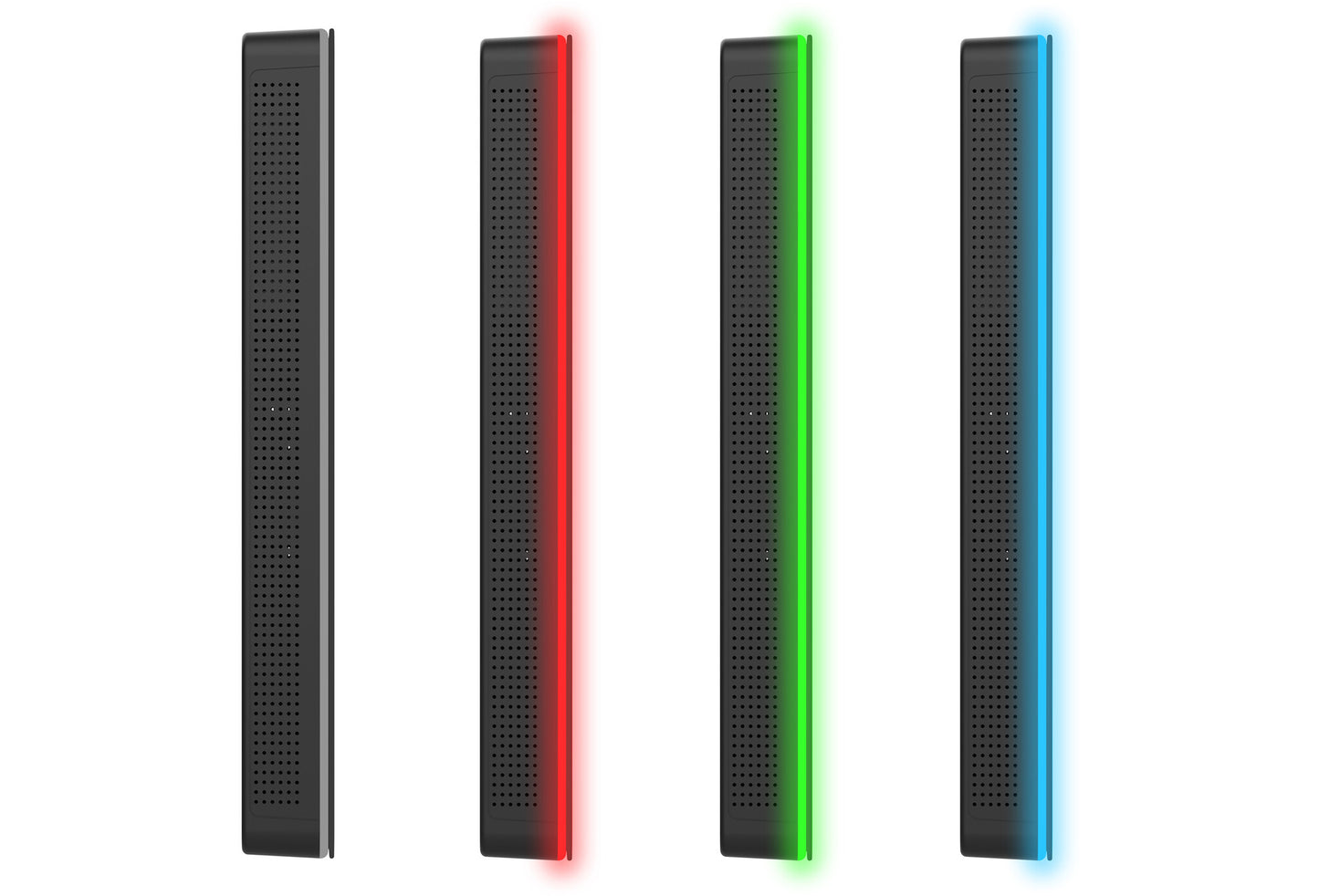

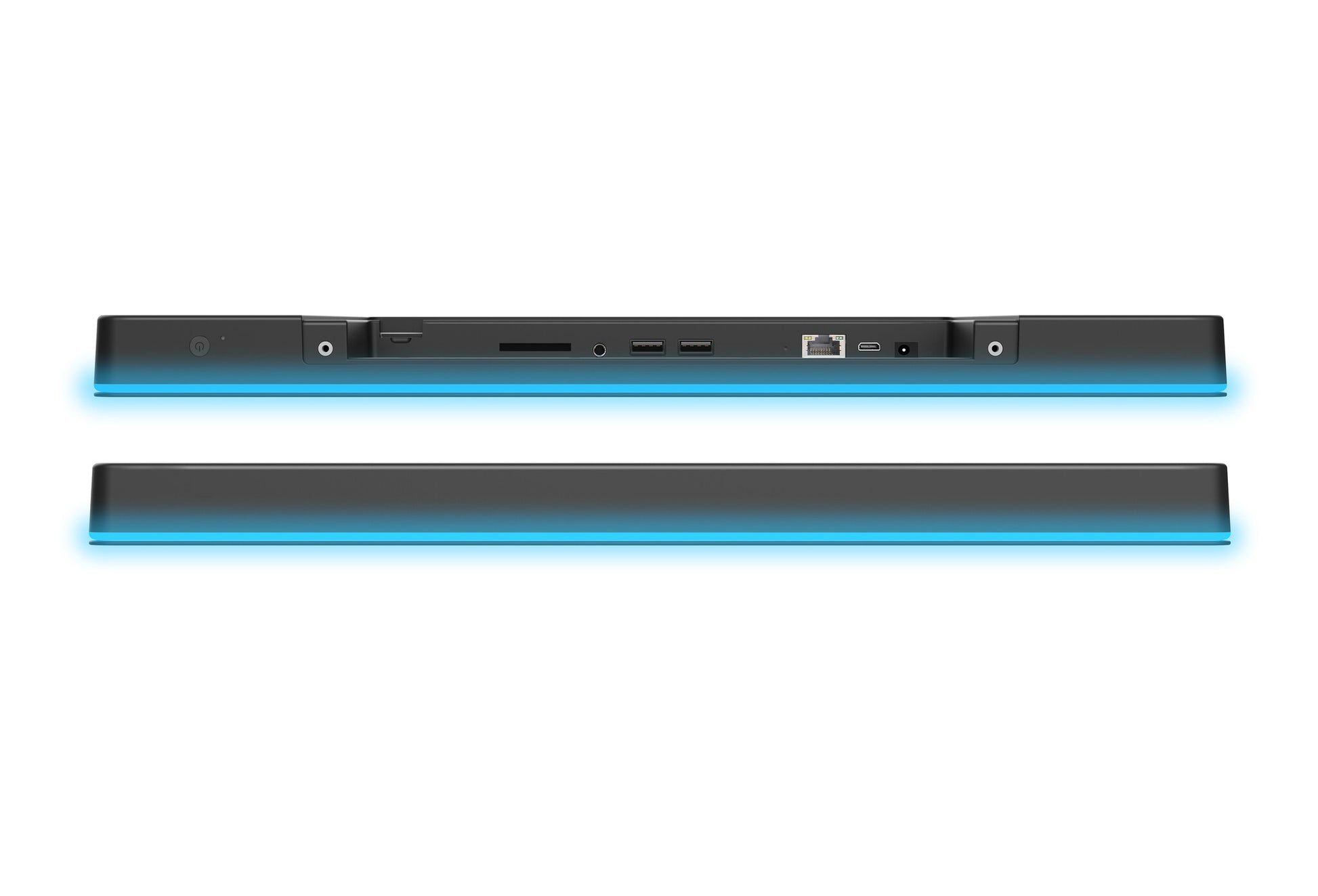

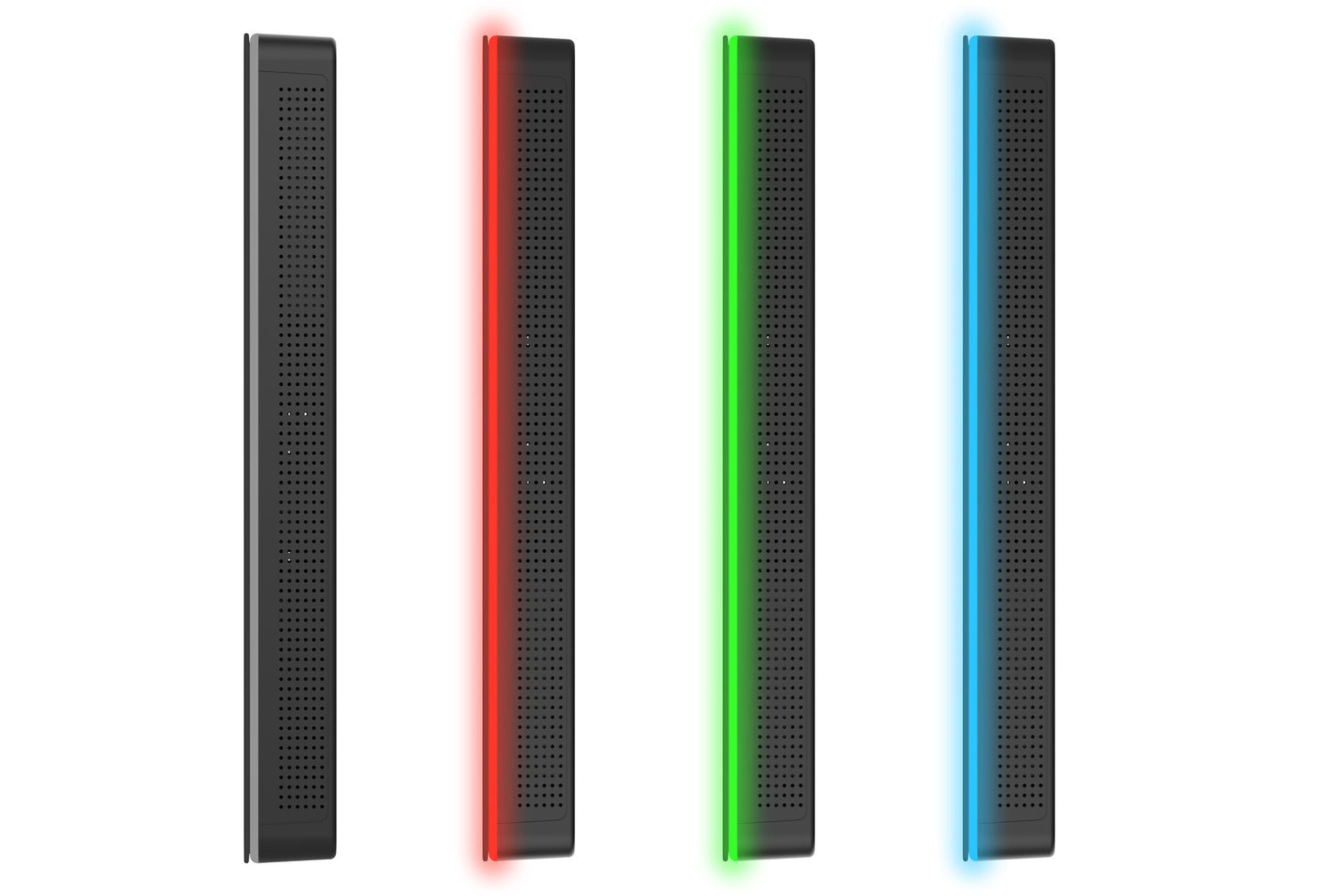

The ProLite TW1625LASC-B3PNR is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology with Optical Bonding ensures smooth and precise interaction with reduced glare, while protecting the display from humidity and moisture build-up. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. The integrated NFC/RFID reader enables contactless interaction with compatible tags or devices – ideal for quick check-in to rooms, employee authentication or triggering automated actions such as starting a presentation. The RGB LED bar integrated into the bezel shows the availability of rooms at a glance. With a built-in 5MP camera, microphone, and speakers, the TW1625LASC-B3PNR delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Display
Panel type
IPS
Glass thickness
2.05 mm
Surface hardness
6H
Active display area (W x H)
344.16 x 193.5 mm
Pixel pitch
0.1792 x 0.1792 mm
Display number of colours
16.7 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1000:1
Response time
20 ms
Native aspect ratio
16:9
Number of simultaneous touchpoints
10
Multi-touch
Yes
Touchscreen technology
Capacitive
Touchscreen
Yes
HD type
Full HD
Display brightness
450 cd/m²
Display resolution
1920 x 1080 pixels
LED backlight
Yes
Display technology
LED
Display diagonal
39.6 cm (15.6")
Ports & interfaces
PC Audio out
Yes
Compatible memory cards
SD
Card reader integrated
Yes
PC Audio in
Yes
Wi-Fi
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
3
USB port
Yes
DVI port
No
Audio
RMS rated power
4 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Fingerprint resistant
Yes
Anti-glare screen
Yes

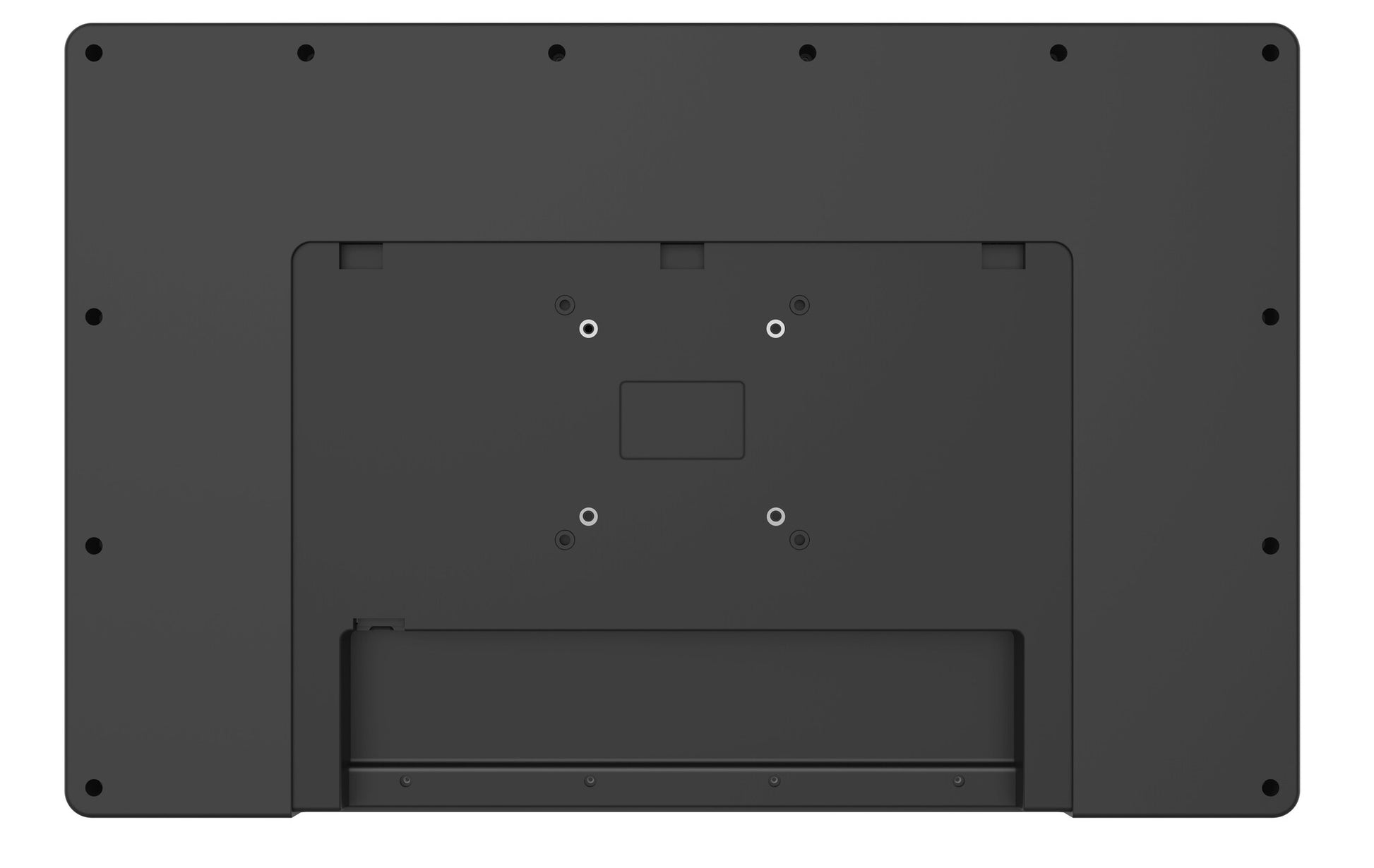

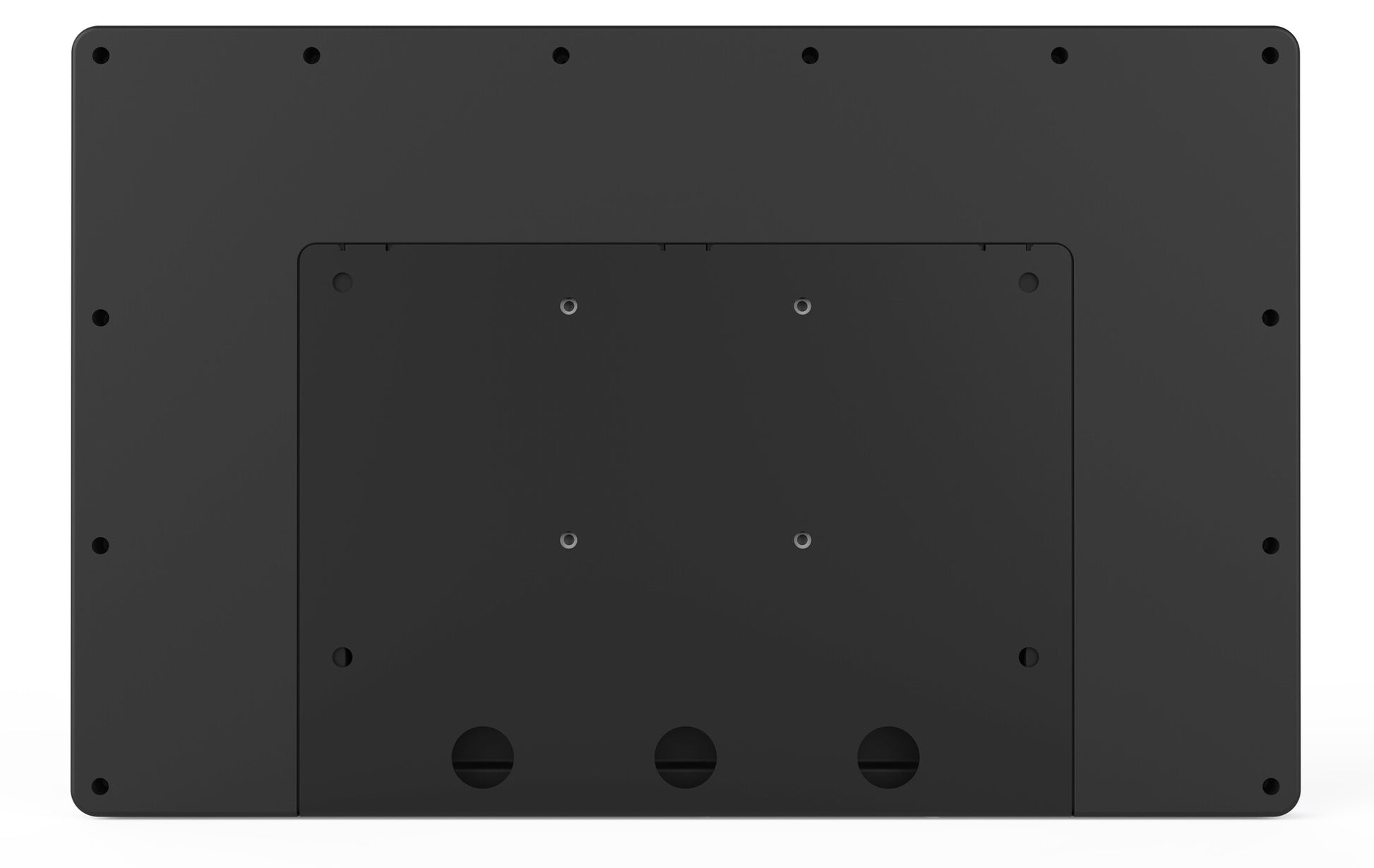

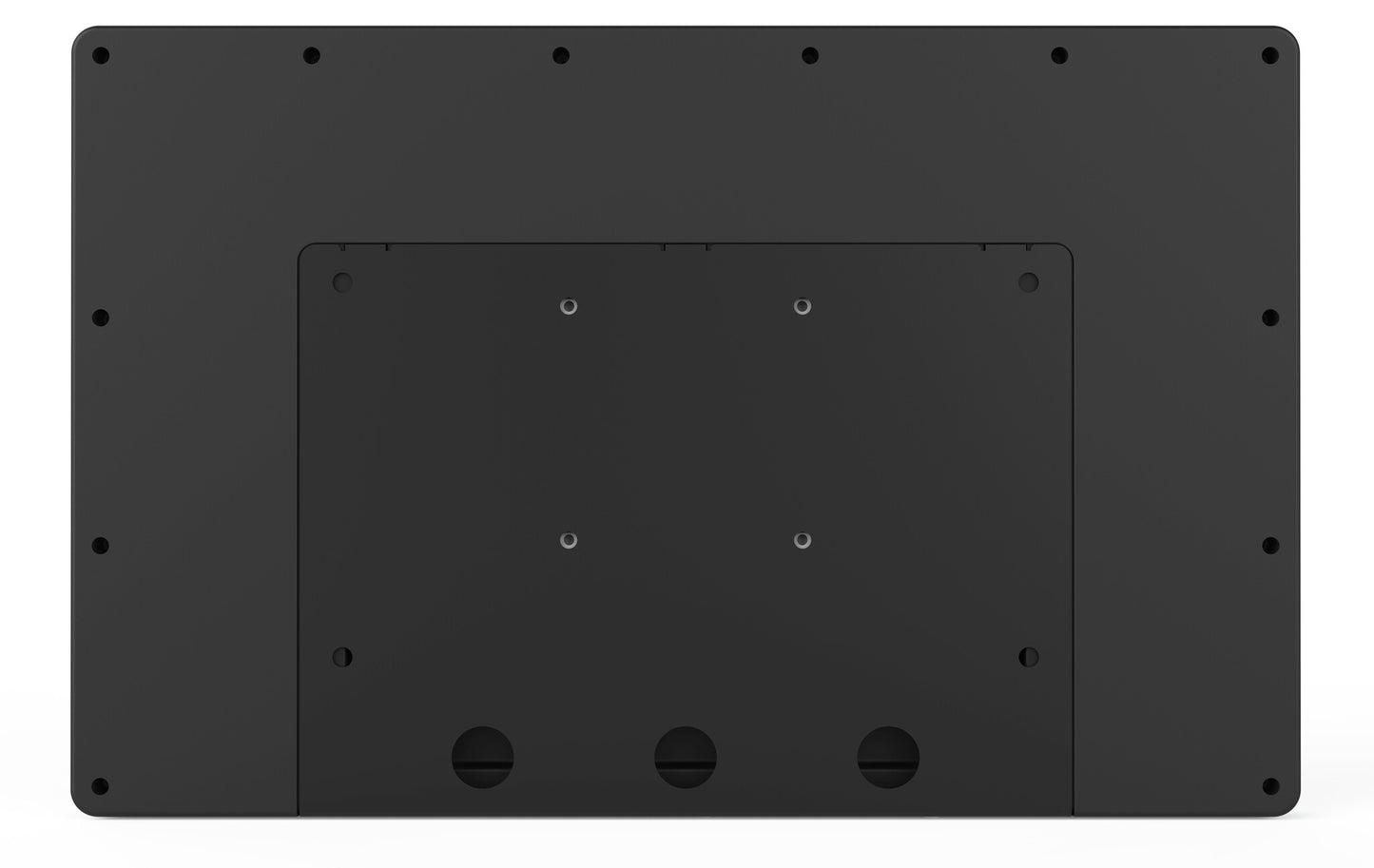

Panel mounting interface
75 x 75 mm
VESA mounting
Yes
Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Interactive flat panel
Performance
Operating hours (hours/days)
24/7
Purpose
Universal
Power
Power consumption (standby)
0.5 W
Power consumption (typical)
11 W
Computer system
Operating system version
14
Operating system installed
Android
Internal storage capacity
32 GB
Internal memory
4 GB
Processor cores
8
Processor frequency
2.2 GHz
Processor architecture
ARM Cortex-A53+Cortex-A72
Processor family
ARM Rockchip
Processor manufacturer
ARM
Built-in processor
Yes
Weight & dimensions
Display weight
2 kg
Display height
256 mm
Display depth
28.5 mm
Display width
397 mm
Packaging data
Package weight
3 kg
Package height
305 mm
Package depth
75 mm
Package width
495 mm
Packaging content
Power adapter included
Yes
Certificates
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Features
Wall mountable
Yes
Other features
USB connector type
USB Type-A, USB Type-C
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
