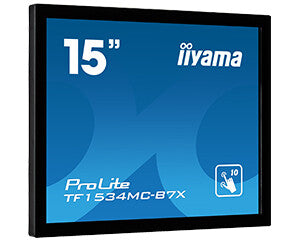

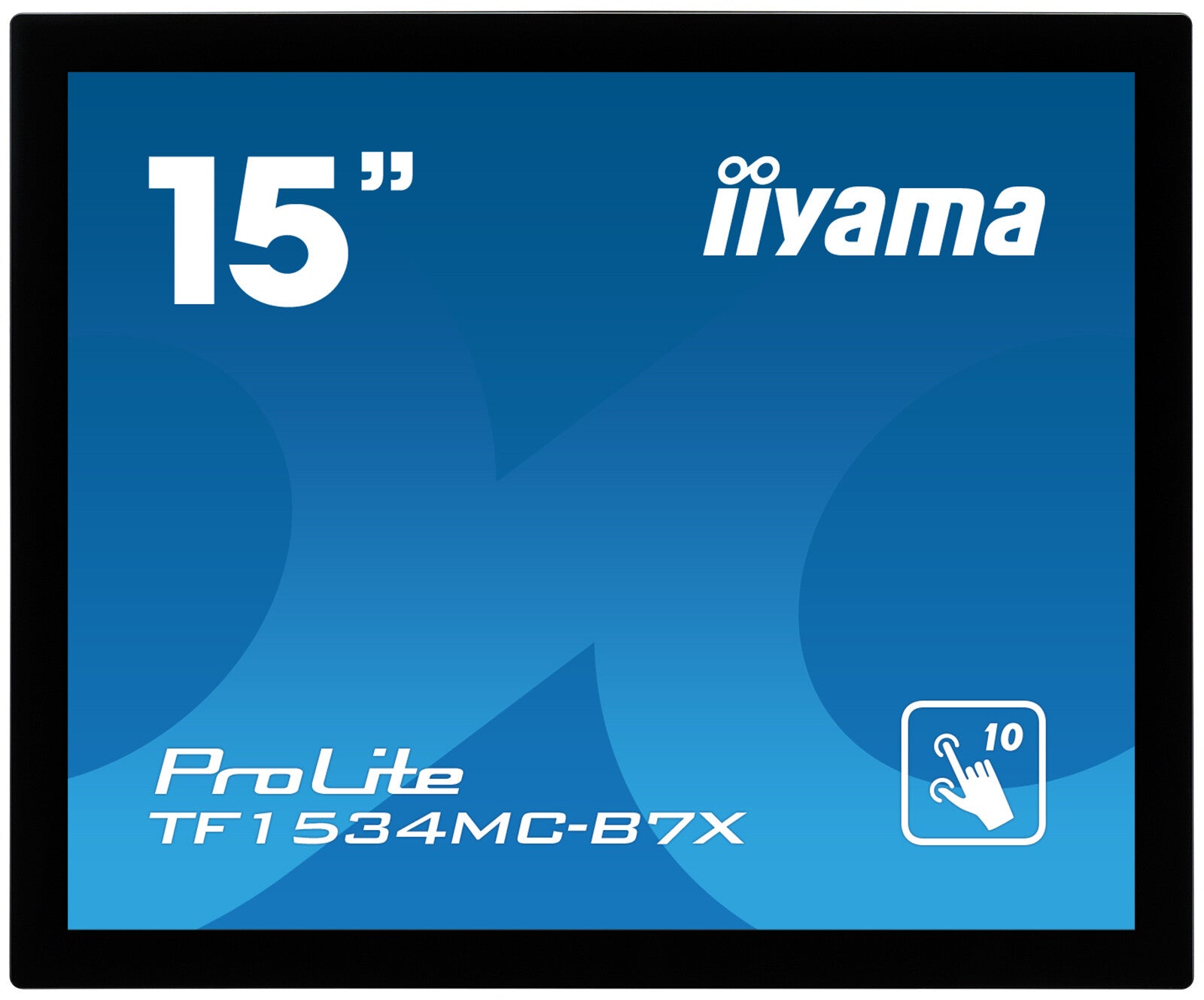

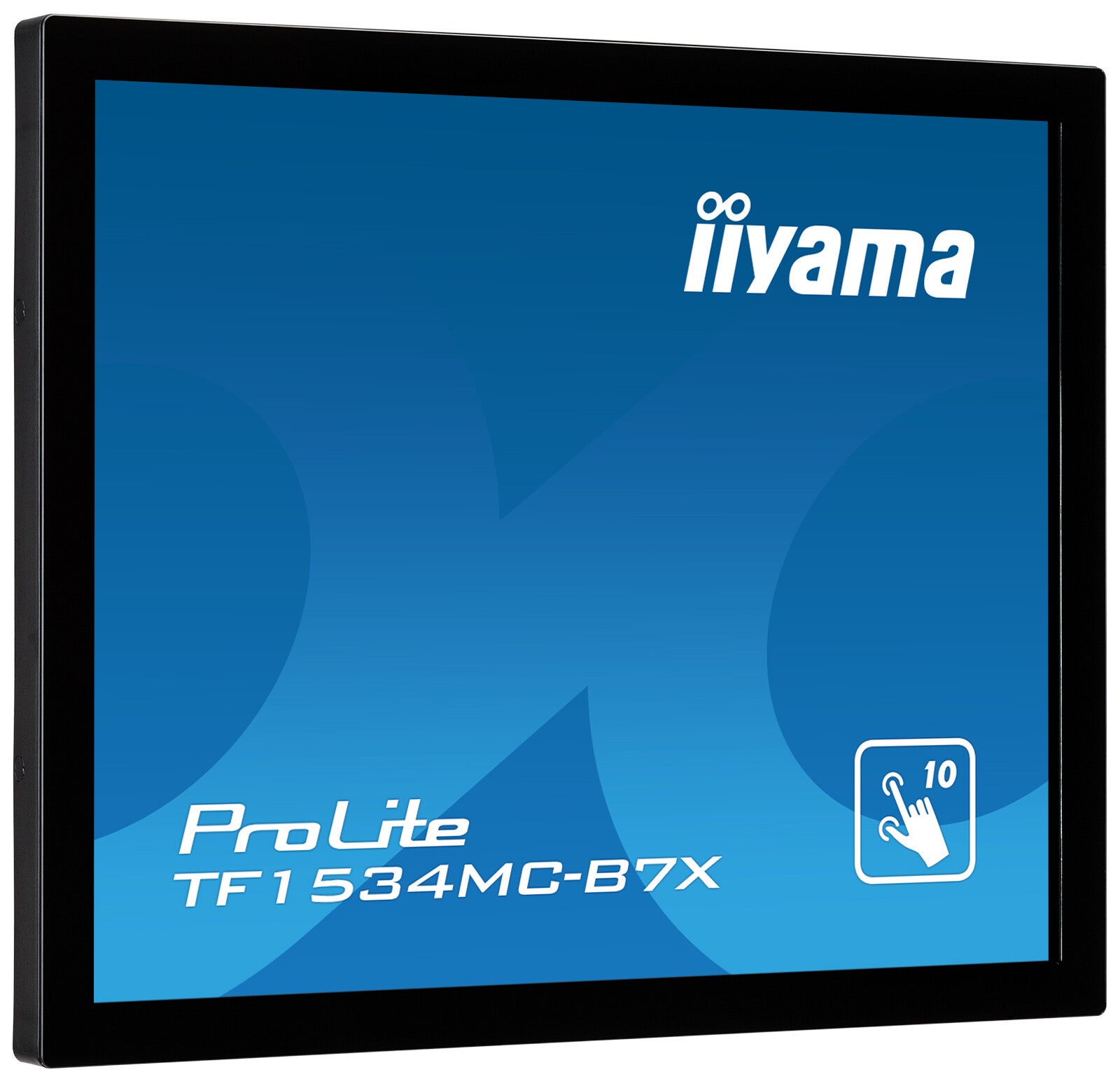

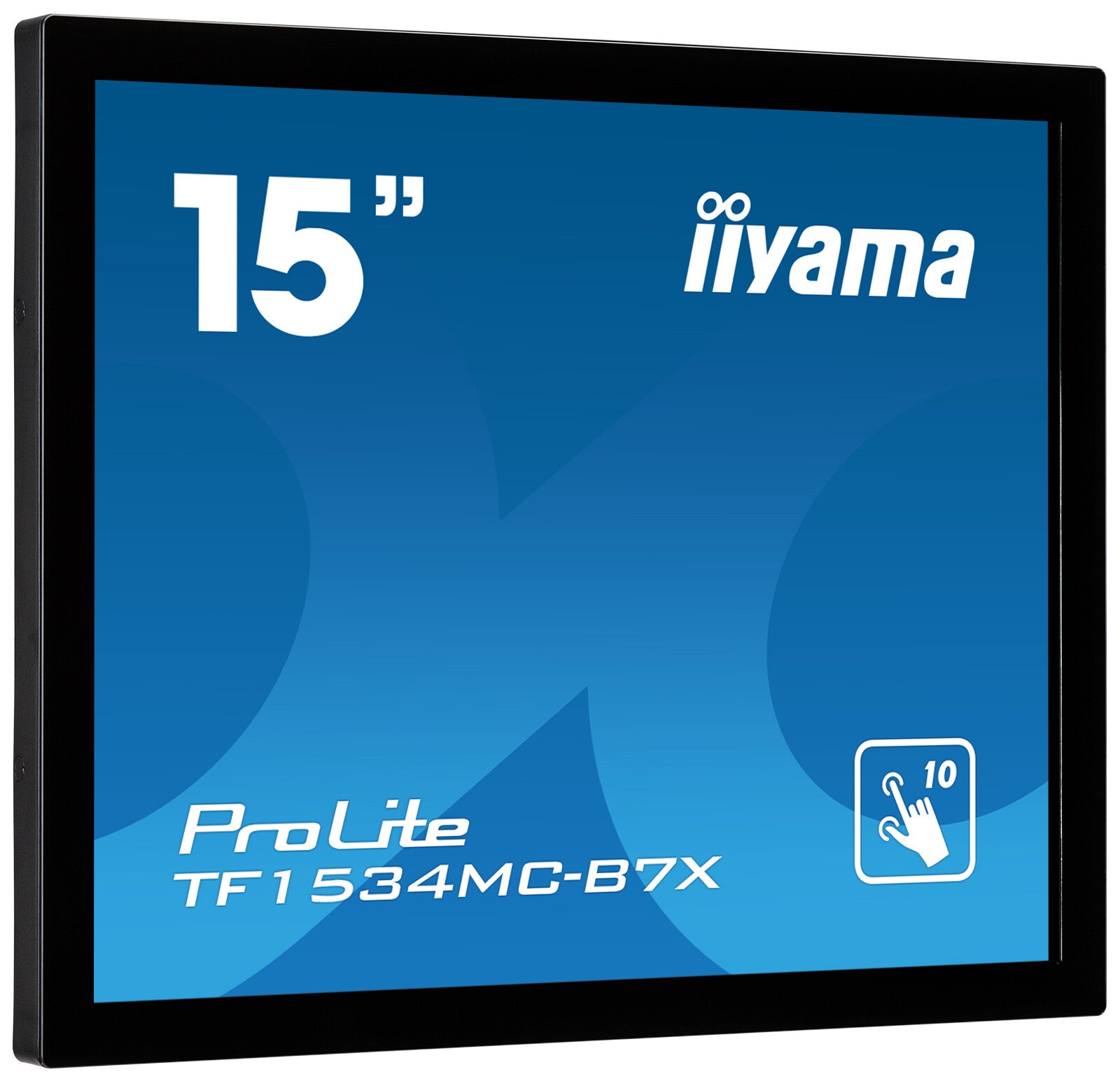

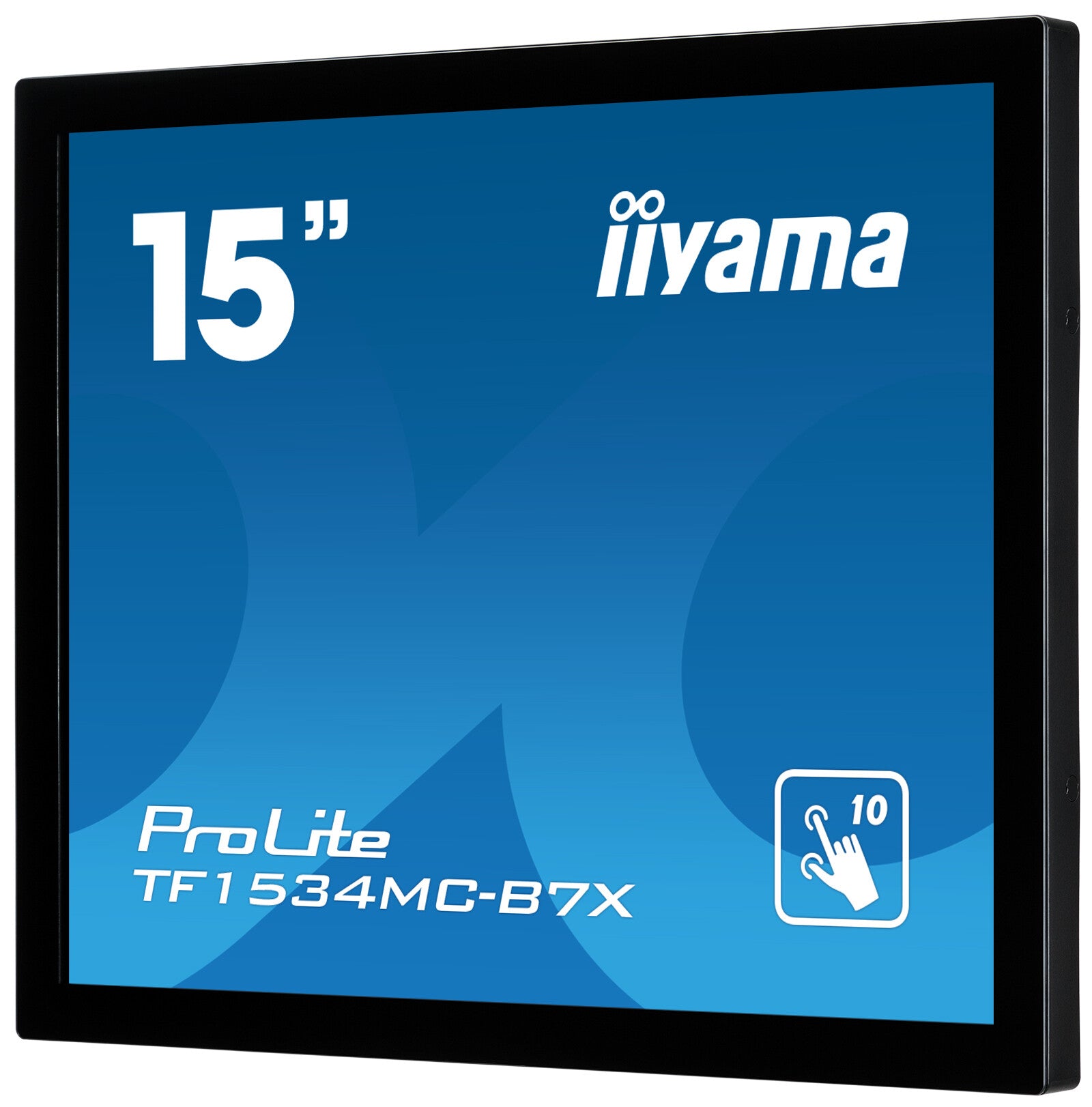

iiyama TF1534MC-B7X

iiyama TF1534MC-B7X

15’’ 10pt touch Open Frame monitor with Touch Through-Glass function

  • Touchscreen 38.1 cm (15") LED TN
  • XGA 1024 x 768 pixels 4:3
  • 8 ms 700:1
  • E 10 kWh 8 W
  • SKU:4948570118380
  • GTIN/EAN:4948570118380
  • MPN:TF1534MC-B7X

You need to login to view the price.

Add To Favorite
View full details

iiyama TF1534MC-B7X. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA. Product colour: Black. Package width: 435 mm, Package depth: 165 mm, Package height: 335 mm

The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

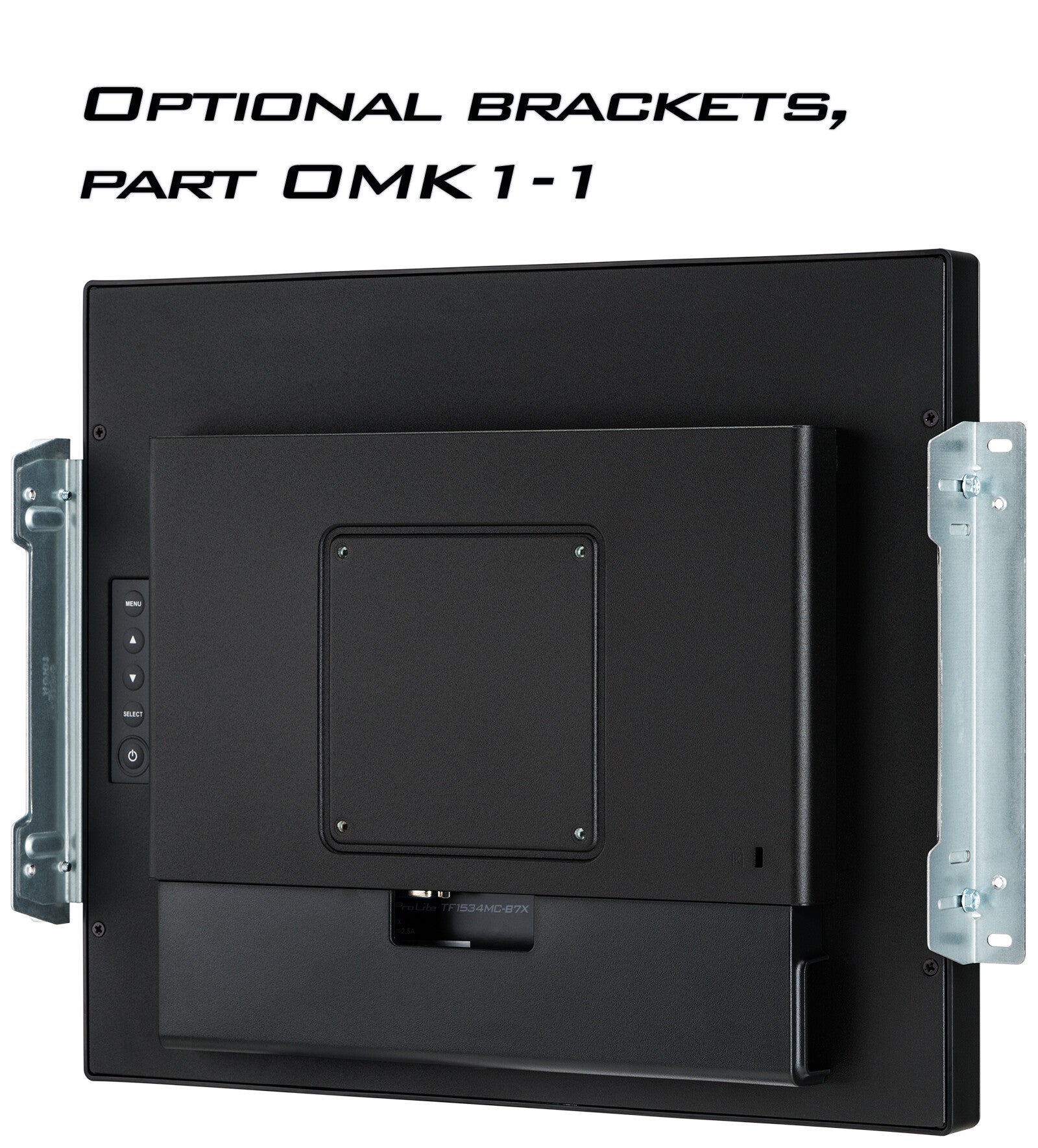

OPEN FRAME BRACKETS
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.

Display
Response time
8 ms
Viewing angle, horizontal
170°
Viewing angle, vertical
170°
Touchscreen
Yes
Display brightness
370 cd/m²
Features
Product colour
Black
Packaging data
Package width
435 mm
Package depth
165 mm
Package height
335 mm
Package weight
4 kg
