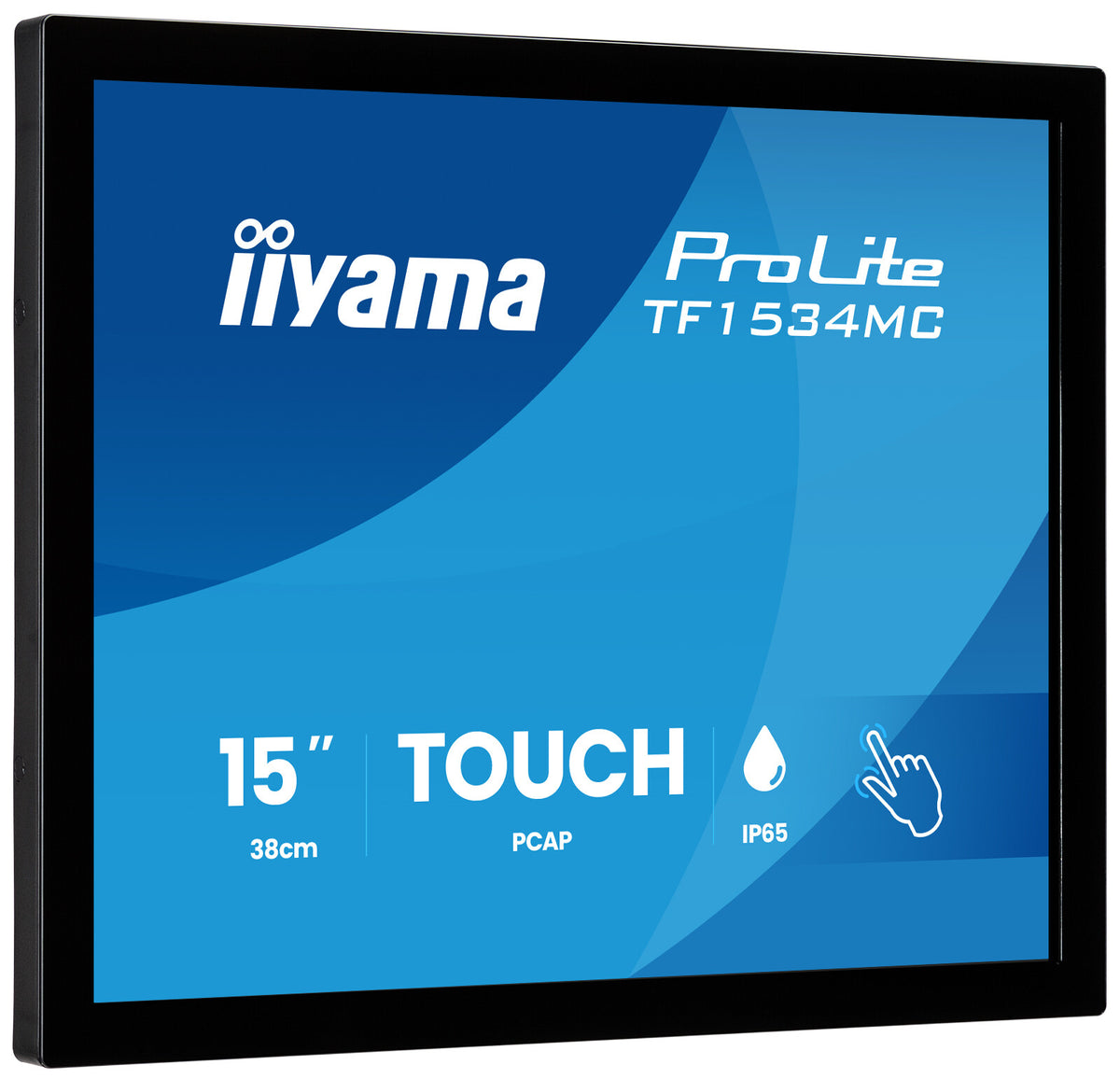

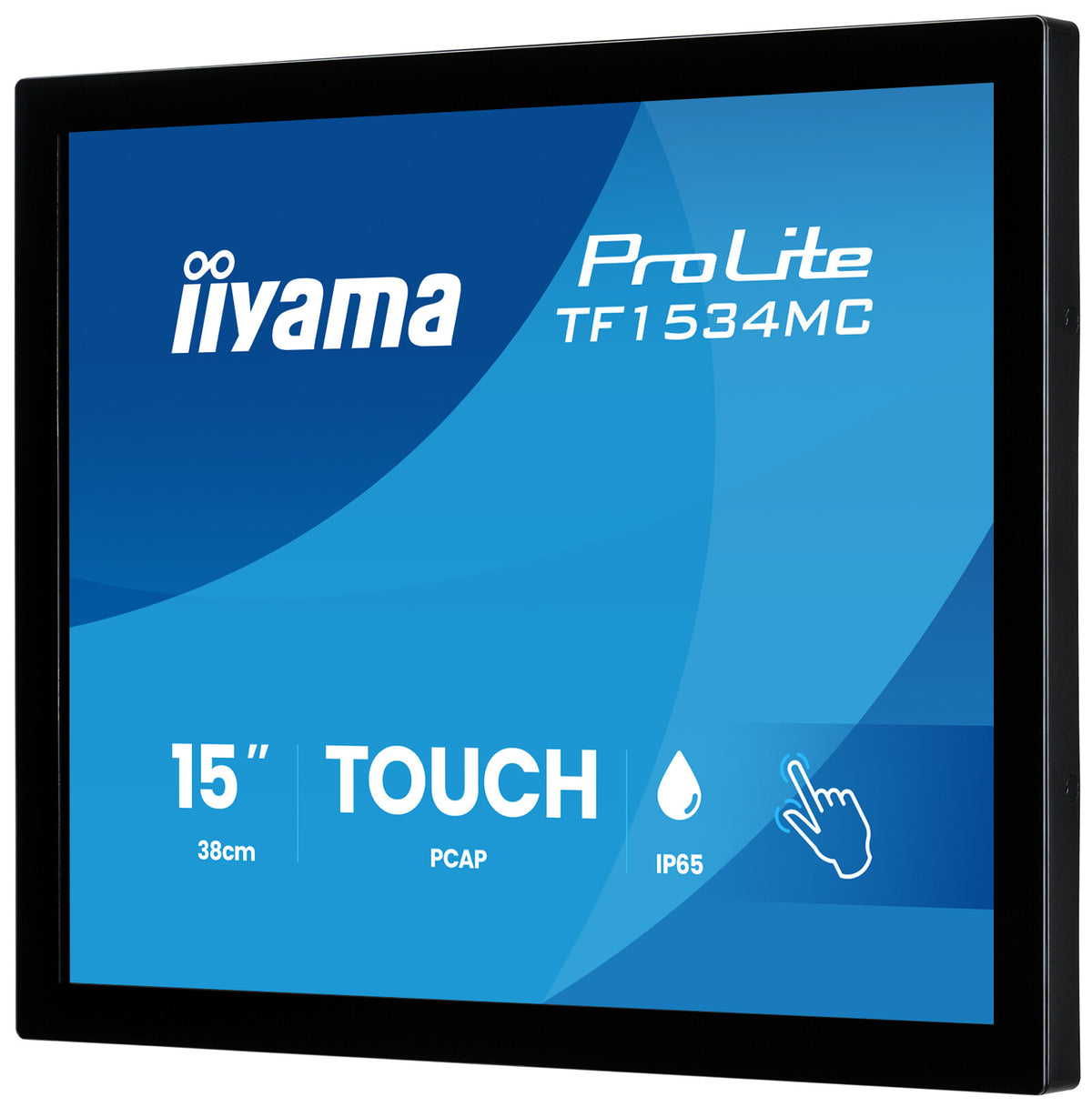

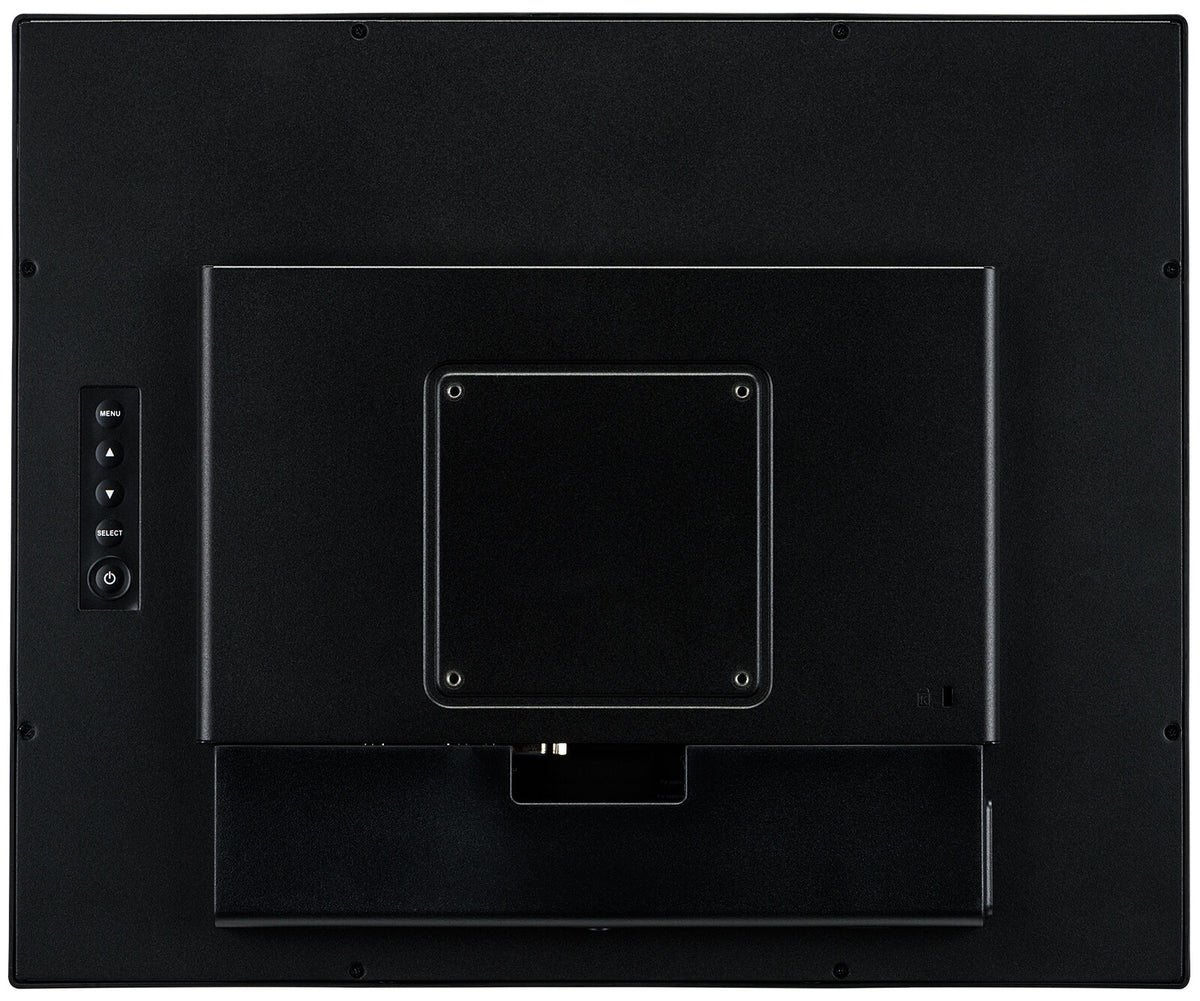

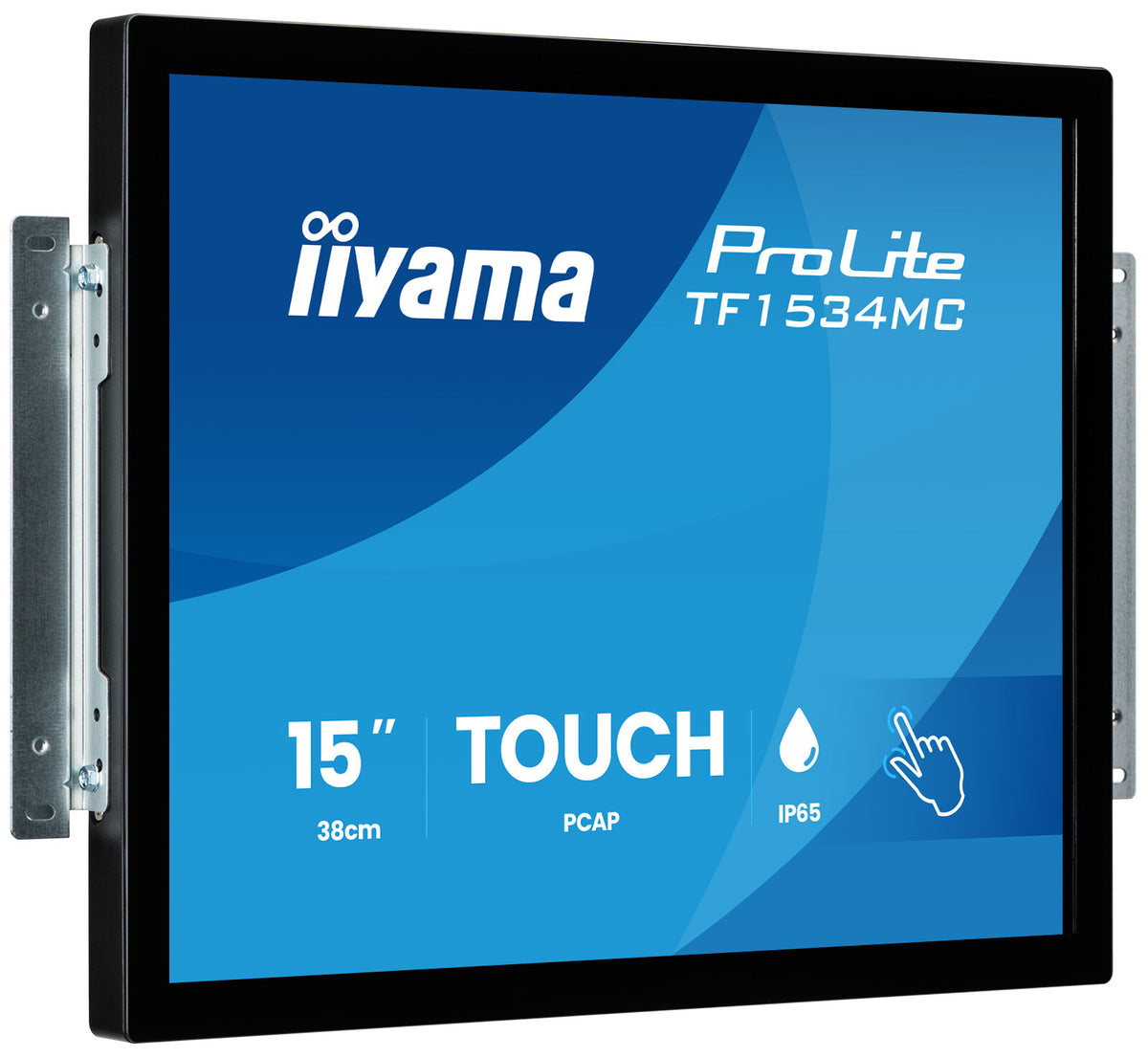

iiyama ProLite TF1534MC-B8X computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Black

iiyama ProLite TF1534MC-B8X computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LED Touchscreen Black

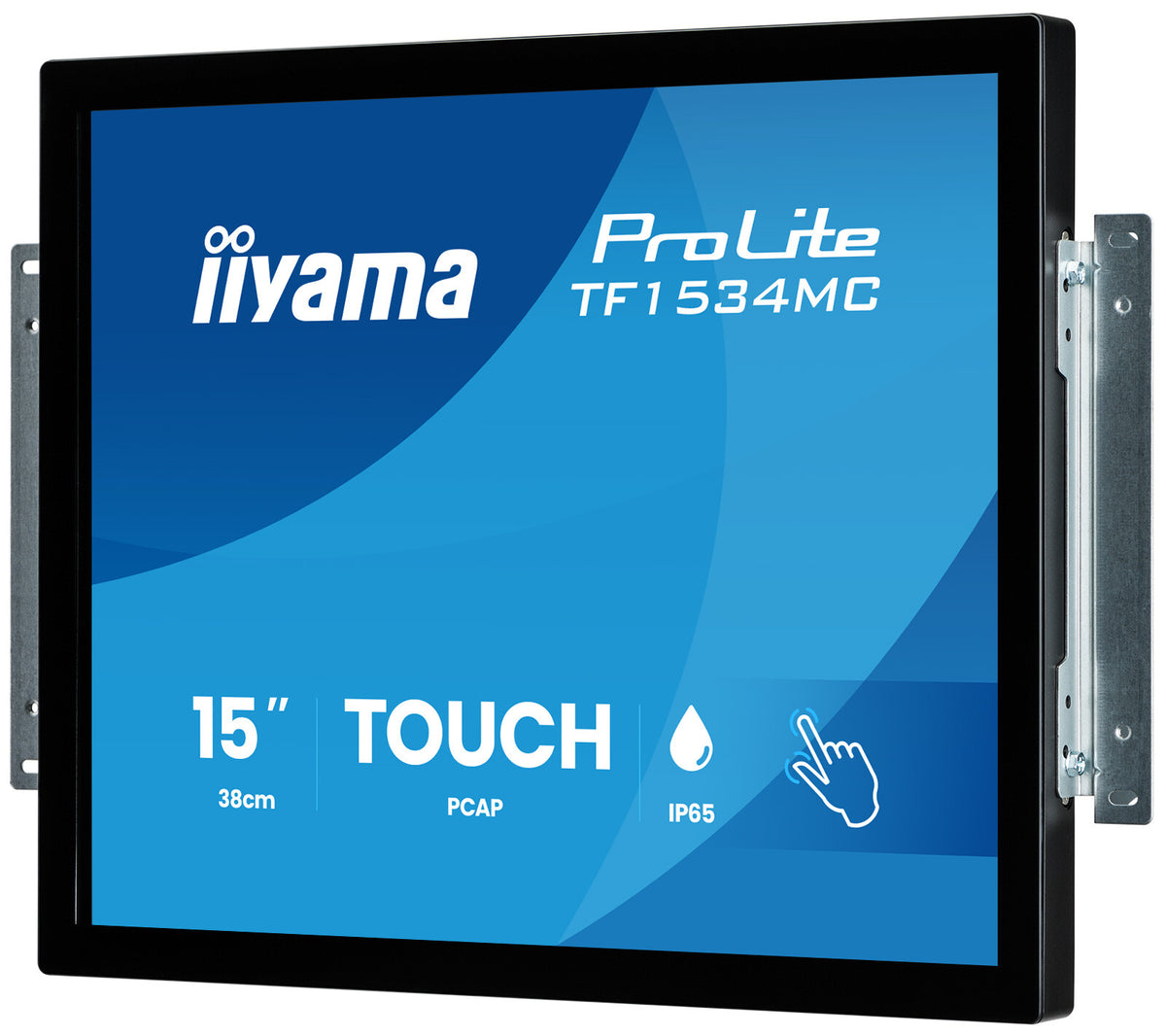

15” Open Frame touchscreen monitor with edge-to-edge glass and Touch Through-Glass function for flexible integration

  • 38.1 cm (15") Black
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Maximum refresh rate: 75 Hz Response time: 8 ms
  • 1024 x 768 pixels XGA Panel type: TN
  • Energy efficiency class (SDR): D ErP CE, cULus, EAC, REACH, RoHS, WEEE
  • SKU:4948570127801
  • GTIN/EAN:4948570127801
  • MPN:TF1534MC-B8X

You need to login to view the price.

View full details

iiyama ProLite TF1534MC-B8X. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Display technology: LED, Response time: 8 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. VESA mounting. Product colour: Black

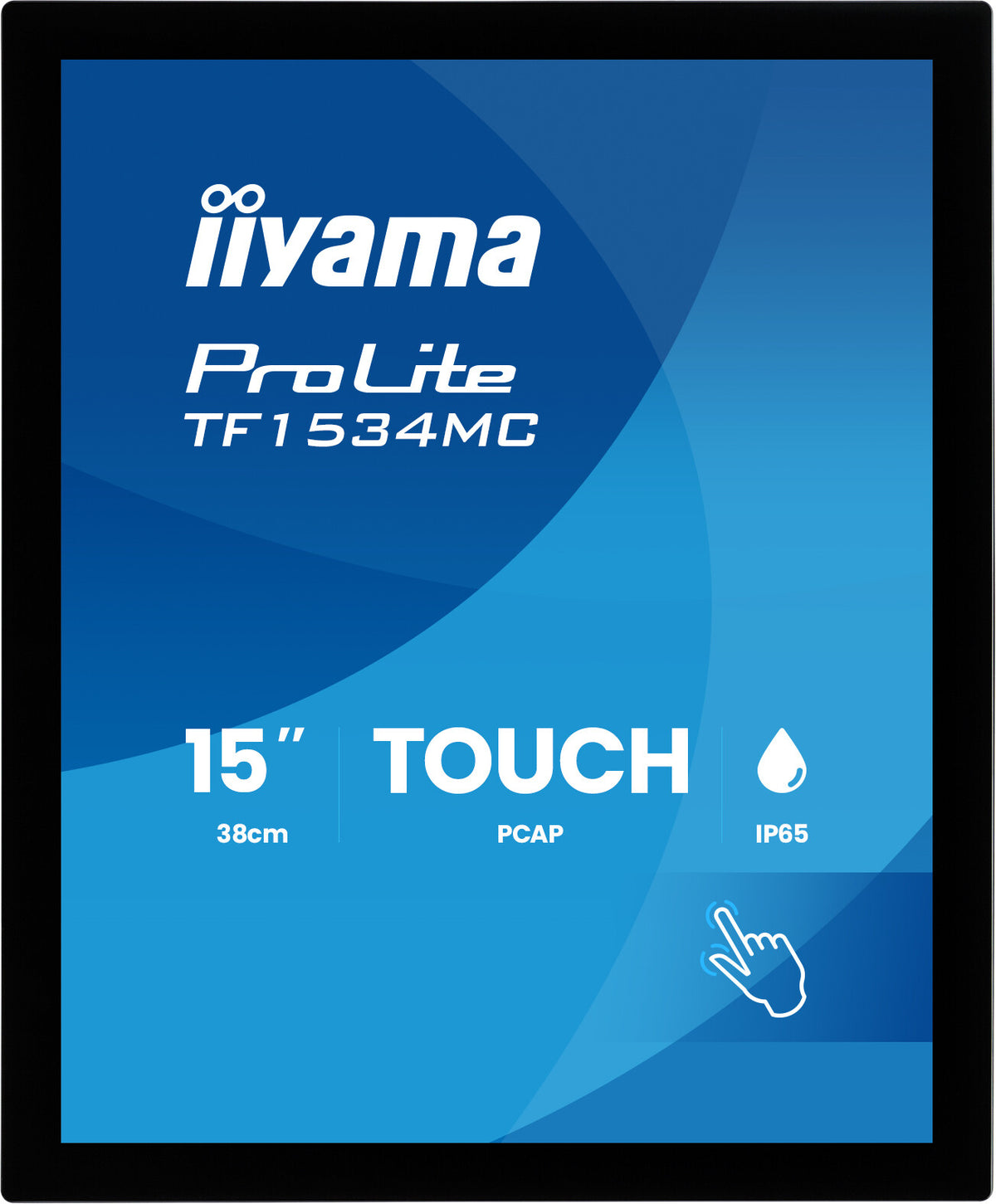

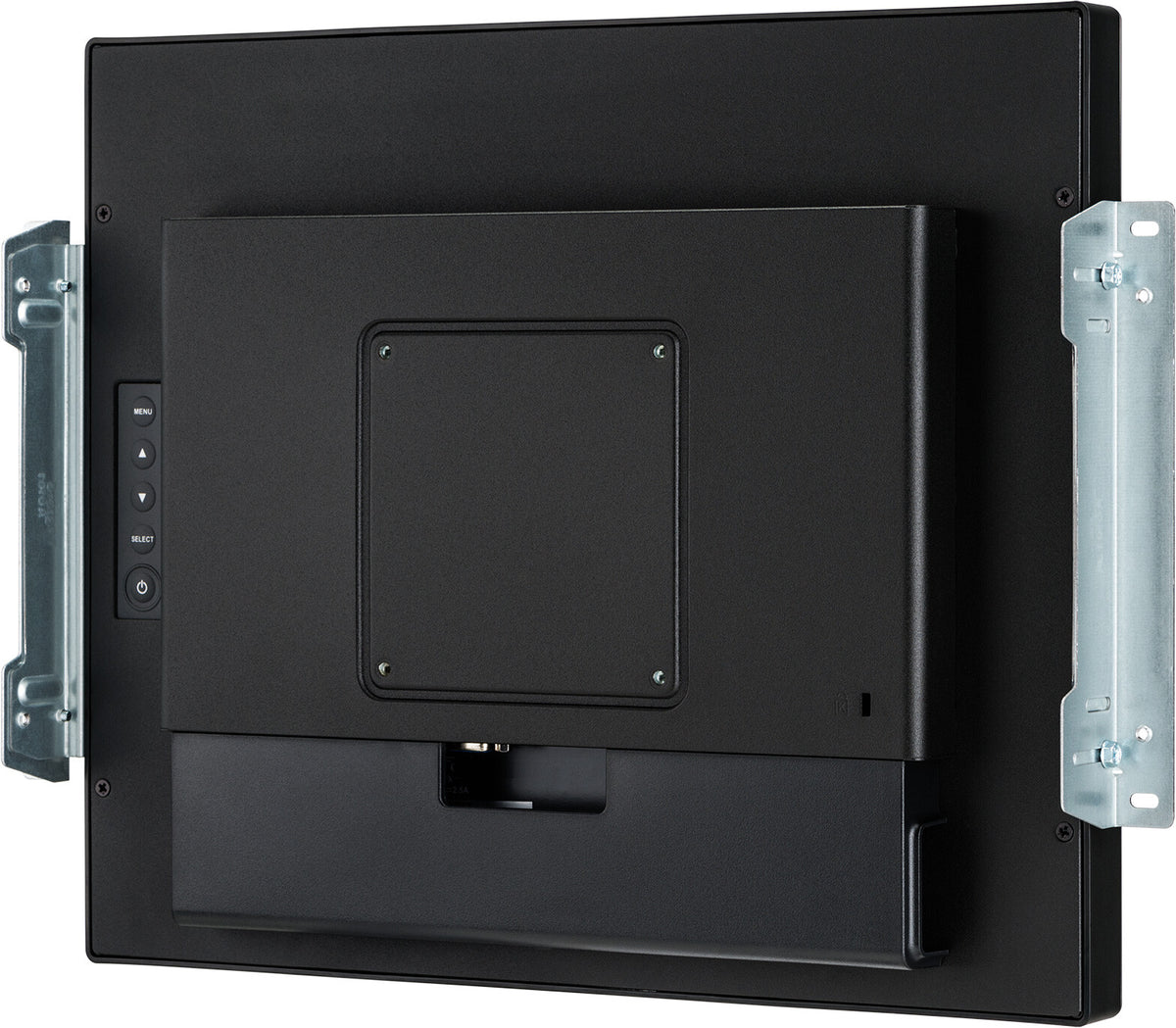

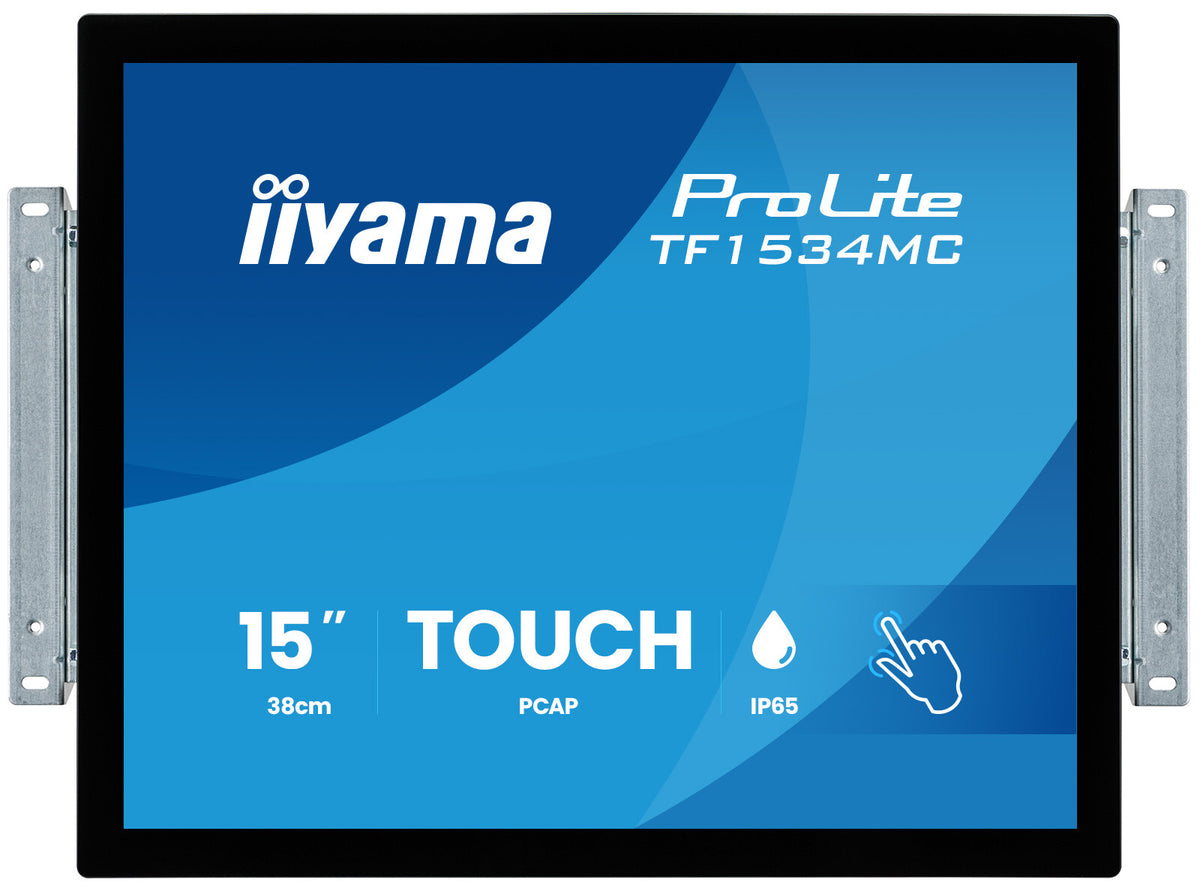

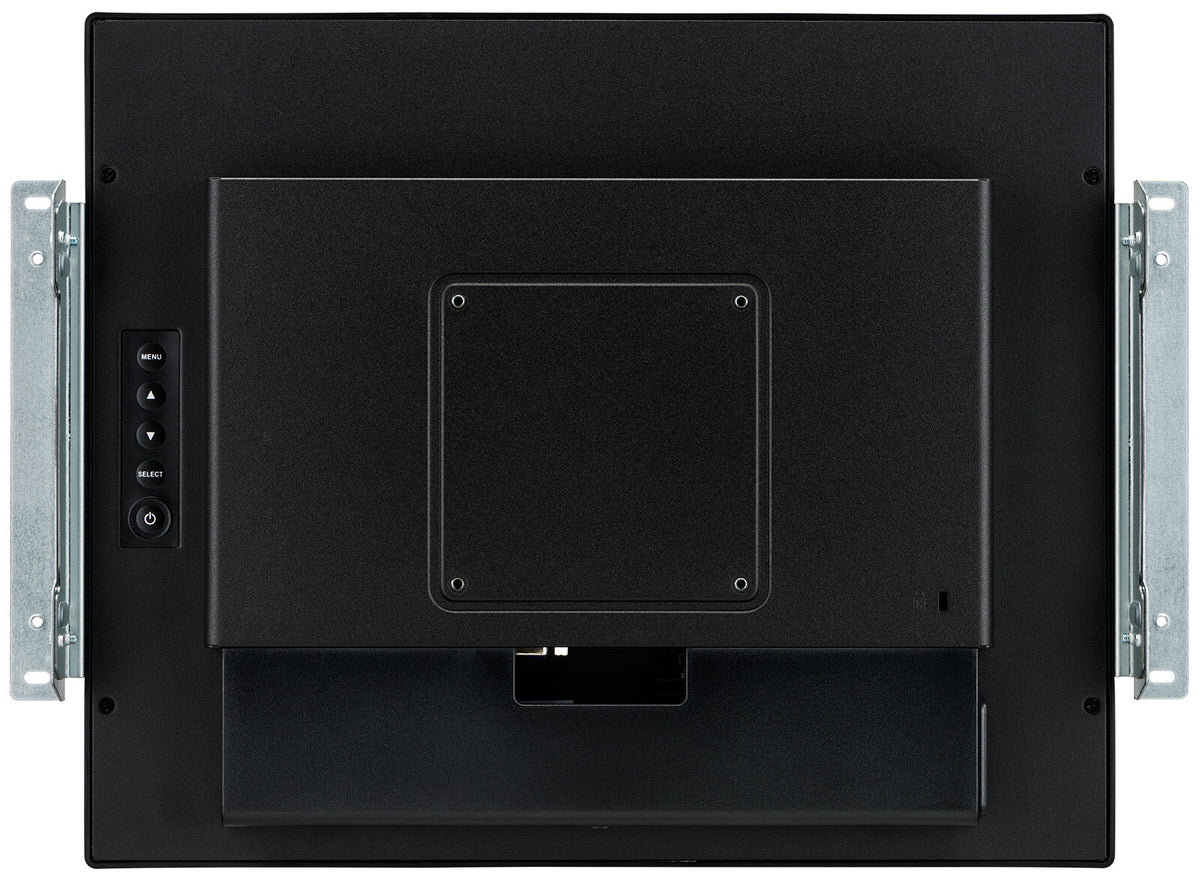

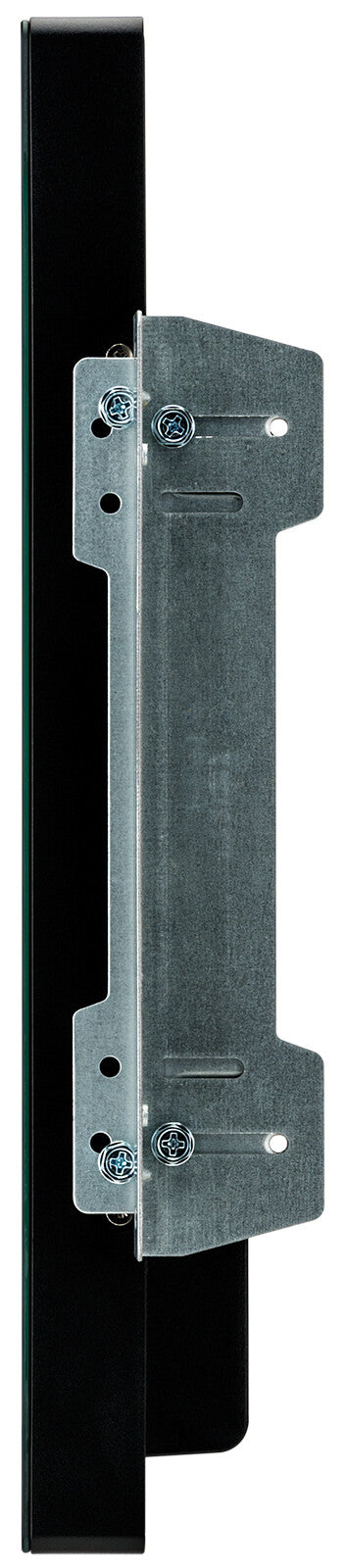

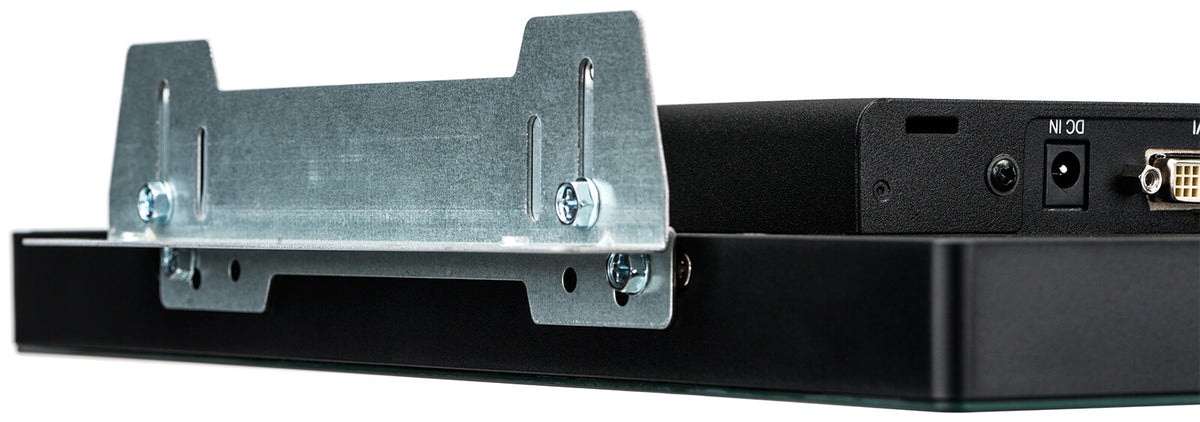

The ProLite TF1534MC-B8X is a 15” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance. With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction. For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

Display
Display diagonal
38.1 cm (15")
Display resolution
1024 x 768 pixels
Panel type
TN
Touchscreen technology
Projected capacitive system
Display brightness (peak)
350 cd/m²
Display brightness (typical)
300 cd/m²
Response time
8 ms
Positional accuracy
2 mm
Display brightness
300 cd/m²
Screen shape
Flat
Contrast ratio (typical)
800:1
Maximum refresh rate
75 Hz
Display number of colours
16.2 million colours
Horizontal scan range
31 - 60 kHz
Viewable size, horizontal
30.4 cm
Viewable size, vertical
22.8 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Low Blue Light technology
Yes
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection
Yes
Multimedia
Built-in speaker(s)
No
Design
Market positioning
Business
Product colour
Black
Front bezel colour
Black
International Protection (IP) code
IP65
Ports & interfaces
Built-in USB hub
No
Headphone out
No
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Height adjustment
No
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Packaging content
DisplayPort cable length
1.8 m
HDMI cable length
1.8 m
Power cable length
1.8 m
Power
Energy efficiency class (SDR)
D
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
9 kWh
Power consumption (typical)
9 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
338 mm
Depth (with stand)
45 mm
Height (with stand)
267 mm
Weight (with stand)
2.7 kg
Packaging data

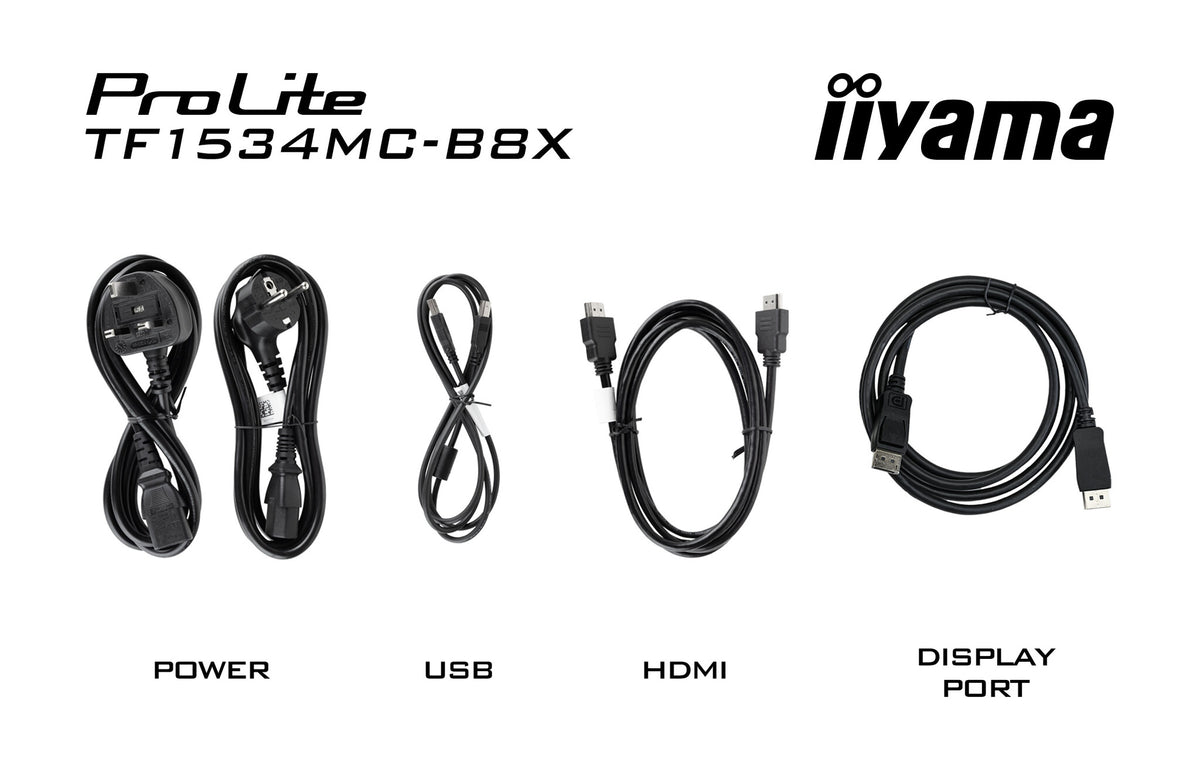

Cables included
AC, USB, HDMI, DisplayPort
USB cable length
1.8 m
Quick start guide
Yes
Package width
355 mm
Package depth
435 mm
Package height
165 mm
Package weight
4 kg
Logistics data
Pallet net width
91 cm
Pallet net length
114 cm
Pallet net height
2.43 m
Technical details
Native refresh rate
75 Hz
Compliance certificates
CE, cULus, EAC, REACH, RoHS, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter
Brightness
300 cd/m²
Depth
45 mm
Width
338 mm
Height
267 mm
Weight
2.7 kg
Active display area (W x H)
304 x 228 mm
Mean time between failures (MTBF)
50000 h
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Touch method
stylus, finger, glove (latex)
User controls
picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Touchscreen
Touchscreen
Yes
HD type
XGA
Native aspect ratio
4:3
Display technology
LED
Built-in camera
No
Number of simultaneous touchpoints
10
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Pixel pitch
0.297 x 0.297 mm
Display diagonal (metric)
38 cm
HDCP
Yes
Surface hardness
7H
