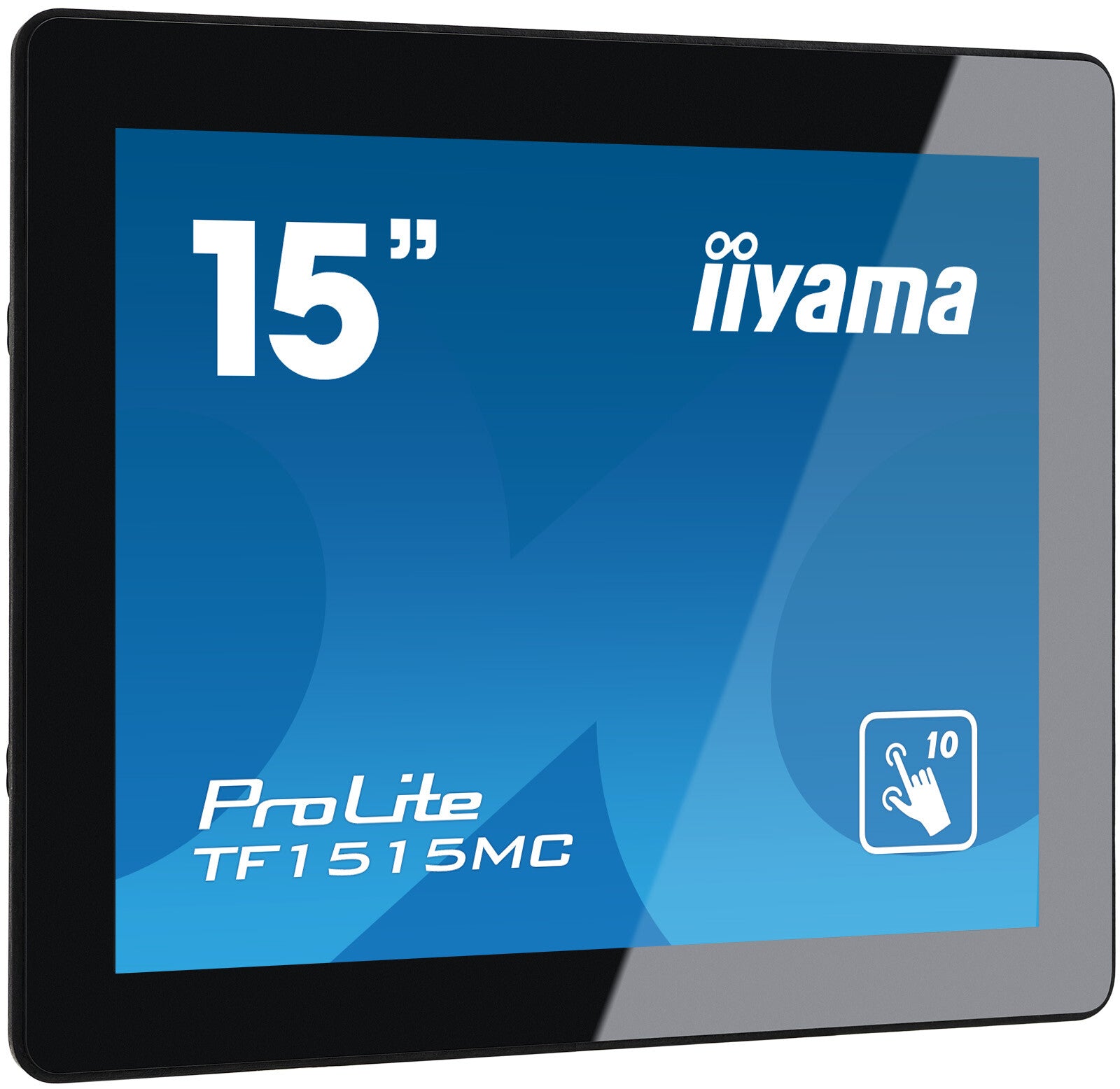

TF1515MC-B2

Open Frame PCAP 10 point touch screen equipped with touch through glass function

  • 38.1 cm (15") Black
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Maximum refresh rate: 75 Hz Response time: 8 ms
  • 1024 x 768 pixels XGA Panel type: TN
  • Energy efficiency class (SDR): E ErP CB, CE, cULus, EAC, REACH, RoHS, WEEE
  • SKU:4948570116751
  • GTIN:4948570116751
  • MPN:TF1515MC-B2

You need to login to view the price.

View full details

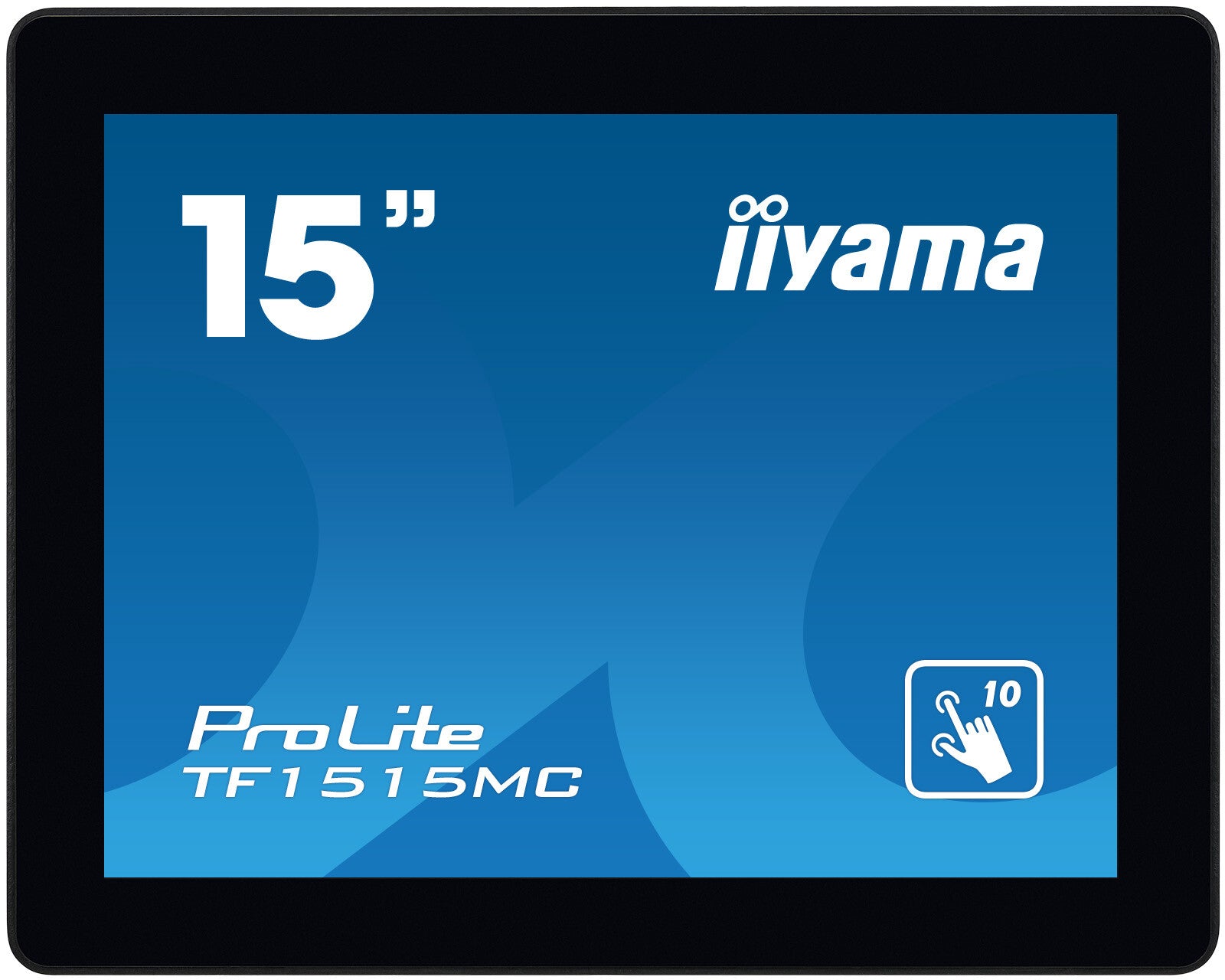

iiyama Open Frame PCAP 10 point touch screen equipped with touch through glass function. Display diagonal: 38.1 cm (15"), Display technology: LED, Display resolution: 1024 x 768 pixels, Display brightness: 350 cd/m², HD type: XGA, Touchscreen. Product colour: Black

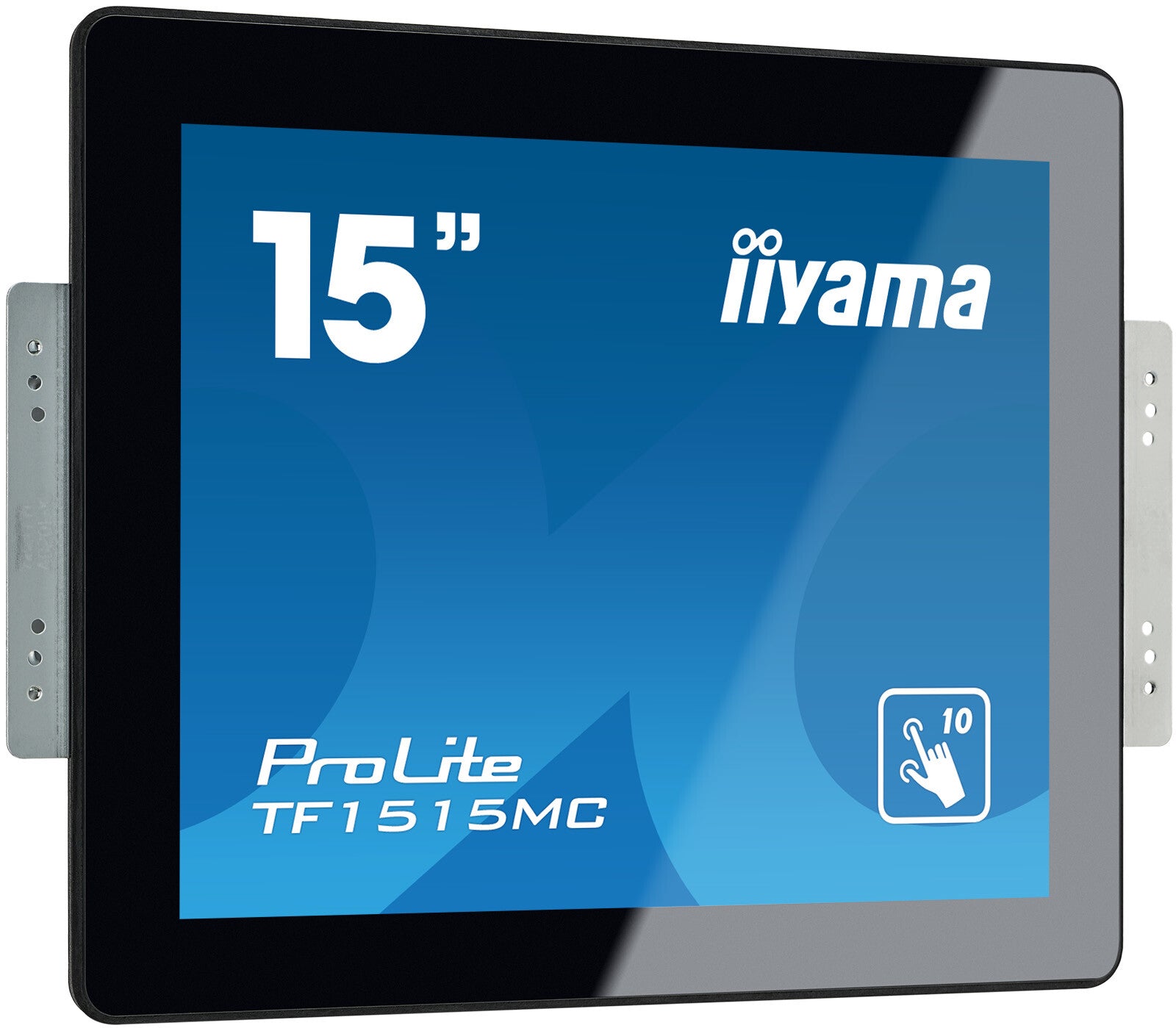

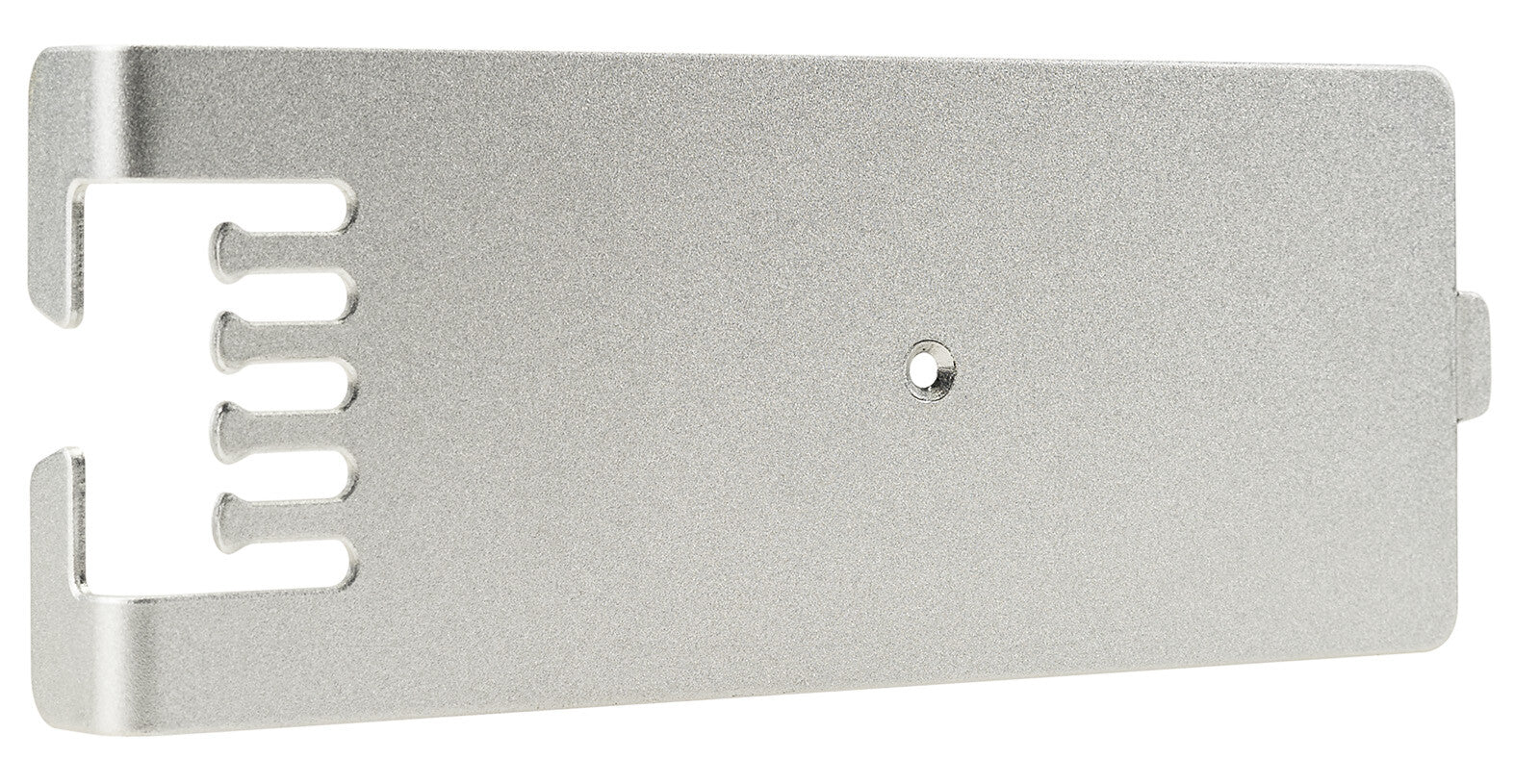

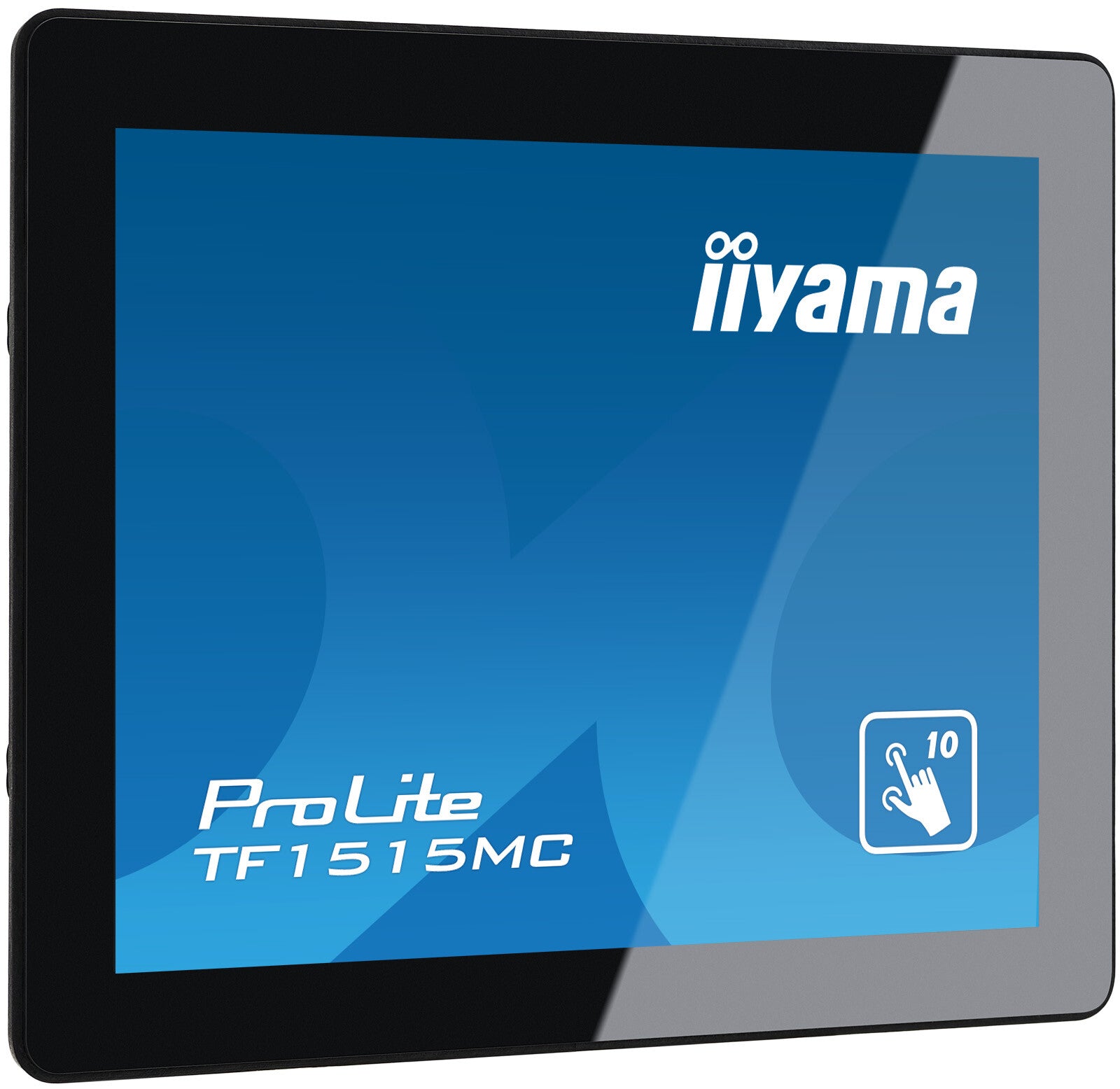

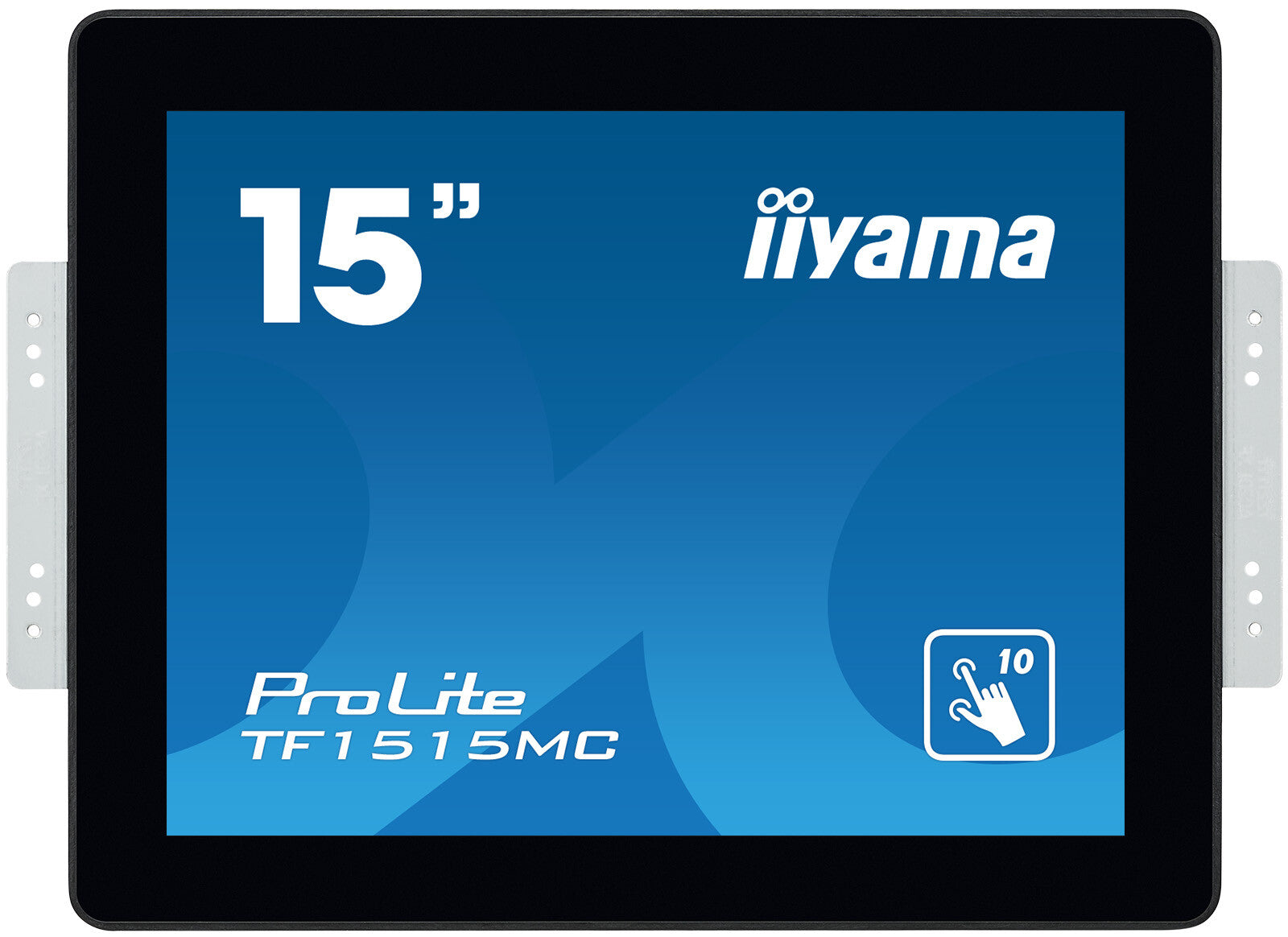

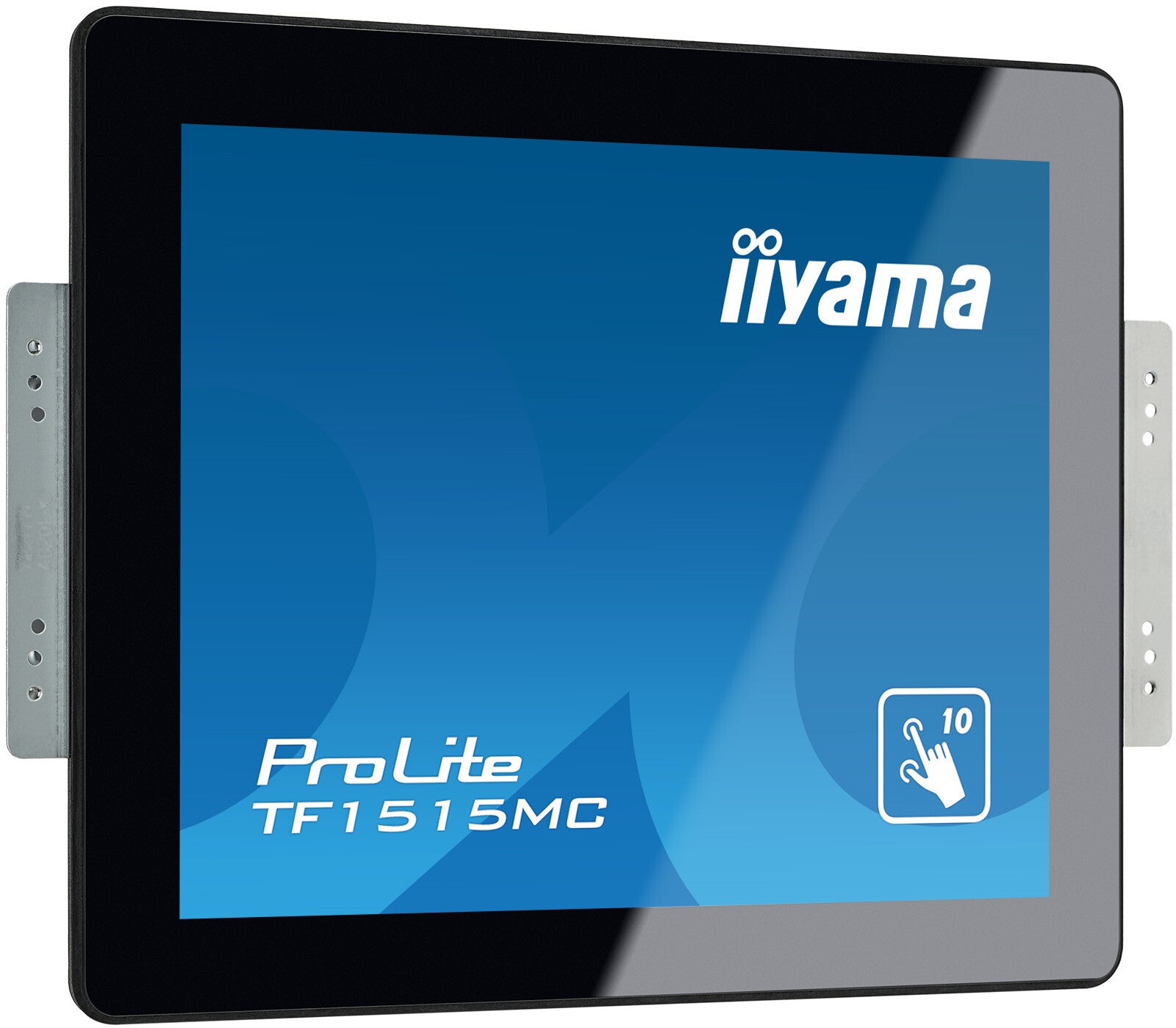

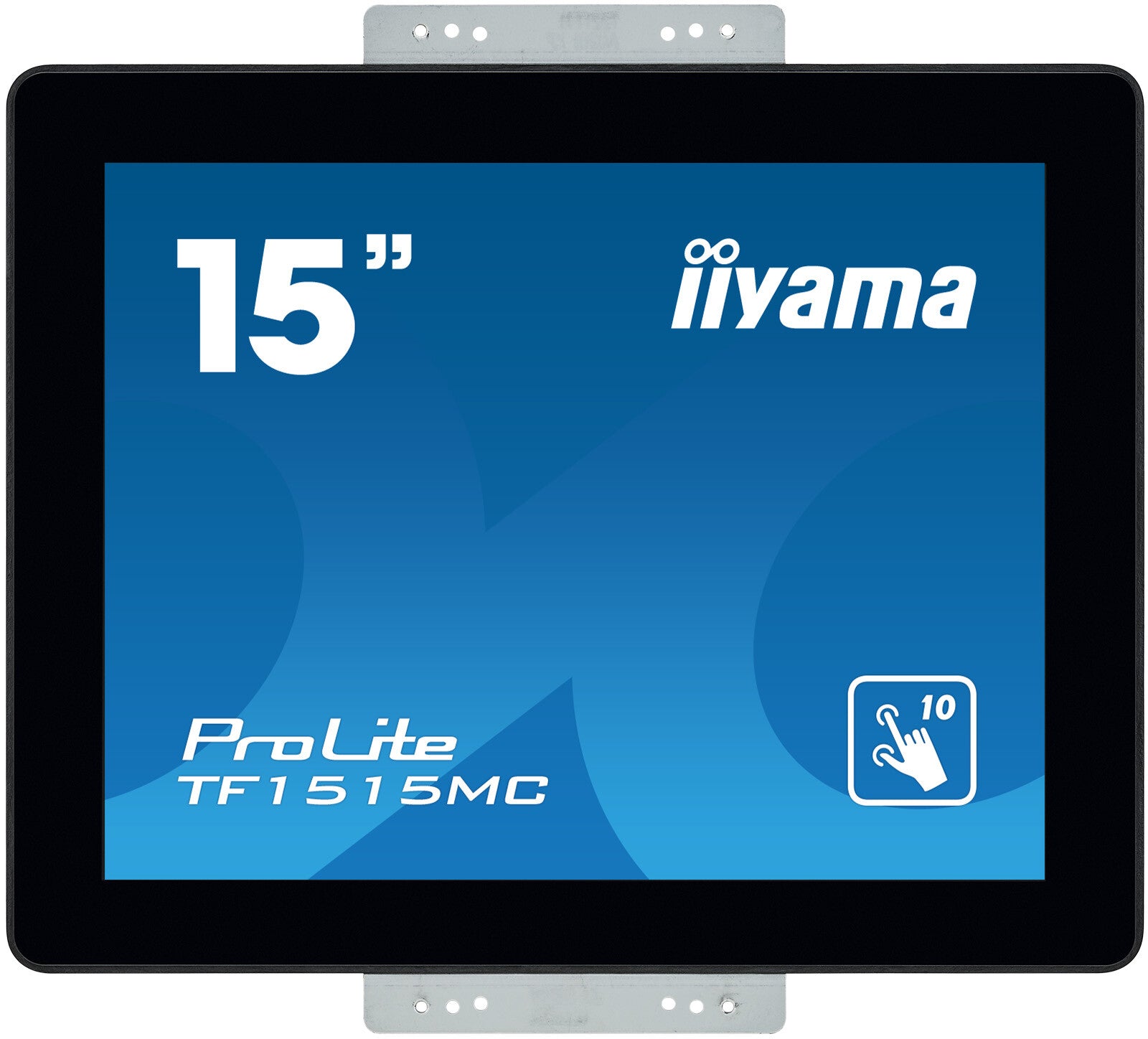

The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display
Display diagonal
38.1 cm (15")
Display resolution
1024 x 768 pixels
Panel type
TN
Touchscreen technology
Projected capacitive system
Display brightness (typical)
350 cd/m²
Response time
8 ms
Display brightness
315 cd/m²
Screen shape
Flat
Aspect ratio
4:3
Contrast ratio (typical)
800:1
Maximum refresh rate
75 Hz
Display number of colours
16.2 million colours
Horizontal scan range
31.4 - 60 kHz
Viewable size, horizontal
30.4 cm
Viewable size, vertical
22.8 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Design
Product colour
Black
Front bezel colour
Black
Glass thickness
6 mm
International Protection (IP) code
IP65
Certification
CB, CE, TÜV-Bauart, EAC, cULus
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
Number of OSD languages
7
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Plug and Play
Yes
LED indicators
Yes
Power
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
10 kWh
Power consumption (typical)
16 W
Power consumption (standby)
1.2 W
Power consumption (off)
1.2 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Network
Ethernet LAN
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
364 mm
Depth (with stand)
41.5 mm
Height (with stand)
291 mm
Weight (with stand)
2.9 kg
Width (without stand)
364 mm
Depth (without stand)
291 mm
Height (without stand)
41.5 mm
Weight (without stand)
2.9 kg
Packaging data
Cables included
AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Package width
460 mm
Package depth
175 mm
Package height
470 mm
Package weight
4.6 kg
Logistics data
Harmonized System (HS) code
85285210
Products per pallet
44 pc(s)
Pallet net width
86 cm
Pallet net length
12 cm
Pallet net height
97 cm
Technical details
Compliance certificates
CB, CE, cULus, EAC, REACH, RoHS, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Brightness
315 cd/m²
Depth
41.5 mm
Width
364 mm
Height
291 mm
Weight
2.9 kg
Active display area (W x H)
304.1 x 228.1 mm
Placement supported
Horizontal/Vertical
Display viewable area (HxV)
304.1 x 228.1 mm
Ethernet LAN (RJ-45) ports
1

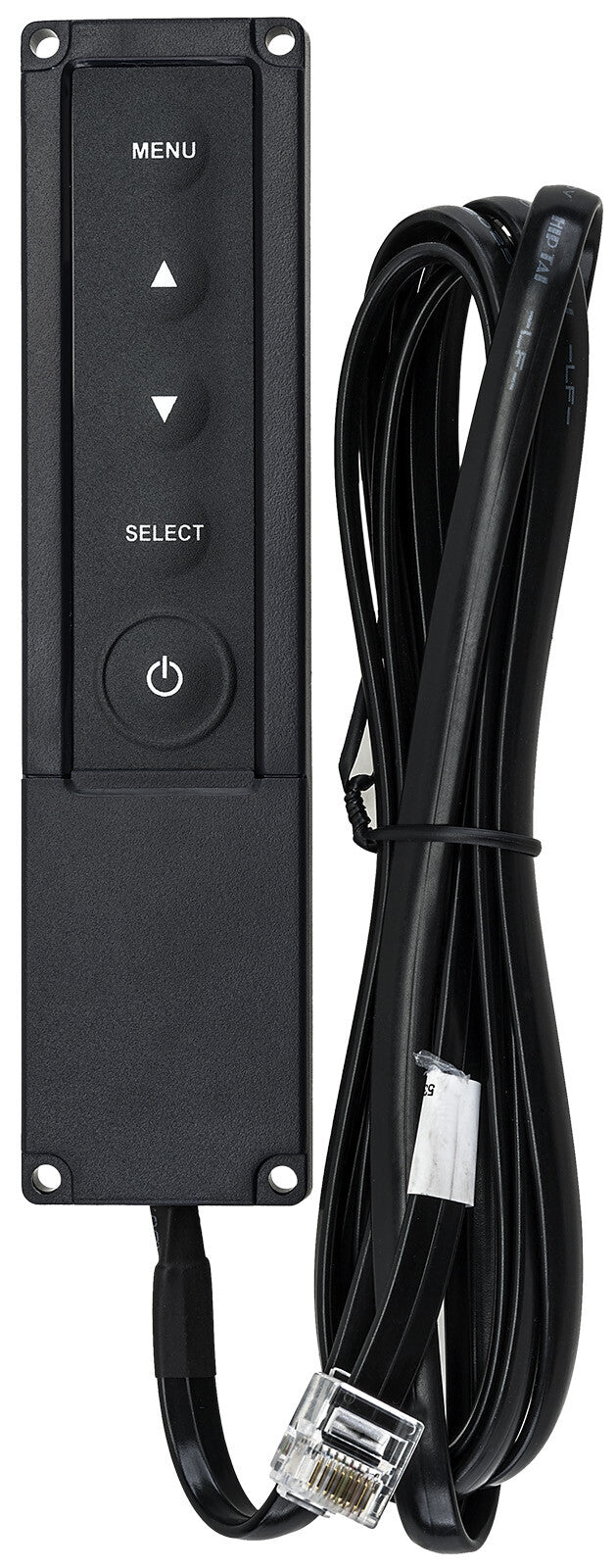

Control panel
menu,scroll up/ brightness, scroll down/ contrast, select, power
Touch method
stylus, finger, glove (latex)
User controls
picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory)
Touchscreen
Touchscreen
Yes
HD type
XGA
Native aspect ratio
4:3
Display technology
LED
Built-in camera
No
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
USB Touch port
Yes

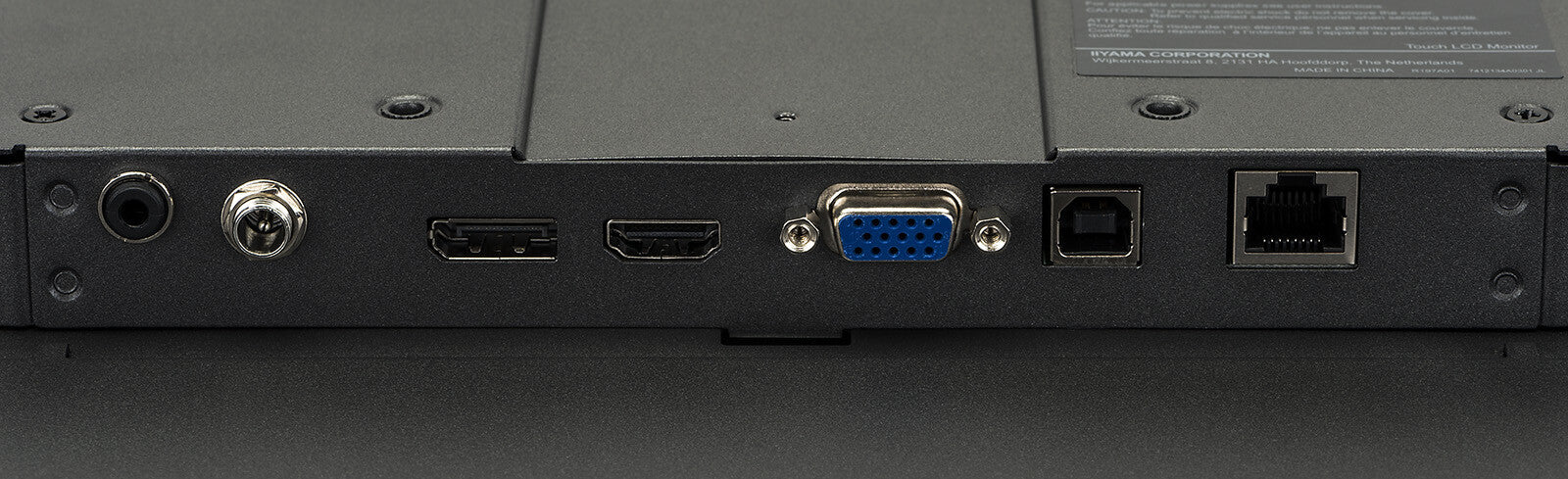

VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
160°
Viewing angle, vertical
150°
Pixel pitch
0.297 x 0.297 mm
Built-in microphone
No
Display diagonal (metric)
38 cm
HDCP
Yes
Surface hardness
7H
