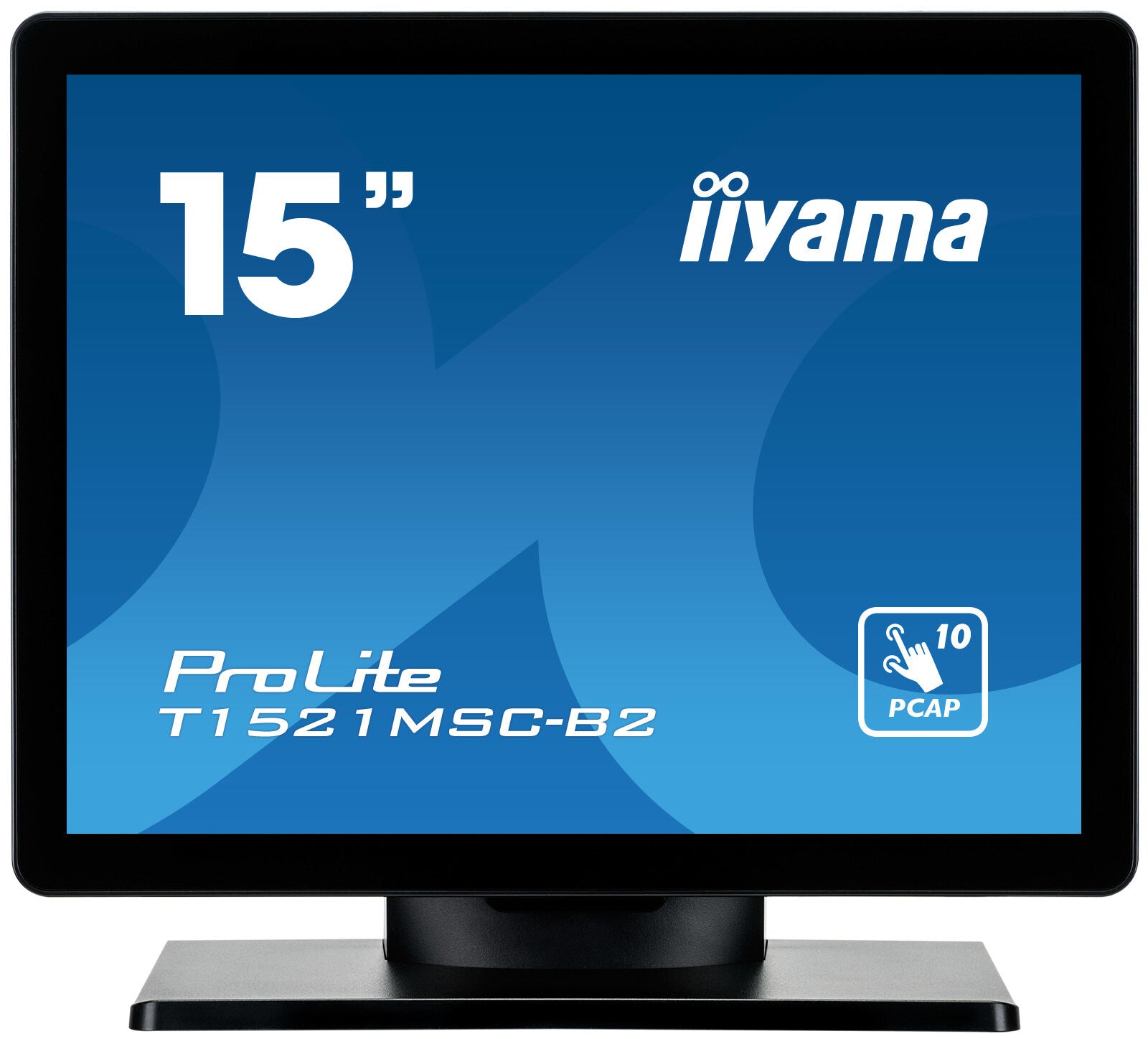

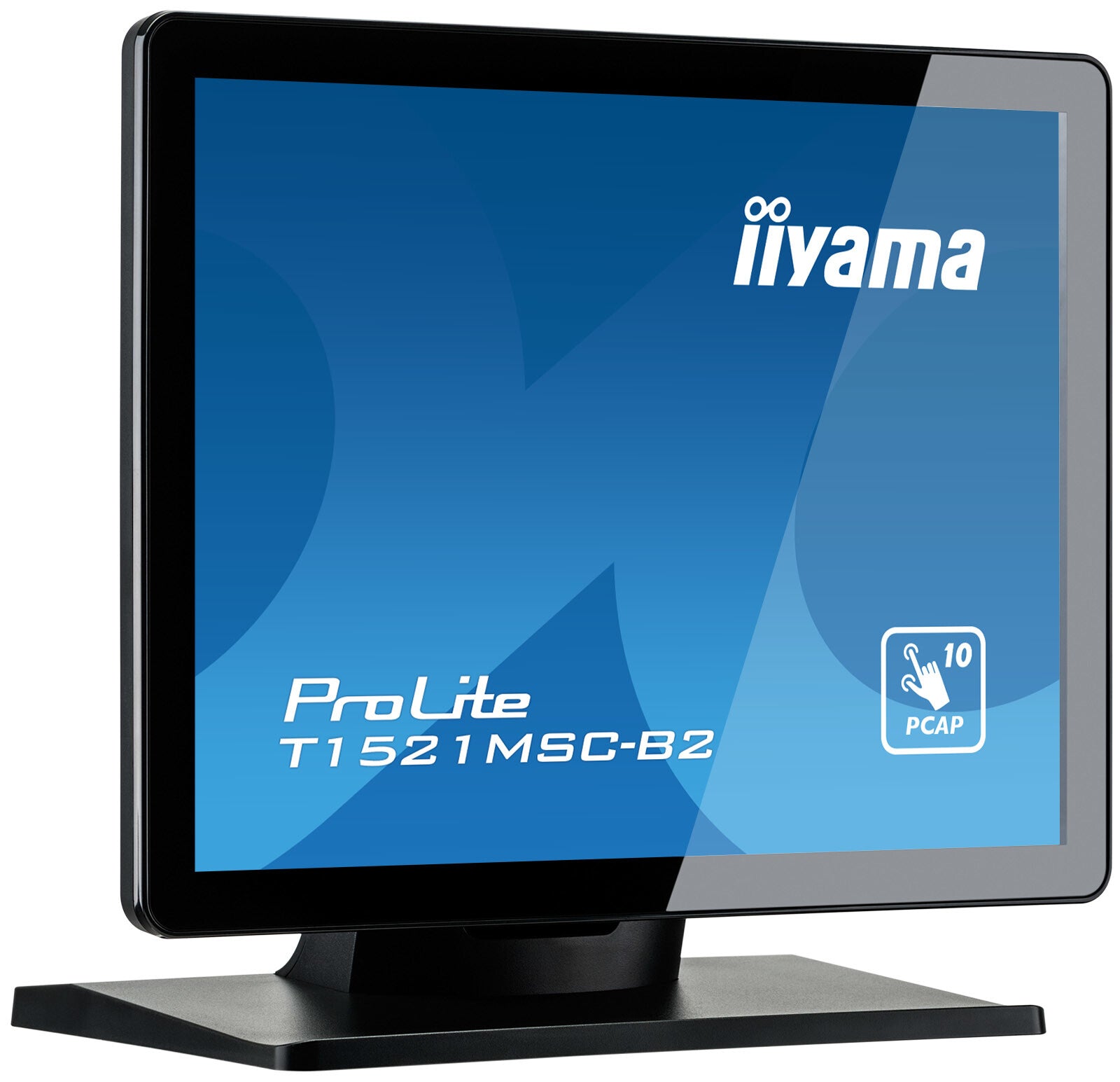

iiyama T1521MSC-B2

iiyama T1521MSC-B2

15", 1024x768, 4:3, TN, 370cd/m², 800:1, 8ms, 170°/160°, 16.7mil, 31.4-60kHz, projective capacitive, stylus, finger, glove, 1x VGA, 1x HDMI, 2x 2W Audio, VESA 75x75, 12V, 16W, 340x198x308mm, 3.5kg

  • Business Touchscreen 38.1 cm (15") LED TN
  • XGA 1024 x 768 pixels 4:3
  • 8 ms 325 cd/m² 800:1
  • E 11 kWh 16 W
  • SKU:4948570120642
  • GTIN/EAN:4948570120642
  • MPN:T1521MSC-B2

You need to login to view the price.

Add To Favorite
View full details

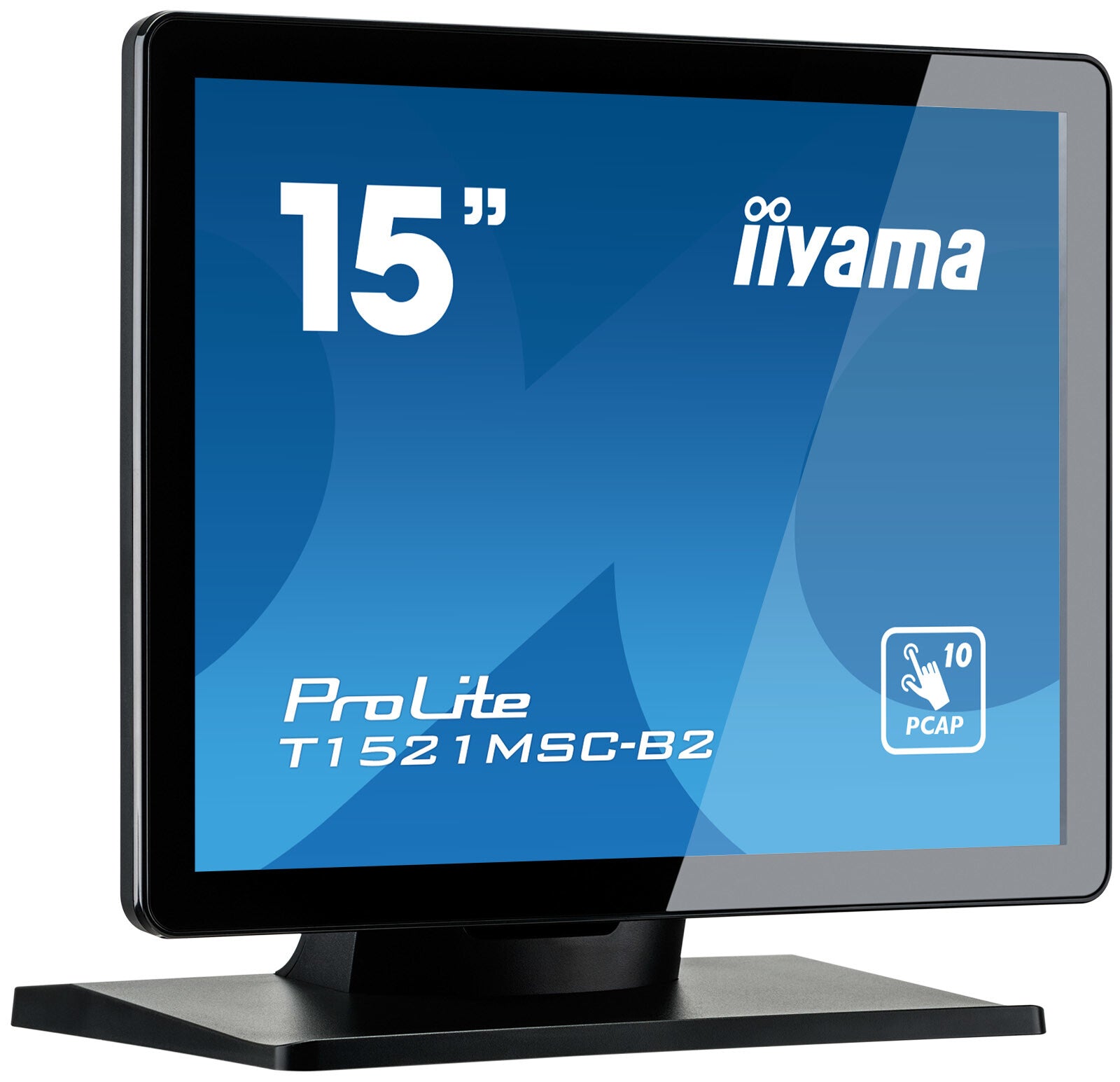

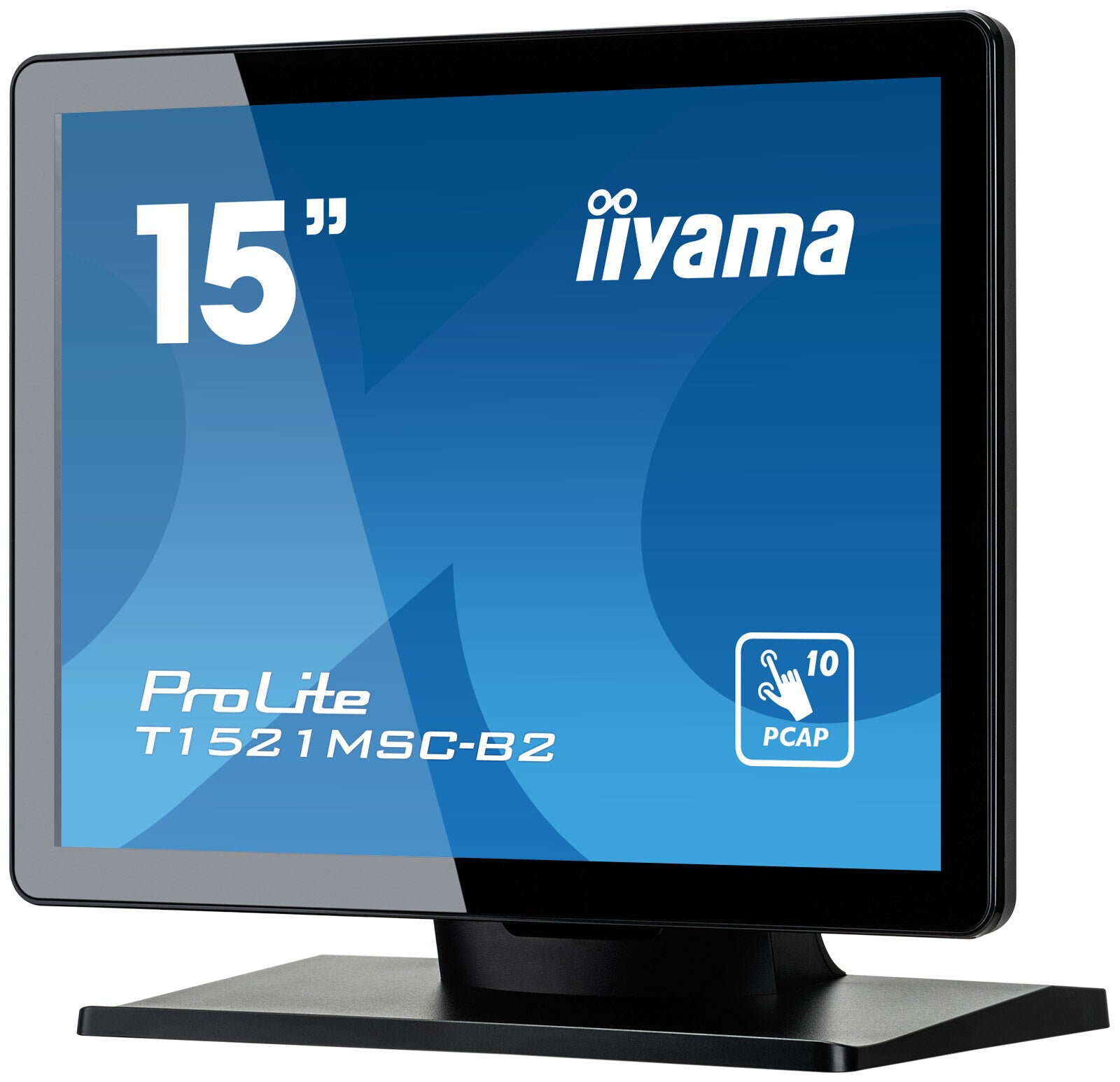

15" Projective Capacitive 10pt touchscreen

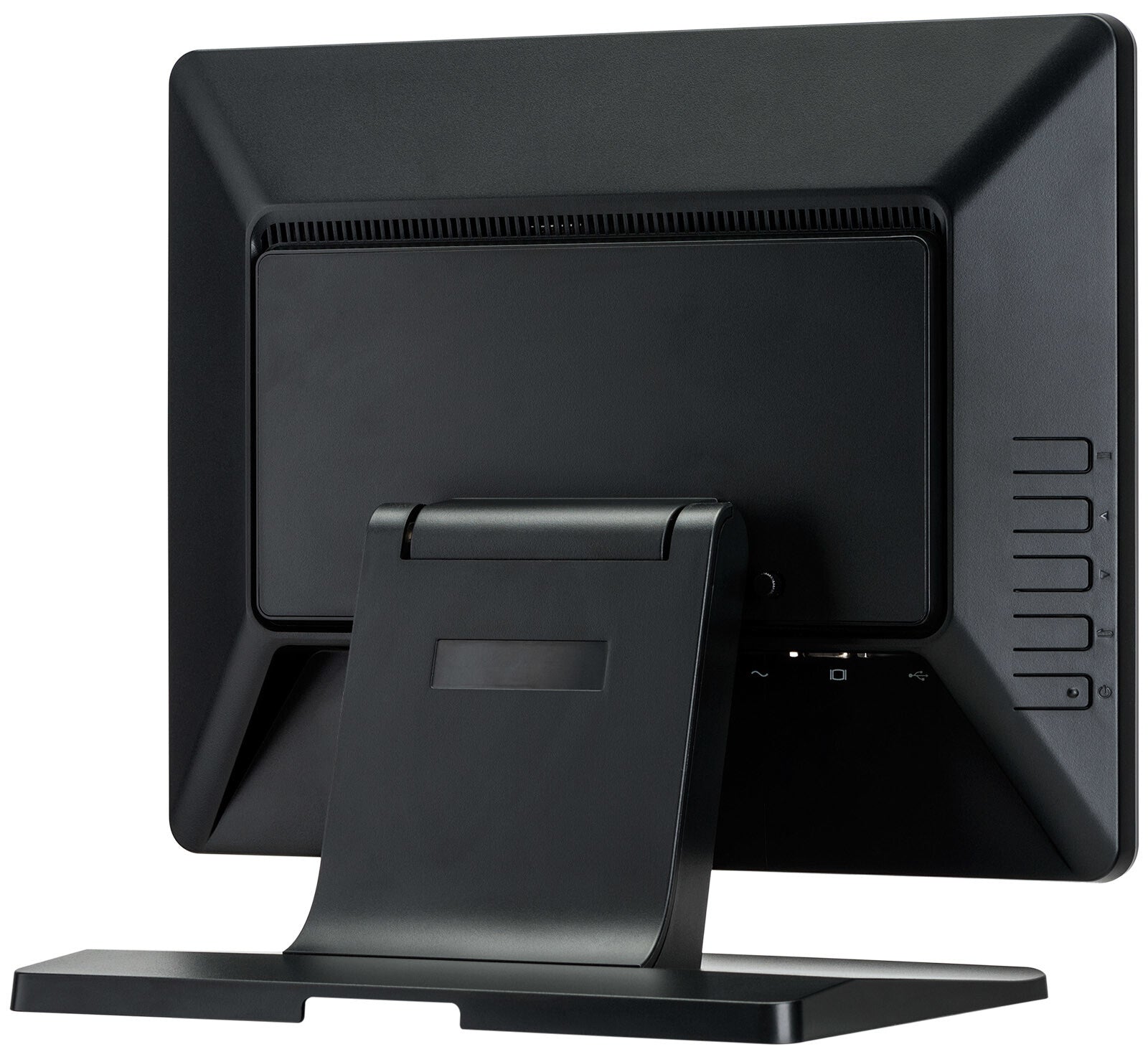

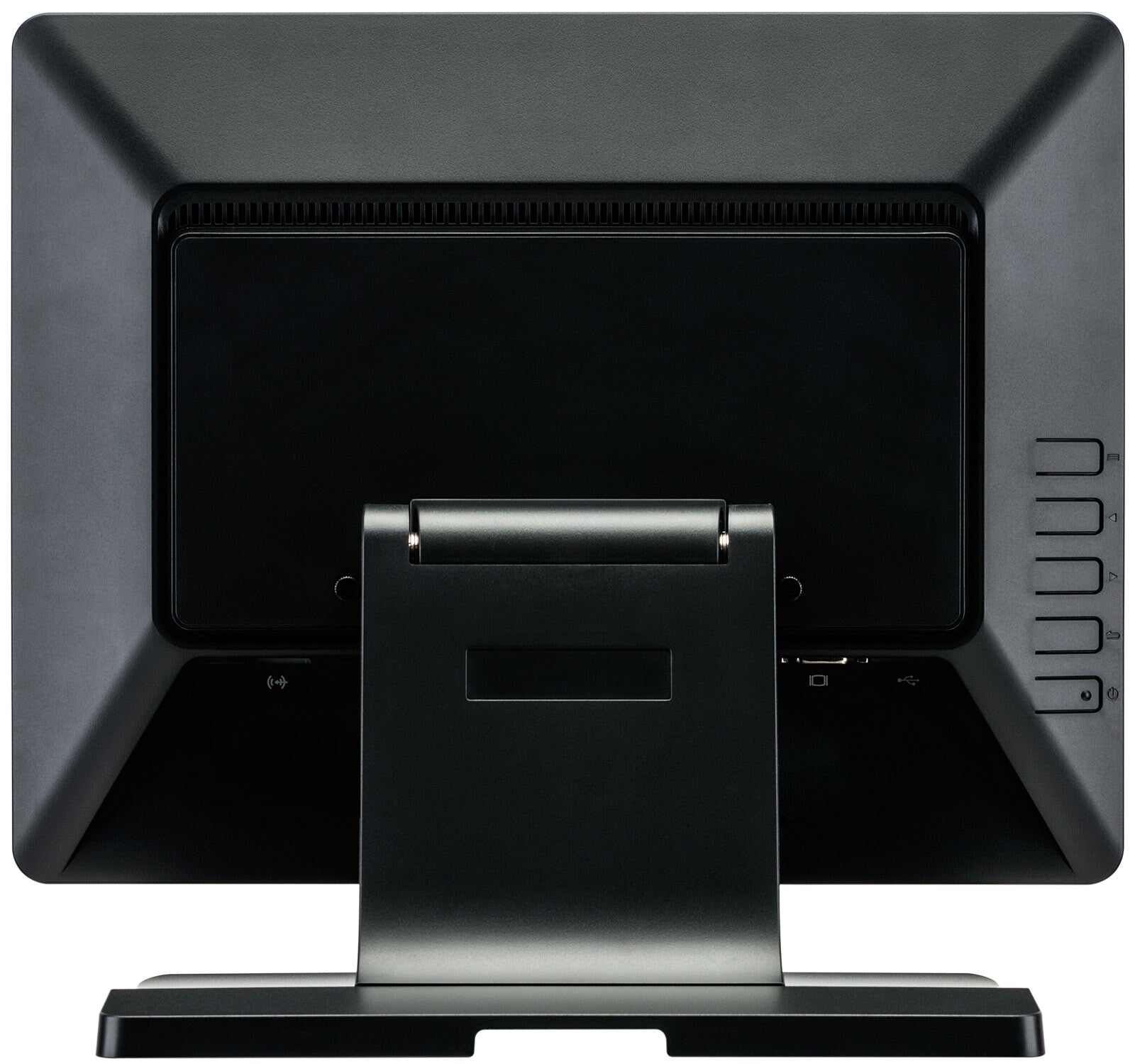

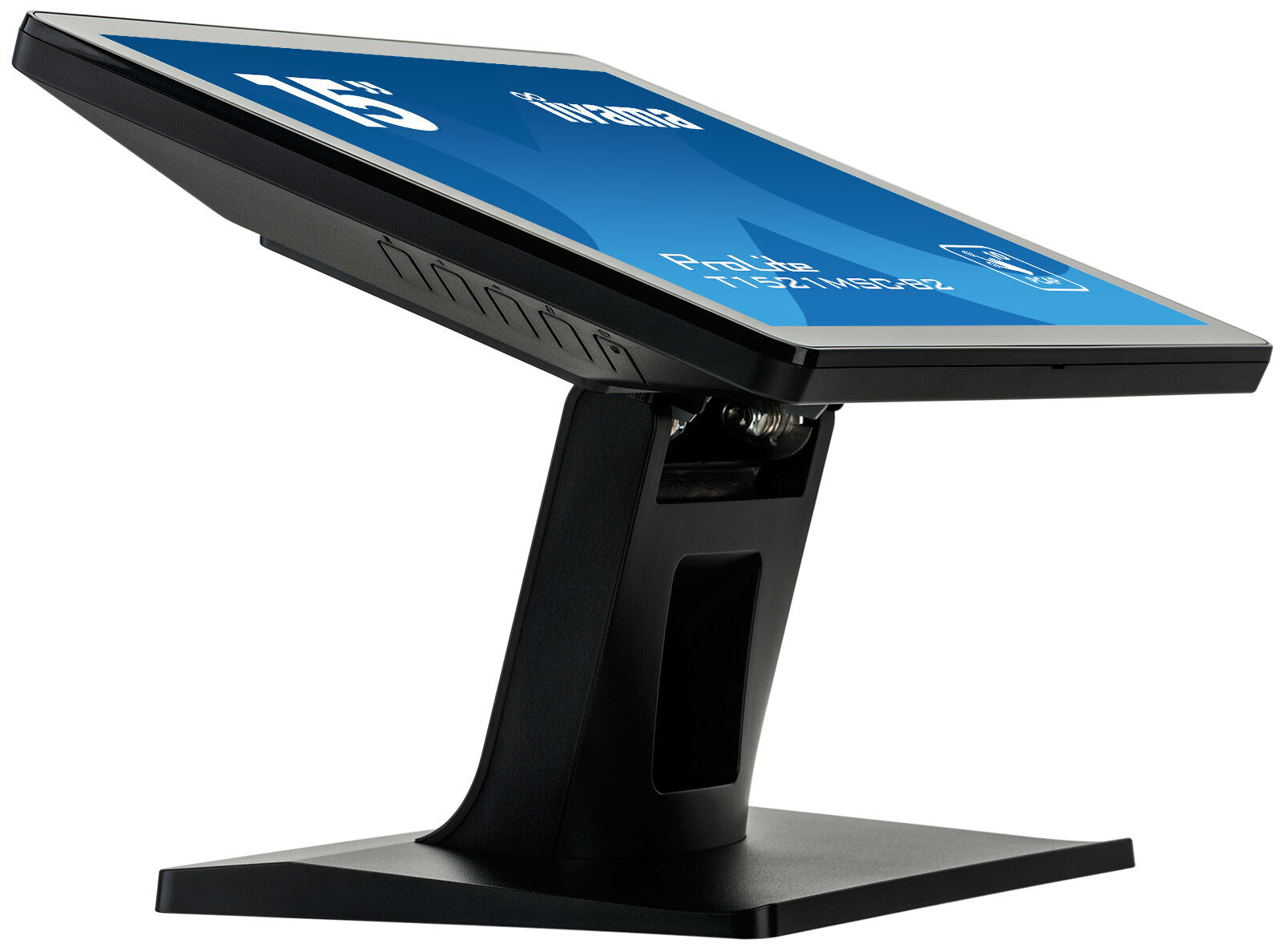

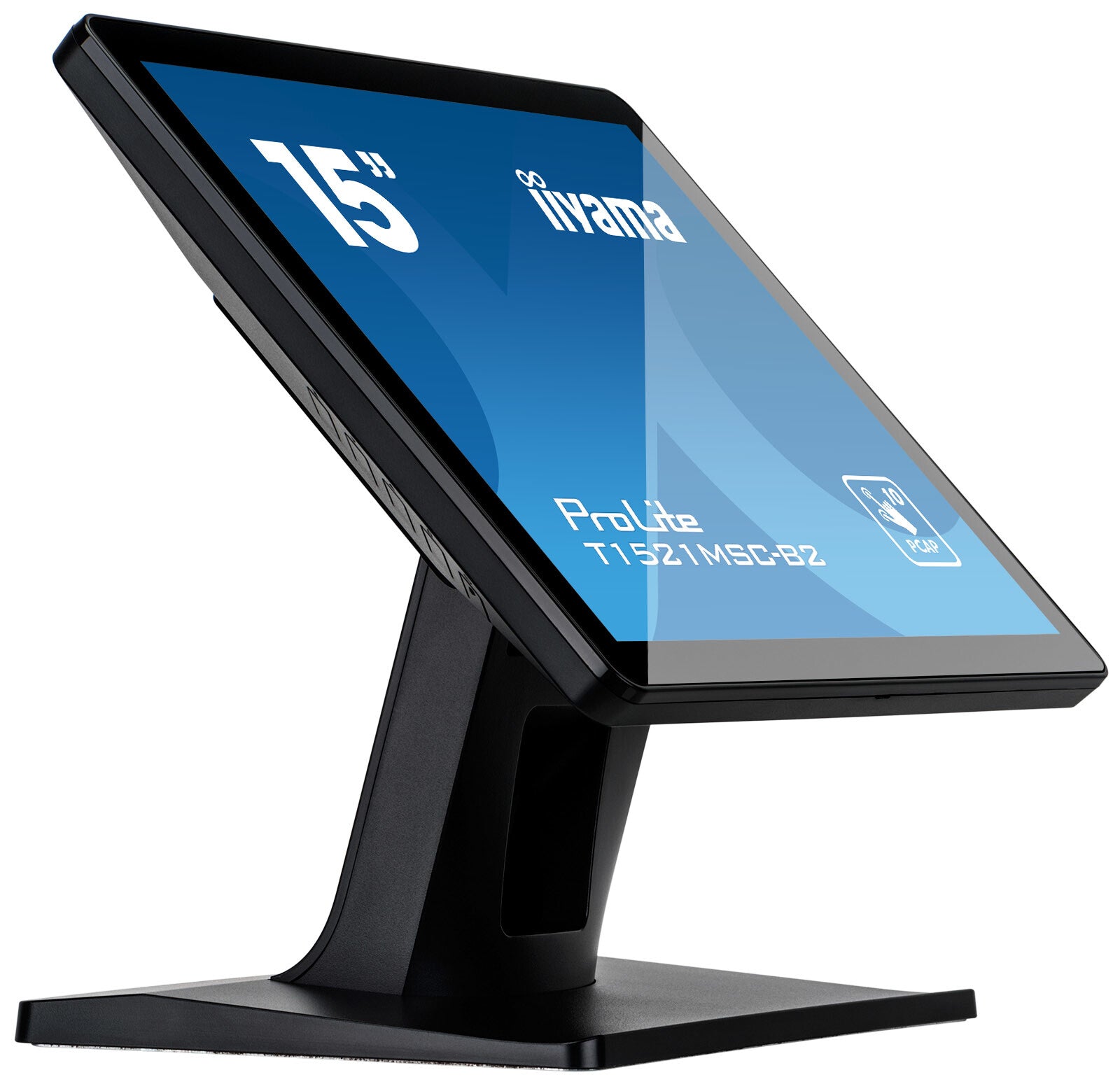

The ProLite T1521MSC-B2 15” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 70 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering, and includes a handy function to deactivate the touchscreen for cleaning. The ProLite T1521MSC-B2 is an incredibly powerful touch solution, perfect for instore retail purposes.

b>TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

IP65
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.

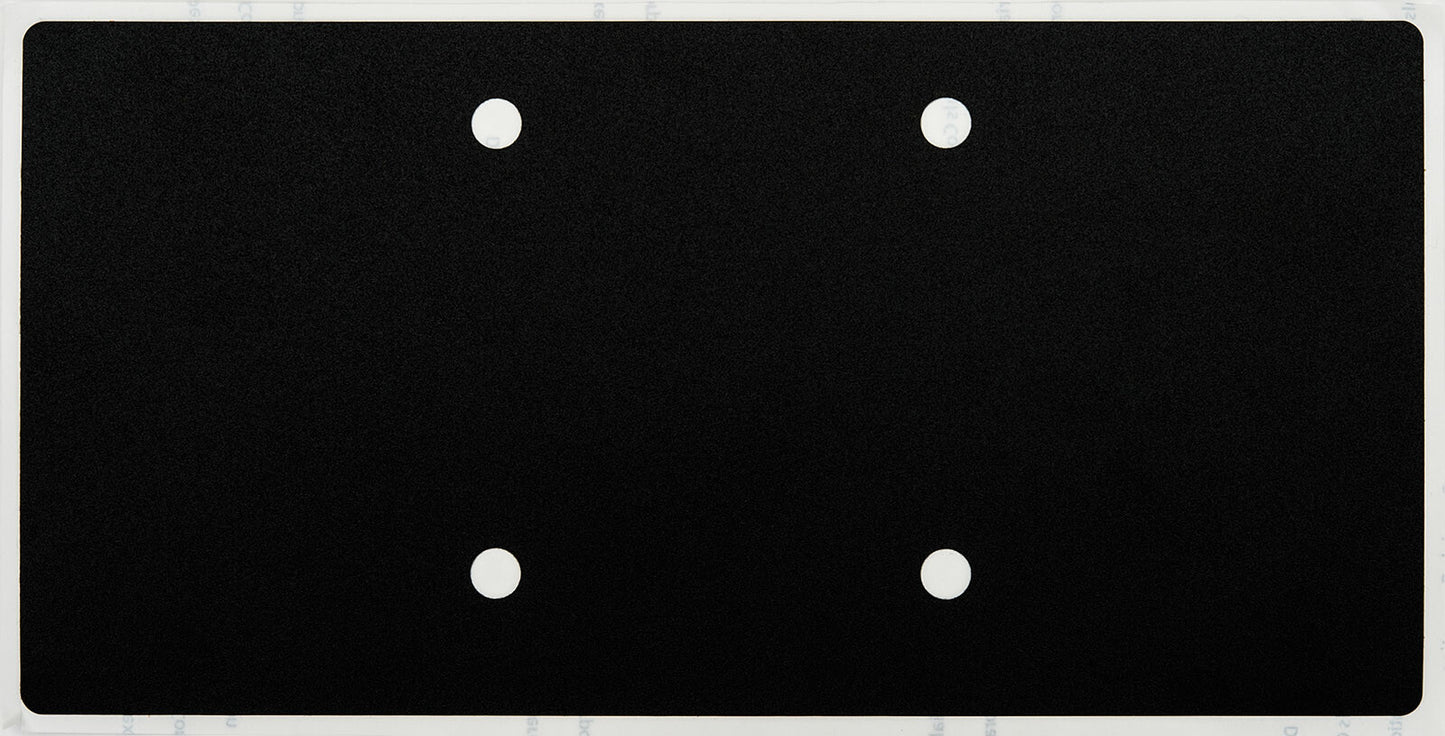

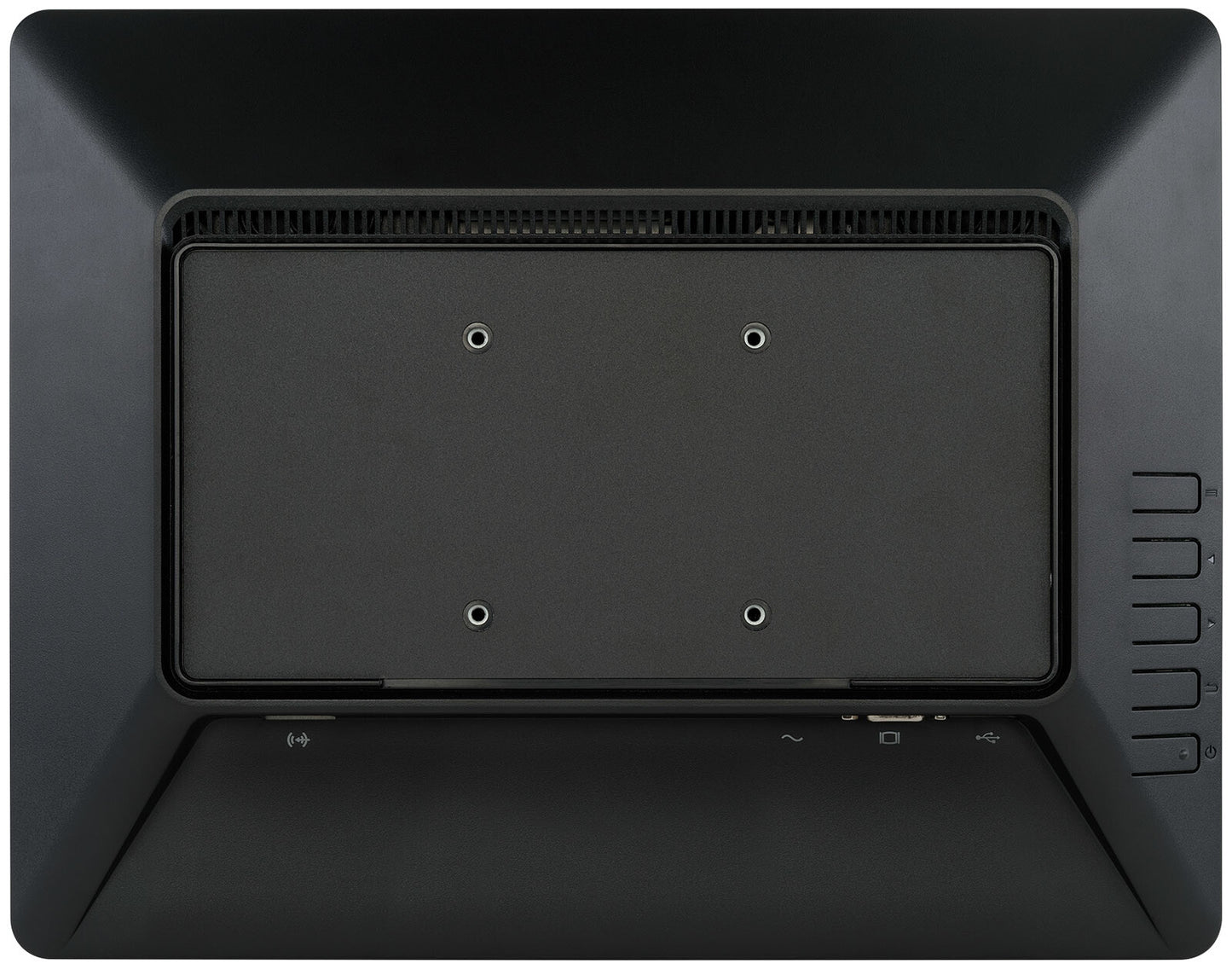

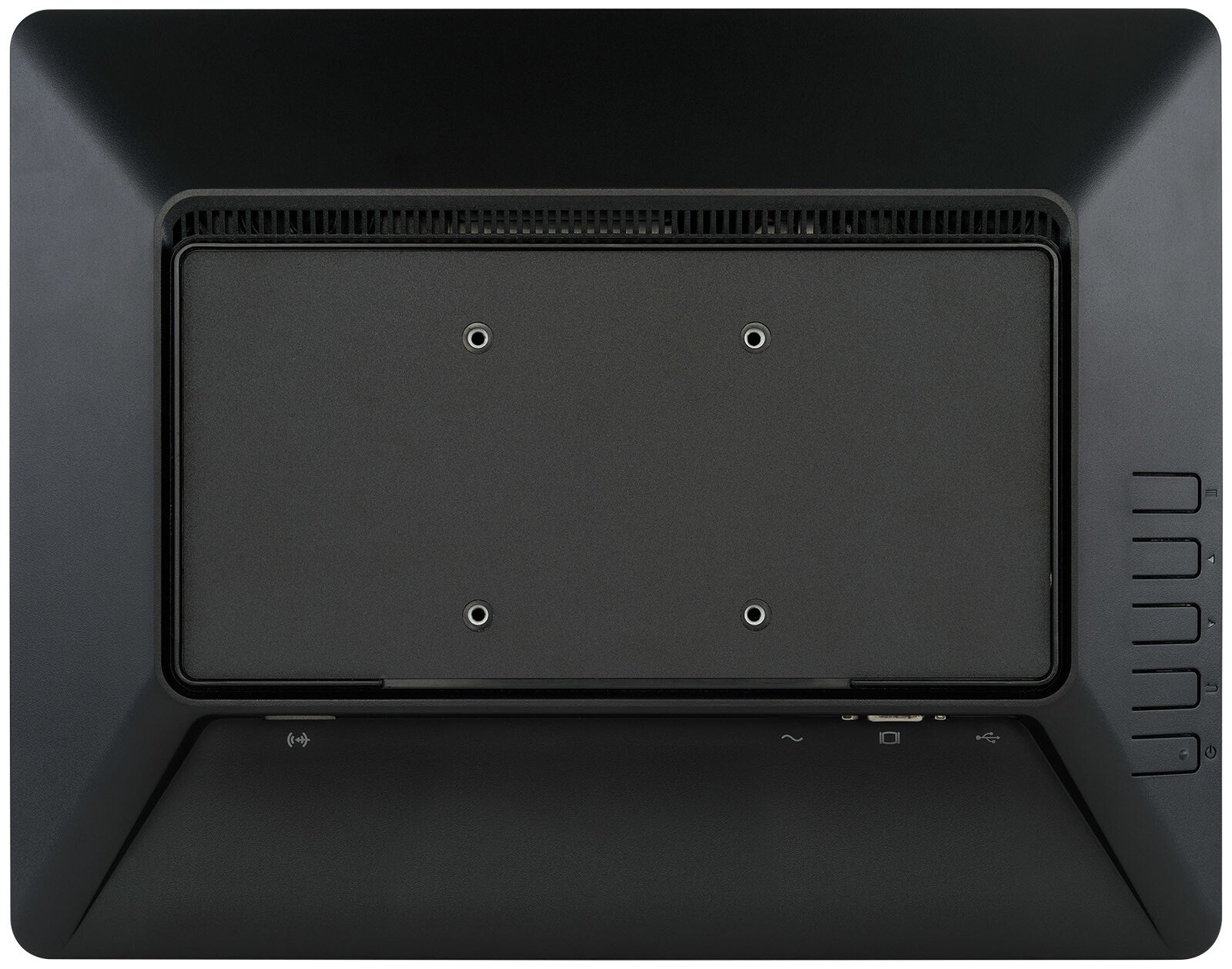

VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

Display
Viewable size, vertical
30.4 cm
Viewable size, horizontal
22.8 cm
Horizontal scan range
31.4 - 60 kHz
Display number of colours
16.7 million colours
Contrast ratio (typical)
800:1
Screen shape
Flat
Display surface
Matt
DDC/CI
Yes
Response time
8 ms
Display brightness (typical)
325 cd/m²
Display brightness (peak)
370 cd/m²
Touchscreen technology
Projected capacitive system
Backlight type
LED
Panel type
TN
Display resolution
1024 x 768 pixels
Display diagonal
38.1 cm (15")
Performance
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
RMS rated power
4 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
International Protection (IP) code
IP65
Glass thickness
1.2 mm
Feet colour
Black
Product colour
Black
Market positioning
Business
Ports & interfaces
Built-in USB hub
No
Ergonomics
Tilt adjustment
Yes
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Japanese, Russian
Number of OSD languages
8
On Screen Display (OSD)
Yes

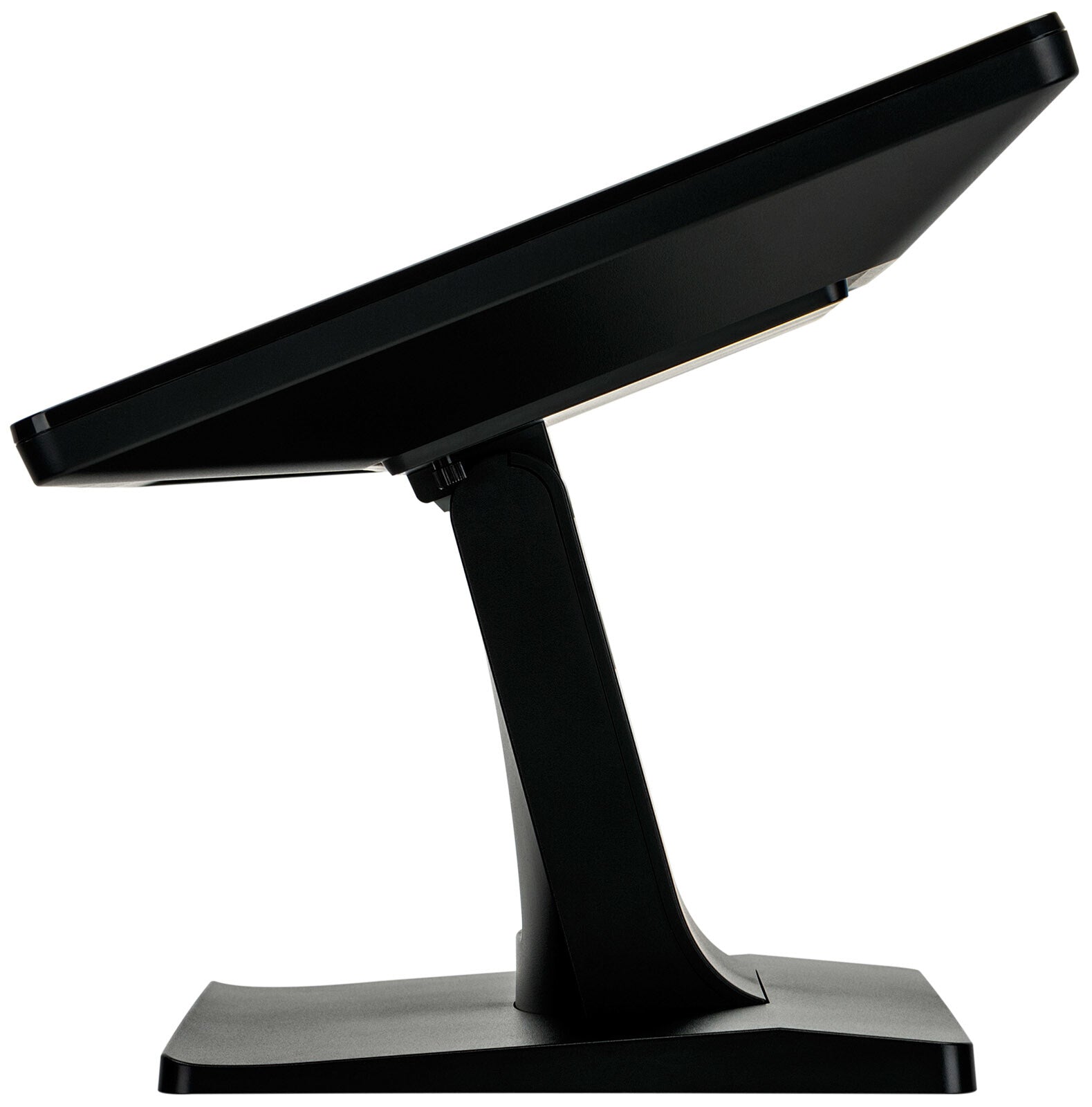

Tilt angle range
10 - 70°
Cable management
Yes

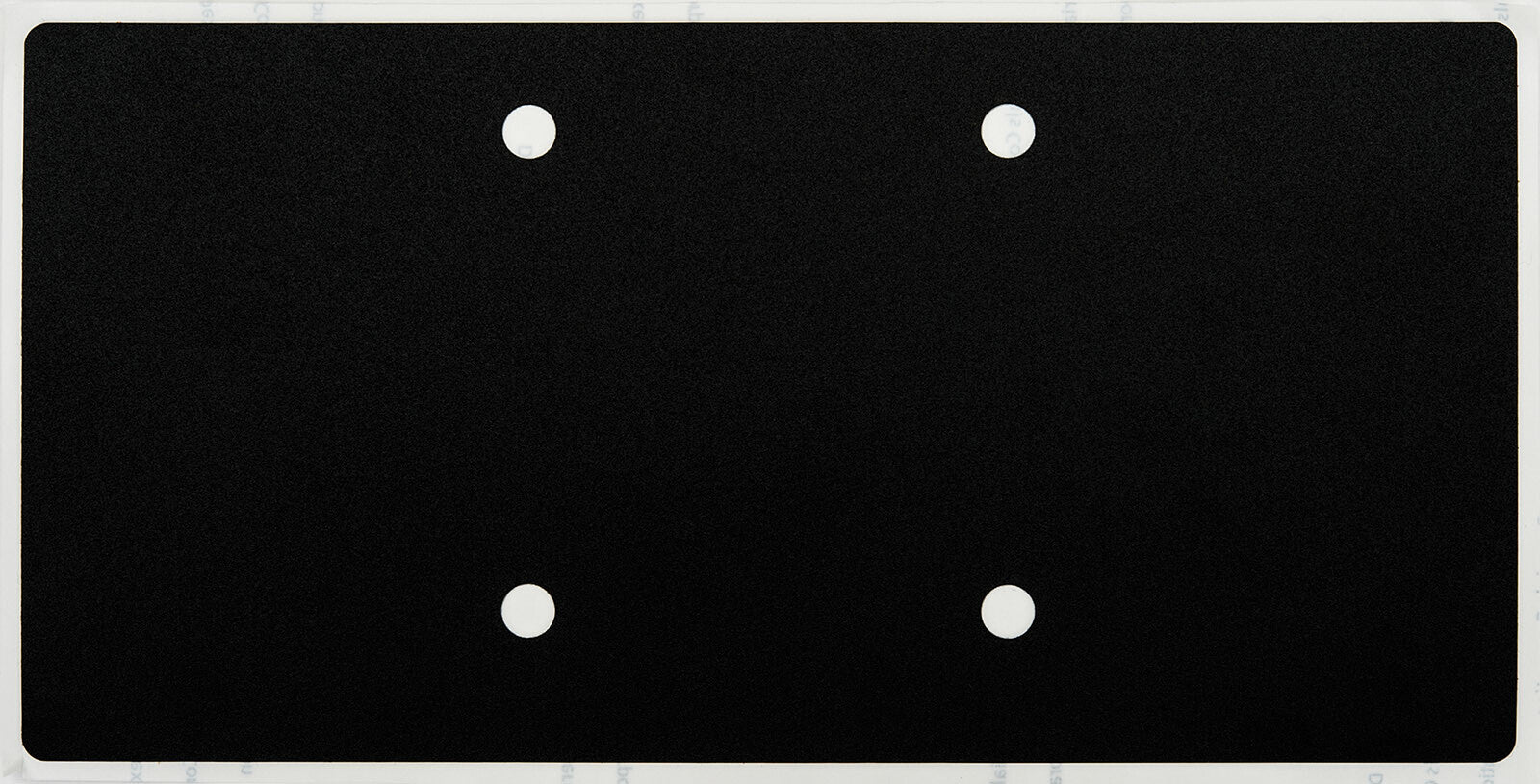

Panel mounting interface
75 x 75 mm
VESA mounting
Yes
Packaging content
Manual
Yes
Power adapter included
Yes
Power
Energy efficiency scale
A to G
Power supply type
External
AC adapter output voltage
12 V
Power consumption (off)
0.5 W
Power consumption (standby)
1.5 W
Power consumption (typical)
16 W
Energy consumption (SDR) per 1000 hours
11 kWh
Energy efficiency class (SDR)
E
Sustainability
Sustainability certificates
CE, EAC, ErP, REACH, RoHS, UKCA, WEEE, cUL
European Product Registry for Energy Labelling (EPREL) code
1385536
Sustainability compliance
Yes
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (with stand)
3.5 kg
Height (with stand)
308 mm
Depth (with stand)
198 mm
Width (with stand)
340 mm
Packaging data
Quick start guide
Yes

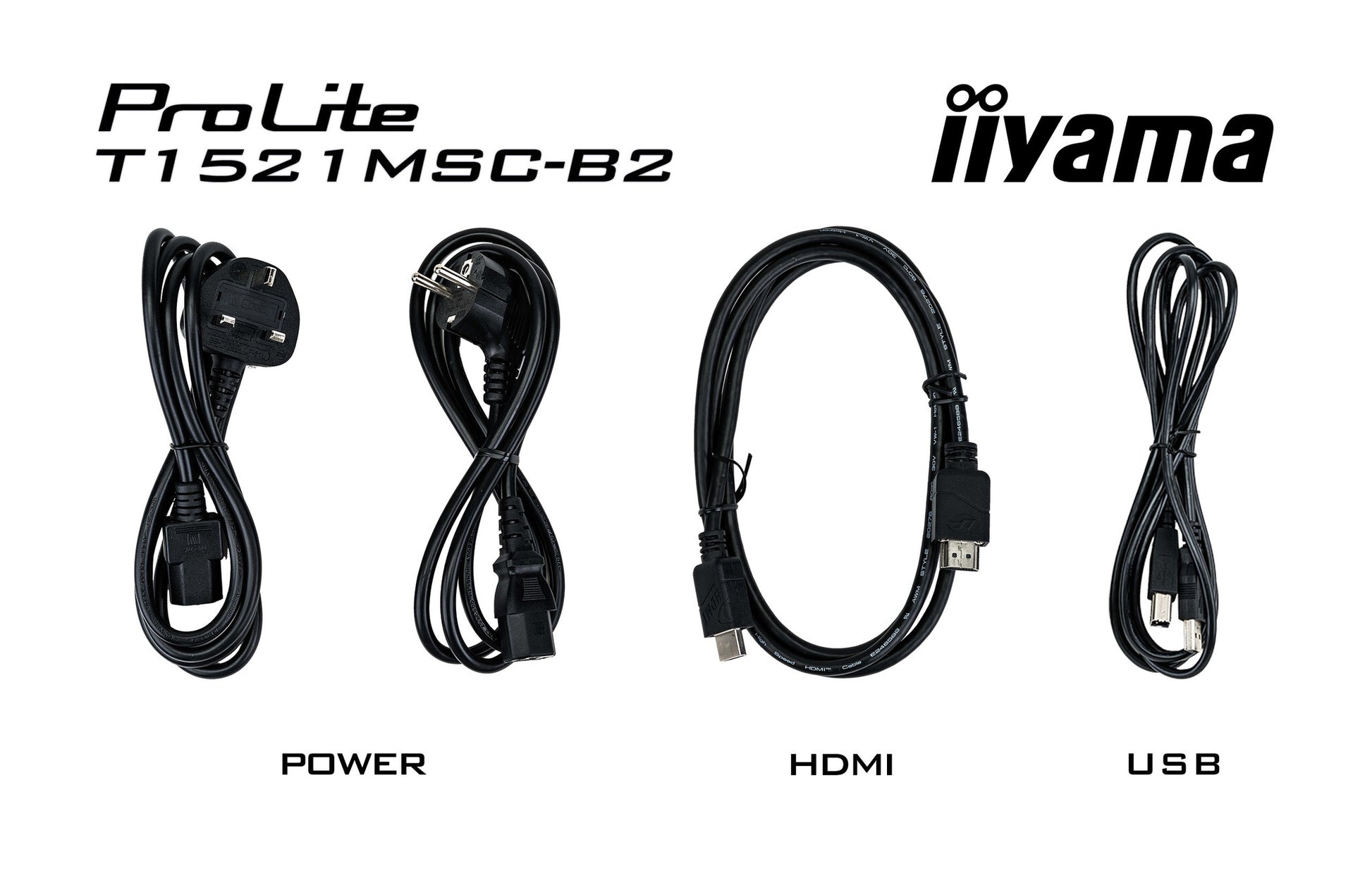

Cables included
HDMI, Power, USB
Stand included
Yes
Surface hardness
Surface hardness
7H
Display diagonal (metric)
38 cm
Pixel pitch
0.297 x 0.297 mm
Viewing angle, vertical
160°
Viewing angle, horizontal
170°

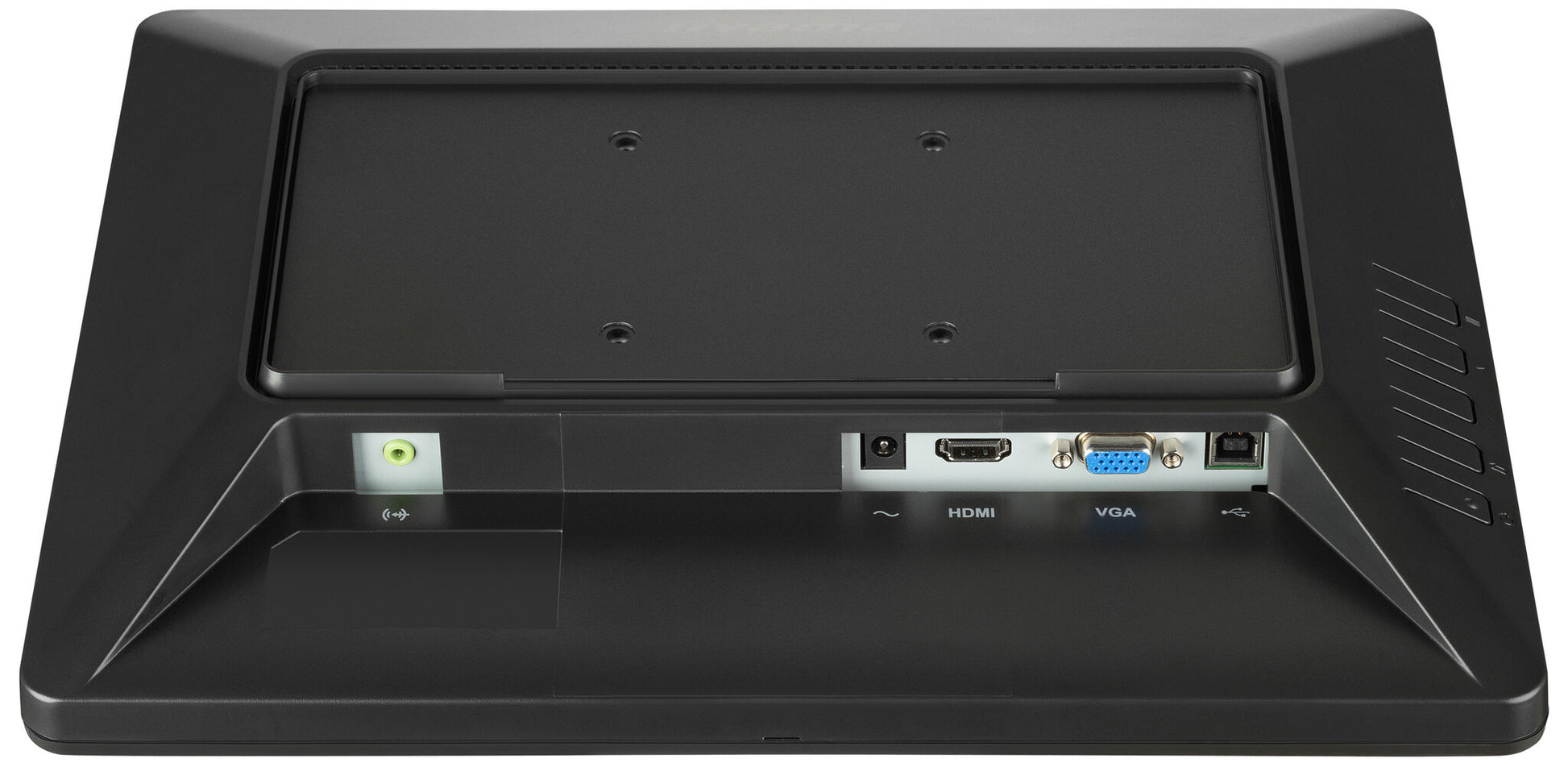

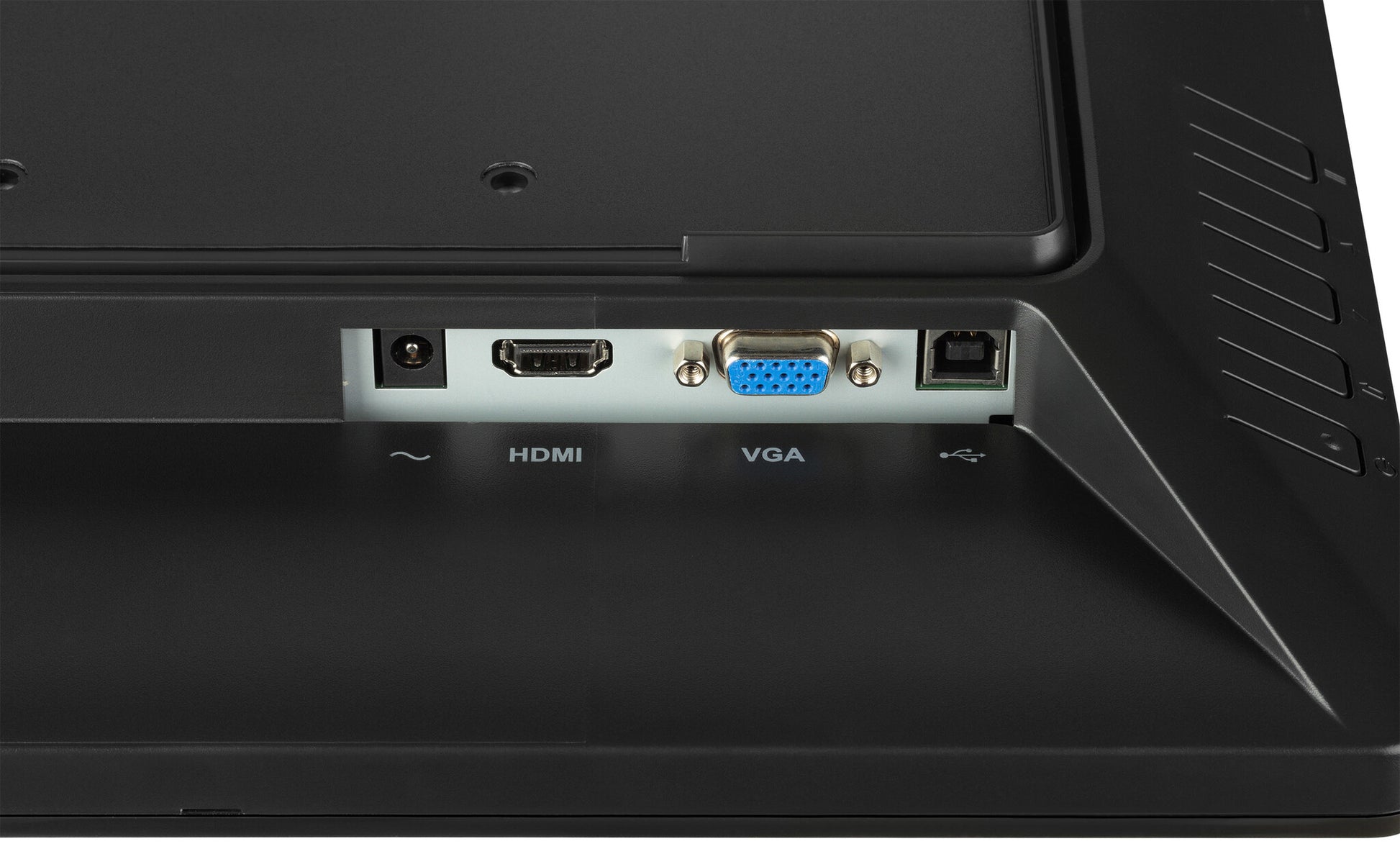

HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
Number of simultaneous touchpoints
10
Touchscreen type
Tabletop
Touch technology
Multi-touch
Built-in camera
No
Display technology
LED
Native aspect ratio
4:3
HD type
XGA
Touchscreen
Yes
