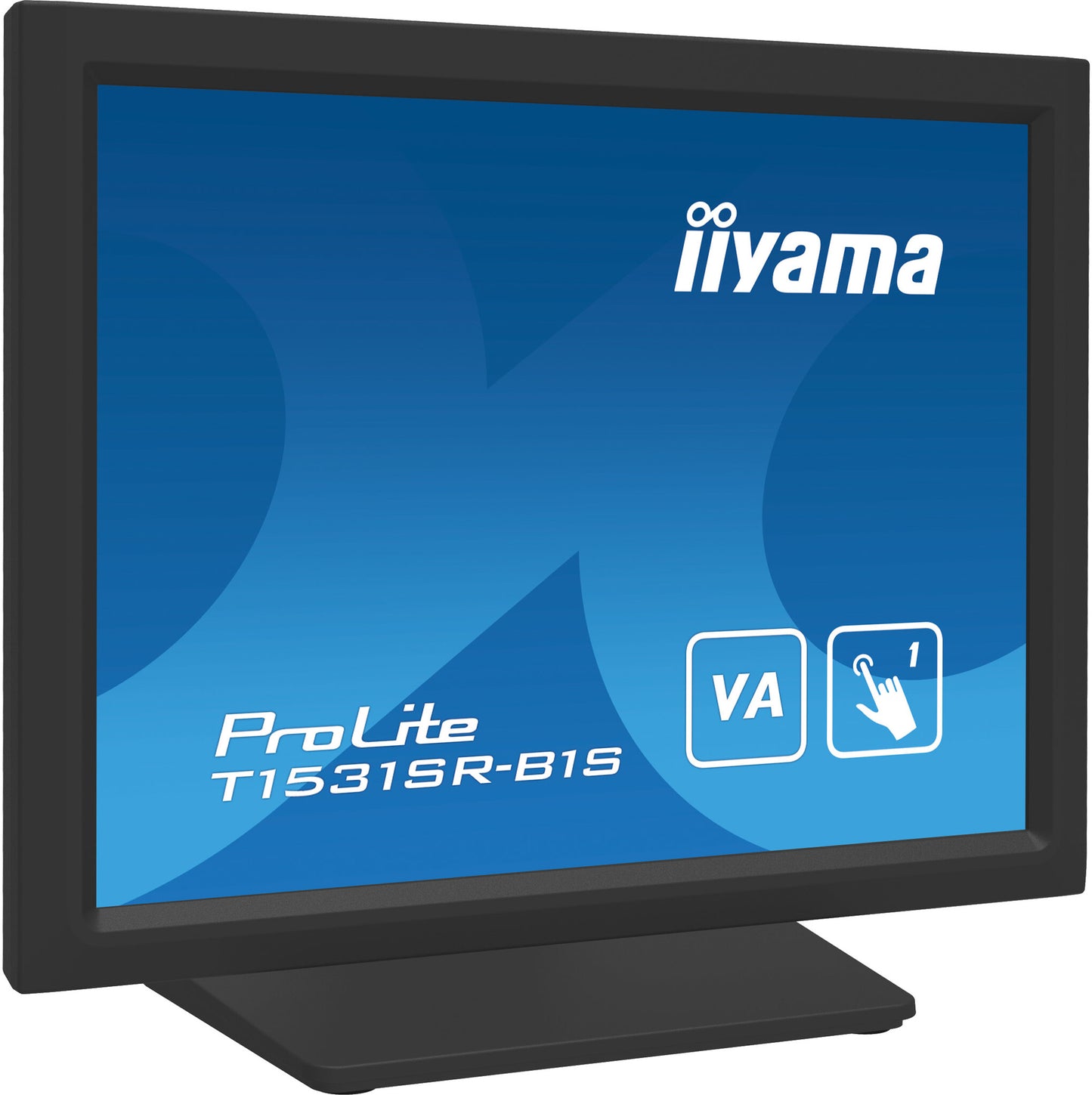

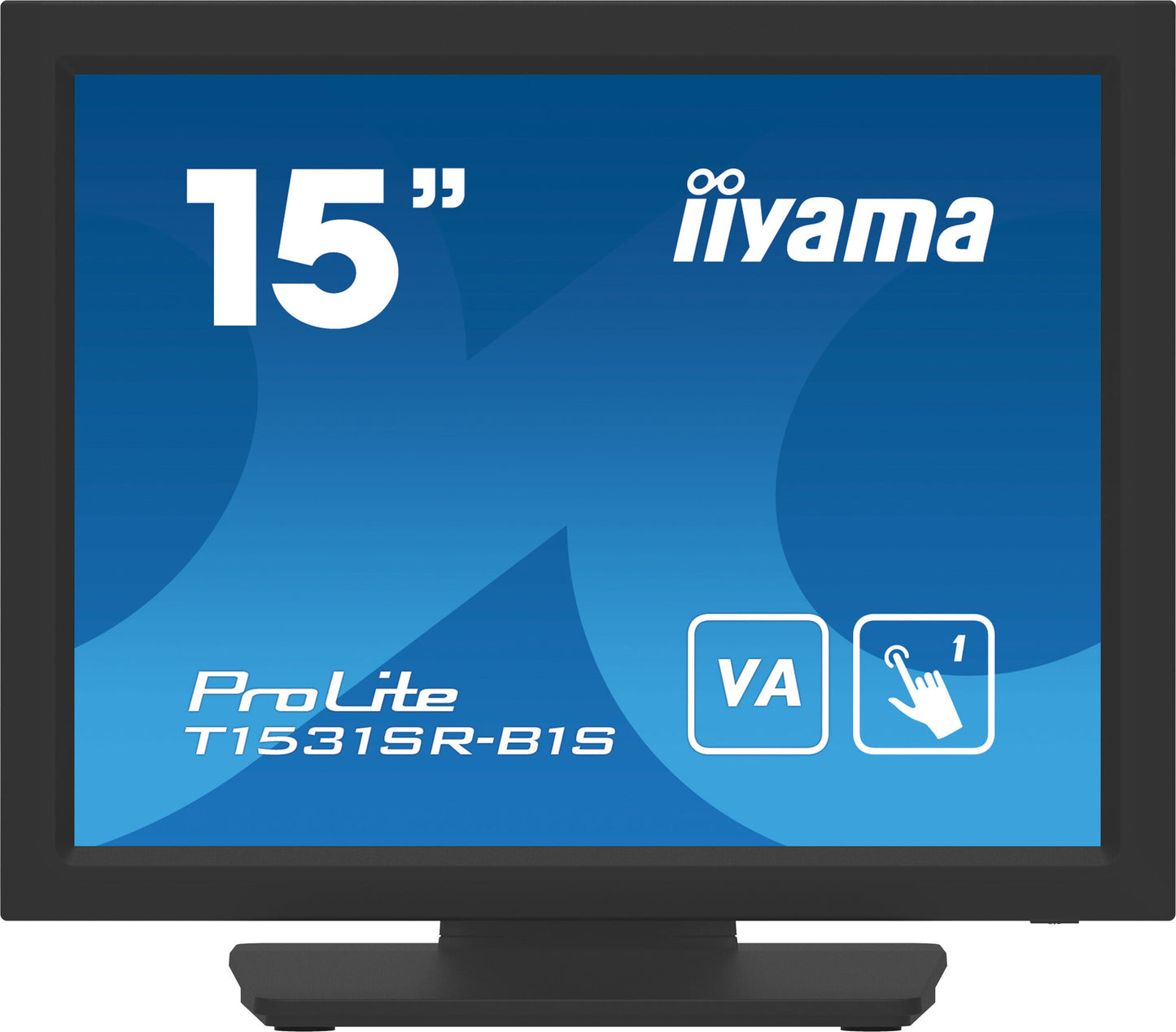

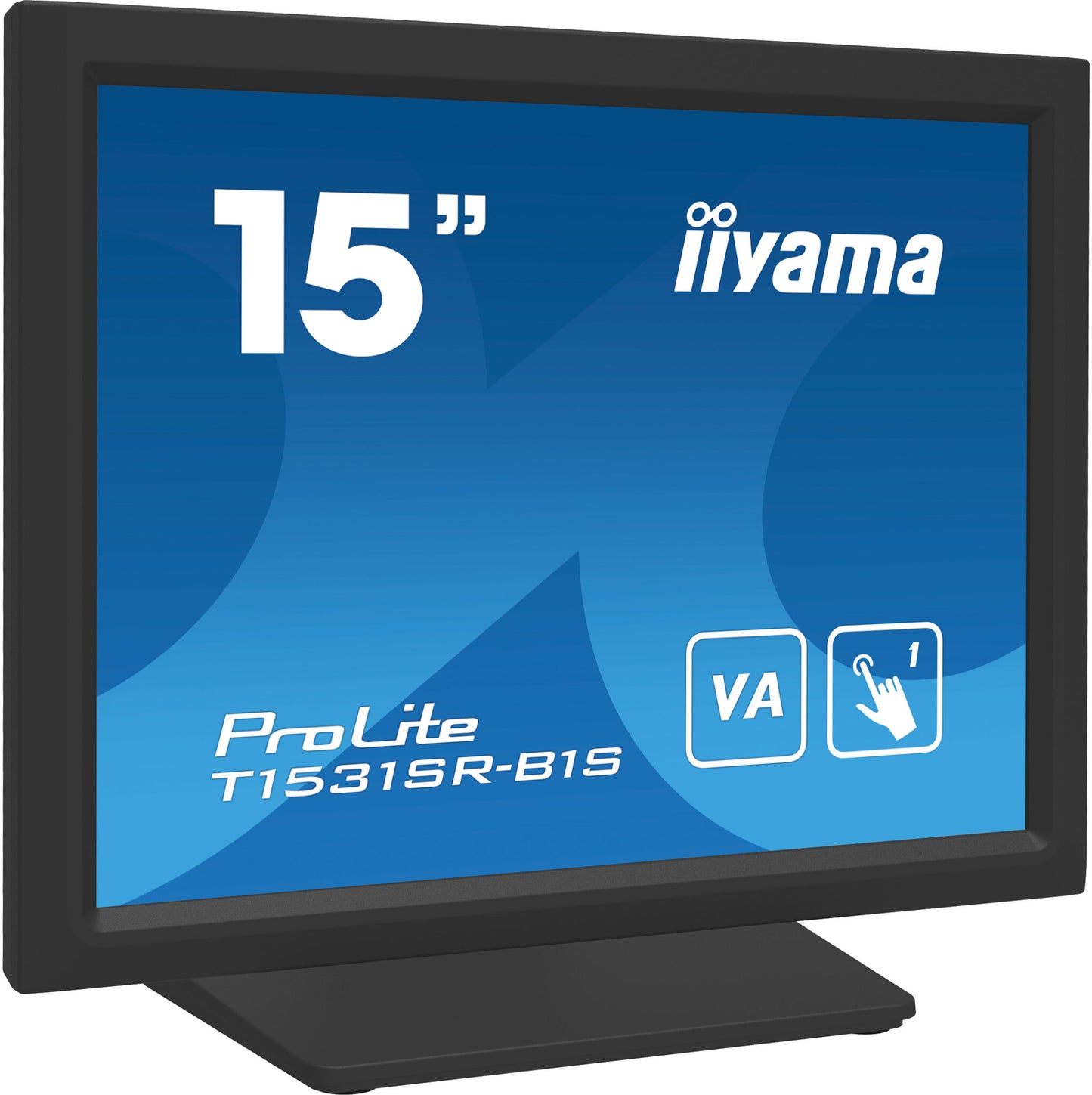

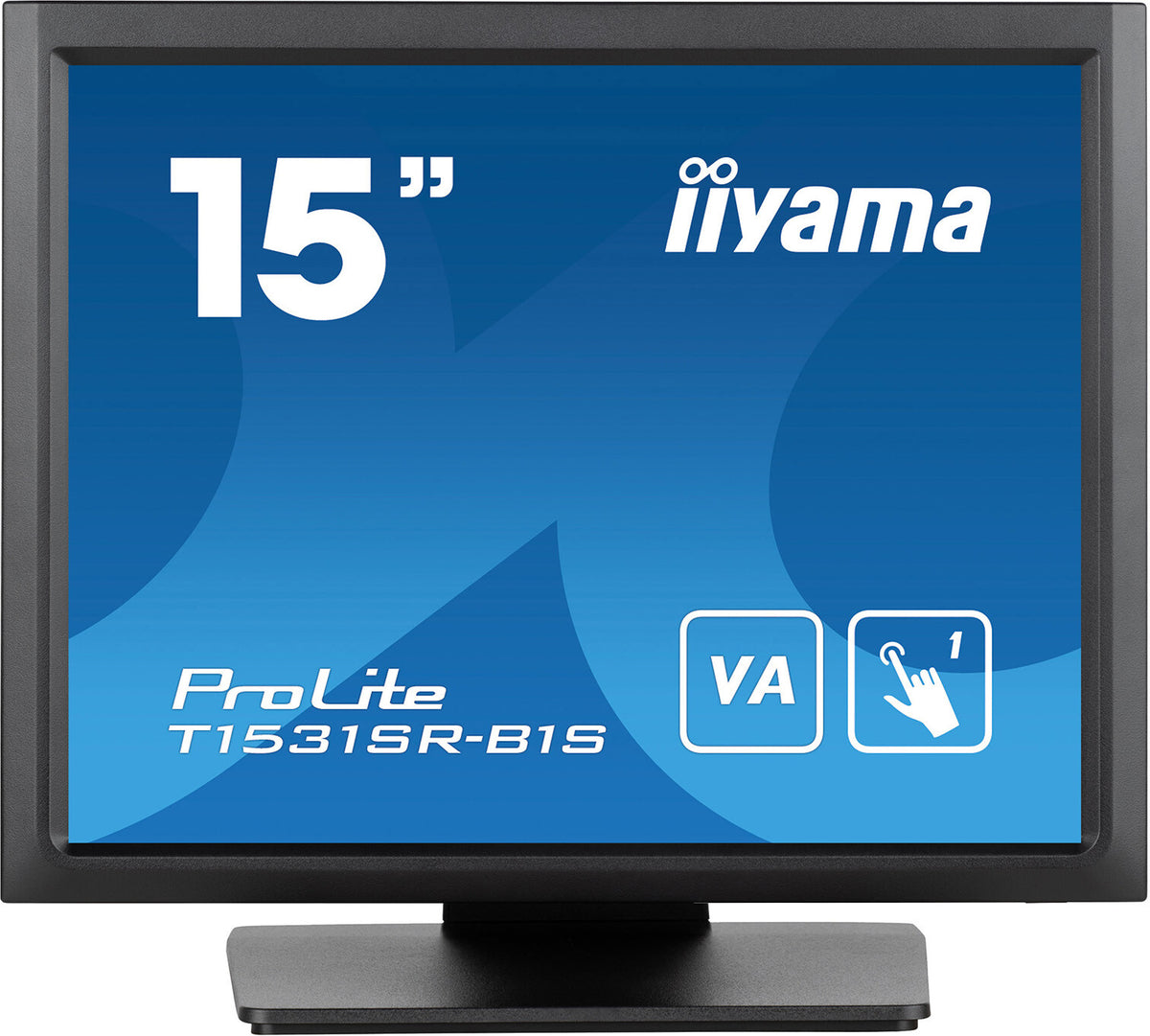

T1531SR-B1S

15” Touchscreen with 5-wire Resistive Touch Technology

  • Touch technology - Resistive
  • VA
  • IP54
  • Speakers
  • VESA
  • SKU:4948570122073
  • GTIN:4948570122073
  • MPN:T1531SR-B1S

You need to login to view the price.

View full details

iiyama 15” Touchscreen with 5-wire Resistive Touch Technology. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA. Product colour: Black

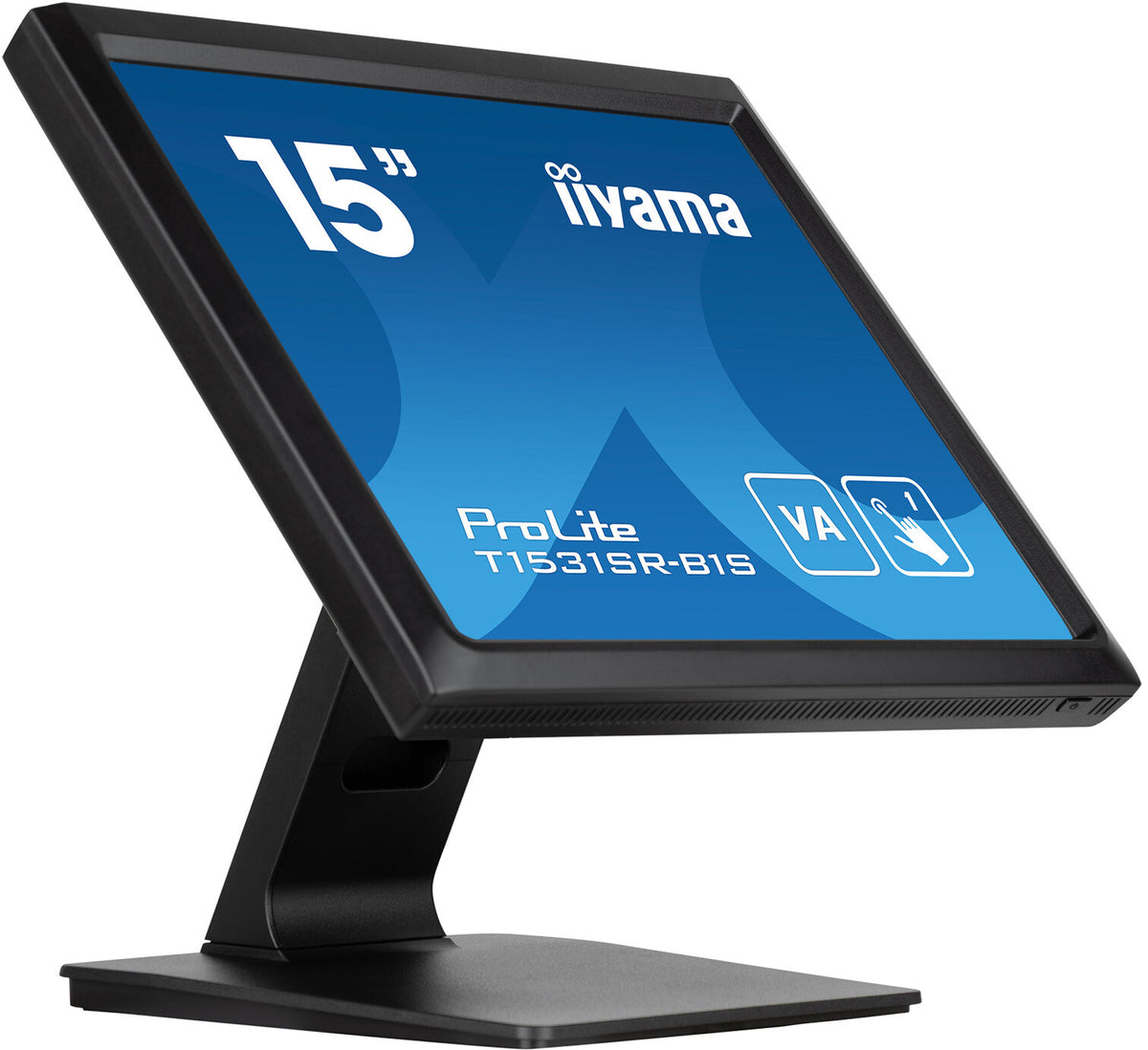

The ProLite T1531SR-B1S is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. A solid and steady base supports the touchscreen with an adjustable stand offering full 90-degree angles. The ProLite T1531SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.

Display
Display diagonal
38.1 cm (15")
Display resolution
1024 x 768 pixels
Panel type
VA
Touchscreen technology
Resistive
Display brightness (peak)
350 cd/m²
Display brightness (typical)
350 cd/m²
Response time
18 ms
Display brightness
270 cd/m²
Screen shape
Flat
Contrast ratio (typical)
2500:1
Maximum refresh rate
60 Hz
Display number of colours
16.2 million colours
Horizontal scan range
31.5 - 60 kHz
Viewable size, horizontal
30.4 cm
Viewable size, vertical
22.8 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Multimedia
Built-in speaker(s)
Yes
Number of speakers
2
RMS rated power
2 W
Design
Product colour
Black
Front bezel colour
Black
International Protection (IP) code
IP54
Ports & interfaces
Built-in USB hub
No
Audio input
Yes
Ergonomics

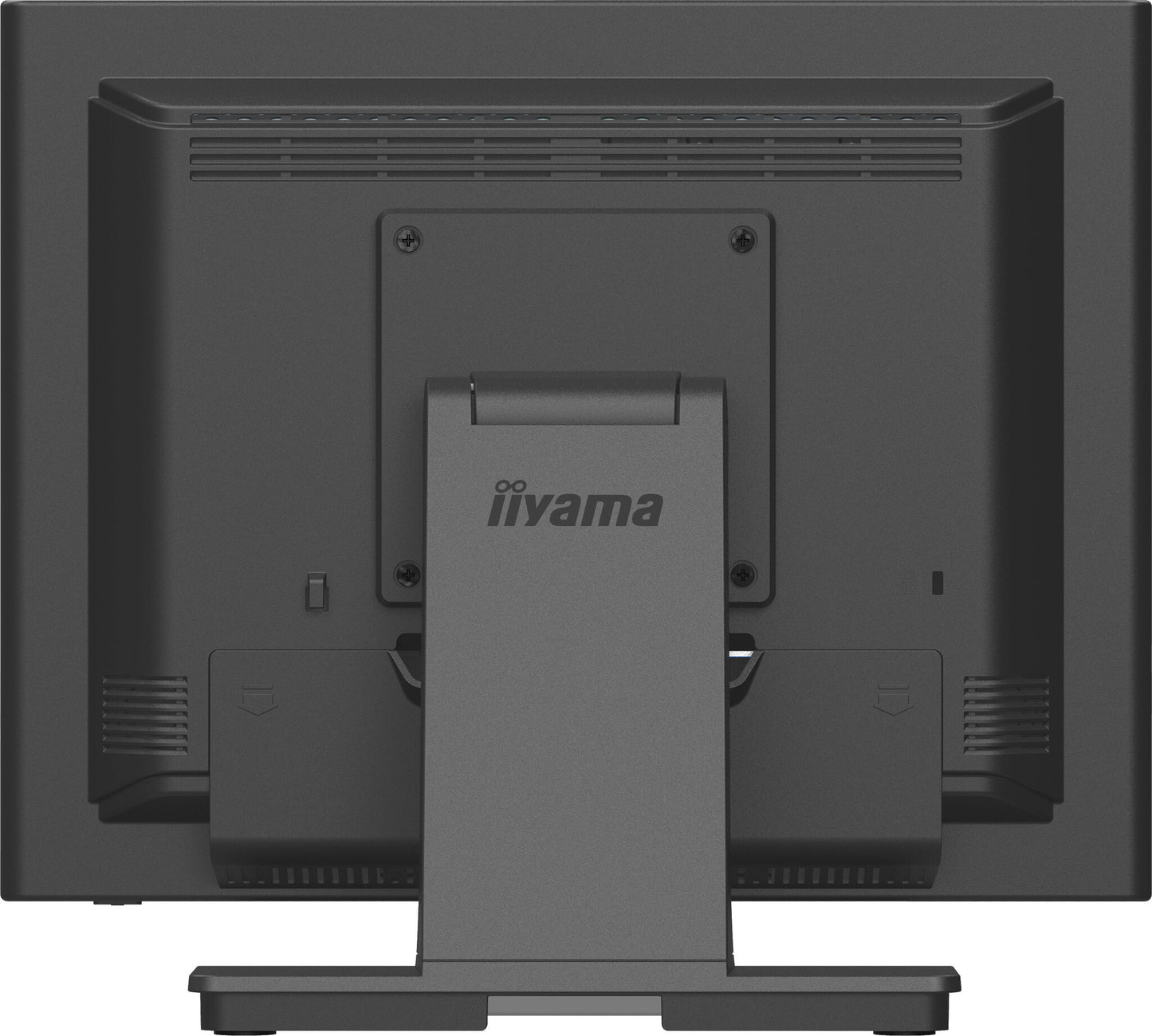

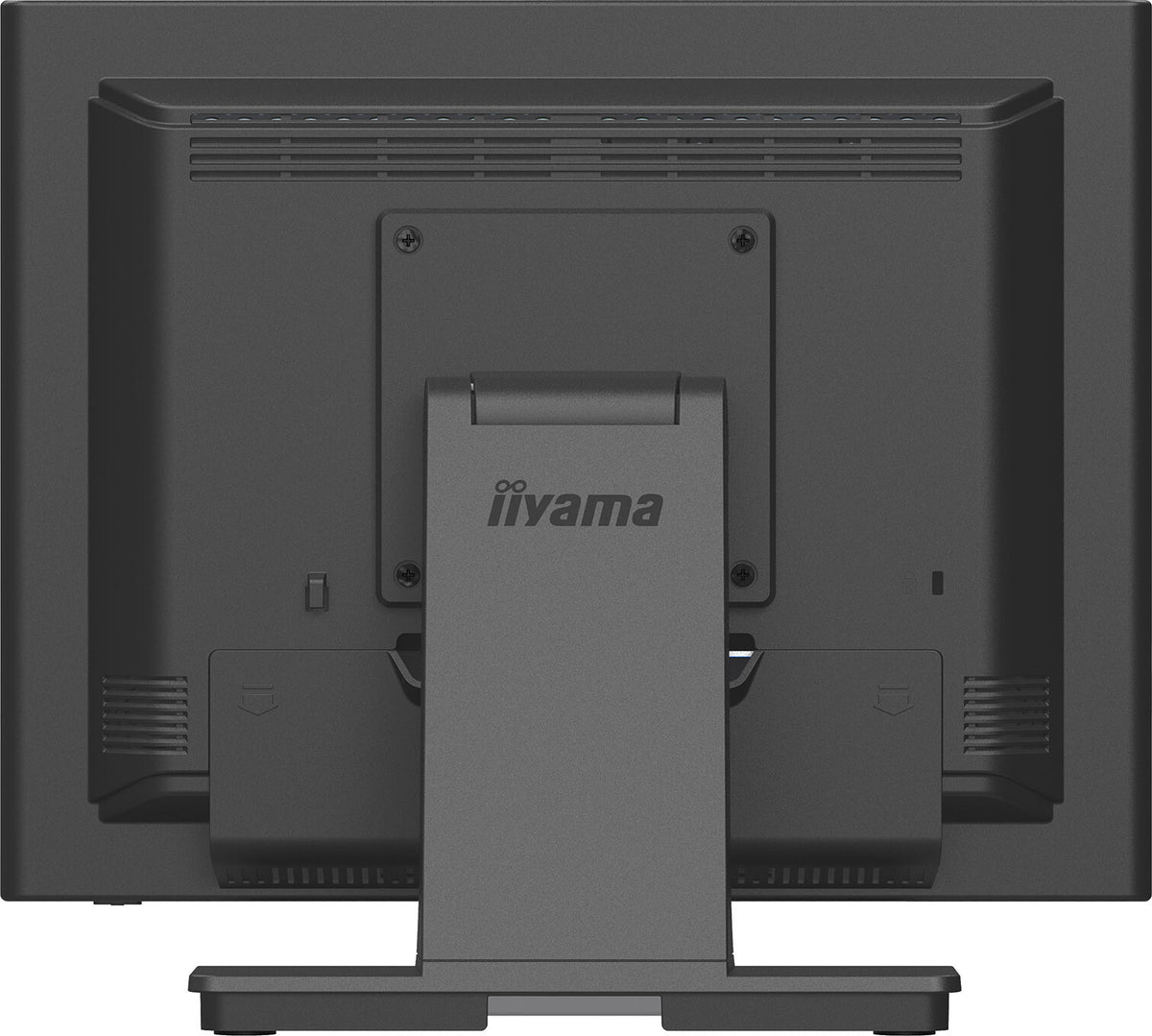

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Height adjustment
No
Tilt angle range
-5 - 90°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Tilt adjustment
Yes
Packaging content
Audio cable length
1.8 m
DisplayPort cable length
1.8 m
HDMI cable length
1.8 m
Power cable length
1.8 m
Power
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
11 kWh
Power consumption (typical)
16 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Sustainability
Sustainability certificates
ErP
Weight & dimensions
Width (with stand)
351 mm
Depth (with stand)
200 mm
Height (with stand)
306.5 mm
Weight (with stand)
4.1 kg
Packaging data
Cables included
AC, USB, HDMI, DisplayPort, Audio
USB cable length
1.8 m
Quick start guide
Yes
Package width
425 mm
Package depth
160 mm
Package height
410 mm
Package weight
5.9 kg
Technical details
Native refresh rate
60 Hz
Compliance certificates
CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Other features
Packaging content
Screwdriver
Brightness
270 cd/m²
Depth
200 mm
Width
351 mm
Height
306.5 mm
Weight
4.1 kg
Active display area (W x H)
304 x 228 mm
Mean time between failures (MTBF)
50000 h
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Touch method
stylus, finger, glove, glove (latex)
User controls
picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position), option (reset, language, source select, display mode, volume, mute, factory)
Touchscreen
Touchscreen
Yes
HD type
XGA
Native aspect ratio
4:3
Display technology
LCD
Built-in camera
No
Touch technology
Single-touch
Number of simultaneous touchpoints
1
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
176°
Viewing angle, vertical
176°
Pixel pitch
0.297 x 0.297 mm
Display diagonal (metric)
38 cm
HDCP
Yes
