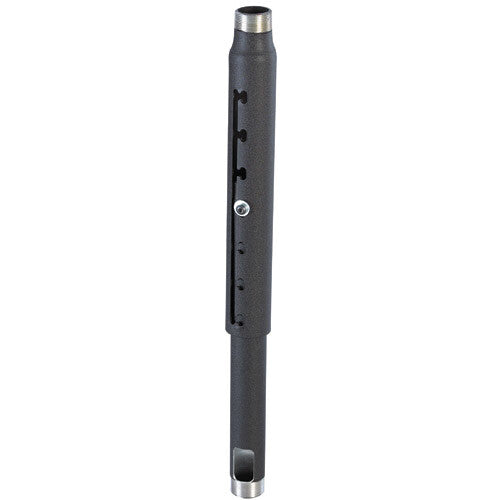

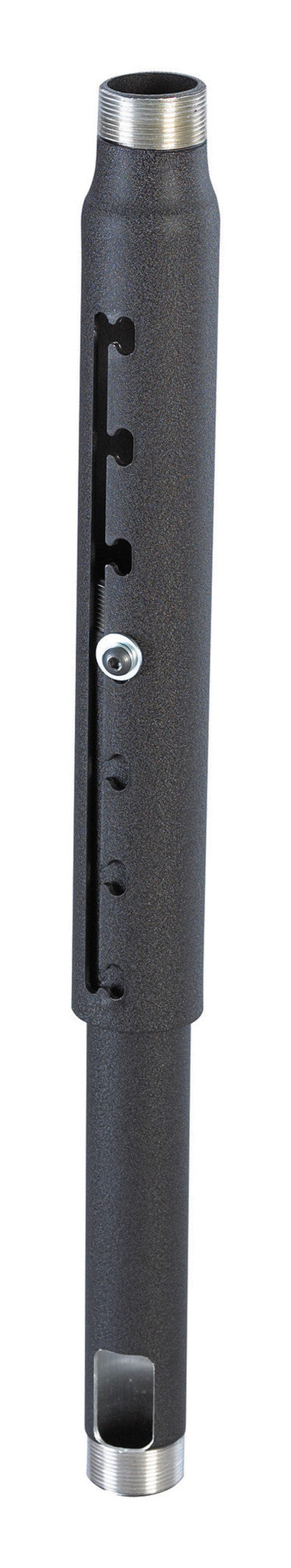

Chief CMS0507, 152-213 cm, Adjustable — Adjustable ceiling extension column for AV mounts
The Chief CMS0507 is a heavy-duty adjustable extension column designed for ceiling installations of projectors and flat panel displays in professional AV environments such as conference rooms, classrooms, auditoriums, and corporate spaces. Spanning 152 to 213 cm, it gives installers precise height control to position a display or projector exactly at the required drop distance. Built from high-quality aluminium with standard 1.5" NPT threads on both ends, it is compatible with virtually any Chief ceiling plate or third-party NPT accessory. The column is UL Listed, TAA Compliant, and backed by Chief's 10-year warranty, making it a reliable choice for government, education, and commercial deployments alike.
Tool-Free Height Adjustment in 2,54 cm Steps
The CMS0507 uses Chief's Speed-Connect notched design, which lets an installer slide the column to the correct length and lock it in place without removing the mount from the ceiling or disassembling any part of the system. Adjustments are made in 2,54 cm (1") increments across the full 152–213 cm range. In practice this means that if the ceiling height turns out to differ from the drawing, or if the projector is swapped for a different model with a different lens throw, the drop can be corrected in minutes rather than hours. This is especially valuable in school or corporate environments where a room is reconfigured periodically — the flexibility is built in rather than requiring a new column to be ordered.
Integrated Flow-Through Cable Management
Cables pass entirely through the hollow aluminium body of the column, entering and exiting via a dedicated routing port at one end. This keeps power, signal, and control cabling concealed along the full length of the drop rather than running externally along the outside of the pole. The result is a cleaner installation that meets the aesthetic expectations of high-end conference rooms and reception areas, and also reduces the risk of cables being snagged or damaged over time. For the end user, this translates to a more professional-looking display system and fewer service calls caused by cable wear.
226,8 kg Rated Load with Vibration Dampening
With a maximum weight capacity of 226,8 kg (500 lbs), the CMS0507 handles even the heaviest commercial projectors and large-format displays without concern. An included set screw locks the column length and simultaneously acts as a vibration damper, reducing the micro-movements caused by HVAC systems or foot traffic in the building structure above. For high-stakes environments such as auditoriums, houses of worship, or control rooms — where a shaking image during a live event or presentation is unacceptable — this mechanical stabilisation is a meaningful reliability feature.
Universal 1.5" NPT Threading — Broad Compatibility
Both ends of the CMS0507 carry standard 1.5" NPT pipe threads, the de facto standard in ceiling AV mounting hardware. This means the column connects directly to the vast majority of Chief ceiling plates, spider mounts, and projector mounts, as well as most third-party accessories that follow the same standard. Installers can mix and match components across a project without worrying about proprietary thread specifications, and replacement or expansion of the mount system later does not require sourcing a specific matching column.
UL Listed, TAA Compliant — Bid-Ready for Public Sector
The CMS0507 carries UL Listing for safety and is TAA (Trade Agreements Act) Compliant, which is a mandatory requirement for products sold to US federal government agencies and many state and local government or education purchasing contracts. Specifying a TAA-compliant mount from the outset avoids the need to re-engineer a solution late in a procurement process. The 10-year manufacturer warranty further strengthens the value proposition in long-cycle public-sector projects where ongoing service and replacement costs matter.
