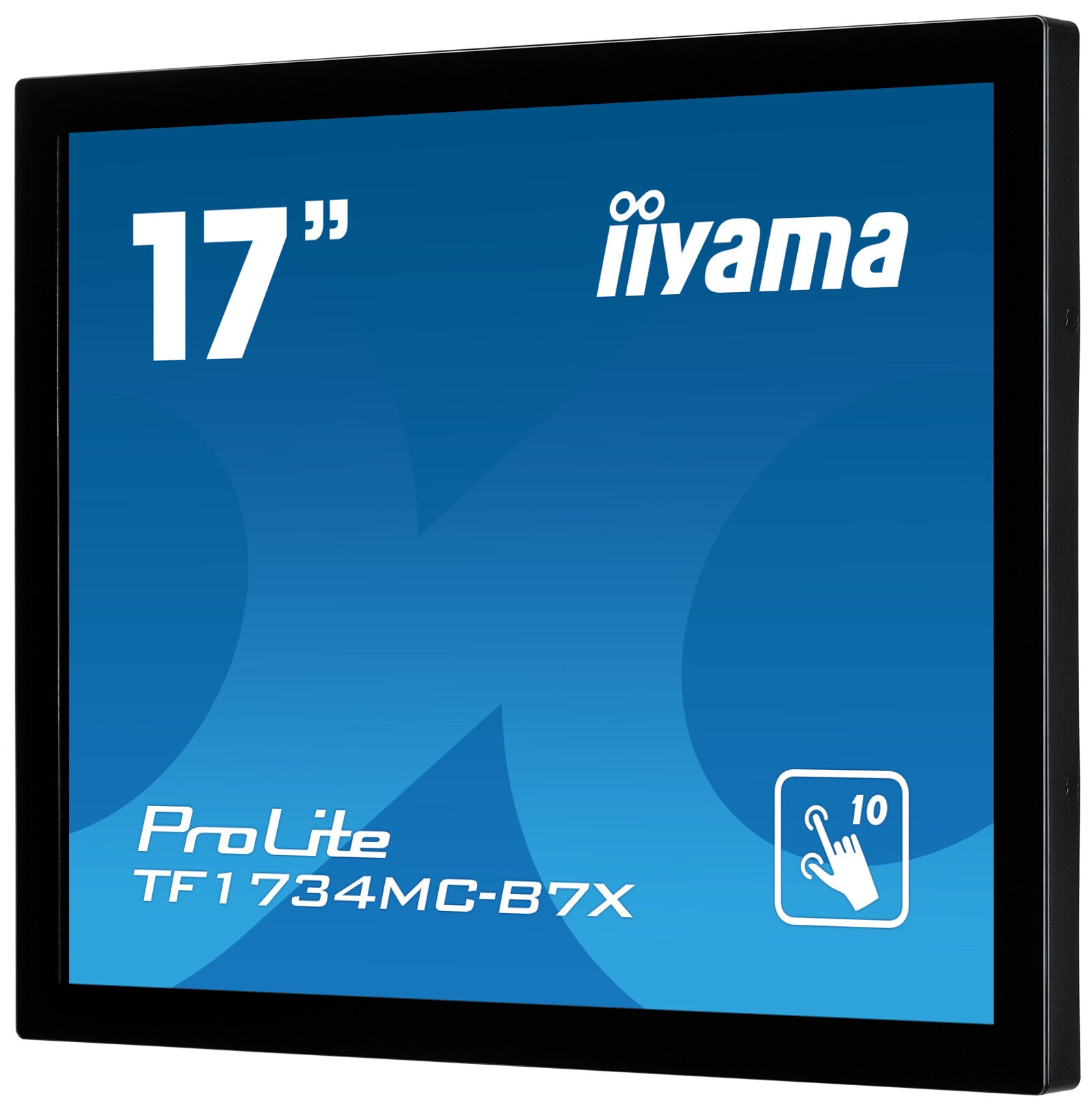

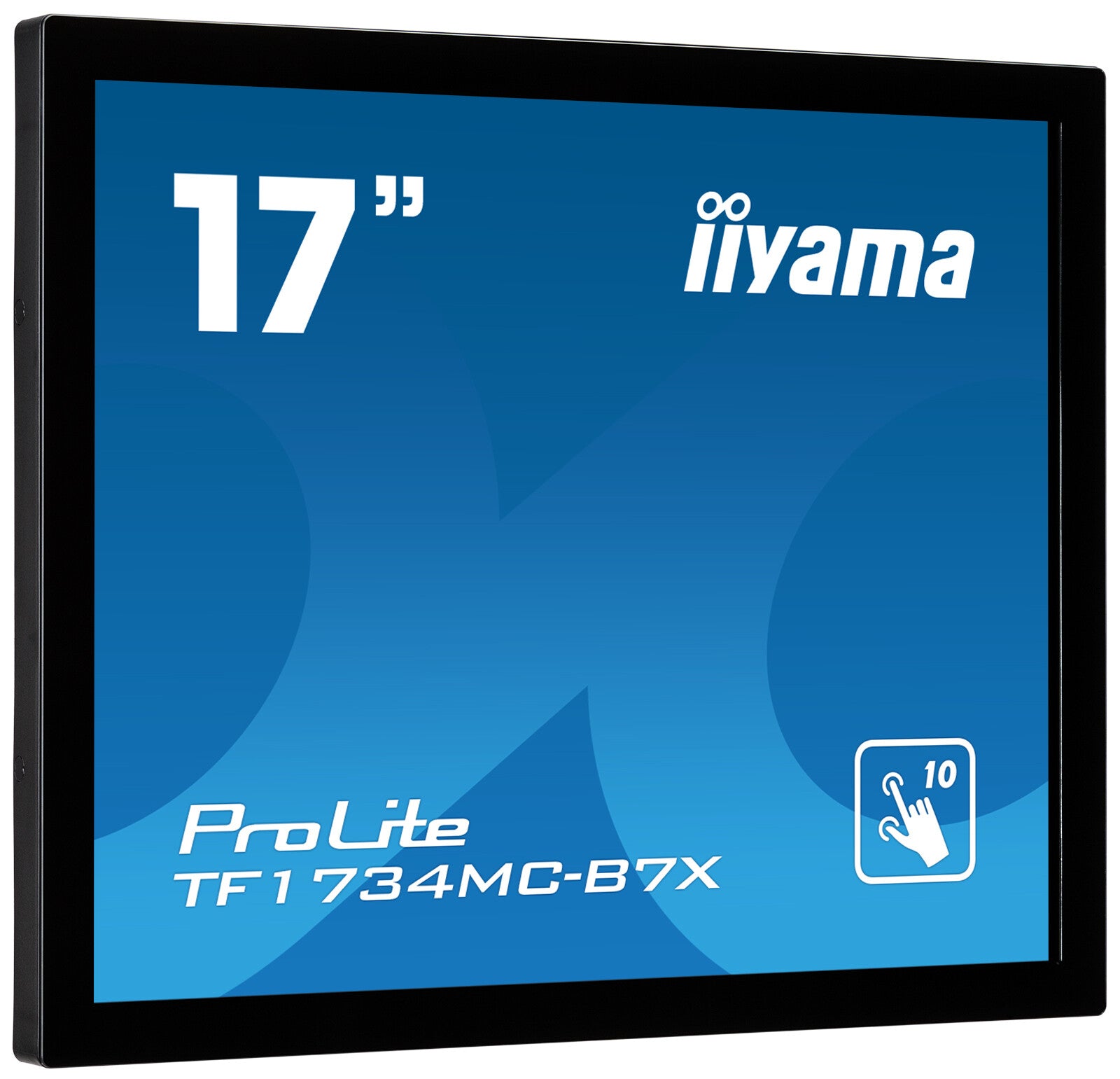

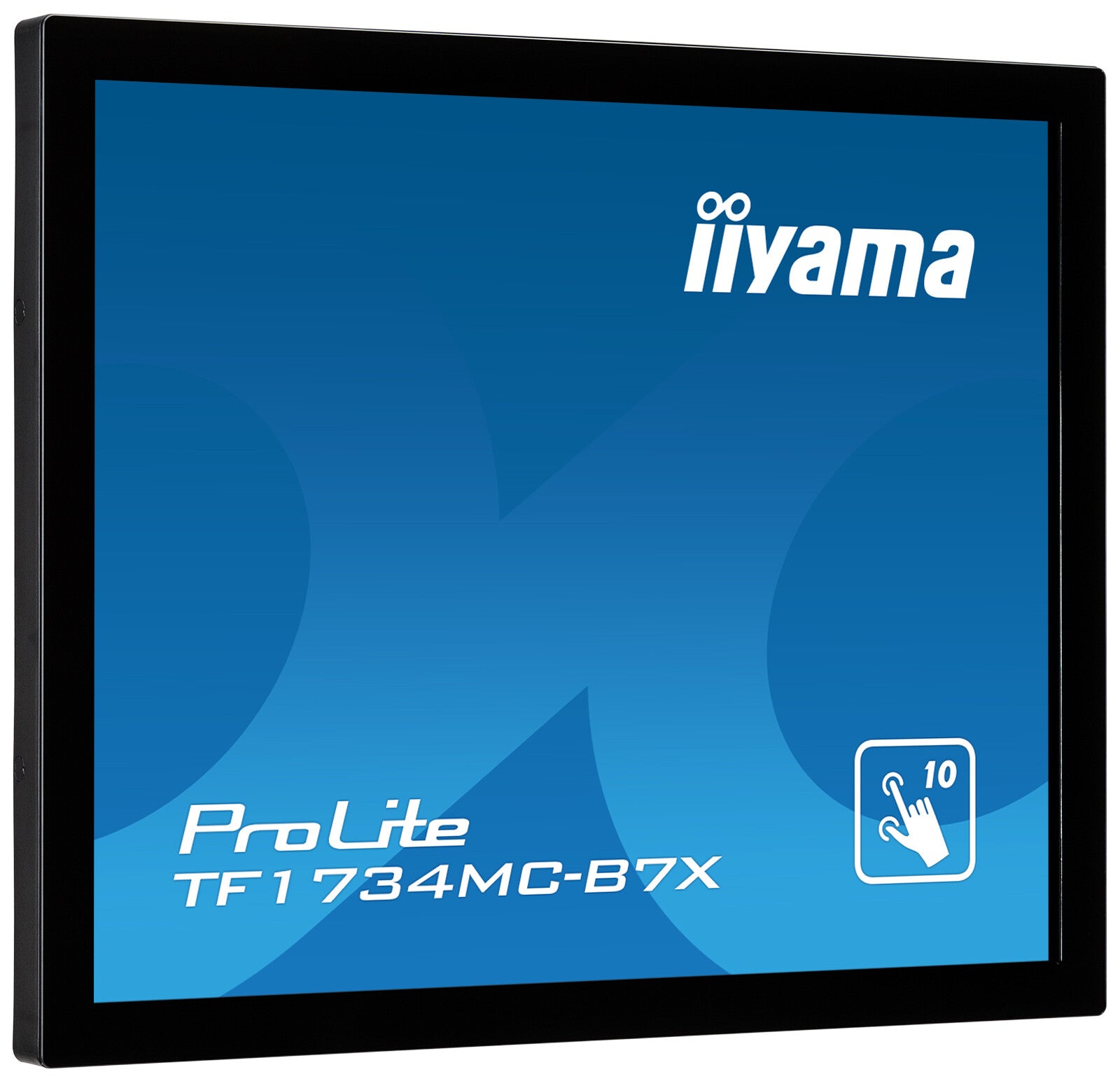

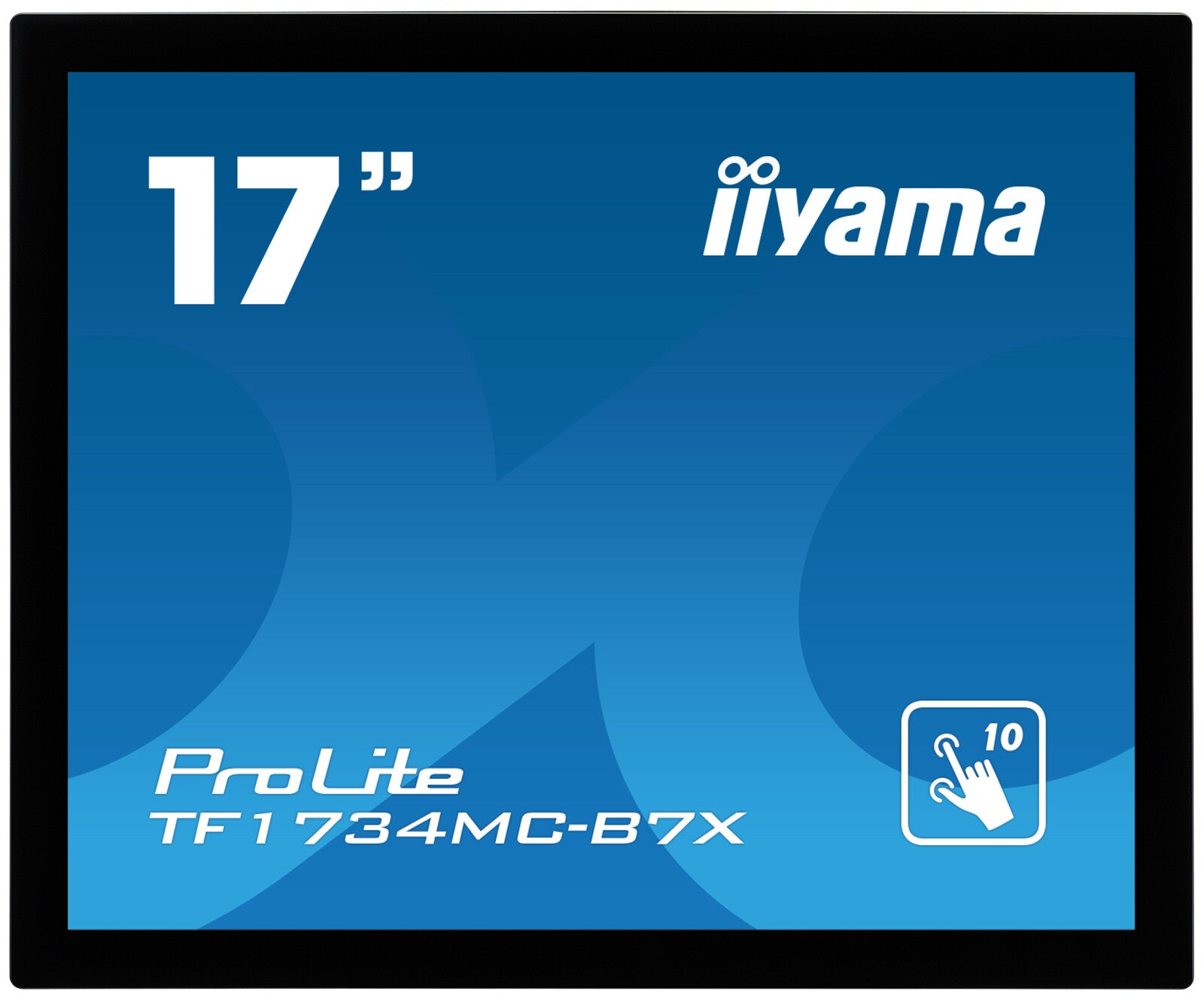

TF1734MC-B7X

17’’ 10pt touch Open Frame monitor with Touch Through-Glass function

  • 43.2 cm (17") Black
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Response time: 5 ms
  • 1280 x 1024 pixels SXGA Panel type: TN
  • Energy efficiency class (SDR): E ErP CE, cULus, EAC, REACH, RoHS, WEEE
  • SKU:4948570118397
  • GTIN:4948570118397
  • MPN:TF1734MC-B7X

You need to login to view the price.

View full details

iiyama 17’’ 10pt touch Open Frame monitor with Touch Through-Glass function. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, HD type: SXGA. Product colour: Black. AC adapter output voltage: 12 V. Package width: 455 mm, Package depth: 145 mm, Package height: 387 mm. Certification: CE, EAC, RoHS support, ErP, WEEE, cULus, REACH

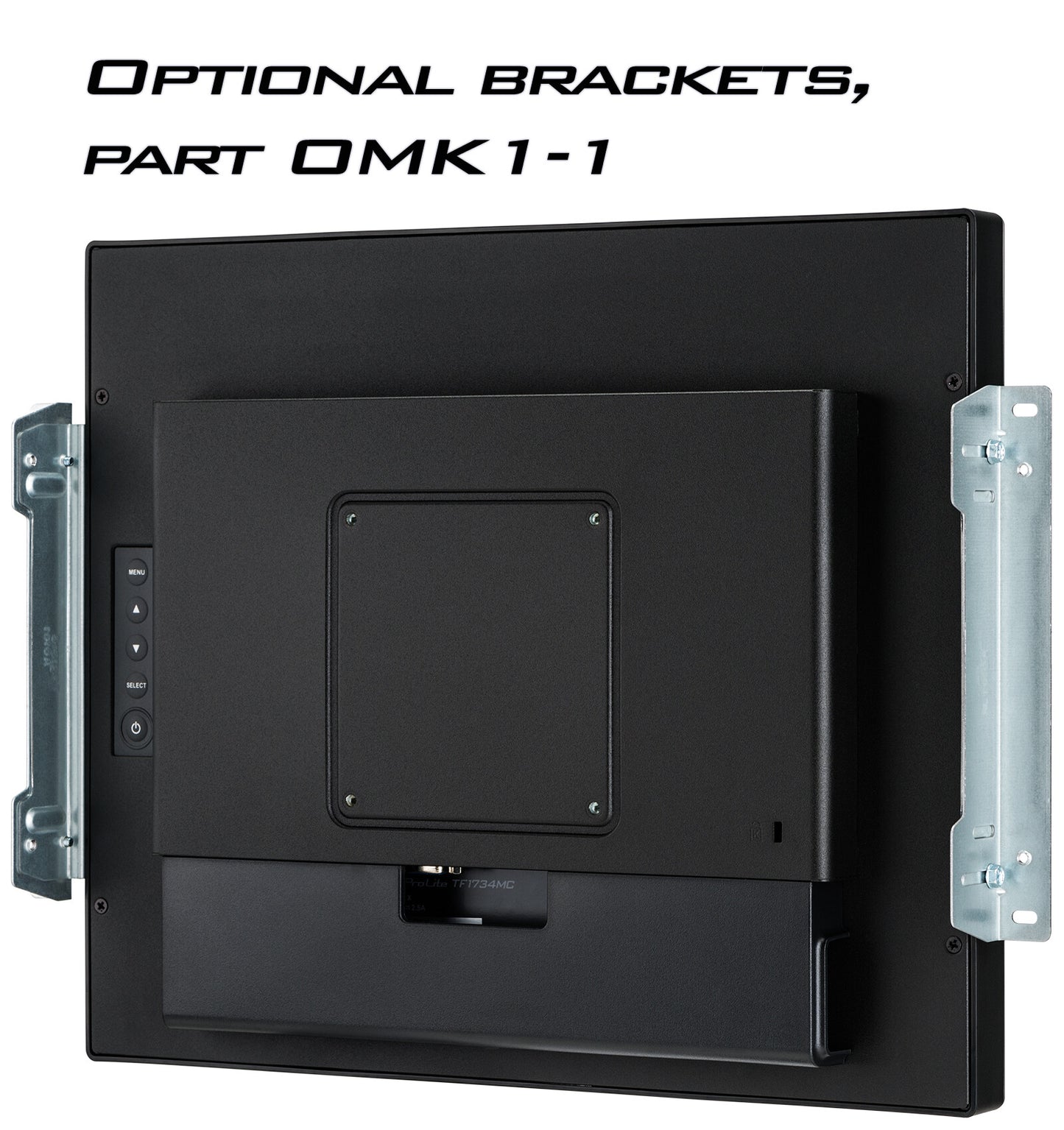

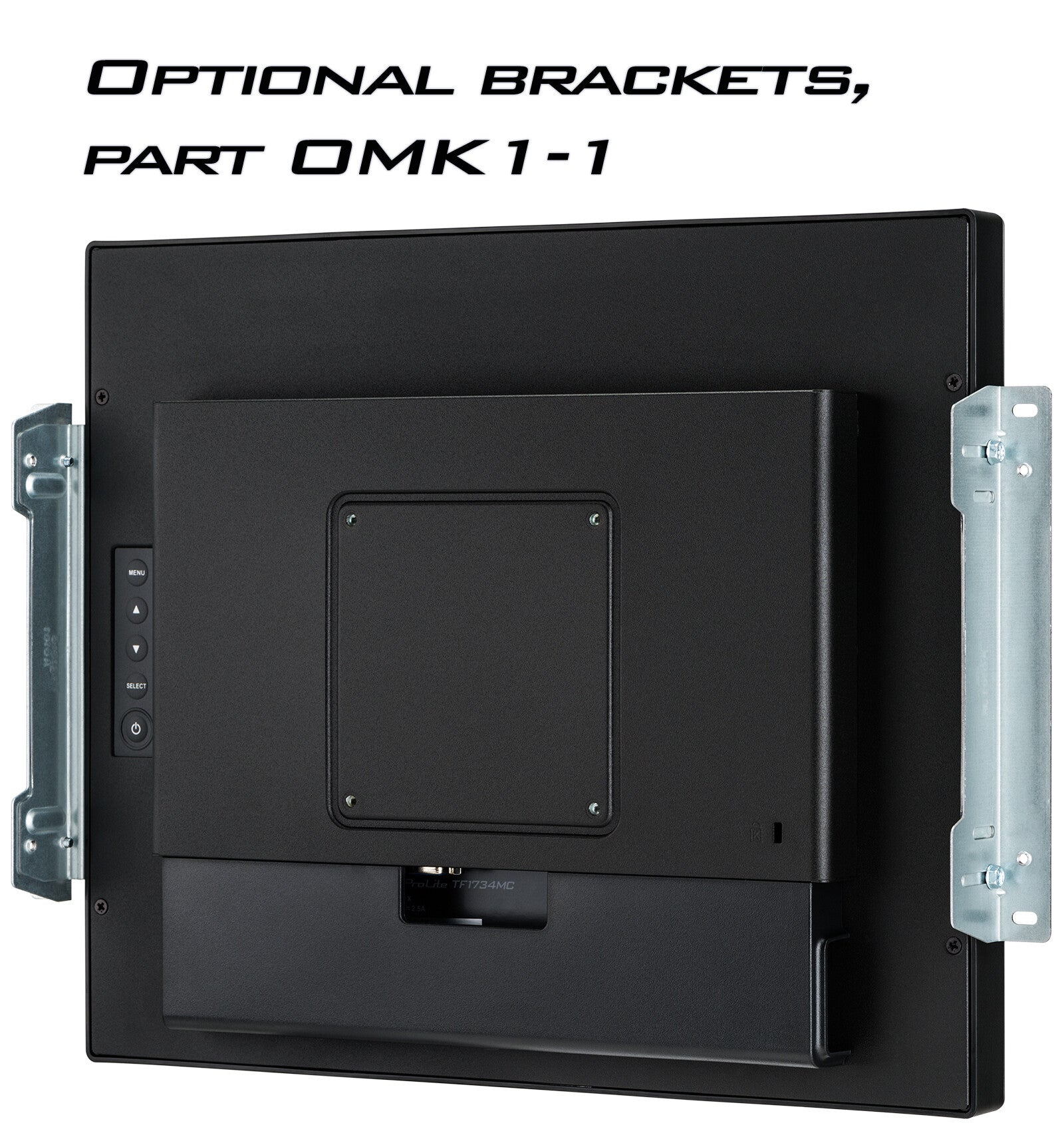

The ProLite TF1734MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

Display
Display diagonal
43.2 cm (17")
Display resolution
1280 x 1024 pixels
Panel type
TN
Touchscreen technology
Projected capacitive system
Display brightness (typical)
350 cd/m²
Response time
5 ms
Supported graphics resolutions
1280 x 1024 (SXGA)
Colour depth
8 bit
Positional accuracy
2 mm
Display brightness
315 cd/m²
Screen shape
Flat
Supported video modes
1024p
Aspect ratio
5:4
Contrast ratio (typical)
1000:1
Display number of colours
16.7 million colours
Horizontal scan range
31.4 - 80 kHz
Viewable size, horizontal
33.8 cm
Viewable size, vertical
27.1 cm
Viewable size diagonal
43 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection
Yes
Design
Product colour
Black
Front bezel colour
Black
Glass thickness
3 mm
International Protection (IP) code
IP65
Certification
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH

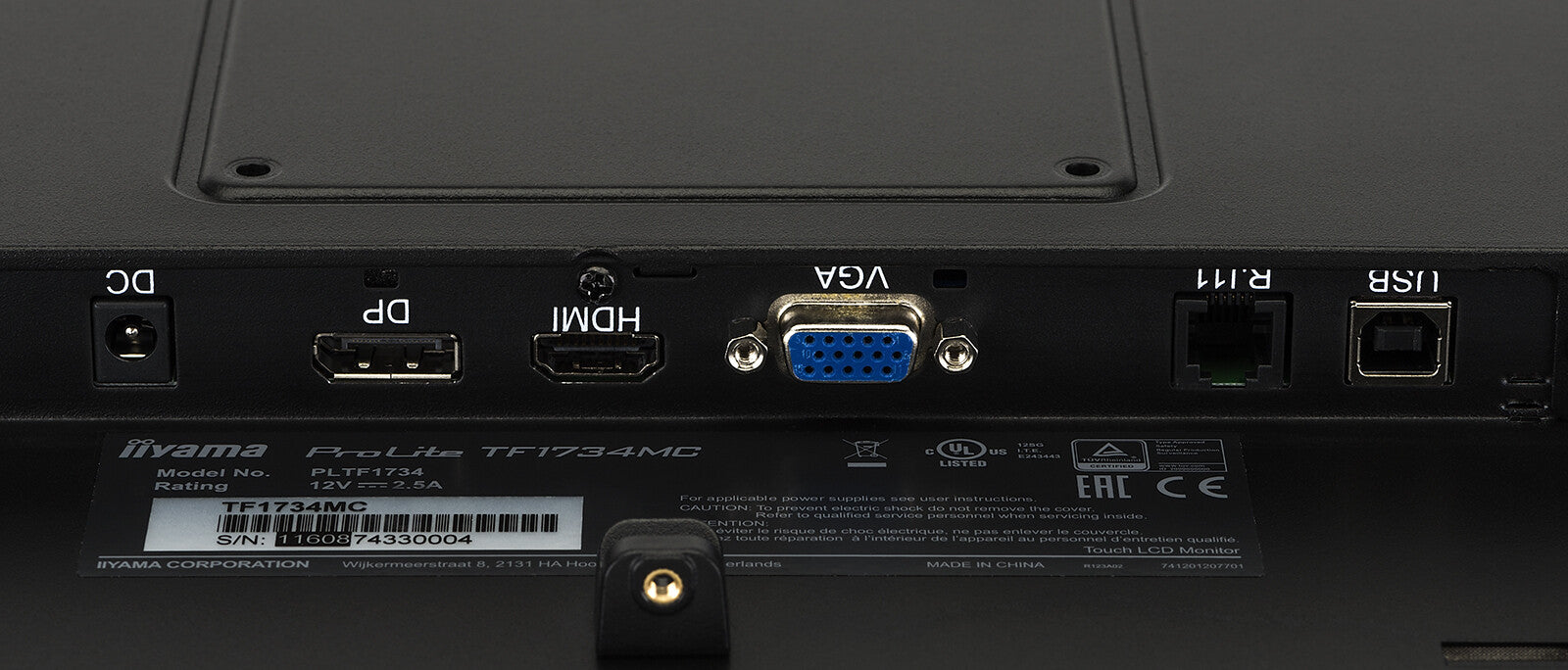

Ports & interfaces
USB required
Yes
USB Touch ports quantity
1
Ergonomics

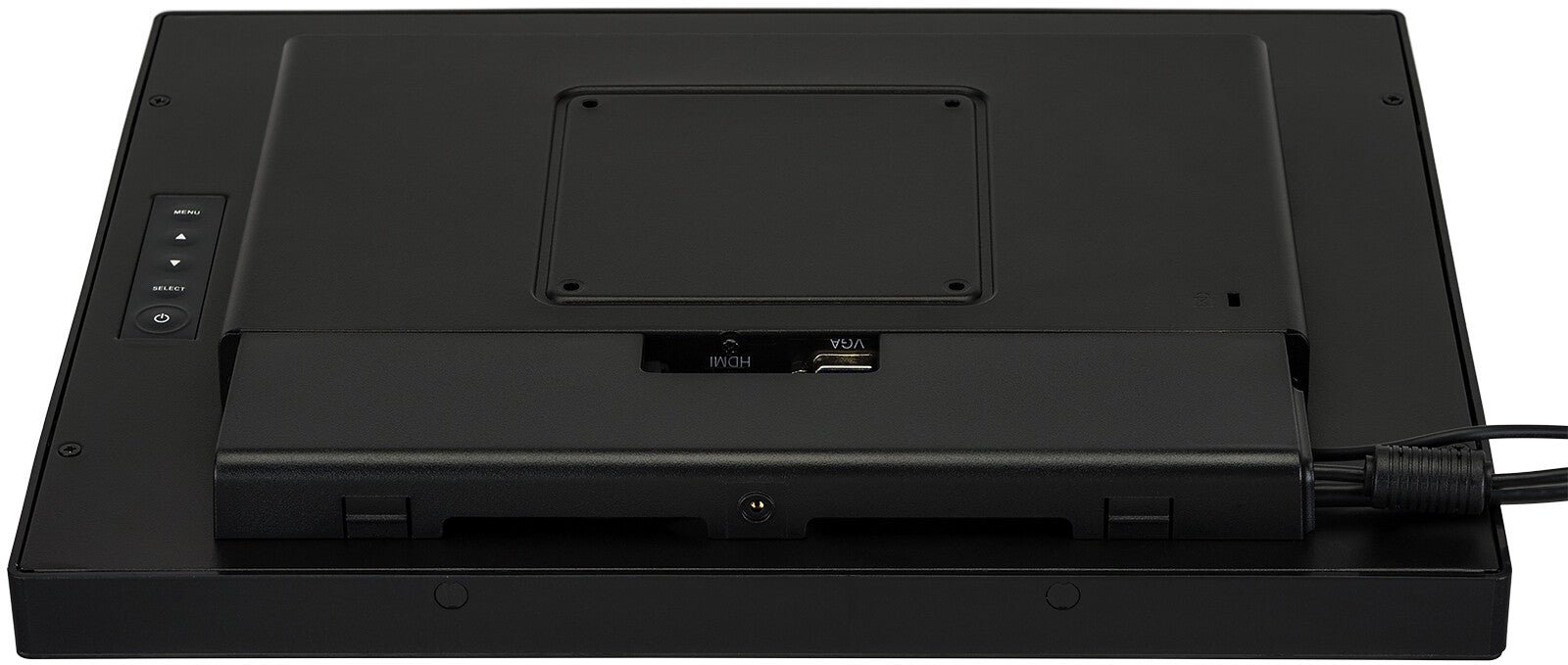

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
On Screen Display (OSD)
Yes
Number of OSD languages
7
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Plug and Play
Yes
Power
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
11.4 kWh
Power consumption (typical)
13 W
Power consumption (standby)
0.6 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Sustainability
Sustainability certificates
ErP
Weight & dimensions
Width (with stand)
369 mm
Depth (with stand)
47.5 mm
Height (with stand)
307 mm
Weight (with stand)
3.6 kg
Width (without stand)
369 mm
Depth (without stand)
47.5 mm
Height (without stand)
307 mm
Weight (without stand)
3.6 kg
Packaging data
Cables included

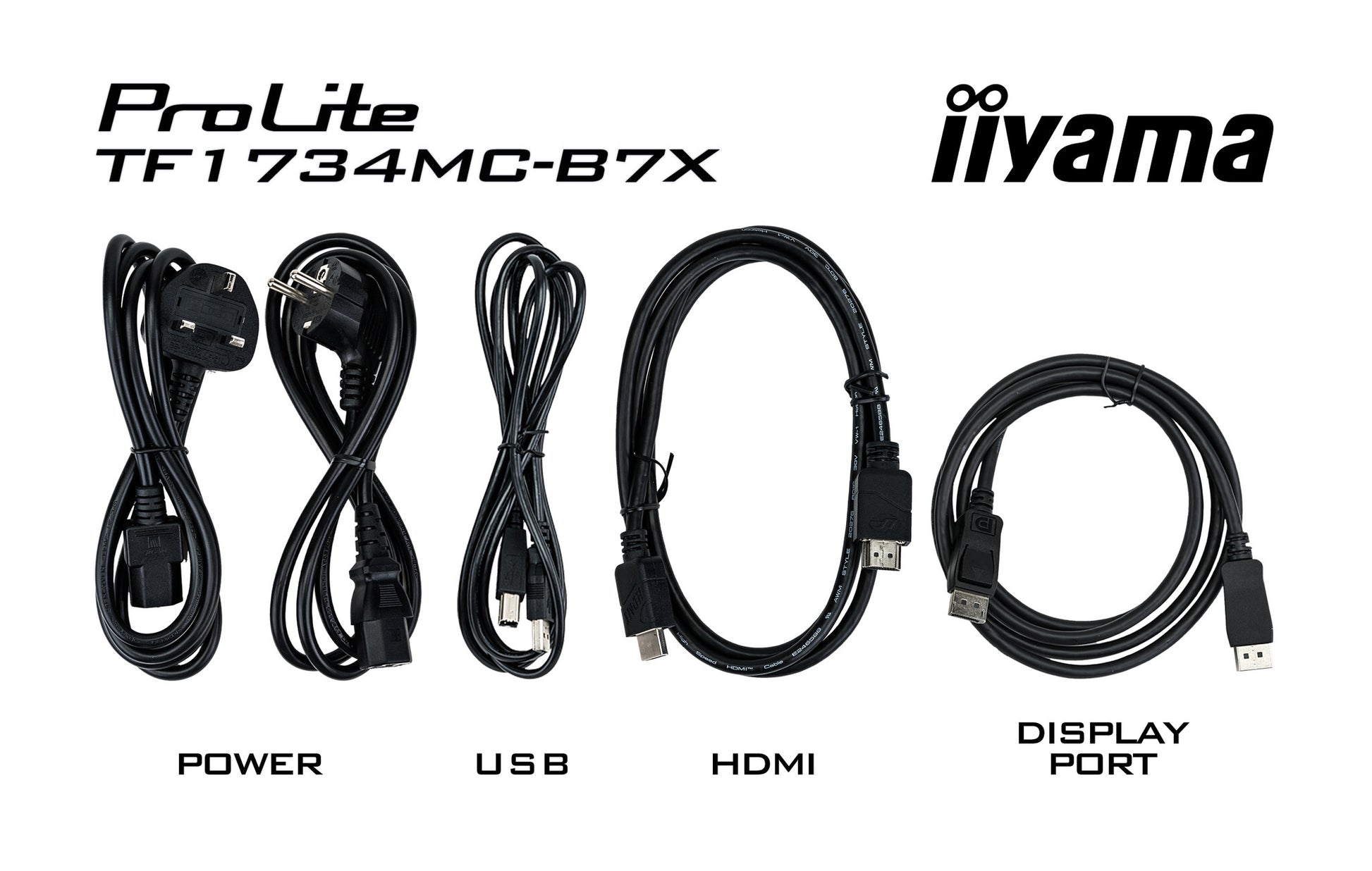

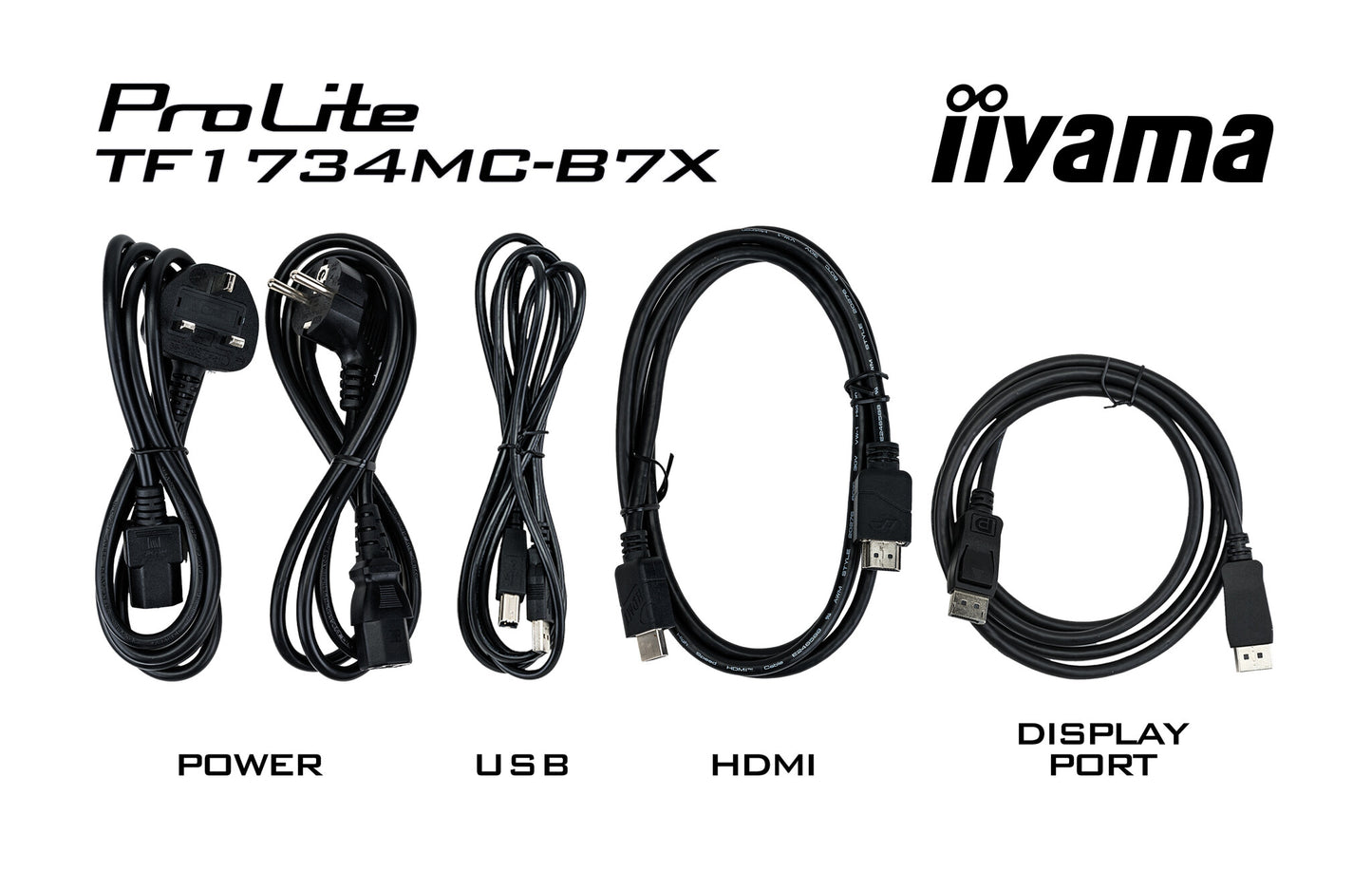

AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Package width
455 mm
Package depth
145 mm
Package height
387 mm
Package weight
4.9 kg
Logistics data
Harmonized System (HS) code
85285210
Technical details
Native refresh rate
60 Hz
Compliance certificates
CE, cULus, EAC, REACH, RoHS, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter
Brightness
315 cd/m²
Depth
47.5 mm
Width
369 mm
Height
307 mm
Weight
3.6 kg
Active display area (W x H)
338 x 270.5 mm
Placement supported
Horizontal/Vertical
Display viewable area (HxV)
338 x 270 mm

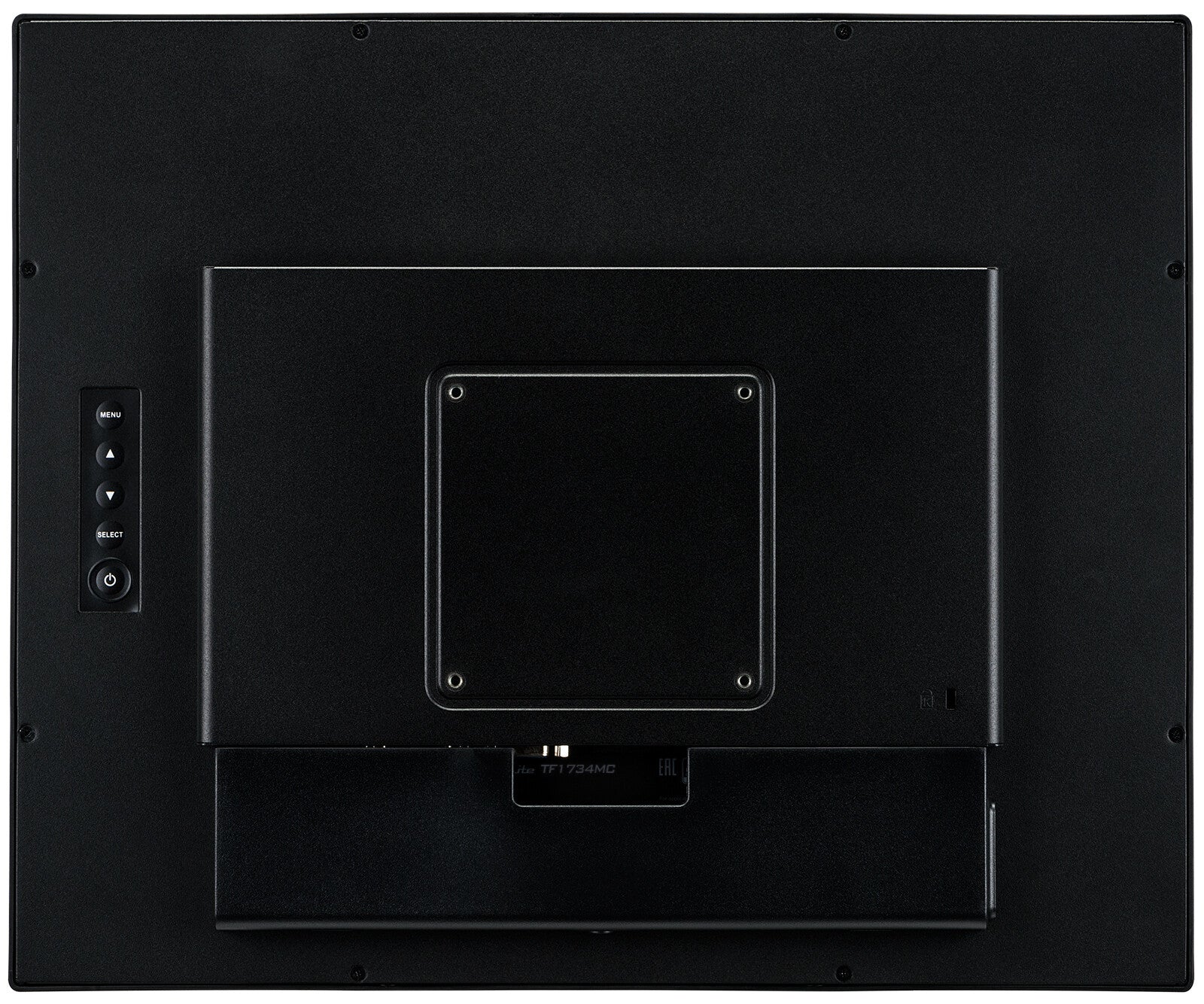

Control panel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Touch method
stylus, finger, glove
User controls
picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Supplied AC adapter type
AC
Touchscreen
Touchscreen
Yes
HD type
SXGA
Native aspect ratio
5:4
Display technology
LED
Built-in camera
No
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Pixel pitch
0.264 x 0.264 mm
Built-in microphone
No
Display diagonal (metric)
43 cm
HDCP
Yes
