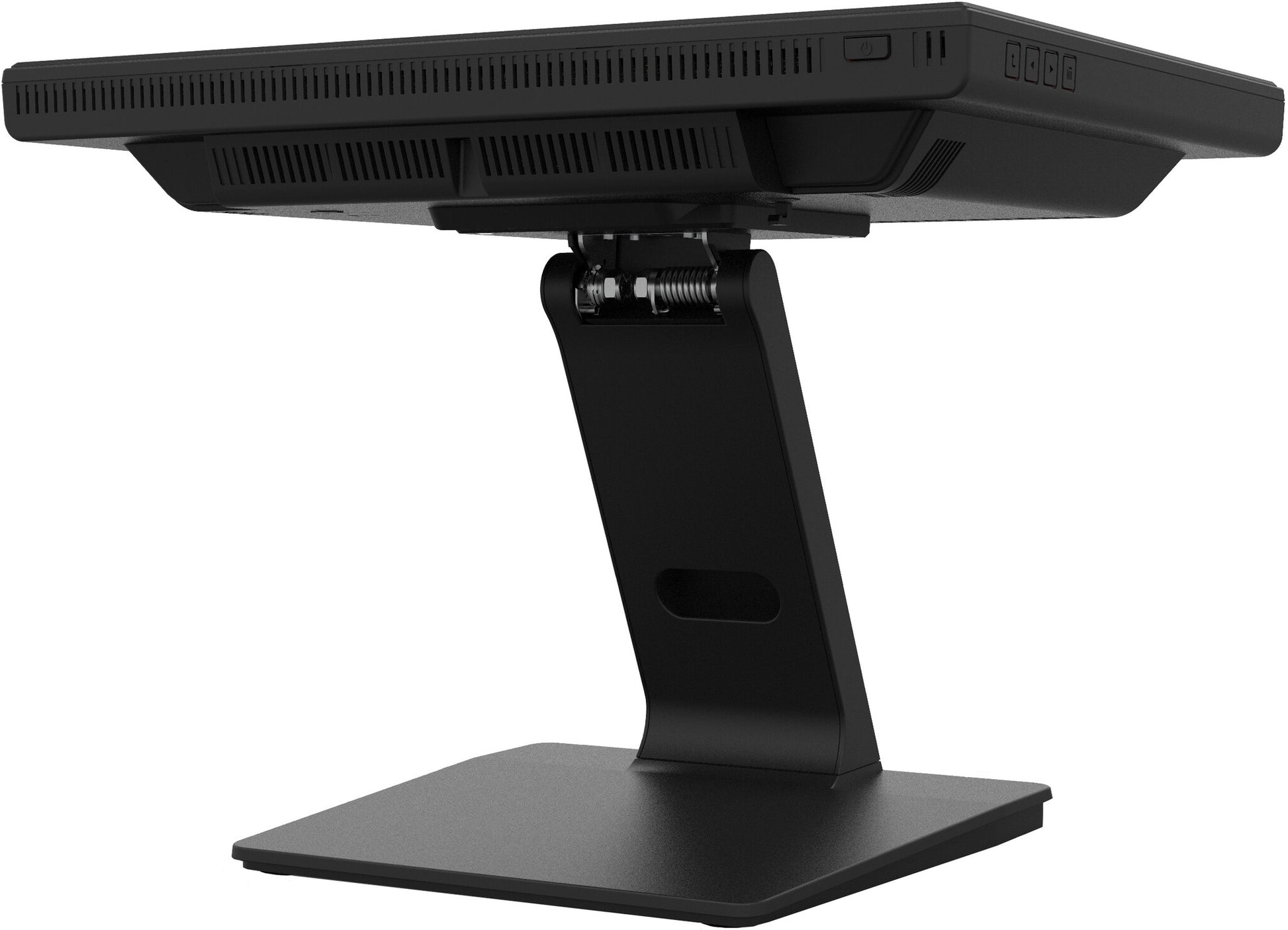

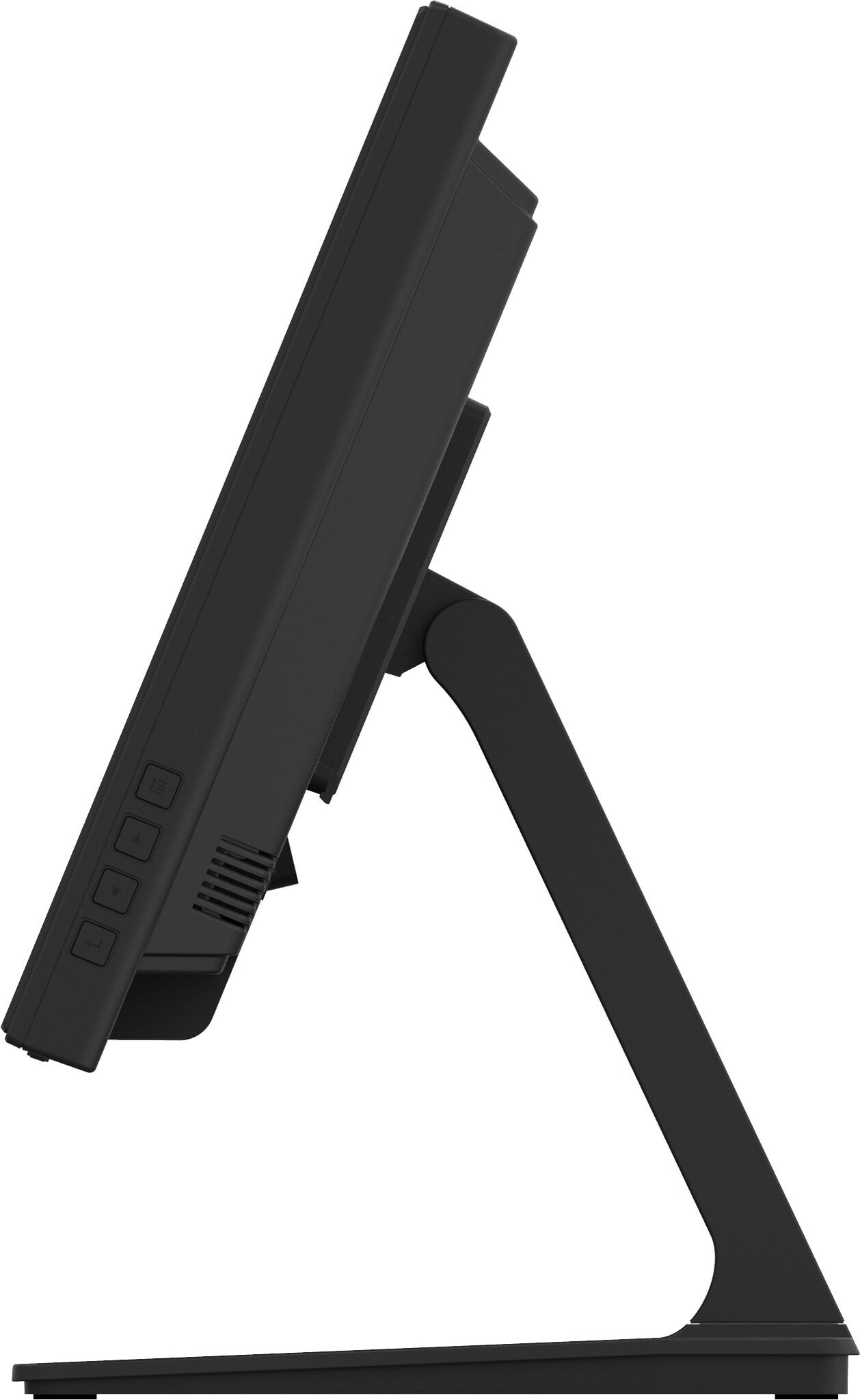

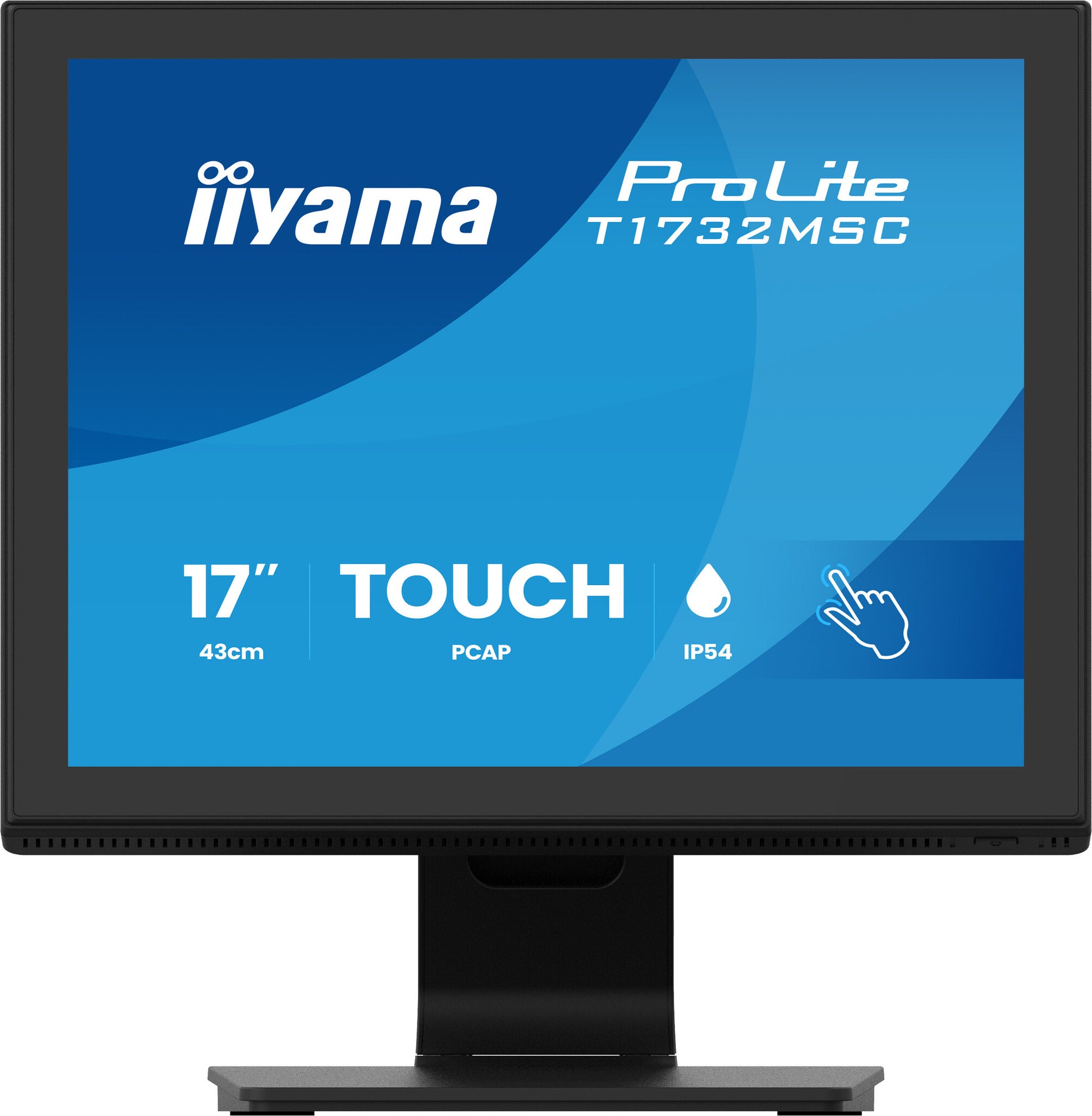

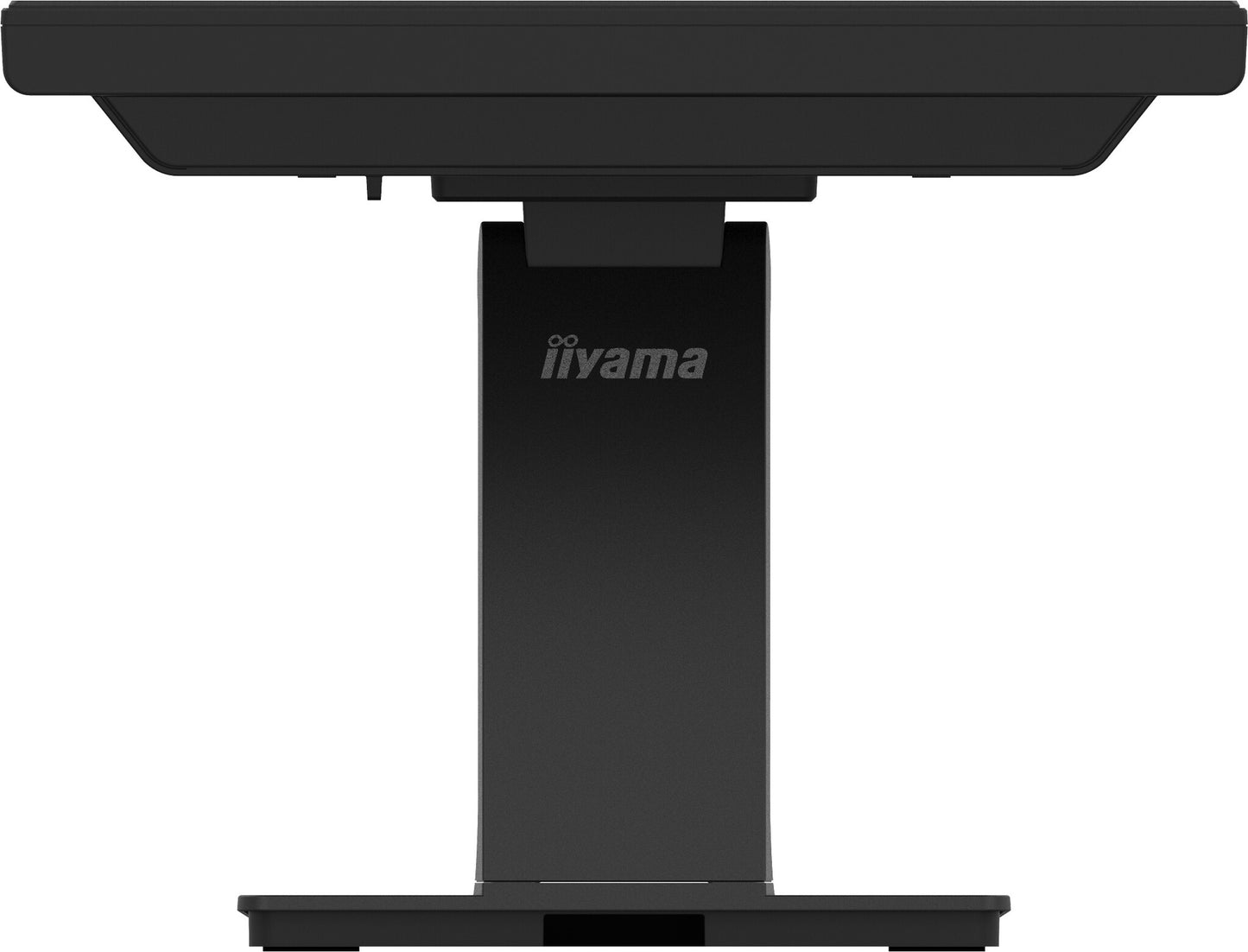

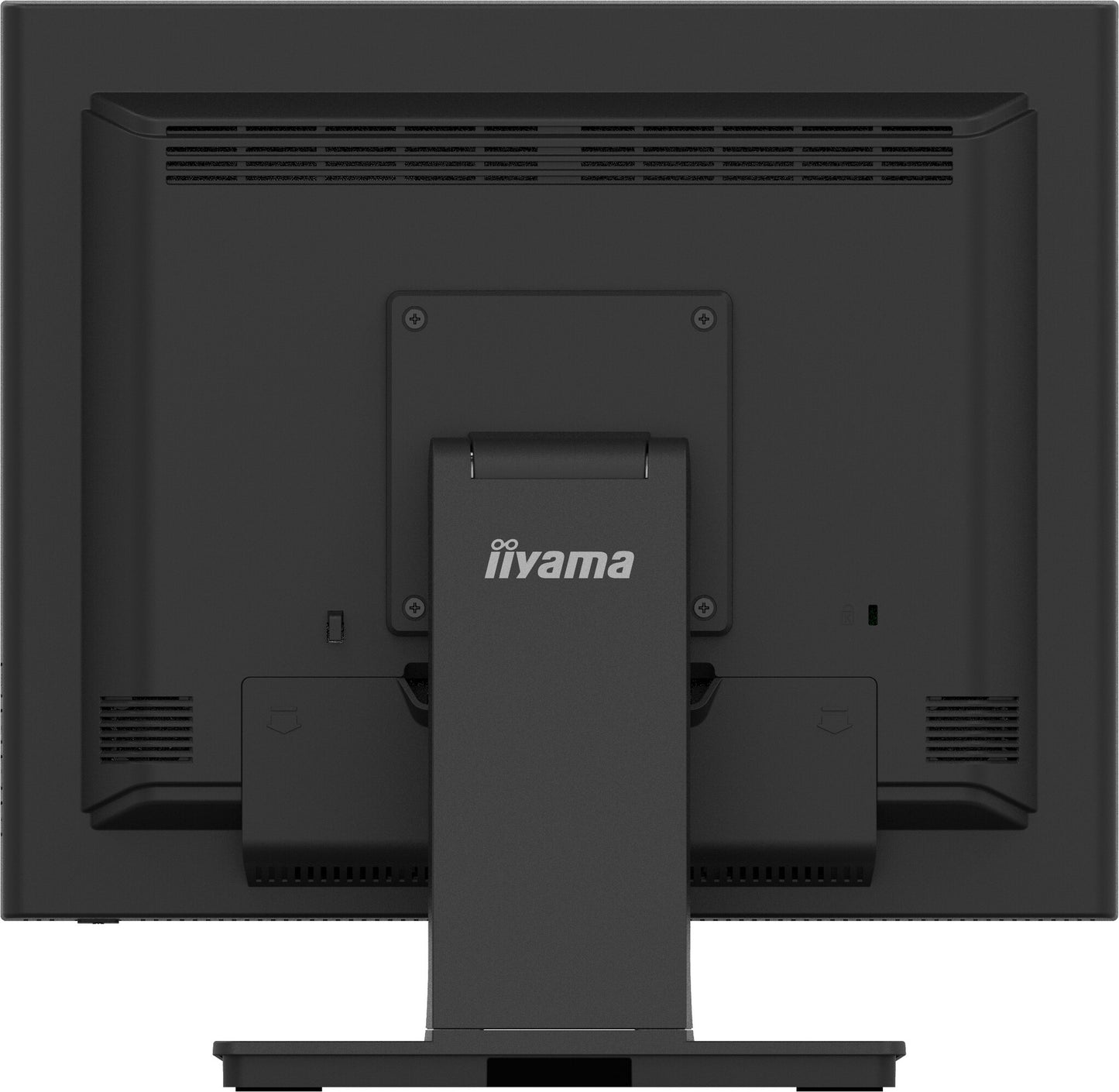

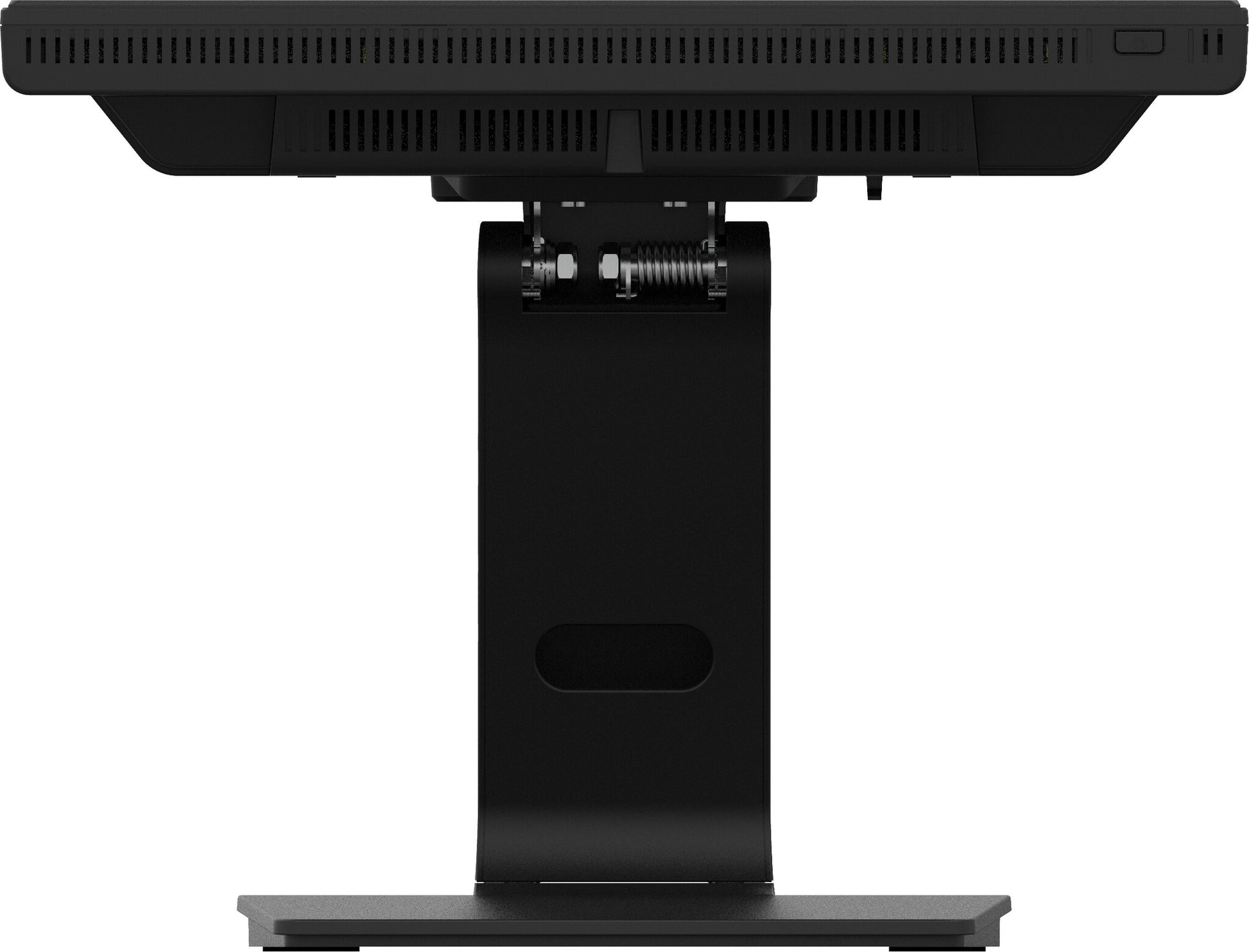

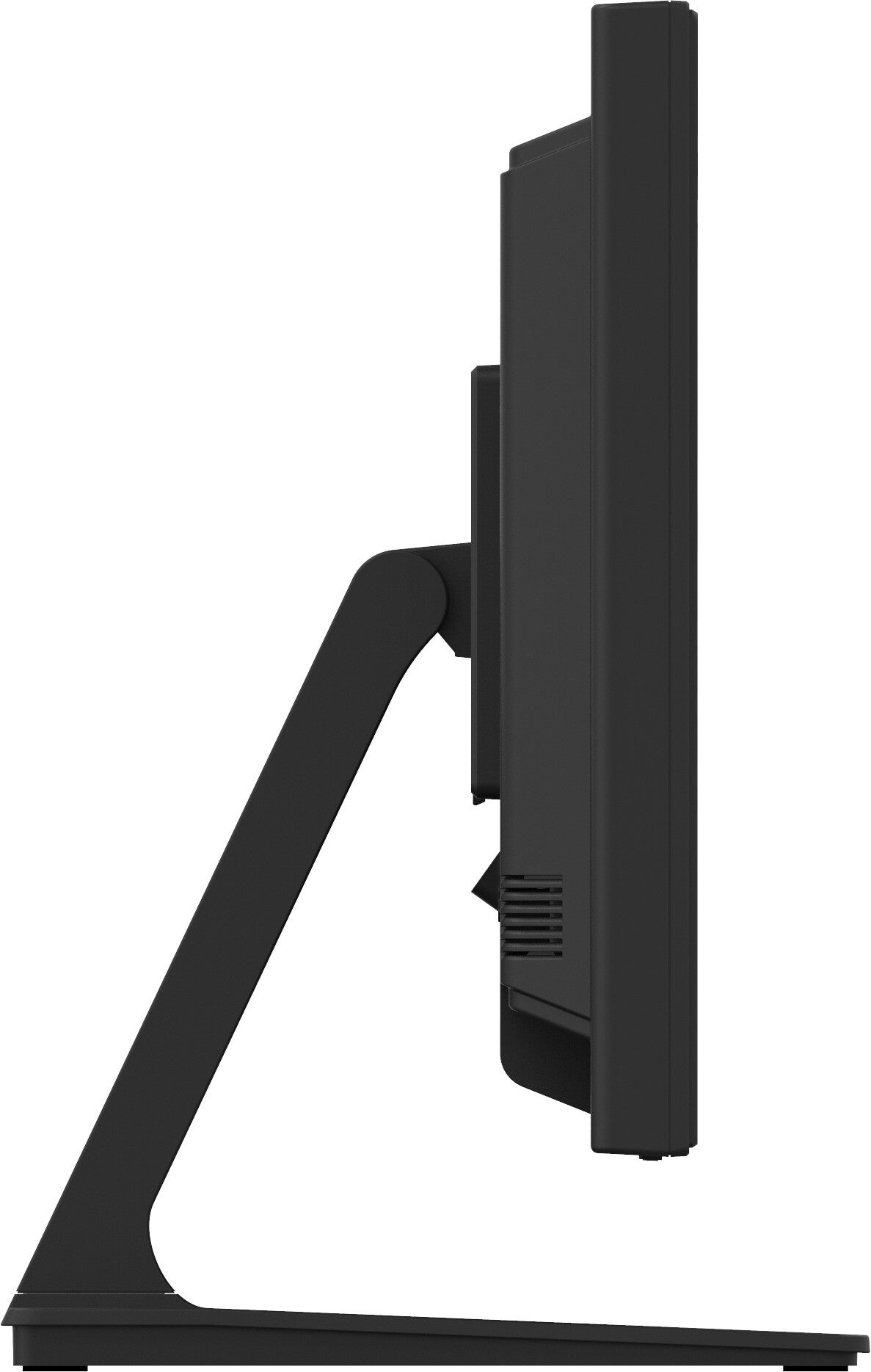

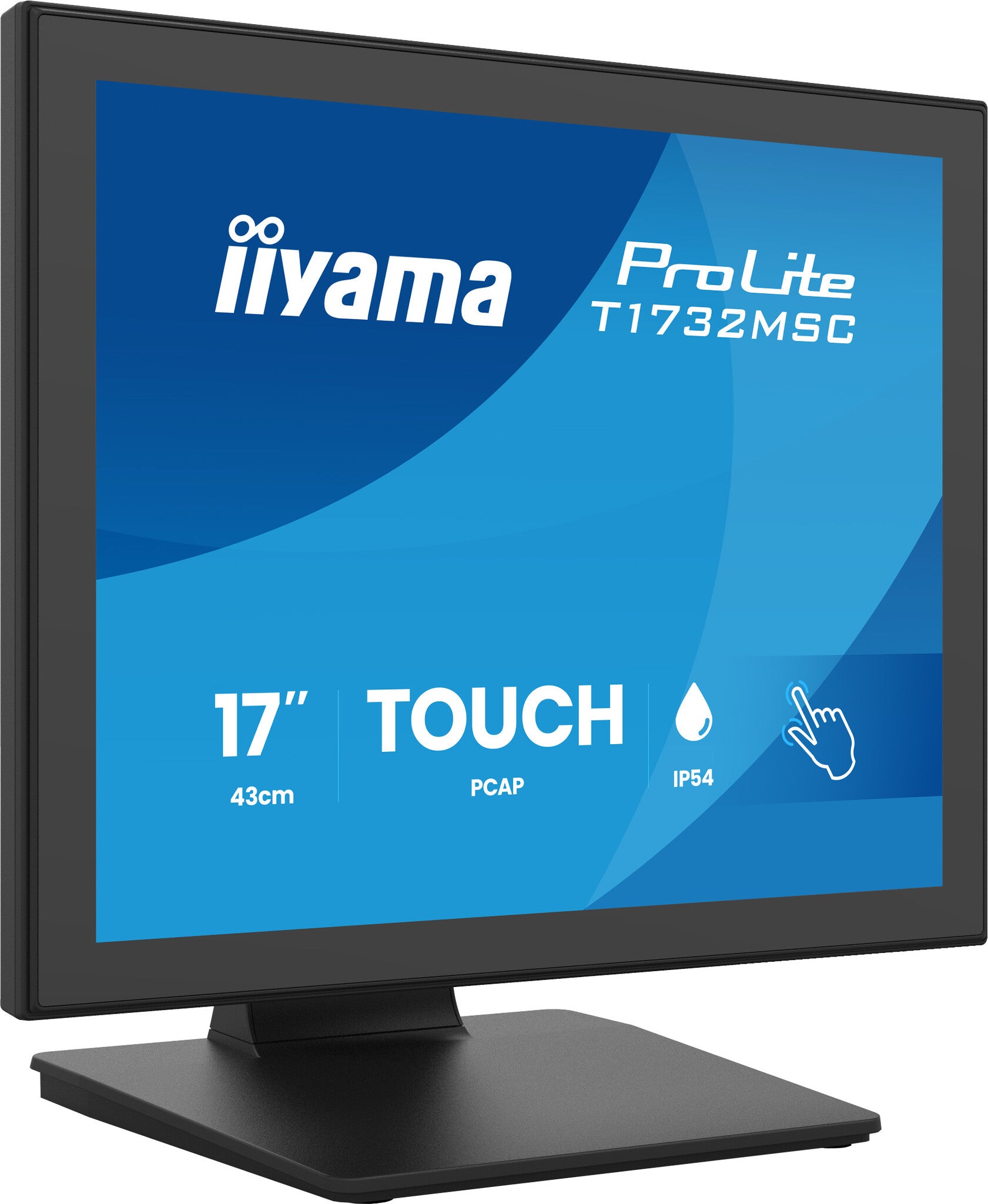

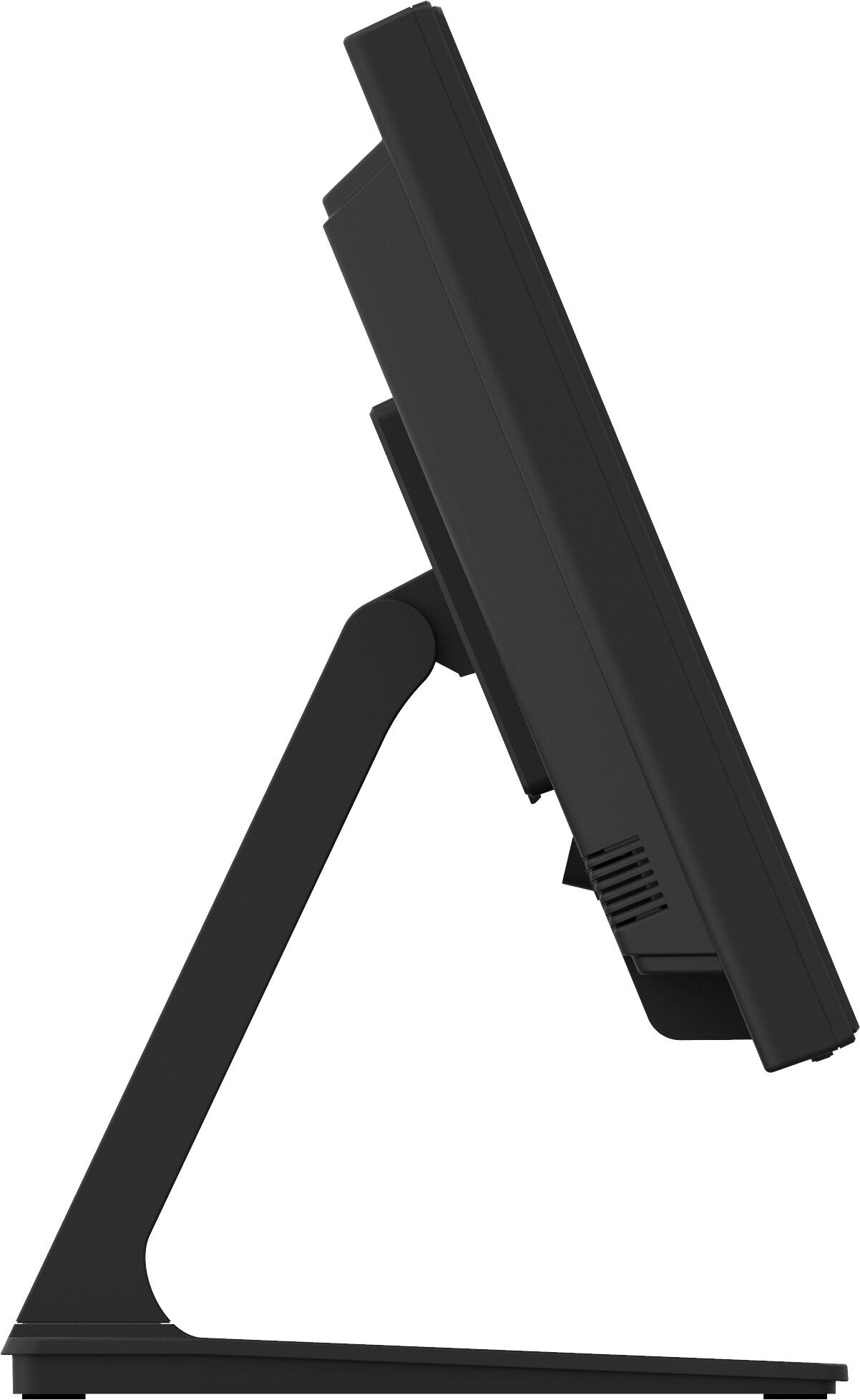

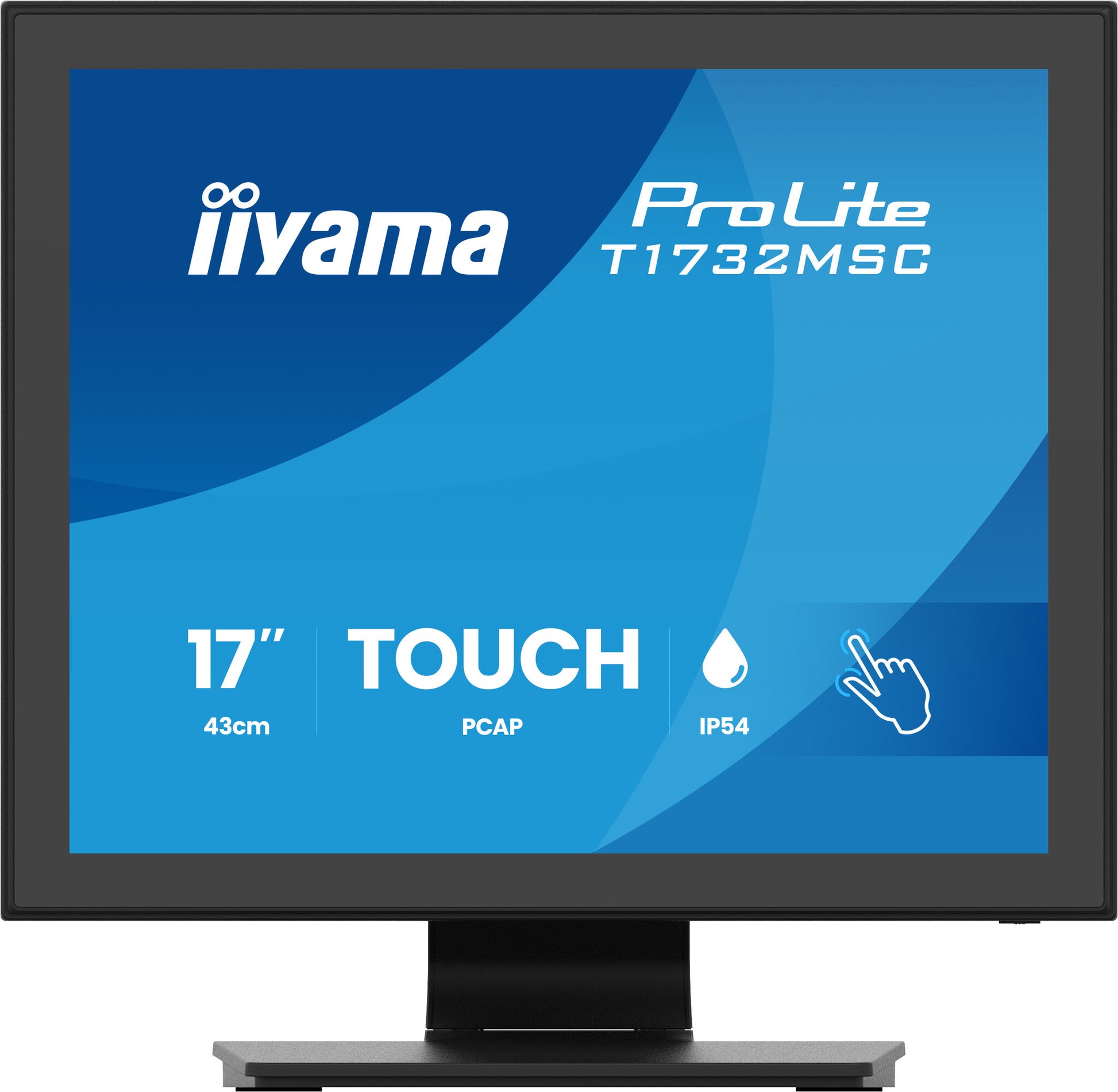

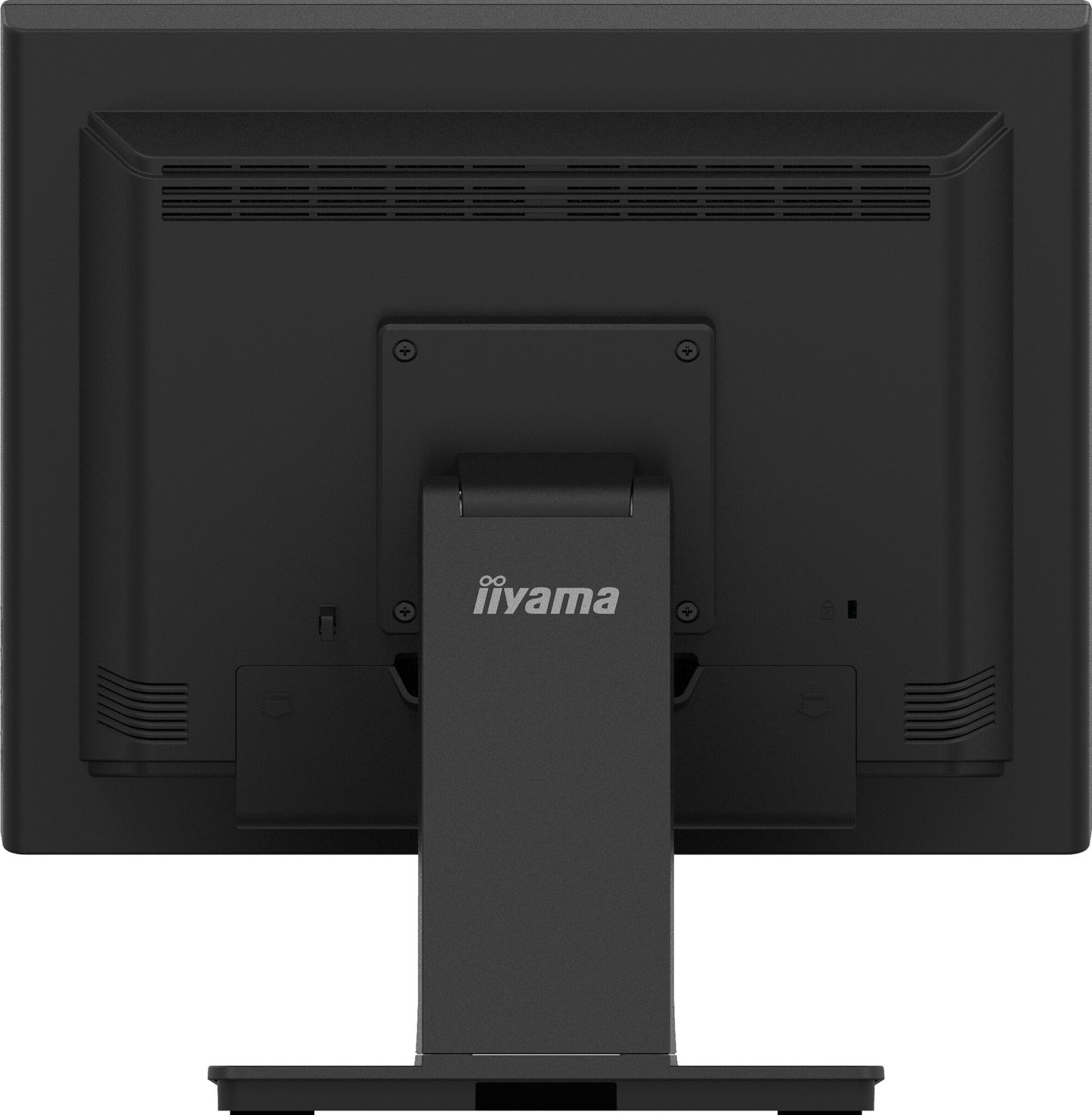

iiyama ProLite T1732MSC-B2S computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LED Touchscreen Black

iiyama ProLite T1732MSC-B2S computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LED Touchscreen Black

17" Projective Capacitive 10pt touchscreen

  • 43.2 cm (17") Black
  • Built-in speaker(s)
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Maximum refresh rate: 75 Hz Response time: 5 ms
  • 1280 x 1024 pixels SXGA Panel type: TN
  • Energy efficiency class (SDR): E ErP CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
  • SKU:4948570127726
  • GTIN/EAN:4948570127726
  • MPN:T1732MSC-B2S

You need to login to view the price.

View full details

iiyama ProLite T1732MSC-B2S. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LED, Response time: 5 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. Built-in speaker(s). VESA mounting. Product colour: Black

The T1732MSC-B2S 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.

Display
Display diagonal
43.2 cm (17")
Display resolution
1280 x 1024 pixels
Panel type
TN
Touchscreen technology
Projected capacitive system
Display brightness (typical)
250 cd/m²
Response time
5 ms
DDC/CI
Yes
Display brightness
225 cd/m²
Screen shape
Flat
Contrast ratio (typical)
1000:1
Maximum refresh rate
75 Hz
Display number of colours
16.7 million colours
Horizontal scan range
31 - 80 kHz
Vertical scan range
50 - 75 Hz
Viewable size, horizontal
33.8 cm
Viewable size, vertical
27.1 cm
Performance
Component video sync
Separate Sync
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Multimedia
Built-in speaker(s)
Yes
Number of speakers
2
RMS rated power
2 W
Design
Market positioning
Business
Product colour
Black
Front bezel colour
Black
International Protection (IP) code
IP54
Ports & interfaces
Audio input
Yes
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Tilt angle range
-5 - 90°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Tilt adjustment
Yes
Plug and Play
Yes
Power
Input current
1 A
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
11.9 kWh
Power consumption (typical)
20 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
387 mm
Depth (with stand)
240 mm
Height (with stand)
378 mm
Weight (with stand)
4.9 kg
Packaging data
Package type
Box
Cables included
AC, USB, HDMI, DisplayPort, Audio
Quick start guide
Yes
Technical details
Compliance certificates
CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Other features
Packaging content
Touch Panel Driver Disk (CD-ROM)
Brightness
225 cd/m²
Depth
240 mm
Width
387 mm
Height
378 mm
Weight
4.9 kg
Active display area (W x H)
338 x 270.5 mm
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Touch method
stylus, finger, glove (latex)
User controls
contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
Touchscreen
Touchscreen
Yes
HD type
SXGA
Native aspect ratio
5:4
Display technology
LED
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Pixel pitch
0.264 x 0.264 mm
Display diagonal (metric)
43 cm
HDCP
Yes
