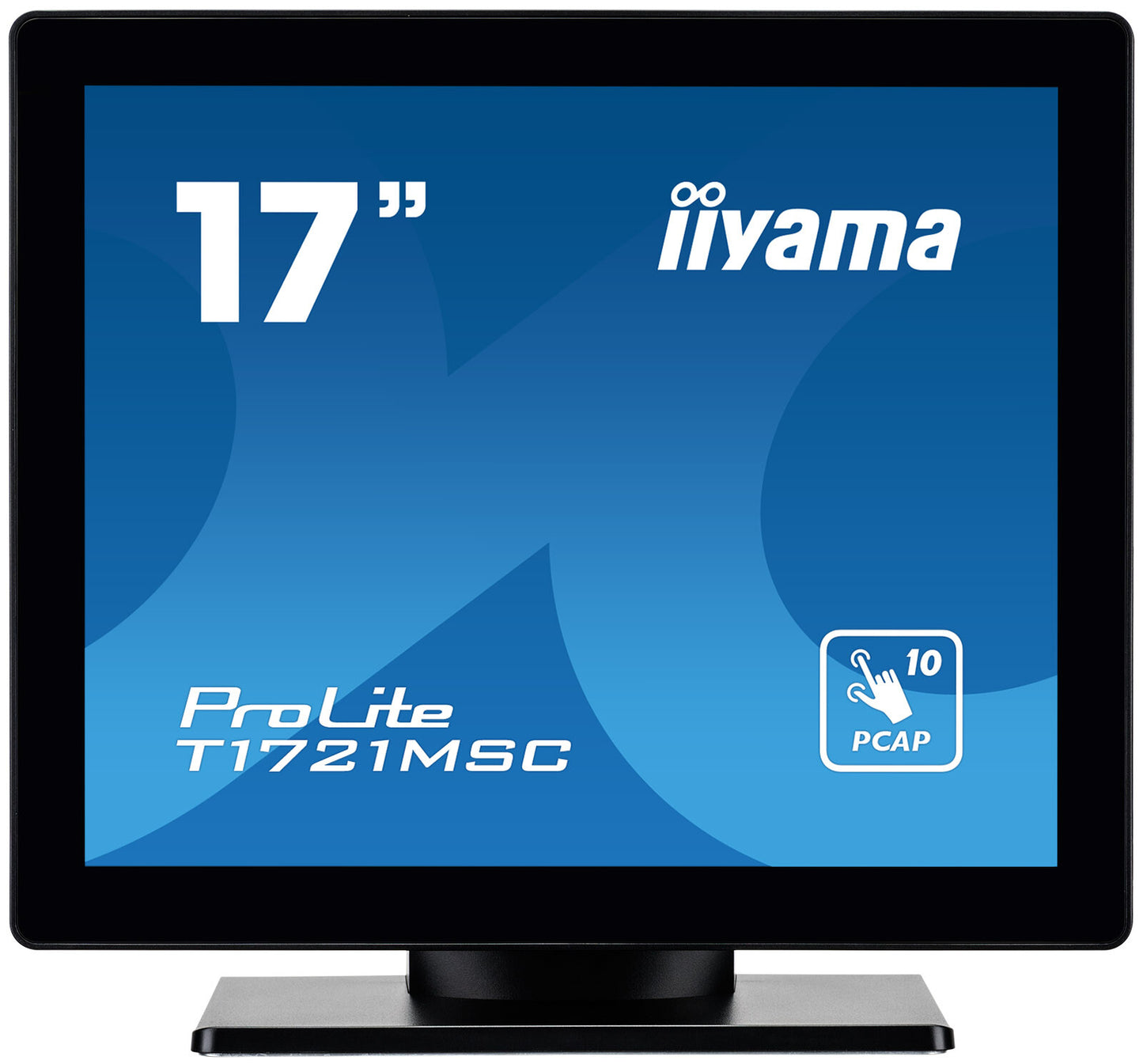

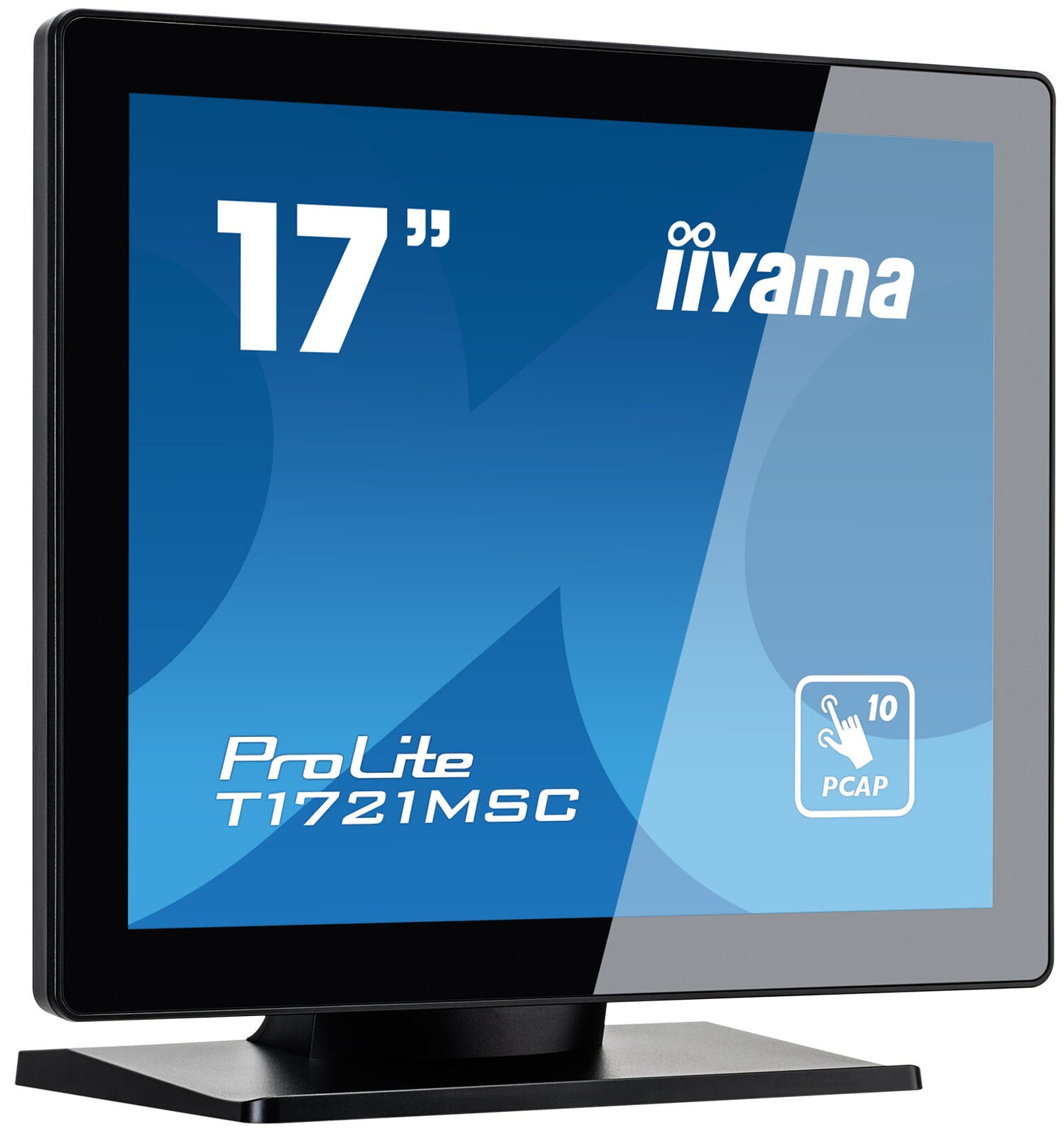

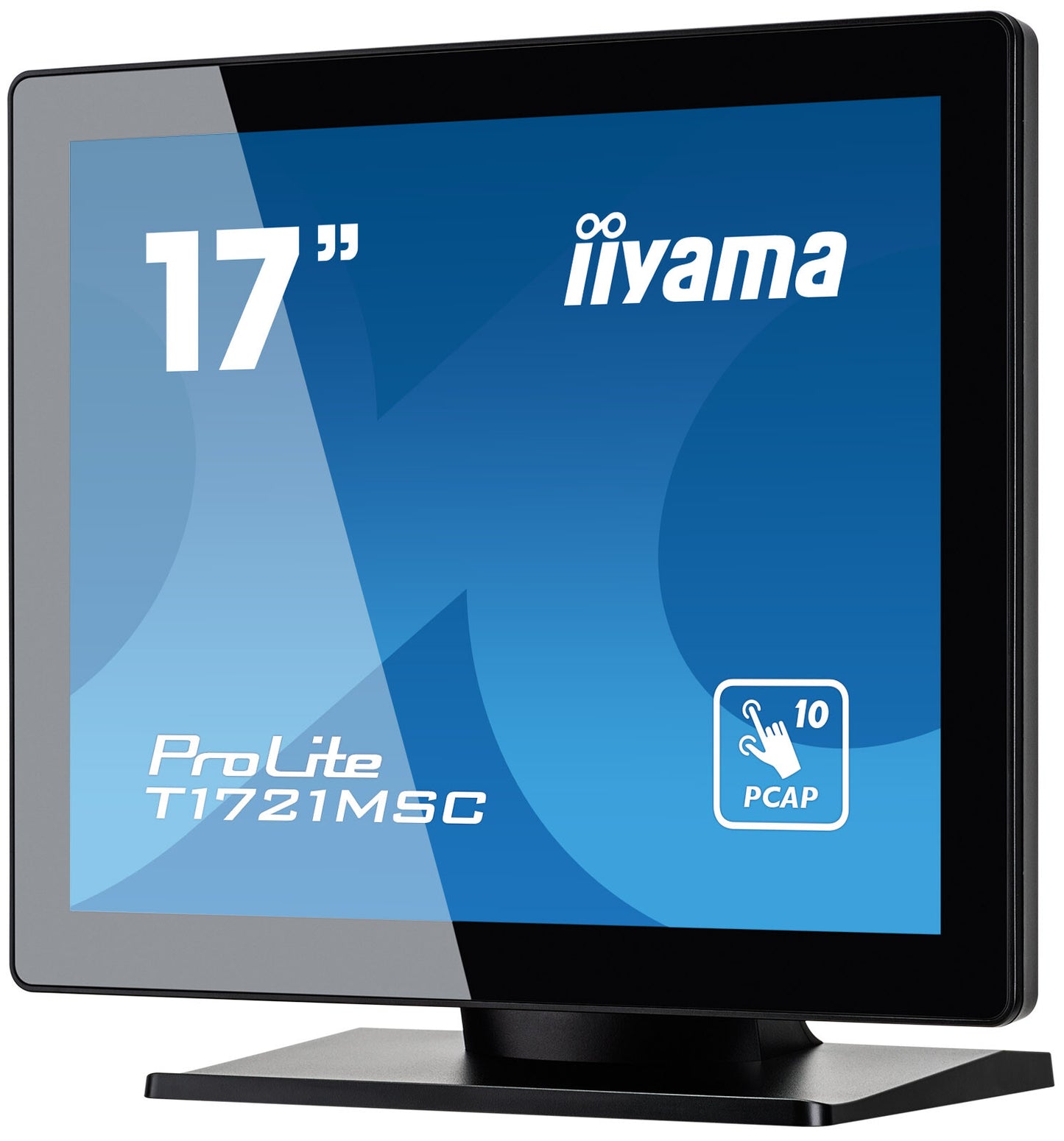

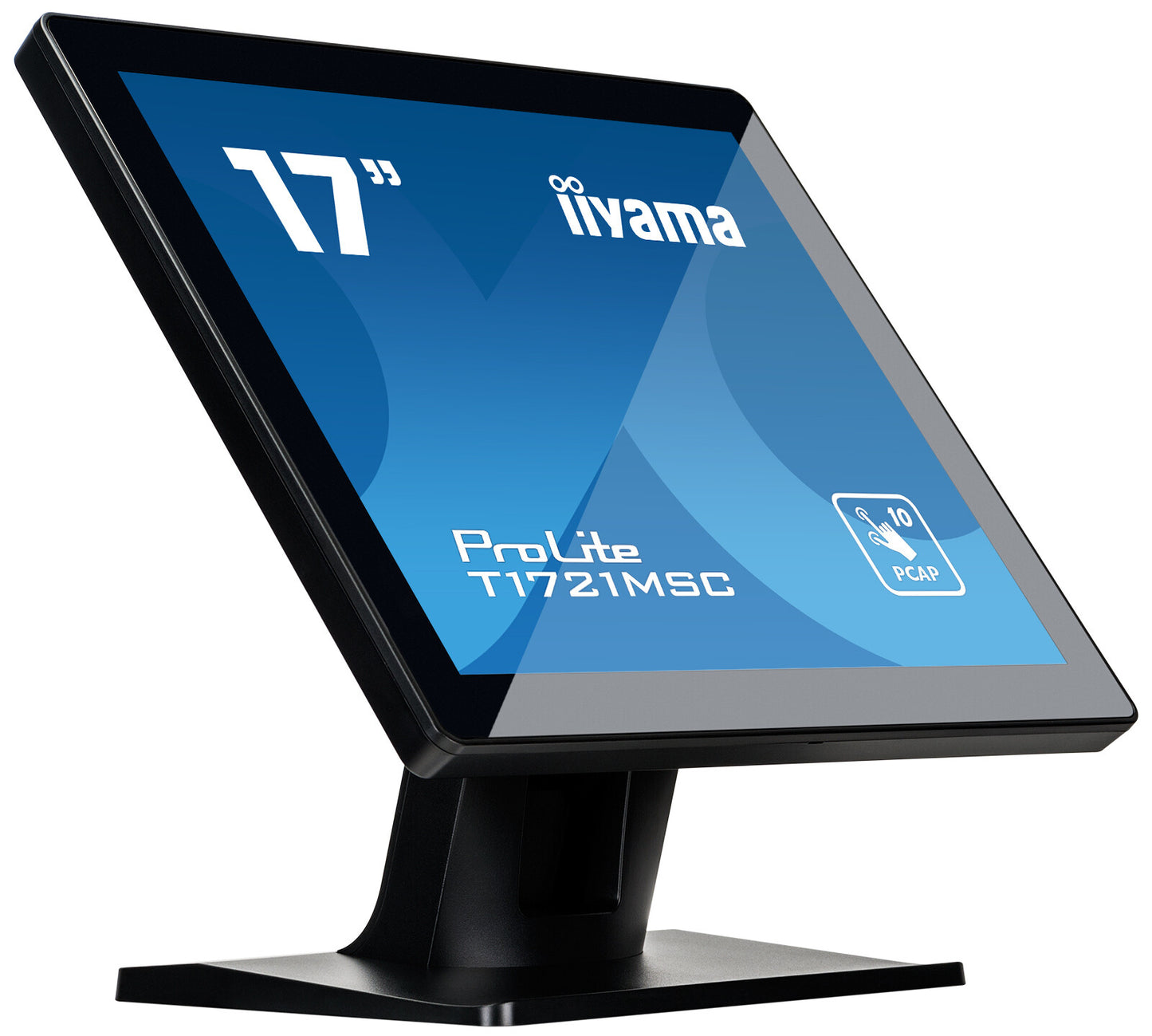

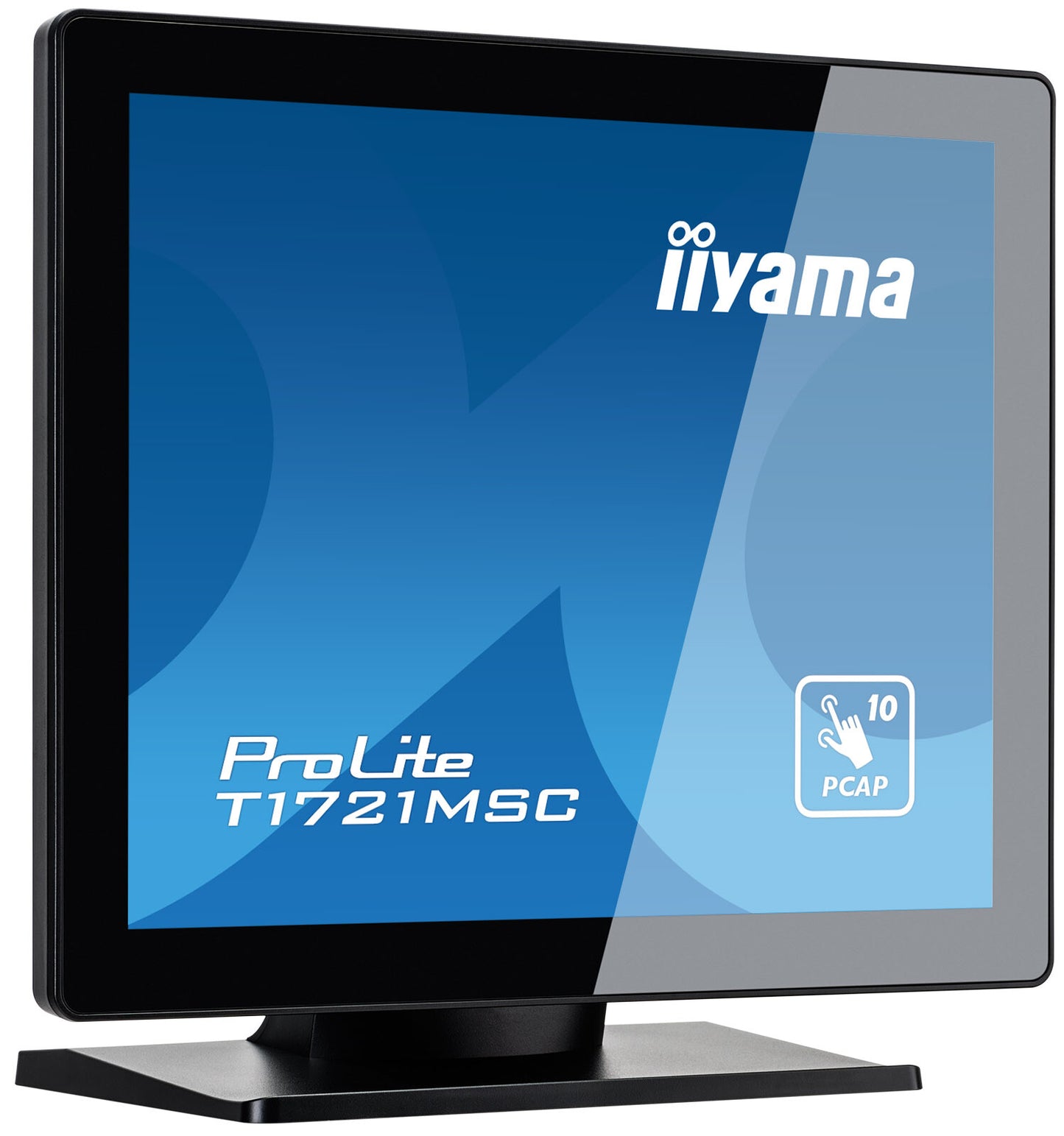

PROLITE T1721MSC-B2 17" touchscreen featuring 10 touch points and PCAP technology

PROLITE T1721MSC-B2 17" touchscreen featuring 10 touch points and PCAP technology

  • Capacitive Touch
  • Scratch resistance
  • Built-in speakers
  • VESA compatible
  • SKU:4948570120659
  • GTIN/EAN:4948570120659
  • MPN:T1721MSC-B2

You need to login to view the price.

Add To Favorite
View full details

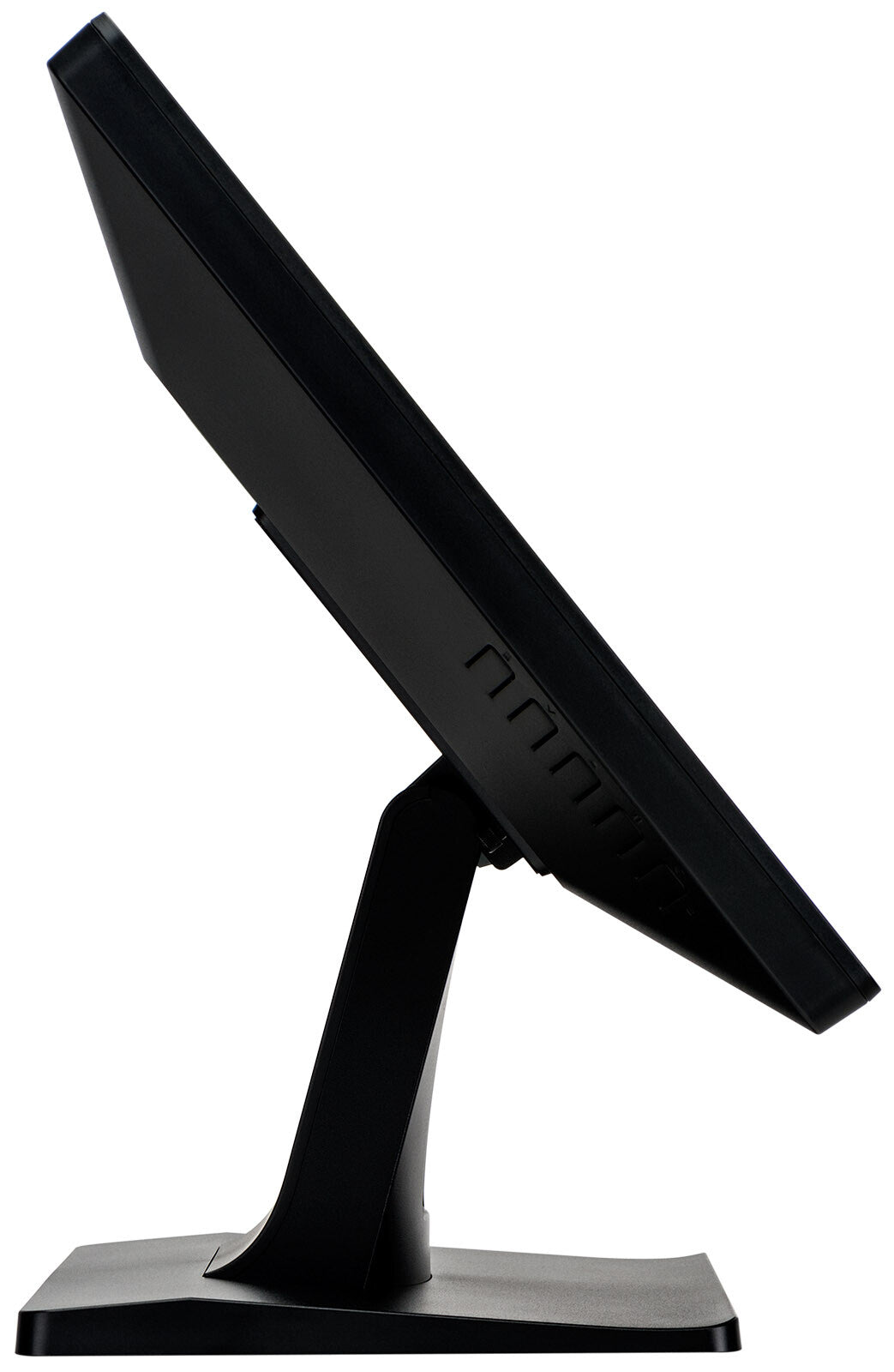

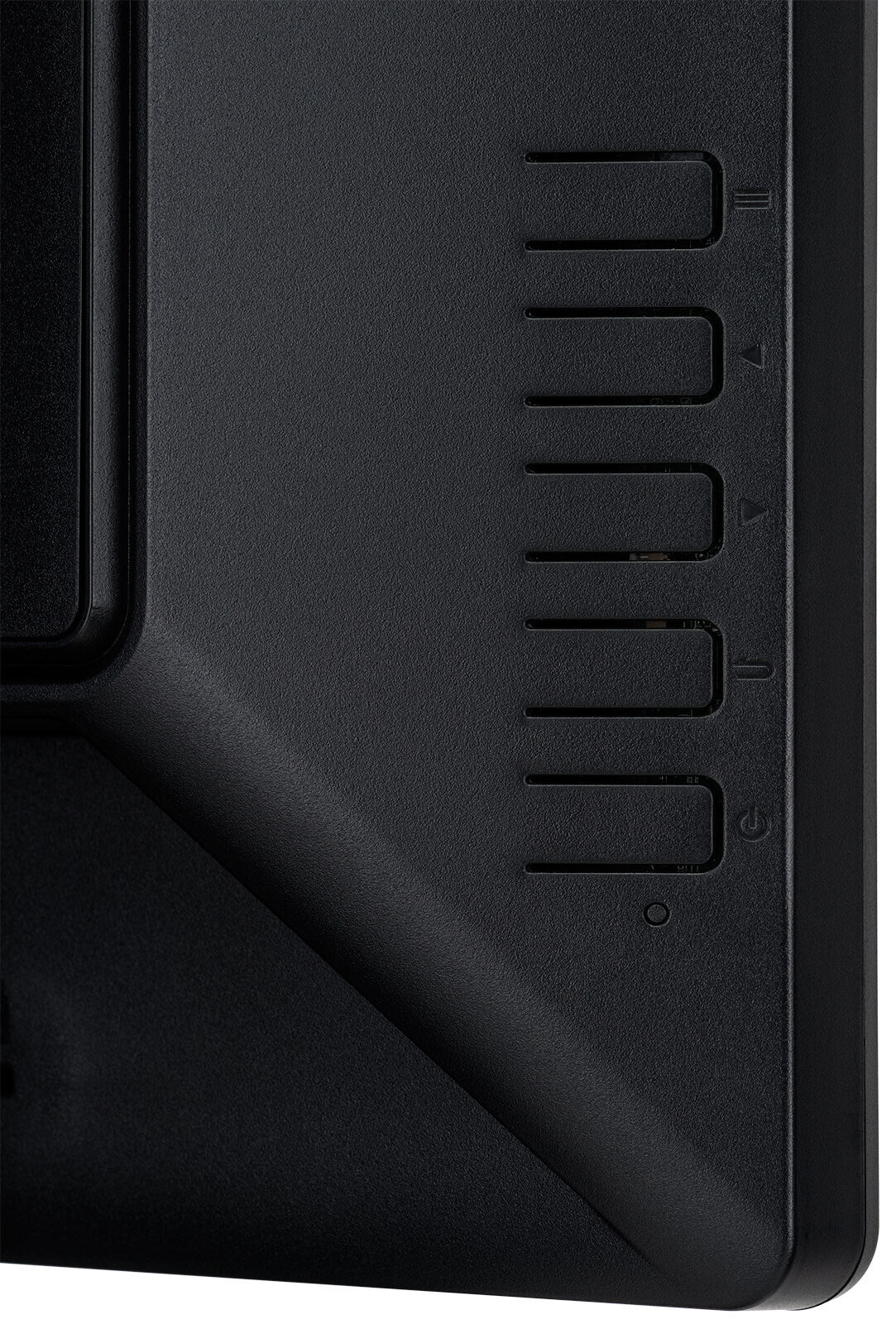

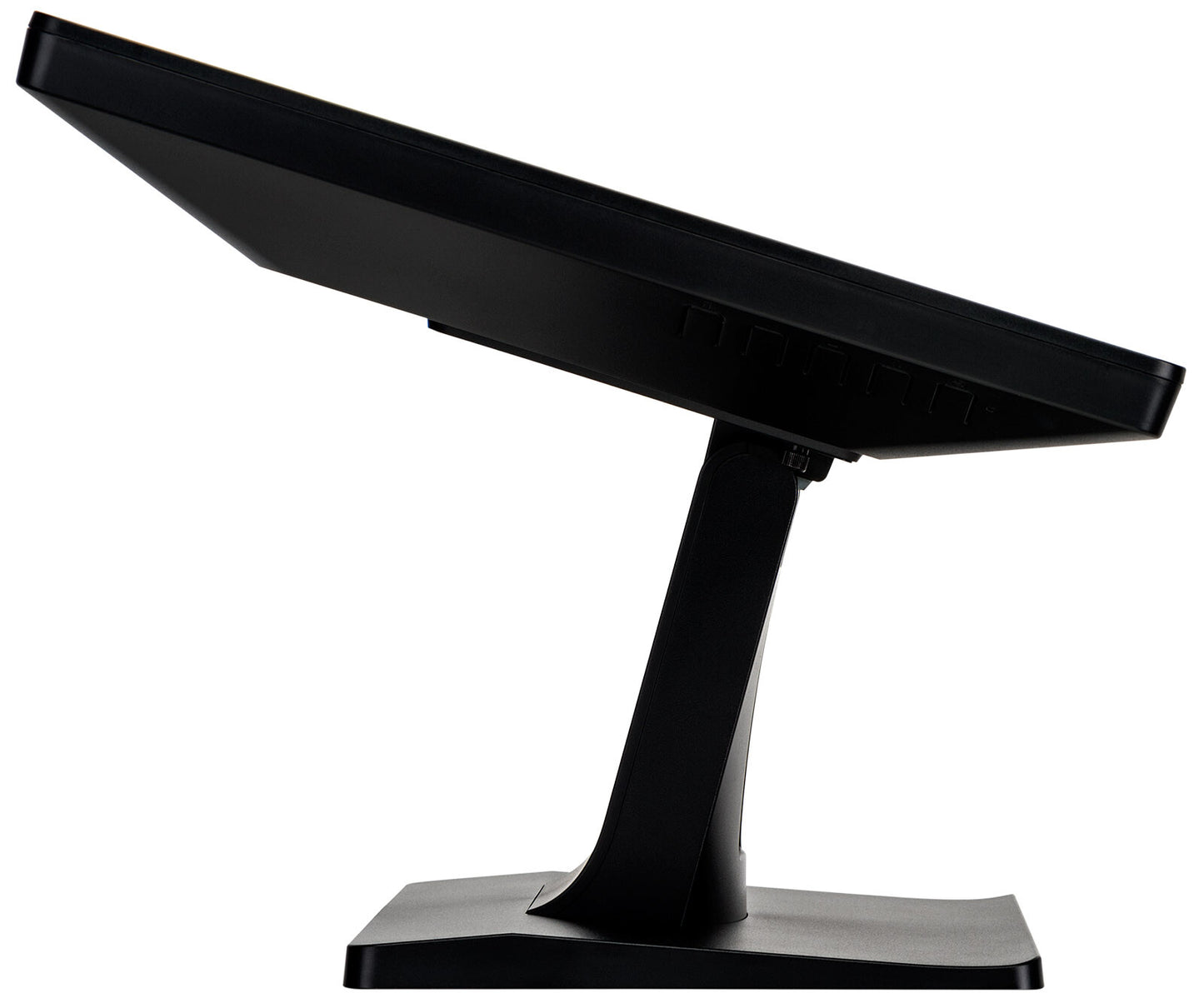

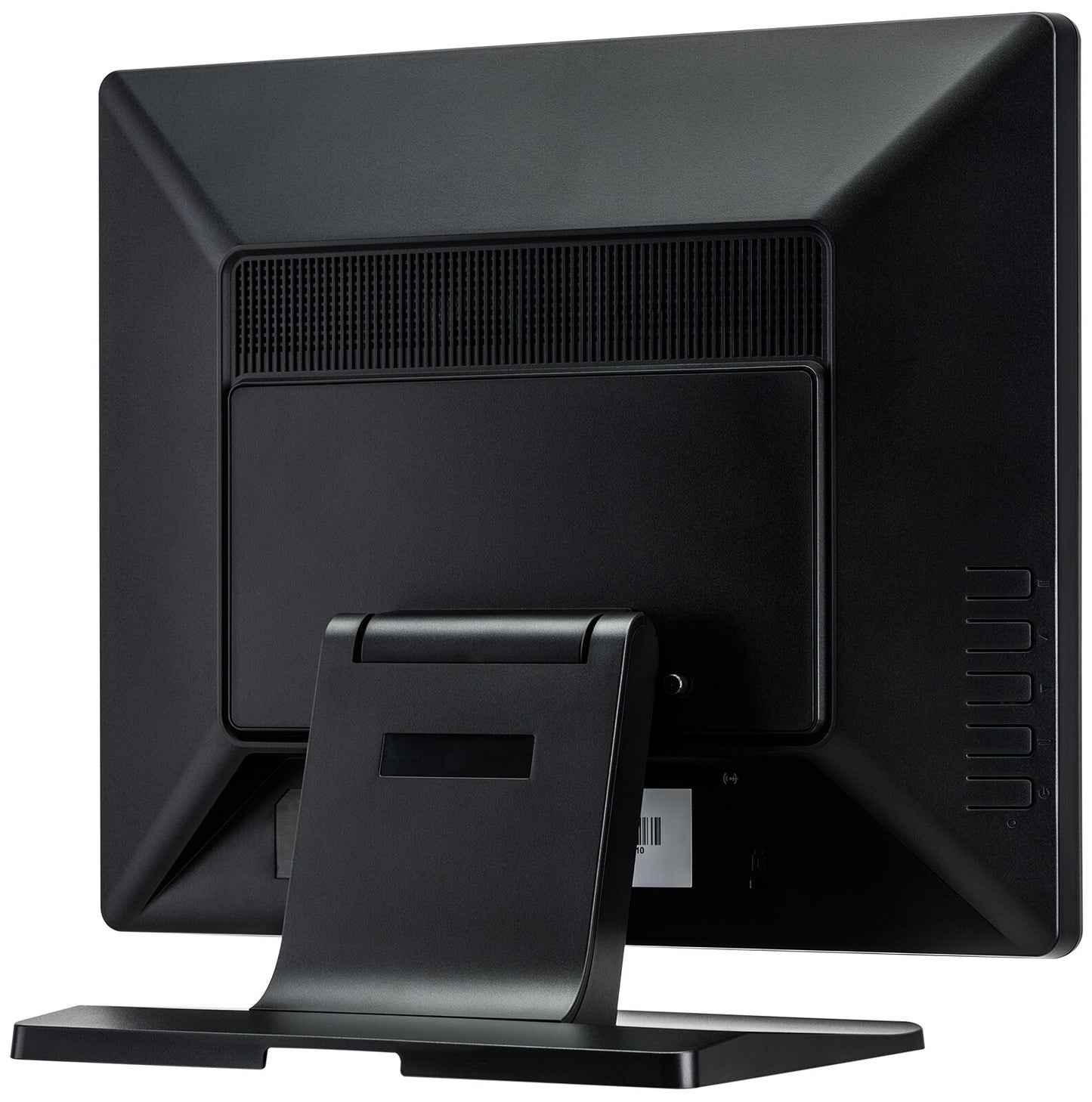

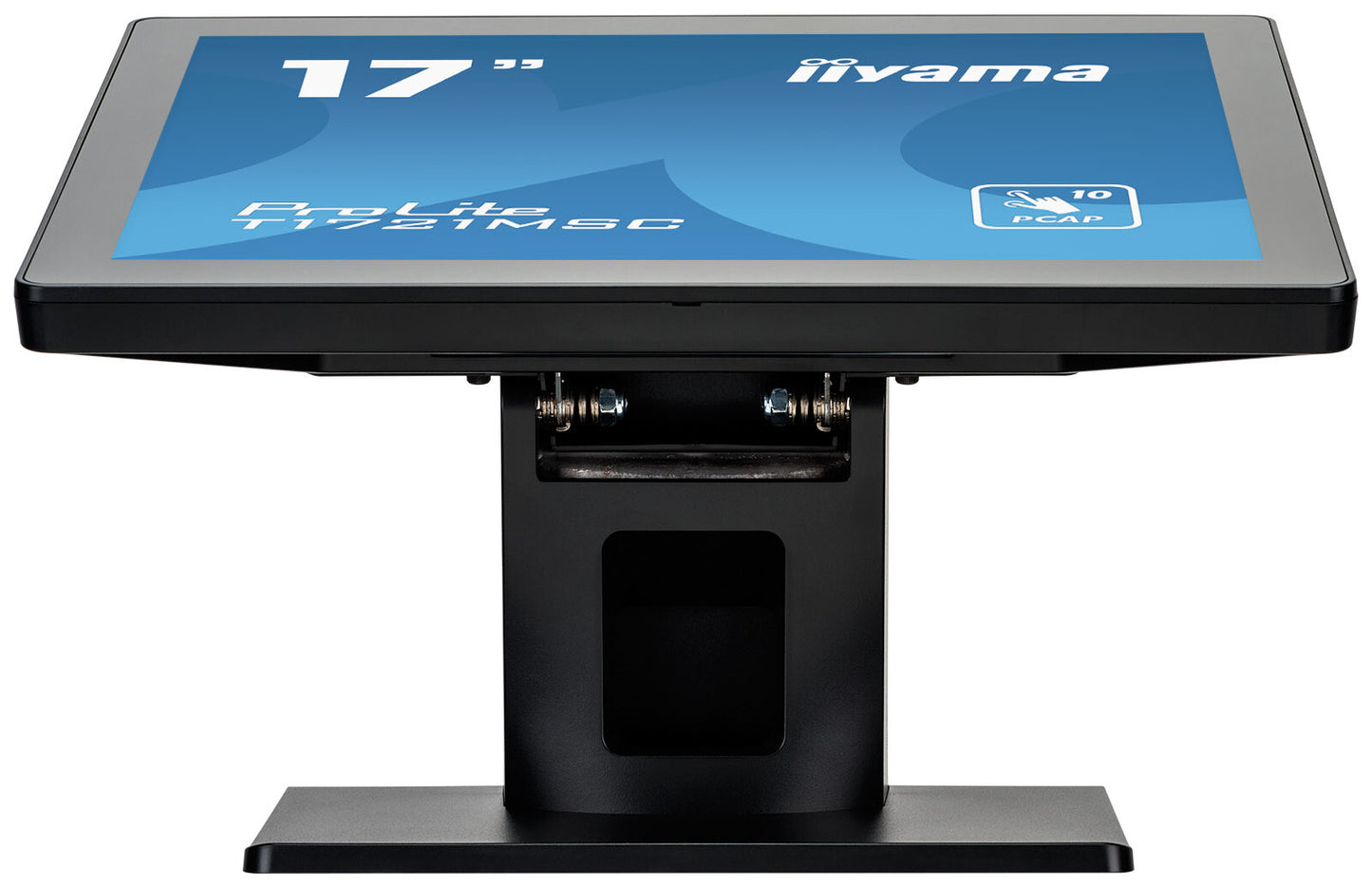

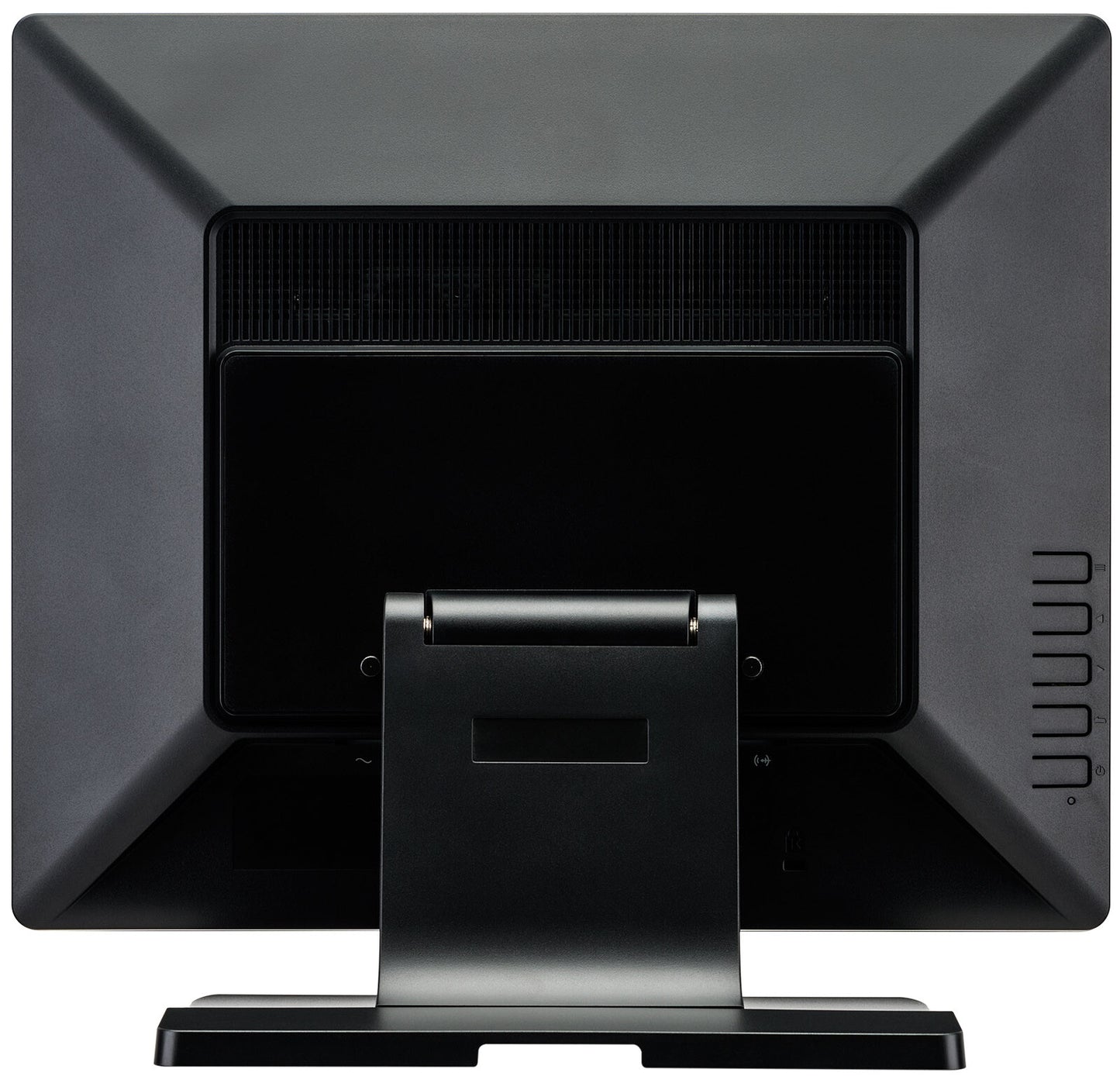

The ProLite T1721MSC-B2 17” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 80 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering and include a handy function to deactivate the touchscreen for cleaning. The ProLite T1721MSC-B2 is an incredibly powerful touch solution, perfect for instore retail purposes.



Design Edge to edge glass
Diagonal 17", 43cm
Panel TN
Native resolution 1280 x 1024 (1.3 megapixel)
Aspect ratio 5:4
Panel brightness 250 cd/m²
Brightness 230 cd/m² with touch
Light transmittance 85%
Static contrast 1000:1
Response time (BTB) 5ms
Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support 16.7mln
Horizontal Sync 31.4 - 80kHz
Viewable area W x H 338 x 270.5mm, 13.3 x 10.6"
Pixel pitch 0.264mm
Bezel colour and finish black, matte


Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.


Analog signal input VGA x1
Digital signal input HDMI x1
Audio output Mini jack x1
Speakers 2 x 2W
HDCP yes
USB ports x1


Glass thickness 1.5mm
Glass hardness 7H
Water and dust protection IPX3 (front)
OSD key lock yes


OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power
User controls picture (backlight, brightness, contrast, sharpness) display (auto adjustment, H position, V position, pixel clock, phase) colour (colour temp, picture mode) input, audio (volume, mute, audio source), other (reset, OSD time, OSD H position, OSD V position, language) information
Blue light reducer yes
Plug&Play DDC2B

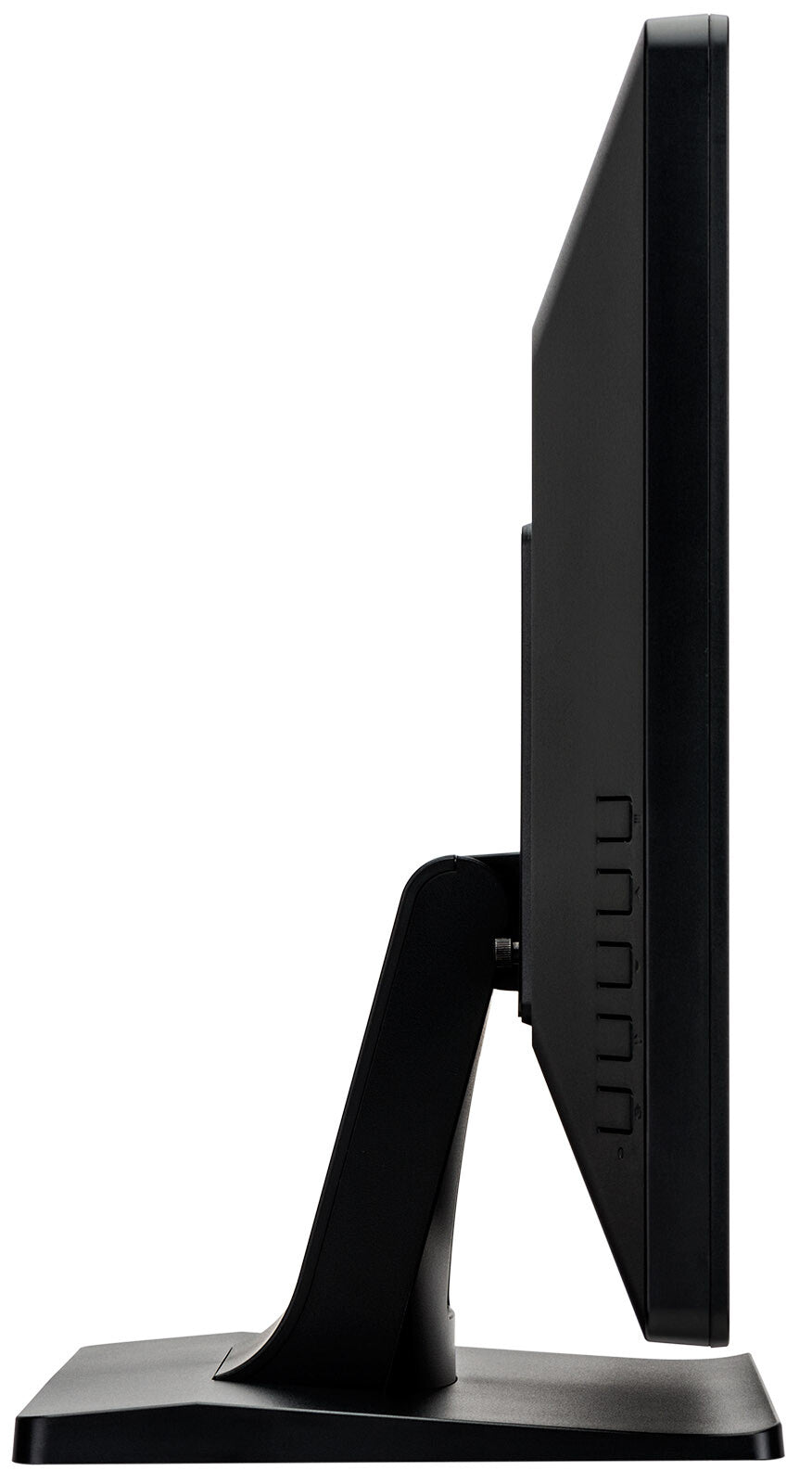

Tilt angle 70° up; 10° down
VESA mounting 100 x 100mm
Cable management system yes
MTBF 50000 hours

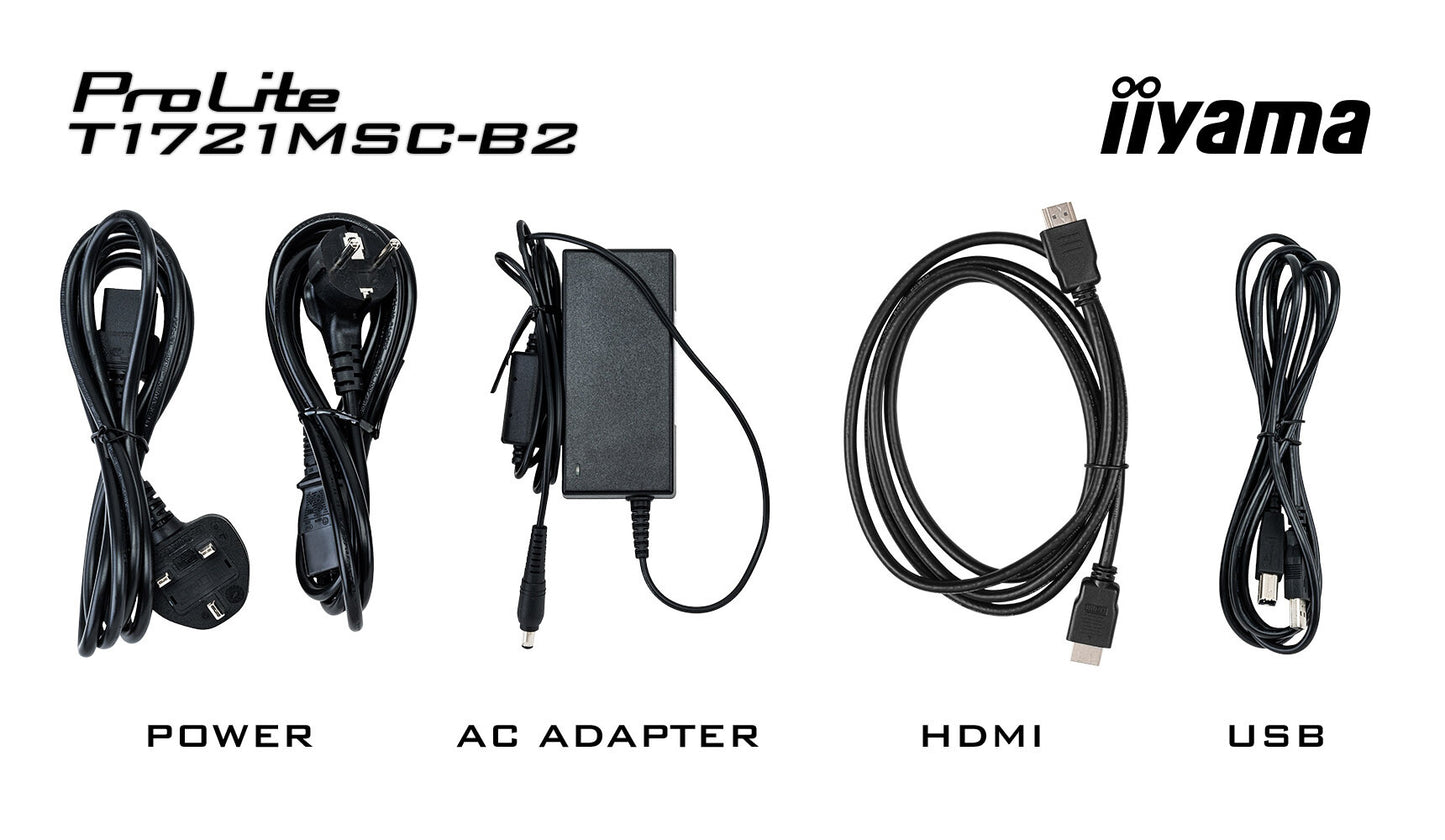

Cables power, USB, HDMI
Guides quick start guide, safety guide
Other AC adapter, mylar sheet (for VESA mount)


Power supply unit external
Power supply DC 12 V
Power usage 20W typical, 1.5W stand by, 0.3W off mode


Regulations CE, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead


Product dimensions W x H x D 392.5 x 364 x 198mm
Box dimensions W x H x D 537 x 500 x 172mm
Weight (without box) 4.4kg
Weight (with box) 5.8kg
EAN code 4948570120659
Touchscreen technology
Projective capacitive
Display brightness
250 cd/m²
Display resolution
1280 x 1024
