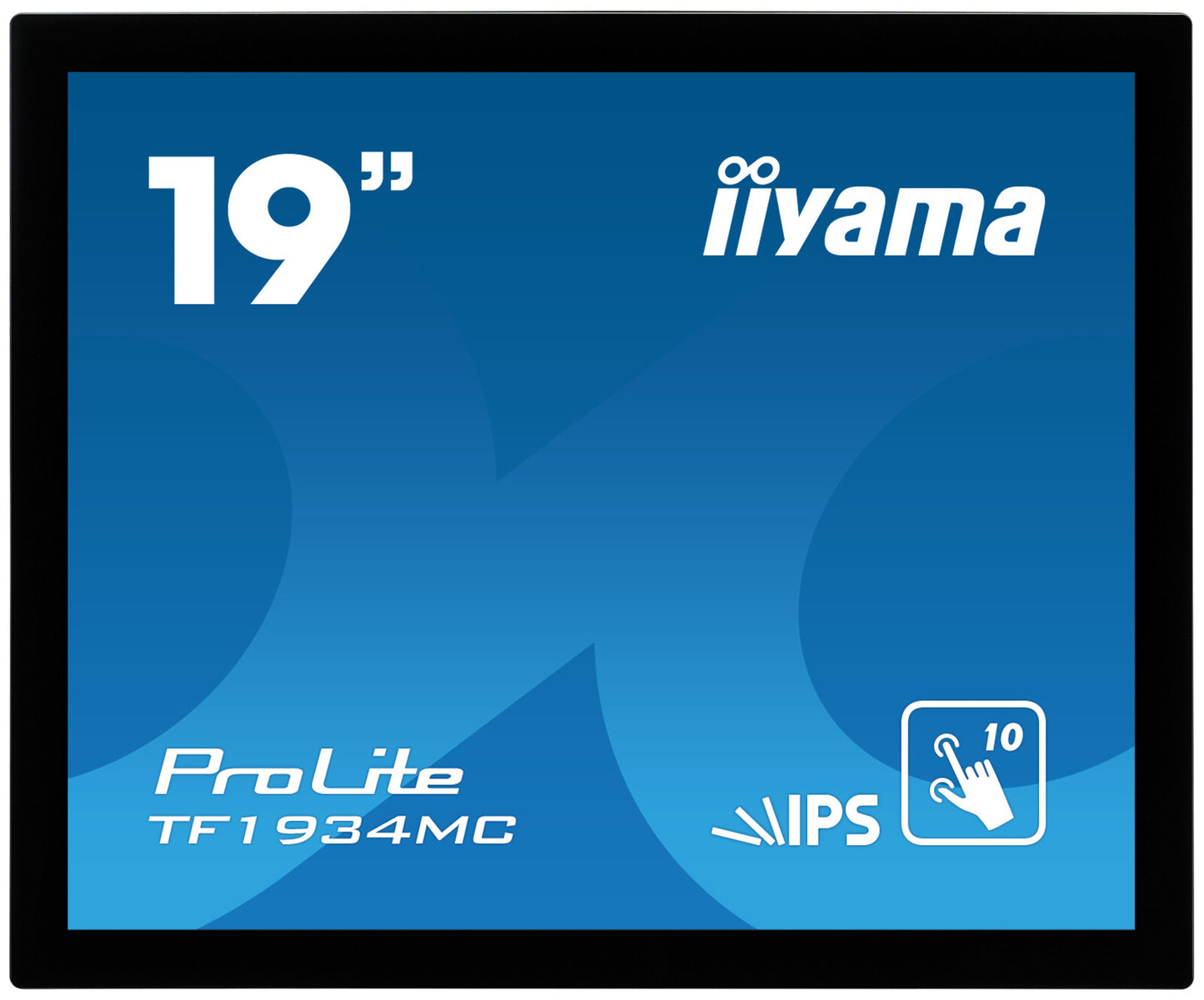

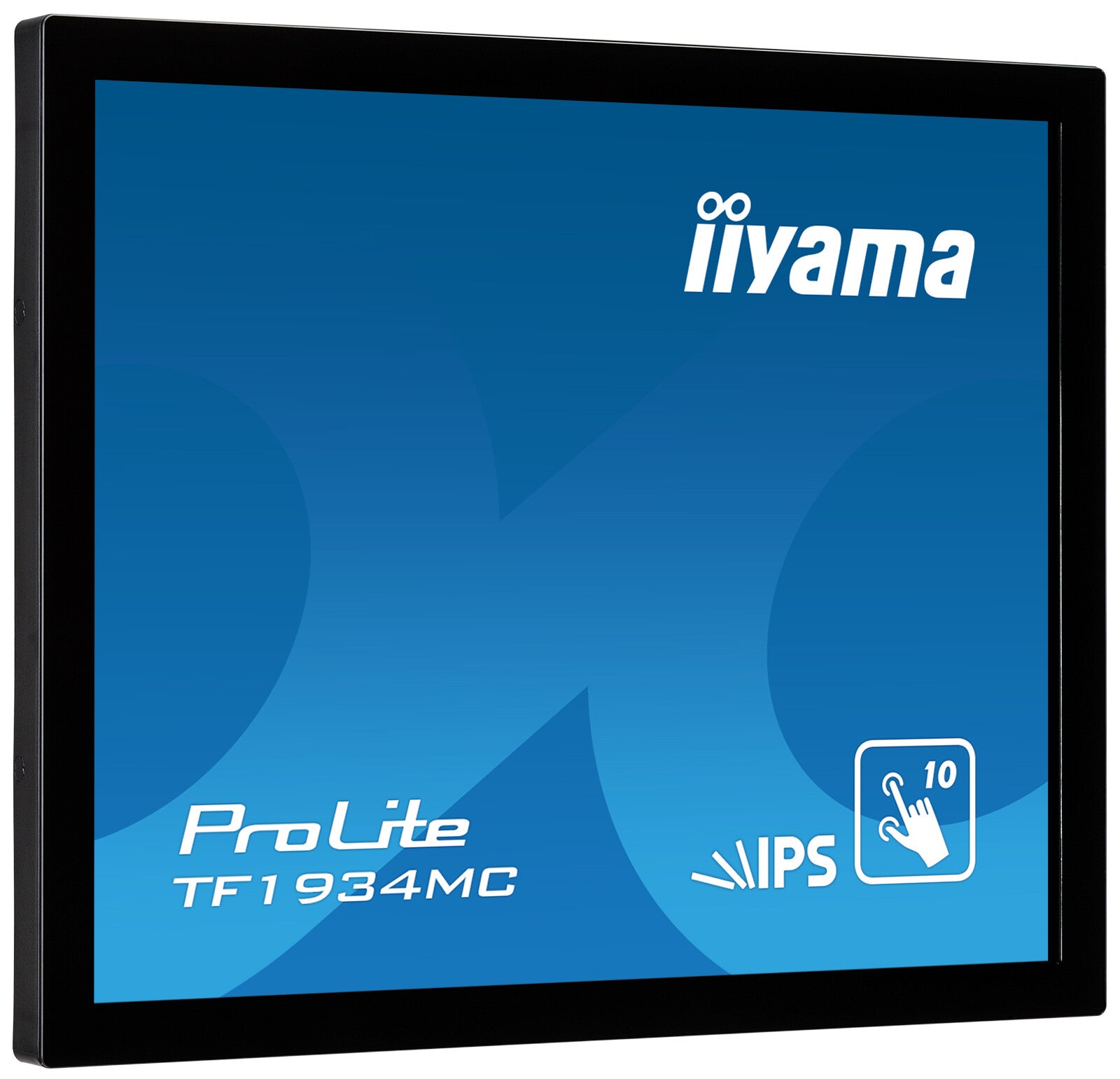

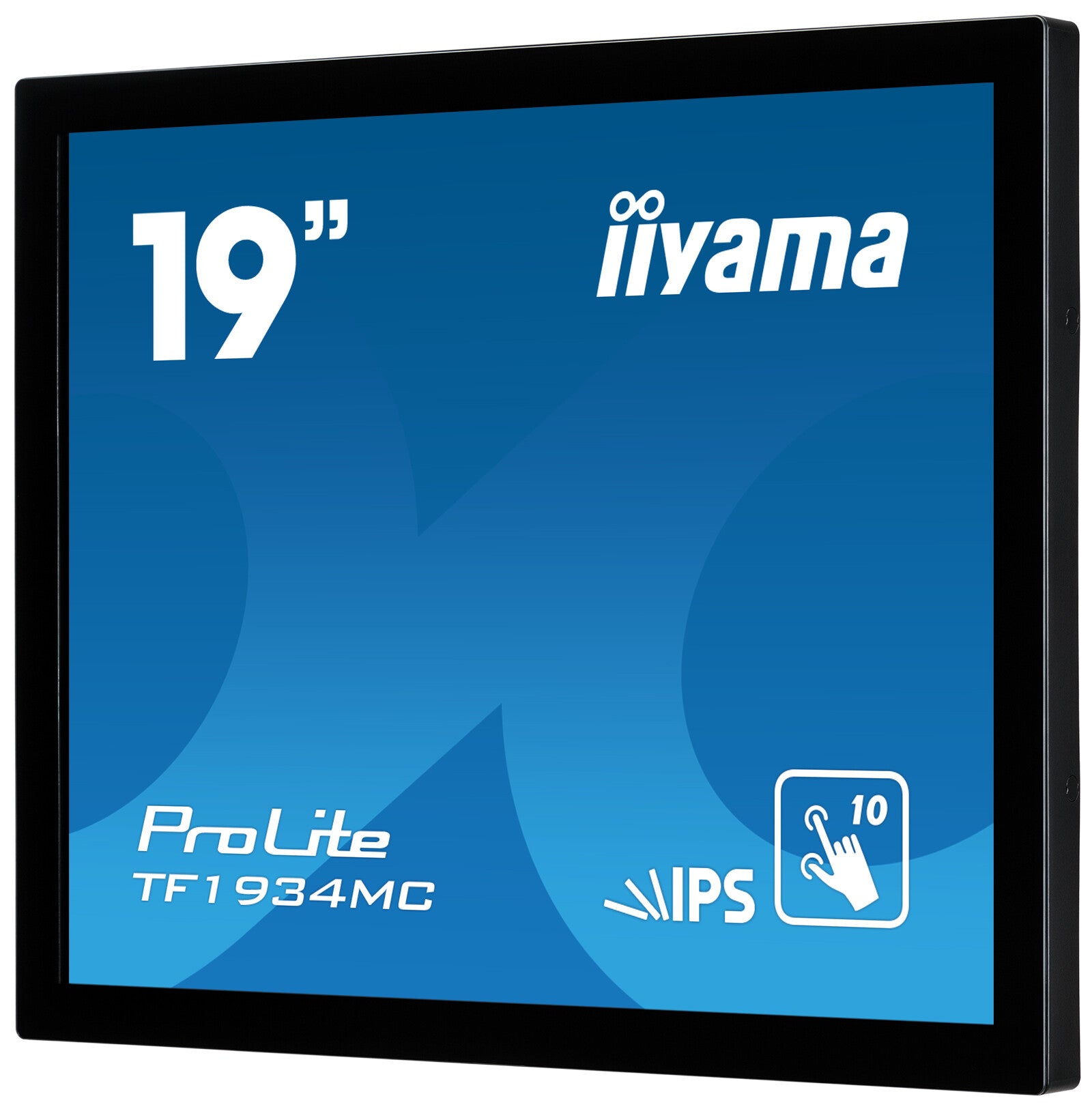

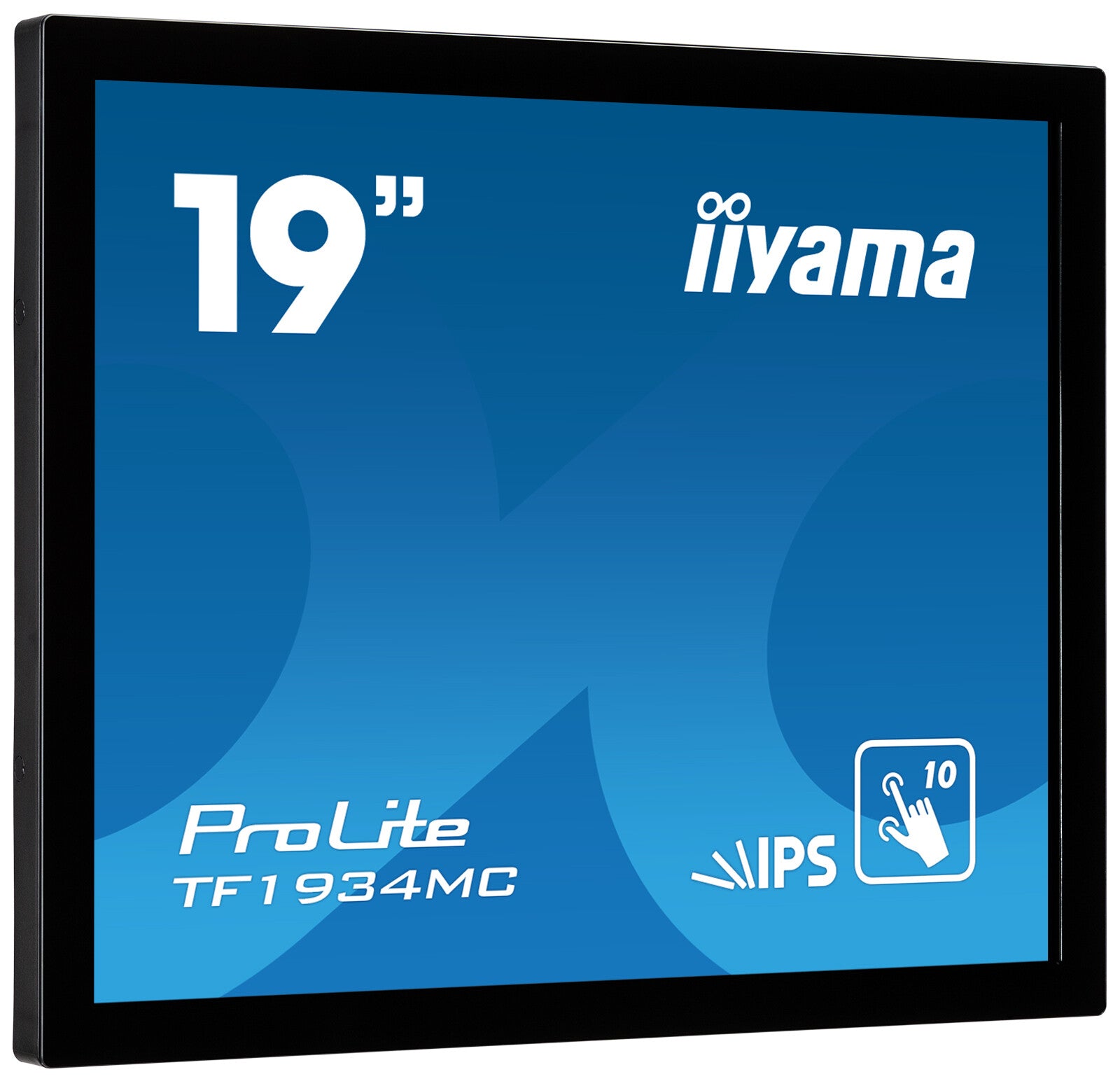

iiyama TF1934MC-B7X

iiyama TF1934MC-B7X

Open Frame, 19", 1280 x 1024, IPS, 350 cd/m², 14ms, VGA, HDMI, DisplayPort, IP65, 416 x 344 x 46.5 mm, 4.4kg

  • anti-fingerprint coating, touch through-glass
  • IP65 (front)
  • OSD key lock
  • SKU:4948570118403
  • GTIN/EAN:4948570118403
  • MPN:TF1934MC-B7X

You need to login to view the price.

Add To Favorite
View full details

10pt touch Open Frame monitor with IPS panel and touch through glass function
ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

Display
Viewable size diagonal
48 cm
Viewable size, vertical
37.6 cm
Viewable size, horizontal
30.1 cm
Horizontal scan range
31.4 - 80 kHz
Display number of colours
16.78 million colours
Aspect ratio
5:4
Screen shape
Flat
LED backlight
Yes
Display brightness
350 cd/m²
Supported graphics resolutions
1280 x 1024 (SXGA)
Response time
14 ms
Touchscreen technology
Projected capacitive system
Backlight type
LED
Panel type
IPS
Display resolution
1280 x 1024 pixels
Display diagonal
48.3 cm (19")
Performance
AMD FreeSync
No
NVIDIA G-SYNC
No
Design
Certification
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead
International Protection (IP) code
IP65
Glass thickness
6 mm
Product colour
Black
Ergonomics
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
On Screen Display (OSD)
Yes
Wall mountable
Yes
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
Power supply type
DC
Power consumption (off)
1.5 W
Power consumption (standby)
1.5 W
Power consumption (typical)
21 W
Energy consumption (SDR) per 1000 hours
18 kWh
Energy efficiency class (SDR)
F
Sustainability
European Product Registry for Energy Labelling (EPREL) code
392527
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (without stand)
4.4 kg
Height (without stand)
344 mm
Depth (without stand)
46.5 mm
Width (without stand)
416 mm
Logistics data
Harmonized System (HS) code
85285210
Other features
Connection to PC
Yes
Display viewable area (HxV)
376.5 x 301.1 mm
Surface hardness
HDCP
Yes
Display diagonal (metric)
48 cm
Built-in microphone
No
Pixel pitch
0.294 x 0.294 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
1000:1
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
Touch technology
Multi-touch
Built-in camera
No
Display technology
LED
Native aspect ratio
5:4
HD type
SXGA
Touchscreen
Yes
