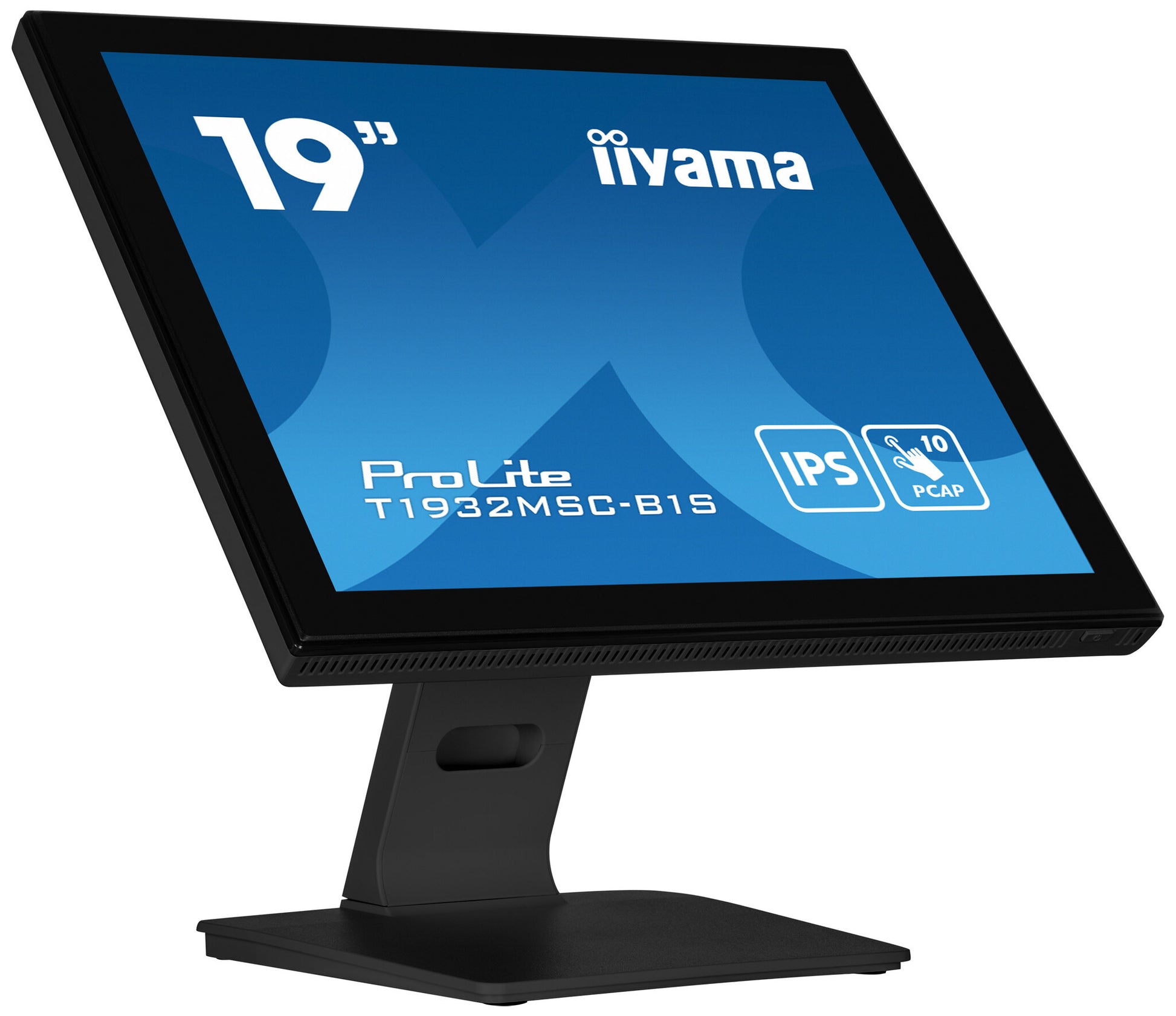

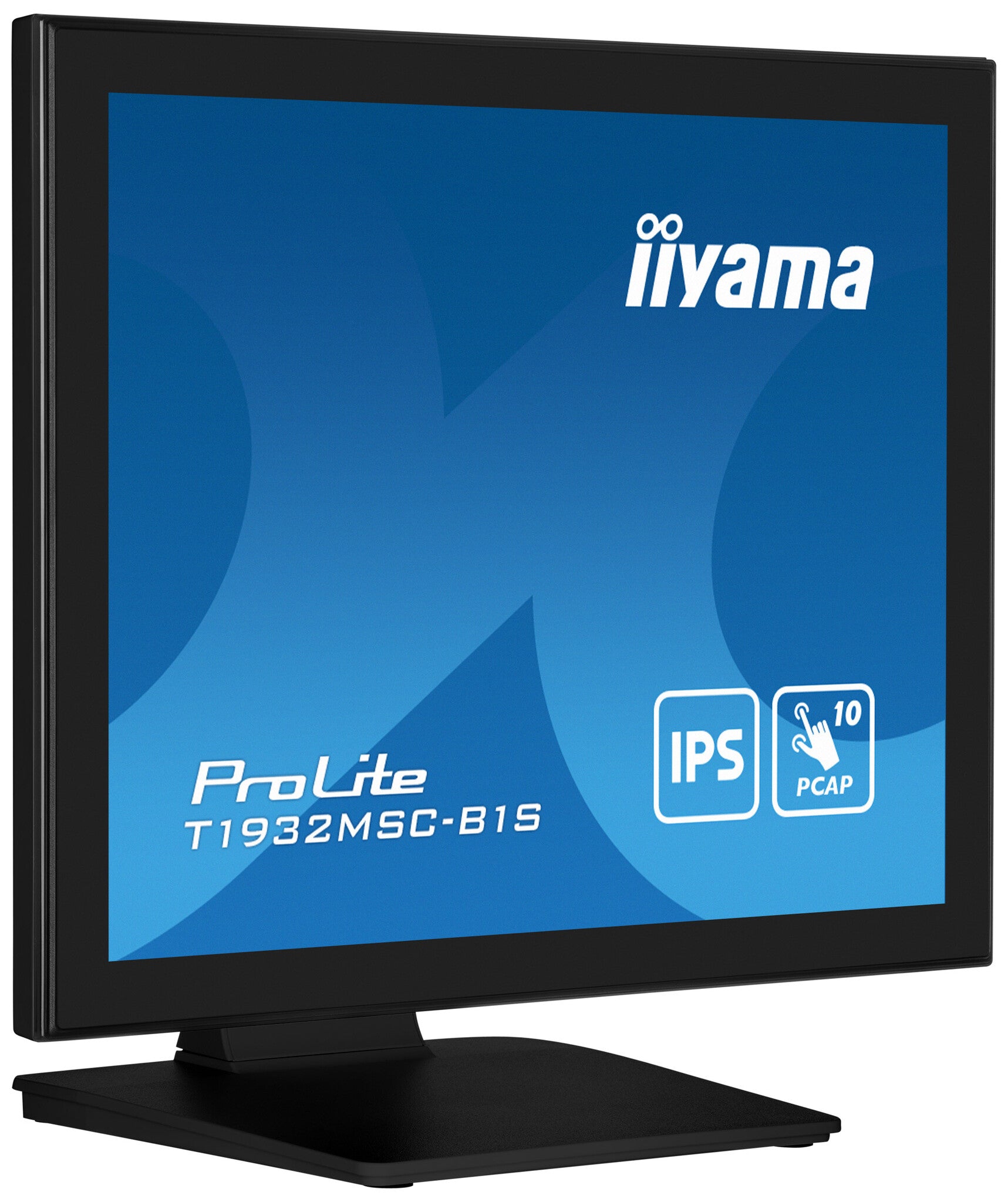

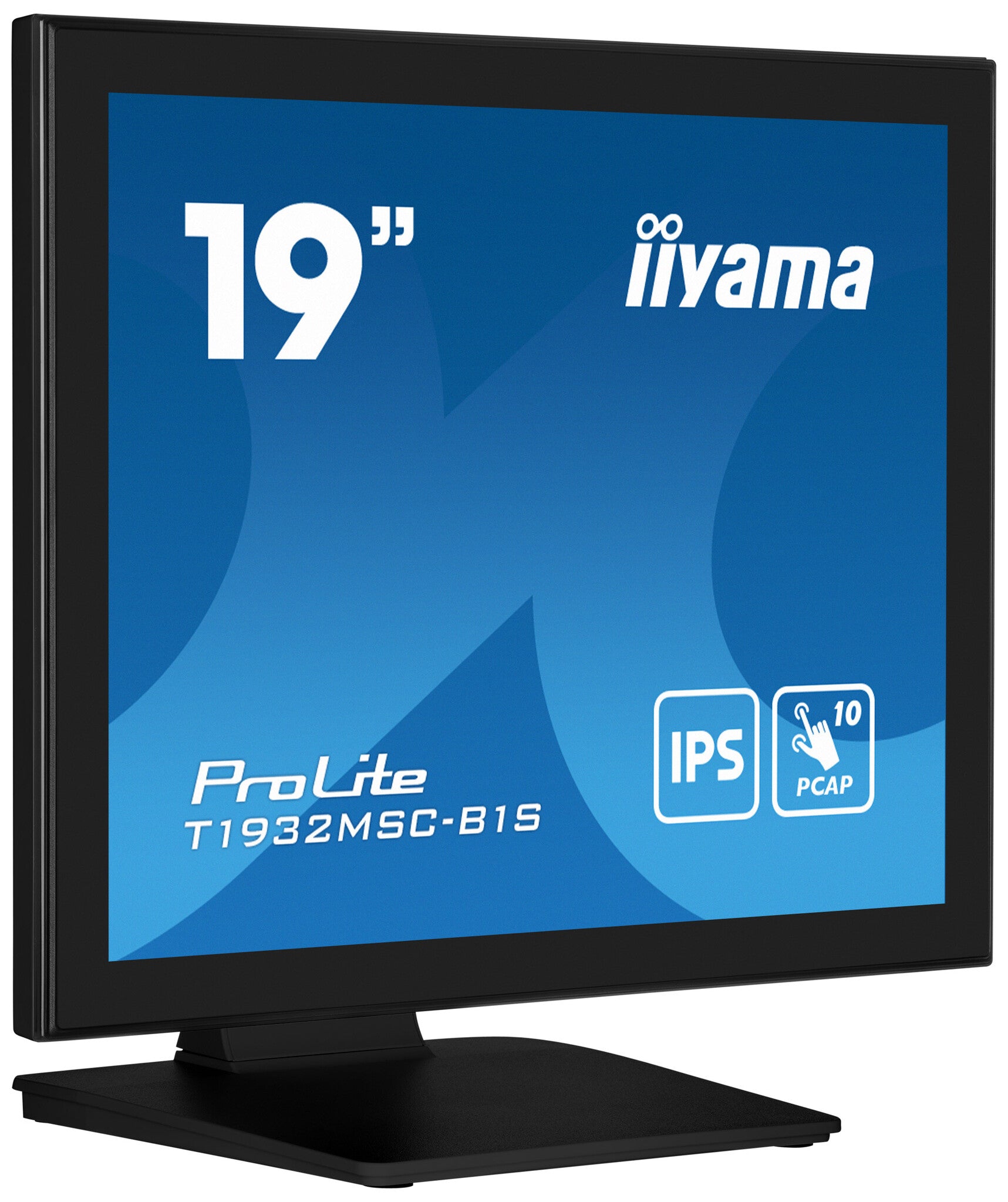

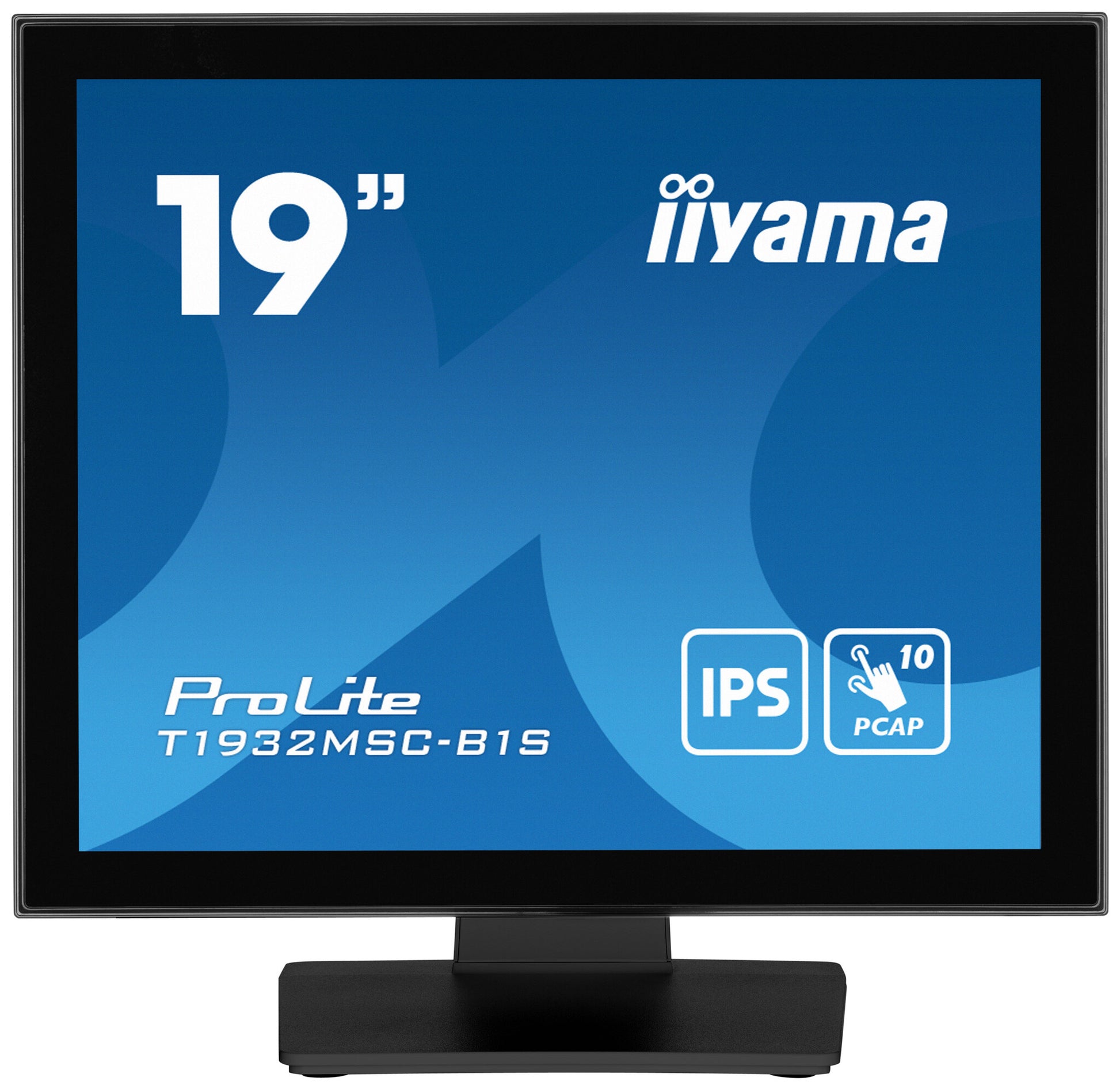

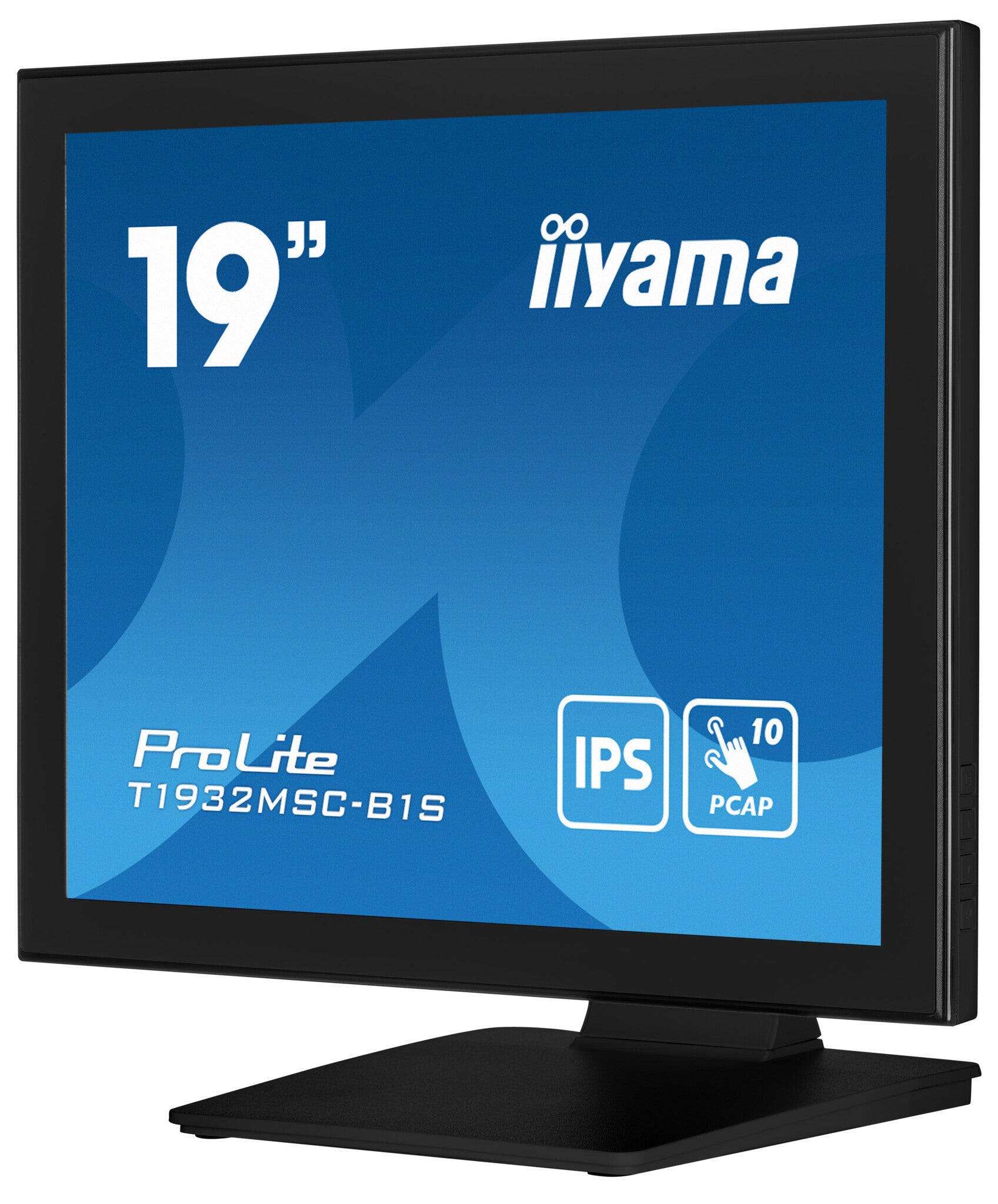

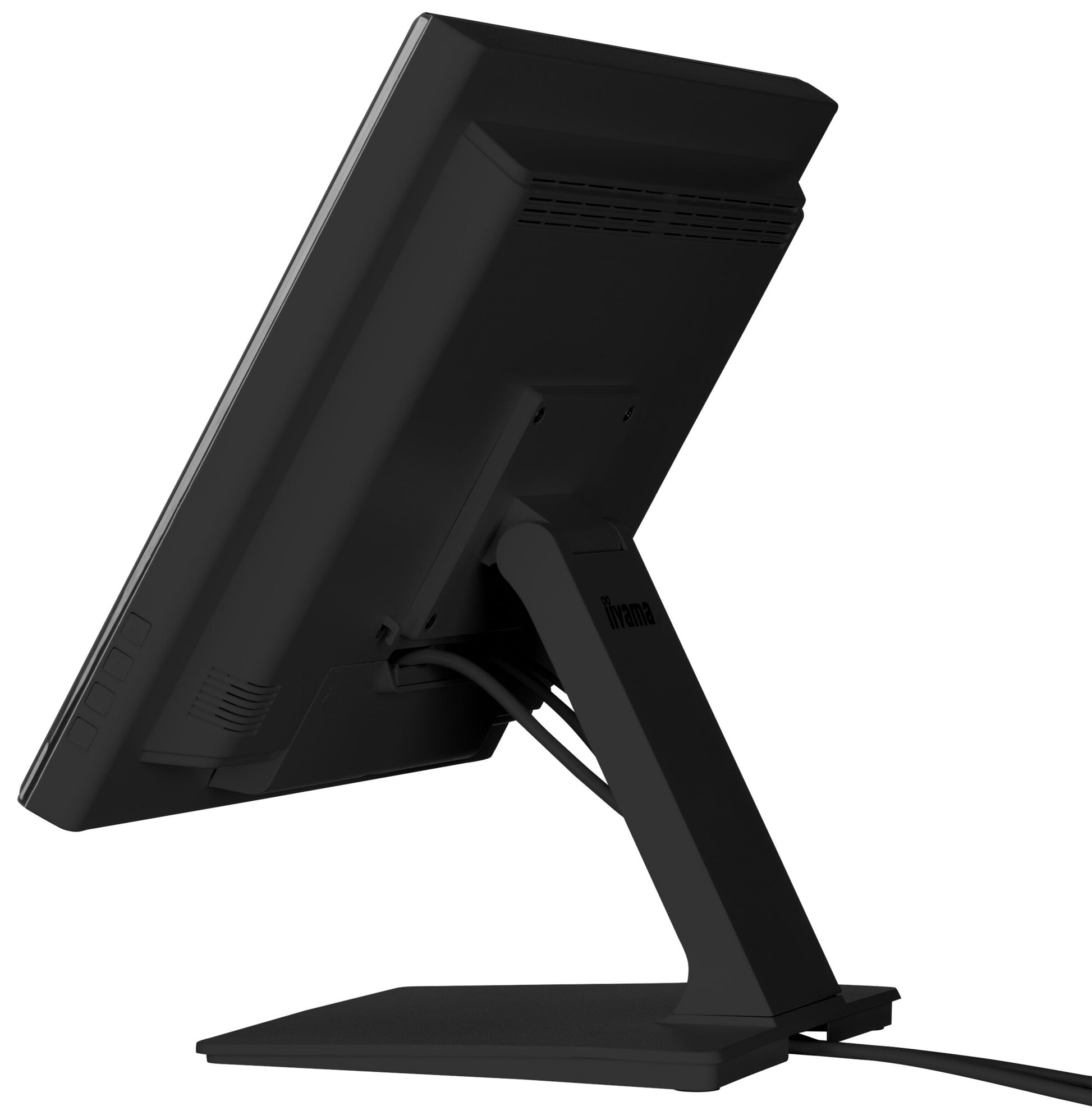

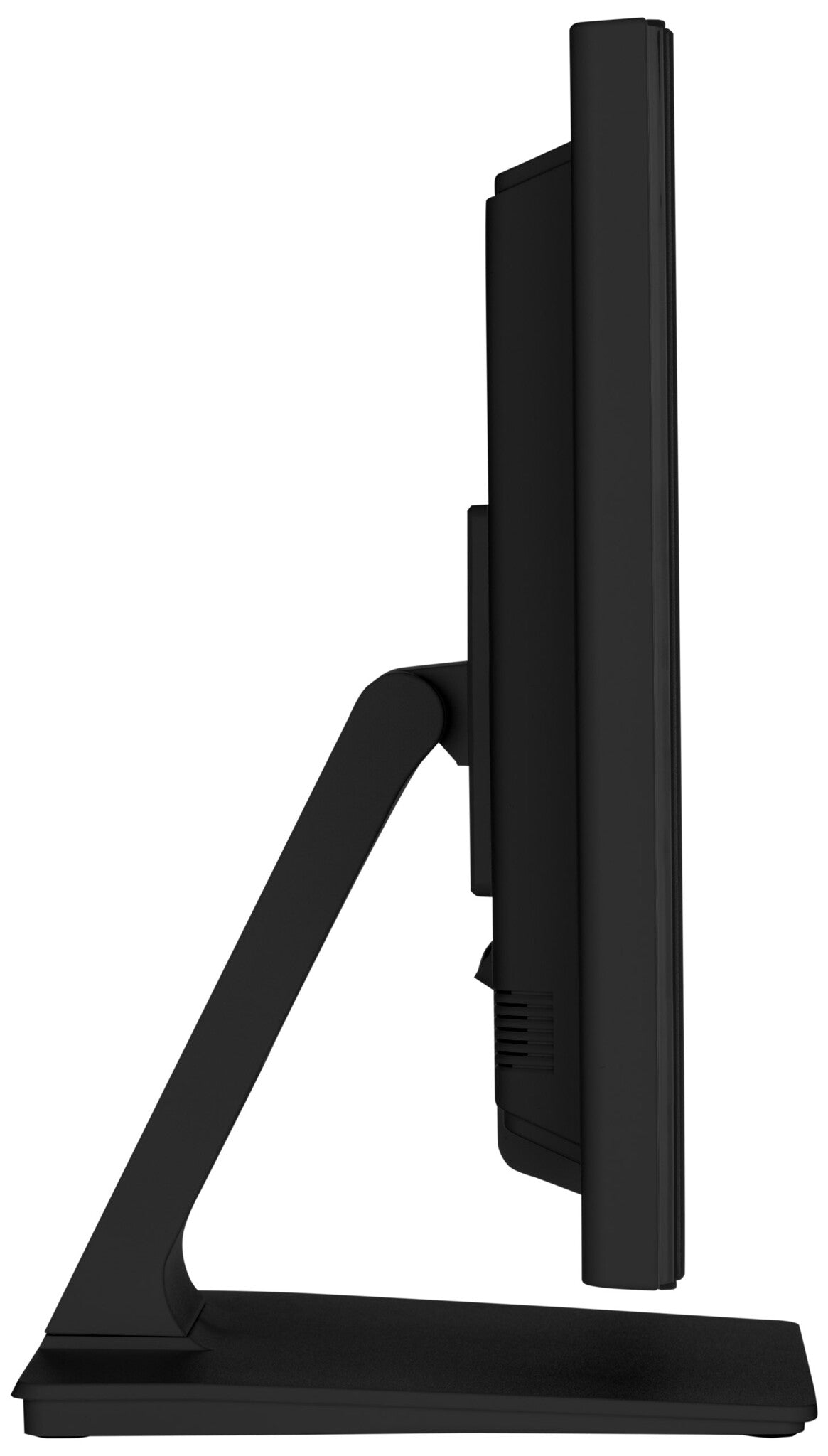

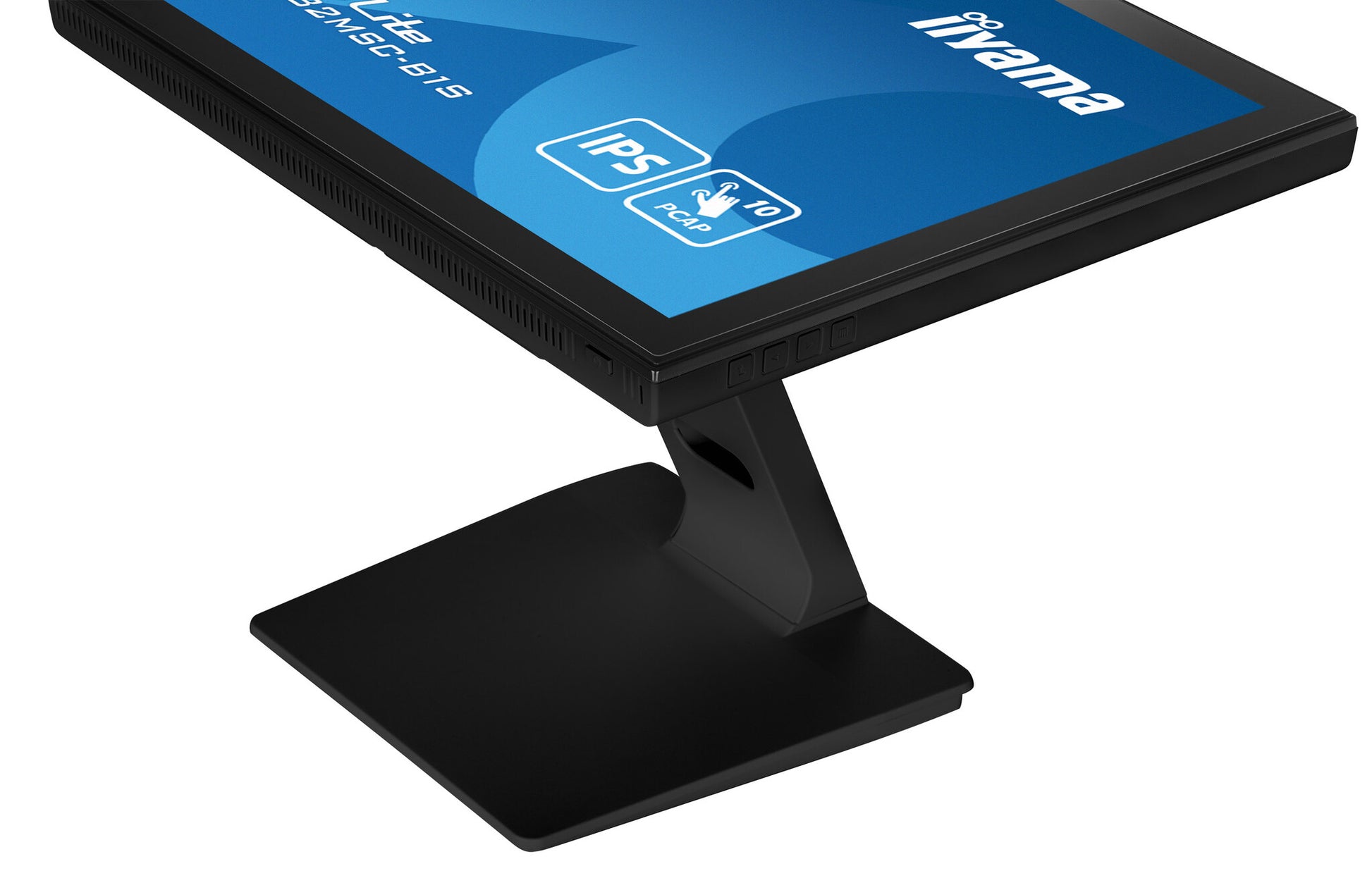

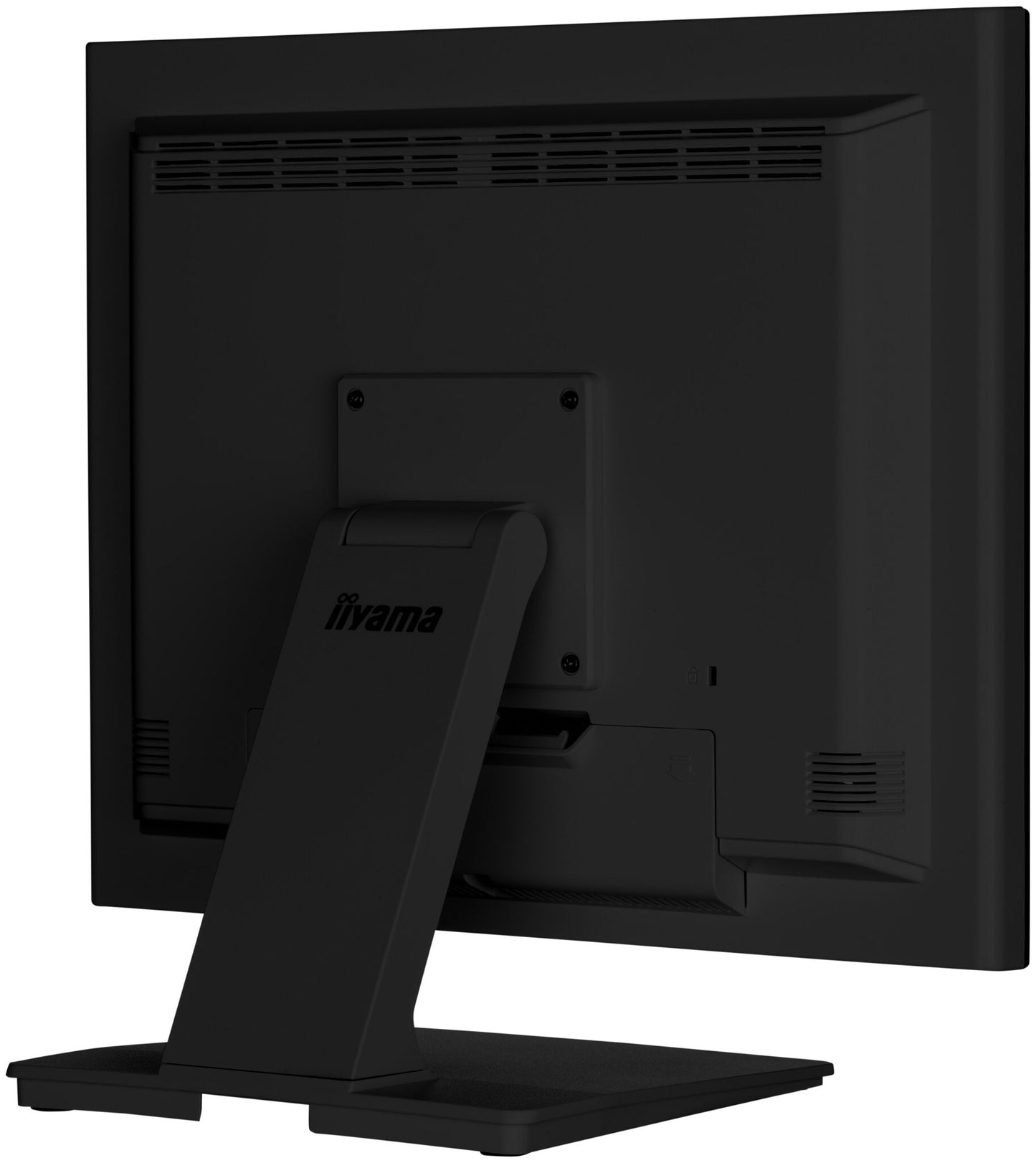

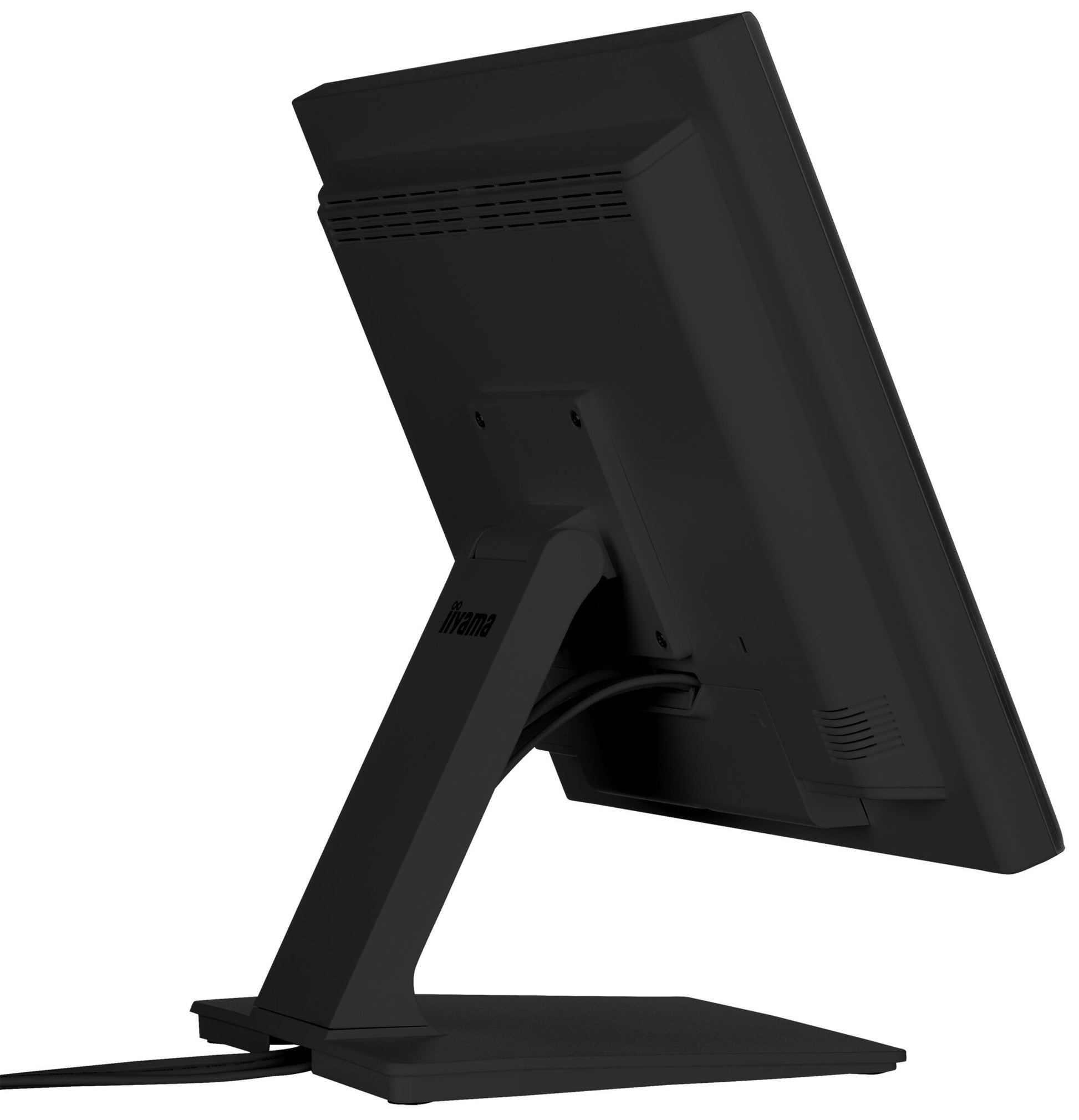

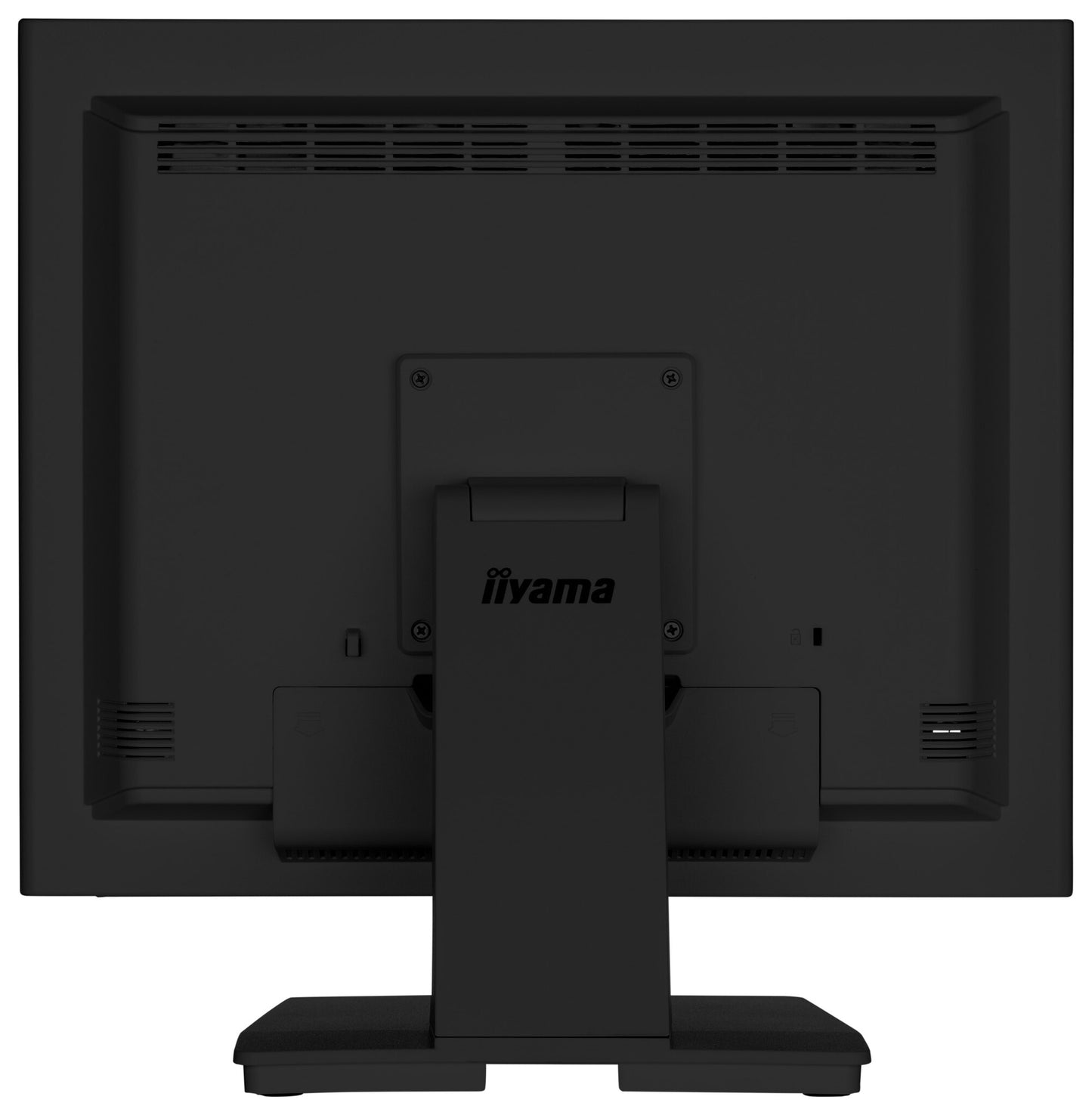

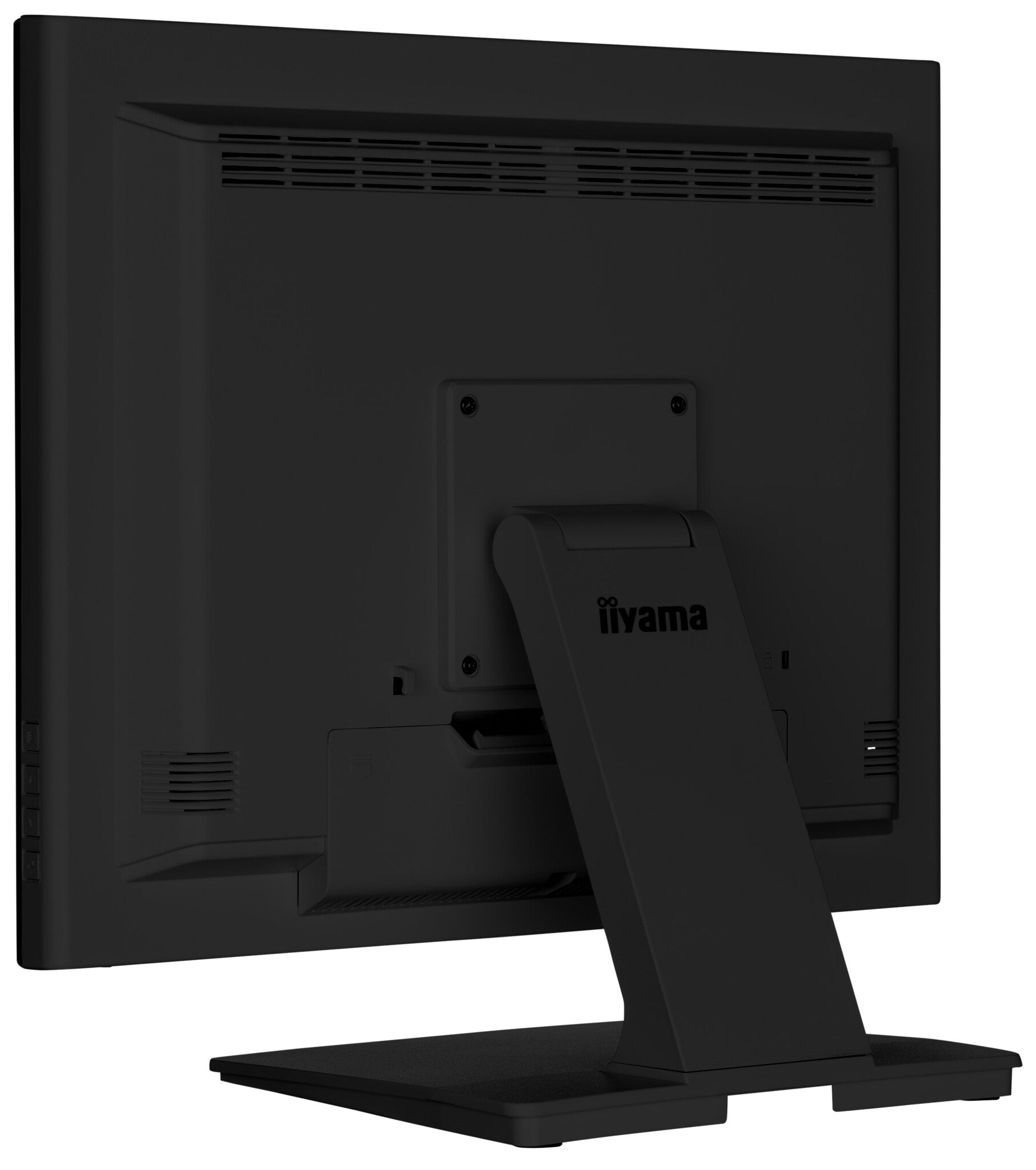

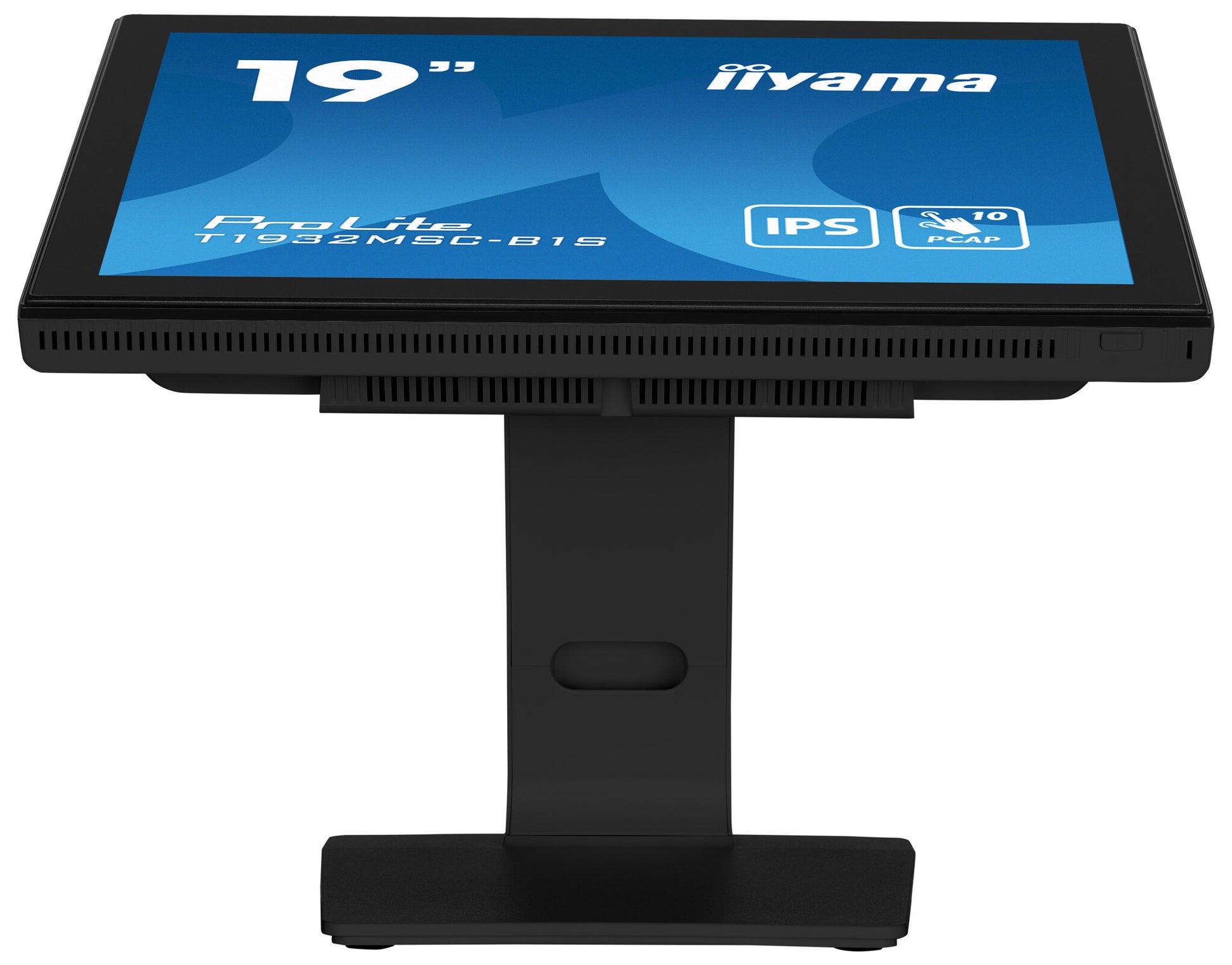

iiyama T1932MSC-B1S

iiyama T1932MSC-B1S

19", 1280x1024, 5:4, IPS, 250cd/m², 1000:1, 14ms, 178°/178°, 16.7mil, 31-80kHz, projective capacitive, stylus, finger, glove, 1x VGA, 1x HDMI, 1x DisplayPort, 2x 2W Audio, VESA 100x100, 100-240V, 50/60Hz, 20W, 432x239.5x413.5mm, 5.4kg

  • Business Touchscreen 48.3 cm (19") LED IPS
  • Full HD 1280 x 1024 pixels 5:4
  • 14 ms 250 cd/m² 1000:1
  • E 12 kWh 20 W
  • SKU:4948570122196
  • GTIN/EAN:4948570122196
  • MPN:T1932MSC-B1S

You need to login to view the price.

Add To Favorite
View full details

19’’ 10pt touch monitor featuring IPS panel technology

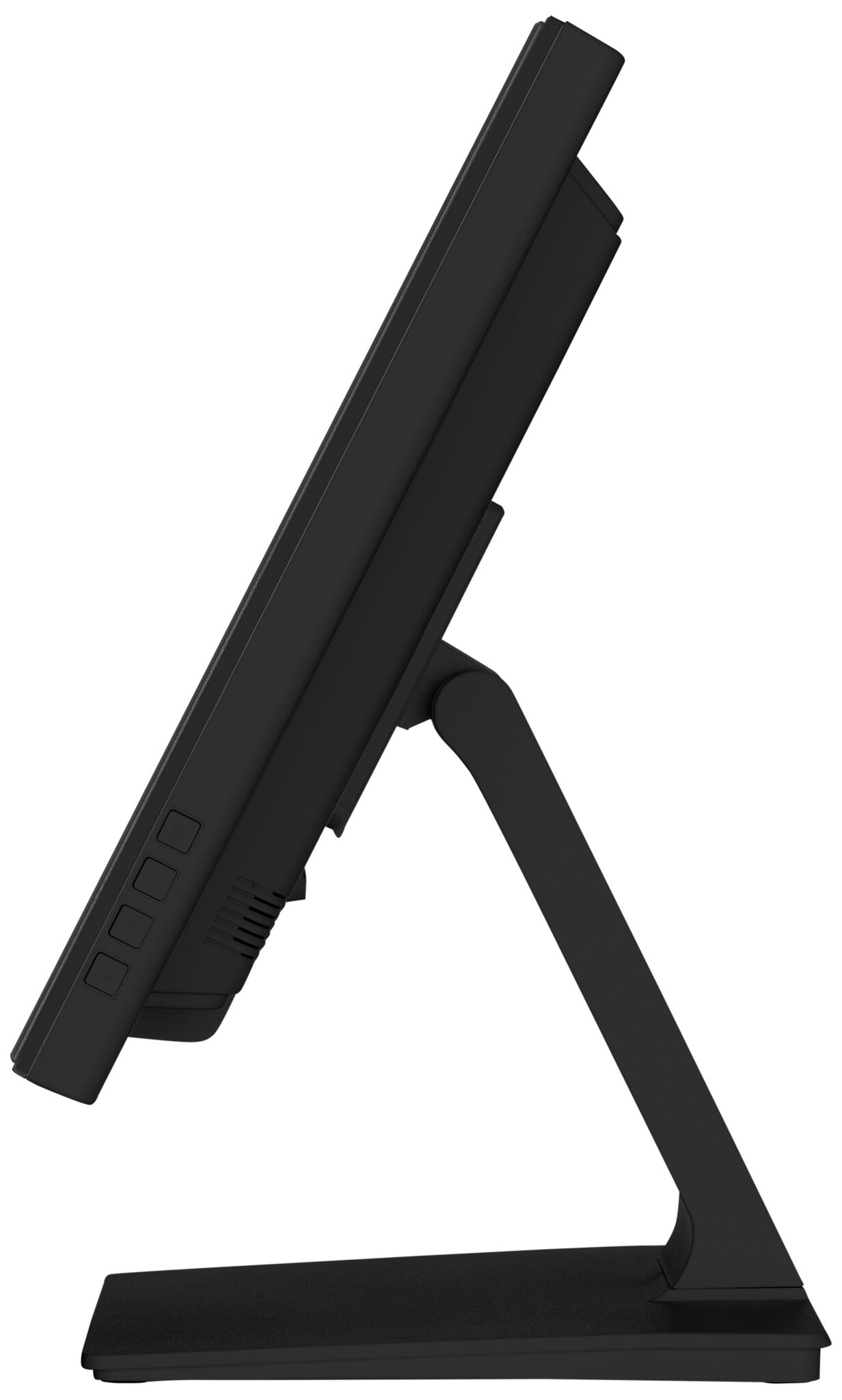

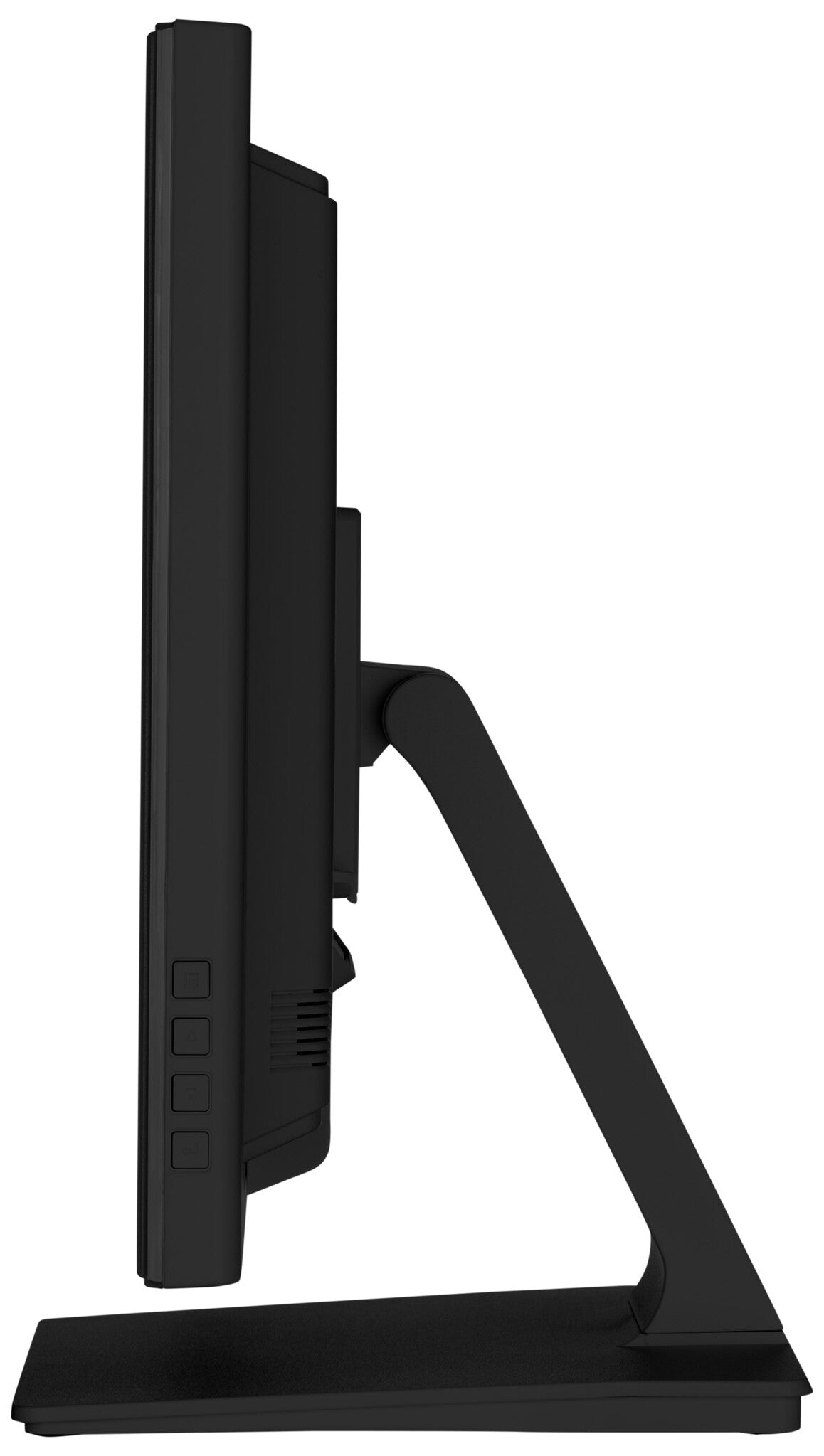

The ProLite T1932MSC-B1S 19" 10tp touchscreen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The IPS panel guarantees high performance with accurate and consistent colour reproduction, and wide viewing angles. Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.

IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

Display
Viewable size, vertical
37.4 cm
Viewable size, horizontal
30 cm
Horizontal scan range
31 - 80 kHz
Display number of colours
16.7 million colours
Contrast ratio (typical)
1000:1
Screen shape
Flat
Display surface
Matt
DDC/CI
Yes
Response time
14 ms
Display brightness (typical)
250 cd/m²
Display brightness (peak)
215 cd/m²
Touchscreen technology
Projected capacitive system
Backlight type
LED
Panel type
IPS
Display resolution
1280 x 1024 pixels
Display diagonal
48.3 cm (19")
Performance
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
RMS rated power
2 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
International Protection (IP) code
IP54
Feet colour
Black
Product colour
Black
Market positioning
Business

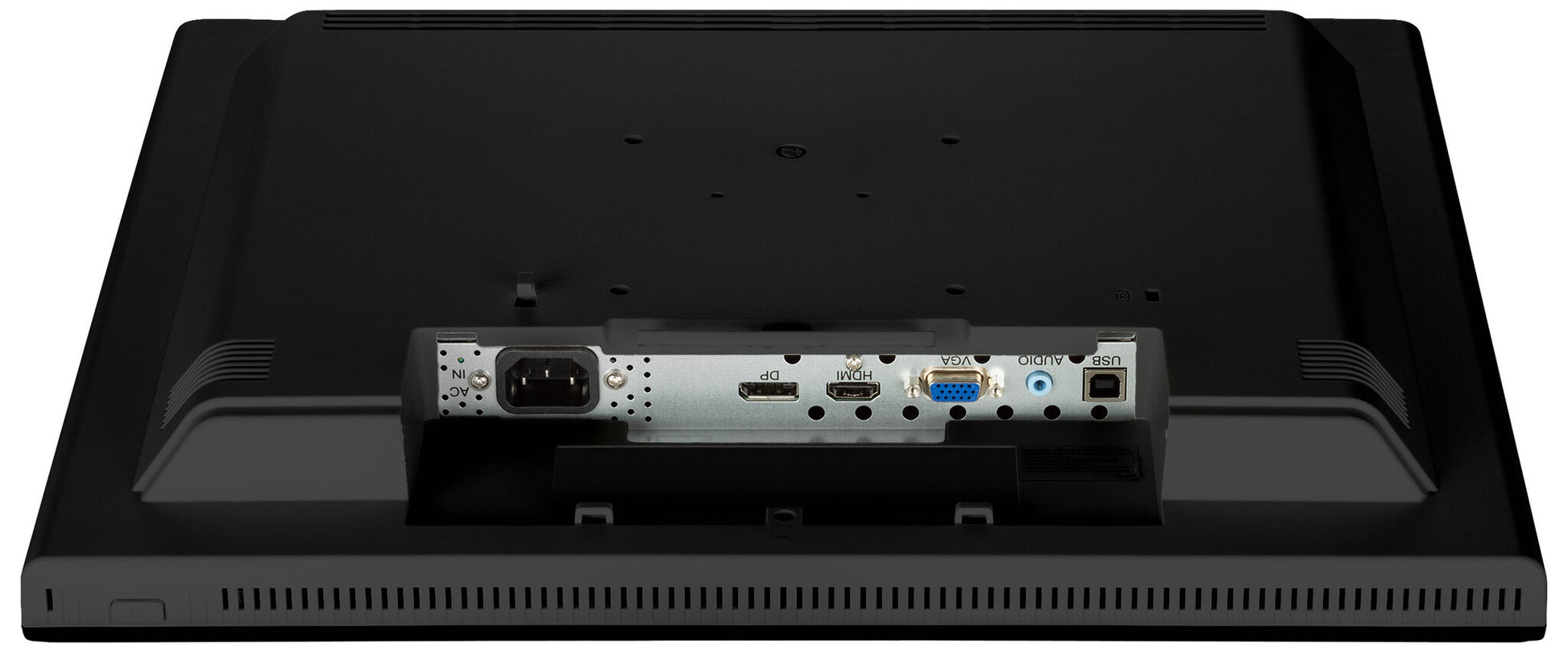

Ports & interfaces
DC-in jack
Yes
Headphone outputs
1
Audio output
Yes
Built-in USB hub
No
Ergonomics
Tilt adjustment
Yes
On Screen Display (OSD) languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages
7
On Screen Display (OSD)
Yes

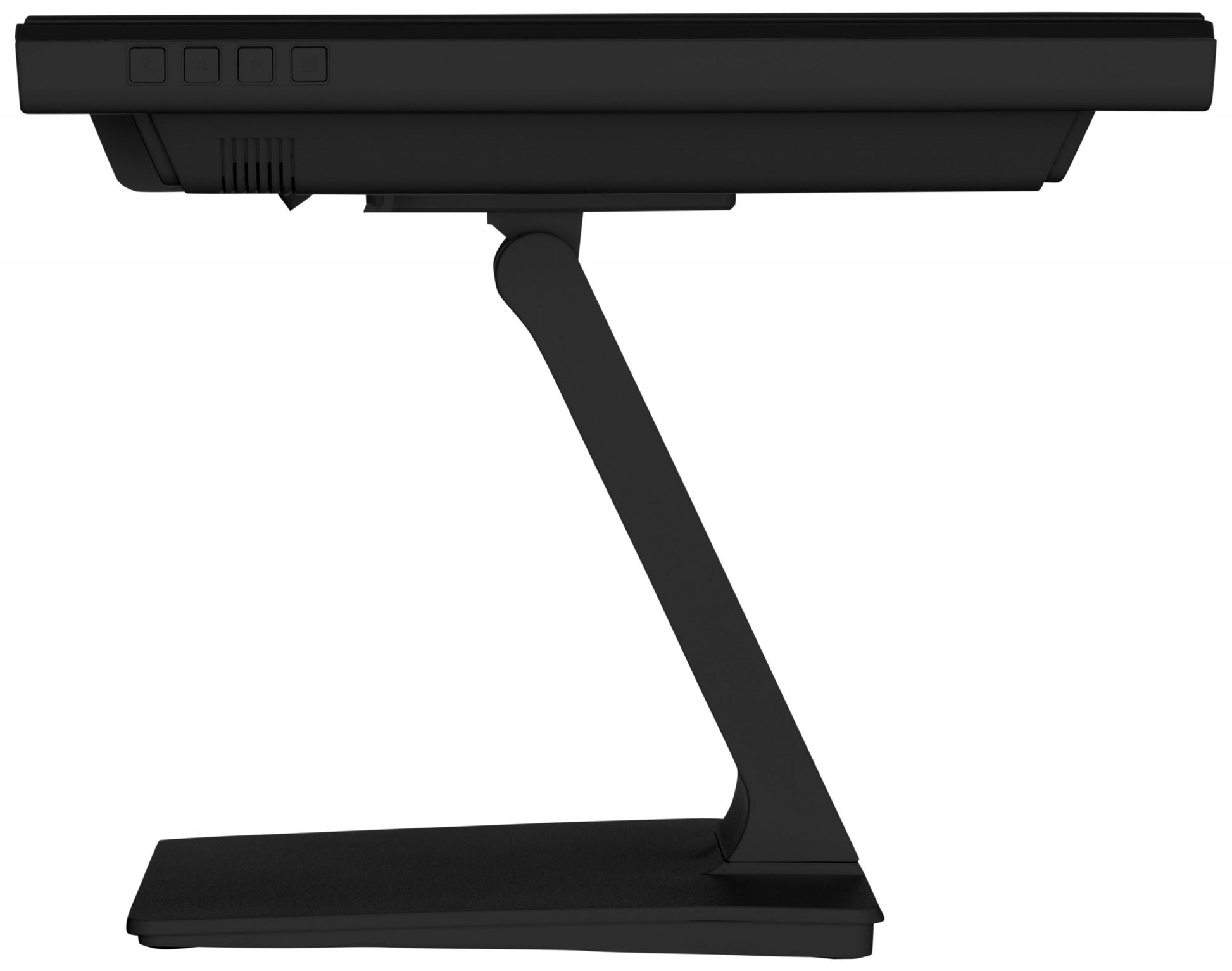

Tilt angle range
5 - 90°
Cable management
Yes
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Packaging content
Manual
Yes
Power adapter included
Yes
Power
Energy efficiency scale
A to G
Power supply type
External
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
20 W
Energy consumption (SDR) per 1000 hours
12 kWh
Energy efficiency class (SDR)
E
Sustainability
Sustainability certificates
CE, EAC, ErP, REACH, RoHS, UKCA, WEEE, cUL
European Product Registry for Energy Labelling (EPREL) code
1554894
Sustainability compliance
Yes
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (with stand)
5.4 kg
Height (with stand)
413.5 mm
Depth (with stand)
239.5 mm
Width (with stand)
432 mm
Packaging data
Quick start guide
Yes

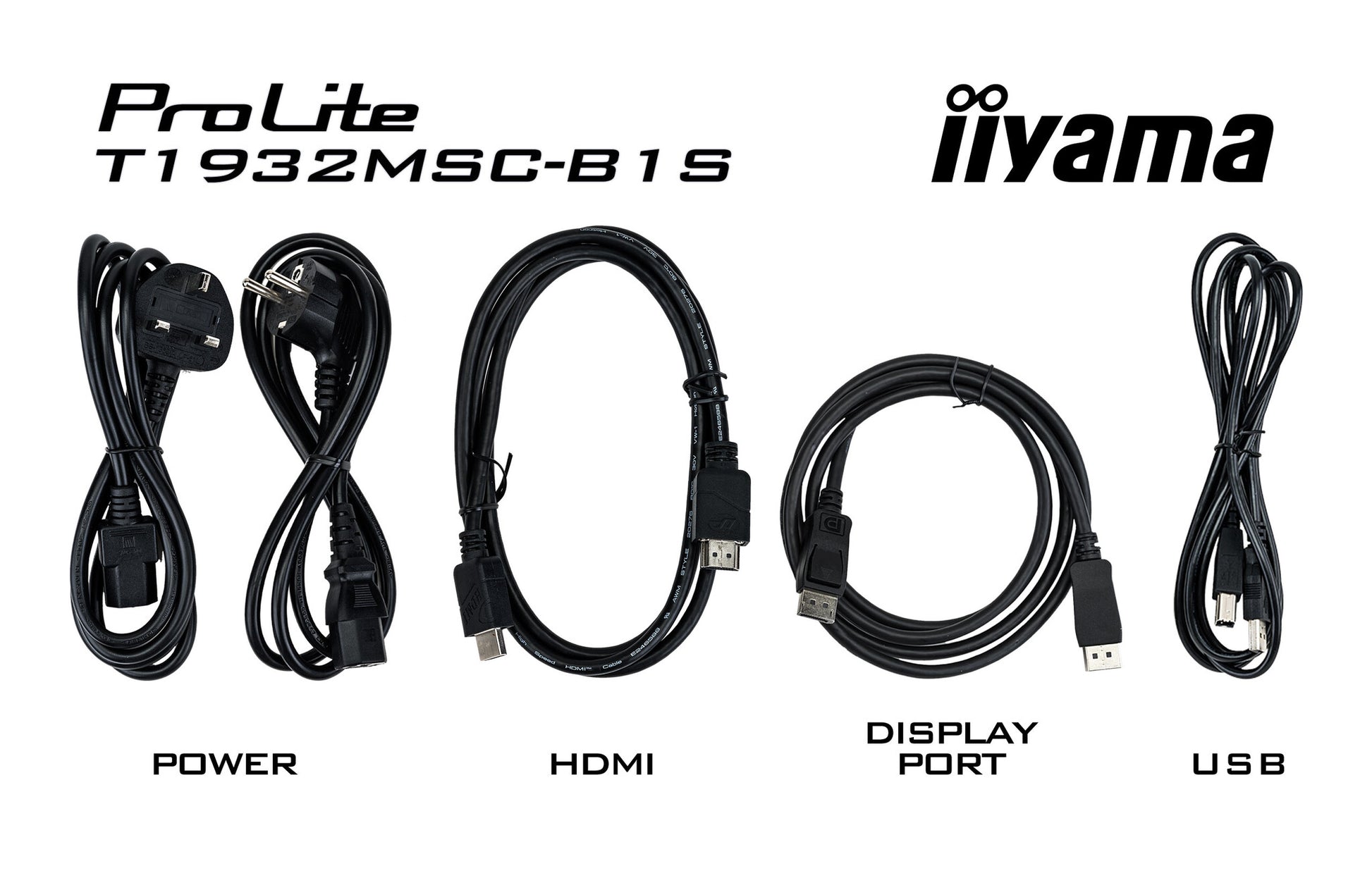

Cables included
Audio, DisplayPort, HDMI, Power, USB
Stand included
Yes
Surface hardness
HDCP
Yes
Display diagonal (metric)
48 cm
Pixel pitch
0.2928 x 0.2928 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
USB Touch port
Yes
Number of simultaneous touchpoints
10
Touchscreen type
Tabletop
Touch technology
Multi-touch
Built-in camera
No
Display technology
LED
Native aspect ratio
5:4
HD type
Full HD
Touchscreen
Yes
