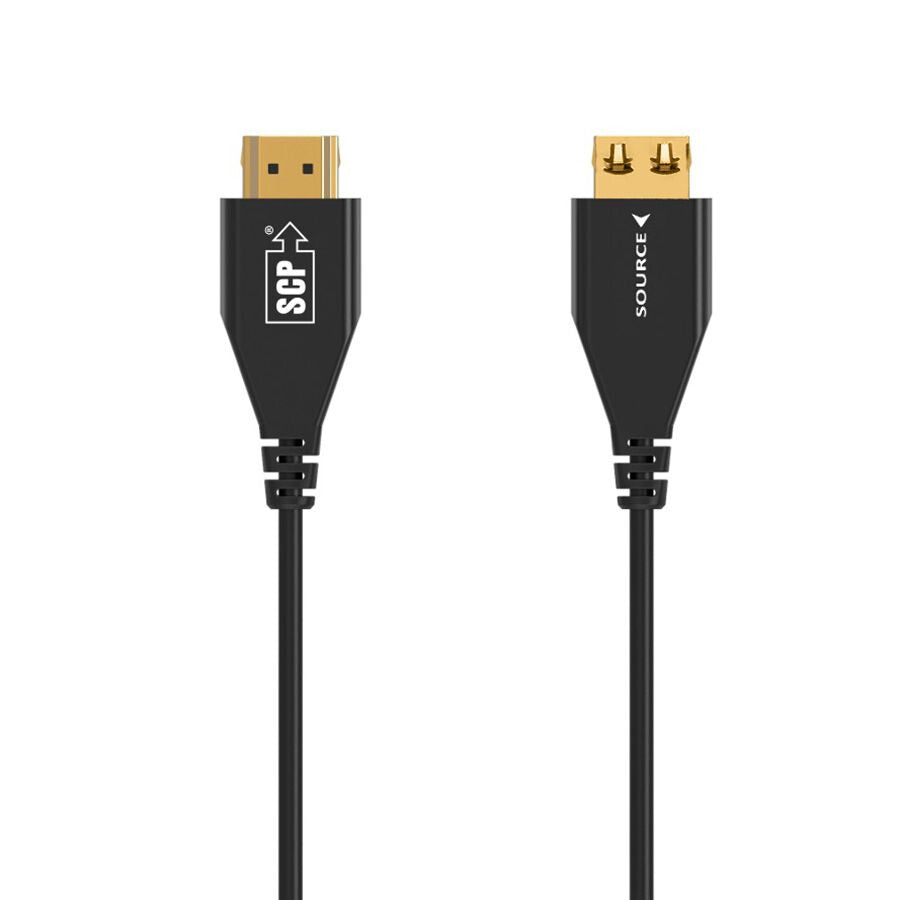

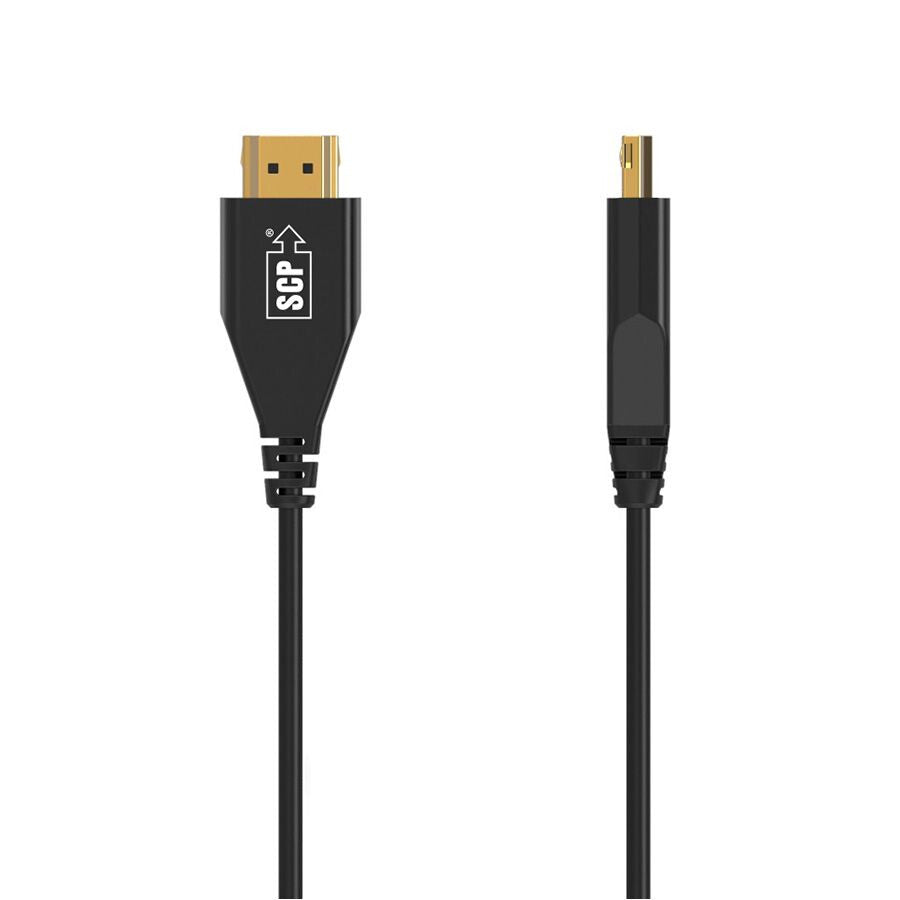

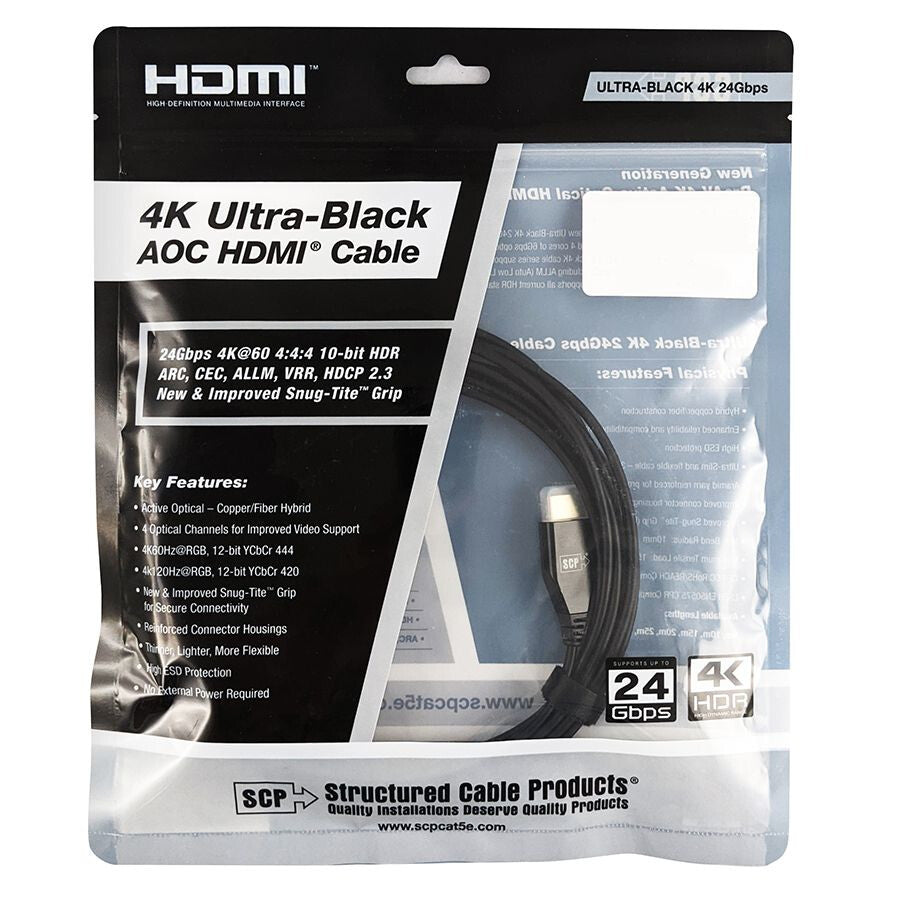

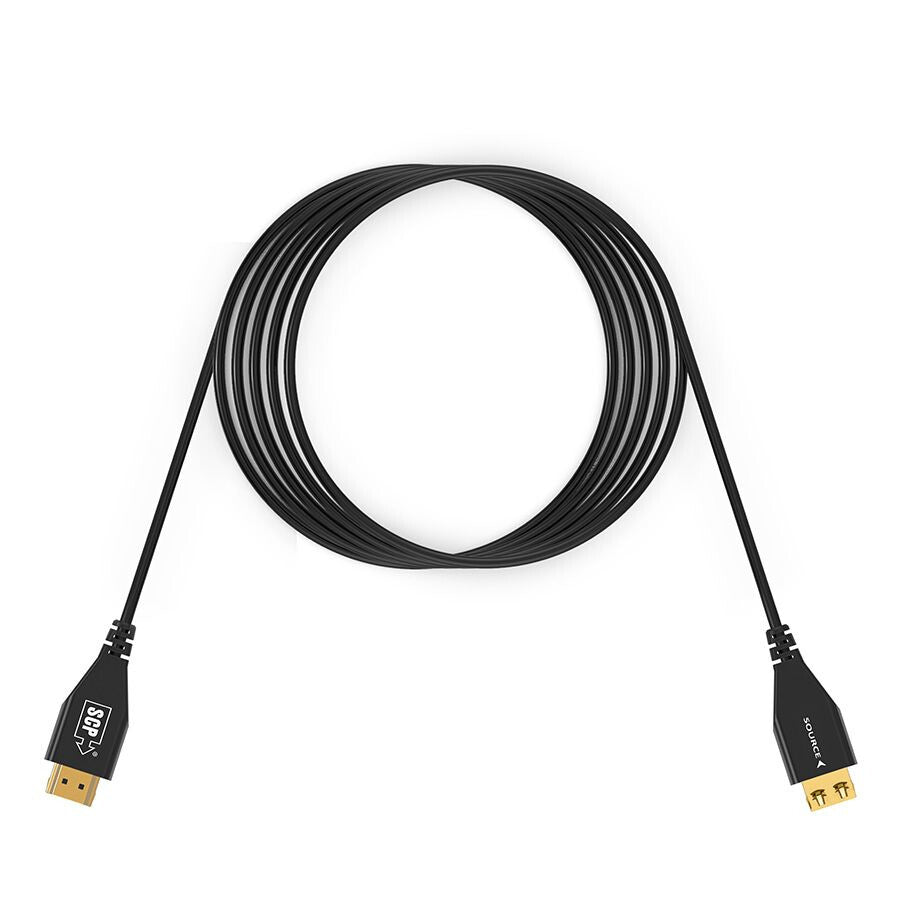

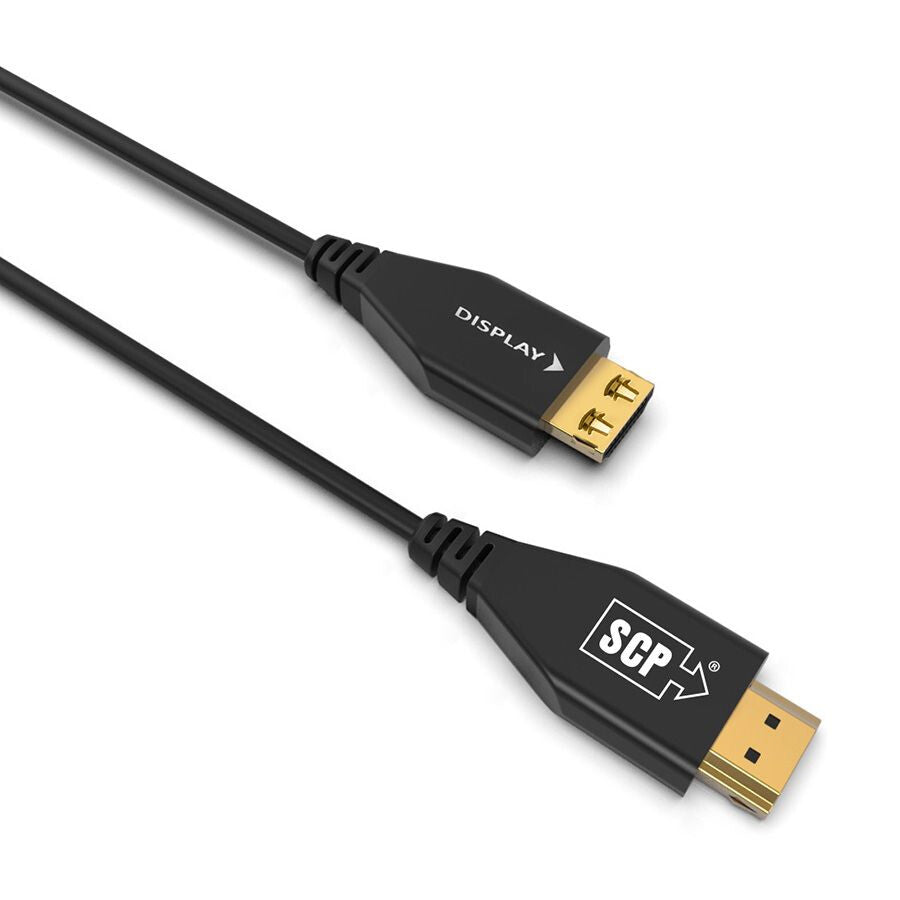

SCP 997AOC-LSZH-20M

SCP 997AOC-LSZH-20M

24Gbps, 4K, HDR, AOC HDMI® 2.0, CABLE, 4K@60, 4:4:4, 2160p, HDR, Black, 20m

  • 20 m
  • HDMI Type A (Standard) Straight Male
  • 3 x HDMI Type A (Standard) Straight Male
  • HDMI version: 2.0
  • 120 Hz 24 Gbit/s
  • DTS-HD Master Audio, Dolby TrueHD, Dolby Vision
  • High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
  • Audio Return Channel (ARC)
  • Black
  • SKU:810093720545
  • GTIN/EAN:810093720545
  • MPN:997AOC-LSZH-20M

You need to login to view the price.

View full details

SCP 997AOC-LSZH-20M. Cable length: 20 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: 3 x HDMI Type A (Standard), Connector 2 gender: Male, HDMI version: 2.0, Data transfer rate: 24 Gbit/s, Audio Return Channel (ARC), Product colour: Black

HDMI® AOC generates high quality digital video signals for the connection
between HDMI source and sink devices. It supports 4K120Hz with YCbCr 4:2:0.
The HDMI AOC is a compact hybrid cable comprising multi-mode glass fibers for
the TMDS signals and copper wires for the low frequency signals. It is fully
terminated with electro-optical and opto-electrical HDMI plug ends and is fully
compliant with the HDMI specifications.

Features
Cable length
20 m
Connector 1
HDMI Type A (Standard)
Connector 2
3 x HDMI Type A (Standard)
Connector 1 gender
Male
Connector 2 gender
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Product colour
Black
HDMI version
2.0
Supported video modes
2160p
Dolby technologies
DTS-HD Master Audio, Dolby TrueHD, Dolby Vision
Audio Return Channel (ARC)
Yes
HDCP
Yes
HDCP version
2.3
Data transfer rate
24 Gbit/s
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
Supported digital audio channels (uncompressed)
32
Maximum refresh rate
120 Hz
Cable jacket material
Low smoke zero halogen (LSZH)
Quantity per pack
1 pc(s)
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Cable diameter
3.5 mm
