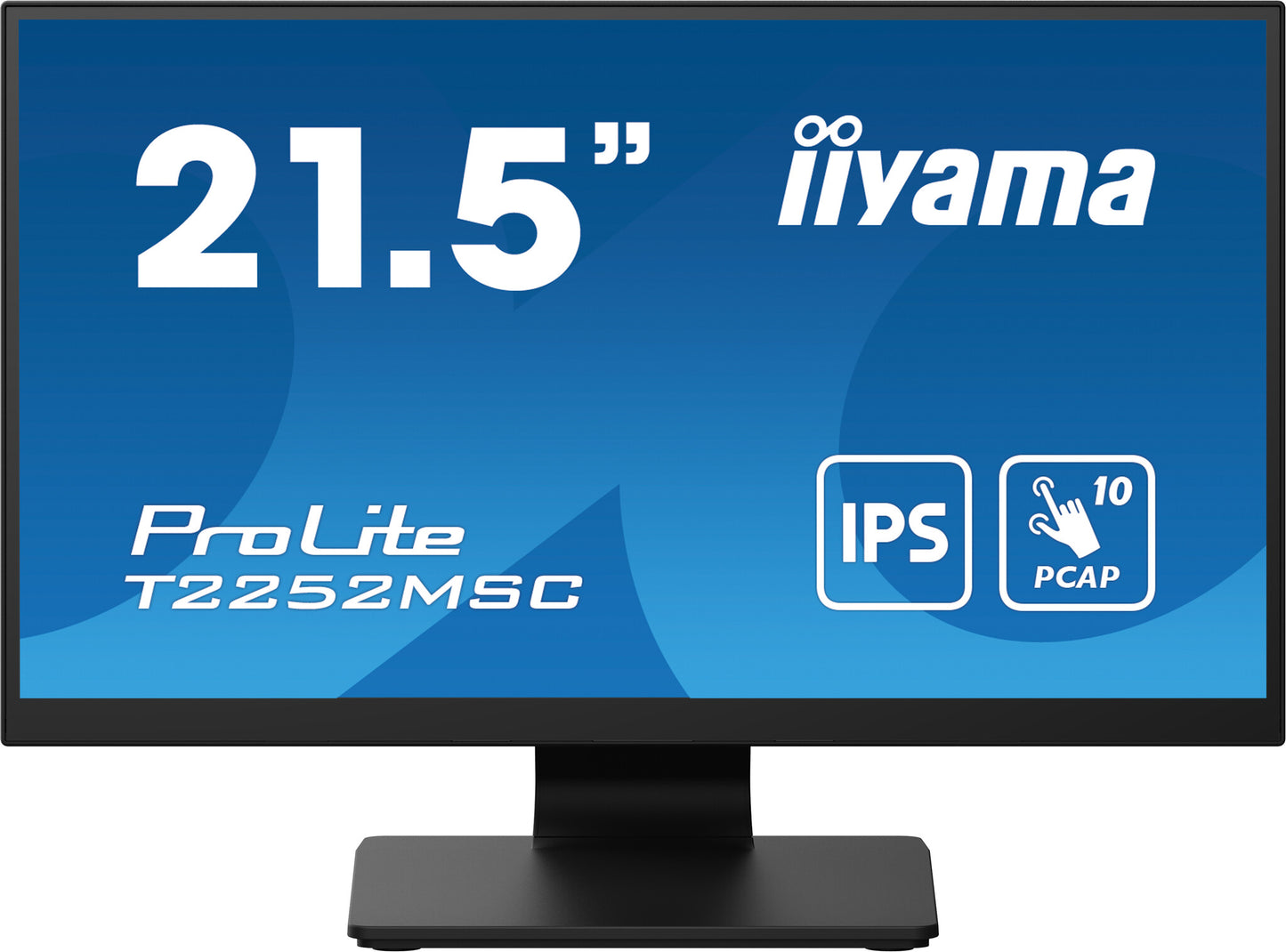

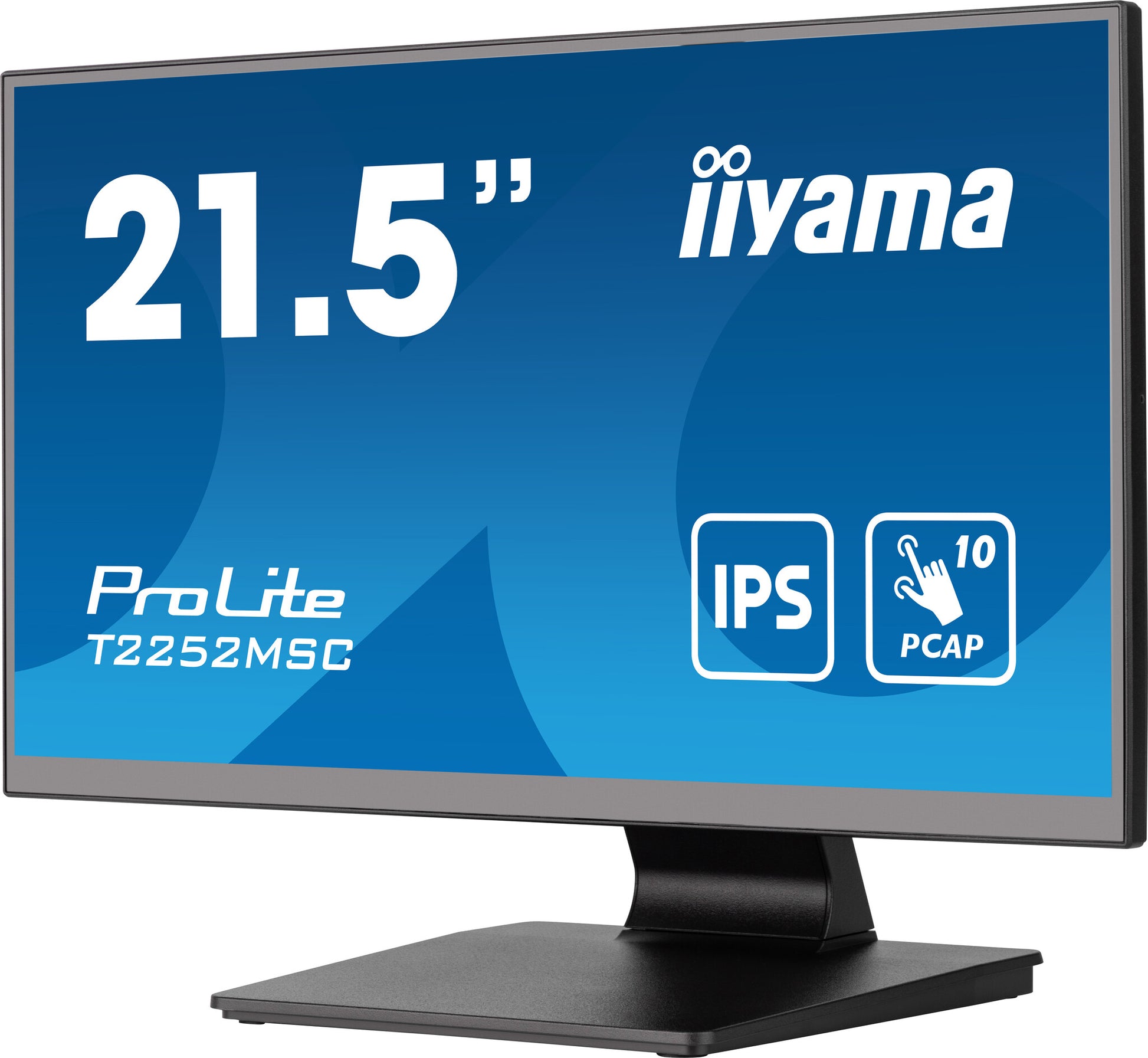

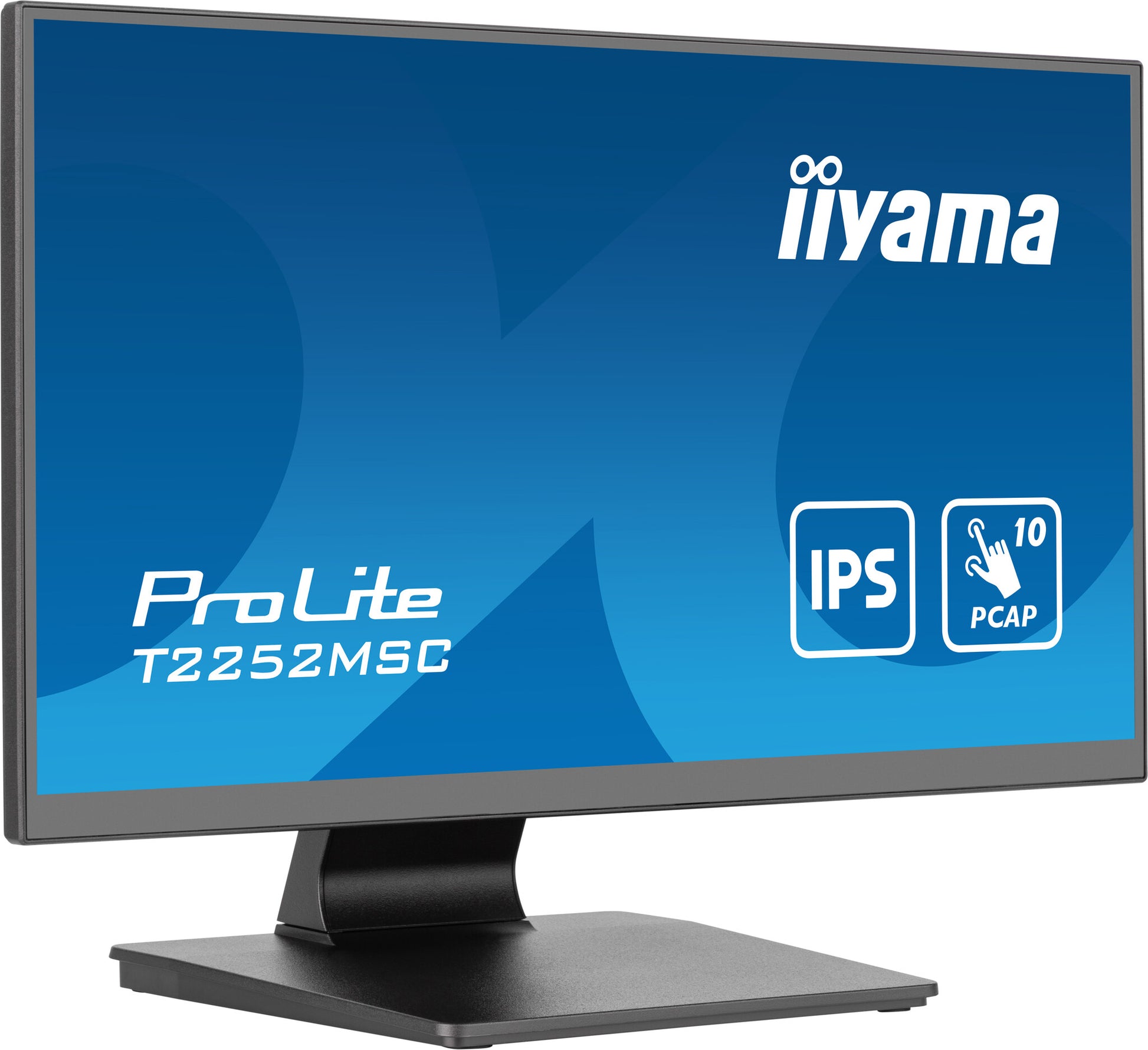

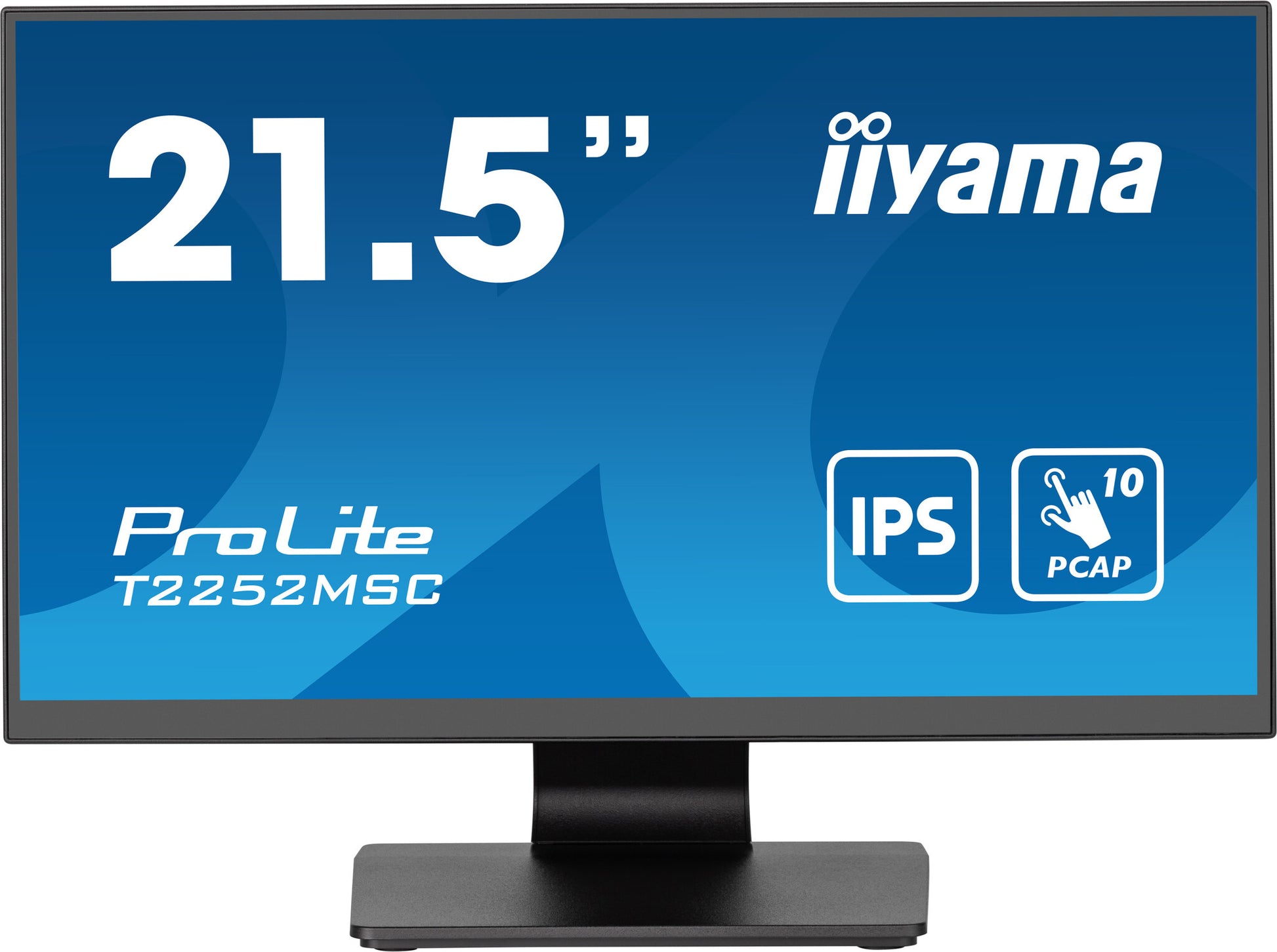

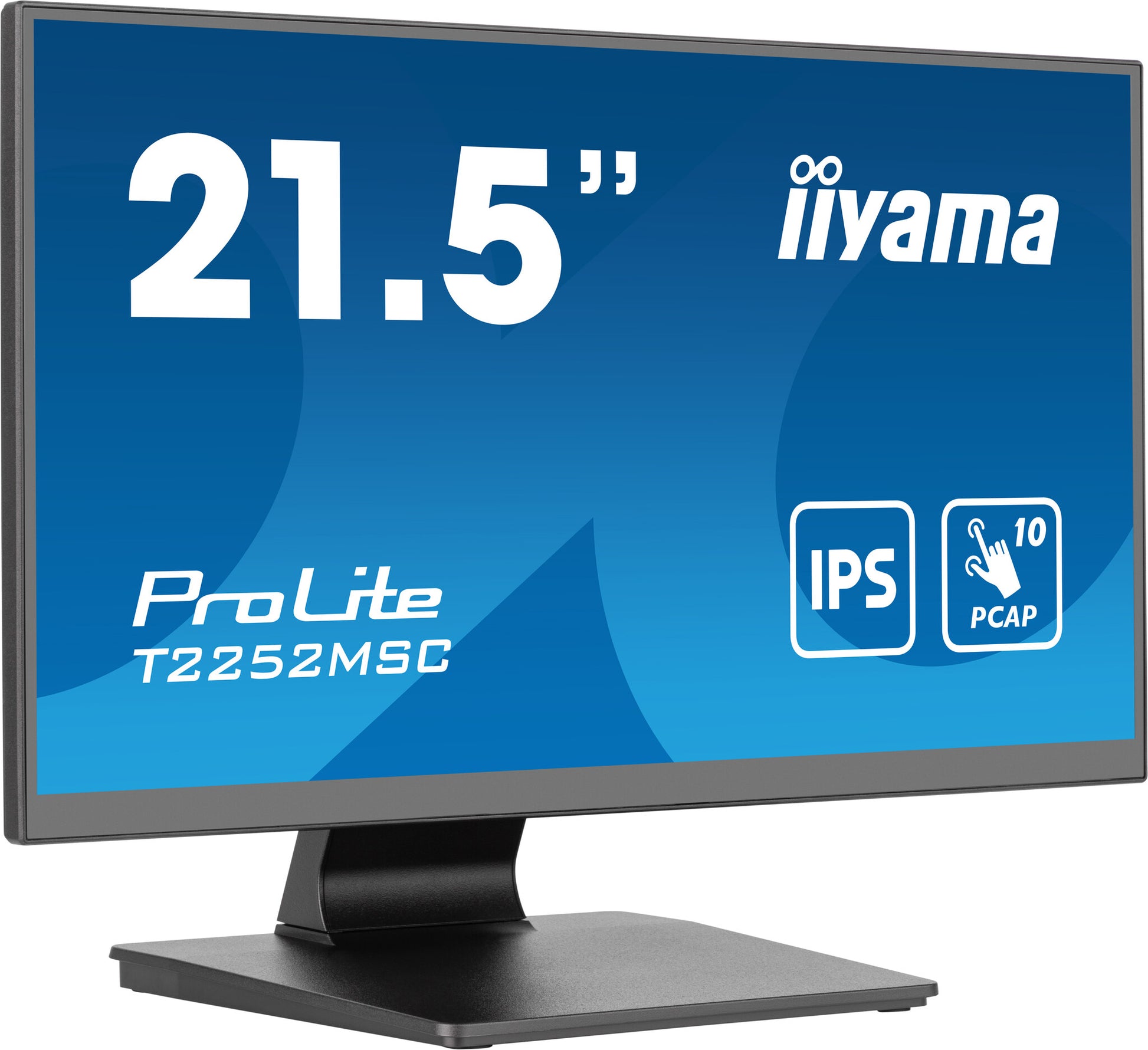

T2252MSC-B2

21.5” PCAP 10pt touchscreen monitor featuring IPS panel technology, Edge-to-Edge glass design and anti fingerprint coating

  • 54.6 cm (21.5") Black
  • Built-in speaker(s)
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Response time: 5 ms Response time measurement type: GTG (Gray to Gray)
  • 1920 x 1080 pixels Full HD Panel type: IPS
  • Energy efficiency class (SDR): C ErP CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
  • SKU:4948570121809
  • GTIN:4948570121809
  • MPN:T2252MSC-B2

You need to login to view the price.

View full details

iiyama ProLite 21.5” PCAP 10pt touchscreen monitor featuring IPS panel technology, Edge-to-Edge glass design and anti fingerprint coating. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black

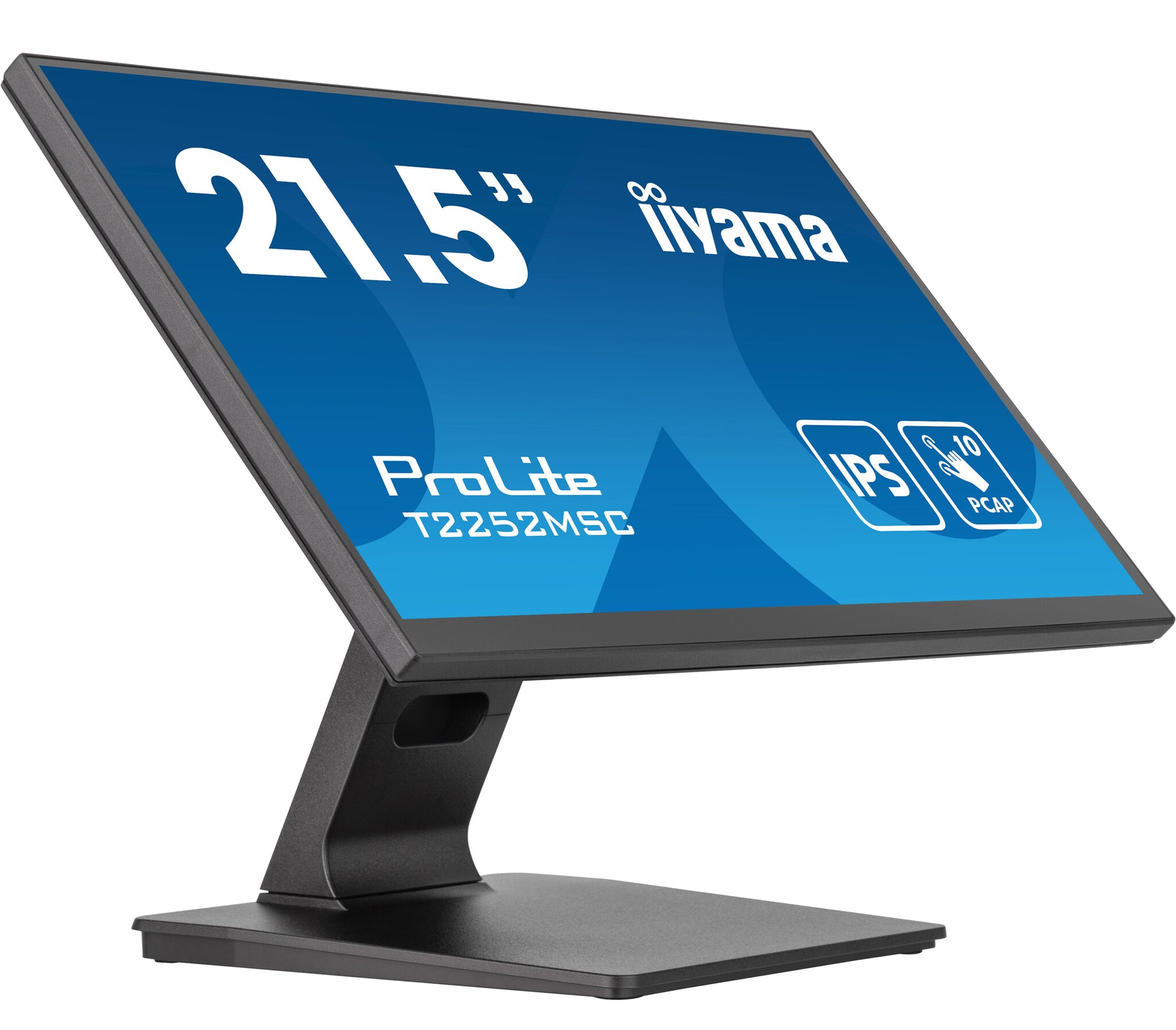

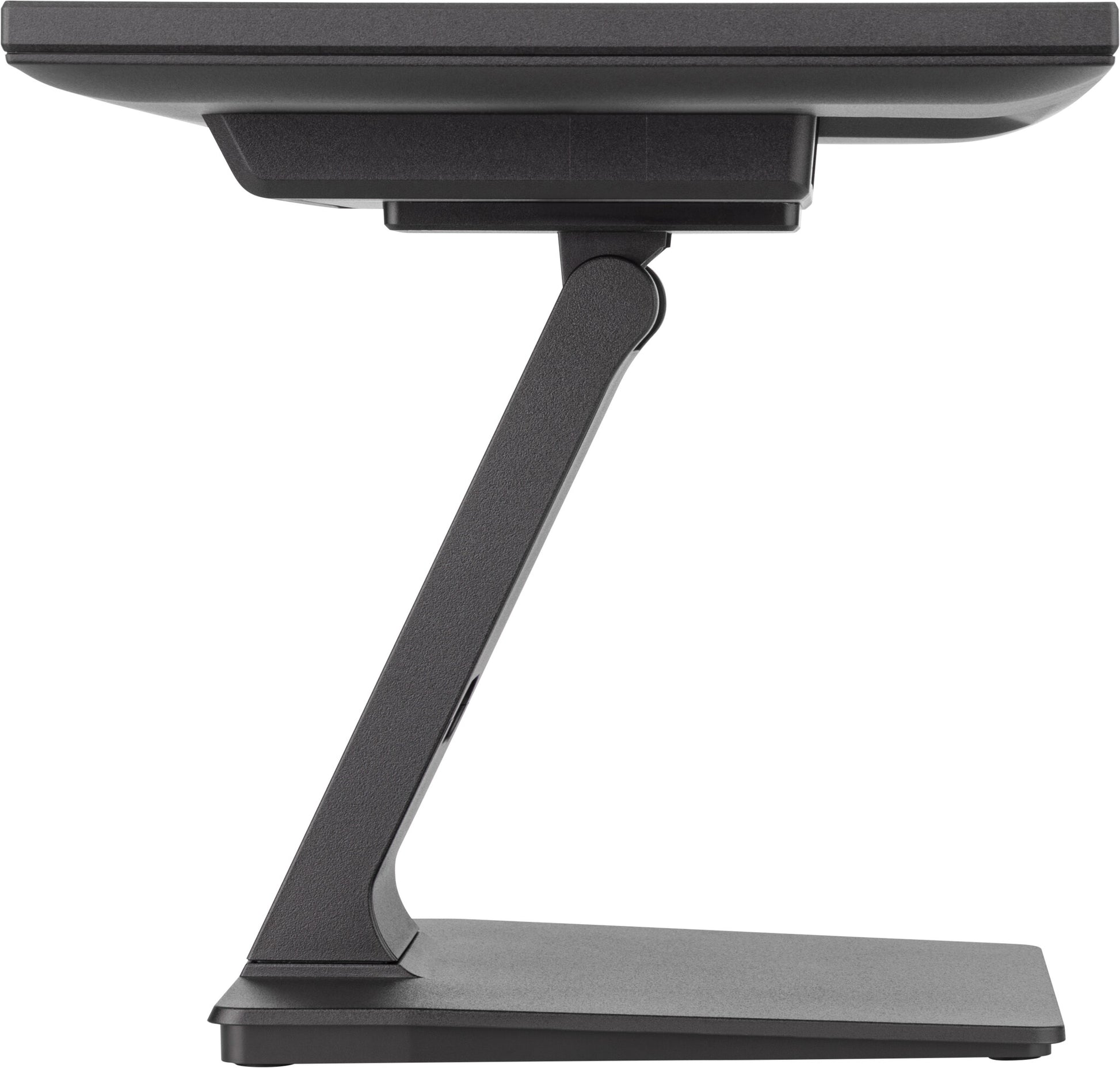

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2252MSC-B2 delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The ProLite T2252MSC-B2 is the ideal solution for interactive signage, instore retail, POS and interactive presentations.

Display
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
Panel type
IPS
Touchscreen technology
Projected capacitive system
Display brightness (peak)
250 cd/m²
Display brightness (typical)
250 cd/m²
Response time
5 ms
Response time measurement type
GTG (Gray to Gray)
Display brightness
225 cd/m²
Screen shape
Flat
Contrast ratio (typical)
1000:1
Display number of colours
16.7 million colours
Horizontal scan range
30 - 83 kHz
Viewable size, horizontal
47.9 cm
Viewable size, vertical
26 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Low Blue Light technology
Yes
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection
Yes
Multimedia
Built-in speaker(s)
Yes
Number of speakers
2
RMS rated power
2 W
Design
Product colour
Black
Front bezel colour
Black

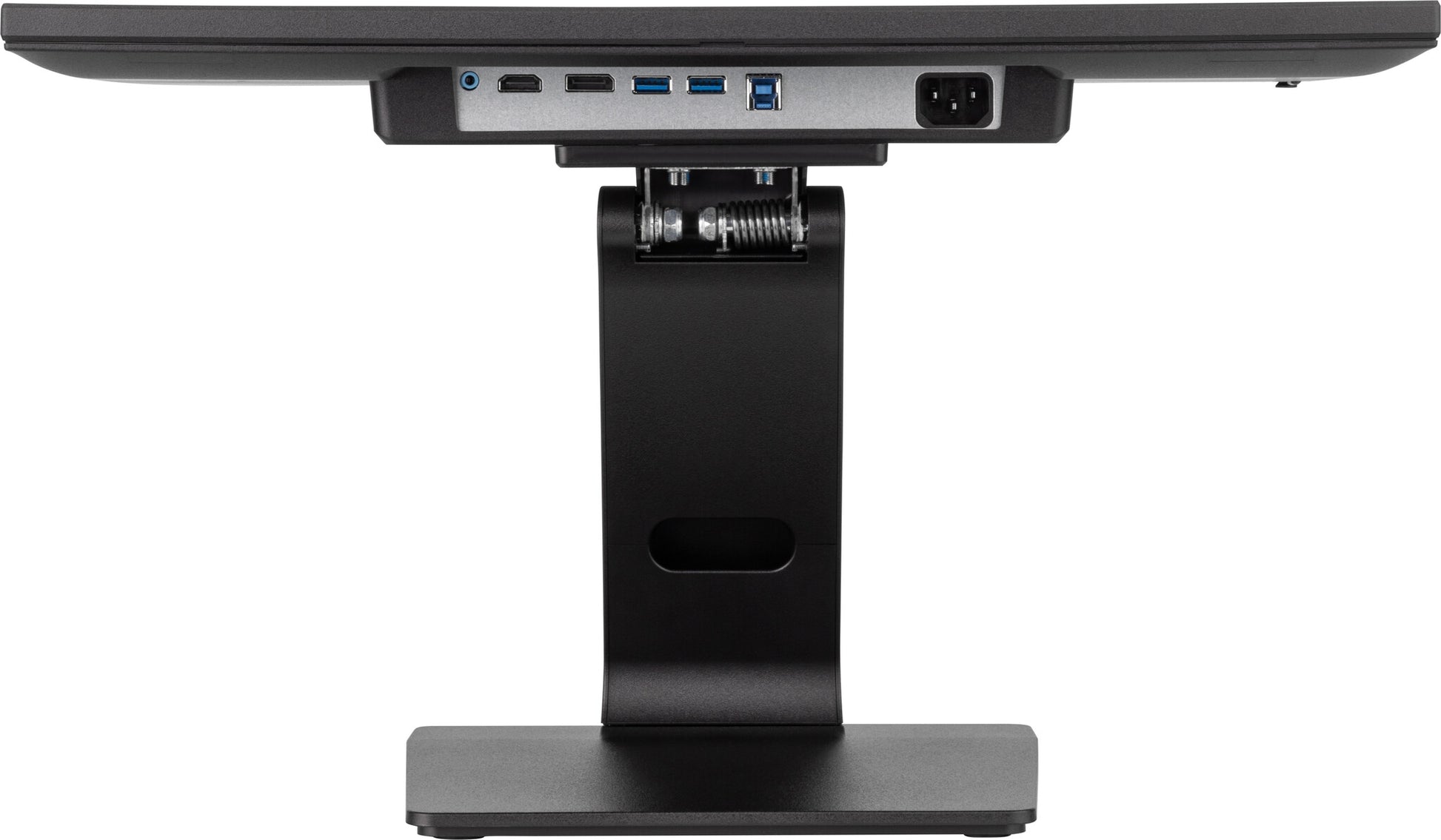

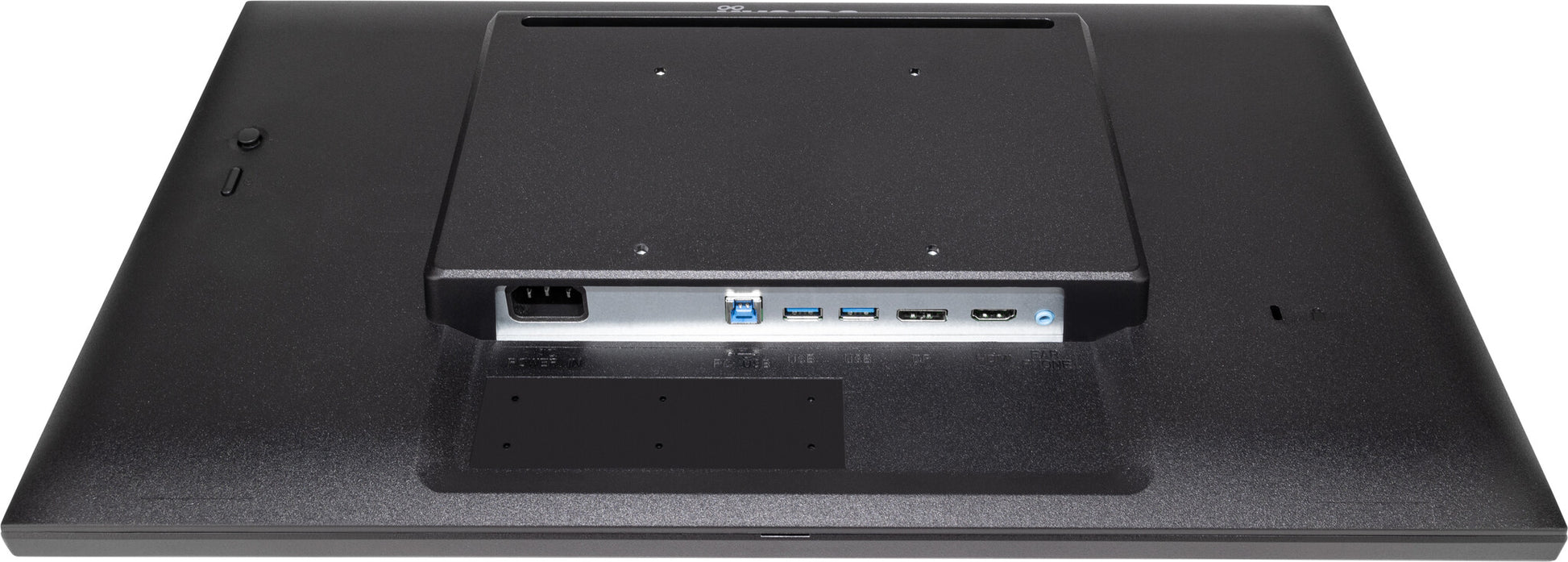

Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports
2
Number of downstream ports
2
Ergonomics

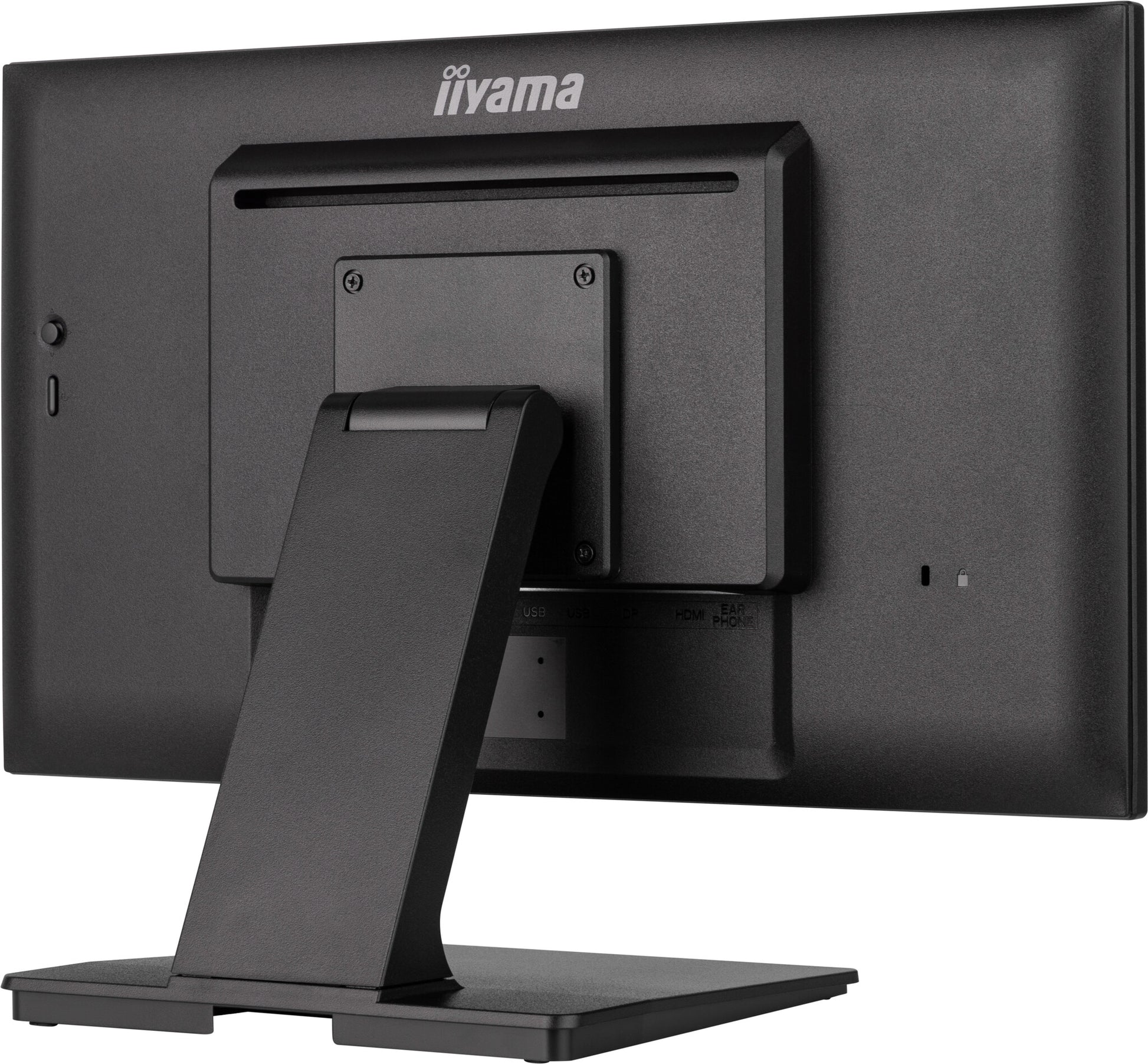

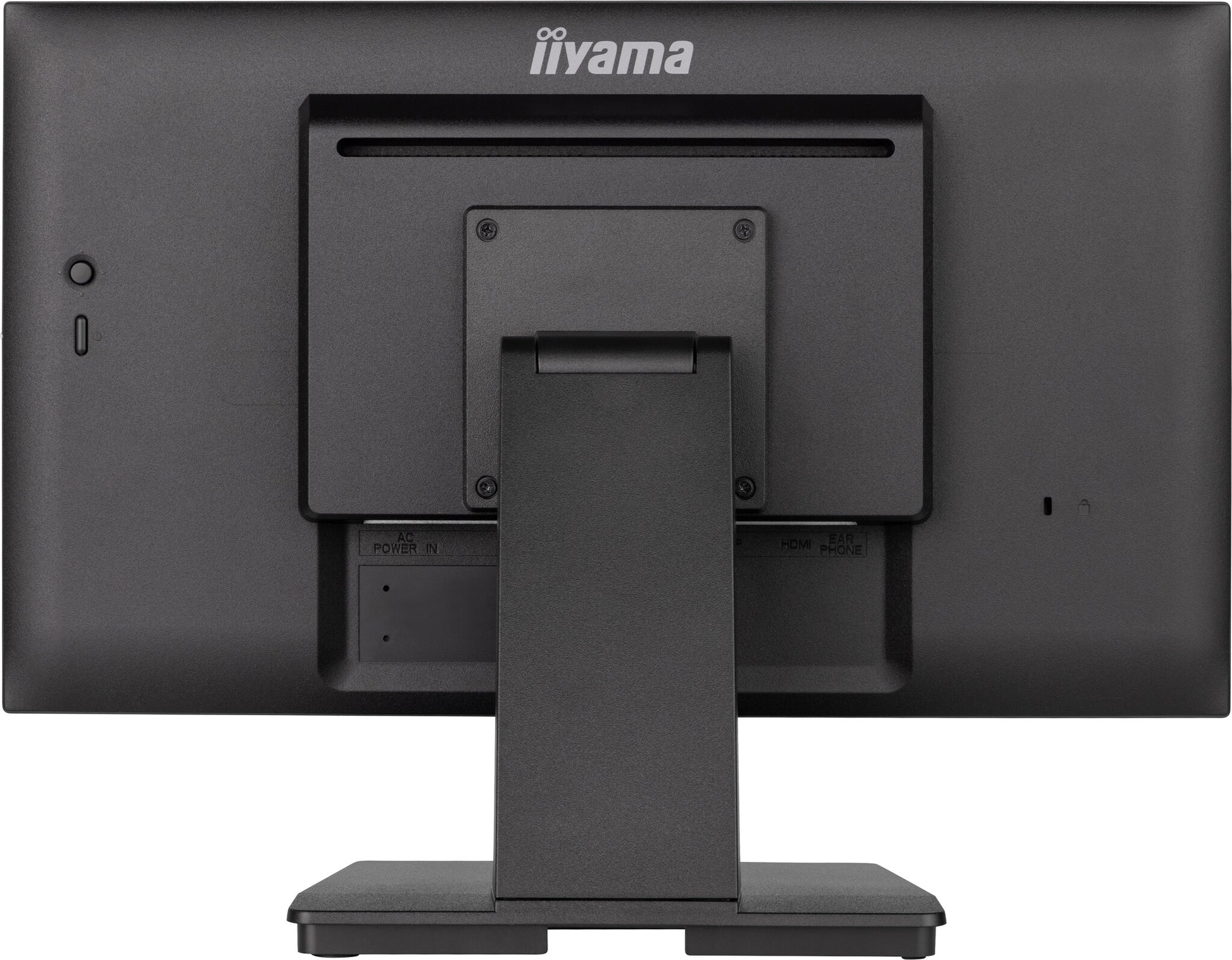

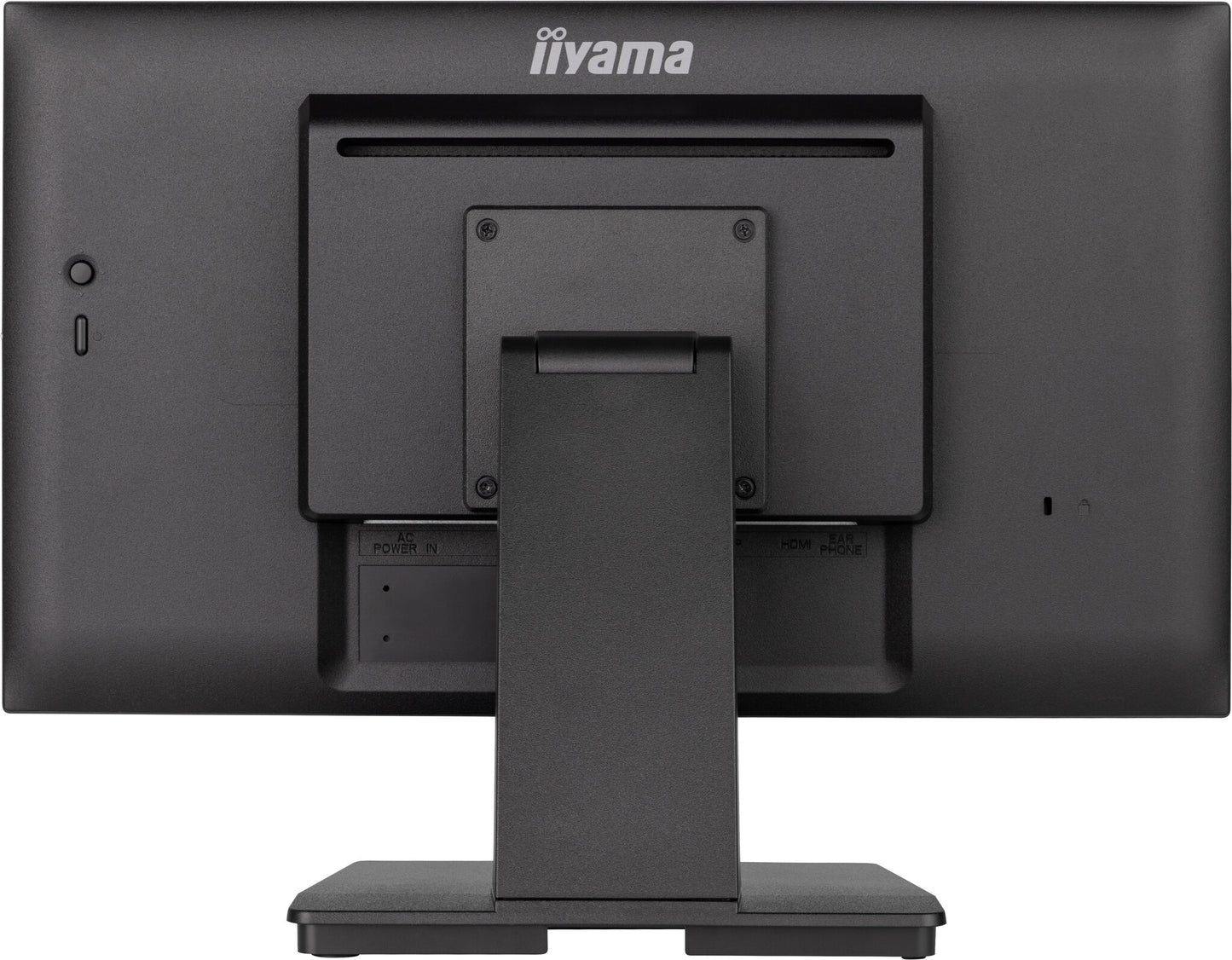

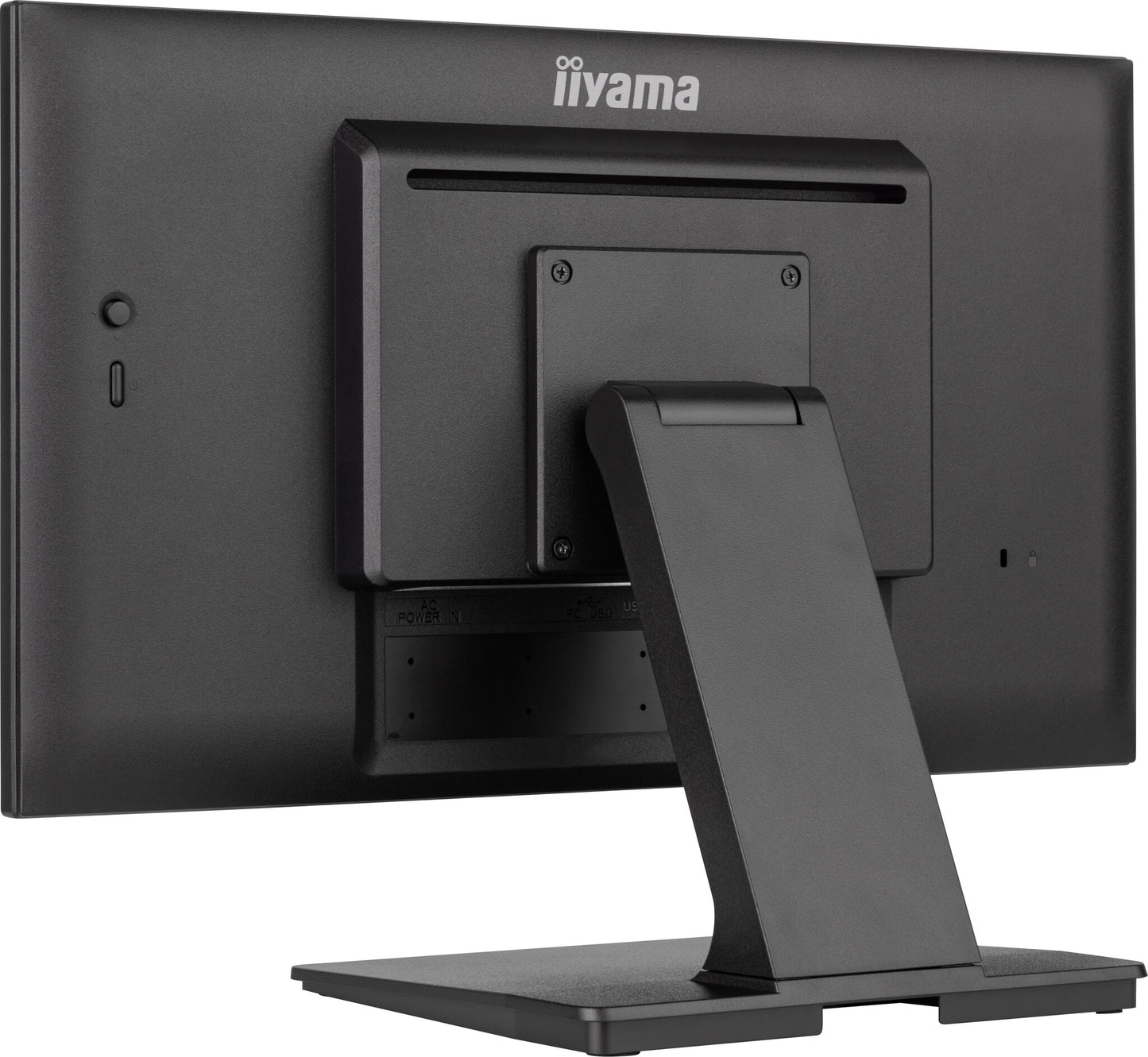

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable lock slot
Yes
Cable lock slot type
Kensington
Height adjustment
No

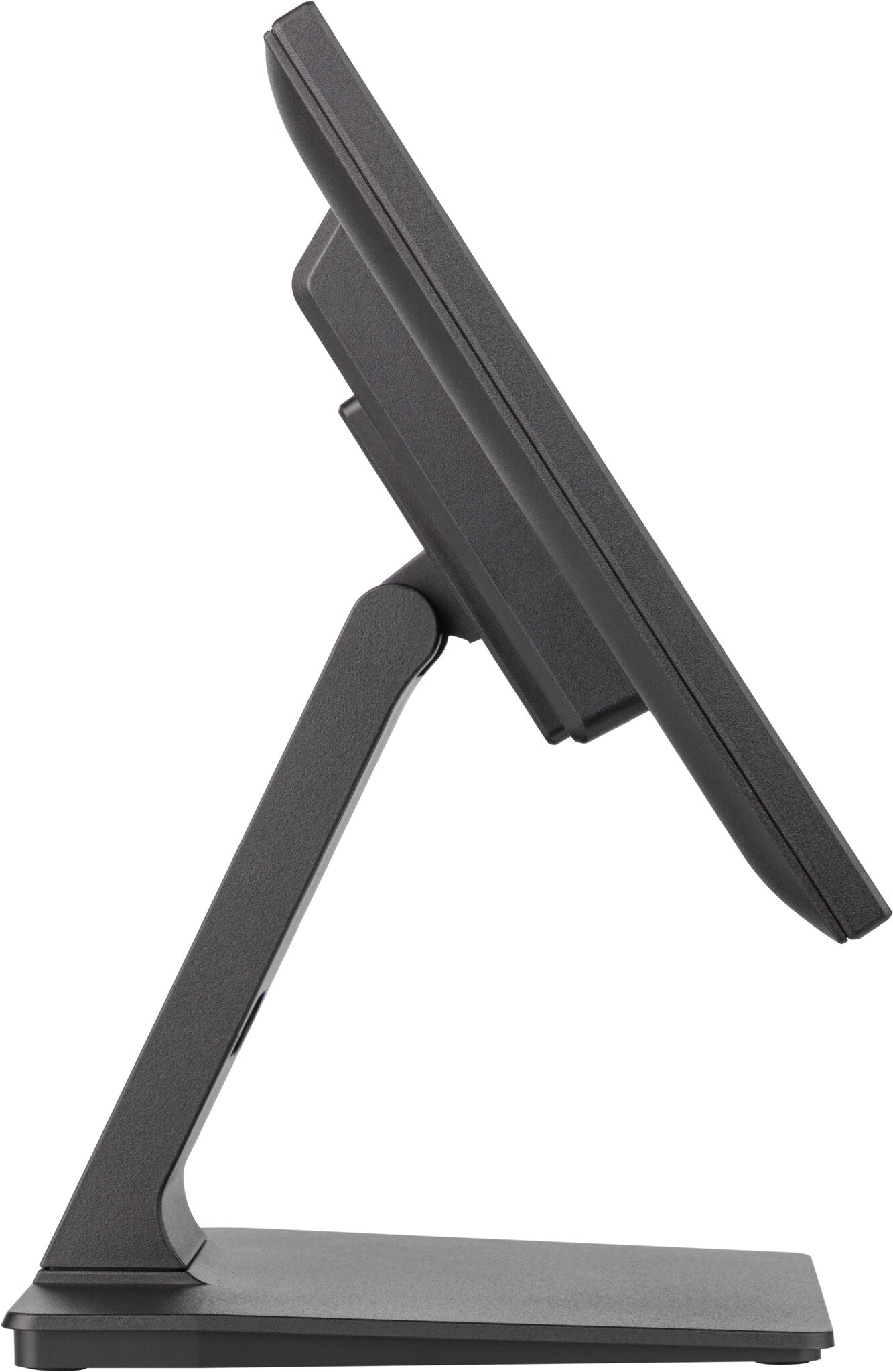

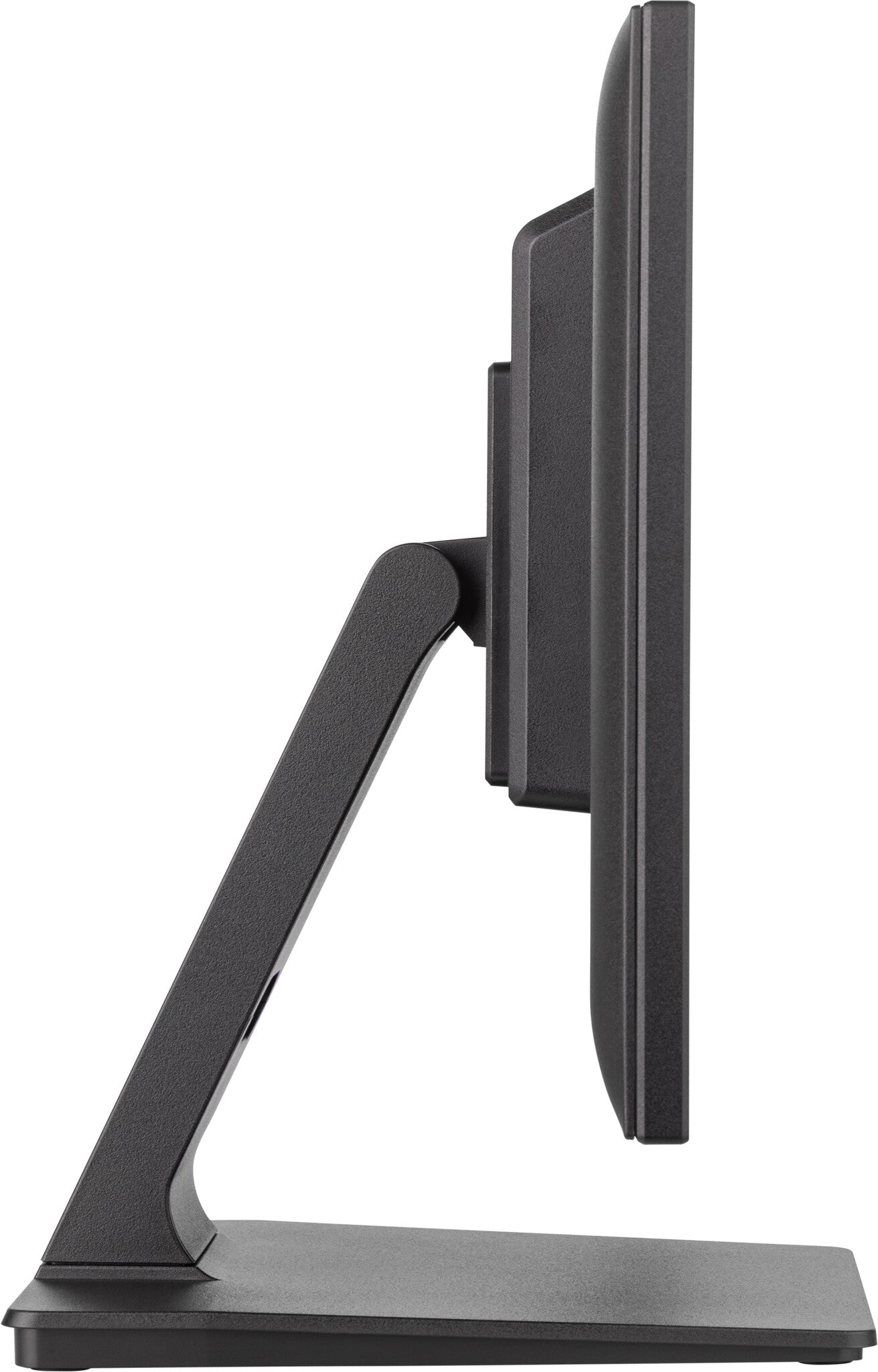

Tilt angle range
-5 - 90°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, Czech, German, English, French, Italian, Japanese, Dutch, Polish, Russian
Tilt adjustment
Yes
Power
Energy efficiency class (SDR)
C
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
10.2 kWh
Power consumption (typical)
11 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
493.5 mm
Depth (with stand)
239.5 mm
Height (with stand)
361.5 mm
Weight (with stand)
4.5 kg
Packaging data

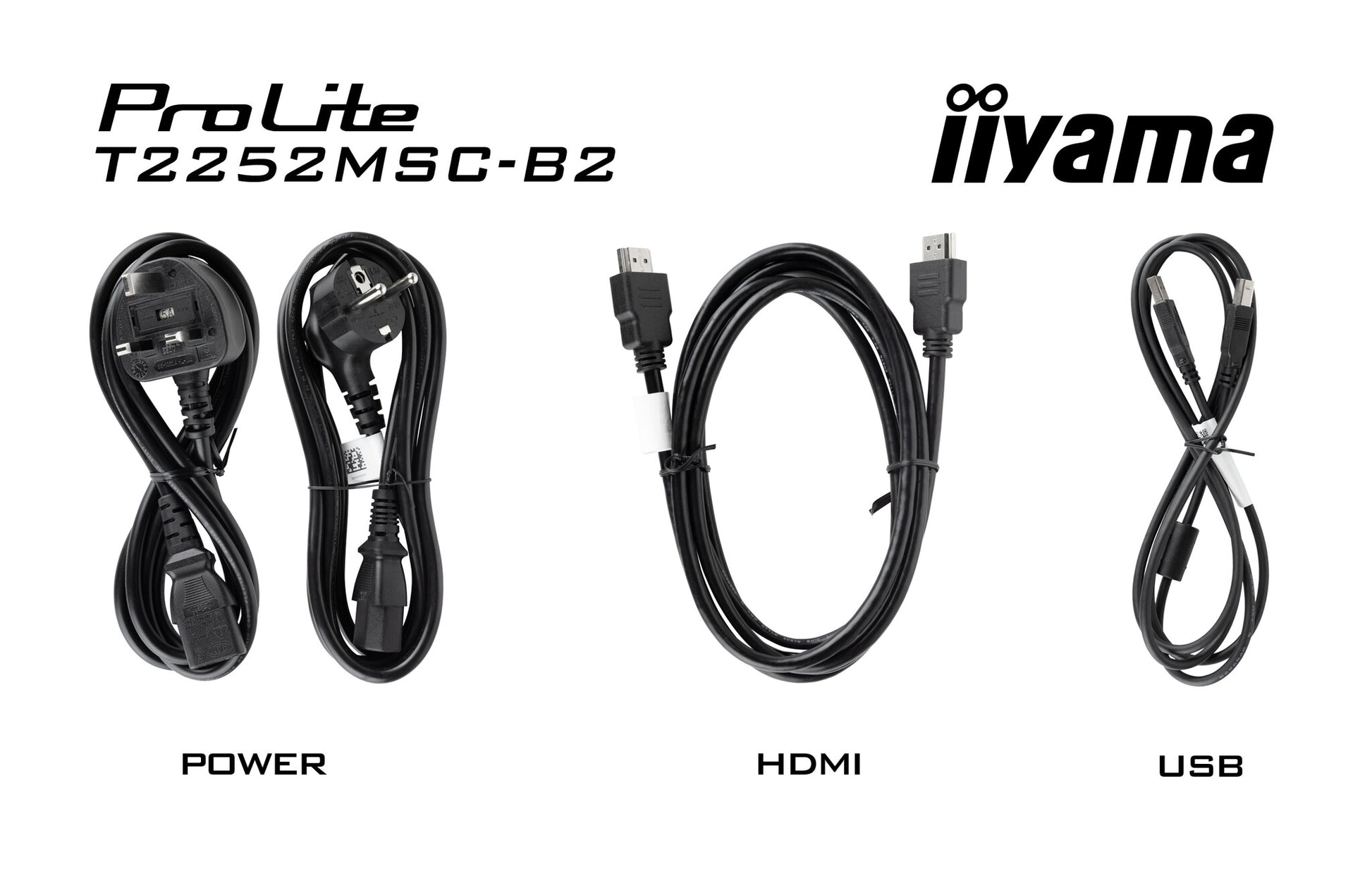

Cables included
AC, USB, HDMI
Quick start guide
Yes
Package width
560 mm
Package depth
150 mm
Package height
350 mm
Package weight
6 kg
Technical details
Compliance certificates
CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Brightness
225 cd/m²
Depth
239.5 mm
Width
493.5 mm
Height
361.5 mm
Weight
4.5 kg
Active display area (W x H)
478.6 x 260 mm
USB ports quantity
2
Control panel
Joystick: right/menu/enter, left/input/exit, up/eco, down, power
Touch method
stylus, finger, glove
User controls
picture adjust (brightness, contrast, i-Style, adv. contrast, ECO, OD, X-Res), color settings (gamma, rgb range, color temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (horizontal position, vertical pos., time, background), extra (reset, dcc/ci, signal select, volume, mute, opening logo, led, touch switch)
Touchscreen
Touchscreen
Yes
HD type
Full HD
Native aspect ratio
16:9
Display technology
LCD
Built-in camera
No
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
USB Touch port
Yes
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
89°
Viewing angle, vertical
89°
Pixel pitch
0.249 x 0.249 mm
Display diagonal (metric)
54.5 cm
HDCP
Yes
Surface hardness
7H
