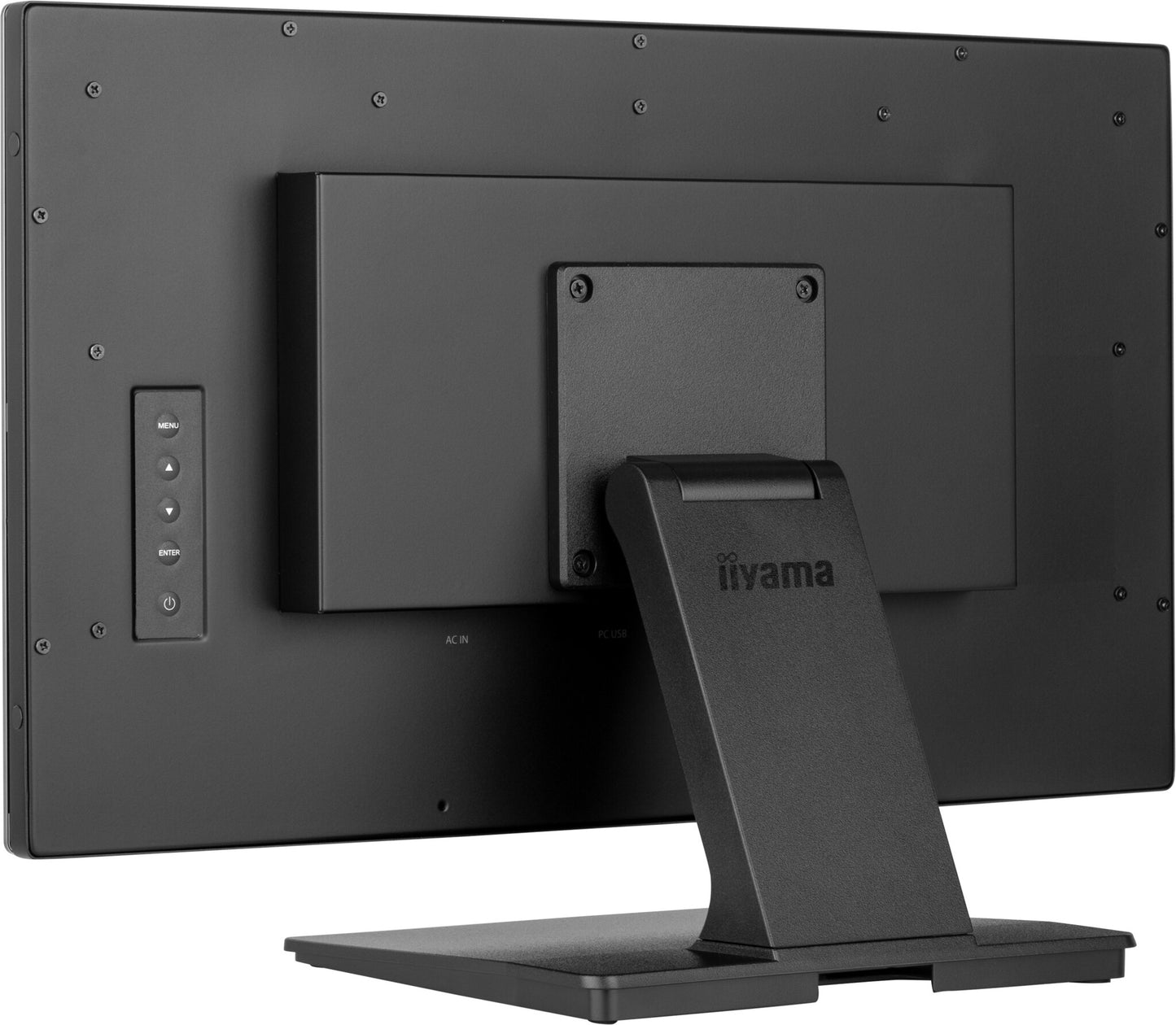

T2238MSC-B1

21.5” 10pt Optical Bonded PCAP touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing

  • 54.6 cm (21.5") Black
  • Built-in speaker(s)
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Response time: 5 ms Response time measurement type: GTG (Gray to Gray)
  • 1920 x 1080 pixels Full HD Panel type: IPS
  • Energy efficiency class (SDR): D ErP REACH, RoHS, WEEE
  • SKU:4948570122899
  • GTIN:4948570122899
  • MPN:T2238MSC-B1

You need to login to view the price.

View full details

iiyama ProLite 21.5” 10pt Optical Bonded PCAP touchscreen monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Display surface: Matt, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black

The Full HD (1920x1080) monitor ProLite T2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.

Display
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
Panel type
IPS
Touchscreen technology
Projected capacitive system
Display brightness (peak)
600 cd/m²
Display brightness (typical)
600 cd/m²
Response time
5 ms
Response time measurement type
GTG (Gray to Gray)
Second display effective viewing area
479 x 260 mm
Display brightness
525 cd/m²
Display surface
Matt
Screen shape
Flat
Contrast ratio (typical)
1000:1
Display number of colours
16.7 million colours
Horizontal scan range
30 - 83 kHz
Viewable size, horizontal
47.9 cm
Viewable size, vertical
26 cm
Performance
Low Blue Light technology
Yes
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection
Yes
Multimedia
Built-in speaker(s)
Yes
Number of speakers
2
RMS rated power
4 W
Design
Market positioning
Office
Product colour
Black
Front bezel colour
Black
Protection features
Waterproof
Housing material
Metal
Glass thickness
3.6 mm
International Protection (IP) code
IP1X
Ports & interfaces
Built-in USB hub
Yes
Audio input
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Number of downstream ports
2
USB Type-A downstream ports quantity
2
AC (power) in
Yes
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian
Power
Energy efficiency class (SDR)
D
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
12.9 kWh
Power consumption (typical)
17 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Bezel width (side)
1.7 cm
Bezel width (top)
1.98 cm
Bezel width (bottom)
1.98 cm
Width (with stand)
512.5 mm
Depth (with stand)
239.5 mm
Height (with stand)
353.5 mm
Weight (with stand)
6.8 kg
Packaging data
Package type
Box
Cables included
AC, USB, HDMI
Quick start guide
Yes
Package width
625 mm
Package depth
150 mm
Package height
430 mm
Package weight
8.1 kg
Technical details
Native refresh rate
60 Hz
Compliance certificates
REACH, RoHS, WEEE
Other features
Brightness
525 cd/m²
Depth
239.5 mm
Width
512.5 mm
Height
353.5 mm
Weight
6.8 kg
Active display area (W x H)
479 x 260 mm
USB ports quantity
2
Control panel
Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
Touch method
stylus, finger, glove (latex) (latex)
User controls
Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Touchscreen
Touchscreen
Yes
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Built-in camera
No
Number of simultaneous touchpoints
10
USB Touch port
Yes
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.249 x 0.249 mm
Display diagonal (metric)
54.5 cm
HDCP
Yes
Surface hardness
7H
