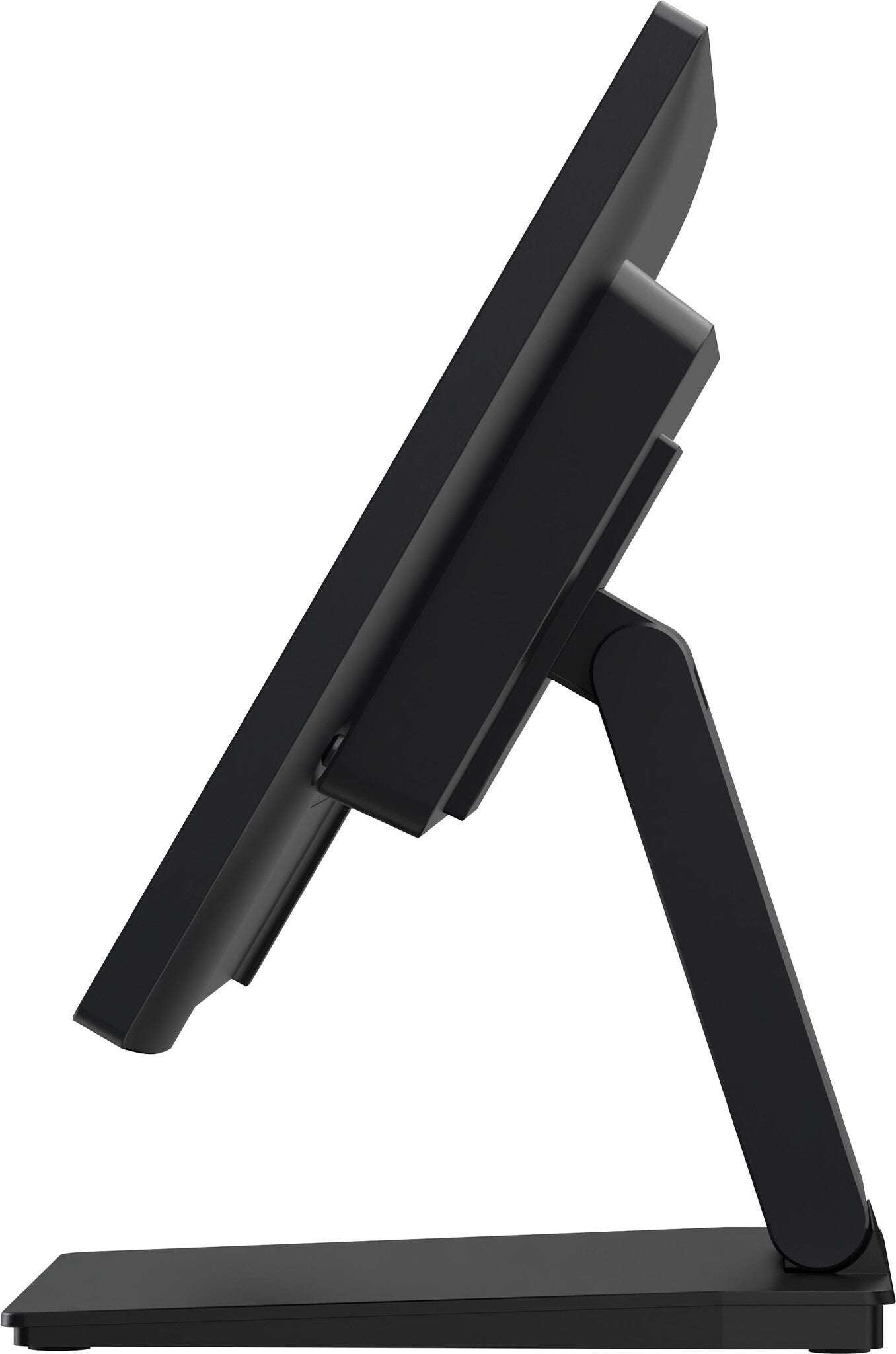

T2254MSC-B2AG

T2254MSC-B2AG

  • Touchscreen 54.6 cm (21.5") LED IPS
  • Full HD 1920 x 1080 pixels 16:9
  • 60 Hz 4 ms 300 cd/m² 1300:1
  • Flicker-free technology
  • D 13 kWh 15 W
  • SKU:4948570125715
  • GTIN/EAN:4948570125715
  • MPN:T2254MSC-B2AG
Add To Favorite

You need to login to view the price.

View full details

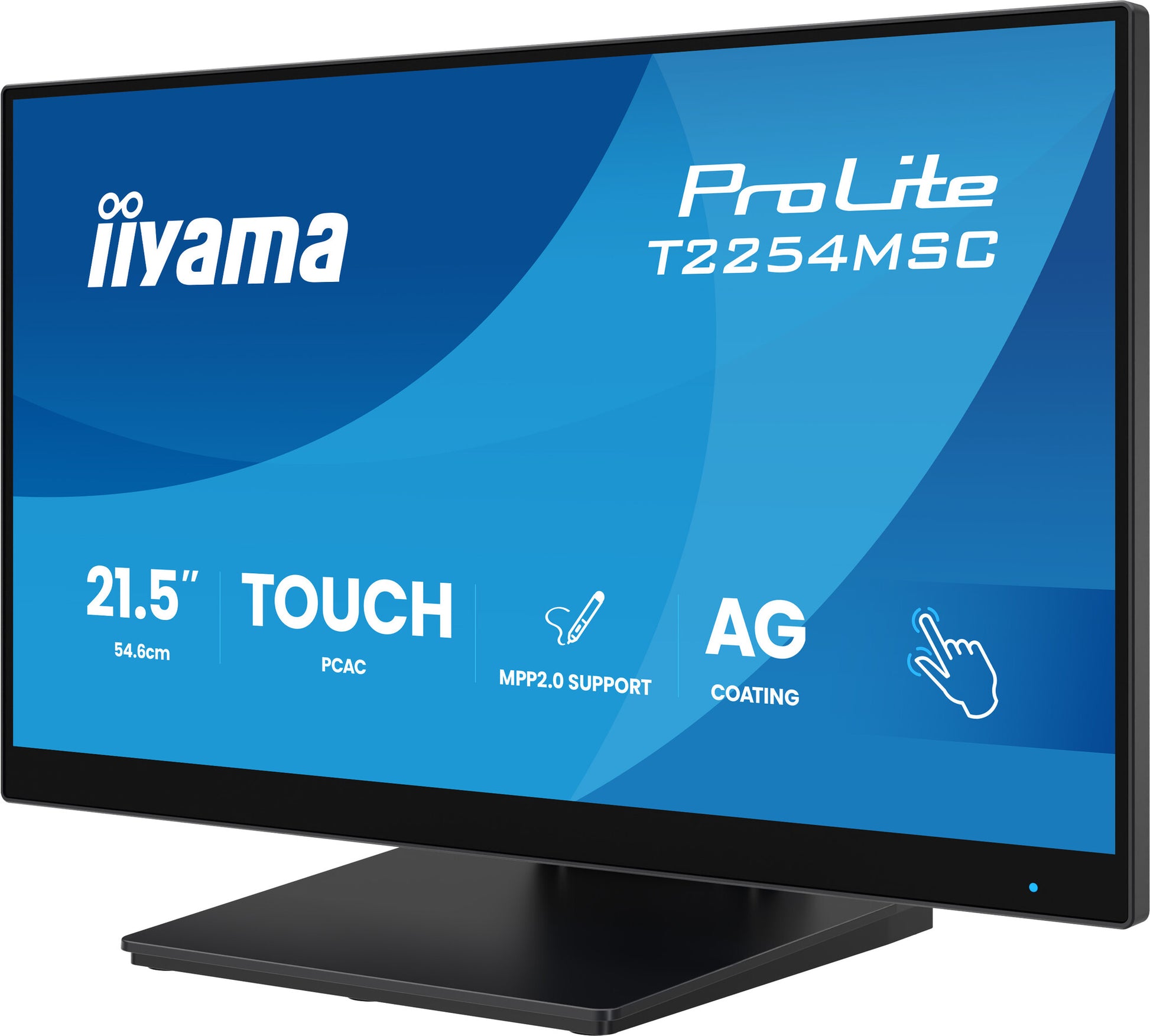

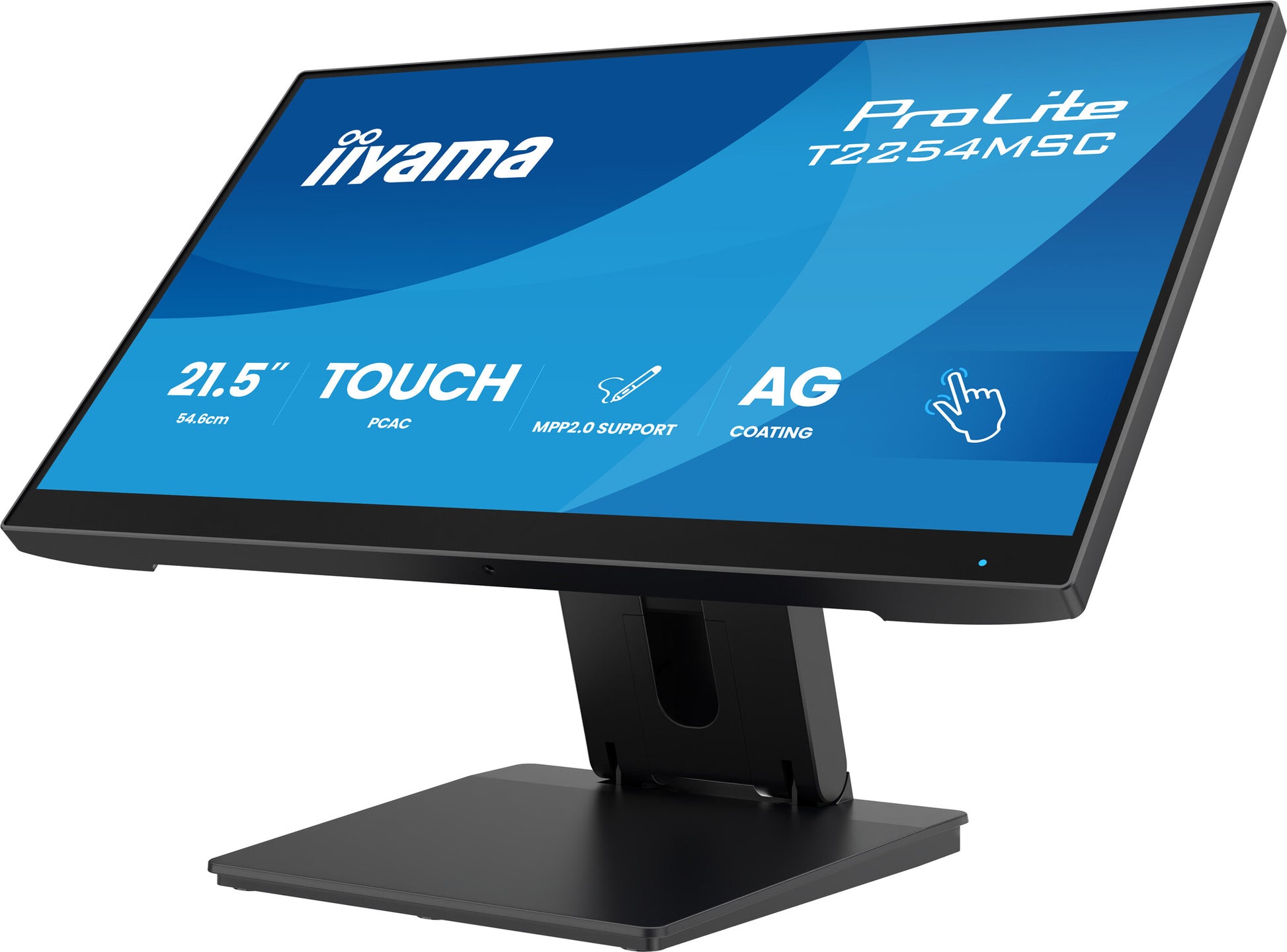

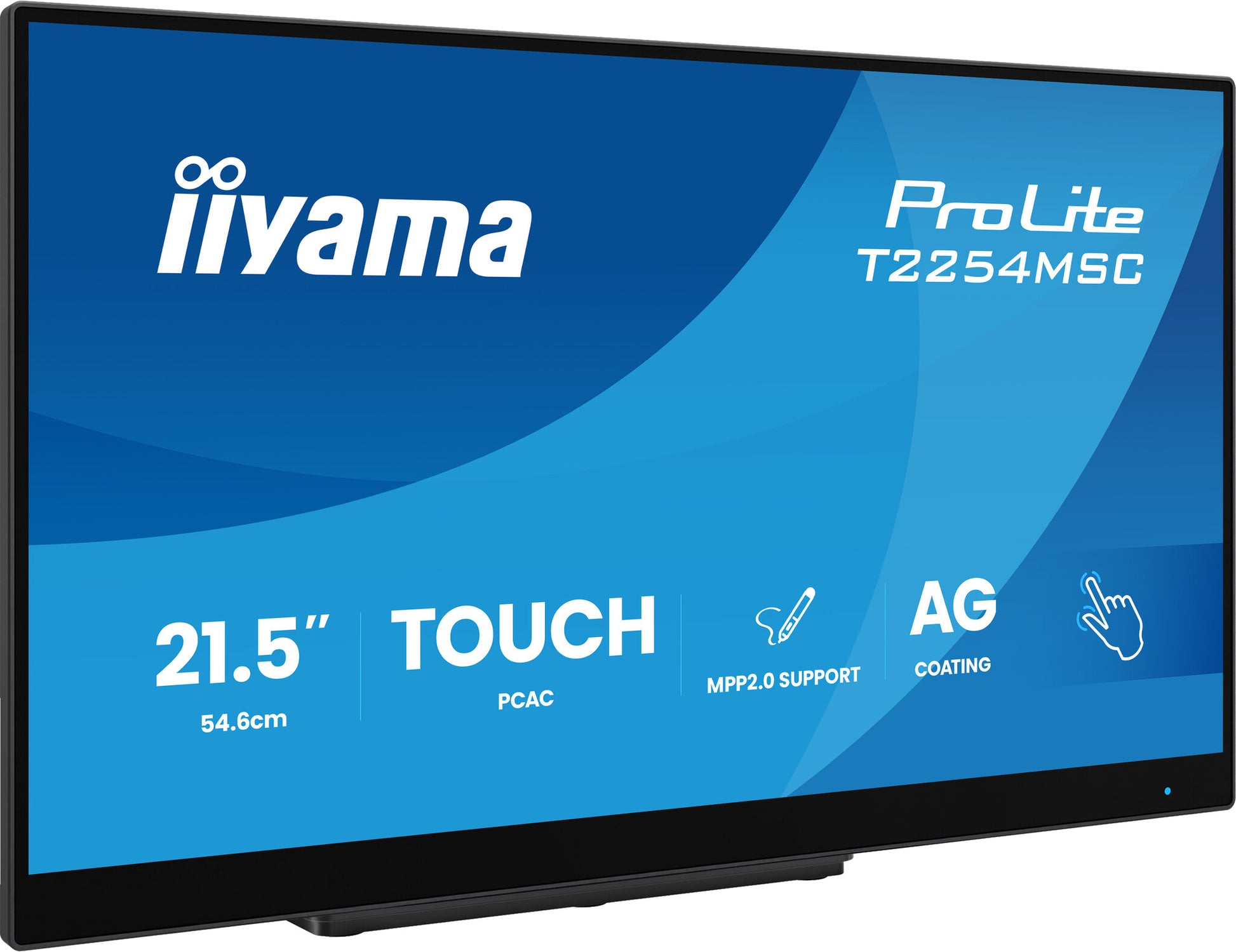

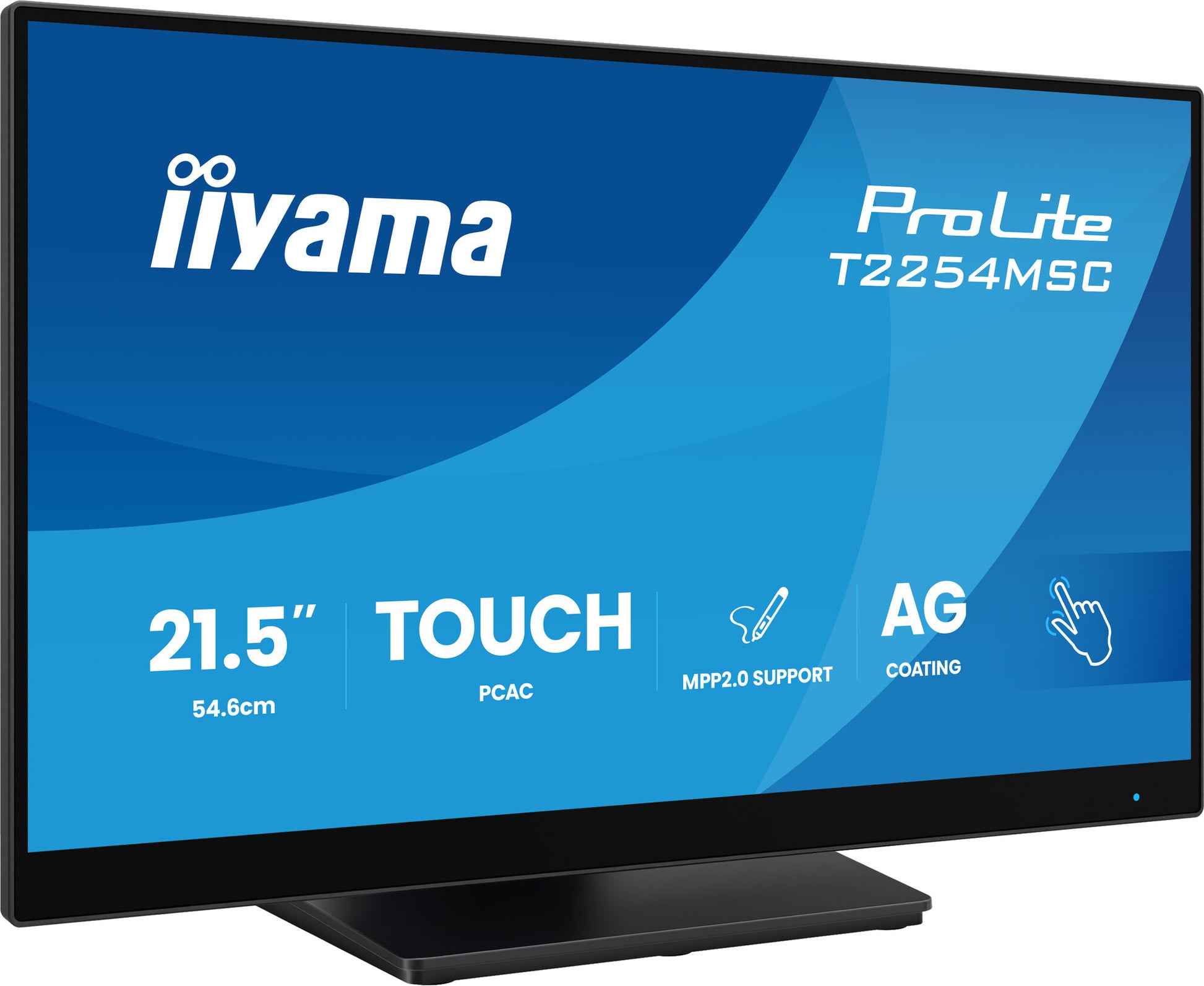

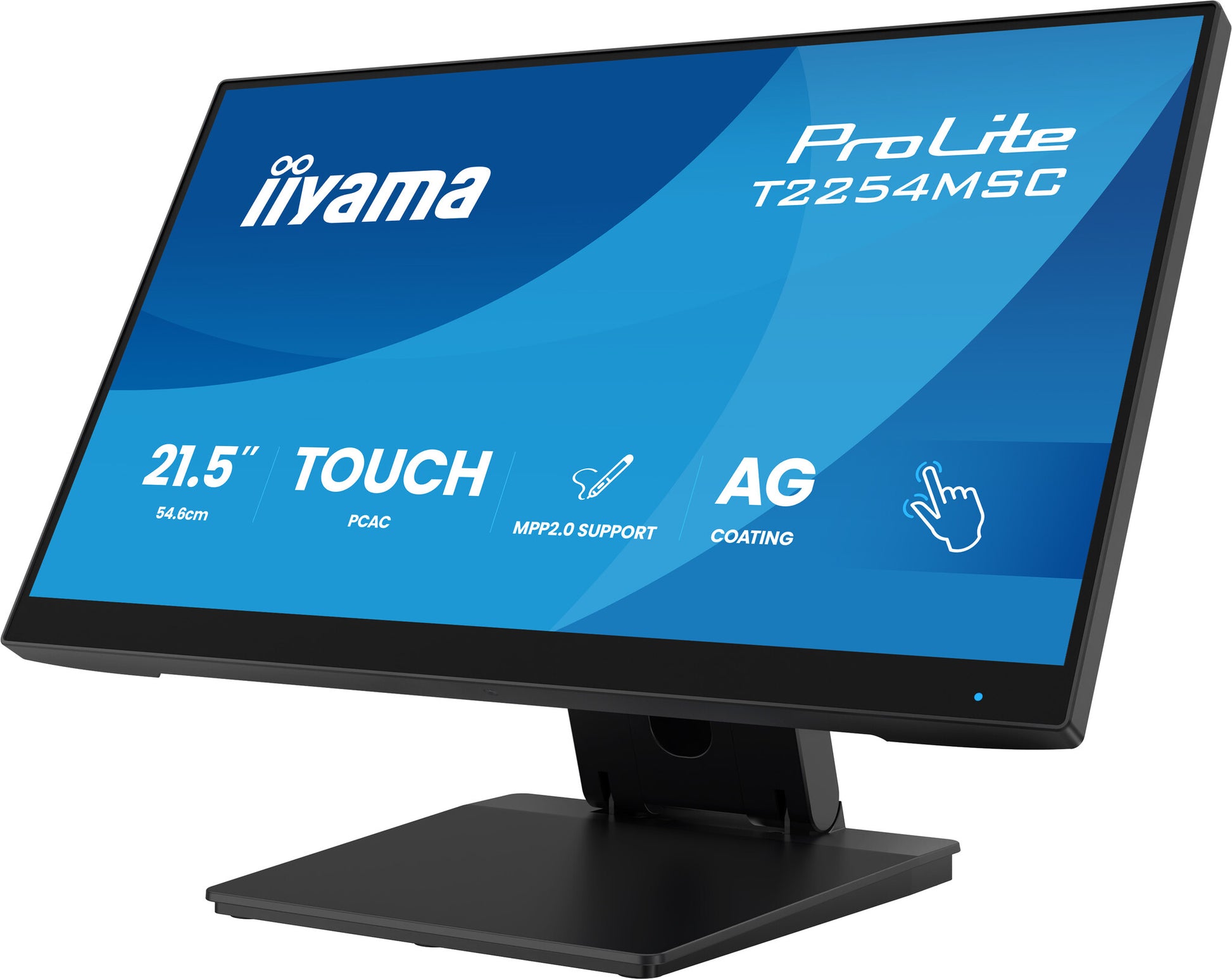

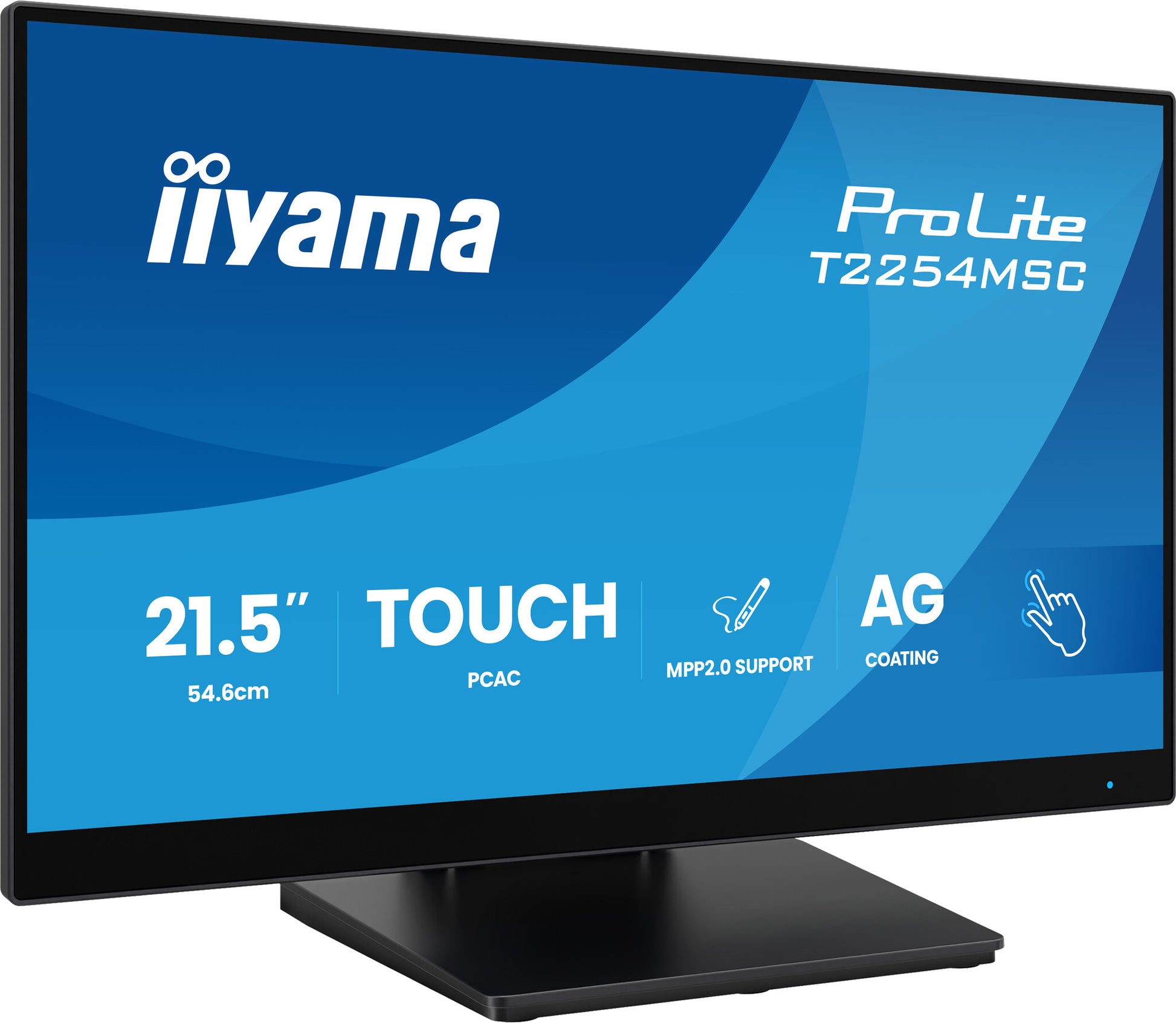

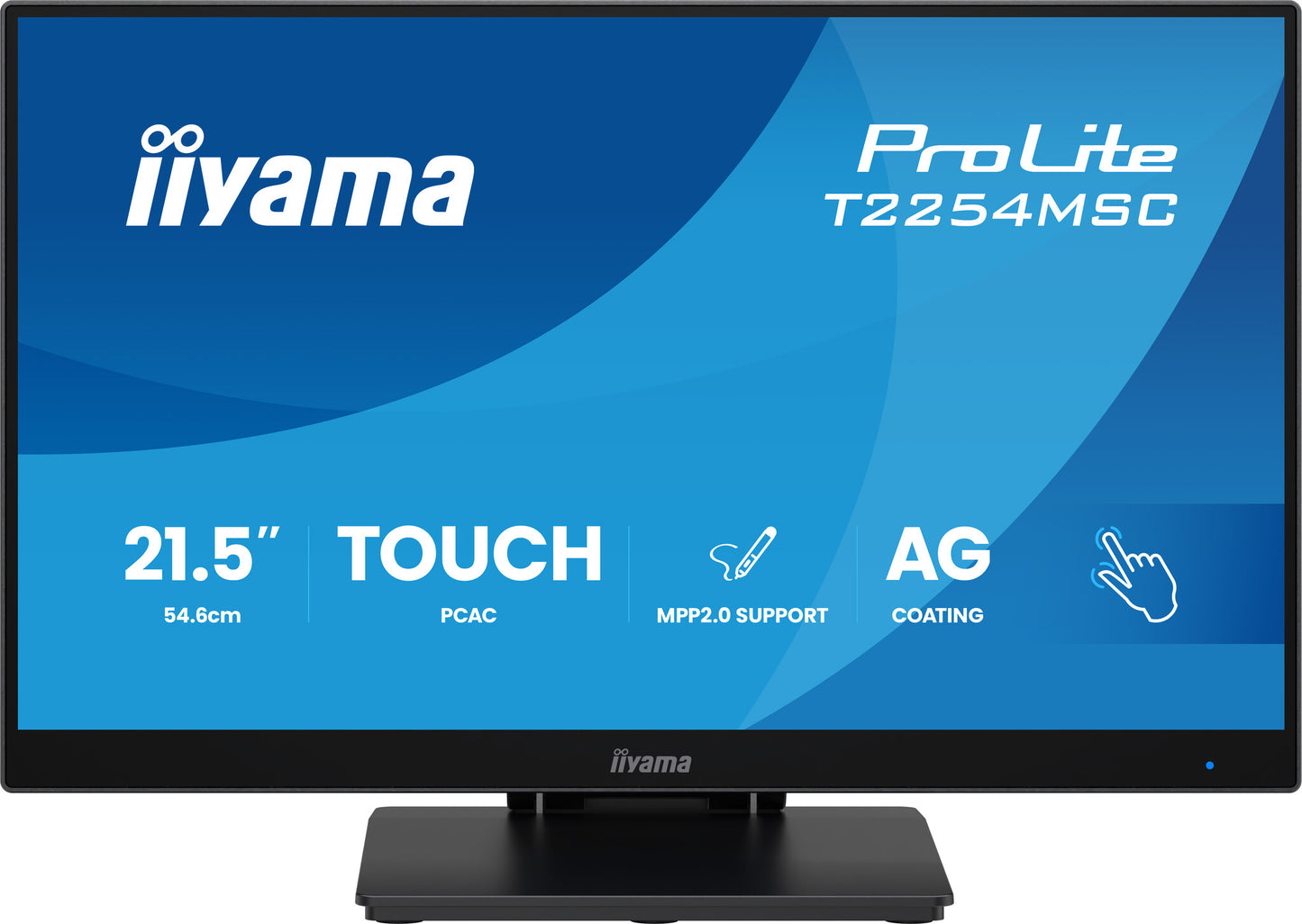

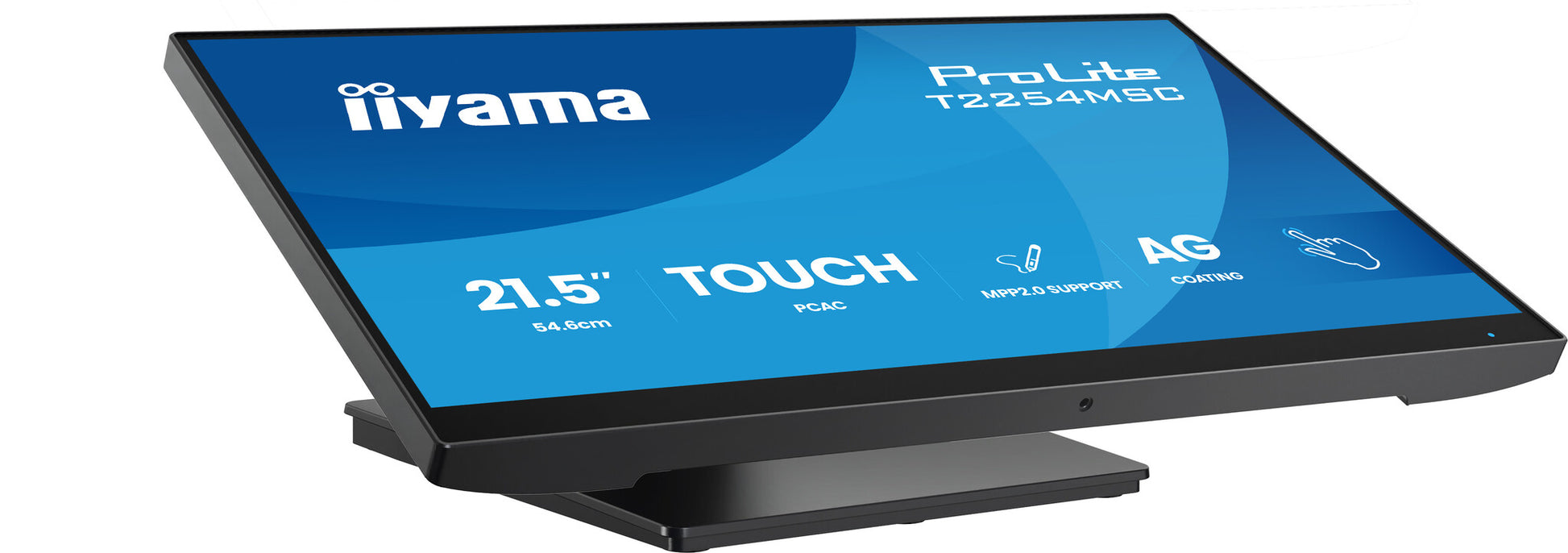

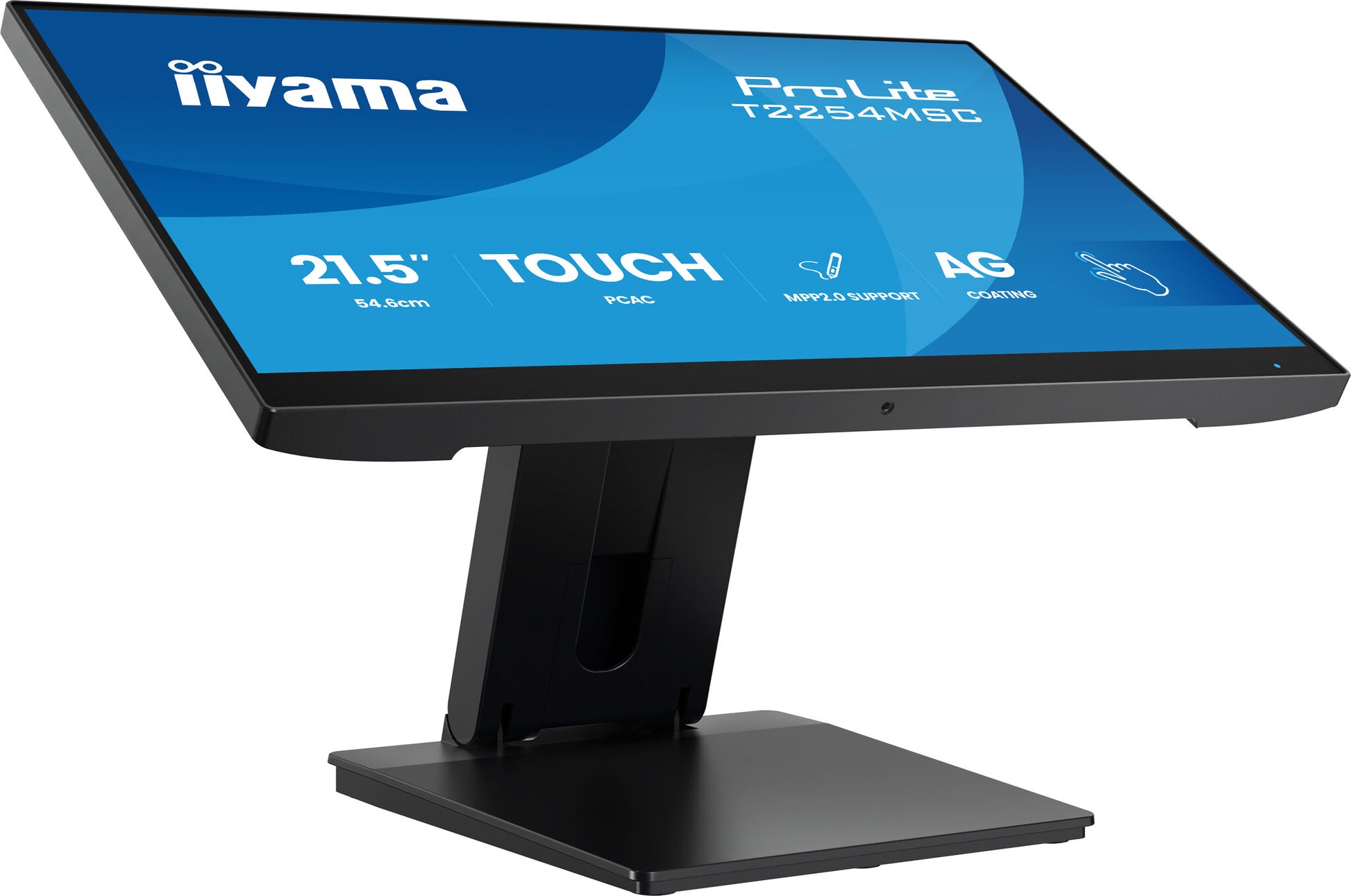

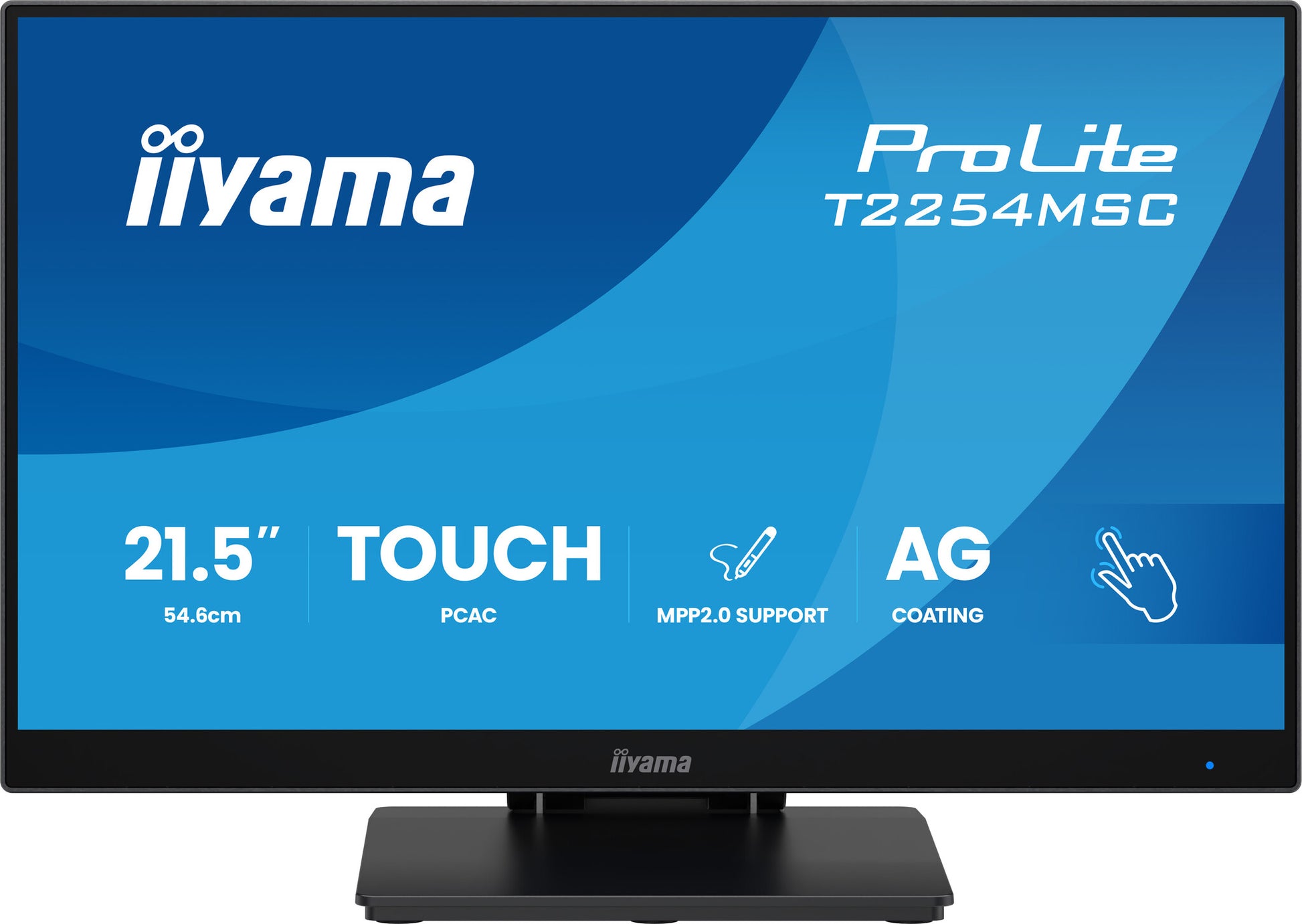

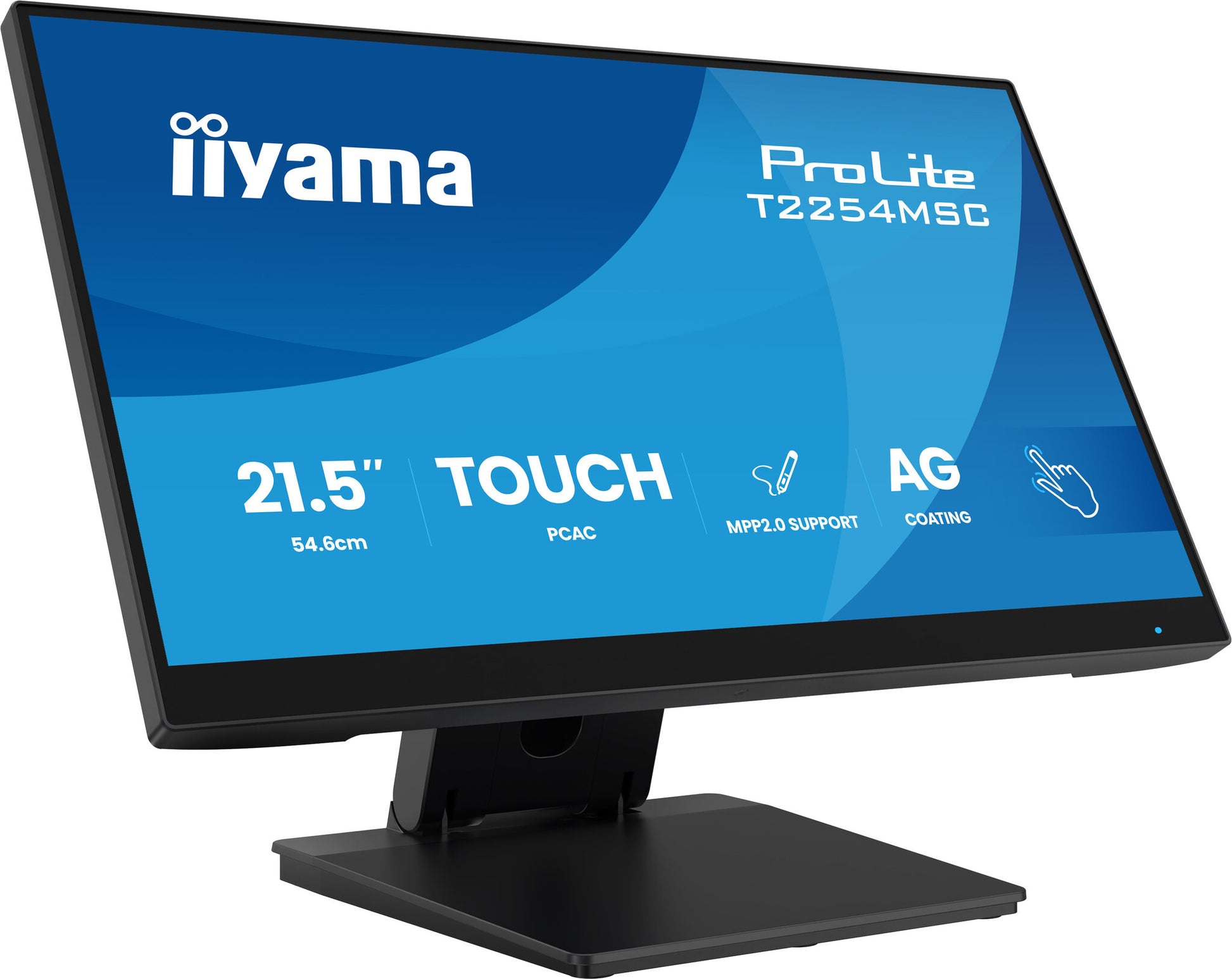

iiyama 21.5” Optical Bonded PCAP 10pt touchscreen monitor featuring IPS panel technology, Anti Glare coating, active stylus support (MPP 2.0) and edge-to-edge glass. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub. VESA mounting, Height adjustment. Product colour: Black

Immersive interaction and elegant design - Discover the ProLite T2254MSC-B2AG, a vibrant 21.5" Full HD touchscreen monitor designed for exceptional interactive experiences. Featuring intuitive 10-point touch technology (Optical Bonded PCAP), which ensures smooth and precise touch response and low light reflection. In addition, the display is protected from moisture and potential condensation development. With built-in MPP2.0 support (Microsoft Pen Protocol), a stylus with tilt and pressure sensitivity can be used, providing a natural, precise and intuitive writing or drawing experience, just like a pen on paper. The vibrant colors of the IPS panel will captivate users with precise and natural interaction from any angle. Its sleek and stylish design, edge-to-edge glass and anti-glare surface offer durability and ease of cleaning, perfect for busy commercial environments, hospitality spaces, healthcare facilities and public areas. With adjustable ergonomics, neat cable management, built-in audio and seamless connectivity (HDMI, DisplayPort, USB 3.2 hub), it is an ideal choice for POS, self-service solutions and interactive signage.

Display
Viewable size, vertical
26.8 cm
Viewable size, horizontal
47.6 cm
Horizontal scan range
30 - 120 kHz
Display number of colours
16.7 million colours
Maximum refresh rate
60 Hz
Contrast ratio (typical)
1300:1
Screen shape
Flat
Response time
4 ms
Display brightness (typical)
300 cd/m²
Touchscreen technology
Capacitive
Panel type
IPS
Display resolution
1920 x 1080 pixels
Display diagonal
54.6 cm (21.5")
Performance
Low Blue Light technology
Yes
Flicker-free technology
Yes
Multimedia
RMS rated power
4 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, ENERGY STAR®, UKCA
Product colour
Black
Market positioning
Business
Ports & interfaces
Number of upstream ports
2
Headphone out
Yes
Built-in USB hub
Yes
Ergonomics
Plug and Play
Yes
On Screen Display (OSD) languages
Multi
Number of OSD languages
10
On Screen Display (OSD)
Yes

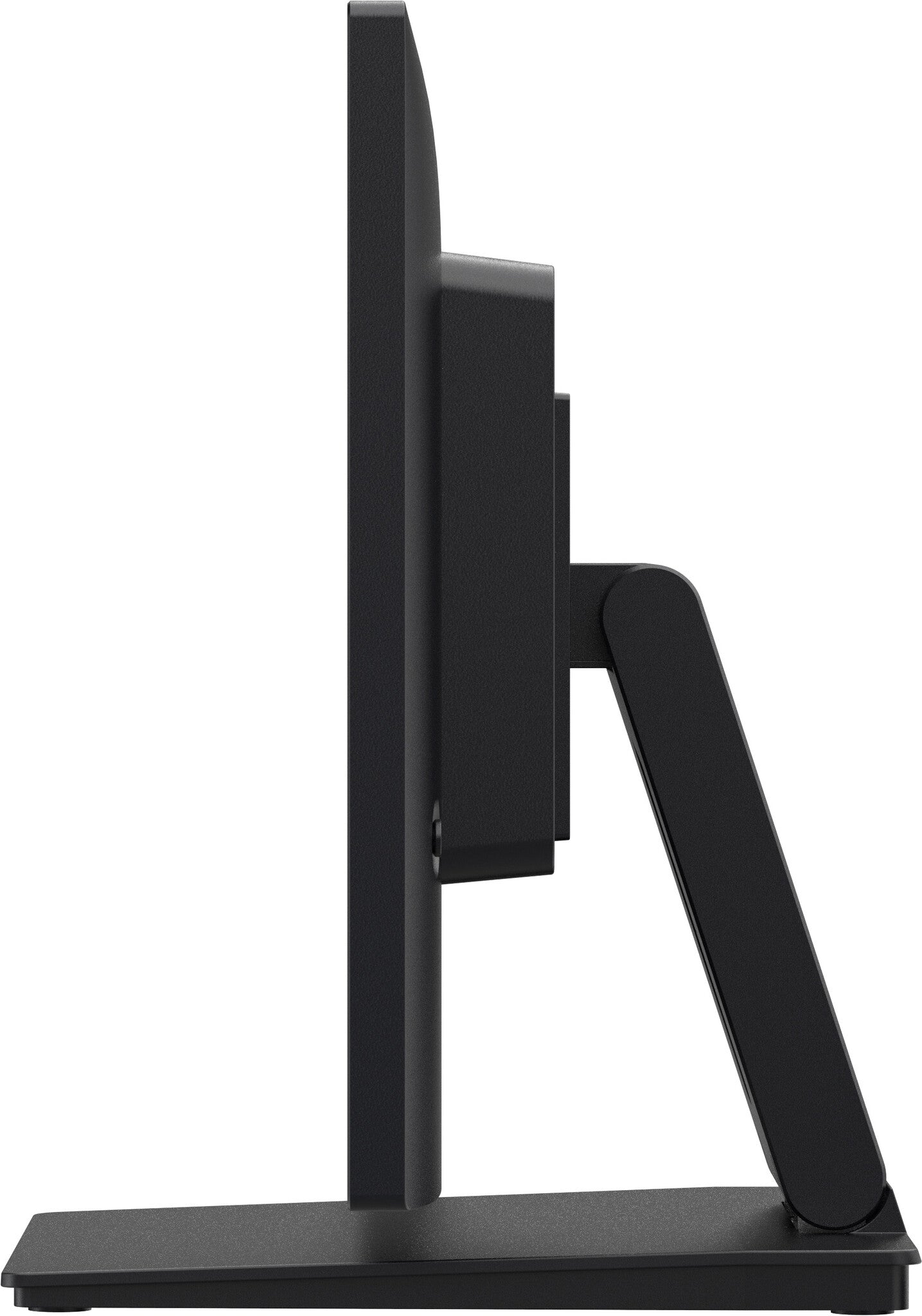

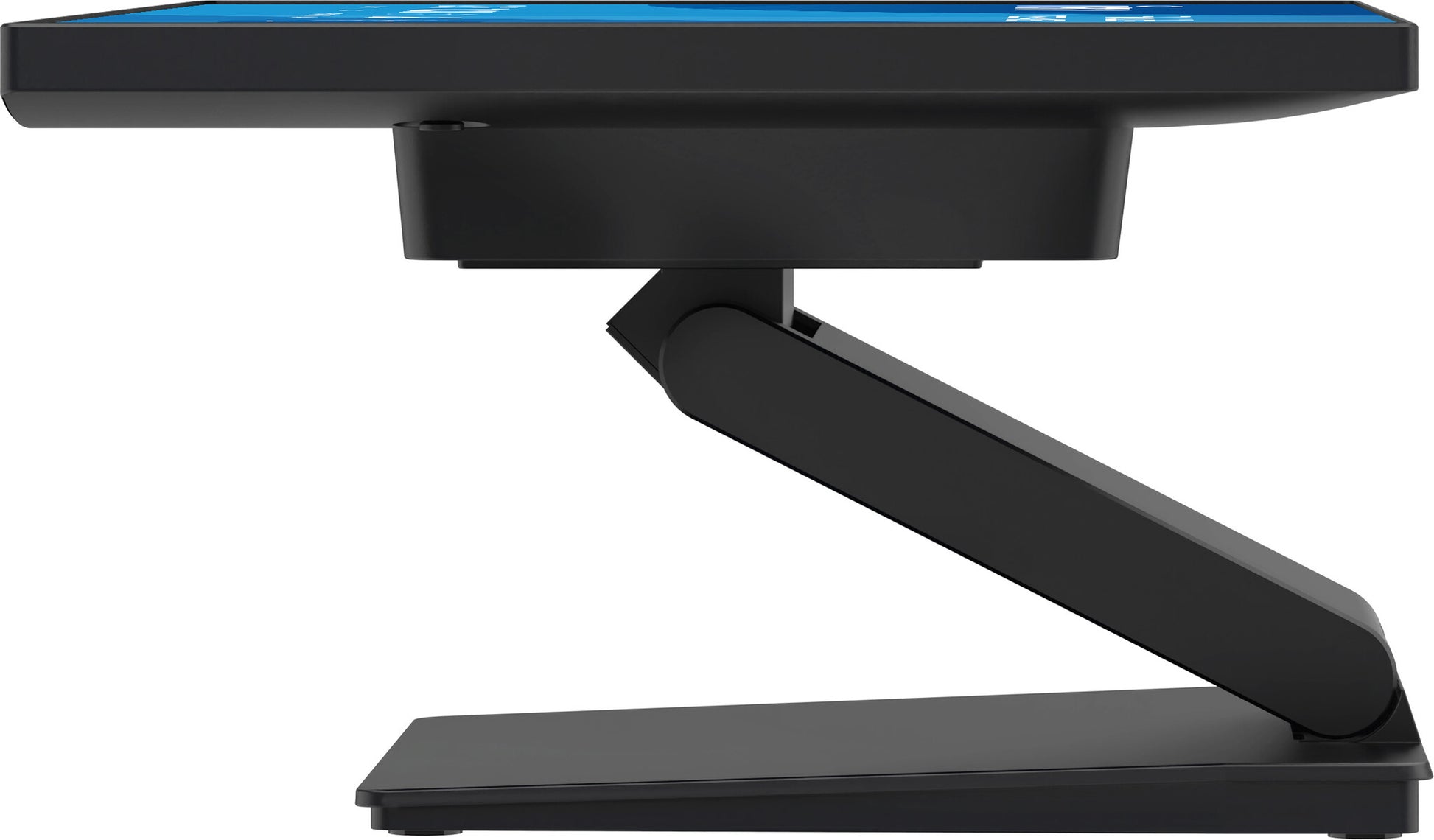

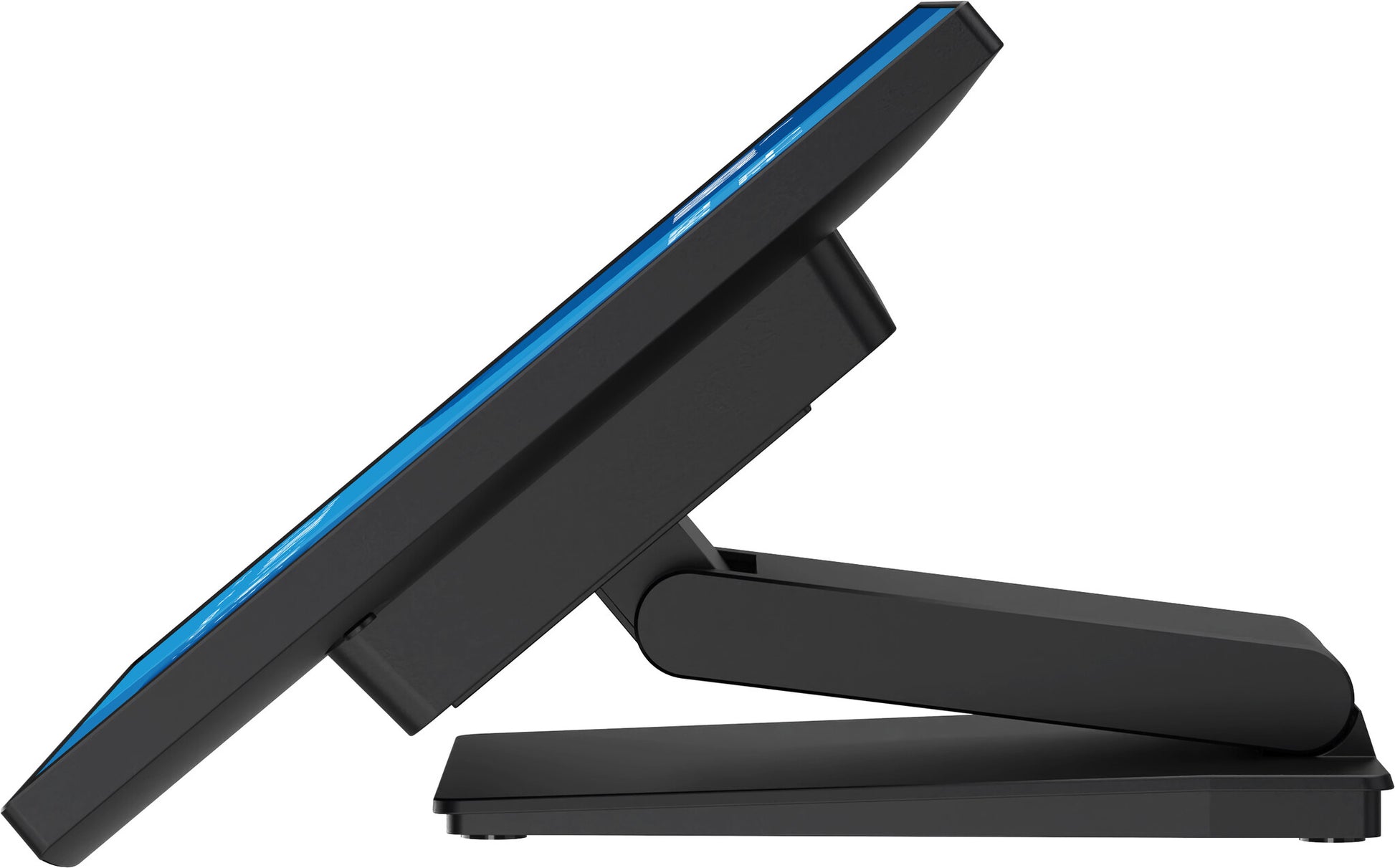

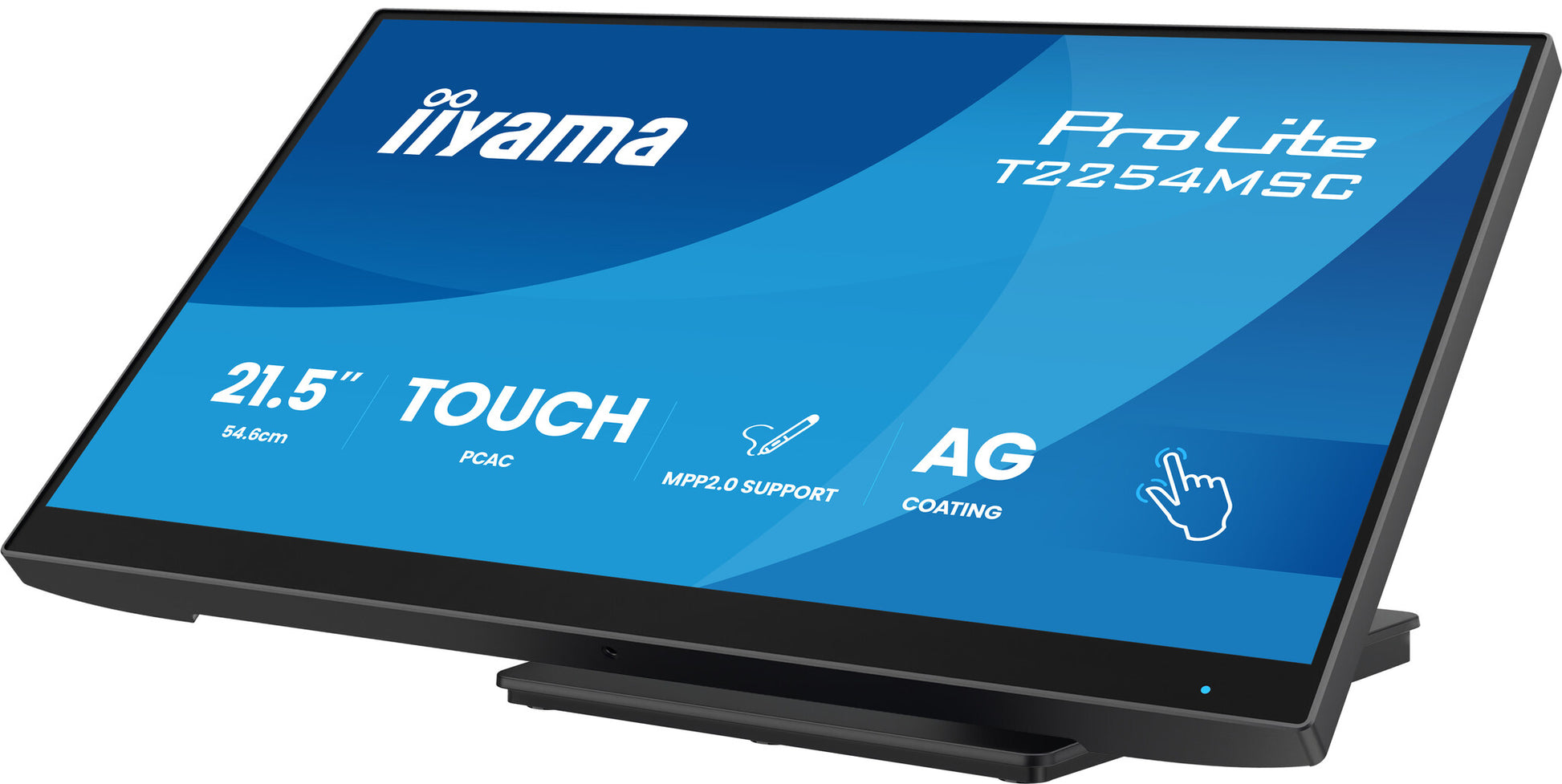

Tilt angle range
5 - 90°
Height adjustment
Yes
Cable lock slot type
Kensington
Cable lock slot
Yes
Adjustable height (max)
11.2 cm

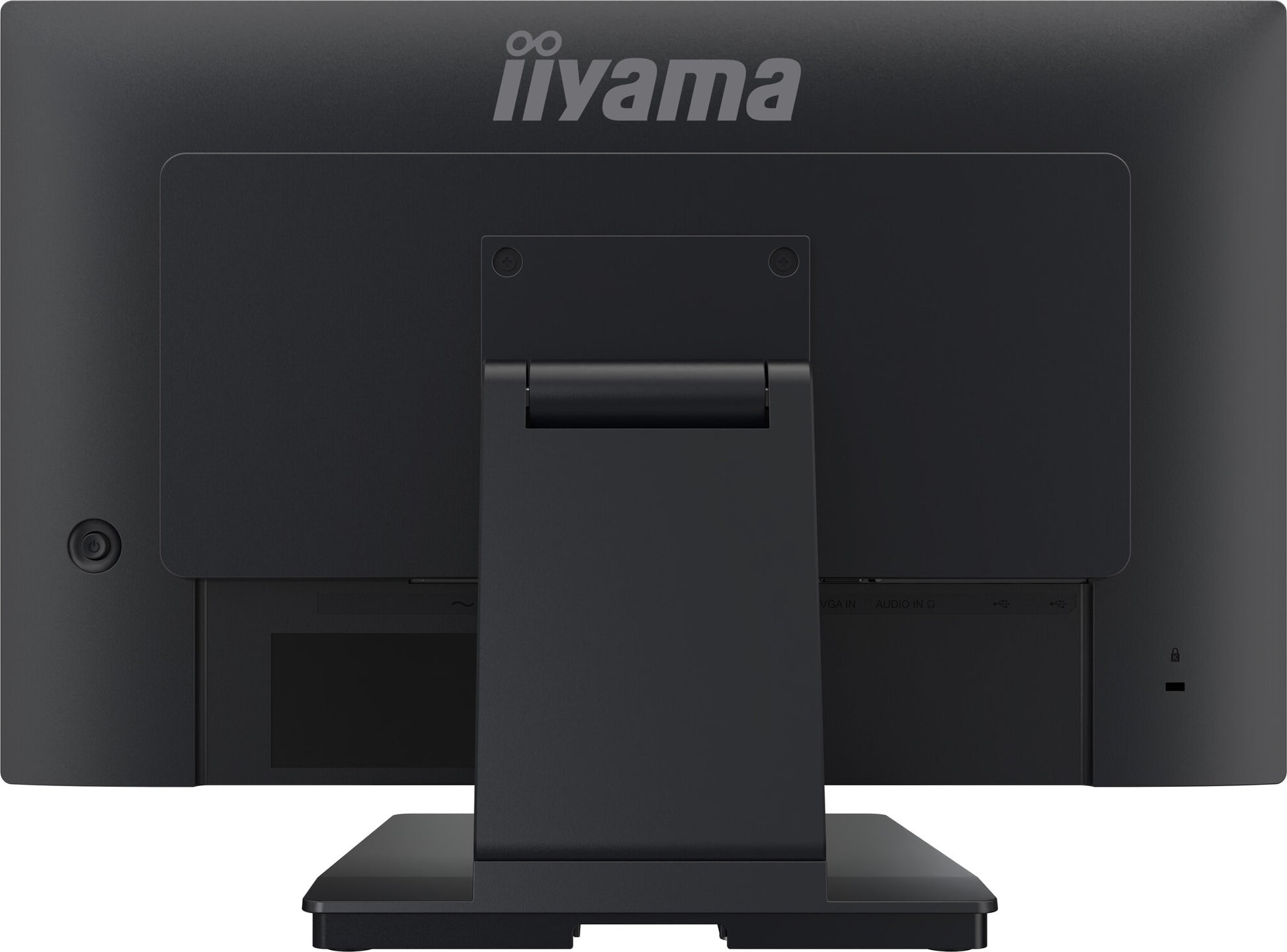

Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
15 W
Energy consumption (SDR) per 1000 hours
13 kWh
Energy efficiency class (SDR)
D
Weight & dimensions
Weight (without stand)
2.9 kg
Weight (with stand)
4.9 kg
Height (with stand)
355 mm
Depth (with stand)
241 mm
Width (with stand)
489 mm
Packaging data
Package weight
7.6 kg
Package height
367 mm
Package depth
151 mm
Package width
570 mm
Quick start guide
Yes
Cables included
AC, HDMI, USB
Stand included
Yes
Surface hardness
Surface hardness
7H
HDCP
Yes
Display diagonal (metric)
55 cm
Pixel pitch
0.082 x 0.082 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
USB Touch port
Yes
Number of simultaneous touchpoints
10
Touch technology
Multi-touch
Display technology
LED
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Yes
