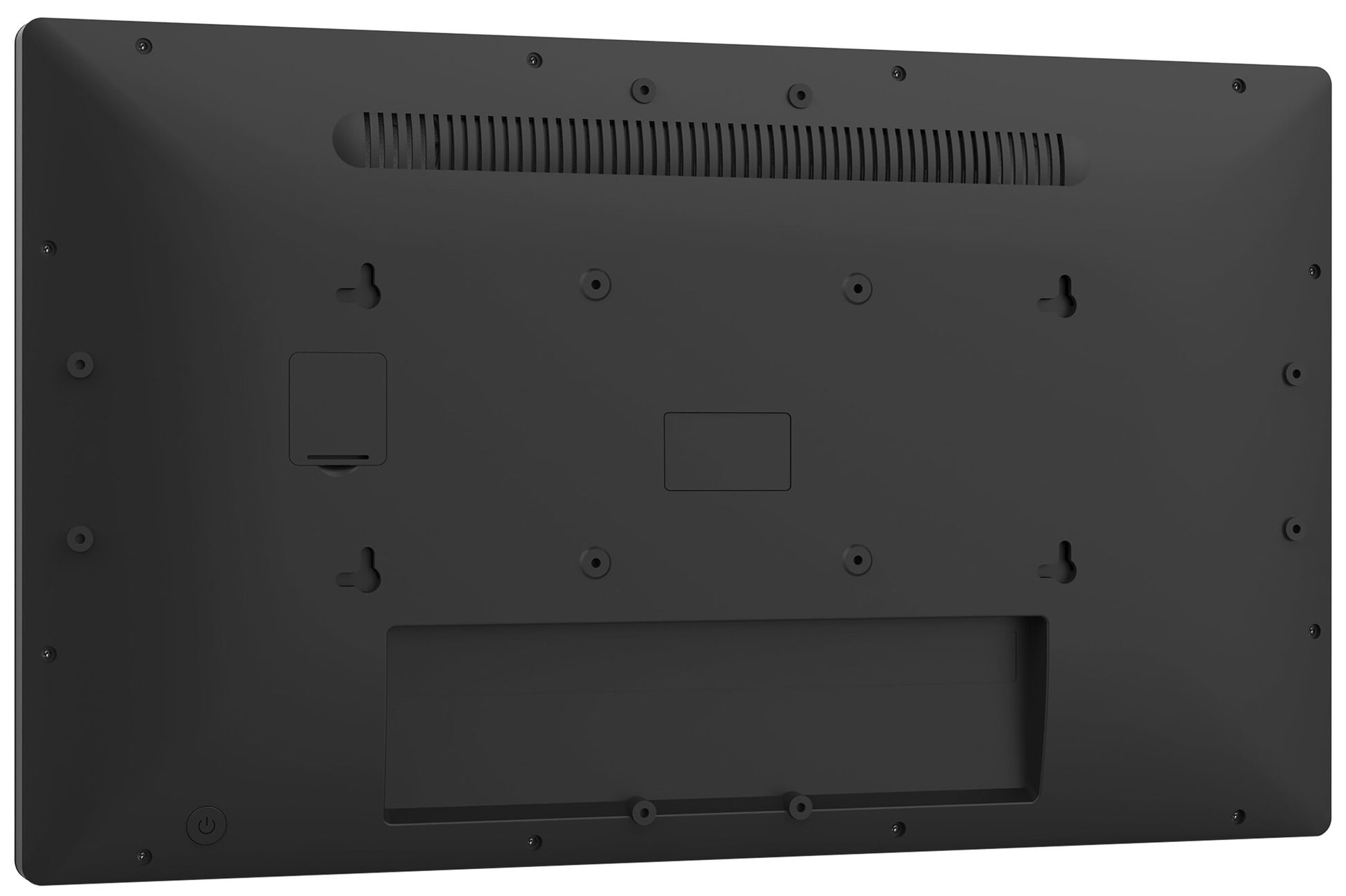

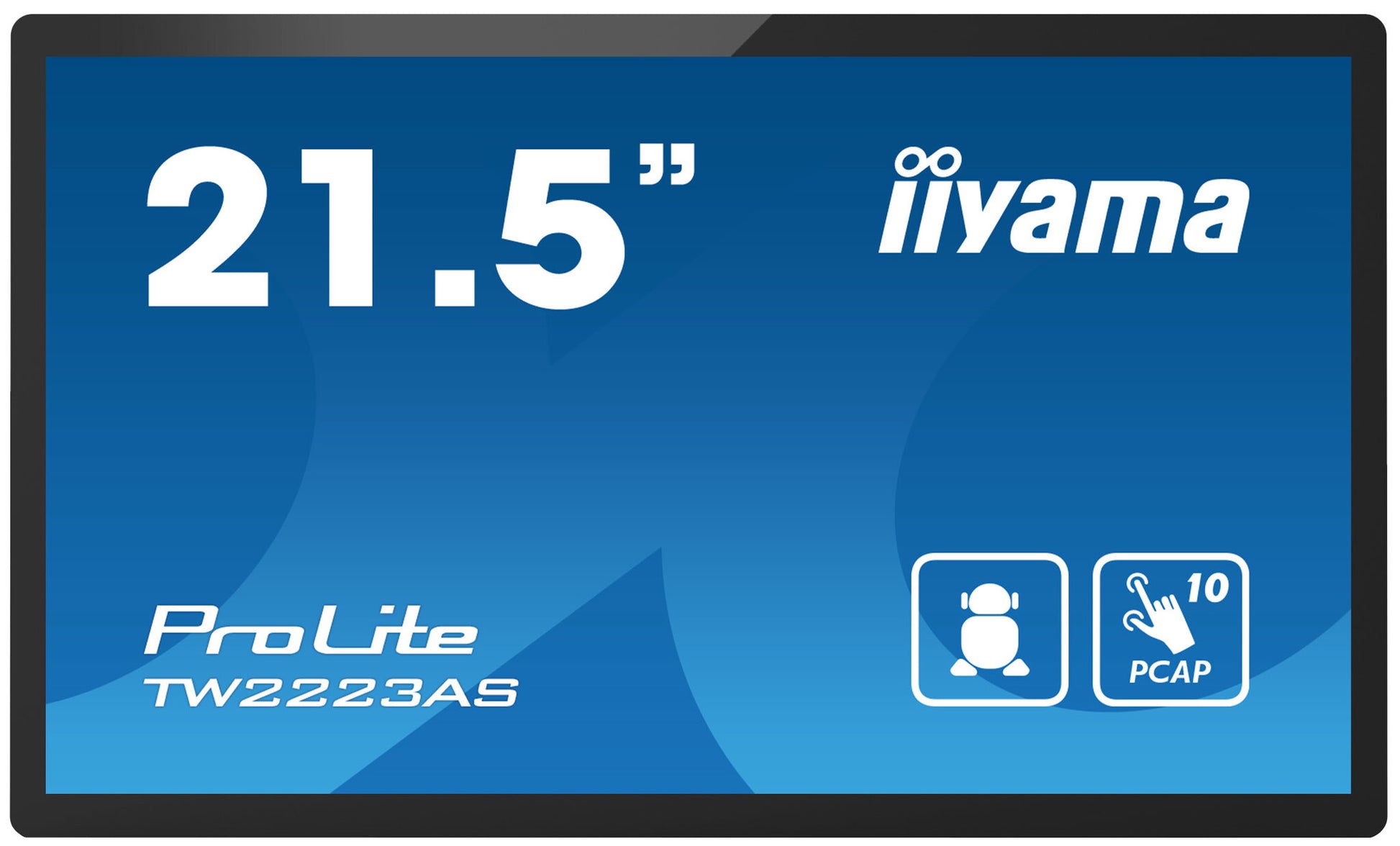

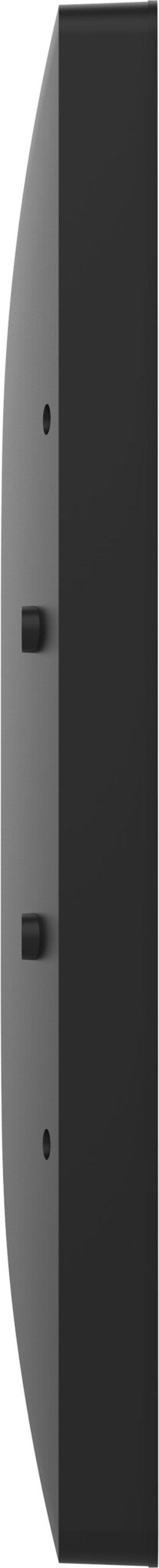

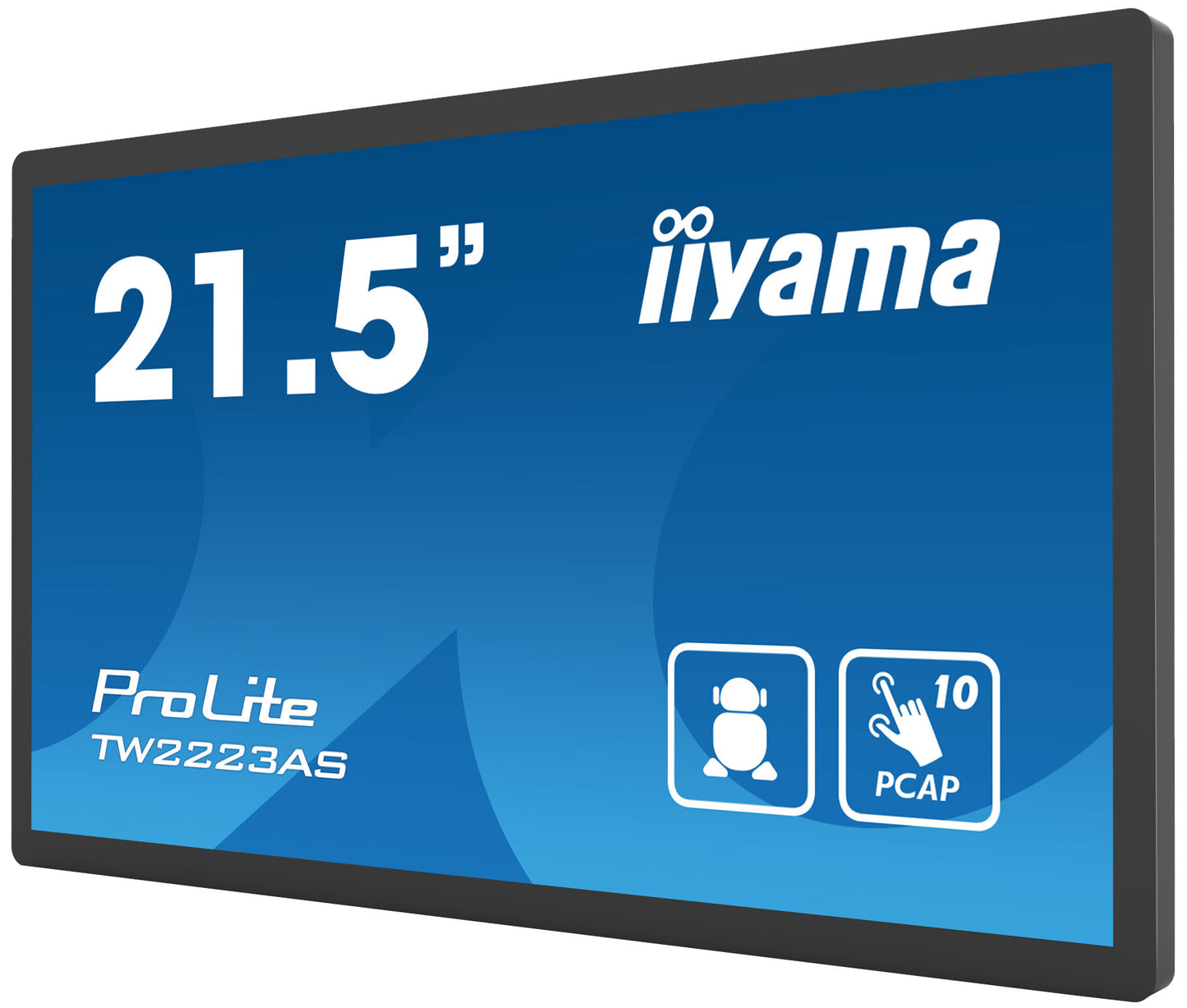

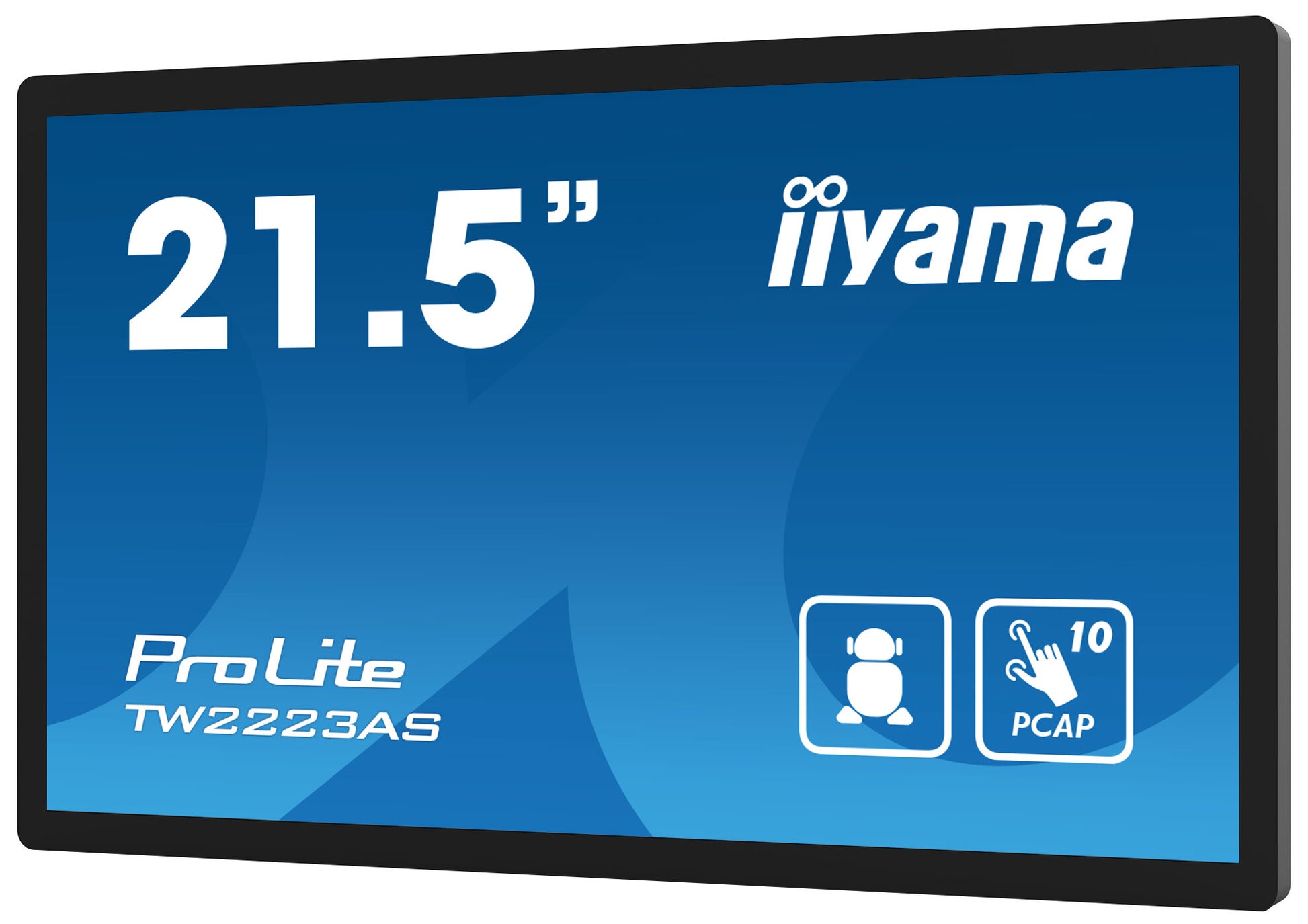

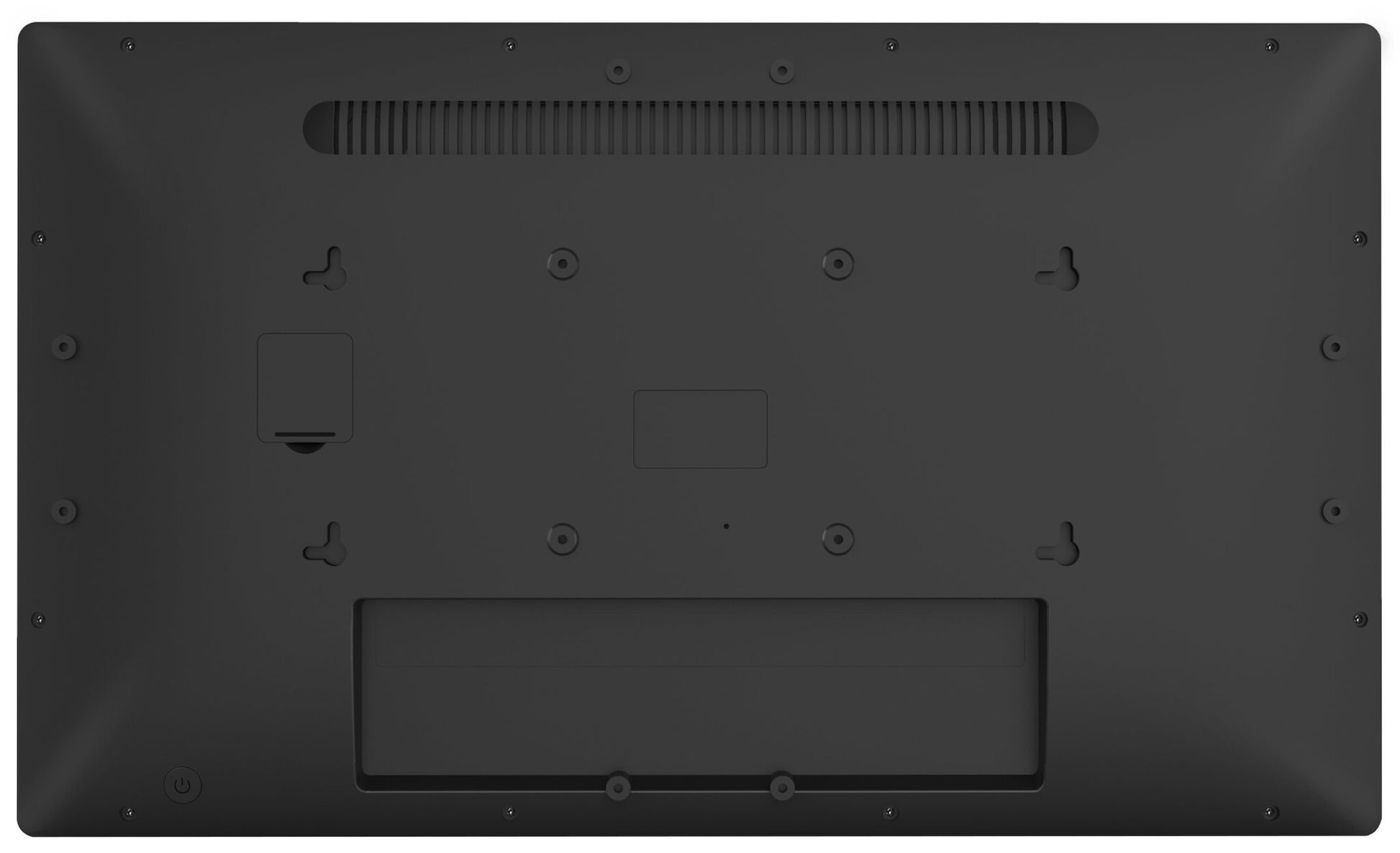

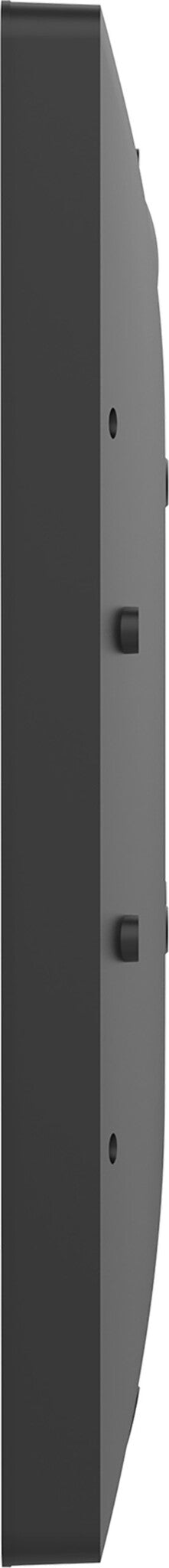

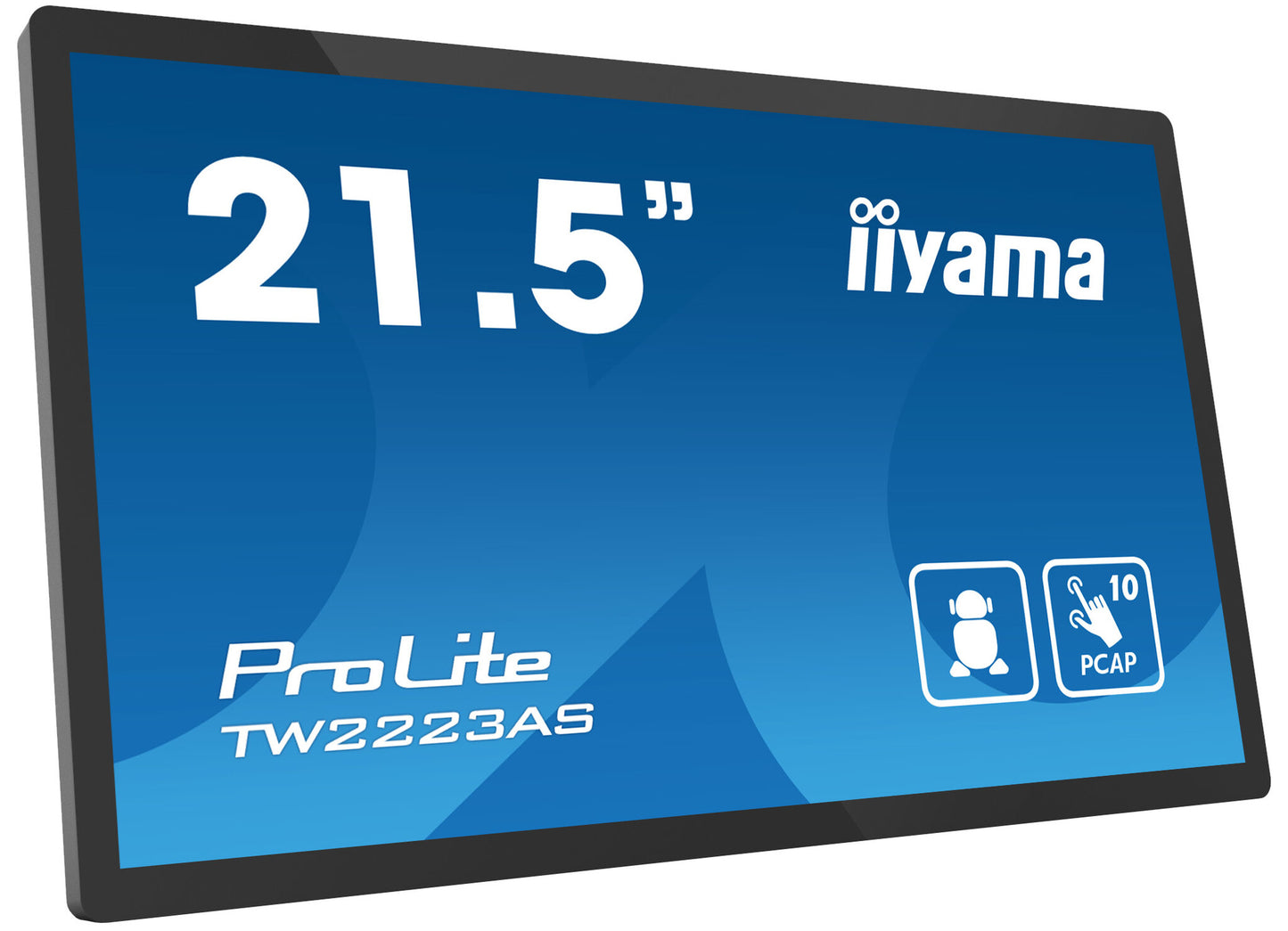

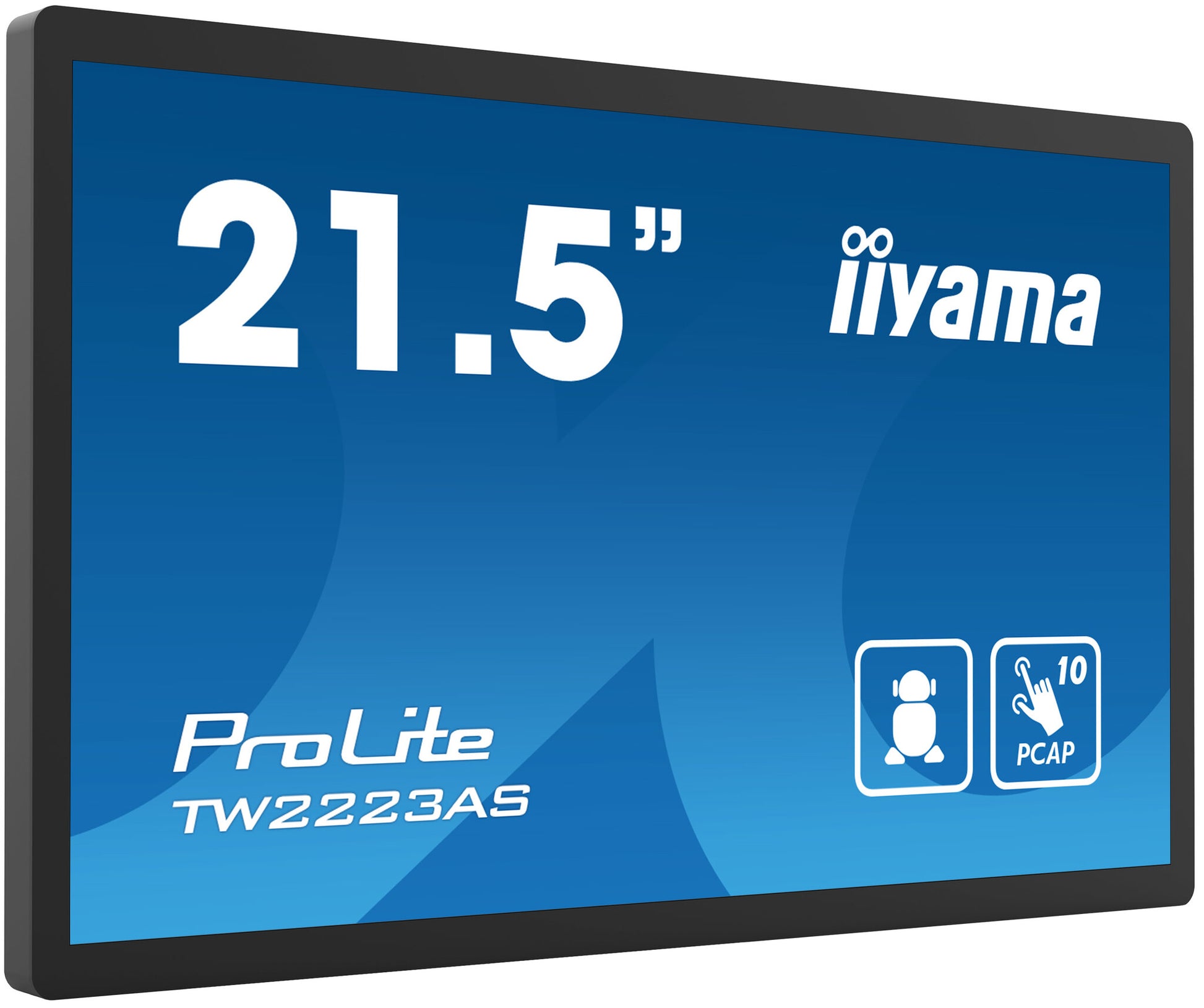

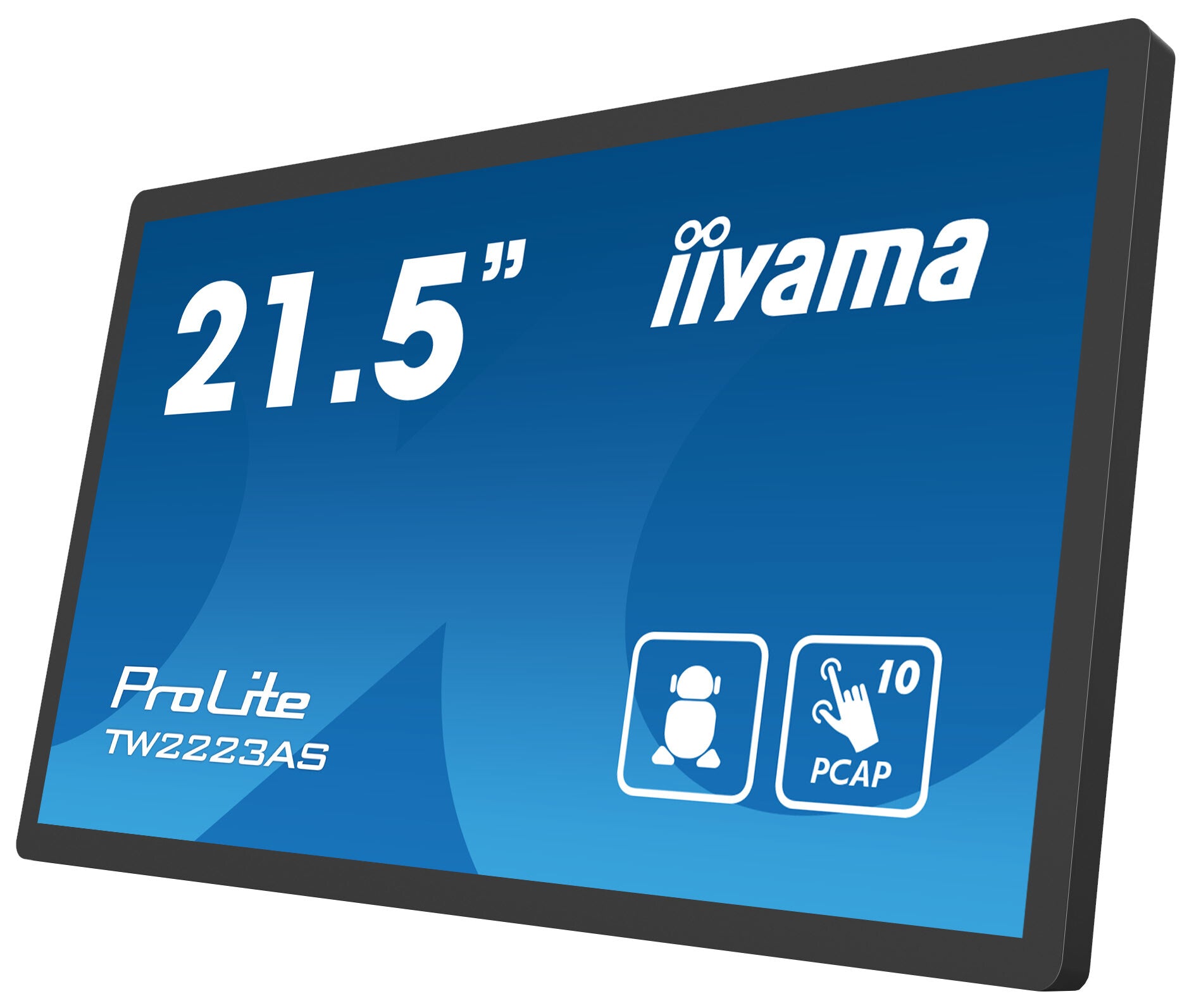

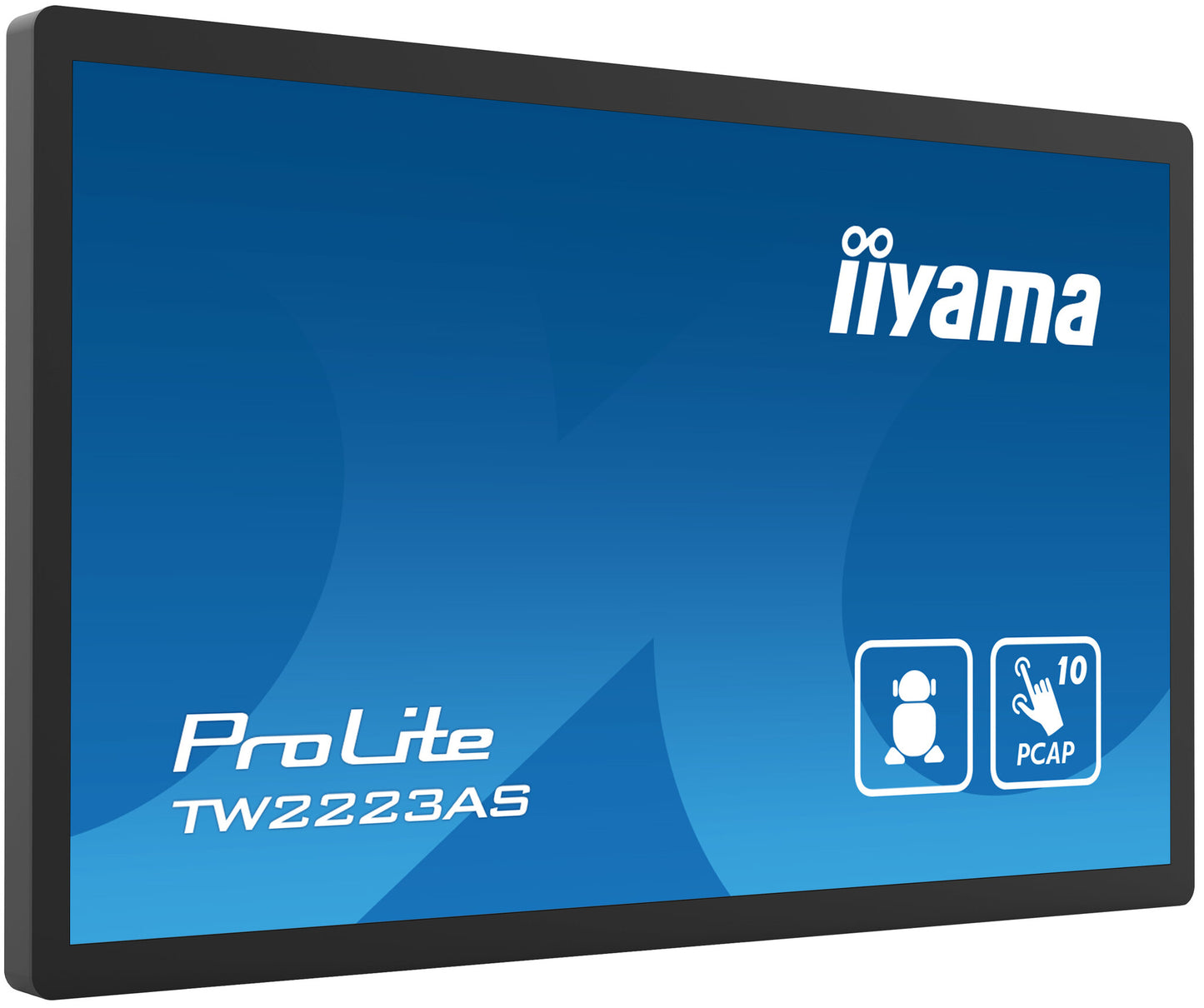

iiyama TW2223AS-B2 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD Touchscreen Black

iiyama TW2223AS-B2 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD Touchscreen Black

21.5” Full HD PCAP 10pt interactive Touch Panel PC with Android OS and edge-to-edge glass design

  • Touchscreen 54.6 cm (21.5") VA
  • Full HD 1920 x 1080 pixels 16:9
  • 18 ms 400 cd/m² 3000:1
  • Flicker-free technology
  • 23 W
  • SKU:4948570124787
  • GTIN/EAN:4948570124787
  • MPN:TW2223AS-B2
Add To Favorite

You need to login to view the price.

View full details

iiyama TW2223AS-B2. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Response time: 18 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black

The ProLite TW2223AS-B2 interactive Touch Panel PC with an elegant edge-to-edge glass design is a perfect choice for high-use environments. This monitor can operate 24/7 in landscape, portrait and face-up orientation. Thanks to the pre-installed Android 12 operating system it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.

Display
Digital horizontal frequency
30 - 84 kHz
Viewable size, vertical
26.9 cm
Viewable size, horizontal
47.8 cm
Horizontal scan range
30 - 84 kHz
Display number of colours
16.7 million colours
Contrast ratio (typical)
3000:1
Screen shape
Flat
Display brightness
400 cd/m²
Positional accuracy
2 mm
Response time measurement type
GTG (Gray to Gray)
Response time
18 ms
Display brightness (typical)
400 cd/m²
Display brightness (peak)
400 cd/m²
Touchscreen technology
Projected capacitive system
Panel type
VA
Display resolution
1920 x 1080 pixels
Display diagonal
54.6 cm (21.5")
Performance
Operating hours (hours/days)
24/7
Operating system installed
Android 12
Flicker-free technology
Yes
Multimedia
RMS rated power
4 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Glass thickness
2.9 mm
Front bezel colour
Black
Product colour
Black
Market positioning
Business

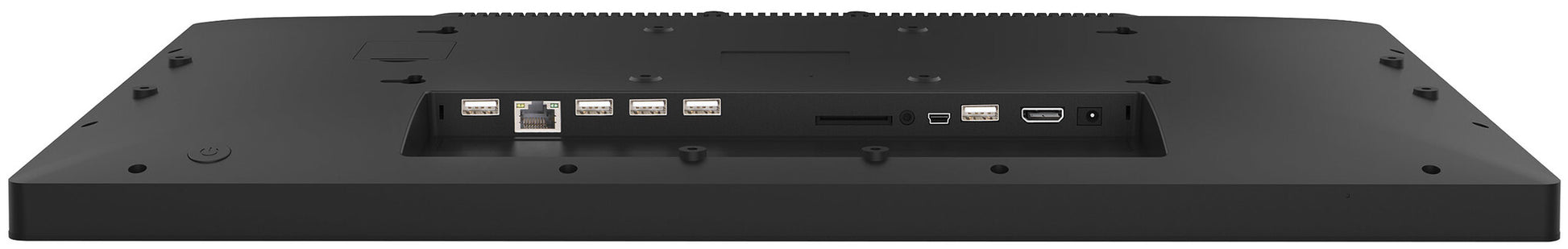

Ports & interfaces
Compatible memory cards
SD
Card reader integrated
Yes
USB Type-A downstream ports quantity
5
USB hub version
2.0 / 3.2 Gen 1 (3.1 Gen 1)
Headphone out
Yes
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub
Yes
Ergonomics
Cable management
Yes
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Thin Client
Processor cores
2
Processor frequency
1.8 GHz
Processor family
ARM Rockchip
Power
Power supply type
External
AC adapter output voltage
12 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
23 W
Network
Ethernet LAN
Yes
Bluetooth version
5.2
Bluetooth
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi
Yes
Weight & dimensions
Weight (without stand)
3.61 kg
Height (without stand)
302 mm
Depth (without stand)
32 mm
Width (without stand)
504.5 mm
Weight (with stand)
3.61 kg
Height (with stand)
302 mm
Depth (with stand)
32 mm
Width (with stand)
504.5 mm
Packaging data
Package weight
5.98 kg
Package height
410 mm
Package depth
640 mm
Package width
640 mm
Quick start guide
Yes
Cables included
AC
Other features
Audio out (mini jack)
1
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
1000 Mbit/s
Mean time between failures (MTBF)
50000 h
USB ports quantity
5
Placement supported
Indoor
Active display area (W x H)
478 x 269.5 mm
Built-in processor
Yes
Surface hardness
Surface hardness
6H
HDCP
Yes
Display diagonal (metric)
54.6 cm
Pixel pitch
0.248 x 0.248 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
HDMI ports quantity
1
HDMI
Yes
USB Touch port
Yes
Number of simultaneous touchpoints
10
Touch technology
Multi-touch
Built-in camera
No
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Yes
