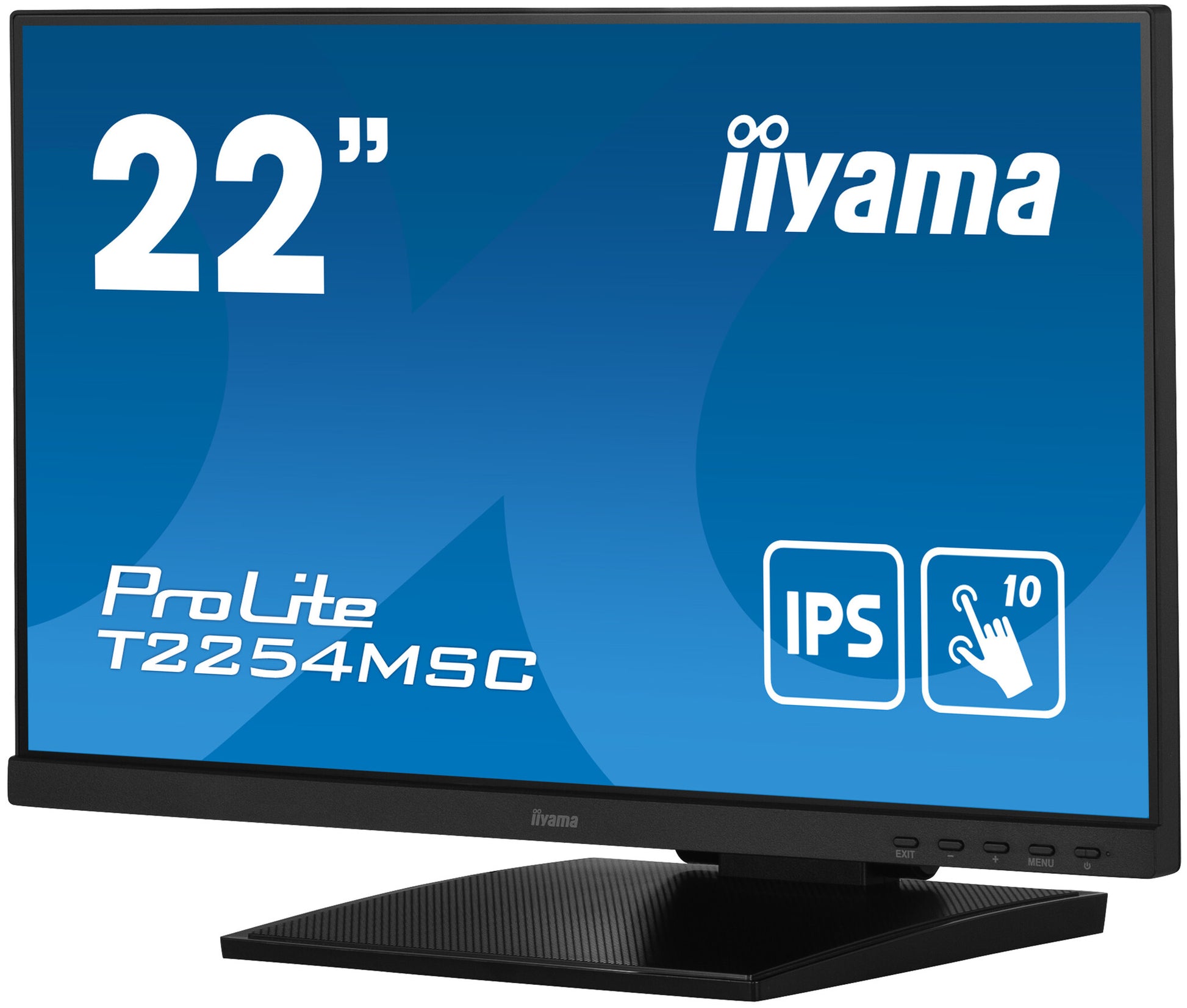

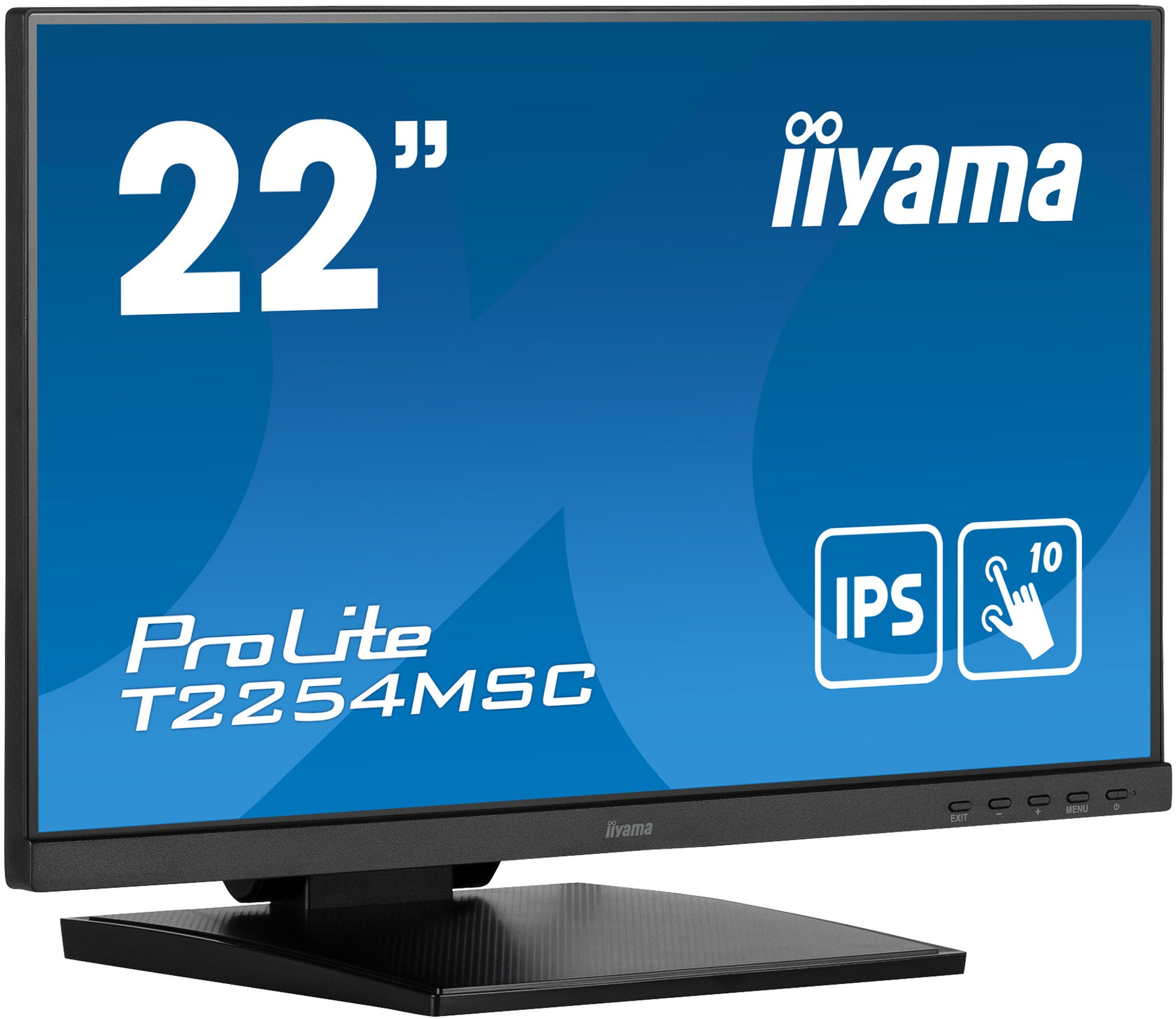

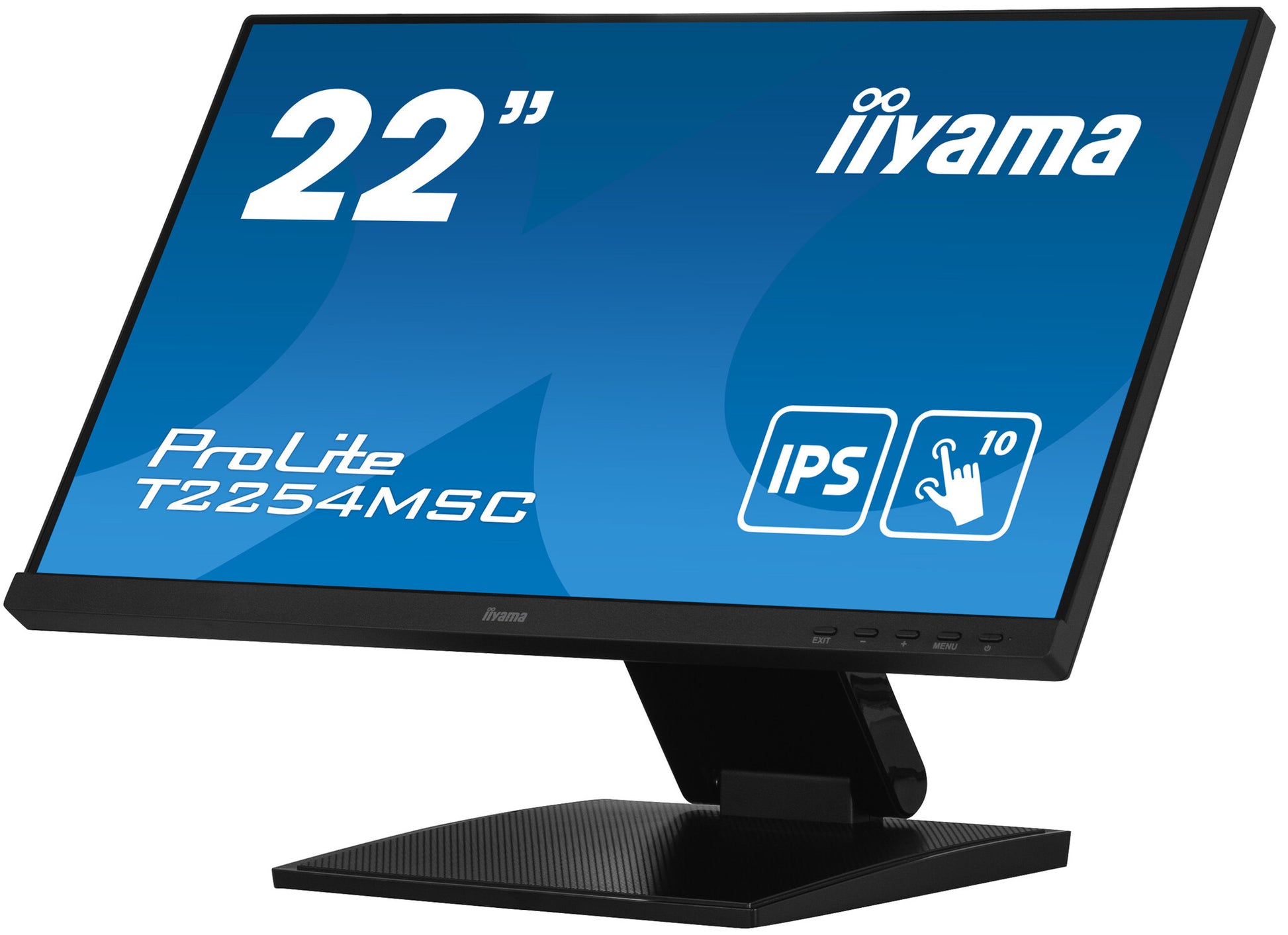

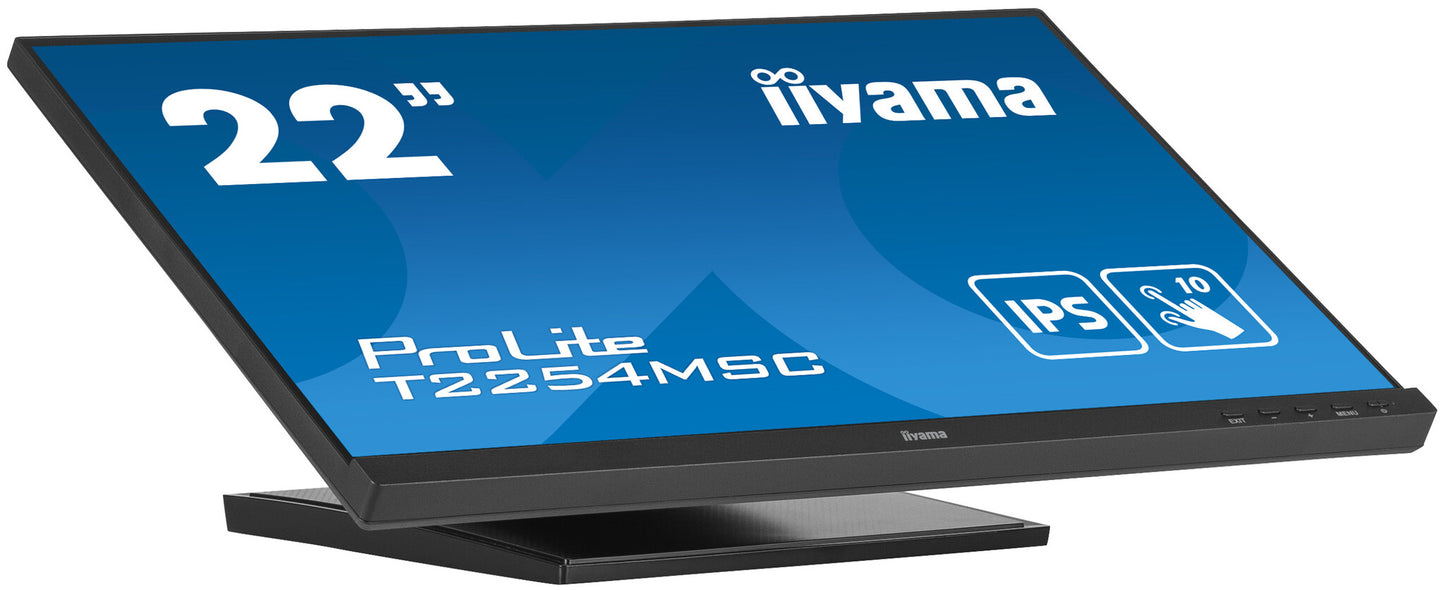

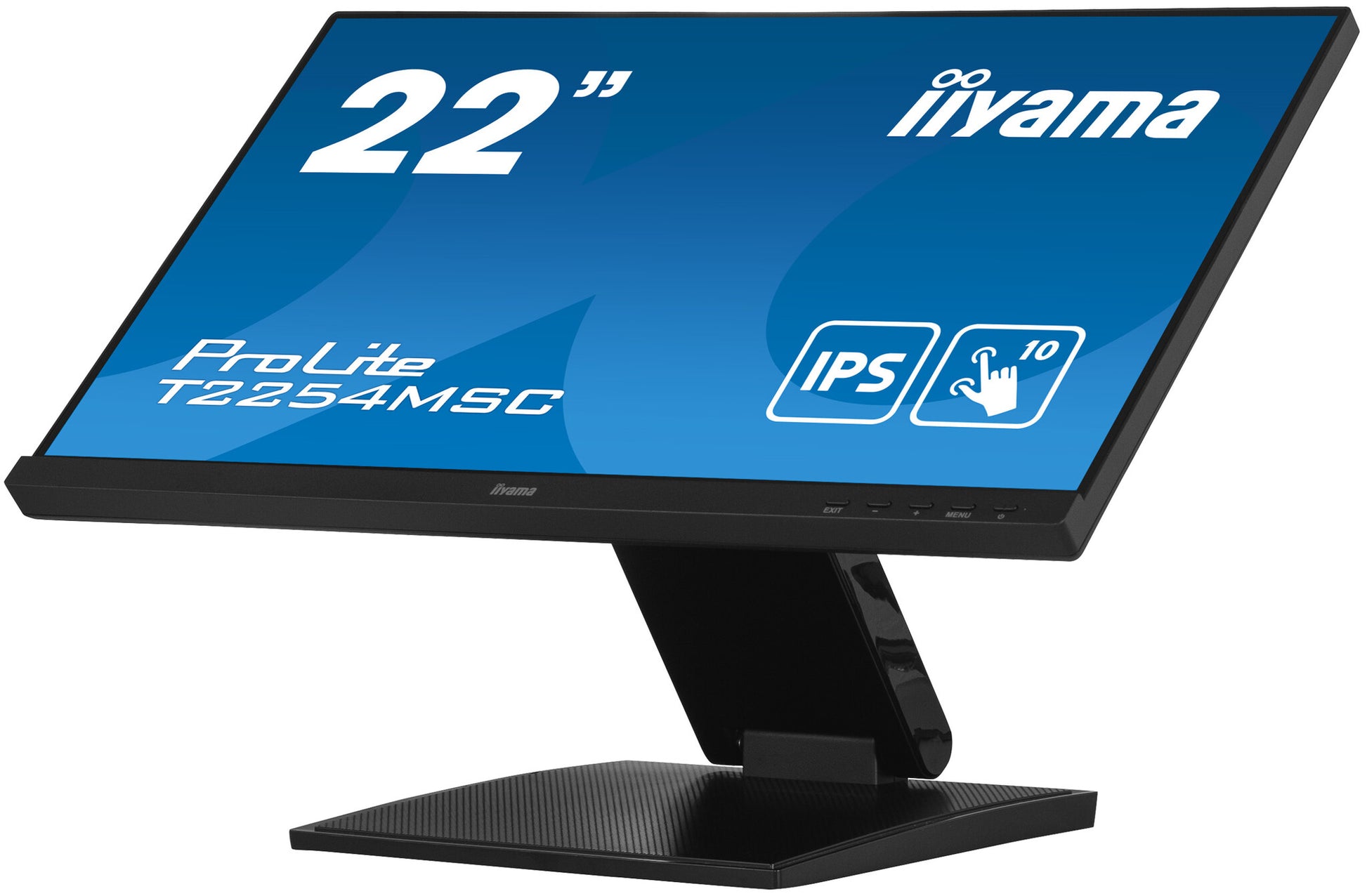

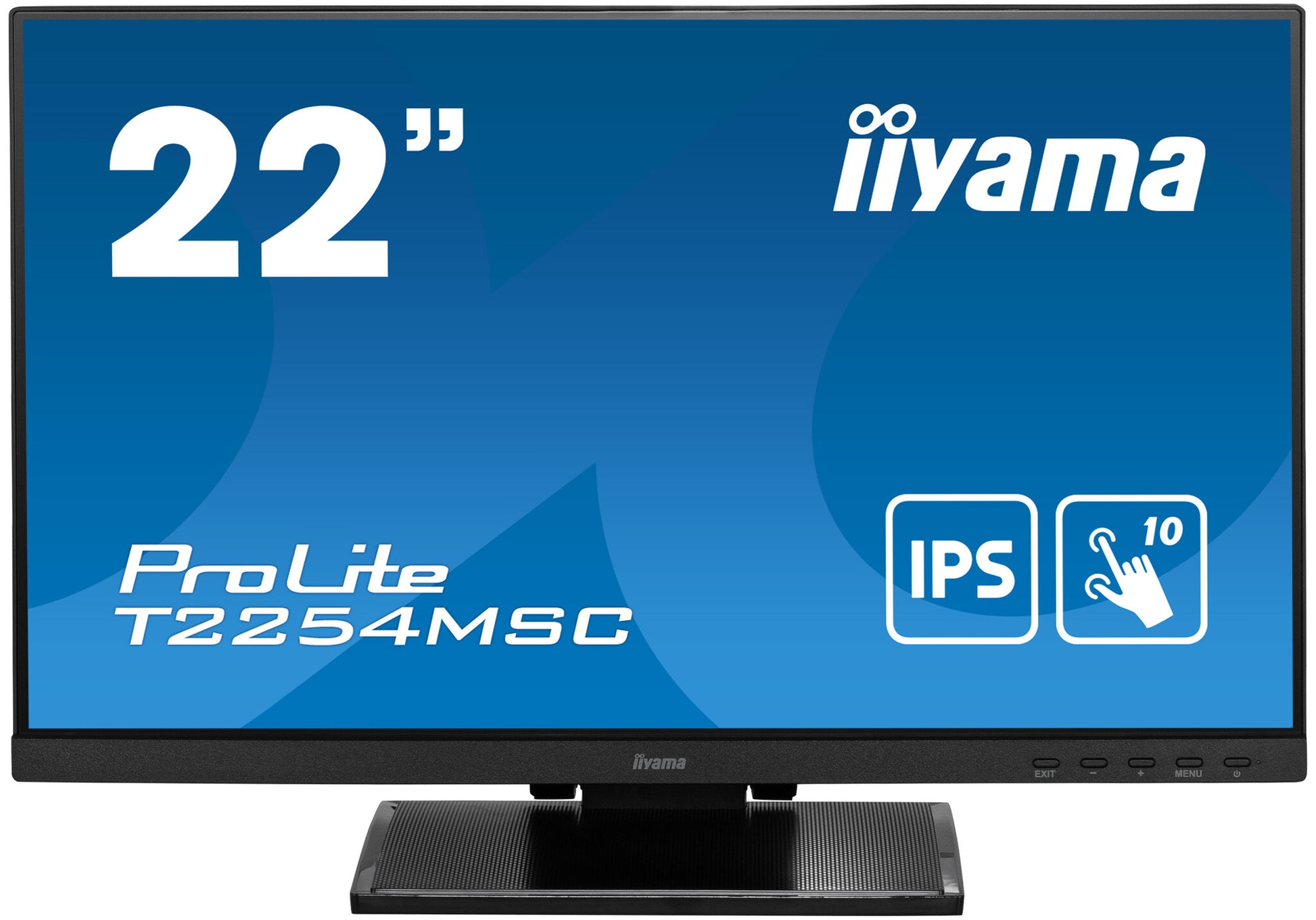

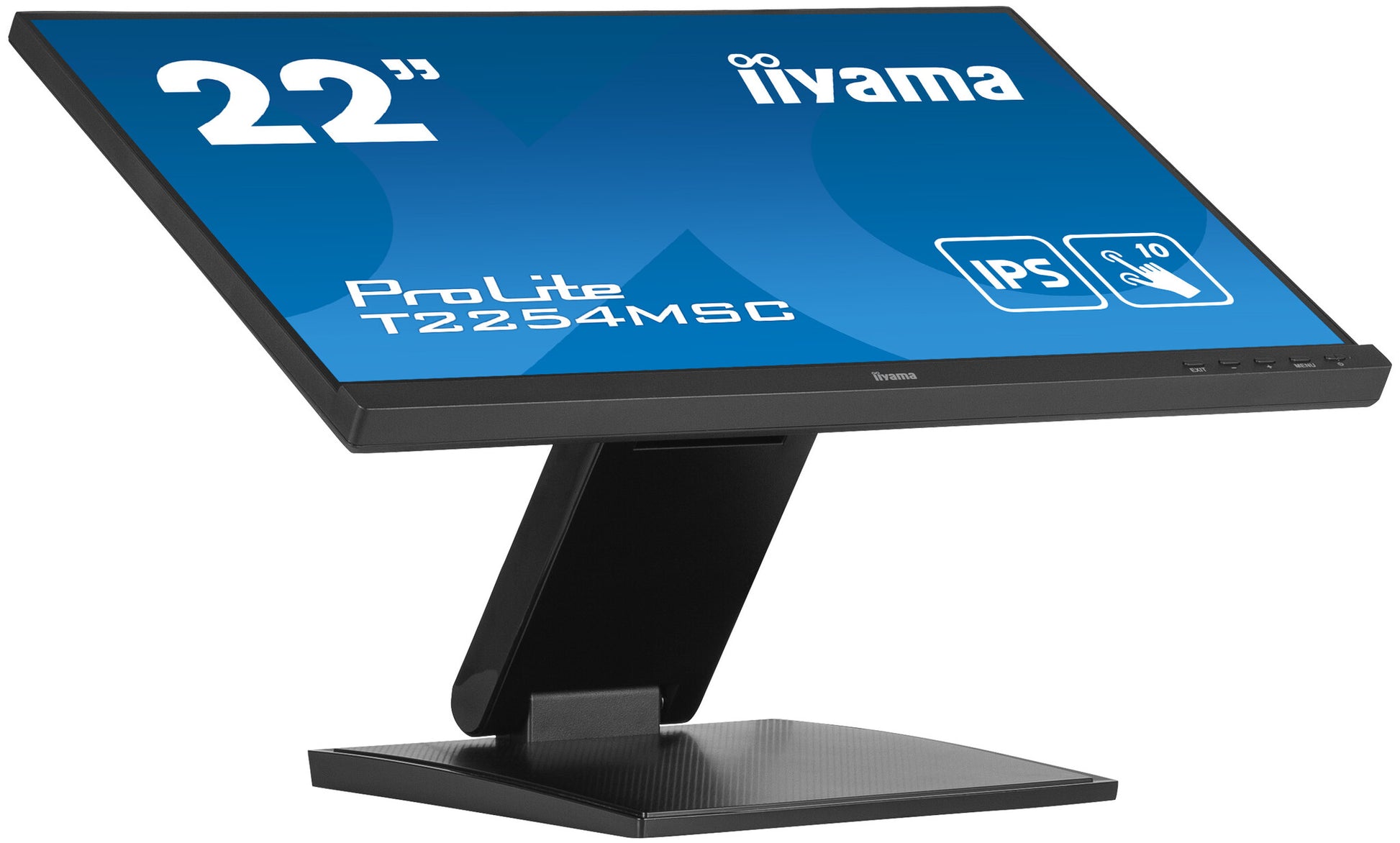

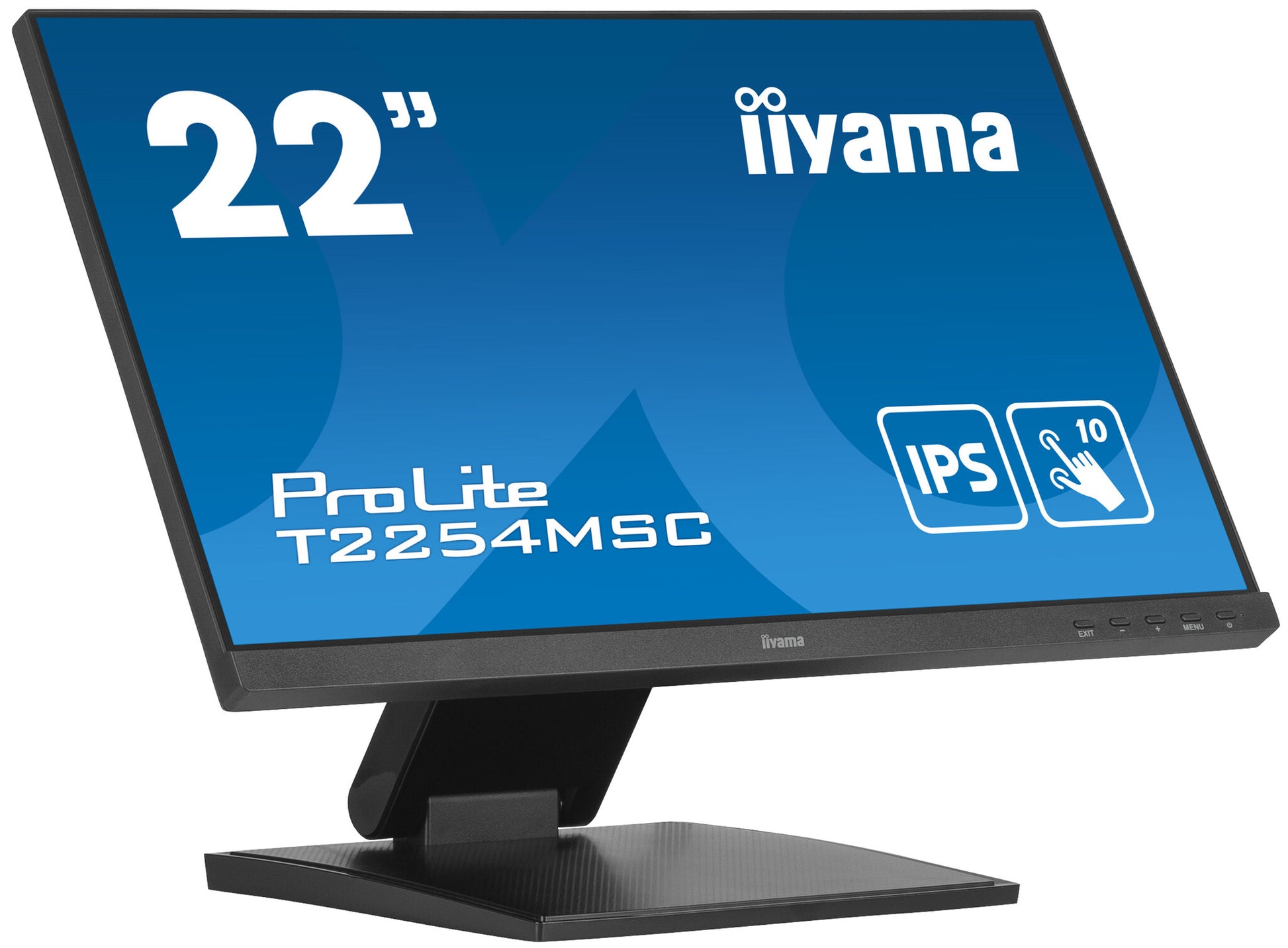

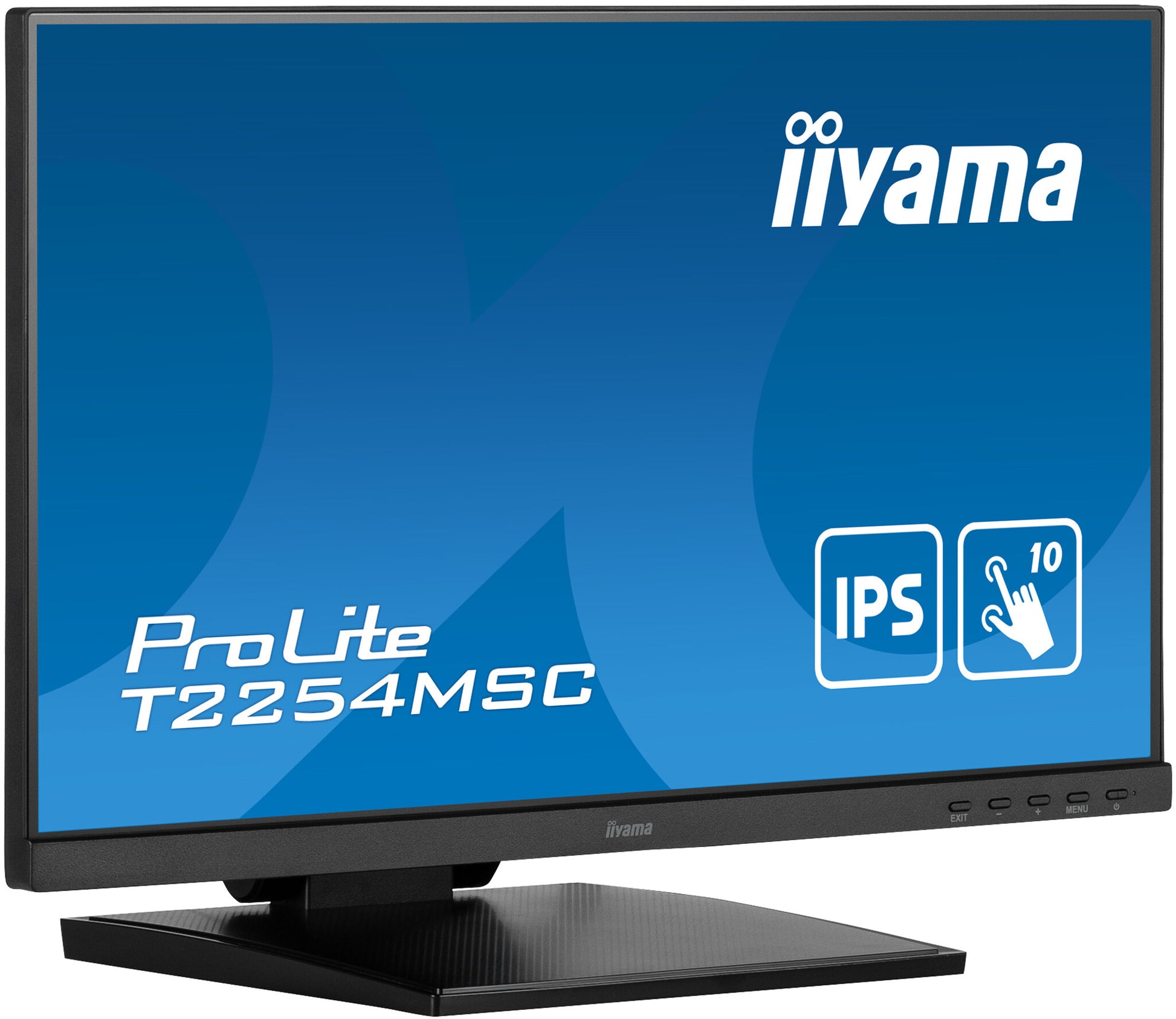

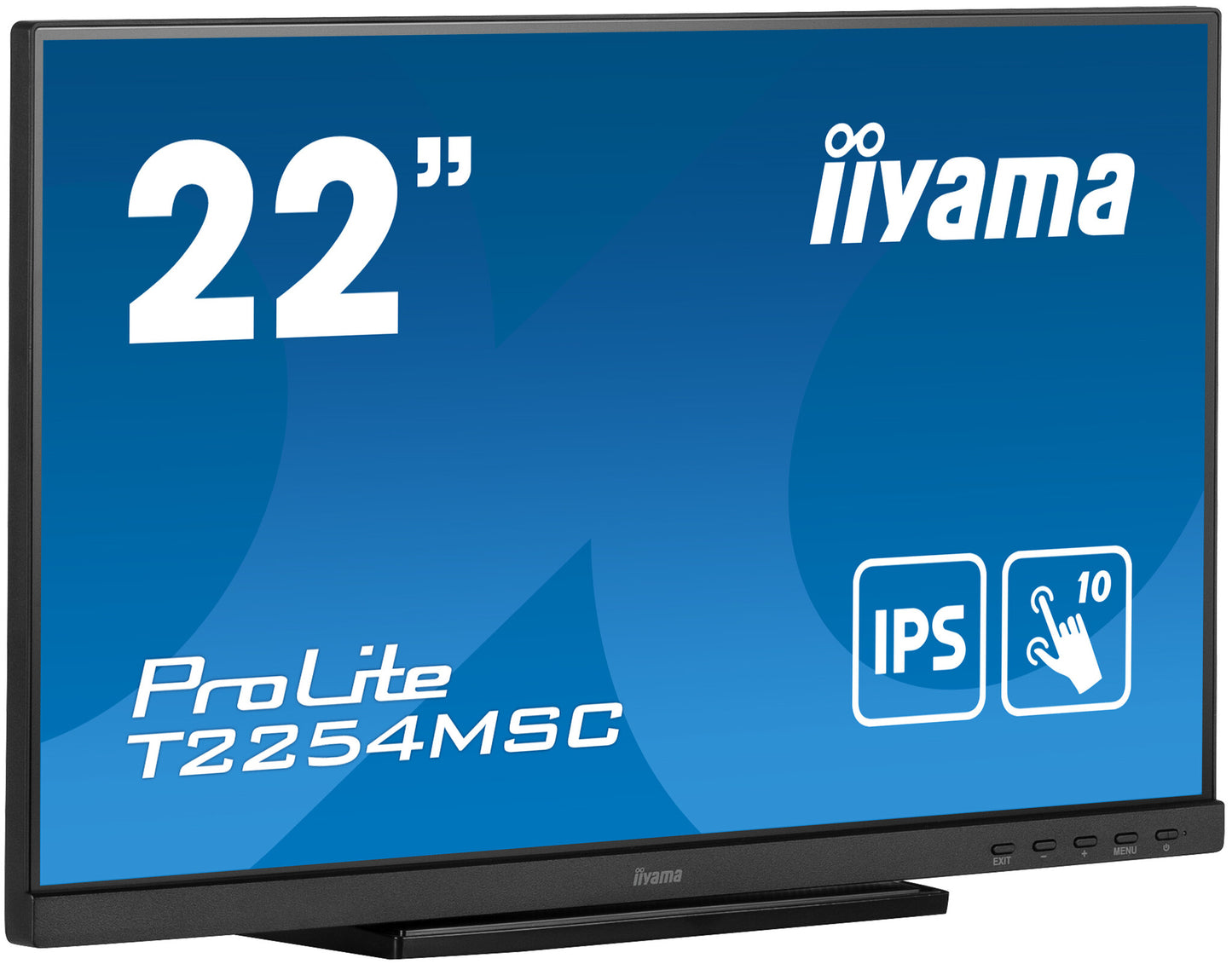

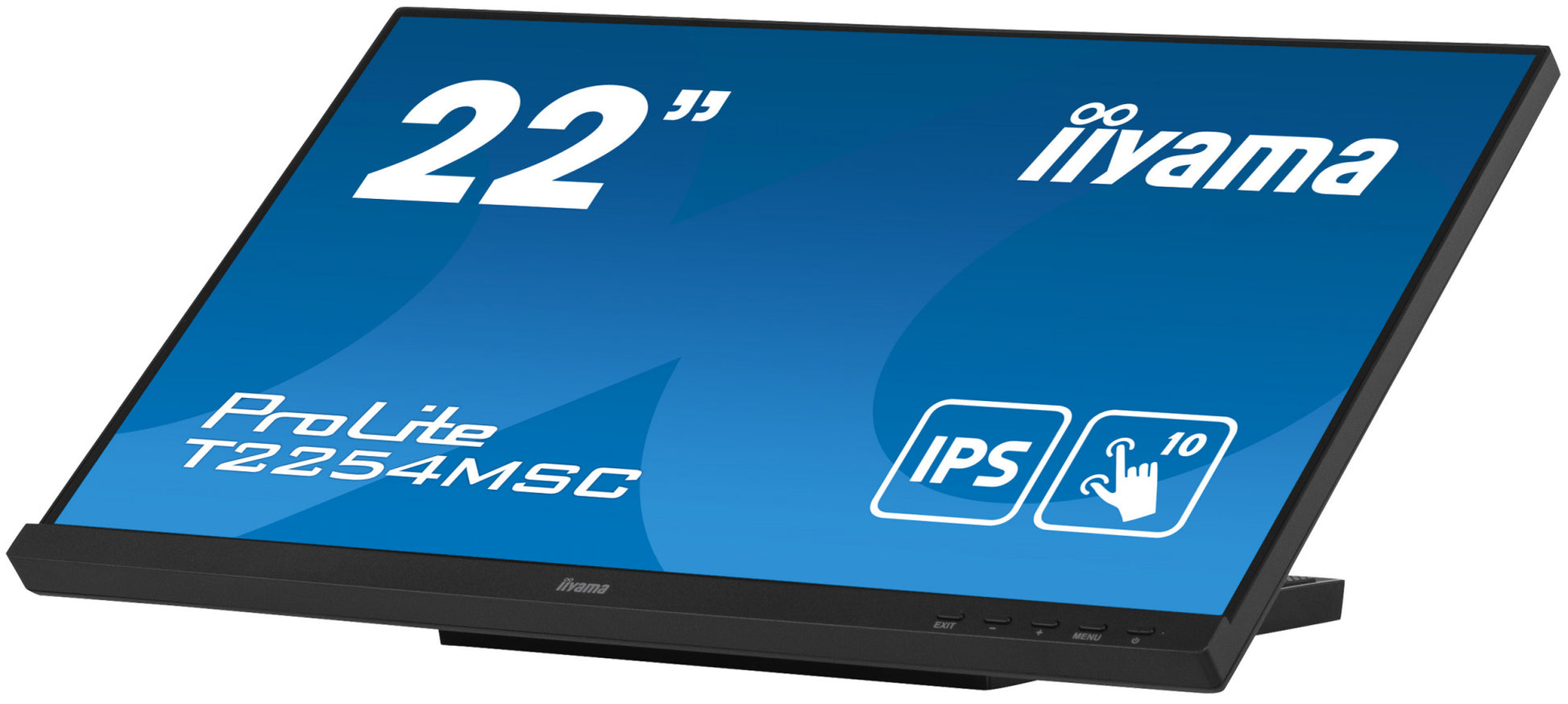

iiyama T2254MSC-B1AG

21.5” P-CAP 10pt touch screen featuring IPS panel technology and Anti Glare coating

  • 54.6 cm (21.5") Black
  • Height adjustment 34.3 cm Built-in speaker(s)
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Maximum refresh rate: 60 Hz Response time: 4 ms Response time measurement type: GTG (Gray to Gray)
  • 1920 x 1080 pixels Full HD Panel type: IPS
  • Energy efficiency class (SDR): E ErP CE, EAC, REACH, RoHS, UKCA, WEEE
  • SKU:4948570121212
  • GTIN:4948570121212
  • MPN:T2254MSC-B1AG

You need to login to view the price.

View full details

iiyama ProLite T2254MSC-B1AG. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2254MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2254MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.

Display
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
Panel type
IPS
Touchscreen technology
Projected capacitive system
Display brightness (typical)
250 cd/m²
Response time
4 ms
Response time measurement type
GTG (Gray to Gray)
Colour depth
8 bit
Positional accuracy
2 mm
Display brightness
250 cd/m²
Anti-glare screen
Yes
Screen shape
Flat
Contrast ratio (typical)
1000:1
Maximum refresh rate
60 Hz
Display number of colours
16.7 million colours
Horizontal scan range
30 - 83 kHz
Viewable size, horizontal
47.6 cm
Viewable size, vertical
26.8 cm
Performance
Flicker-free technology
Yes
Low Blue Light technology
Yes
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Multimedia
Built-in speaker(s)
Yes
Number of speakers
2
RMS rated power
5 W
Design
Market positioning
Business
Product colour
Black
Front bezel colour
Black
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, ENERGY STAR®, UKCA

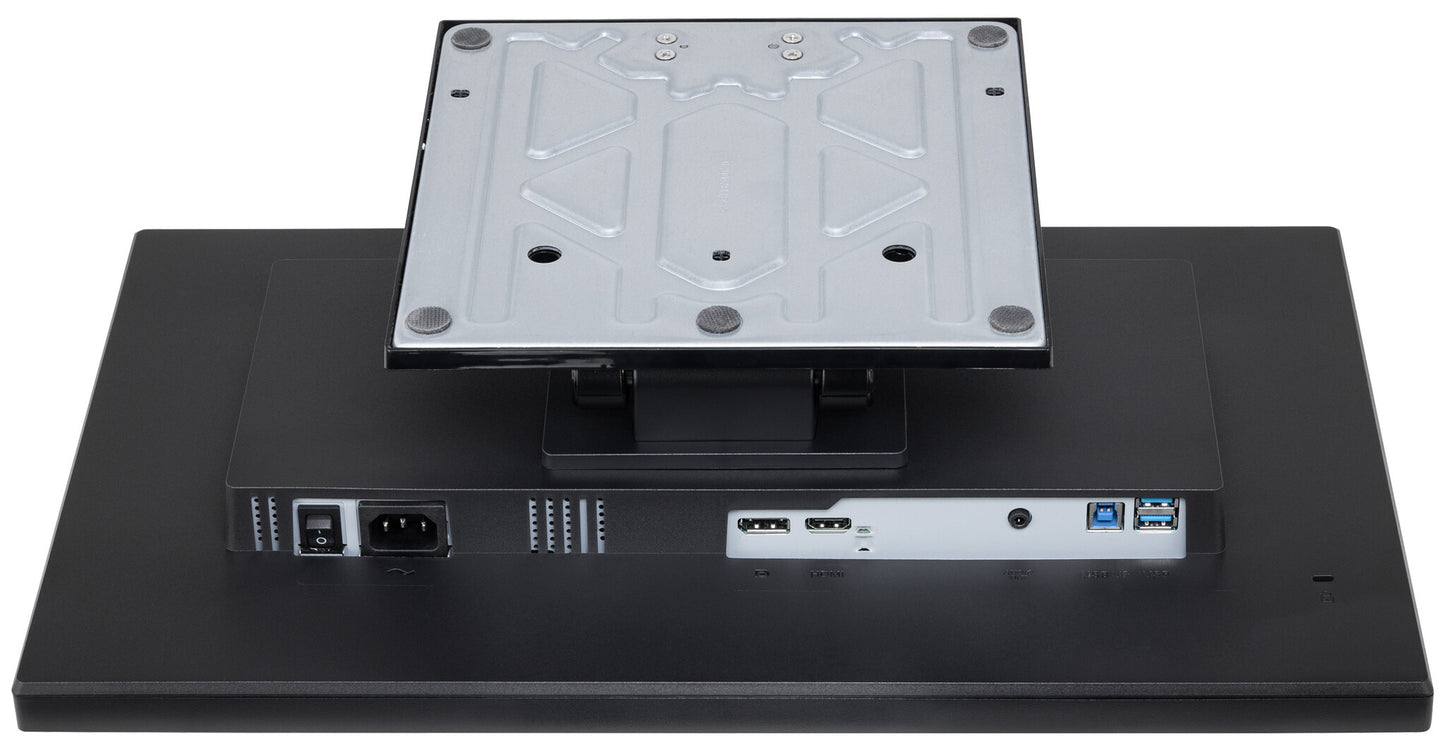

Ports & interfaces
Built-in USB hub
Yes
Headphone out
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports
2
Number of downstream ports
2
Ergonomics

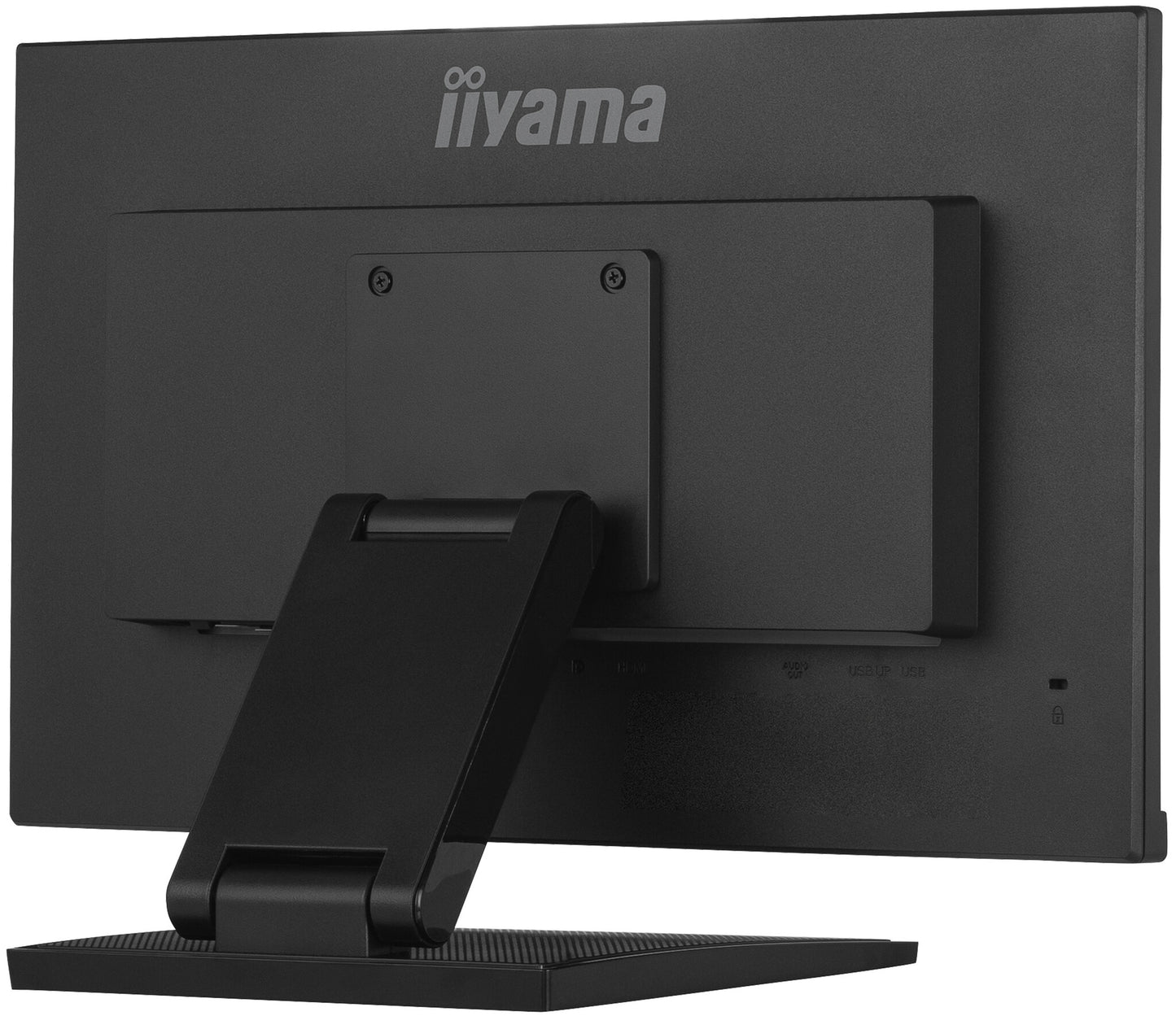

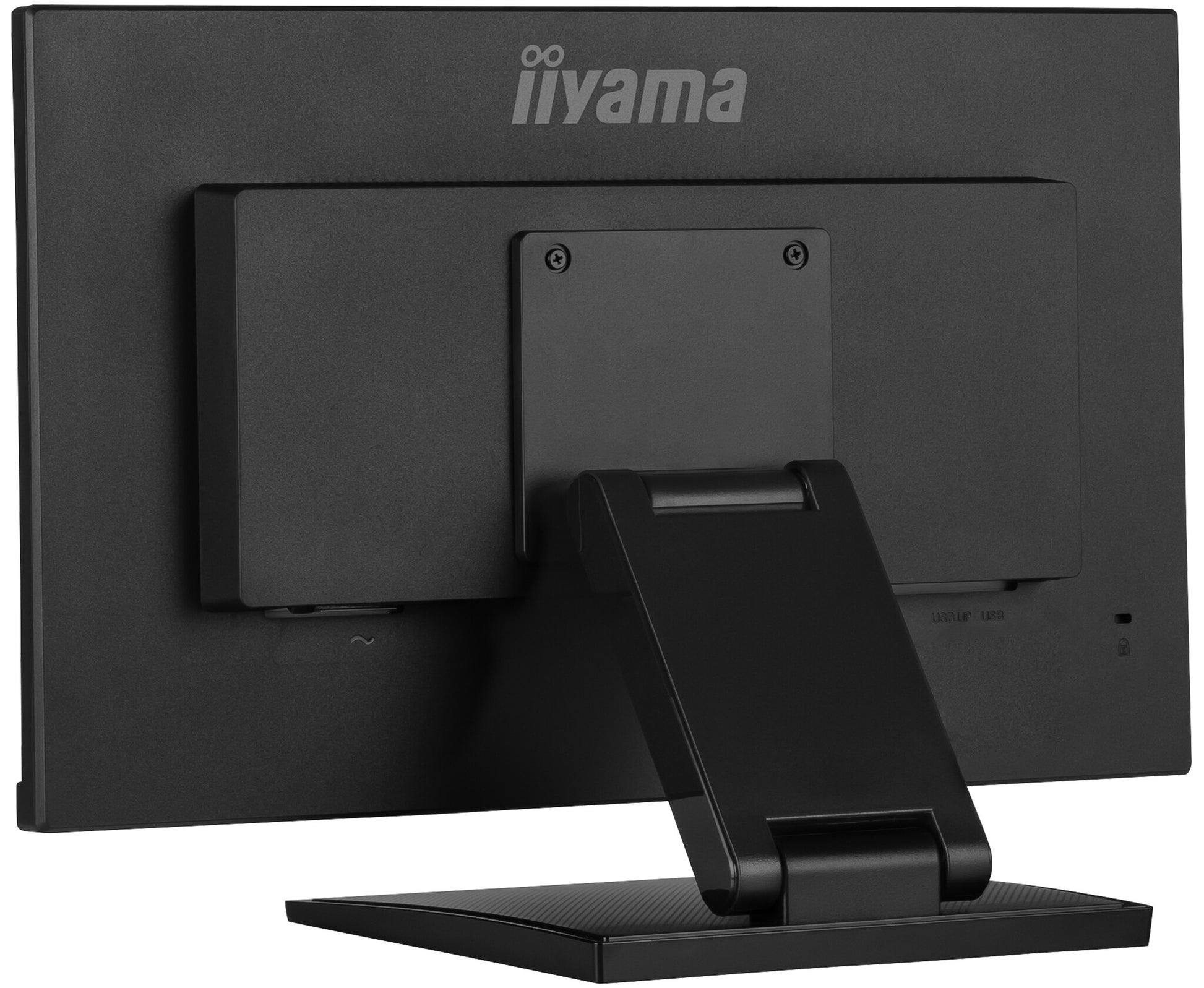

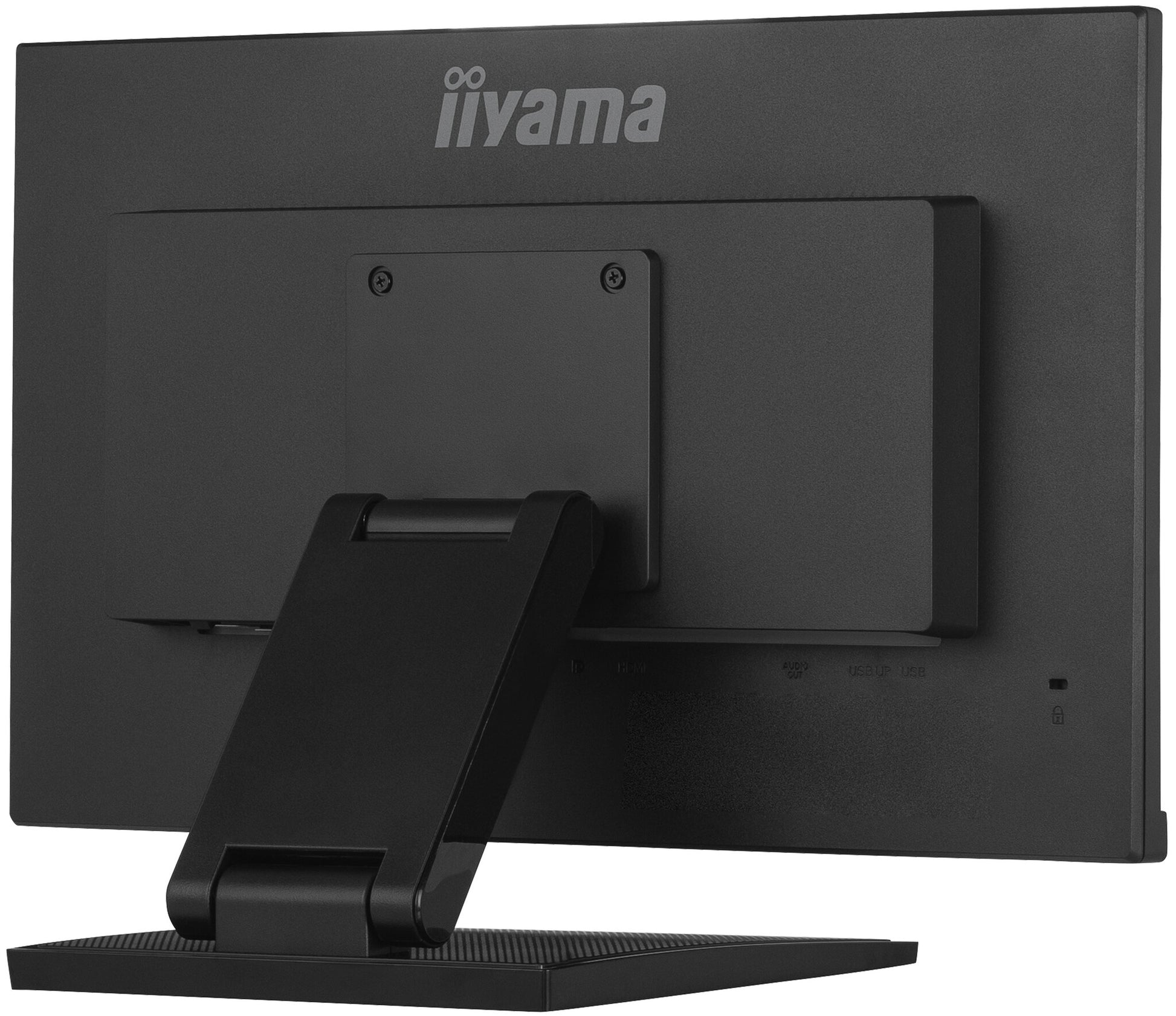

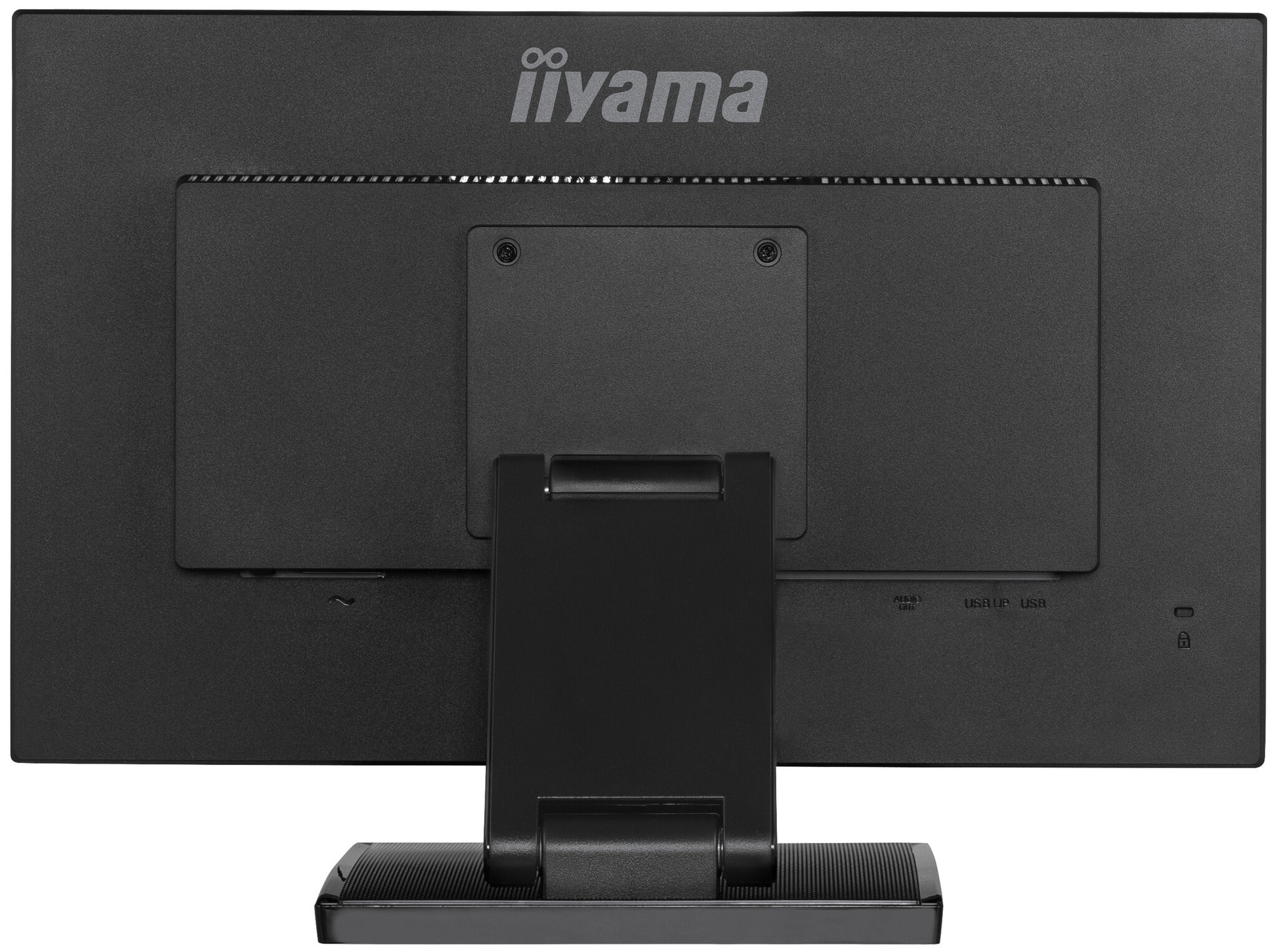

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Adjustable height (max)
34.3 cm
Cable lock slot
Yes
Cable lock slot type
Kensington
Height adjustment
Yes

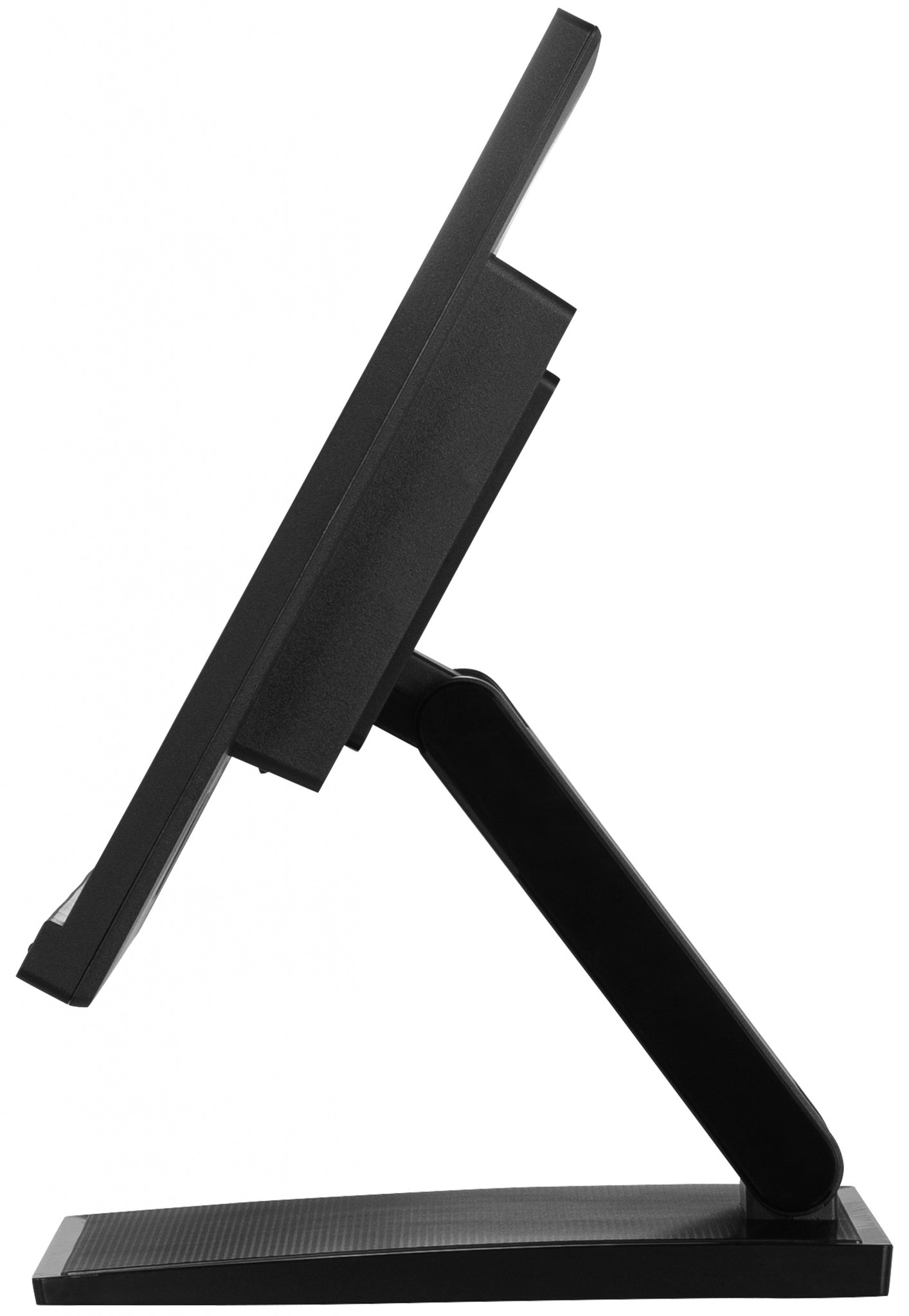

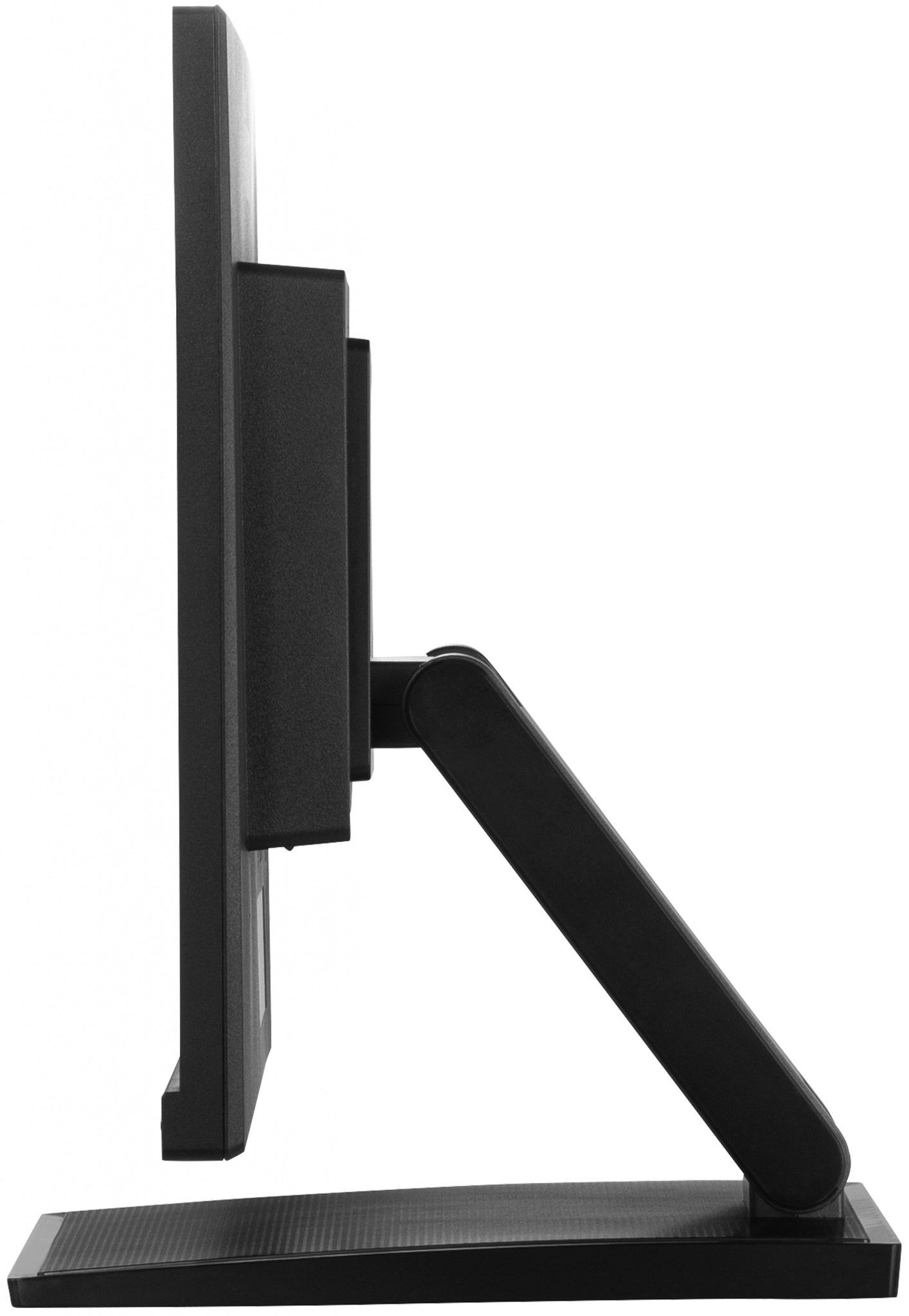

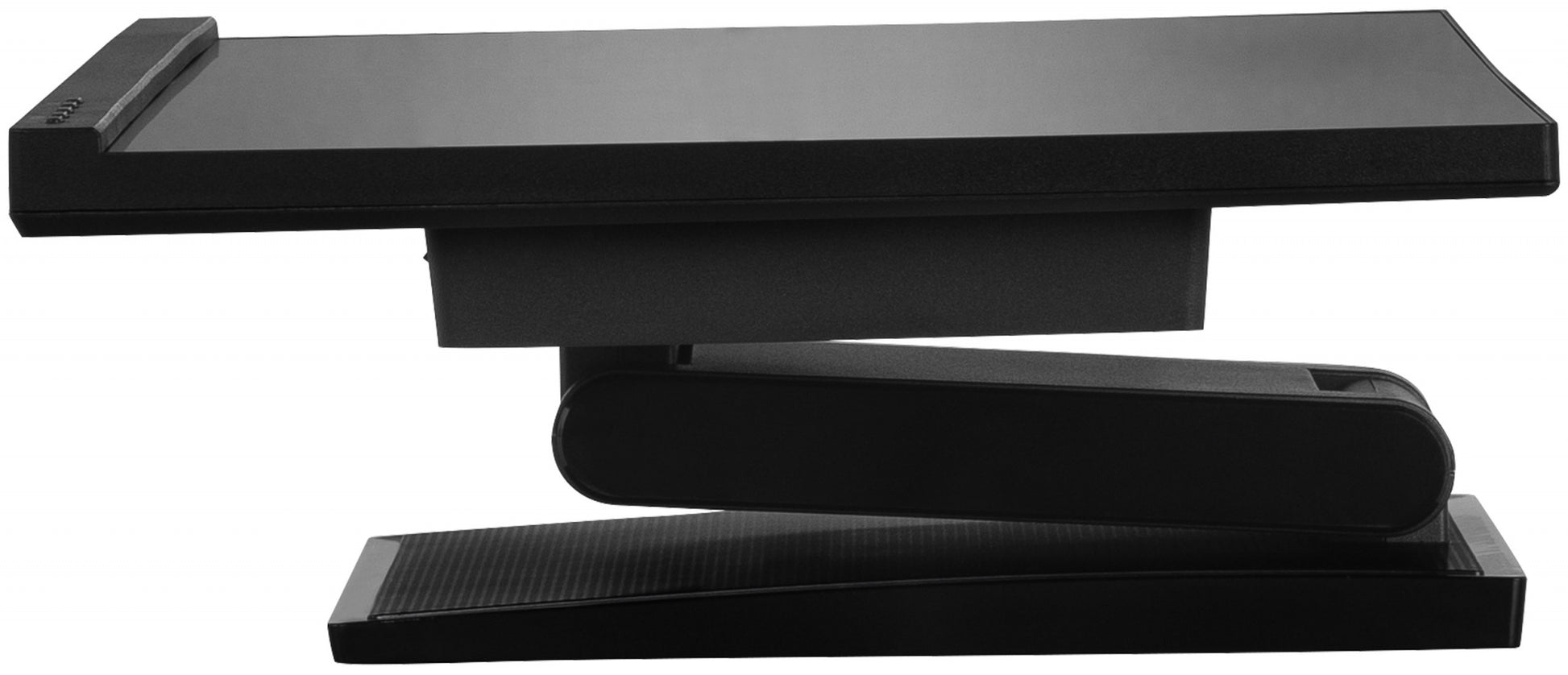

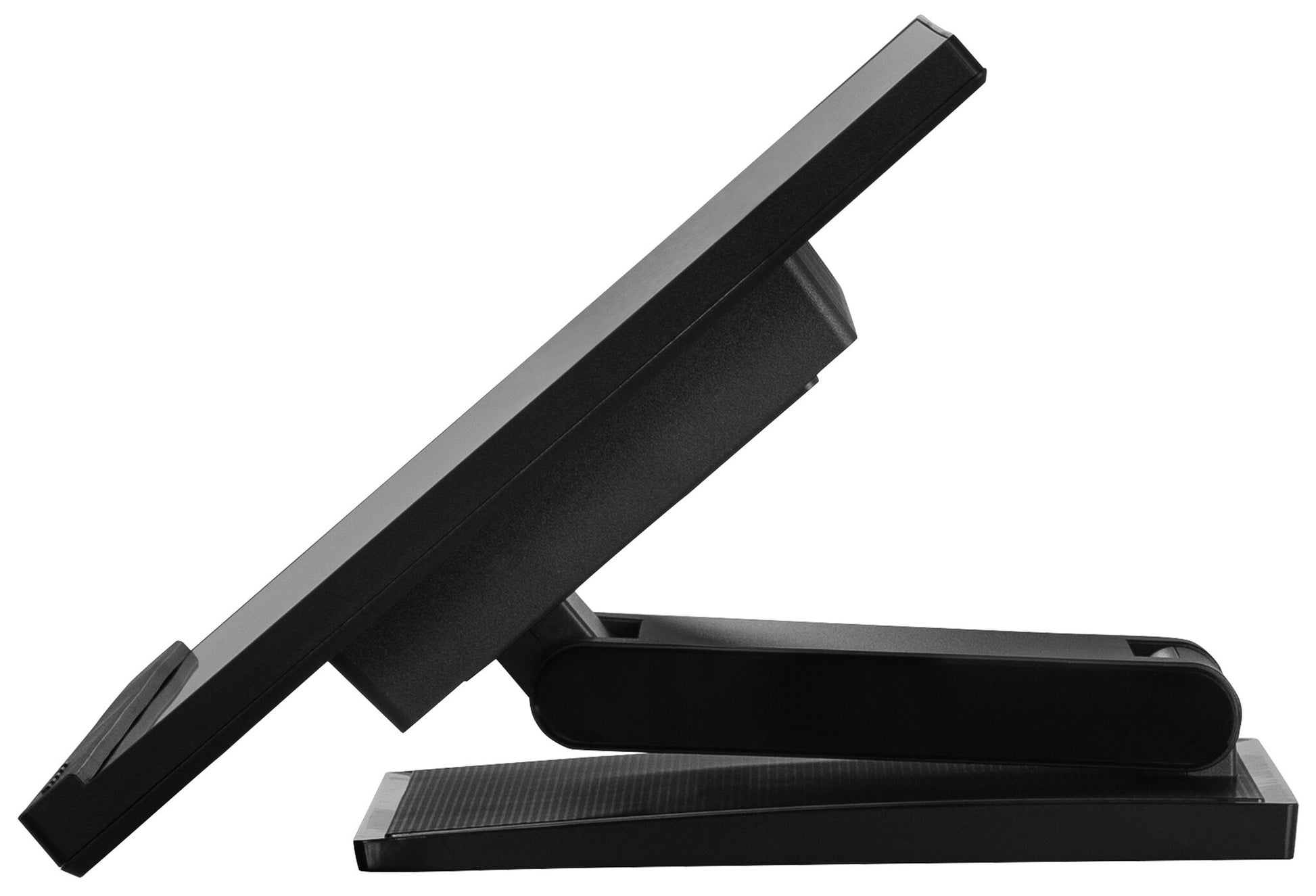

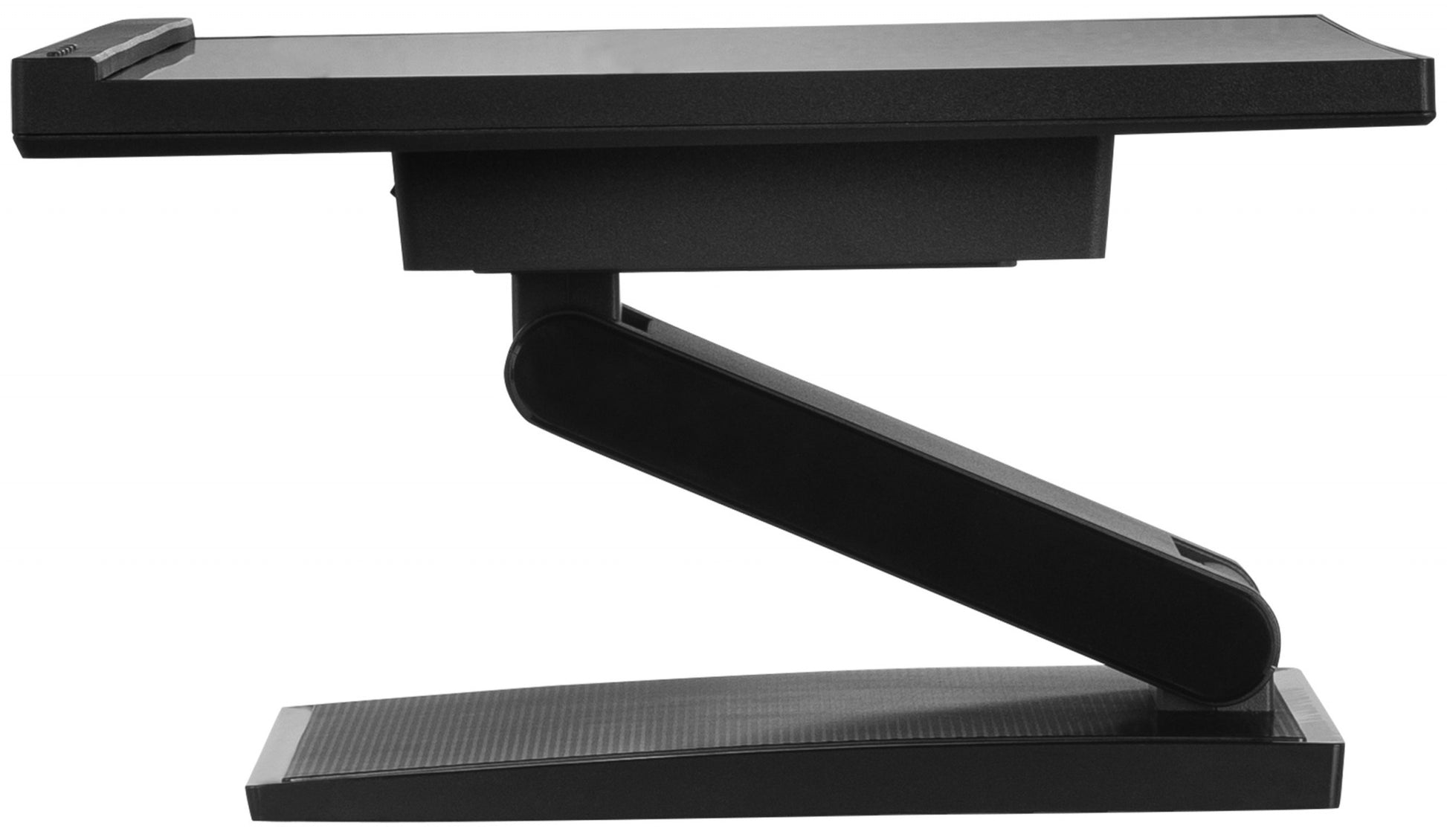

Tilt angle range
3.5 - 85°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Tilt adjustment
Yes
Power
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
16 kWh
Power consumption (typical)
19 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
488.5 mm
Depth (with stand)
238.5 mm
Height (with stand)
343 mm
Weight (with stand)
4.9 kg
Weight (without stand)
2.7 kg
Packaging data
Stand included
Yes
Cables included
AC, USB, HDMI
Quick start guide
Yes
Package width
599 mm
Package depth
174 mm
Package height
389 mm
Package weight
6.9 kg
Technical details
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Depth
238.5 mm
Width
488.5 mm
Height
343 mm
Weight
4.9 kg
Active display area (W x H)
476.06 x 267.79 mm
USB ports quantity
2
Mean time between failures (MTBF)
50000 h
Control panel
Power, menu, + , -, exit
Touch method
stylus, finger, glove (latex)
User controls
Luminance (contrast, brightness, i-Style Color, adv. contrast, Eco), Image settings (Aspect ratio), Color settings (gamma, 6- axis, color temp), OSD (OSD horizontal position, OSD vertical position, OSD time, language), Extra (reset, DDC/CI, signal select, OverDrive, logo, information)
Touchscreen
Touchscreen
Yes
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Number of simultaneous touchpoints
10
USB Touch port
Yes
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Contrast ratio (dynamic)
50000000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.274 x 0.274 mm
Display diagonal (metric)
54.6 cm
HDCP
Yes
