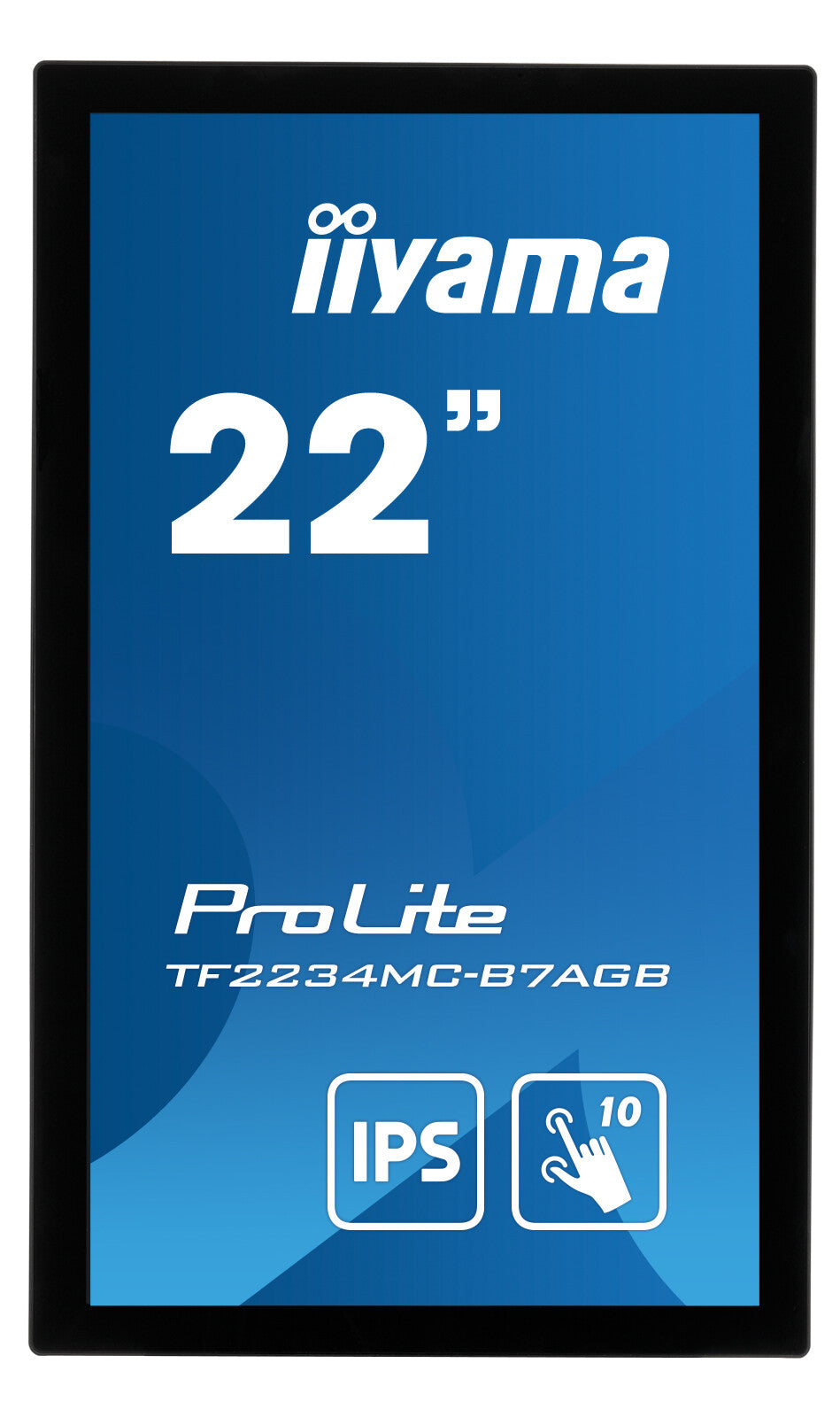

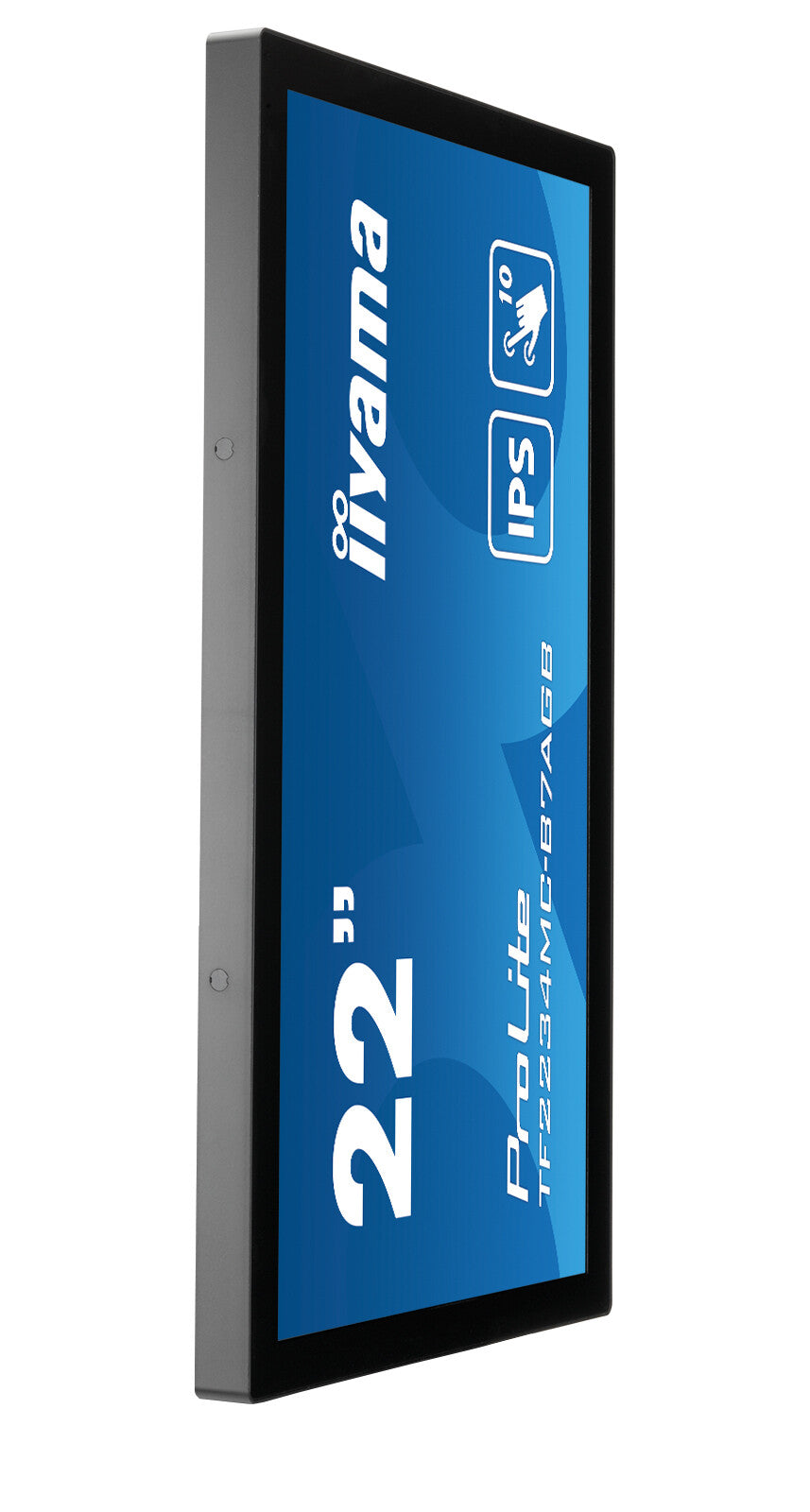

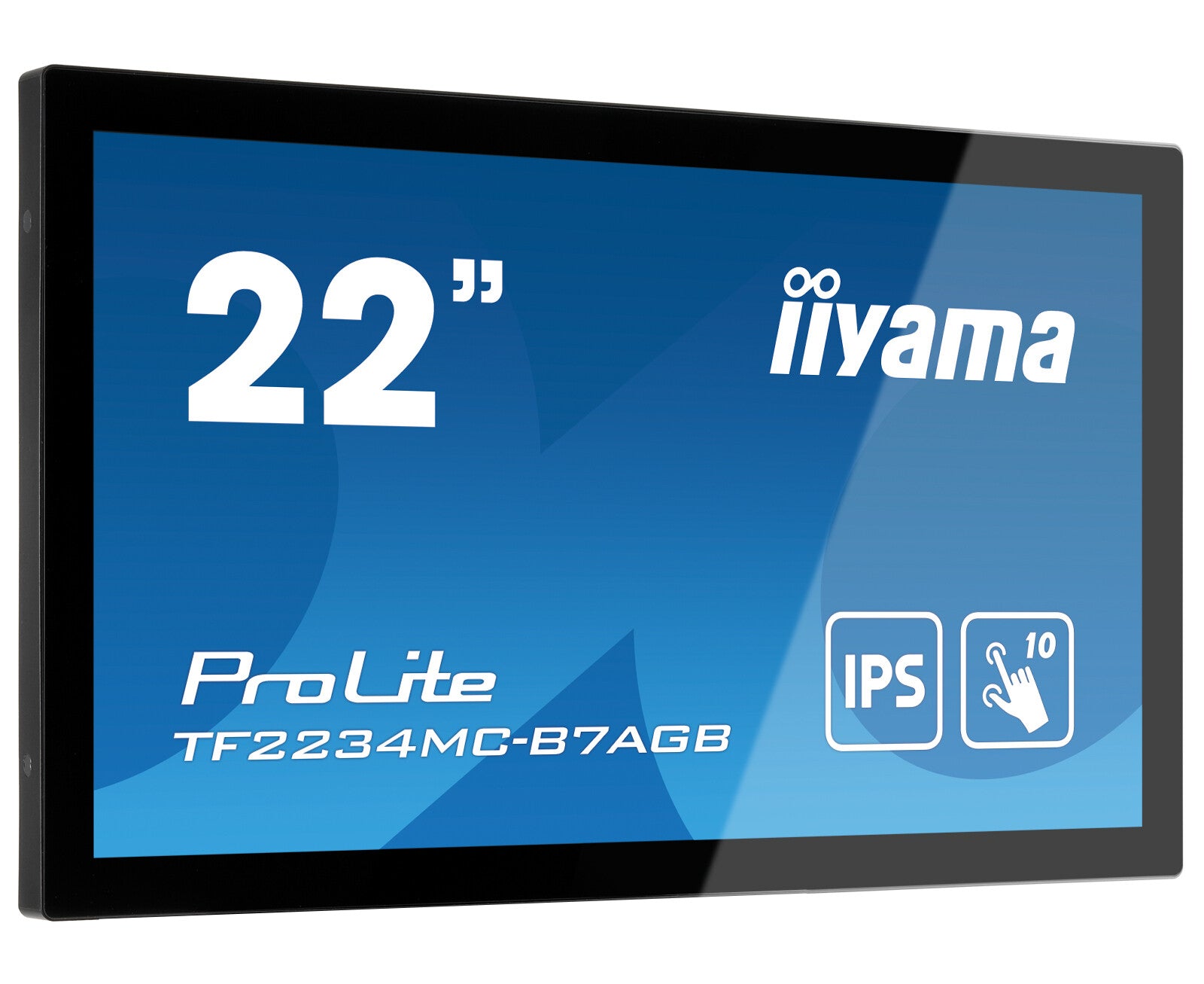

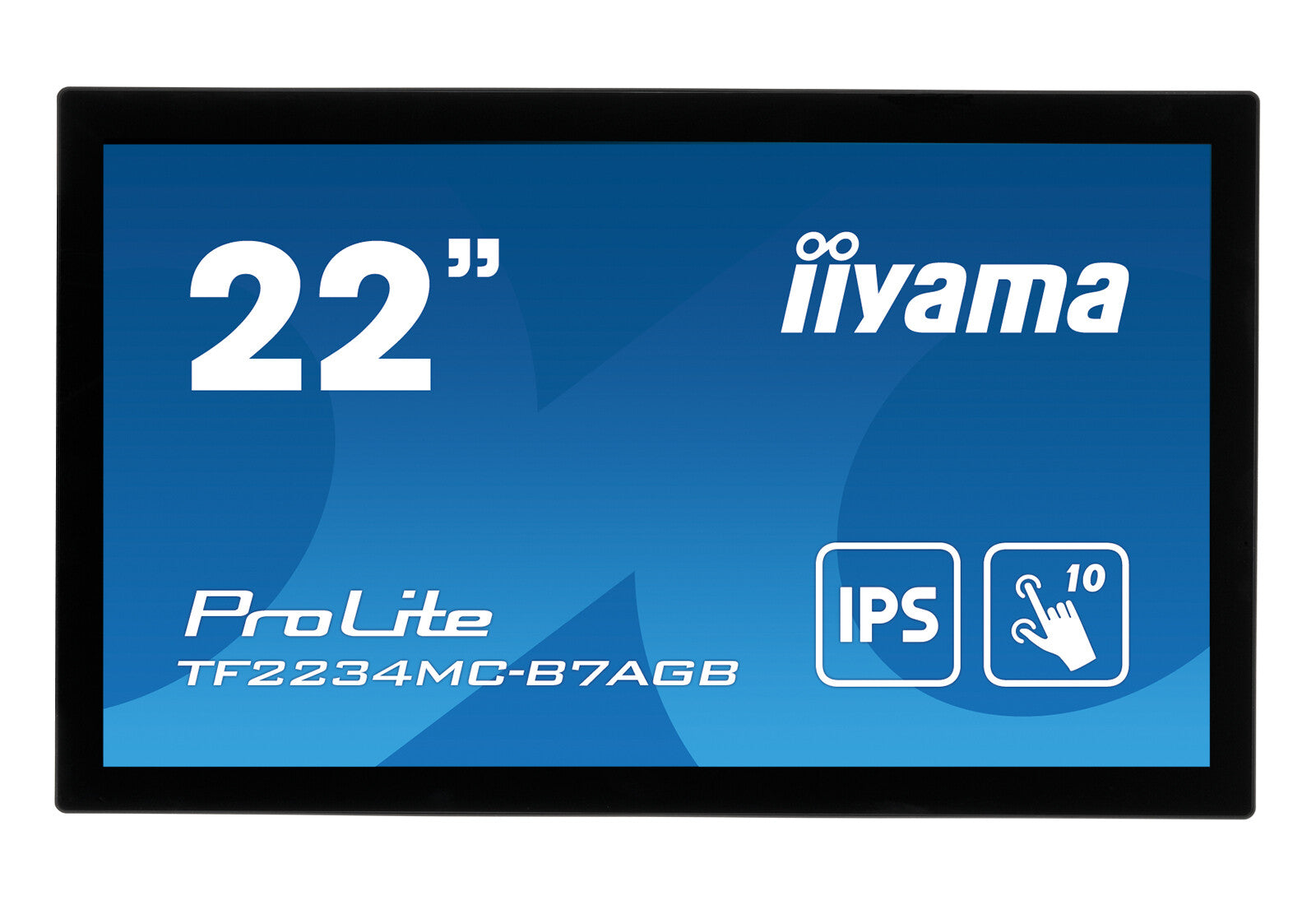

TF2234MC-B7AGB

10pt touch open frame monitor with Anti-Glare Glass and high brightness

  • 54.6 cm (21.5") Black
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Response time: 8 ms Response time measurement type: GTG (Gray to Gray)
  • 1920 x 1080 pixels Full HD Panel type: IPS
  • Energy efficiency class (SDR): F ErP CE, cULus, EAC, REACH, RoHS, WEEE
  • SKU:4948570118373
  • GTIN:4948570118373
  • MPN:TF2234MC-B7AGB

You need to login to view the price.

View full details

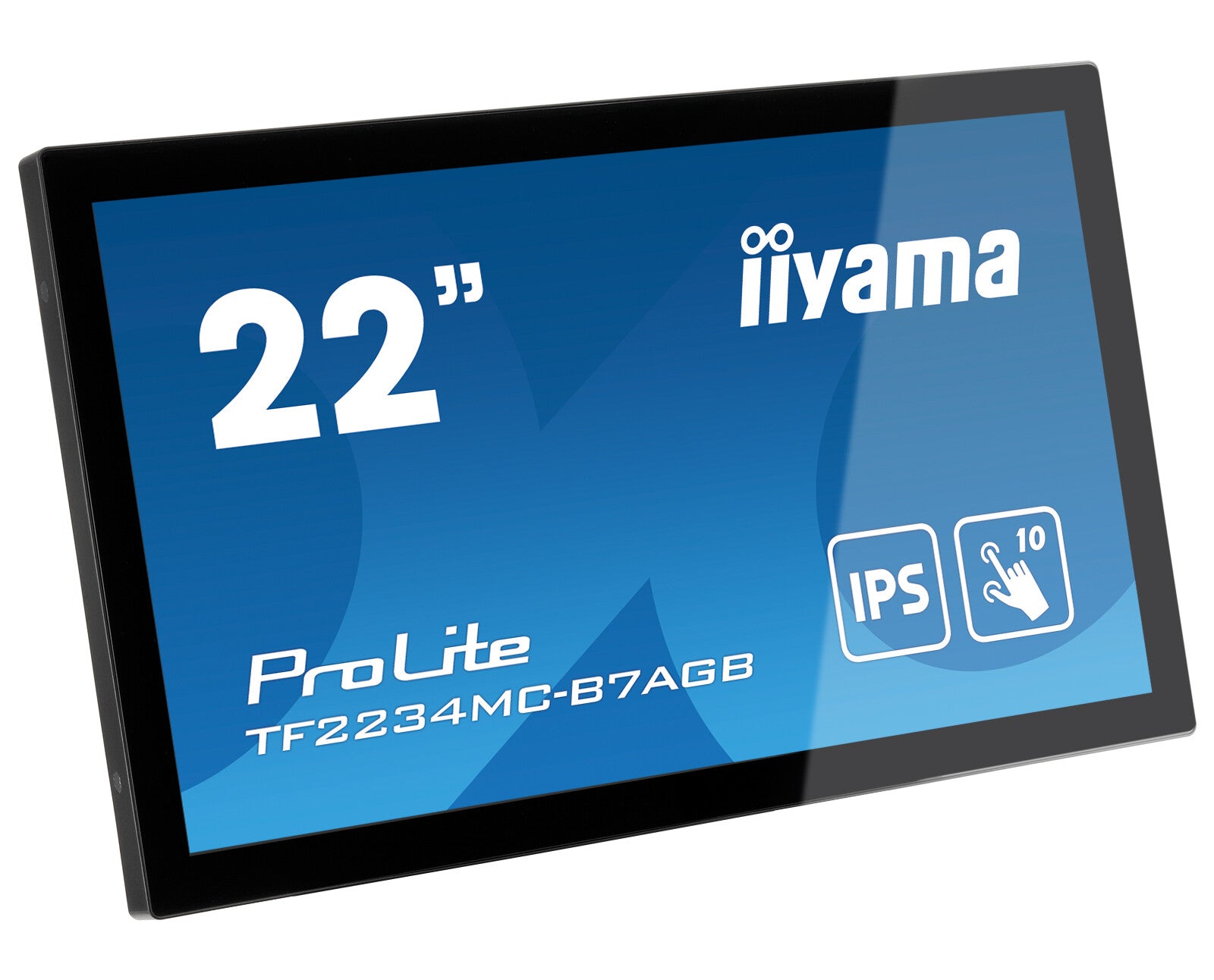

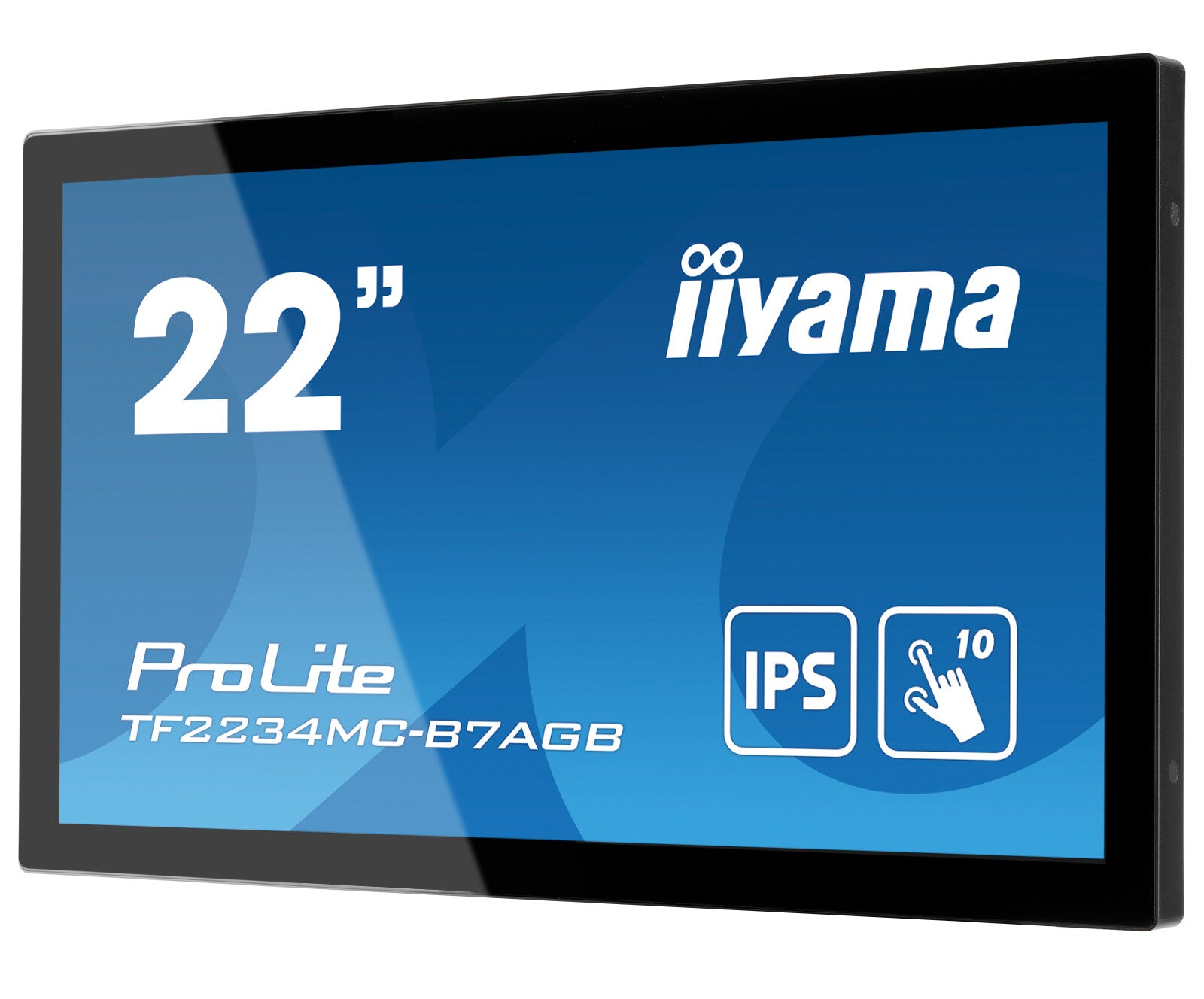

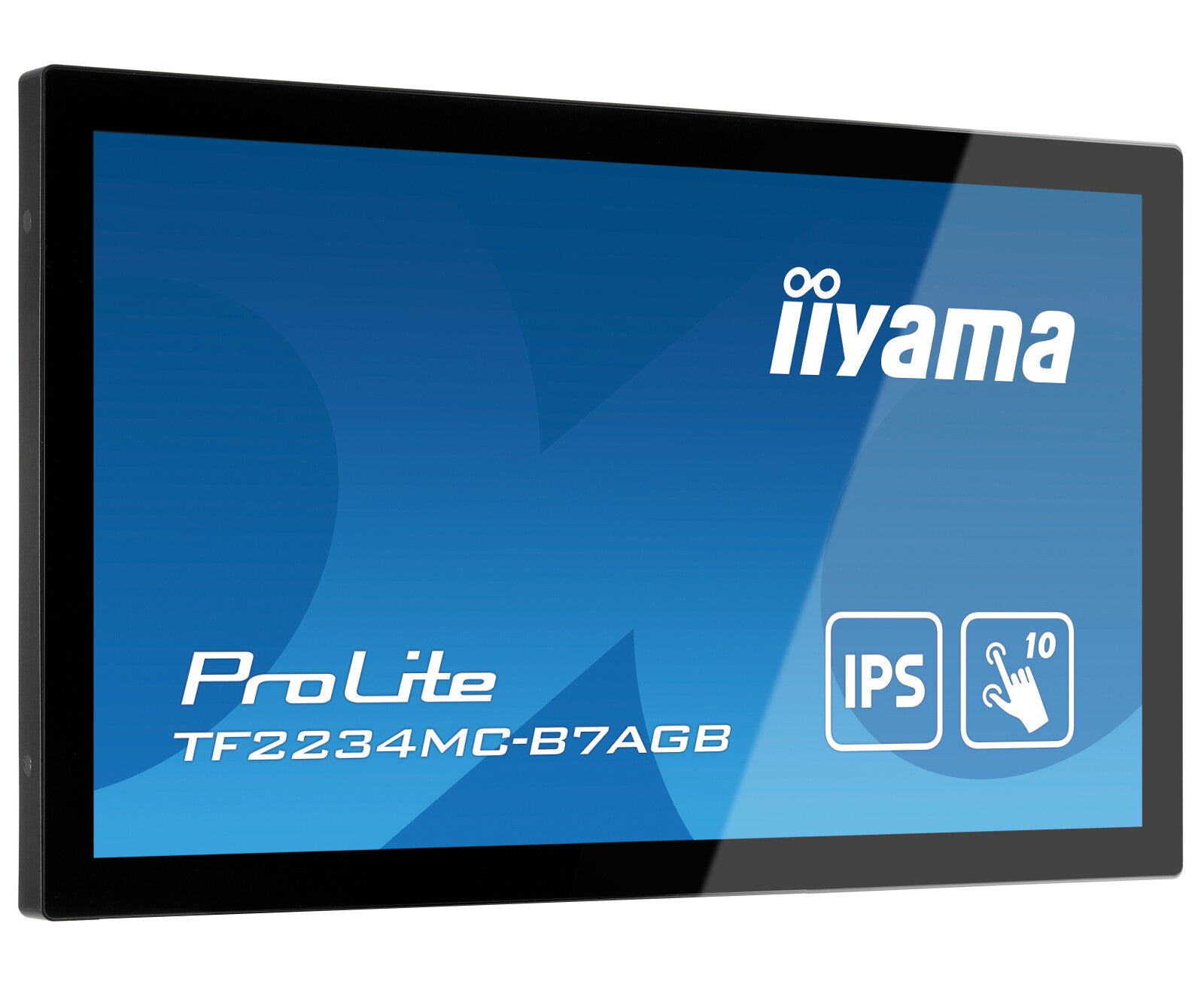

iiyama ProLite 10pt touch open frame monitor with Anti-Glare Glass and high brightness. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

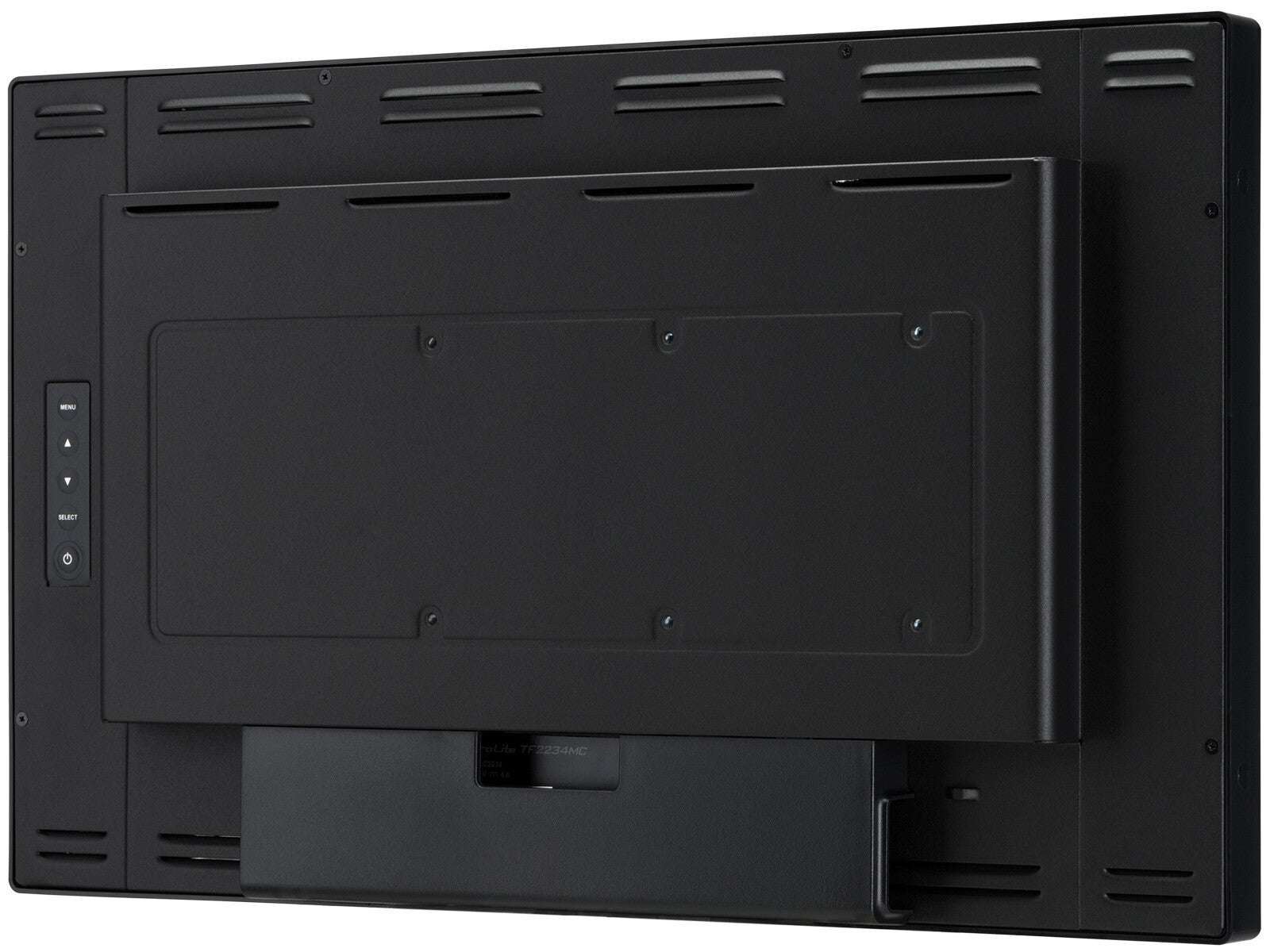

The ProLite TF2234MC-B7AGB uses PCAP Touch technology, and it is built into an eye-catching bezel with edge-to-edge glass. Featuring IPS LCD Screen technology, it offers exceptional colour performance and wide viewing angles. The higher brightness ensures crispy and clear images, even in a bright environment. In addition to the superb image quality, the screen is suitable for demanding environments. It comes with a rugged bezel and IP65 rating, meaning the monitor is dust and water resistant from the front. The Anti Glare Glass helps to avoid issues with reflections and external light sources affecting contrast and sharpness. The ProLite TF2234MC-B7AGB is the ideal screen for kiosk integrators and a superb display for use as Interactive Digital Signage, Instore Retail and Interactive Presentation display. For ease of integration, this monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

Display
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
Panel type
IPS
Touchscreen technology
Projected capacitive system
Display brightness (typical)
350 cd/m²
Response time
8 ms
Response time measurement type
GTG (Gray to Gray)
Display brightness
300 cd/m²
Anti-glare screen
Yes
Screen shape
Flat
Contrast ratio (typical)
1000:1
Display number of colours
16.7 million colours
Horizontal scan range
30 - 84 kHz
Viewable size, horizontal
47.6 cm
Viewable size, vertical
26.8 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection
Yes
Design
Product colour
Black
Front bezel colour
Black
Glass thickness
1.5 mm
International Protection (IP) code
IP65
Ergonomics

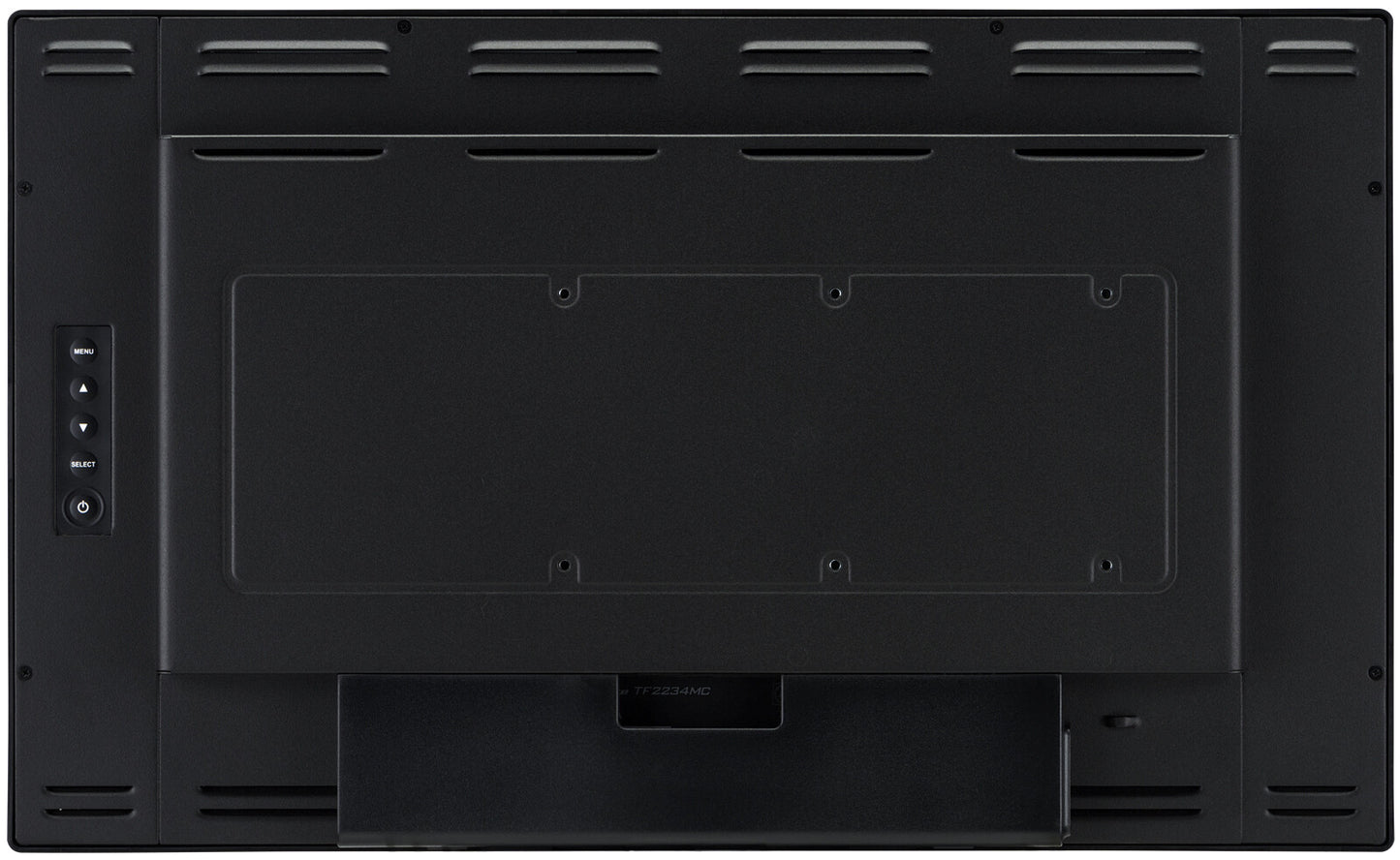

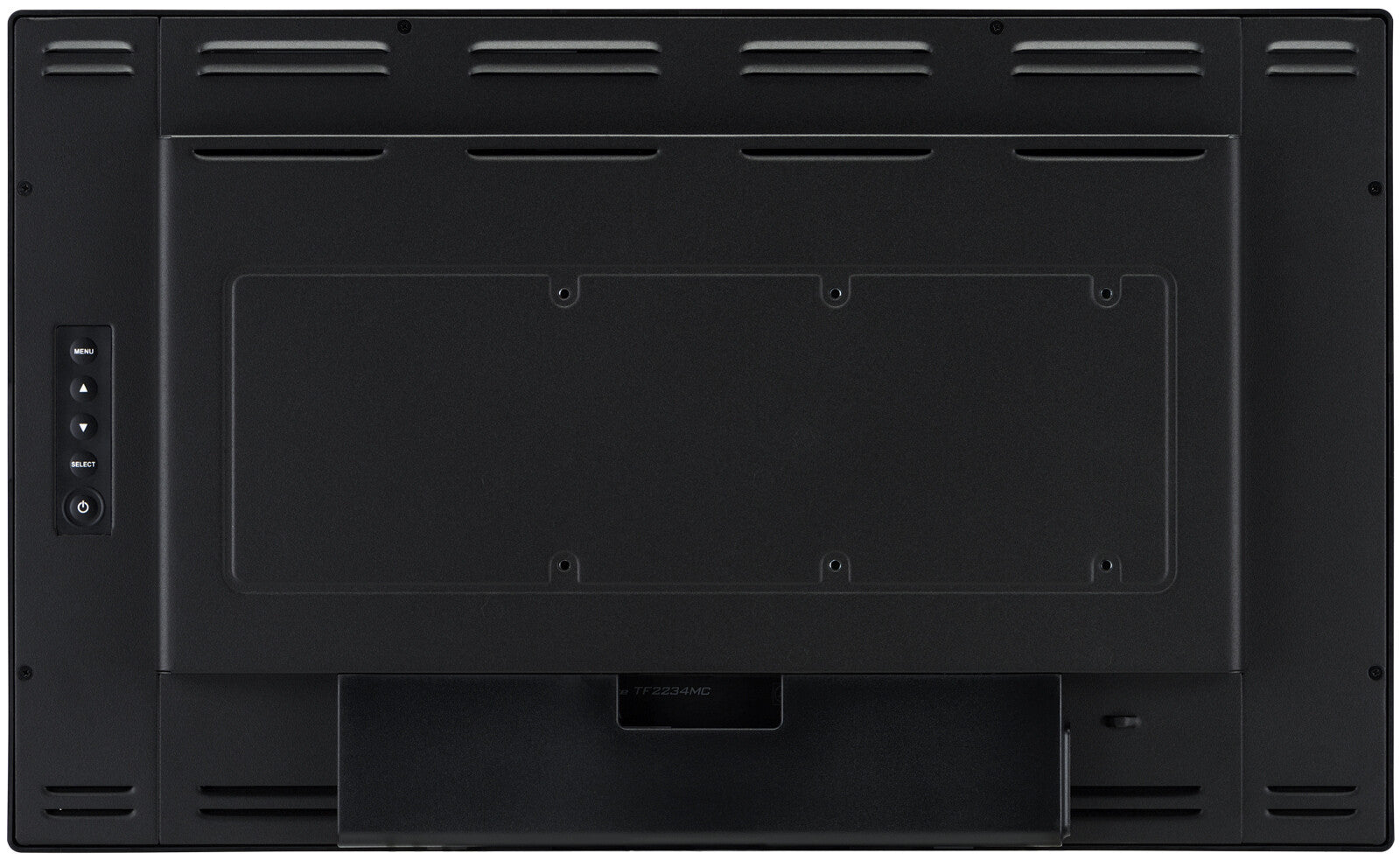

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
Number of OSD languages
9
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian
Power
Energy efficiency class (SDR)
F
Energy consumption (SDR) per 1000 hours
19 kWh
Power consumption (typical)
18 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
517.5 mm
Depth (with stand)
46 mm
Height (with stand)
313.5 mm
Weight (with stand)
4.4 kg
Width (without stand)
517.5 mm
Depth (without stand)
46 mm
Height (without stand)
313.5 mm
Weight (without stand)
4.4 kg
Packaging data

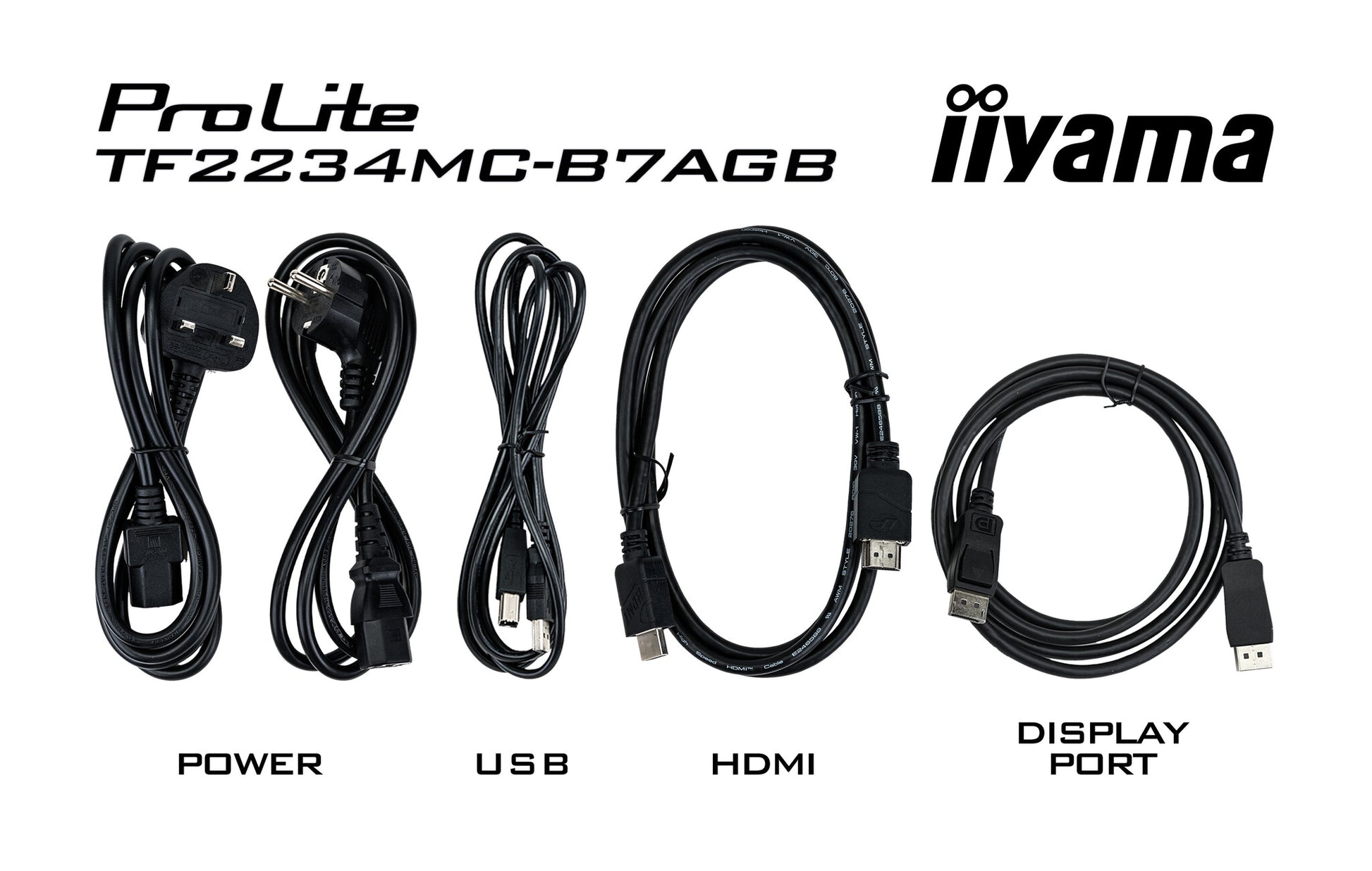

Cables included
AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Package width
610 mm
Package depth
160 mm
Package height
405 mm
Package weight
6.8 kg
Logistics data
Harmonized System (HS) code
85285210
Products per pallet
48 pc(s)
Pallet net width
109 cm
Pallet net length
192.7 cm
Pallet net height
109 cm
Technical details
Compliance certificates
CE, cULus, EAC, REACH, RoHS, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter
Brightness
300 cd/m²
Depth
46 mm
Width
517.5 mm
Height
313.5 mm
Weight
4.4 kg
Active display area (W x H)
476 x 267.7 mm
Placement supported
Horizontal/Vertical
Display viewable area (HxV)
476 x 267.7 mm

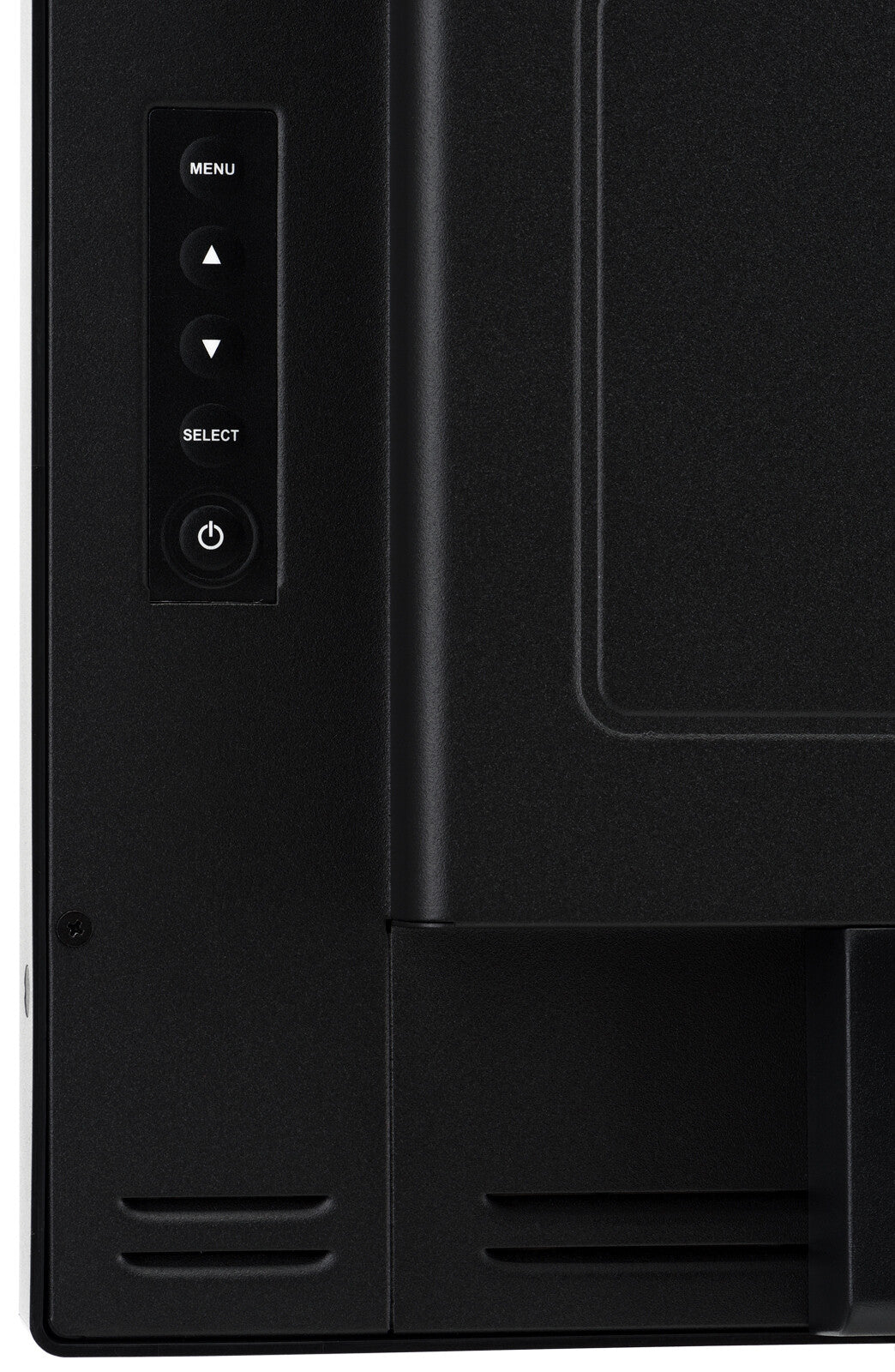

Control panel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Touch method
stylus, finger, glove (latex)
User controls
picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Touchscreen
Touchscreen
Yes
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Built-in camera
No
Touch technology
Multi-touch
Touchscreen type
Multi-user
Number of simultaneous touchpoints
10
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.247 x 0.247 mm
Built-in microphone
No
Display diagonal (metric)
54.6 cm
HDCP
Yes
Surface hardness
6H
