TF2234MC-B7X

TF2234MC-B7X

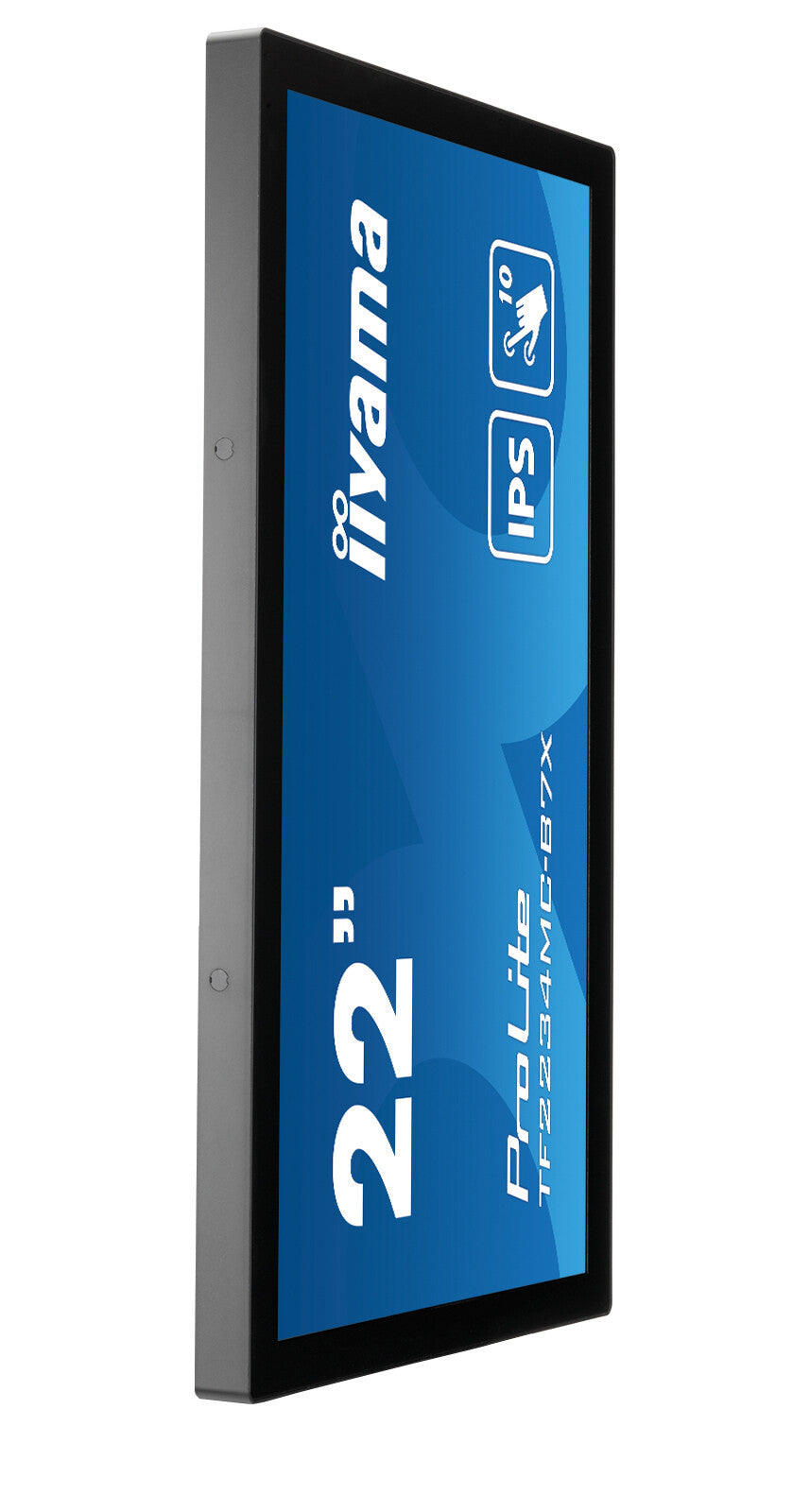

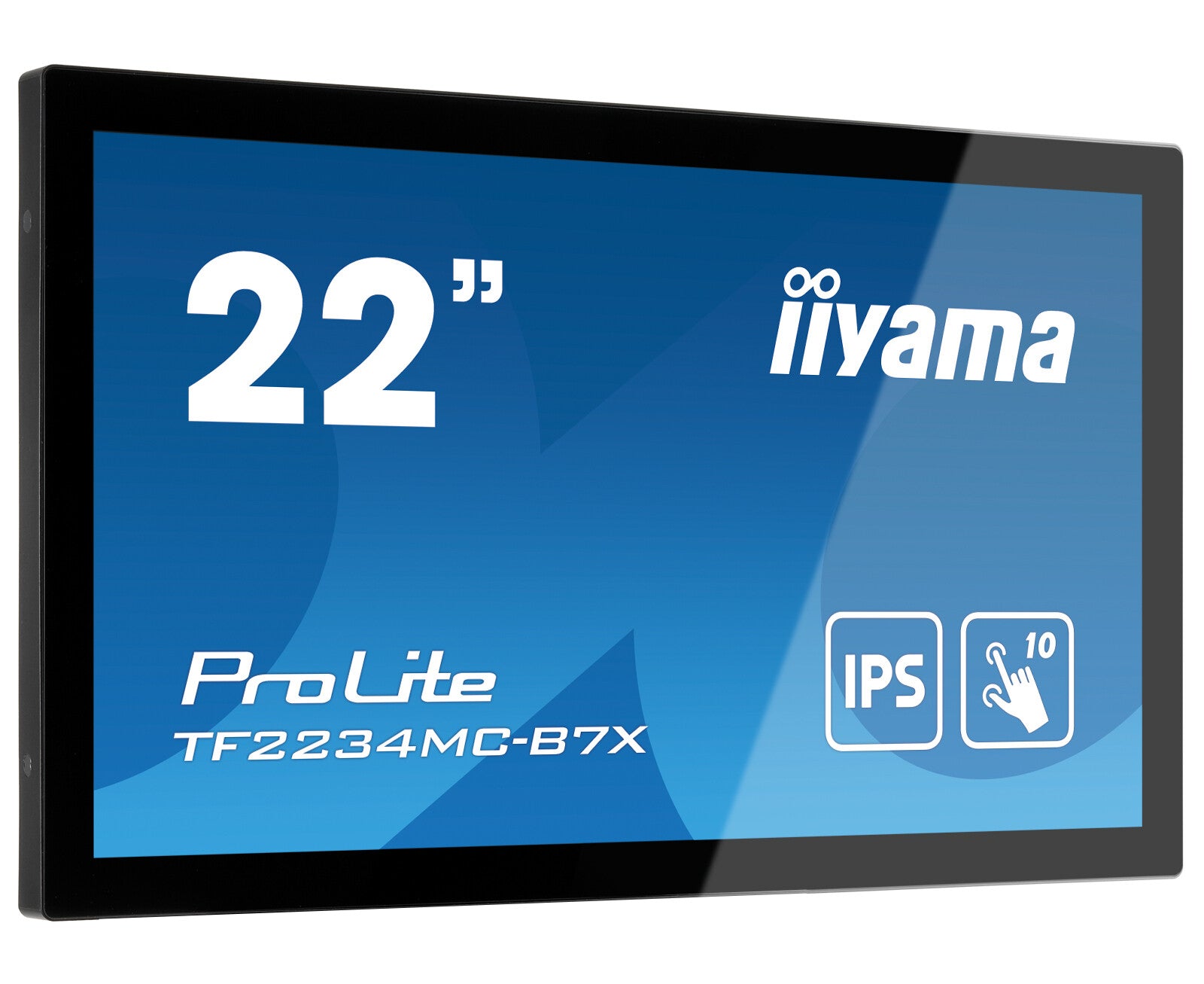

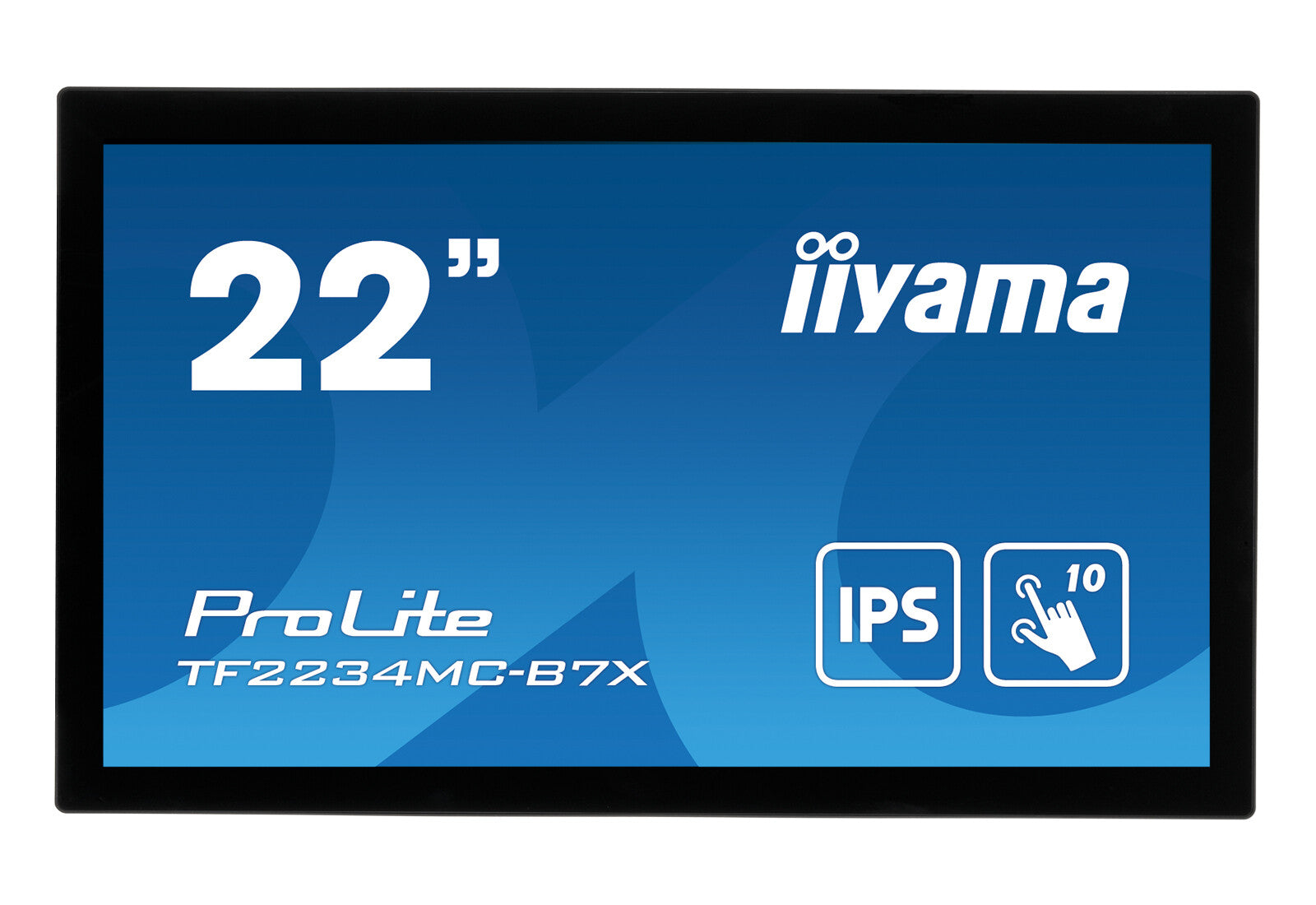

22" 10pt touch Open Frame monitor with IPS panel and touch through glass function

  • Touchscreen 54.6 cm (21.5") LED IPS
  • Full HD 1920 x 1080 pixels 16:9
  • 8 ms 1000:1
  • F 19 kWh 18 W
  • SKU:4948570118366
  • GTIN/EAN:4948570118366
  • MPN:TF2234MC-B7X
Add To Favorite

You need to login to view the price.

View full details

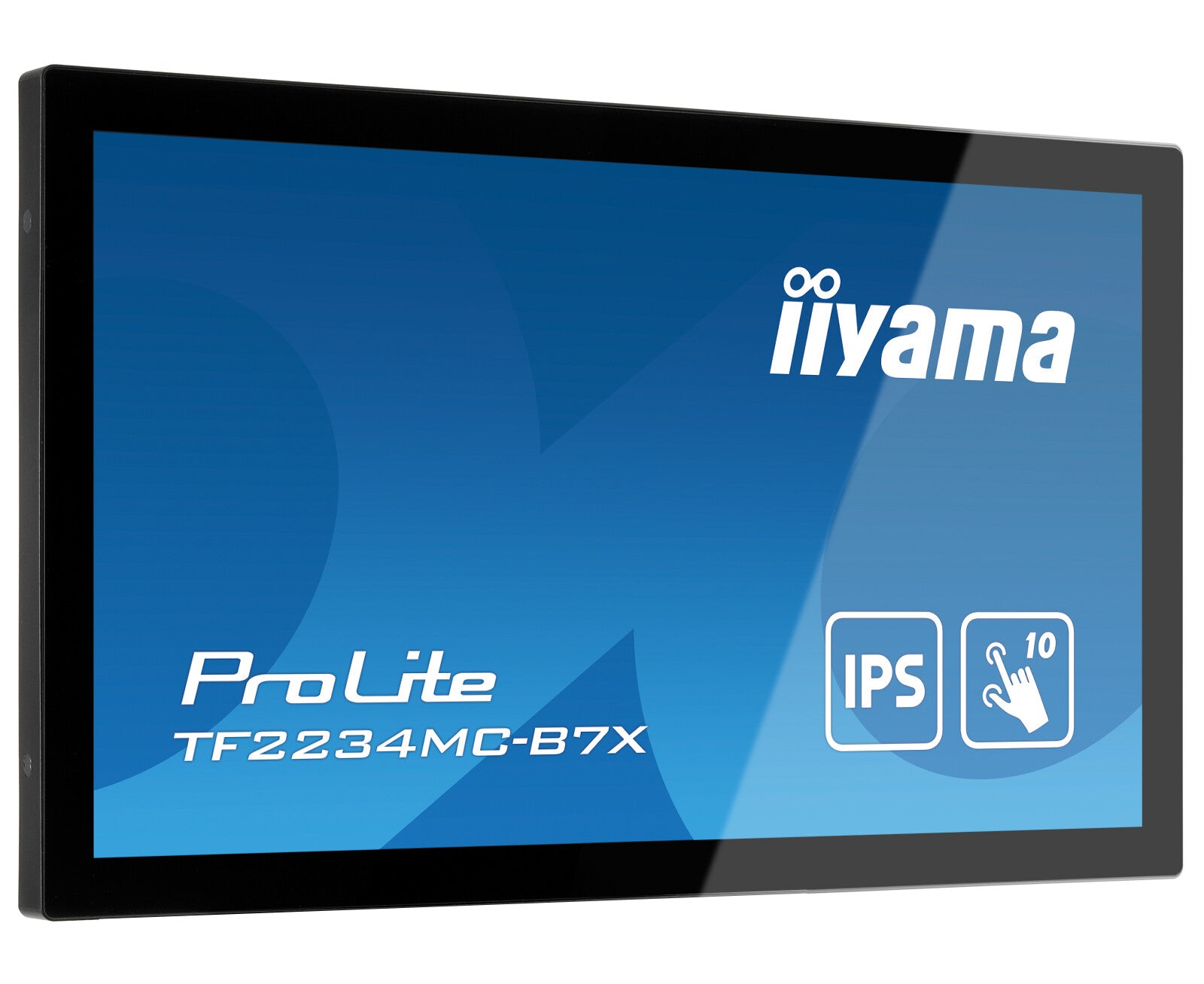

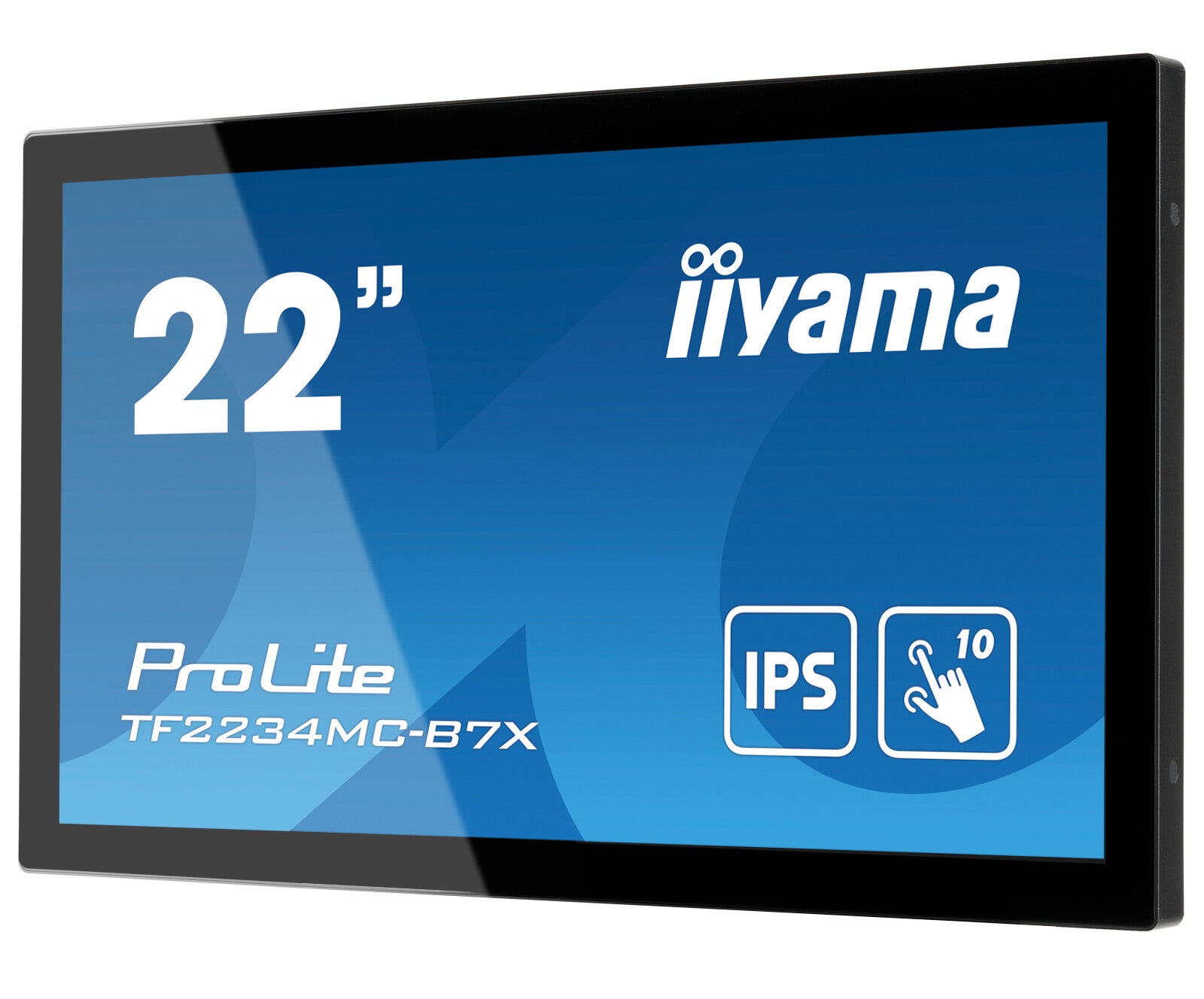

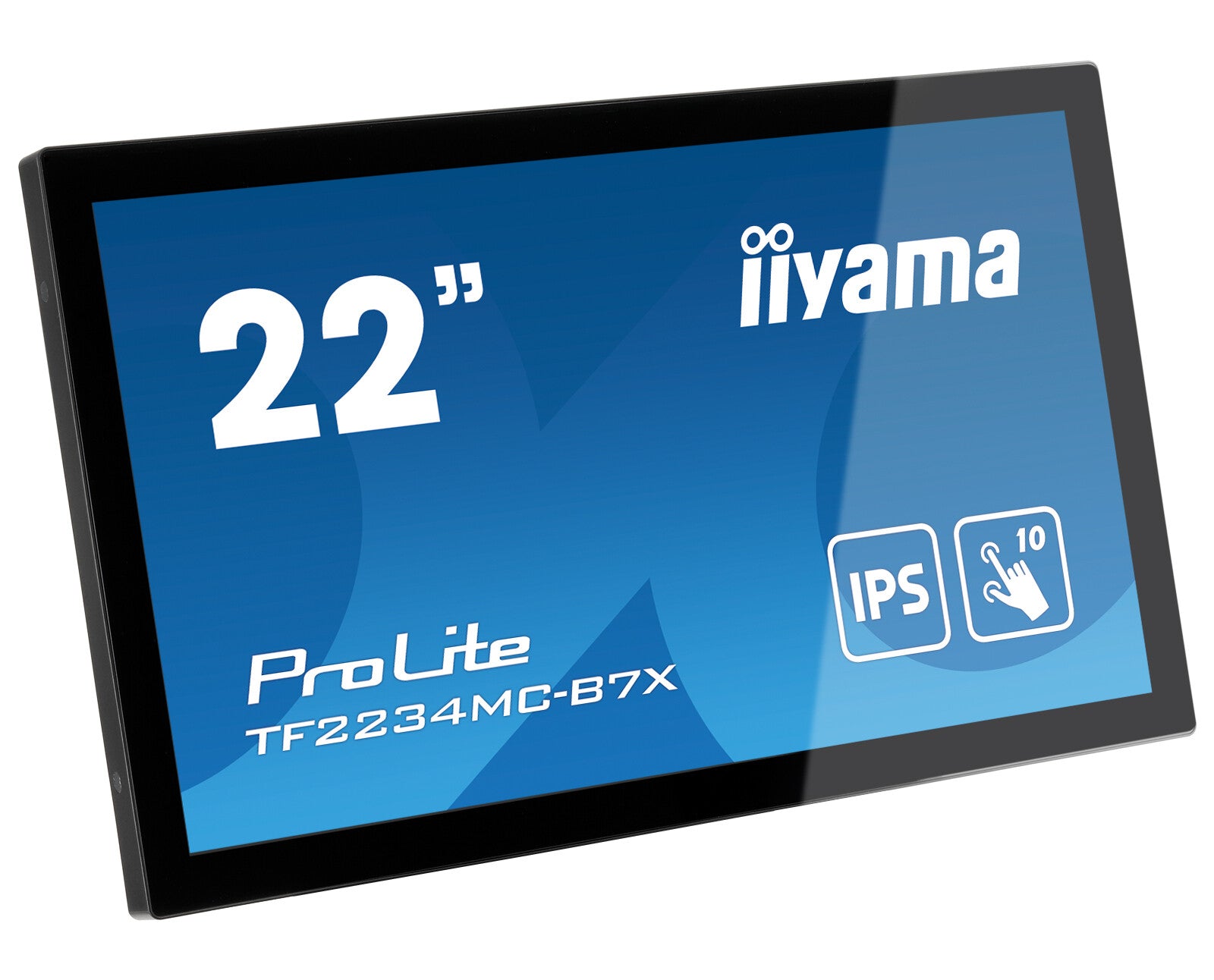

iiyama ProLite 22" 10pt touch Open Frame monitor with IPS panel and touch through glass function. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Product colour: Black

The ProLite TF2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail. For ease of integration, this monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

Display
Horizontal scan range
30 - 84 kHz
Display number of colours
16.78 million colours
Contrast ratio (typical)
1000:1
Screen shape
Flat
Display brightness
350 cd/m²
Response time
8 ms
Touchscreen technology
Projected capacitive system
Panel type
IPS
Display resolution
1920 x 1080 pixels
Display diagonal
54.6 cm (21.5")
Performance
AMD FreeSync
No
NVIDIA G-SYNC
No
Design
Certification
CE, EAC, RoHS, ErP, WEEE, cULus, REACH
International Protection (IP) code
IP65
Glass thickness
1.5 mm
Product colour
Black
Ergonomics

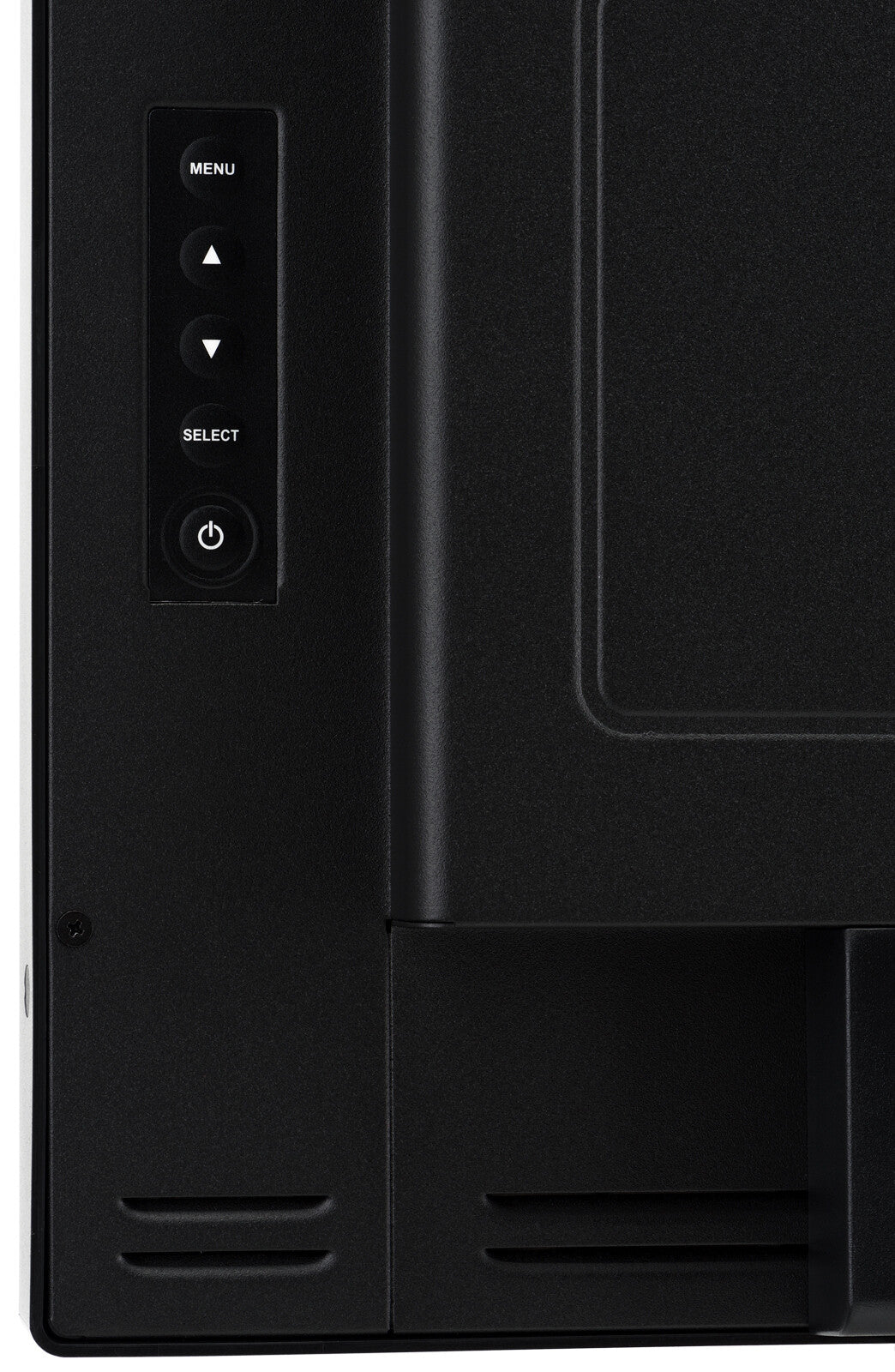

On Screen Display (OSD) languages
Czech, German, English, Spanish, French, Italian, Japanese, Russian
Number of OSD languages
8
On Screen Display (OSD)
Yes
Wall mountable
Yes

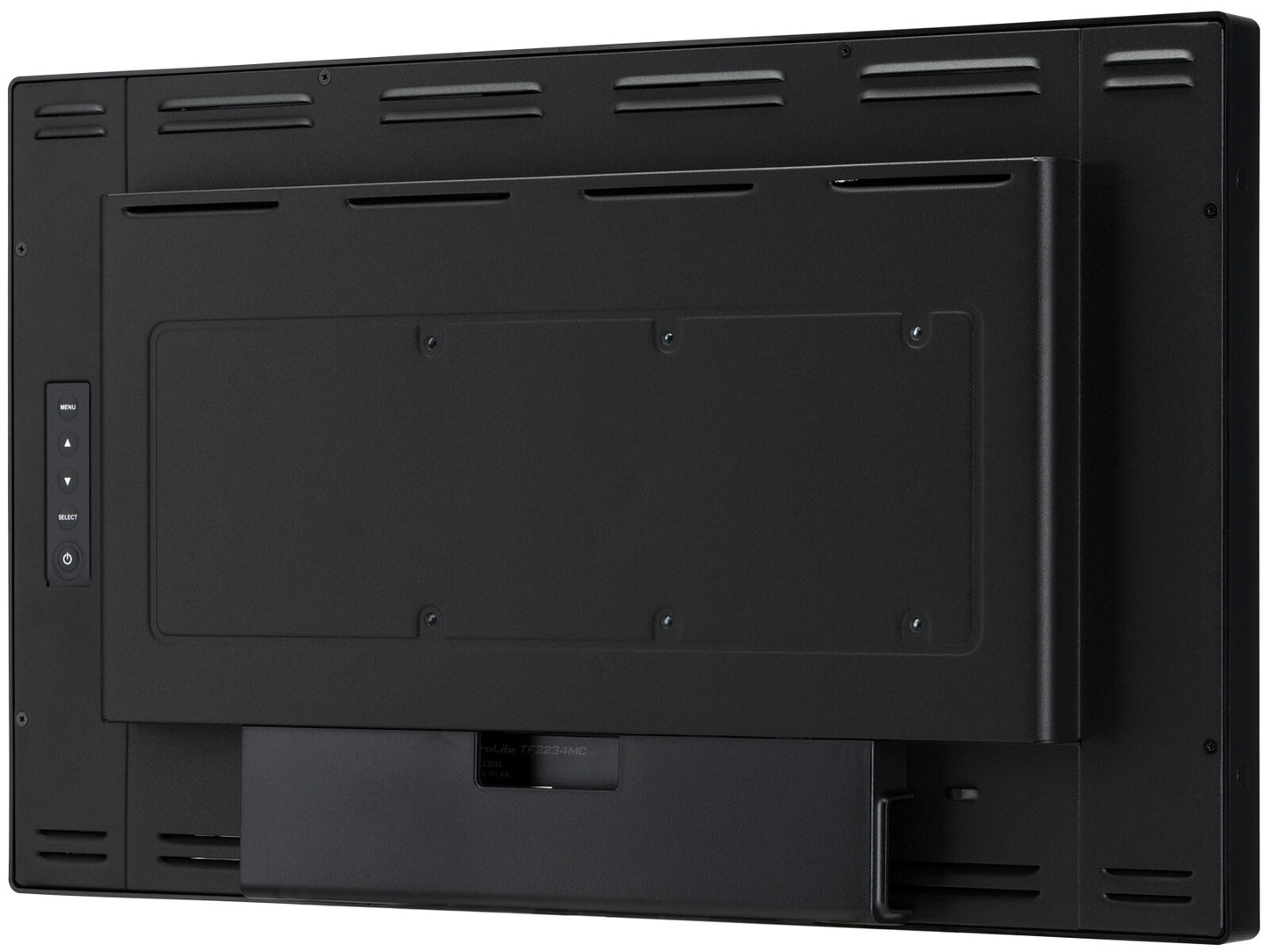

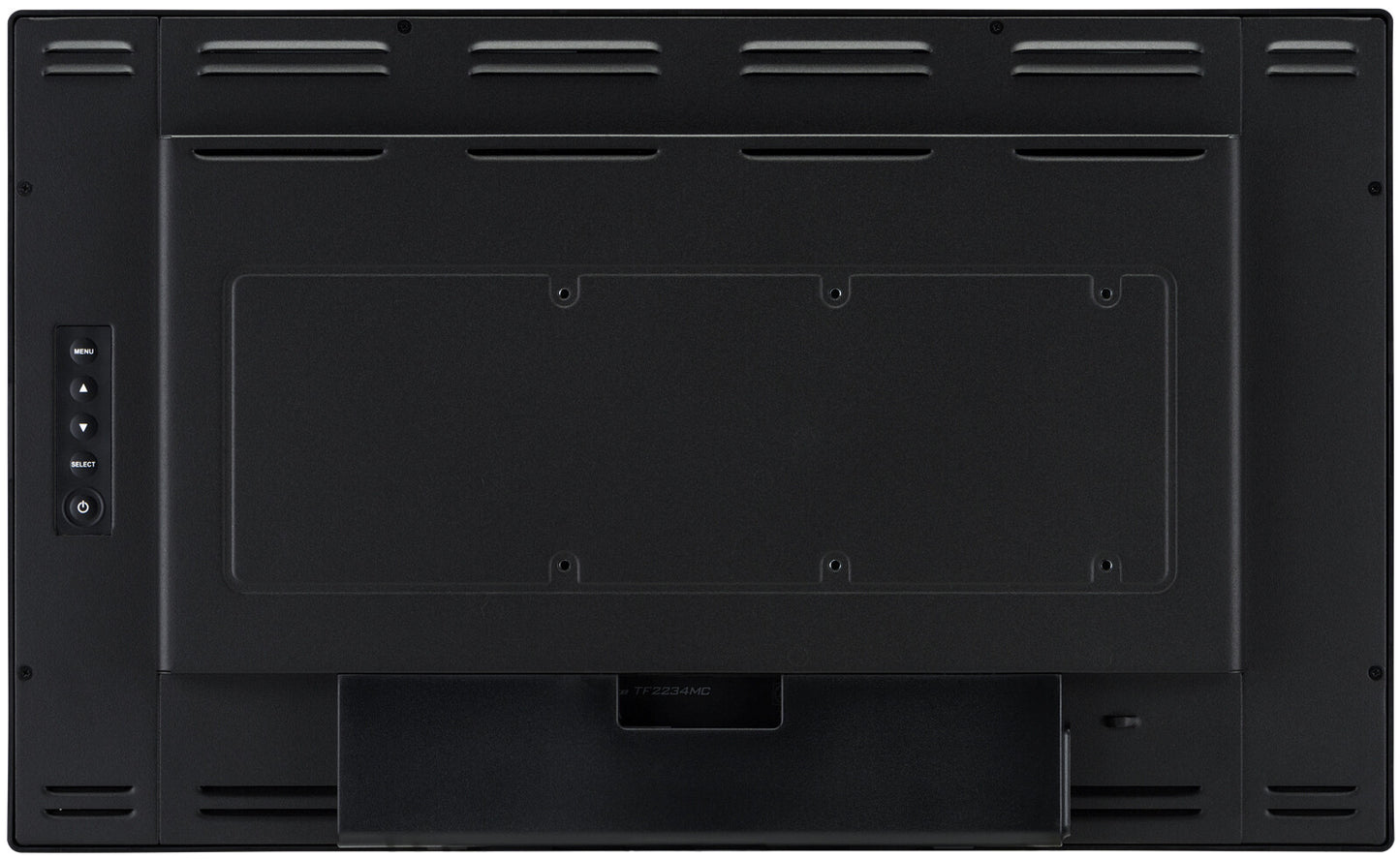

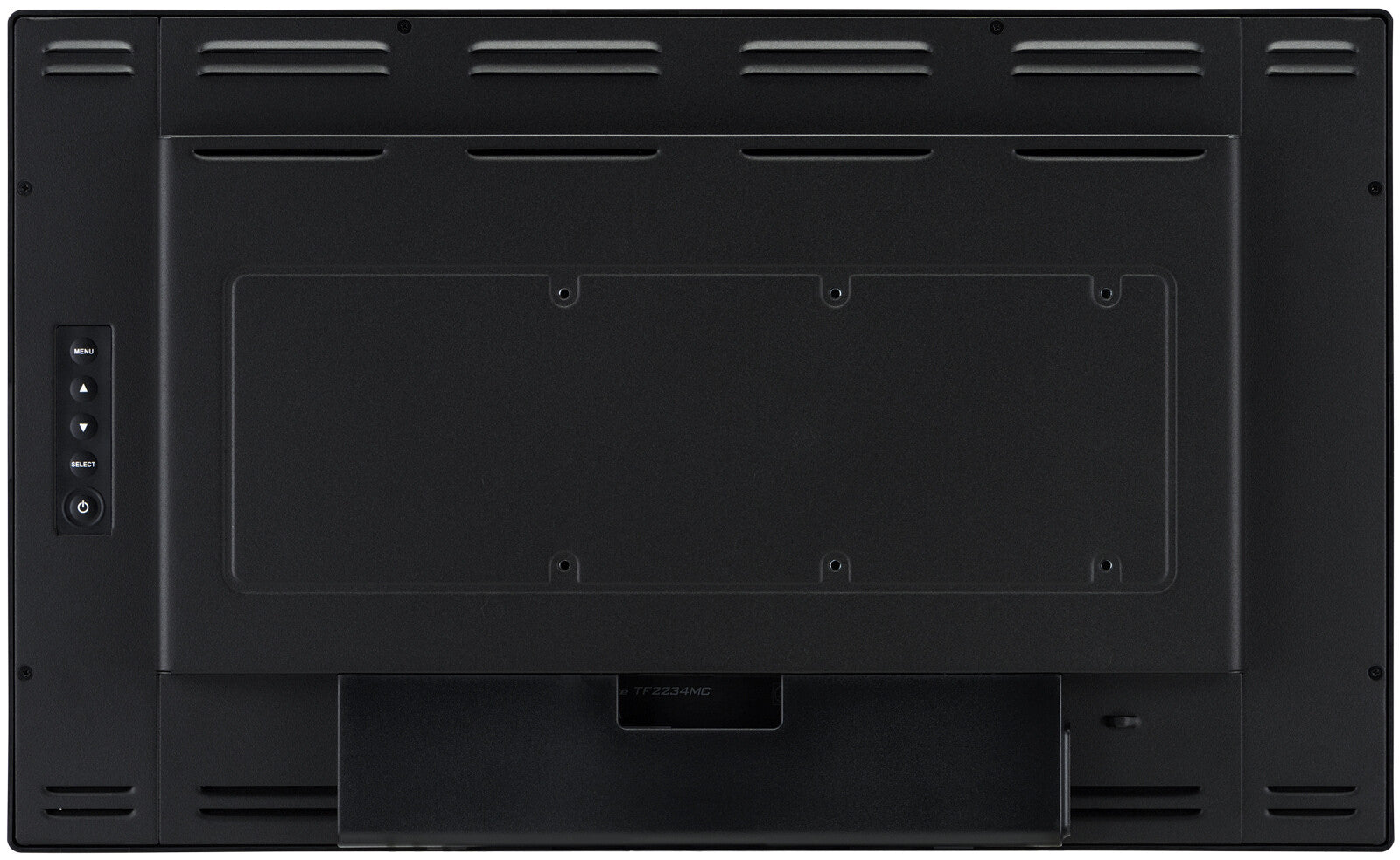

Panel mounting interface
100 x 100 mm
Power
Energy efficiency scale
A to G
Power supply type
DC
Power consumption (off)
0.3 W
Power consumption (standby)
1.5 W
Power consumption (typical)
18 W
Energy consumption (SDR) per 1000 hours
19 kWh
Energy efficiency class (SDR)
F
Sustainability
Sustainability certificates
ErP
European Product Registry for Energy Labelling (EPREL) code
388725
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (without stand)
4.4 kg
Height (without stand)
313.5 mm
Depth (without stand)
46 mm
Width (without stand)
517.5 mm
Packaging data
Package weight
6.8 kg
Package height
405 mm
Package depth
160 mm
Package width
610 mm

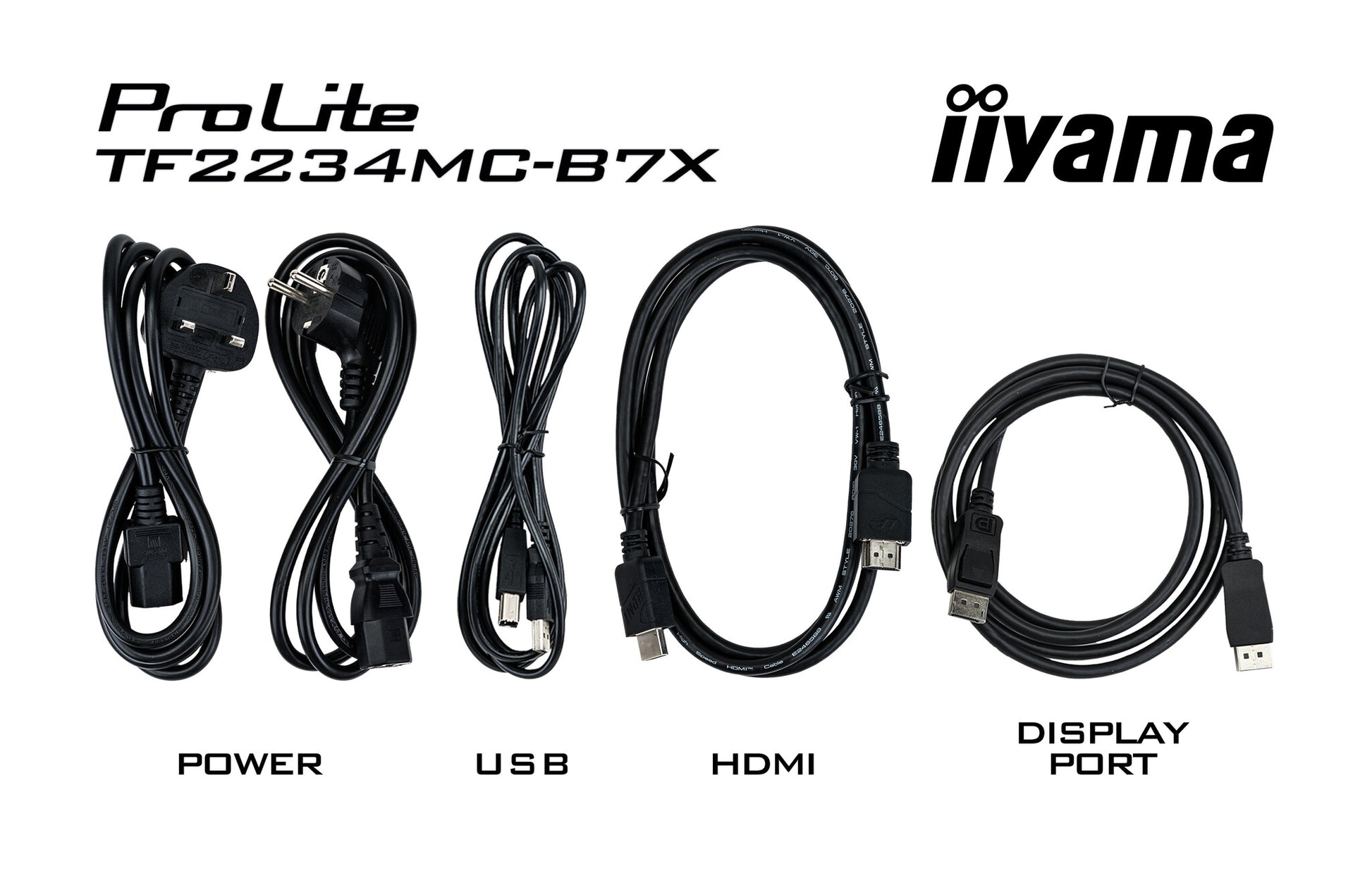

Cables included
AC, DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
CE, REACH, RoHS
Other features
Display viewable area (HxV)
476 x 267.7 mm

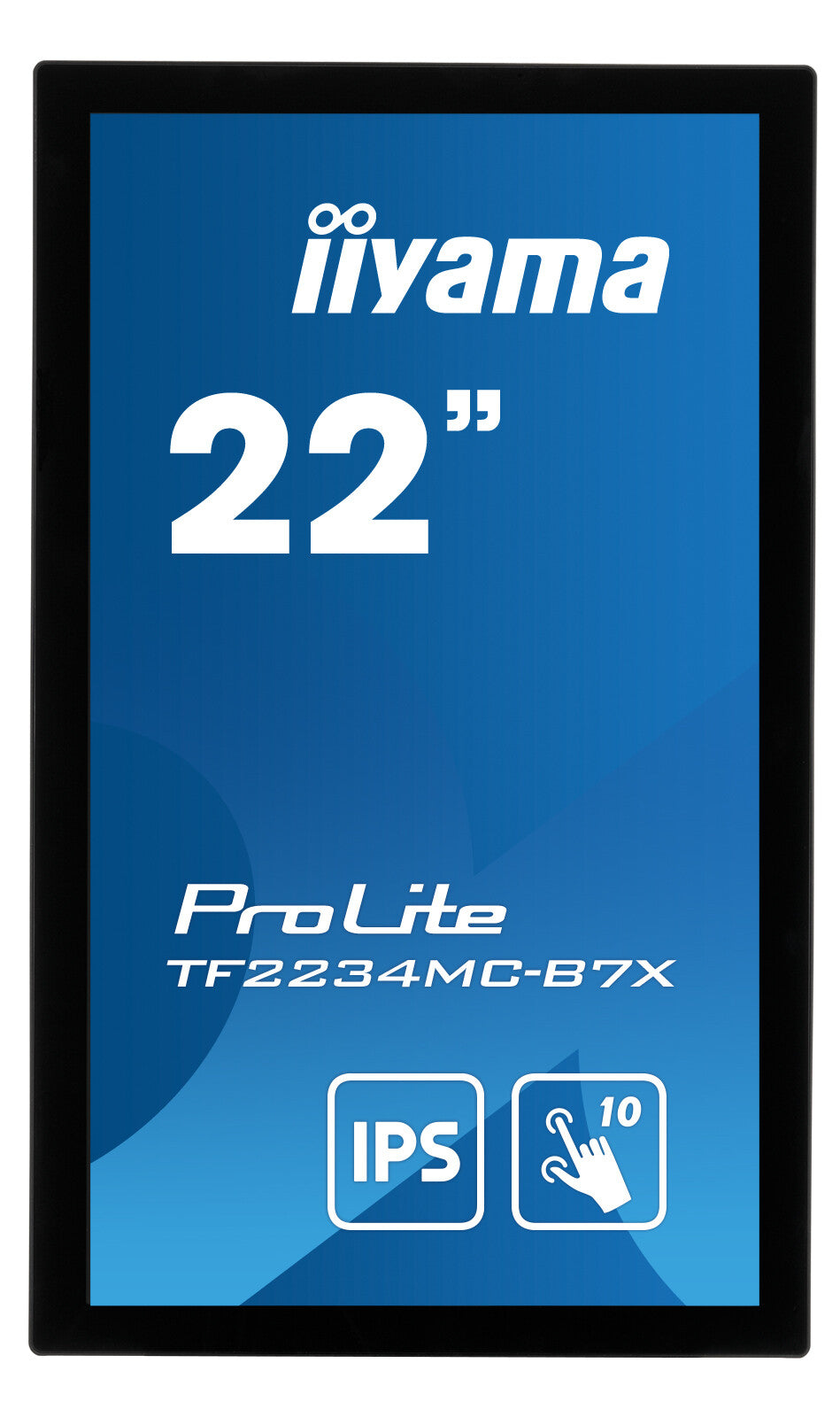

Placement supported
Horizontal/Vertical
Surface hardness
Surface hardness
7H
HDCP
Yes
Built-in microphone
No
Pixel pitch
0.247 x 0.247 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
USB Touch port
Yes
Number of simultaneous touchpoints
10
Touchscreen type
Multi-user
Touch technology
Multi-touch
Built-in camera
No
Display technology
LED
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Yes
