T2234MSC-B1S

22" Full HD 10pt touchscreen featuring IPS panel technology, touch through glass function and anti fingerprint coating

  • 54.6 cm (21.5") Black
  • Built-in speaker(s)
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Response time: 8 ms Response time measurement type: GTG (Gray to Gray)
  • 1920 x 1080 pixels Full HD Panel type: IPS
  • Energy efficiency class (SDR): E ErP CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
  • SKU:4948570122226
  • GTIN:4948570122226
  • MPN:T2234MSC-B1S

You need to login to view the price.

View full details

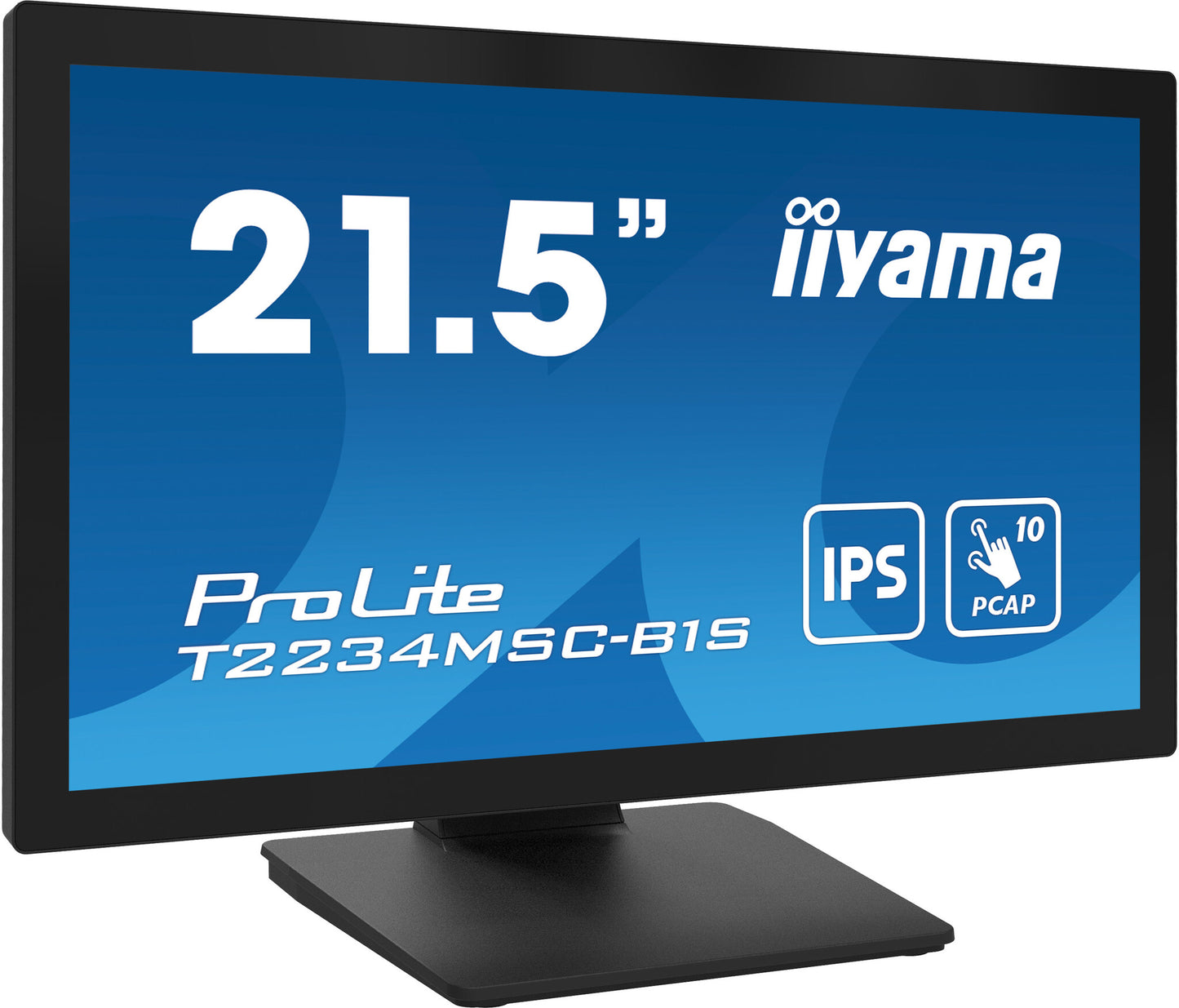

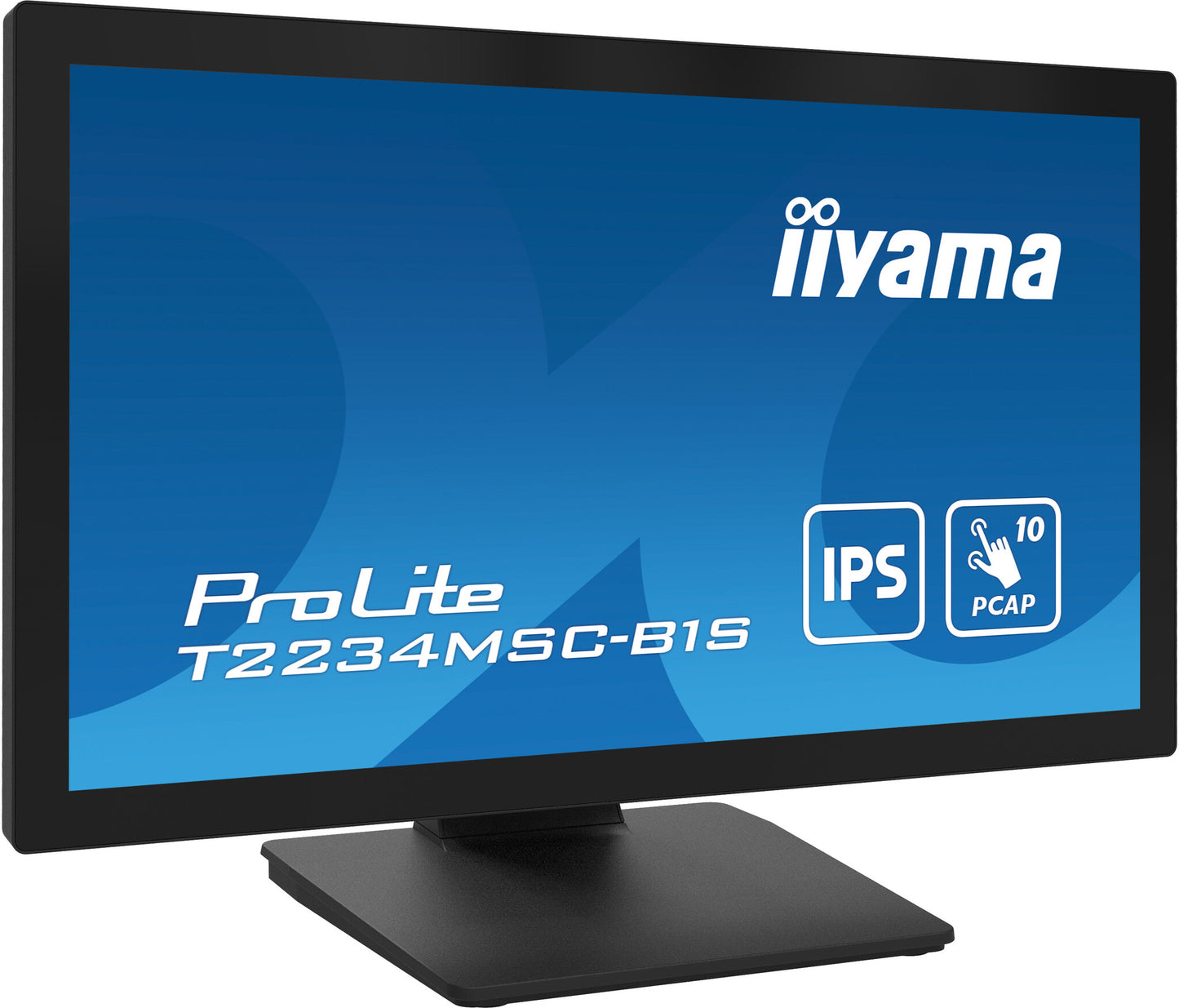

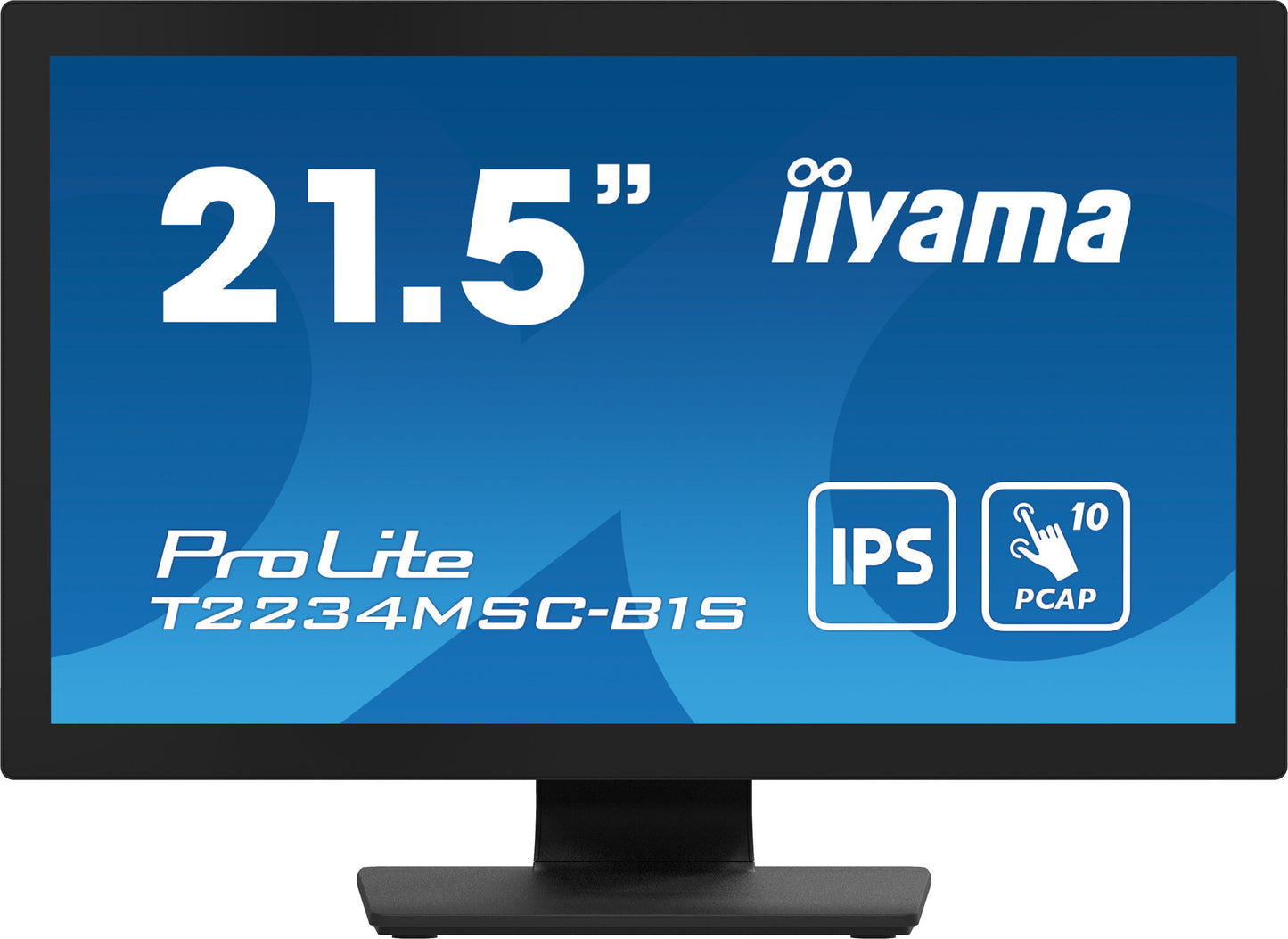

iiyama ProLite 22" Full HD 10pt touchscreen featuring IPS panel technology, touch through glass function and anti fingerprint coating. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black

The ProLite T2234MSC-B1S uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail.

Display
Display diagonal
54.6 cm (21.5")
Display resolution
1920 x 1080 pixels
Panel type
IPS
Touchscreen technology
Projected capacitive system
Display brightness (peak)
350 cd/m²
Display brightness (typical)
350 cd/m²
Response time
8 ms
Response time measurement type
GTG (Gray to Gray)
Display brightness
305 cd/m²
Screen shape
Flat
Contrast ratio (typical)
1000:1
Display number of colours
16.7 million colours
Horizontal scan range
30 - 84 kHz
Viewable size, horizontal
47.6 cm
Viewable size, vertical
26.8 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection
Yes
Multimedia
Built-in speaker(s)
Yes
Number of speakers
2
RMS rated power
6 W
Design
Product colour
Black
Front bezel colour
Black
Glass thickness
2.5 mm
International Protection (IP) code
IP65
Ergonomics

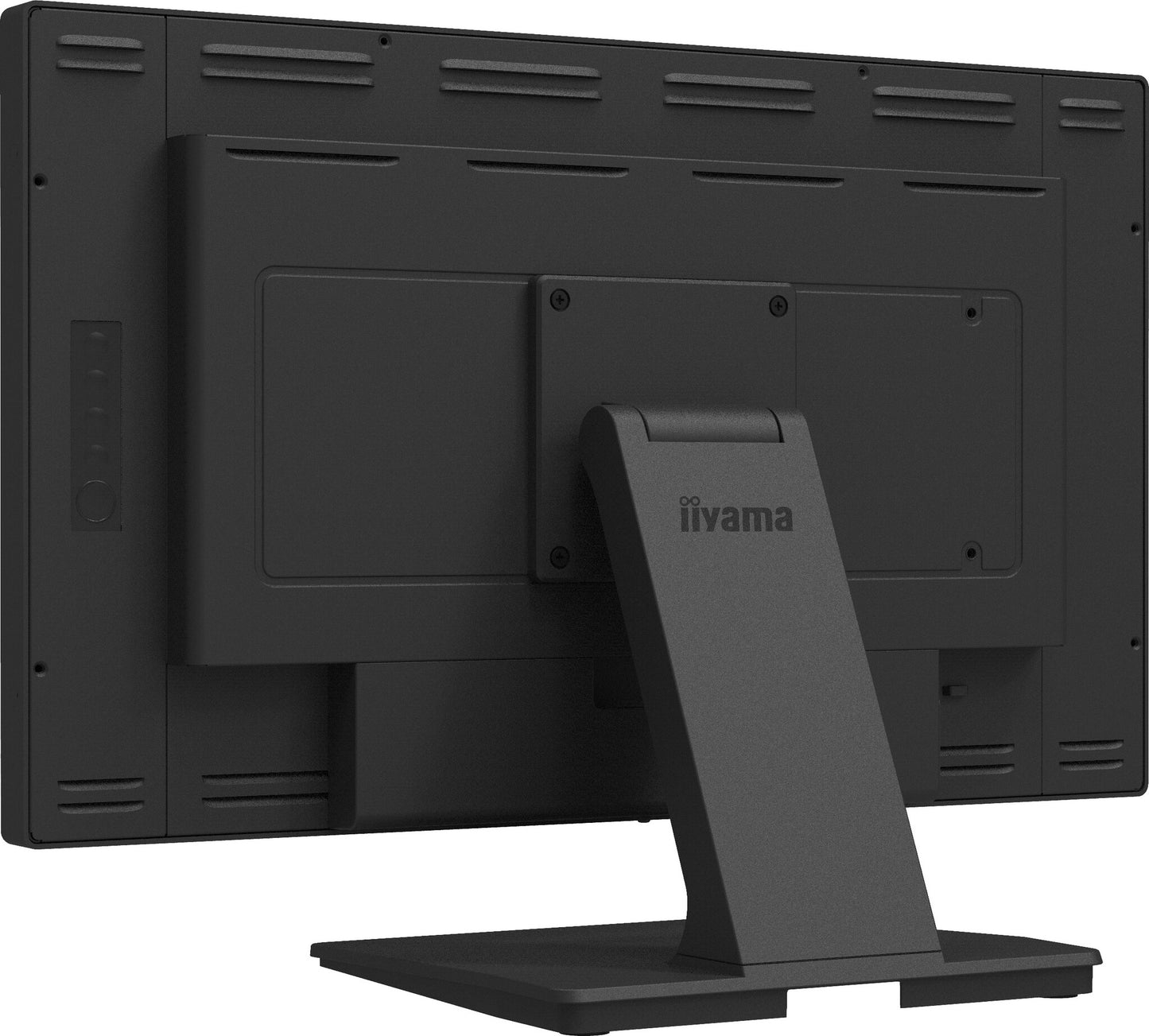

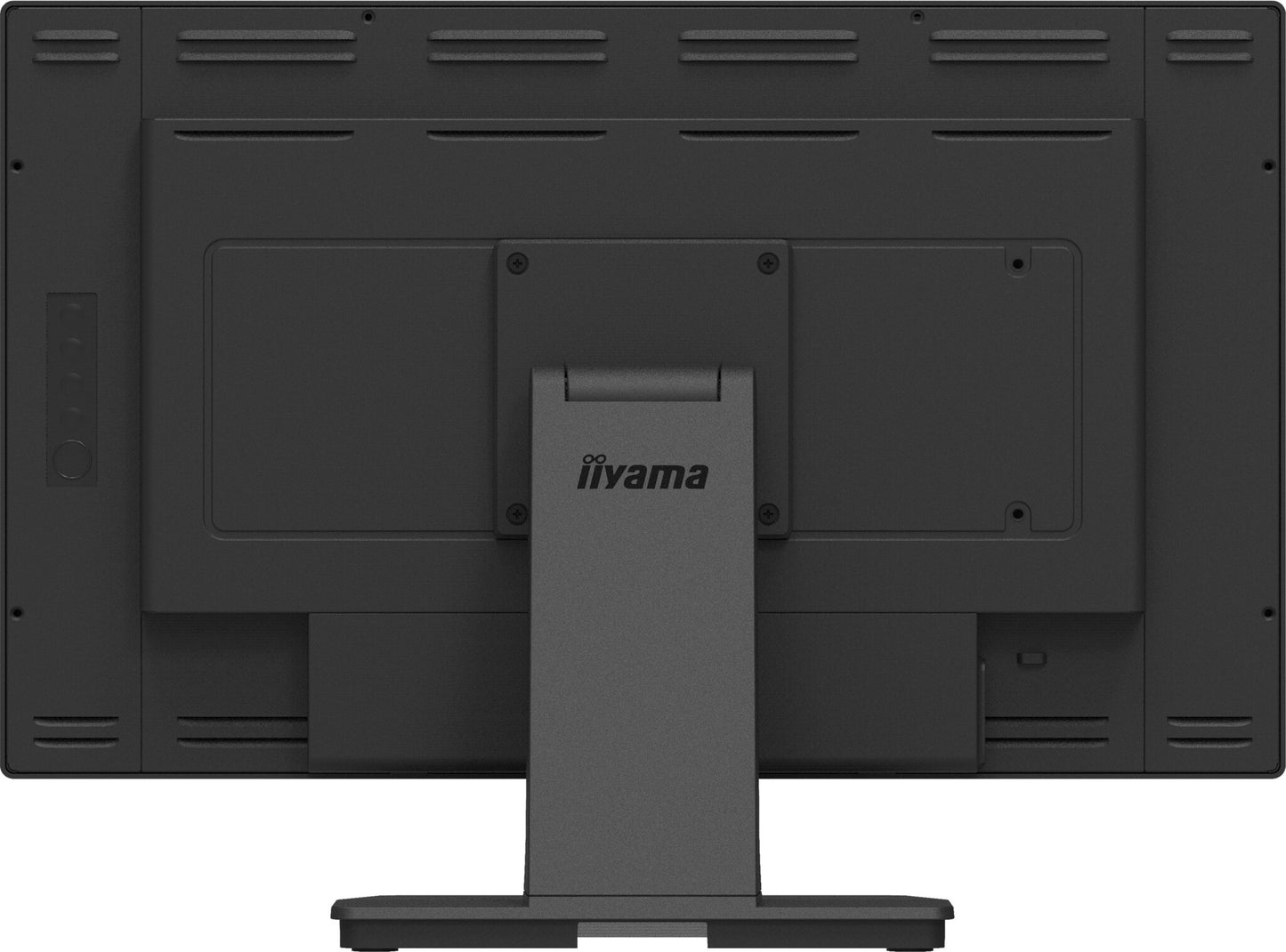

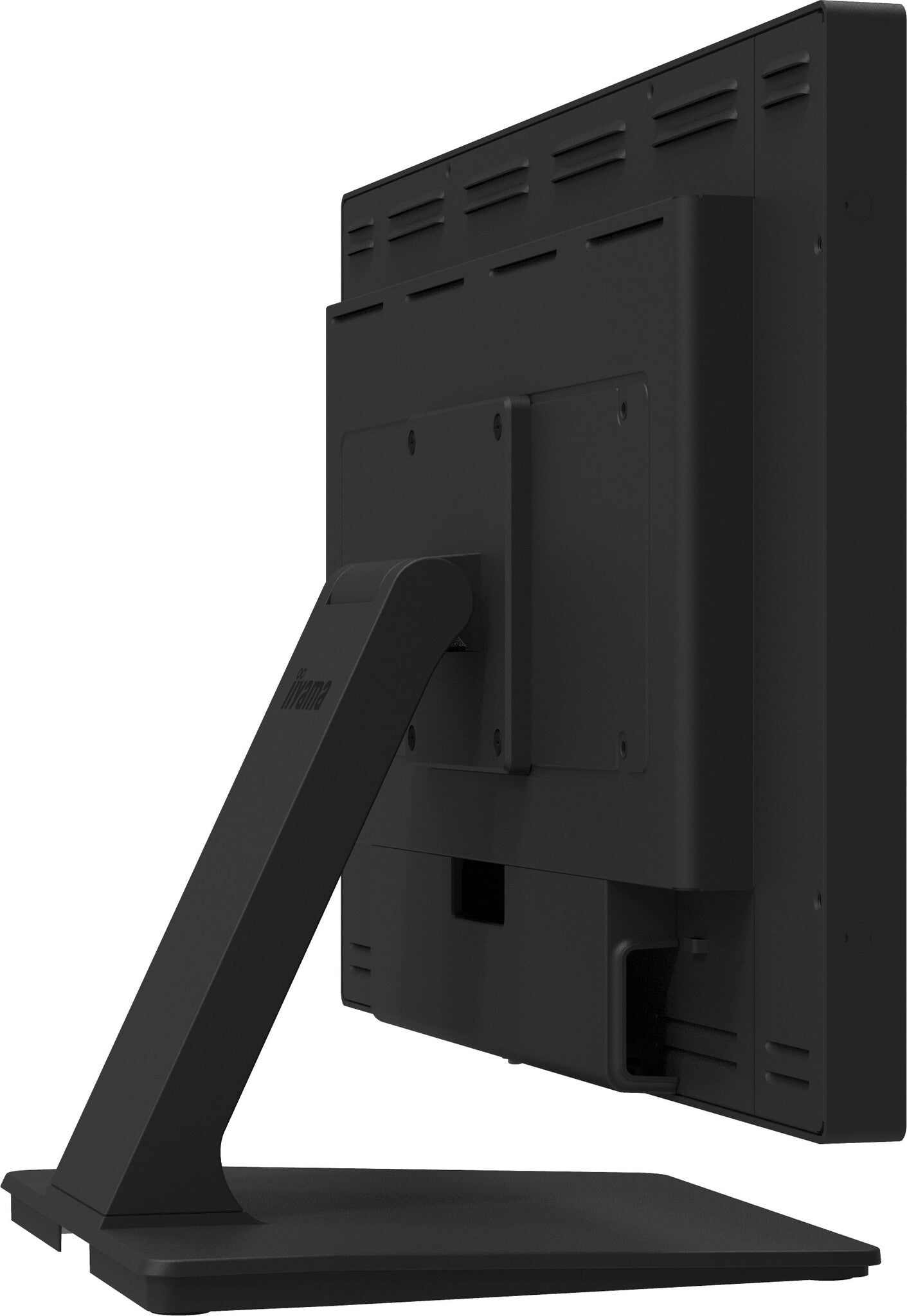

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Height adjustment
No

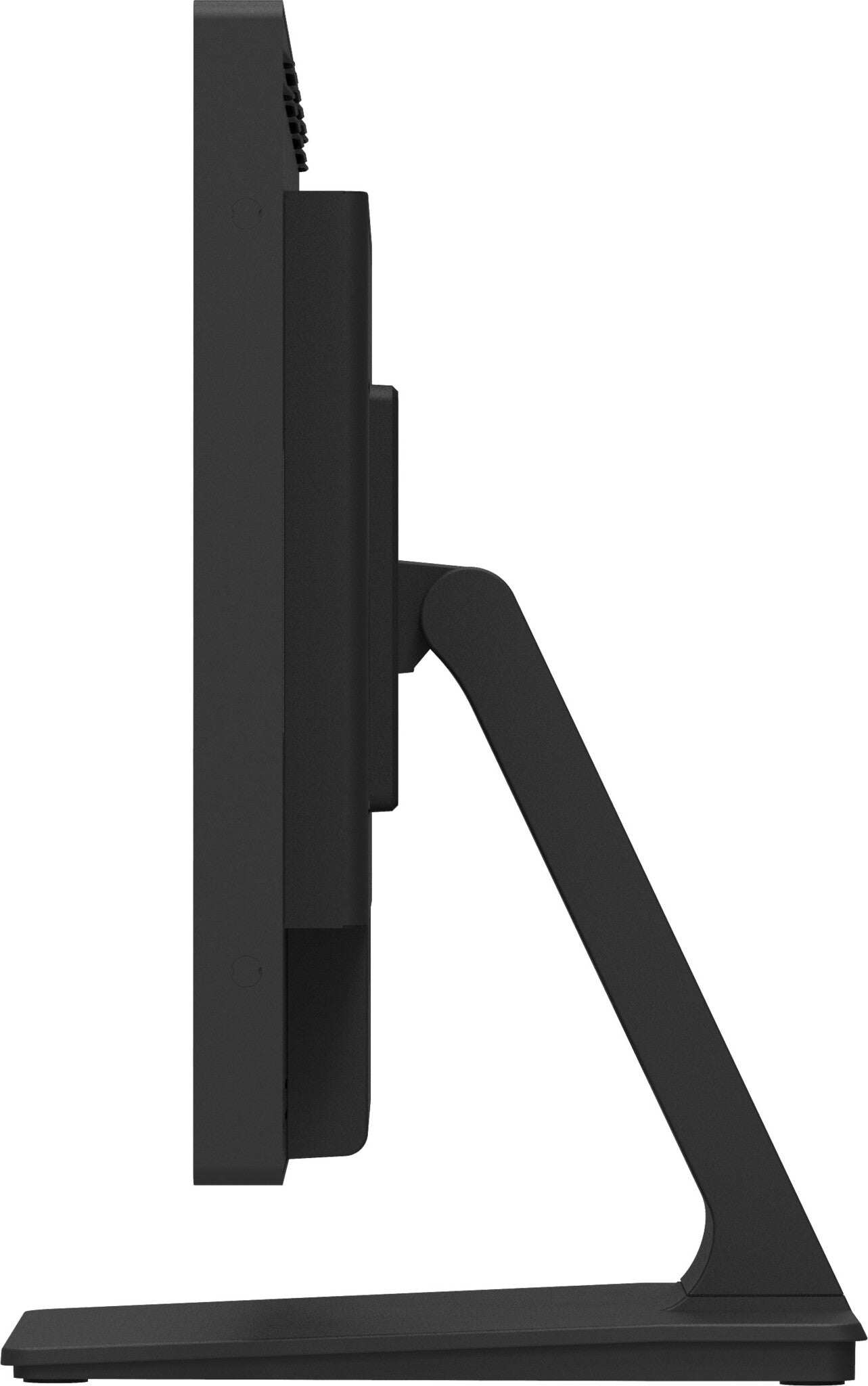

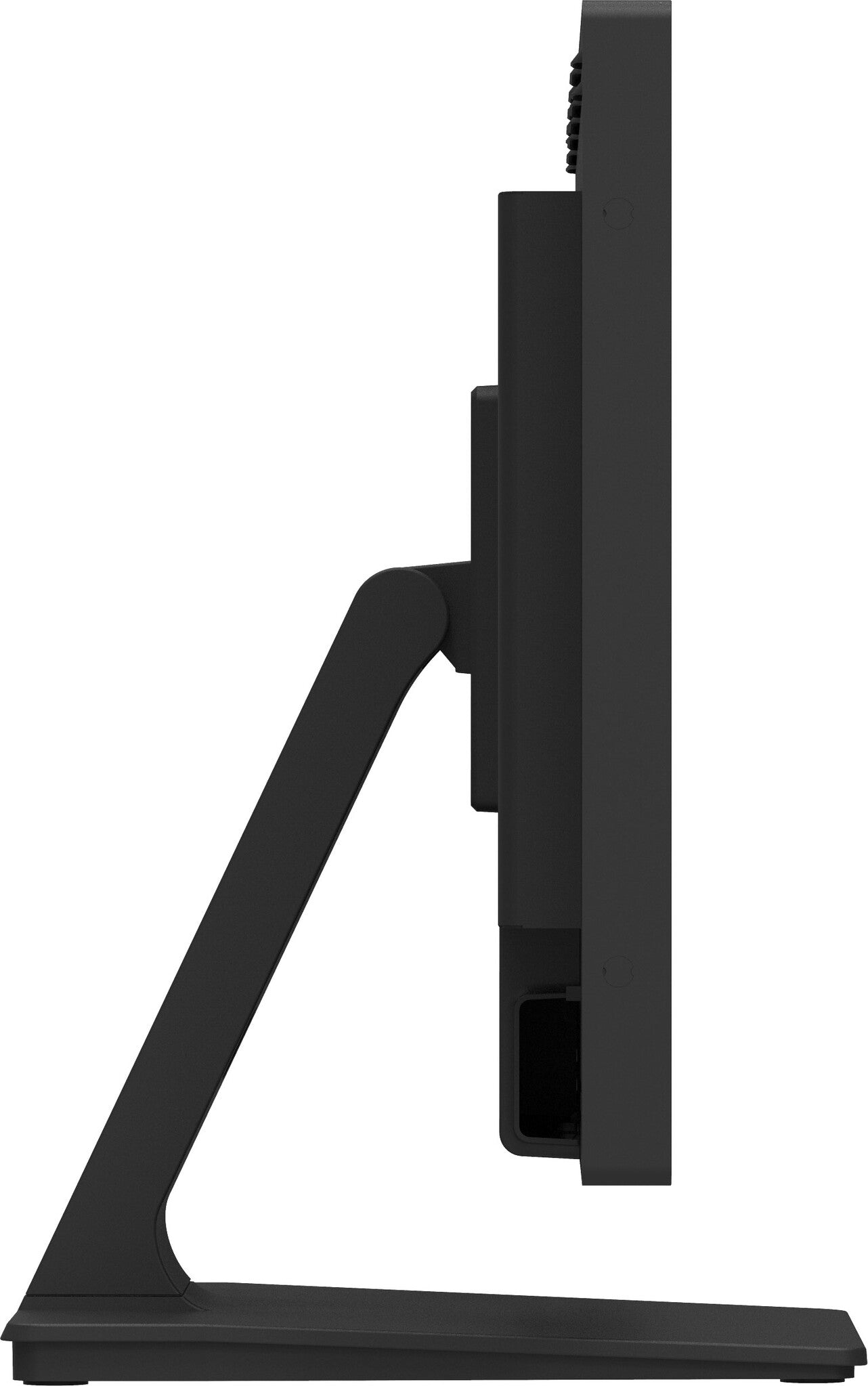

Tilt angle range
-5 - 90°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Tilt adjustment
Yes
Power
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
15.5 kWh
Power consumption (typical)
21 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
517.5 mm
Depth (with stand)
239.5 mm
Height (with stand)
374 mm
Weight (with stand)
5.9 kg
Packaging data
Cables included
AC, USB, HDMI, DisplayPort, Audio
Quick start guide
Yes
Technical details
Compliance certificates
CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter
Brightness
305 cd/m²
Depth
239.5 mm
Width
517.5 mm
Height
374 mm
Weight
5.9 kg
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Touch method
stylus, finger, glove (latex)
User controls
picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position,Touch switch), option (reset, language, source select, display mode, volume, mute, factory)
Touchscreen
Touchscreen
Yes
HD type
Full HD
Native aspect ratio
16:9
Built-in camera
No
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.247 x 0.247 mm
Display diagonal (metric)
54.6 cm
HDCP
Yes
Surface hardness
7H
