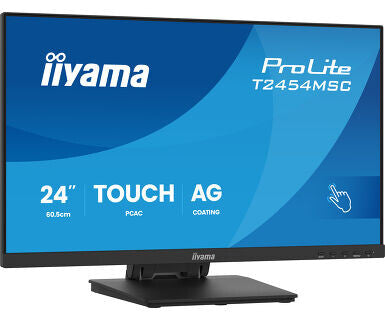

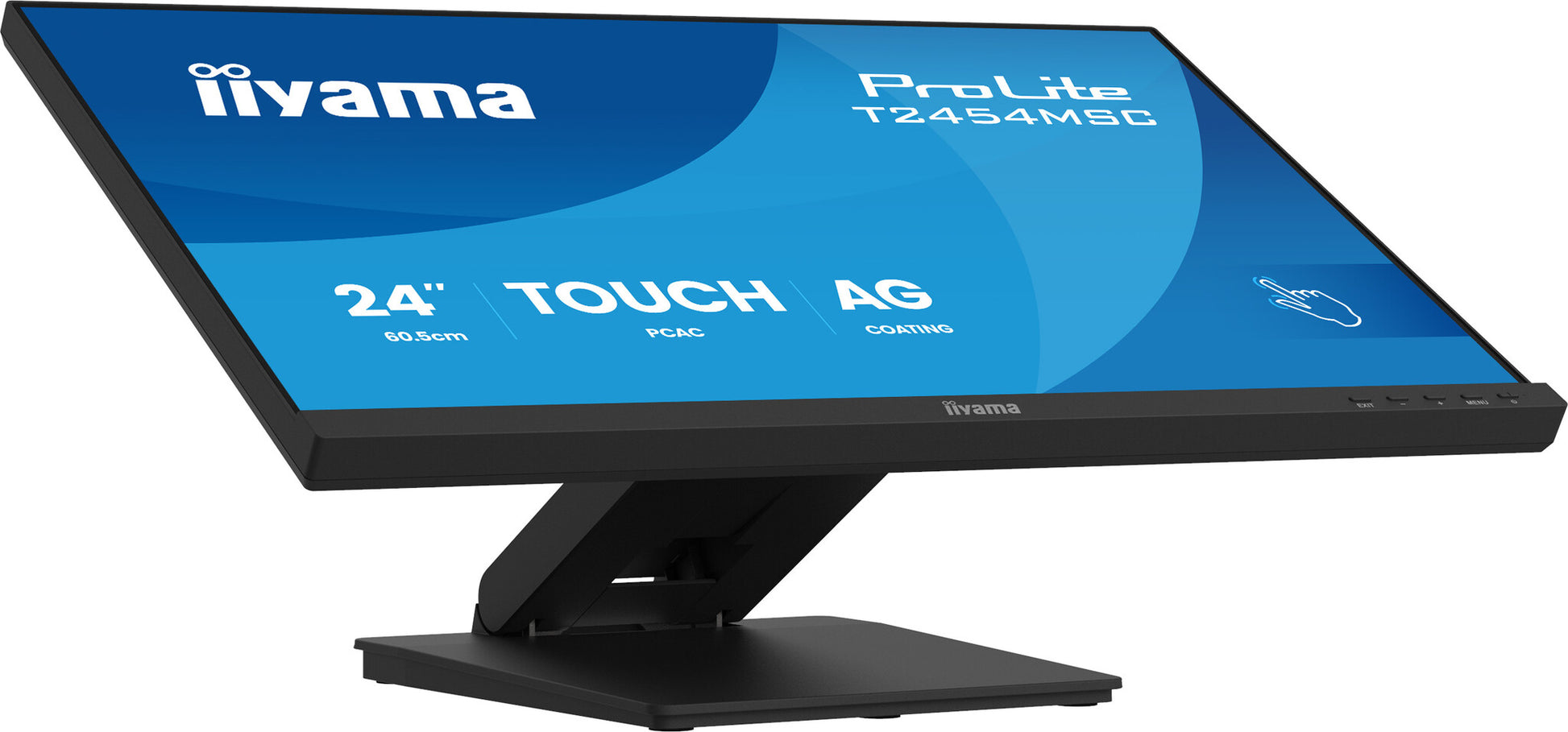

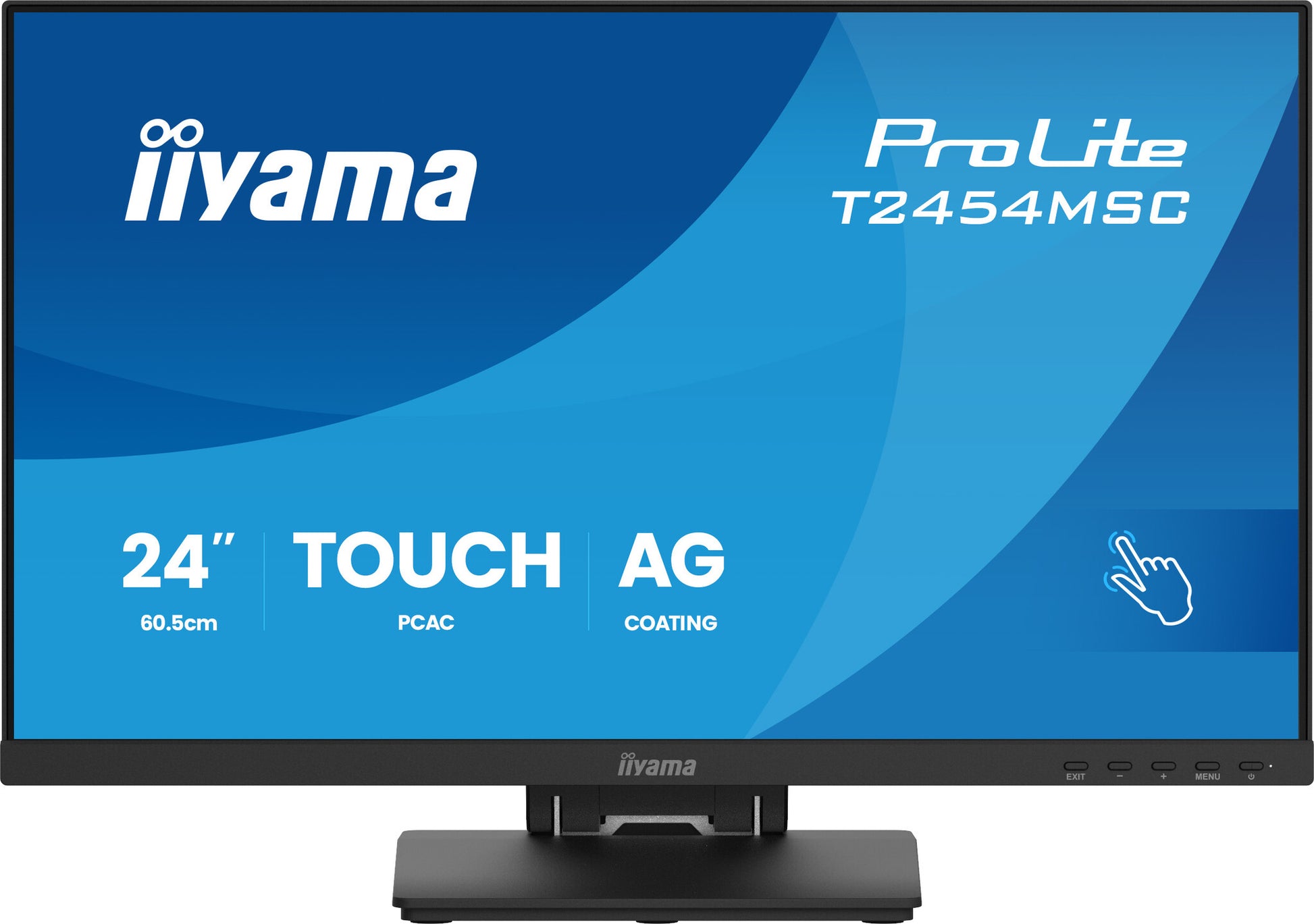

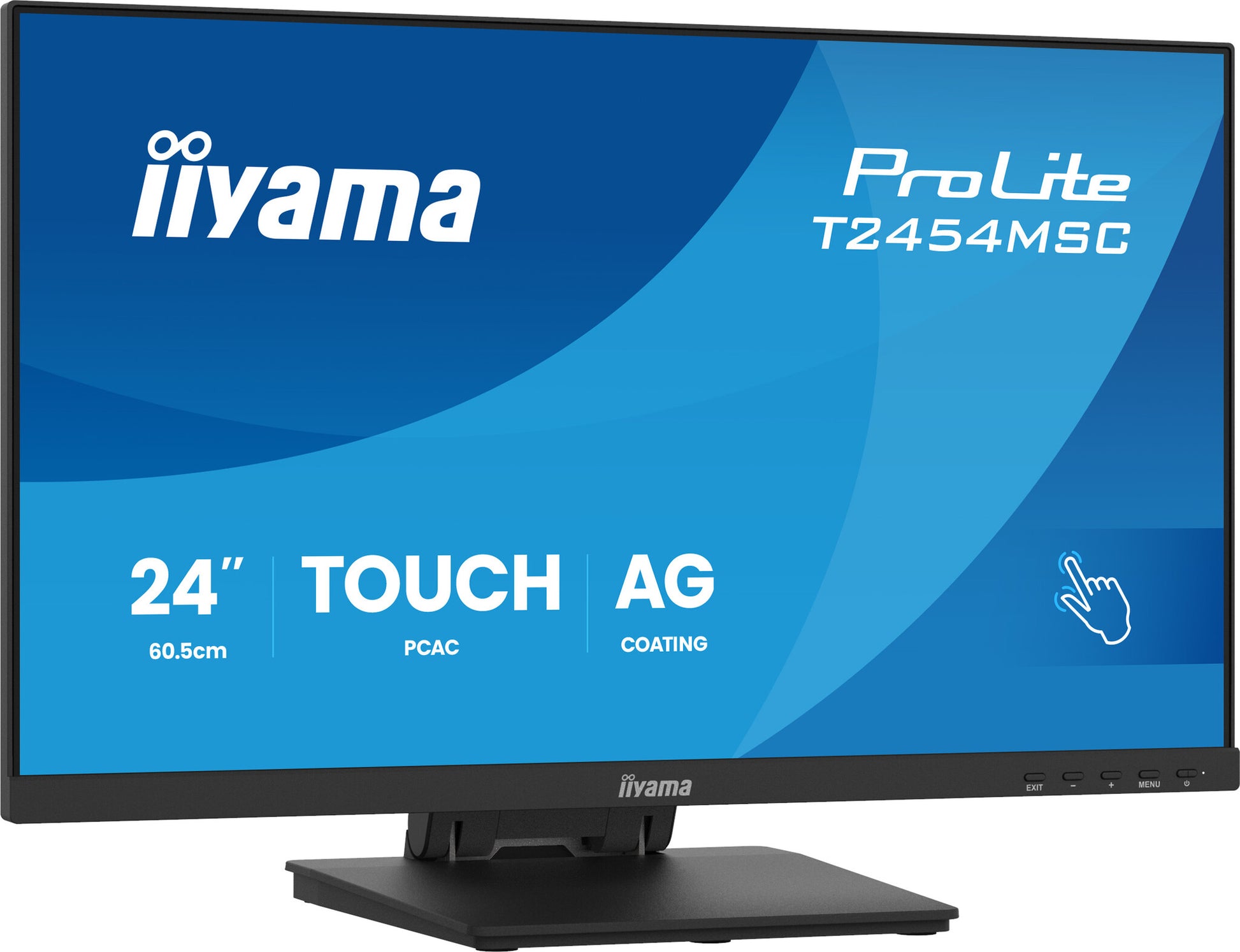

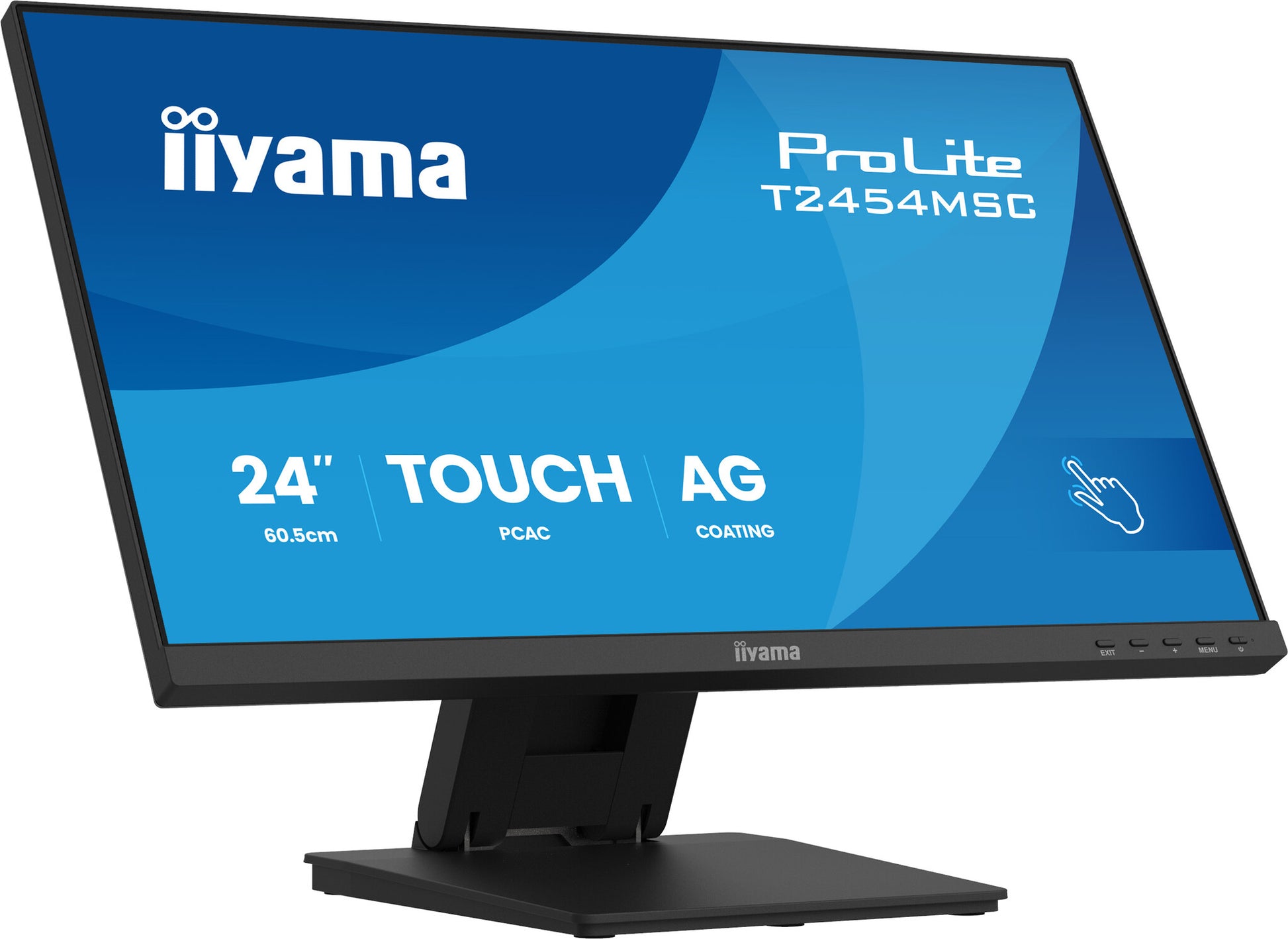

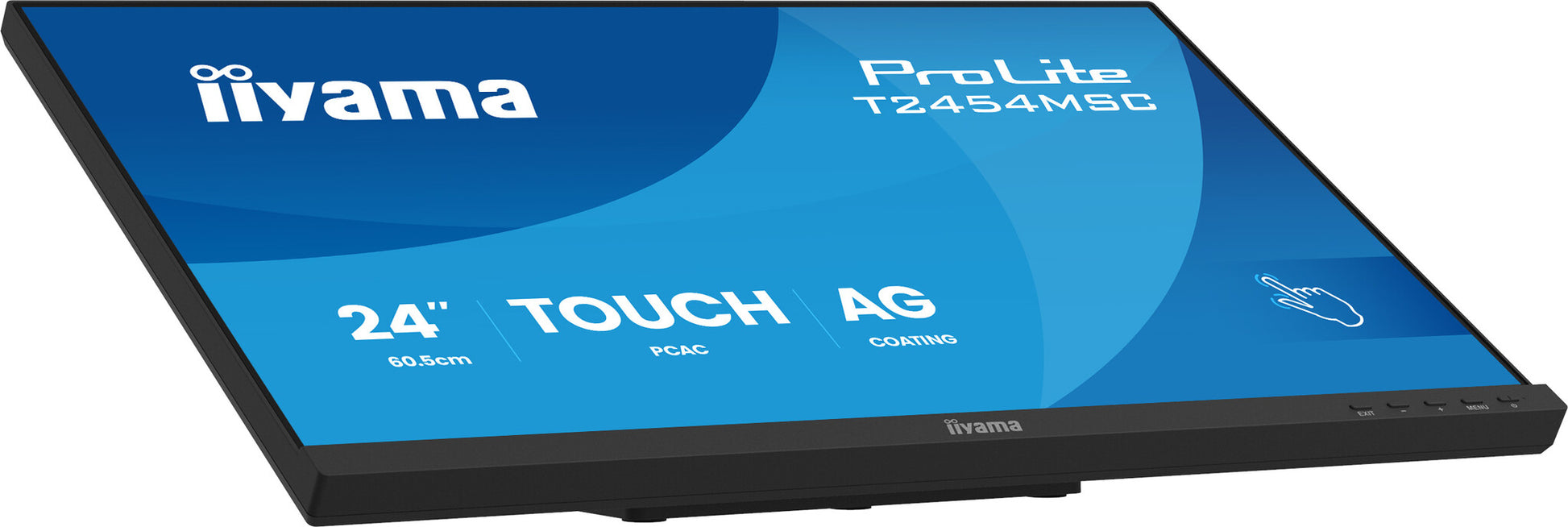

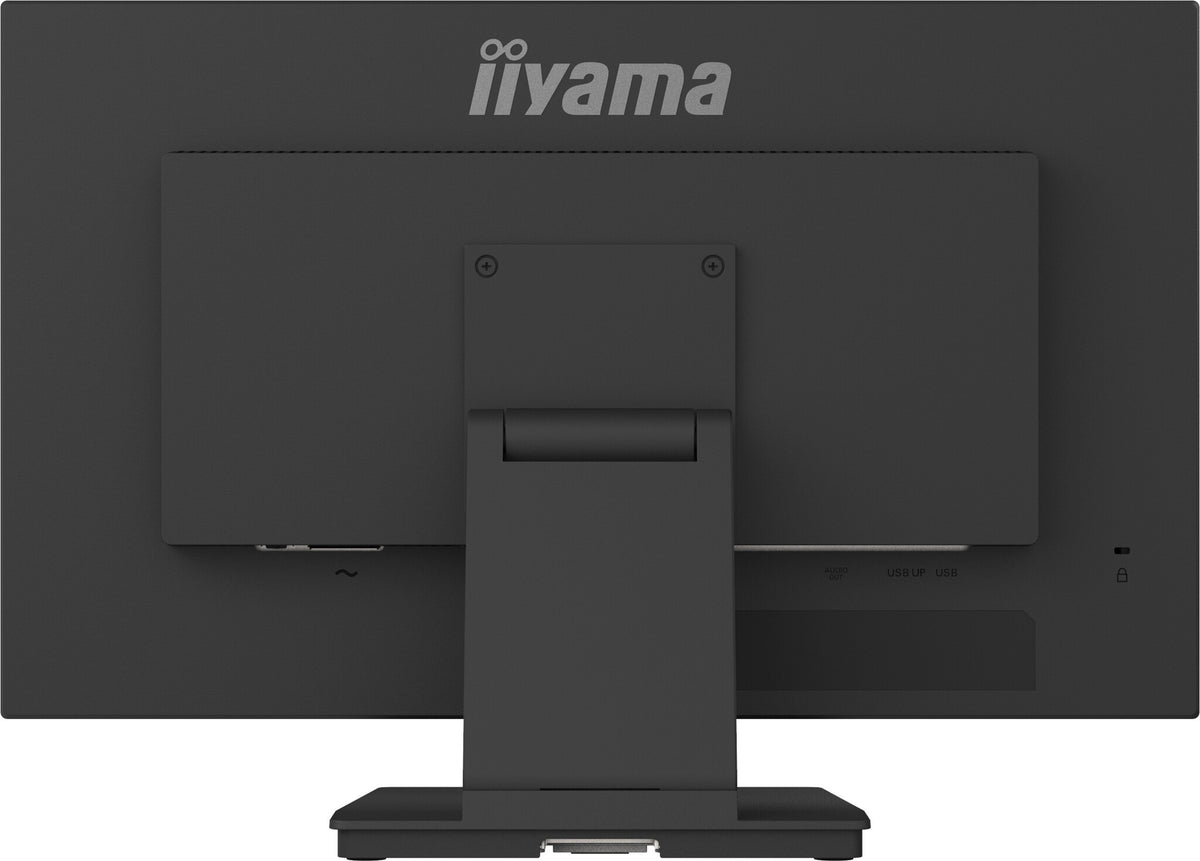

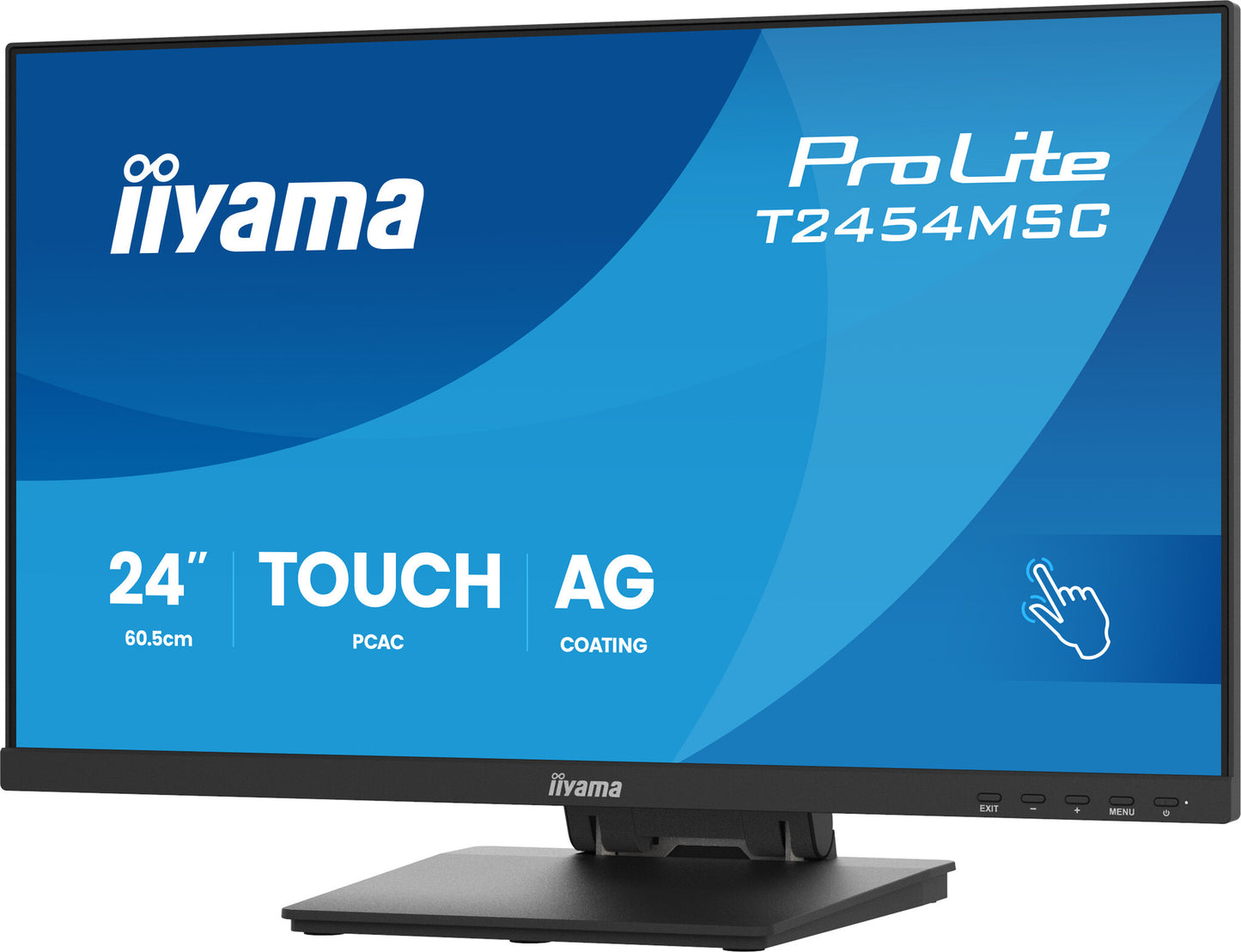

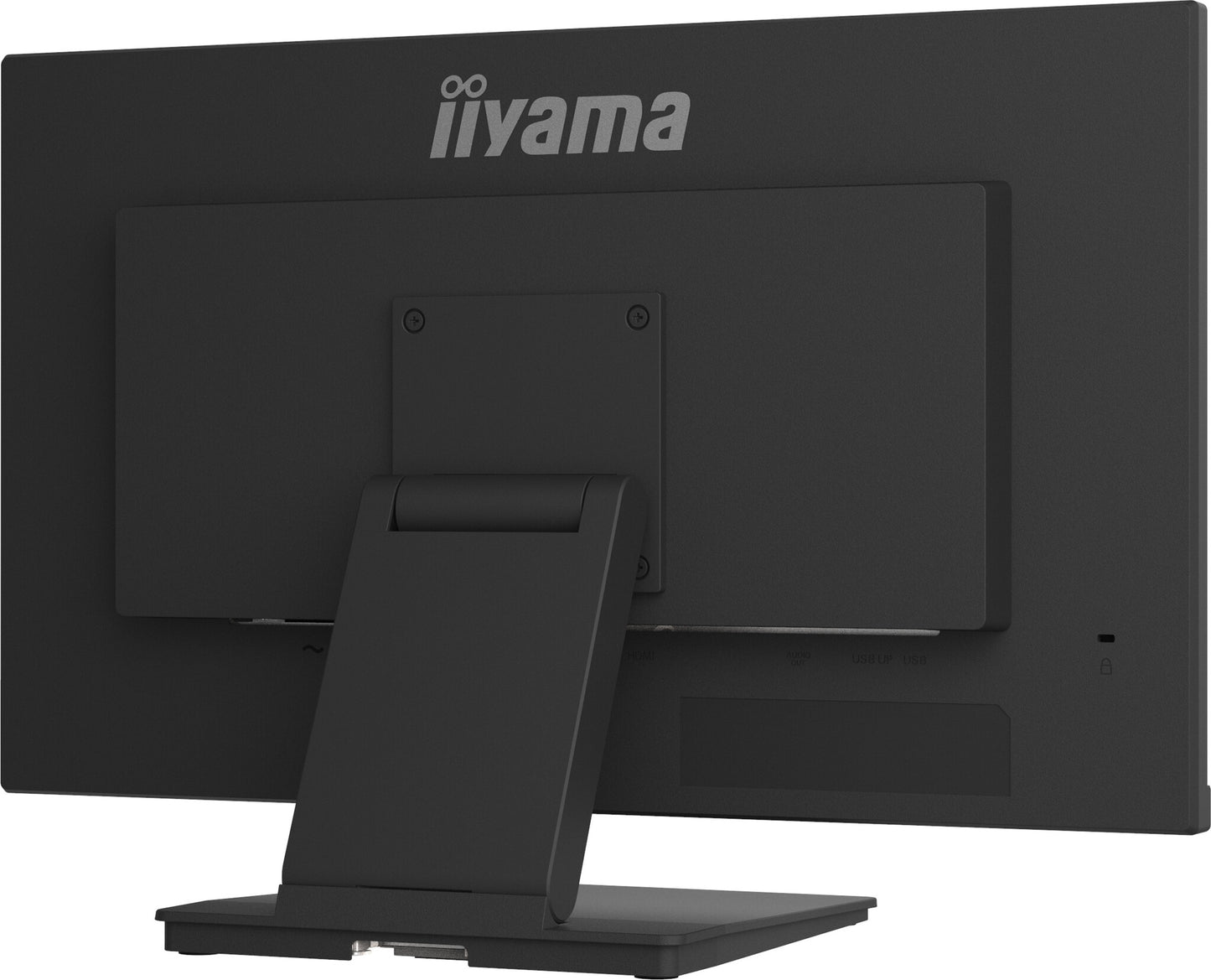

iiyama T2454MSC-B3AG

iiyama T2454MSC-B3AG

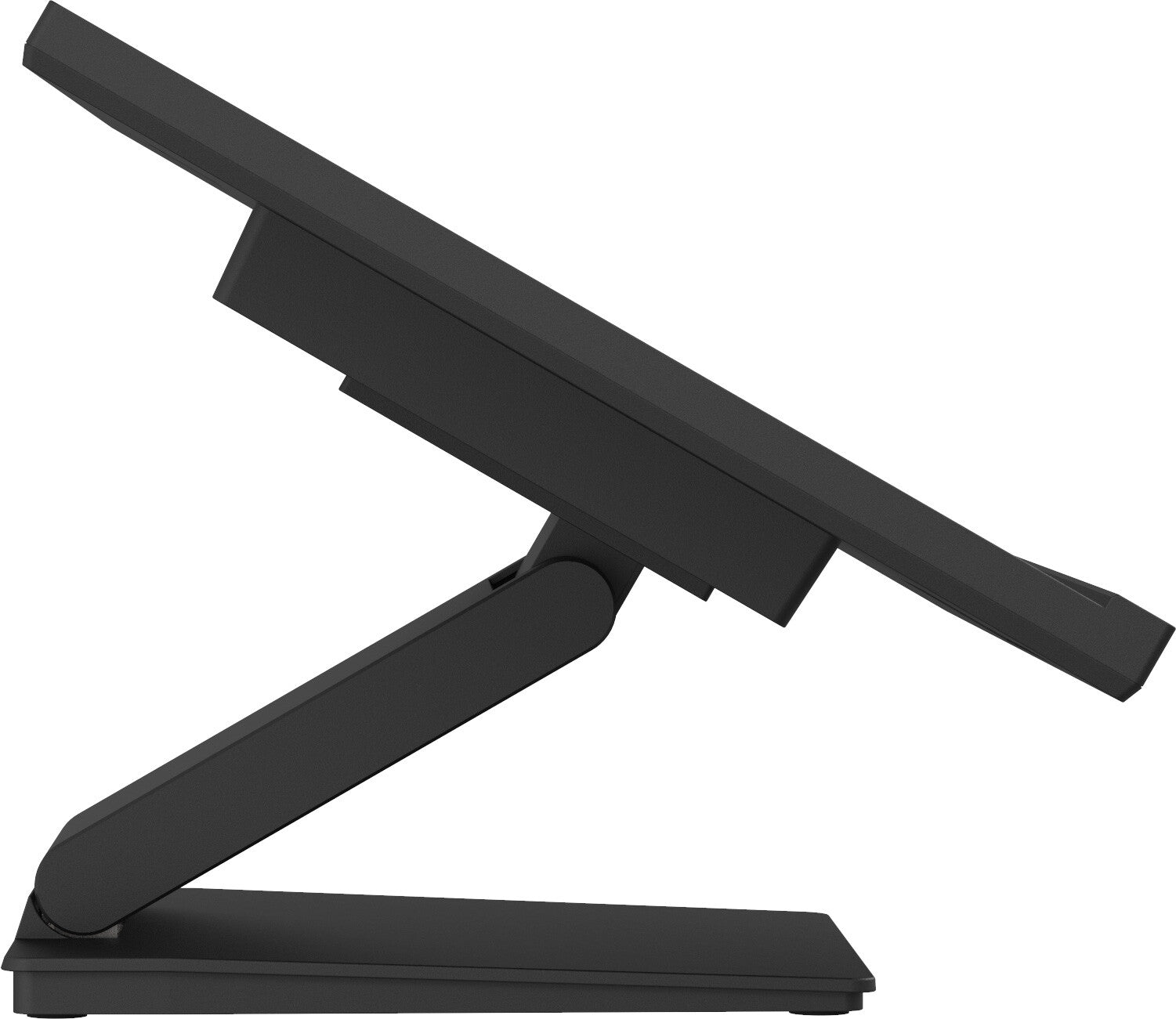

24” InCell PCAP 10pt touchscreen monitor featuring IPS panel technology, Anti-Glare coating and a flexible stand

  • Touchscreen 60.5 cm (23.8") LED IPS
  • Full HD 1920 x 1080 pixels 16:9
  • 83 Hz 4 ms 300 cd/m² 1000:1
  • Flicker-free technology
  • E 17 kWh 17 W
  • SKU:4948570125791
  • GTIN/EAN:4948570125791
  • MPN:T2454MSC-B3AG

You need to login to view the price.

View full details

iiyama ProLite T2454MSC-B3AG. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

Immersive interaction and elegant design - Discover the ProLite T2454MSC-B3AG, a vibrant 24" Full HD touchscreen monitor designed for exceptional interactive experiences. Featuring intuitive 10-point Touch technology (InCell PCAP), which ensures smooth and precise touch response. The vibrant colours of the IPS panel will captivate users with precise and natural interaction from any angle. Its sleek and stylish design and anti-glare surface offer durability and ease of cleaning, perfect for busy commercial environments, hospitality spaces, healthcare facilities and public areas. With adjustable ergonomics, neat cable management, built-in audio and seamless connectivity (HDMI, DisplayPort, USB 3.2 hub), it is an ideal choice for POS, self-service solutions and interactive signage.

Display
Viewable size, vertical
29.6 cm
Viewable size, horizontal
52.7 cm
Horizontal scan range
30 - 83 kHz
Display number of colours
16.7 million colours
Maximum refresh rate
83 Hz
Contrast ratio (typical)
1000:1
Screen shape
Flat
Anti-glare screen
Yes
LED backlight
Yes
Display brightness
300 cd/m²
Positional accuracy
2 mm
Colour depth
8 bit
Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Response time measurement type
GTG (Gray to Gray)
Response time
4 ms
Display brightness (typical)
300 cd/m²
Touchscreen technology
Projected capacitive system
Panel type
IPS
Display resolution
1920 x 1080 pixels
Display diagonal
60.5 cm (23.8")
Performance
OmniTapps Multitouch compatibility
Yes
Linux operating systems supported
Yes
Windows operating systems supported
Yes
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Low Blue Light technology
Yes
Flicker-free technology
Yes
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
Megapixel (approx.)
2.1 MP
RMS rated power
4 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
Certification
CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB
Front bezel colour
Black
Product colour
Black
Market positioning
Business

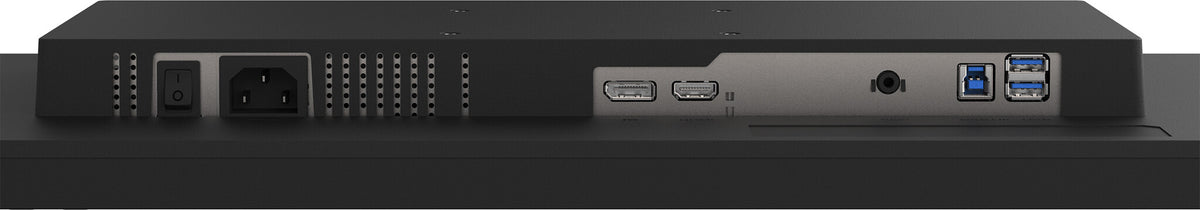

Ports & interfaces
USB Type-A downstream ports quantity
2
Number of downstream ports
2
Number of upstream ports
1
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Headphone out
Yes
Built-in USB hub
Yes
Ergonomics
Plug and Play
Yes
Tilt adjustment
Yes
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Number of OSD languages
10
On Screen Display (OSD)
Yes

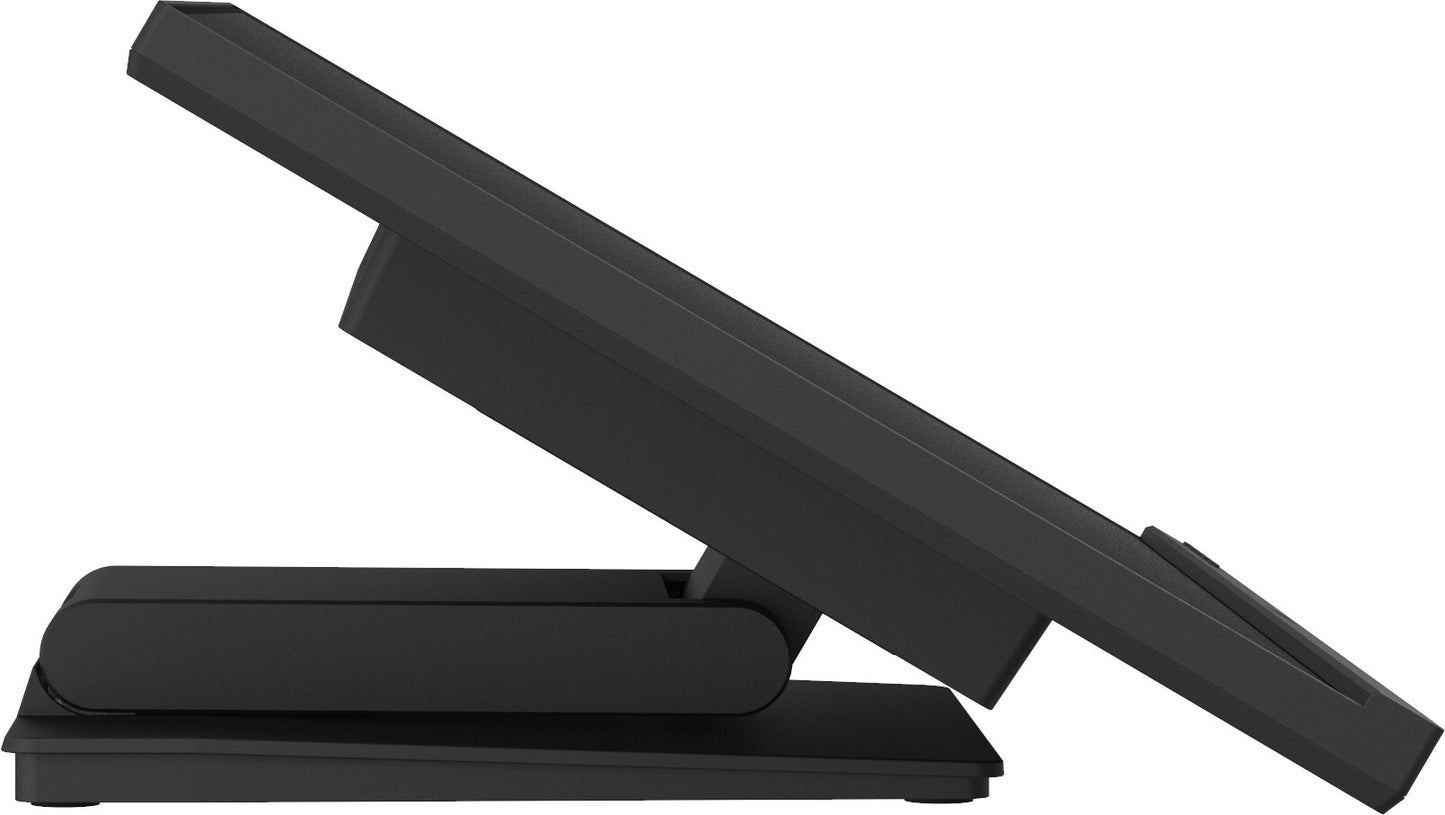

Tilt angle range
-5 - 90°
Height adjustment
Yes
Cable lock slot type
Kensington
Cable lock slot
Yes
Adjustable height (max)
11.1 cm
Cable management
Yes
Wall mountable
Yes
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
Power supply type
Internal
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
17 W
Energy consumption (SDR) per 1000 hours
17 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
E
Operational conditions
Storage relative humidity (H-H)
10 - 90%
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
5 - 35 °C
Sustainability
Sustainability certificates
EPEAT, ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (with stand)
5.4 kg
Height (with stand)
373 mm
Depth (with stand)
241 mm
Width (with stand)
540 mm
Packaging data
Package weight
7.1 kg
Package height
420 mm
Package depth
148 mm
Package width
615 mm
Quick start guide
Yes
Cables included
AC, USB, HDMI
Logistics data
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
User controls
luminance (contrast, brightness, i-Style Color, adv. contrast, eco), Image settings (aspect ratio), Color settings (gamma, 6- axis, color temp), OSD (OSD horizontal position, OSD vertical position, OSD time, language), Extra (reset, DDC/CI, signal select, OverDrive, opening logo, information)
Touch method
finger, glove (latex), capacitive stylus

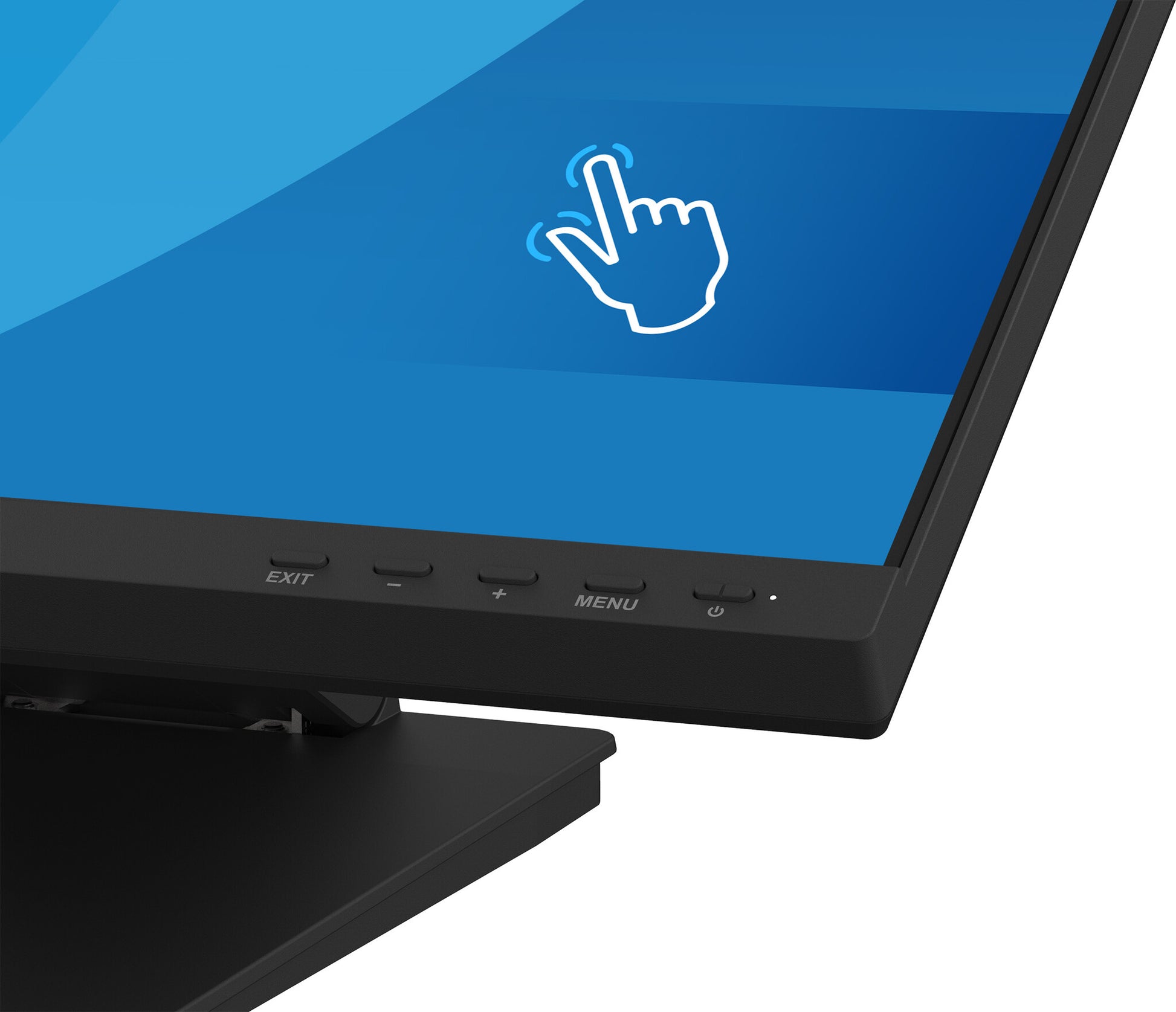

Control panel
Power, menu, +, -, Exit
Mean time between failures (MTBF)
50000 h
Weight
5.4 kg
Height
373 mm
Width
540 mm
Depth
241 mm
USB ports quantity
2
Packaging content
Screwdriver
Placement supported
Horizontal/Vertical
Active display area (W x H)
527.04 x 296.46 mm
Full HD
Yes
Surface hardness
Surface hardness
3H
HDCP
Yes
Display diagonal (metric)
60.5 cm
Pixel pitch
0.2745 x 0.2745 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
5000000:1
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
USB Touch port
Yes
Number of simultaneous touchpoints
10
Touchscreen type
Multi-user
Touch technology
Multi-touch
Built-in camera
No
Display technology
LED
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Yes
