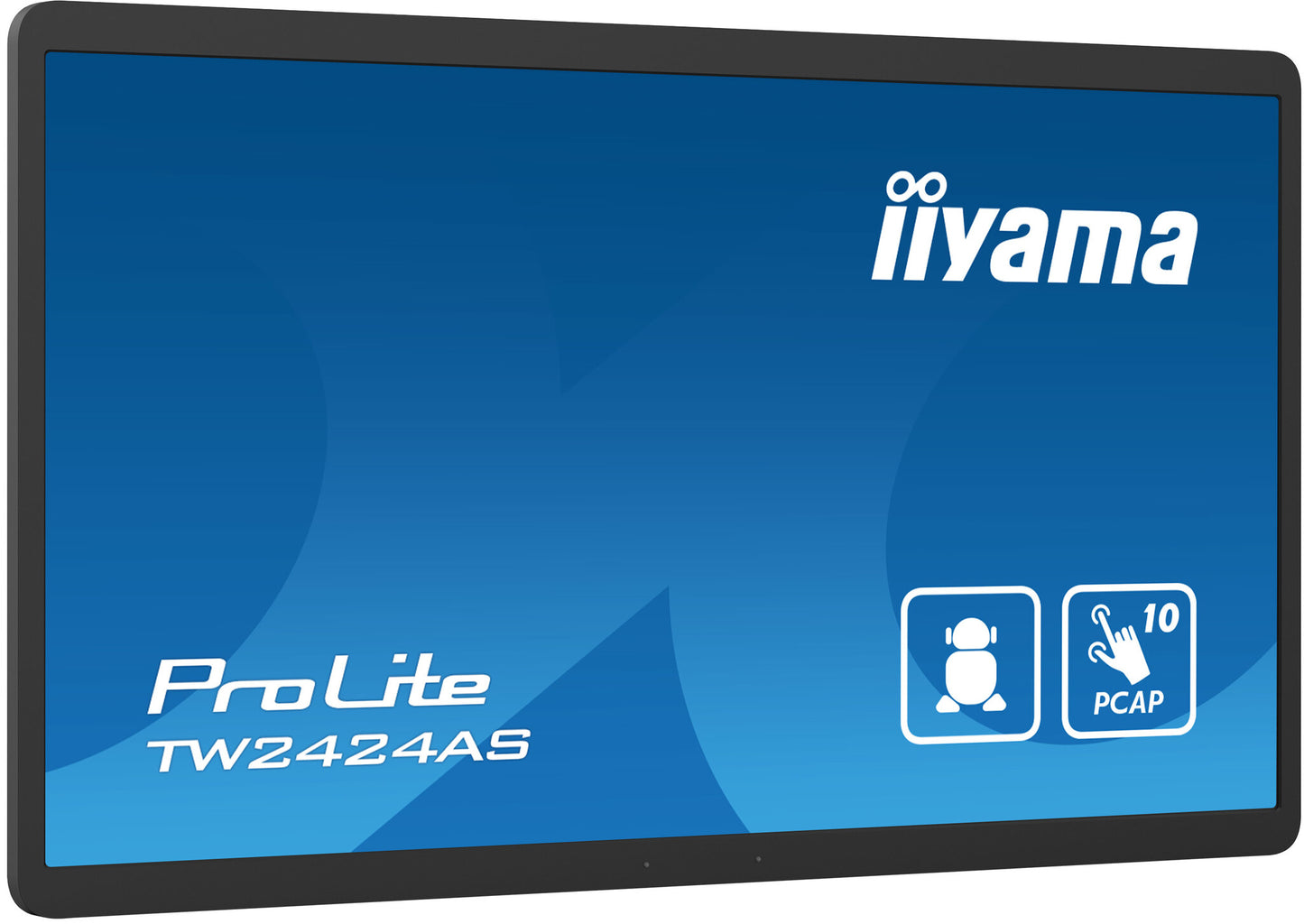

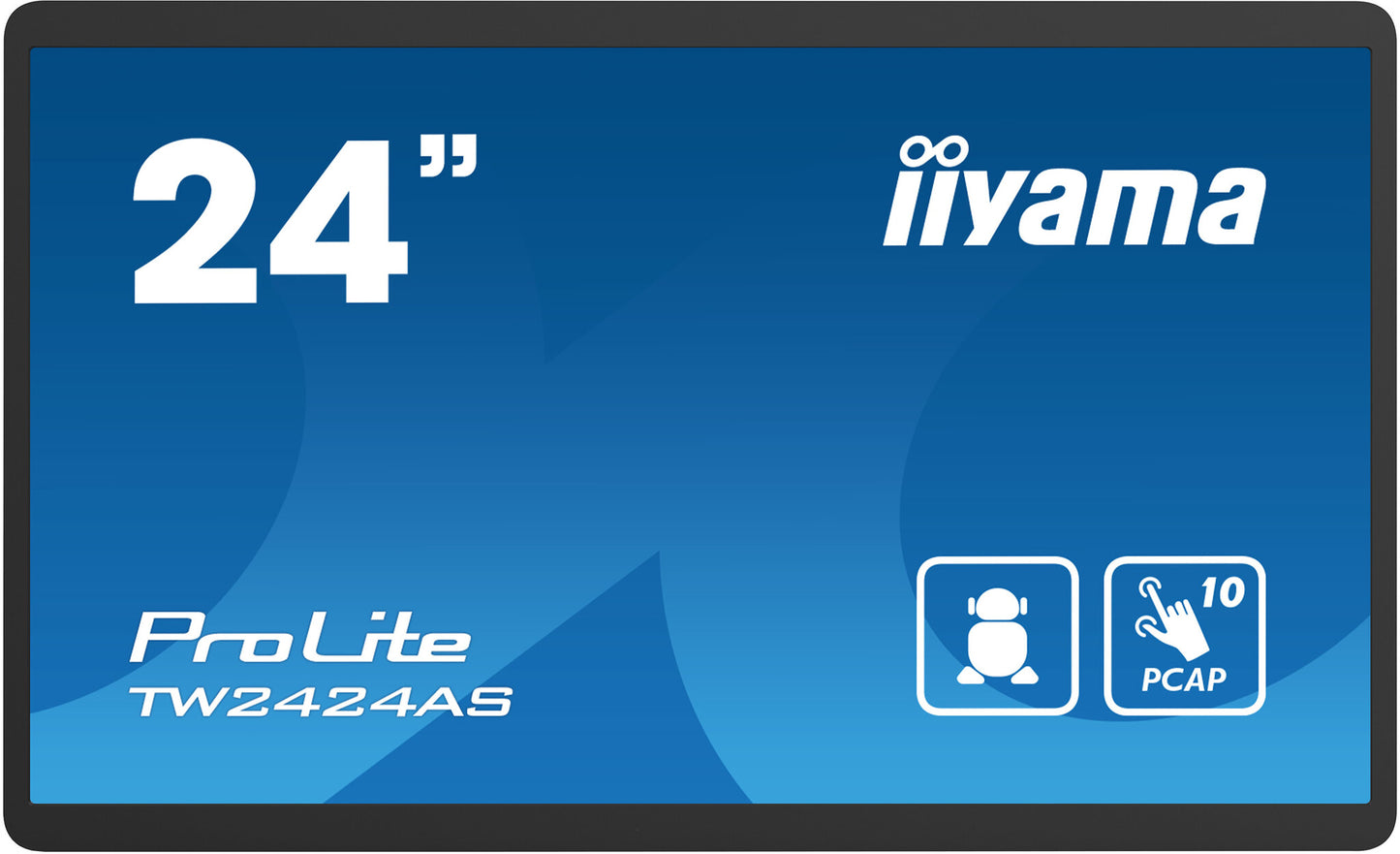

iiyama TW2424AS-B1

iiyama TW2424AS-B1

23.8", 60.5cm, 1920 x 1080 IPS, Direct LED, 16:9, 250 cd/m², 1000:1, HDMI, USB, RJ45, 549.5 x 336 x 28mm, black

  • Google Play Support
  • Indoor Digital signage flat panel Black
  • 60.5 cm (23.8") 1920 x 1080 pixels 250 cd/m²
  • Touchscreen Direct-LED 14 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 5 W
  • SKU:4948570122943
  • GTIN/EAN:4948570122943
  • MPN:TW2424AS-B1
Add To Favorite

You need to login to view the price.

View full details

iiyama TW2424AS-B1. Product design: Digital signage flat panel. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

The ProLite TW2424AS-B1 interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.

Display
Horizontal scan range
31 - 83 kHz
Panel type
IPS
Surface hardness
3H
Panel life
50000 h
Display diagonal (metric)
60.5 cm
Active display area (W x H)
527 x 296.5 mm
Pixel pitch
0.275 x 0.275 mm
Display number of colours
16.7 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1000:1
Response time
14 ms
Native aspect ratio
16:9
Number of simultaneous touchpoints
10
Touchscreen technology
Projected capacitive system
Touchscreen
Yes
HD type
4K Ultra HD
Display brightness
250 cd/m²
Display resolution
1920 x 1080 pixels
LED backlighting type
Direct-LED
Display diagonal
60.5 cm (23.8")
Ports & interfaces
Wi-Fi
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 2.0 Type-B ports quantity
2
USB port
Yes
VGA (D-Sub) input ports
1
HDMI input ports quantity
1
HDMI ports quantity
1
Audio
RMS rated power
5 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Anti-glare screen
Yes
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Placement supported
Indoor
Product colour
Black
Product design
Digital signage flat panel
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Yes
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Yes
Purpose
Commercial
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
19 W
Computer system
Operating system version
12
Operating system installed
Android
Internal storage capacity
32 GB
Internal memory
4 GB
Processor cores
2
Processor frequency
1.8 GHz
Processor model
RK3399
Processor family
ARM Rockchip
Processor manufacturer
Rockchip
Built-in processor
Yes
Computer system
Yes
Weight & dimensions
Display weight
4.23 kg
Display height
336 mm
Display depth
28 mm
Display width
549.5 mm
Packaging data
Package weight
6.15 kg
Package height
375 mm
Package depth
126 mm
Package width
580 mm
Packaging content
Cables included
HDMI, Power, USB
Number of stylus pens
4
Stylus pen
Yes
Remote control included
Yes
Certificates
Certification
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Features
Suitable for indoor use
Yes
Base material
Metal
Base colour
Black
Technical details
OPS slot
1
Other features
Plug and Play
Yes
Quick start guide
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Power supply type
Internal
Bluetooth Low Energy (BLE)
Yes
Bluetooth
Yes
Bluetooth version
5.2
