TF2415MC-B2

Open Frame PCAP 10 point touch screen equipped with touch through glass function

  • 60.5 cm (23.8") Black
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Response time: 16 ms
  • 1920 x 1080 pixels Full HD Panel type: VA
  • Energy efficiency class (SDR): E ErP CB, CE, cULus, REACH, RoHS, WEEE
  • SKU:4948570116775
  • GTIN:4948570116775
  • MPN:TF2415MC-B2

You need to login to view the price.

View full details

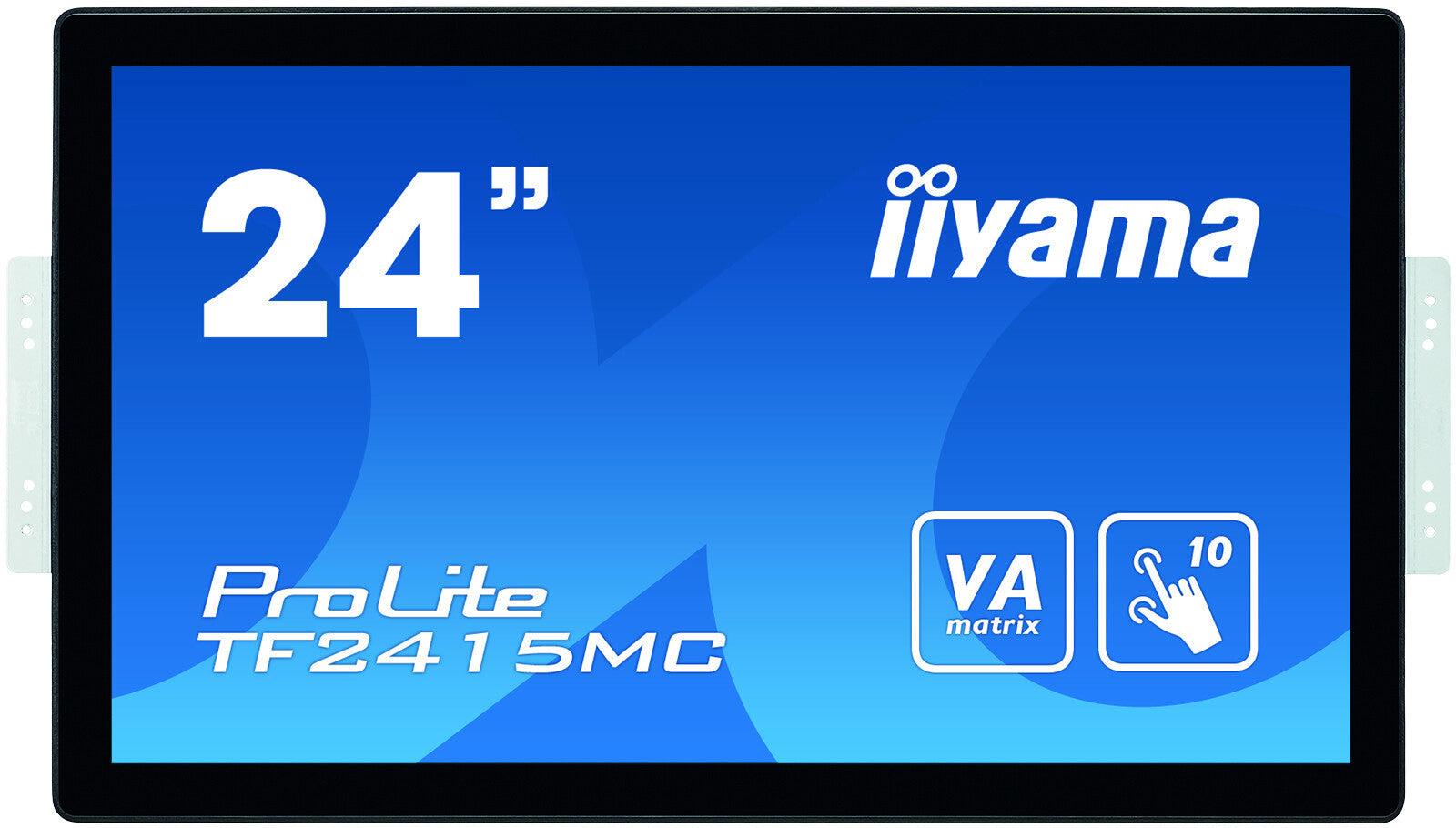

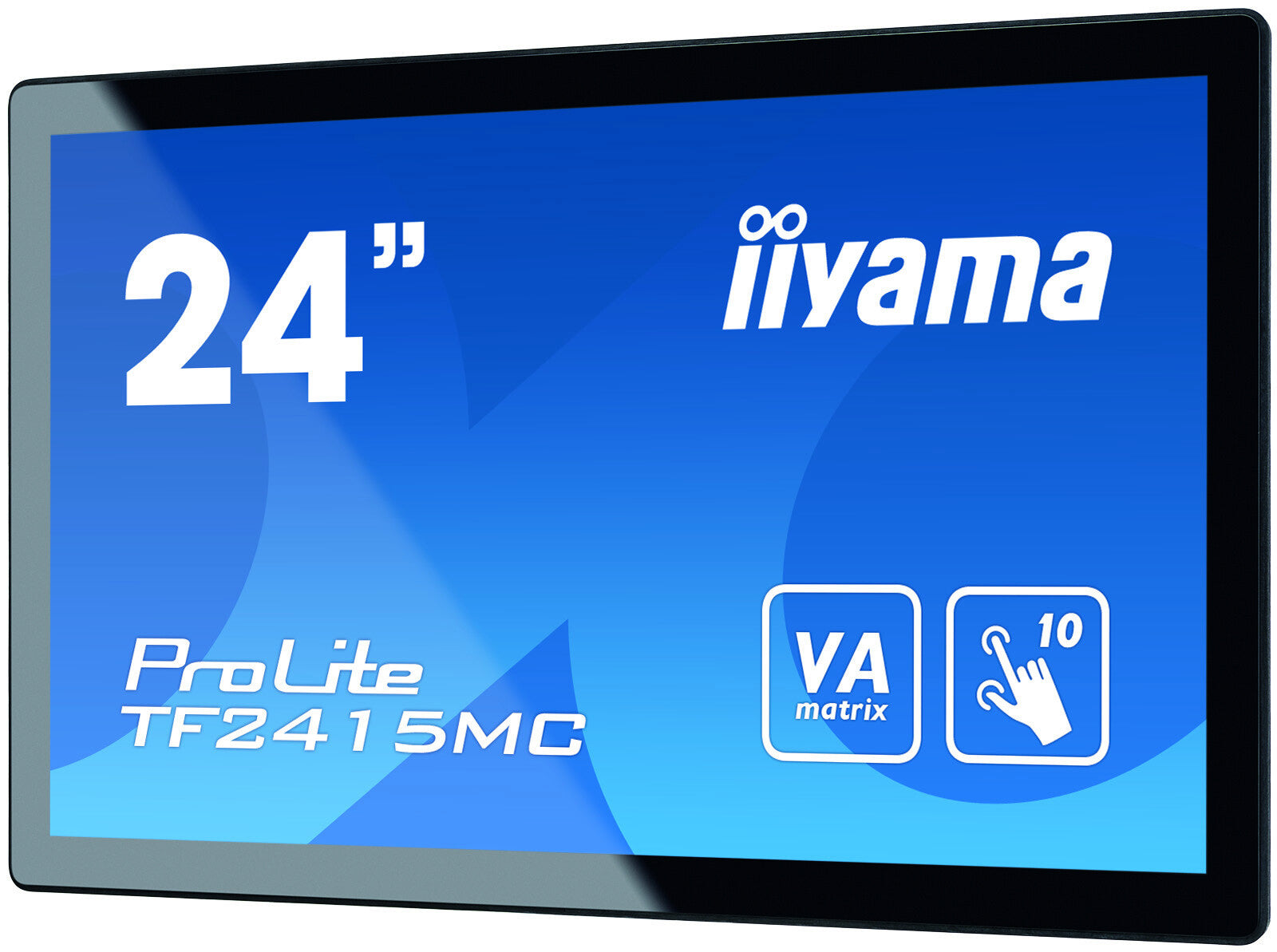

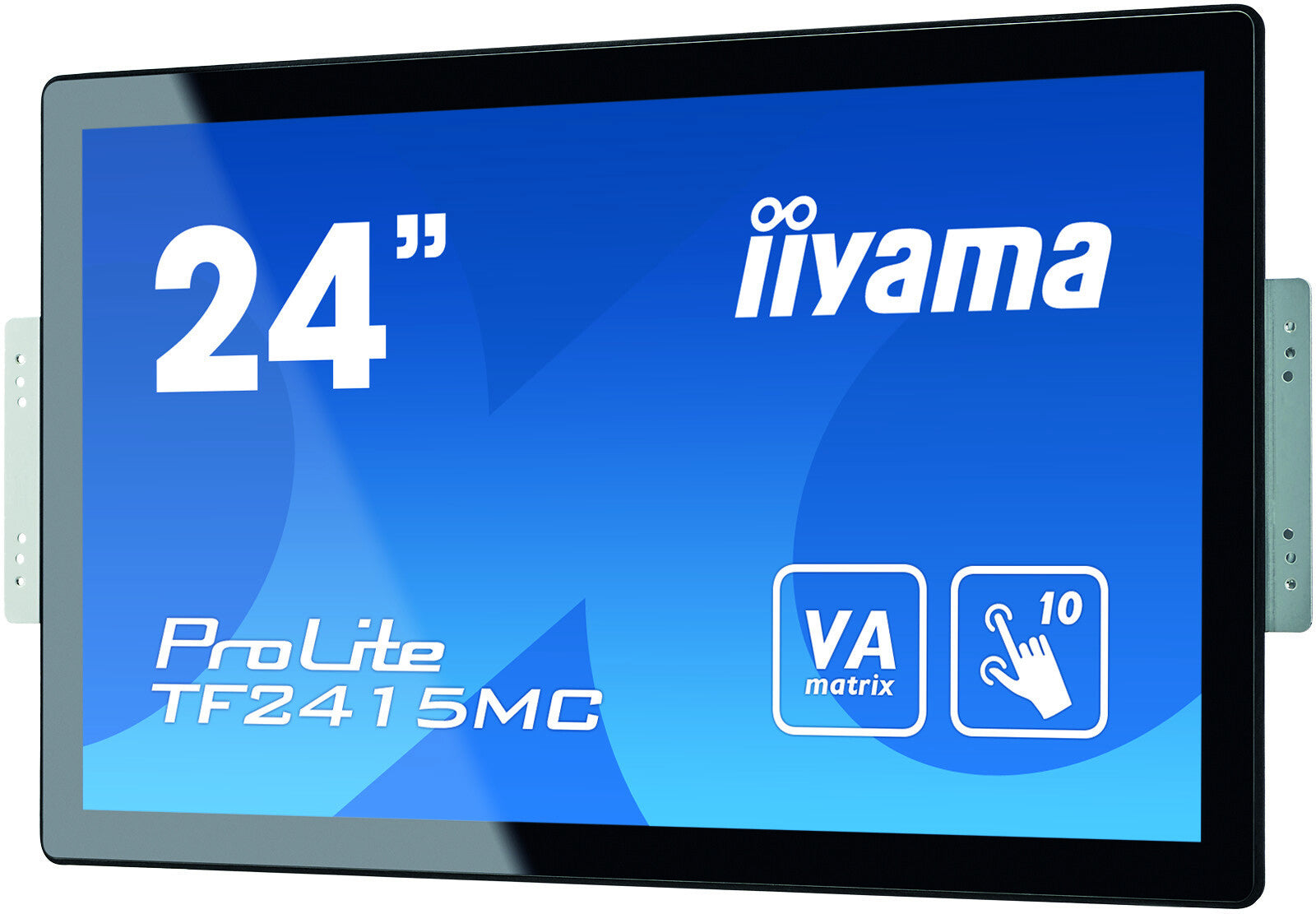

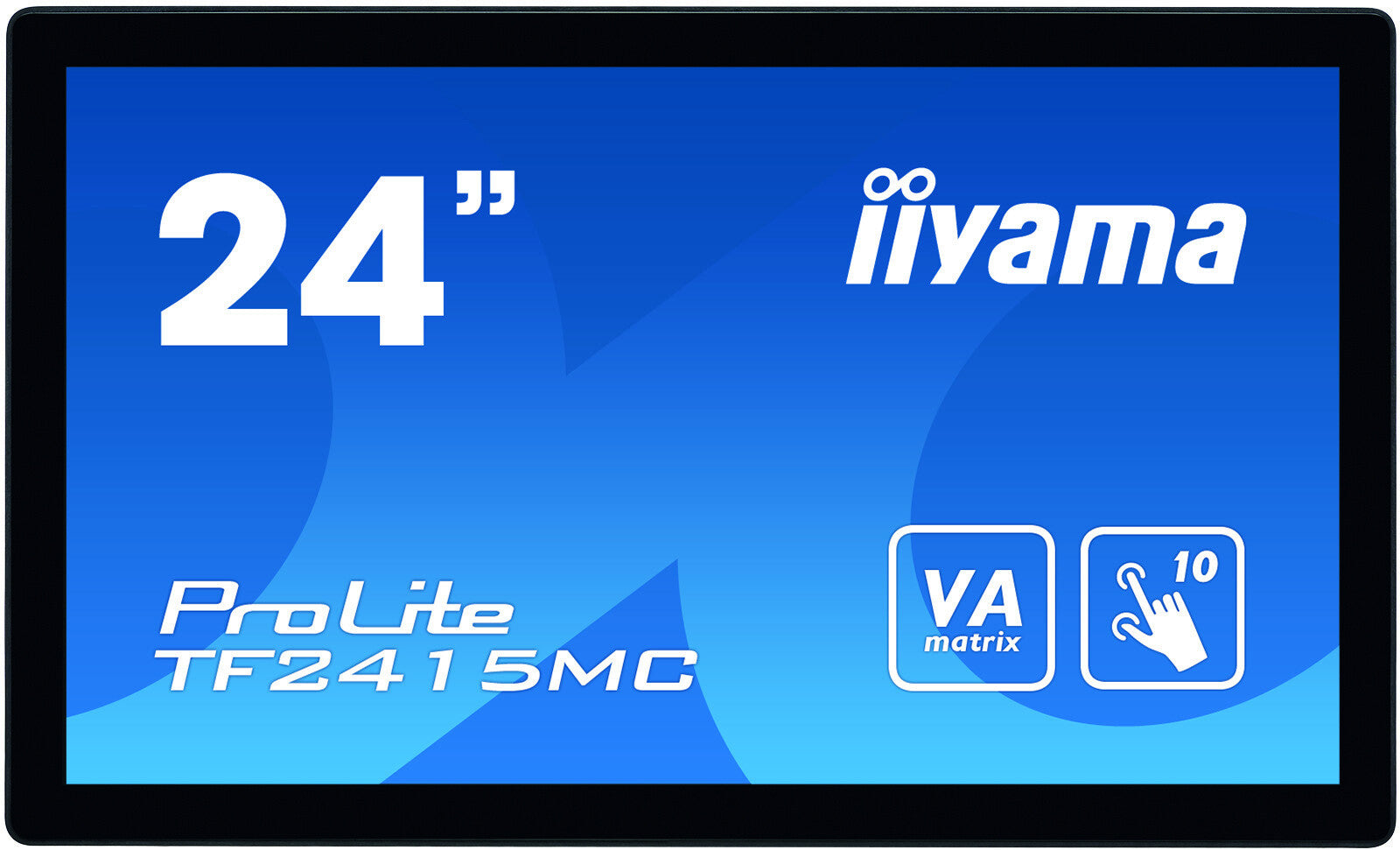

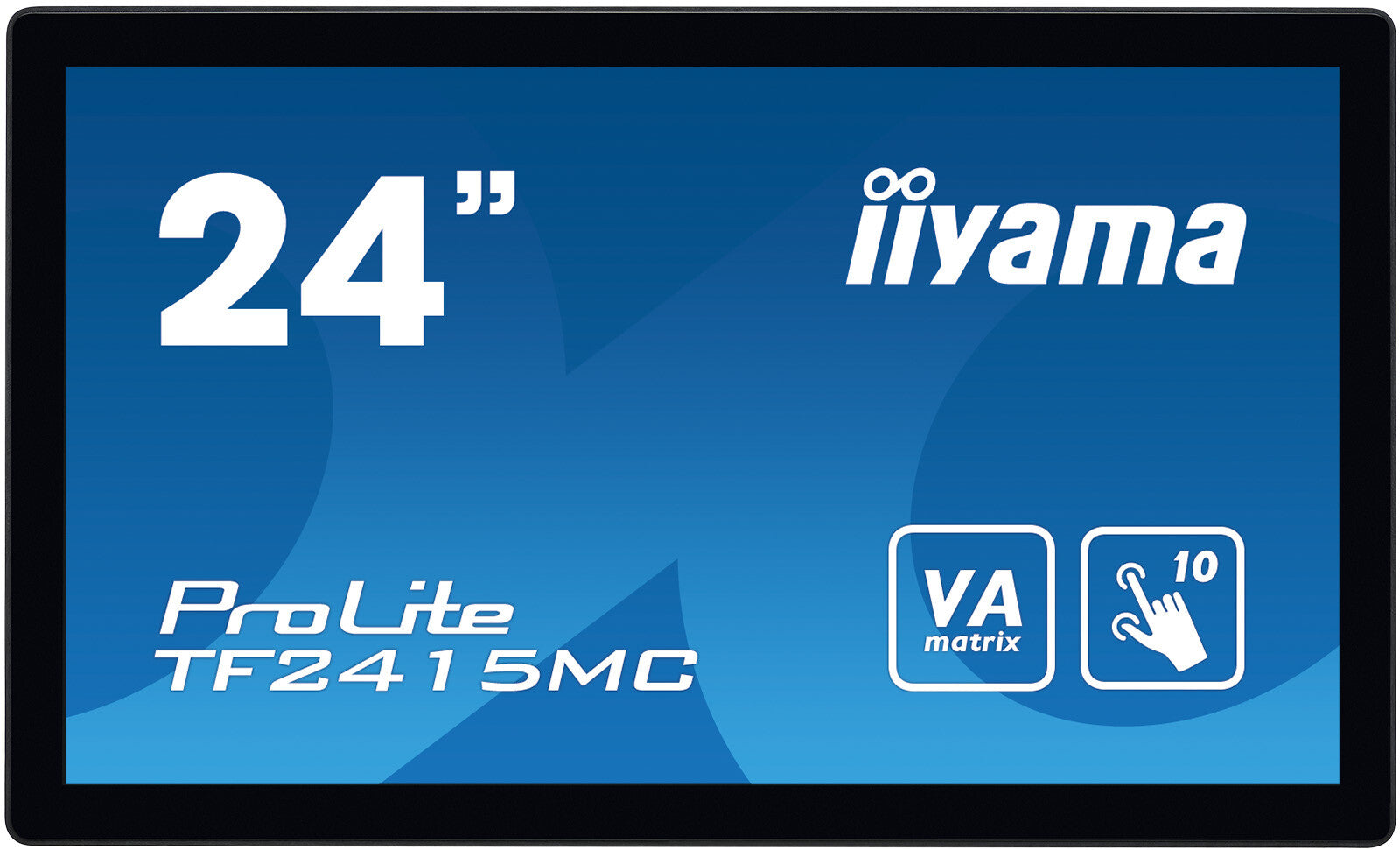

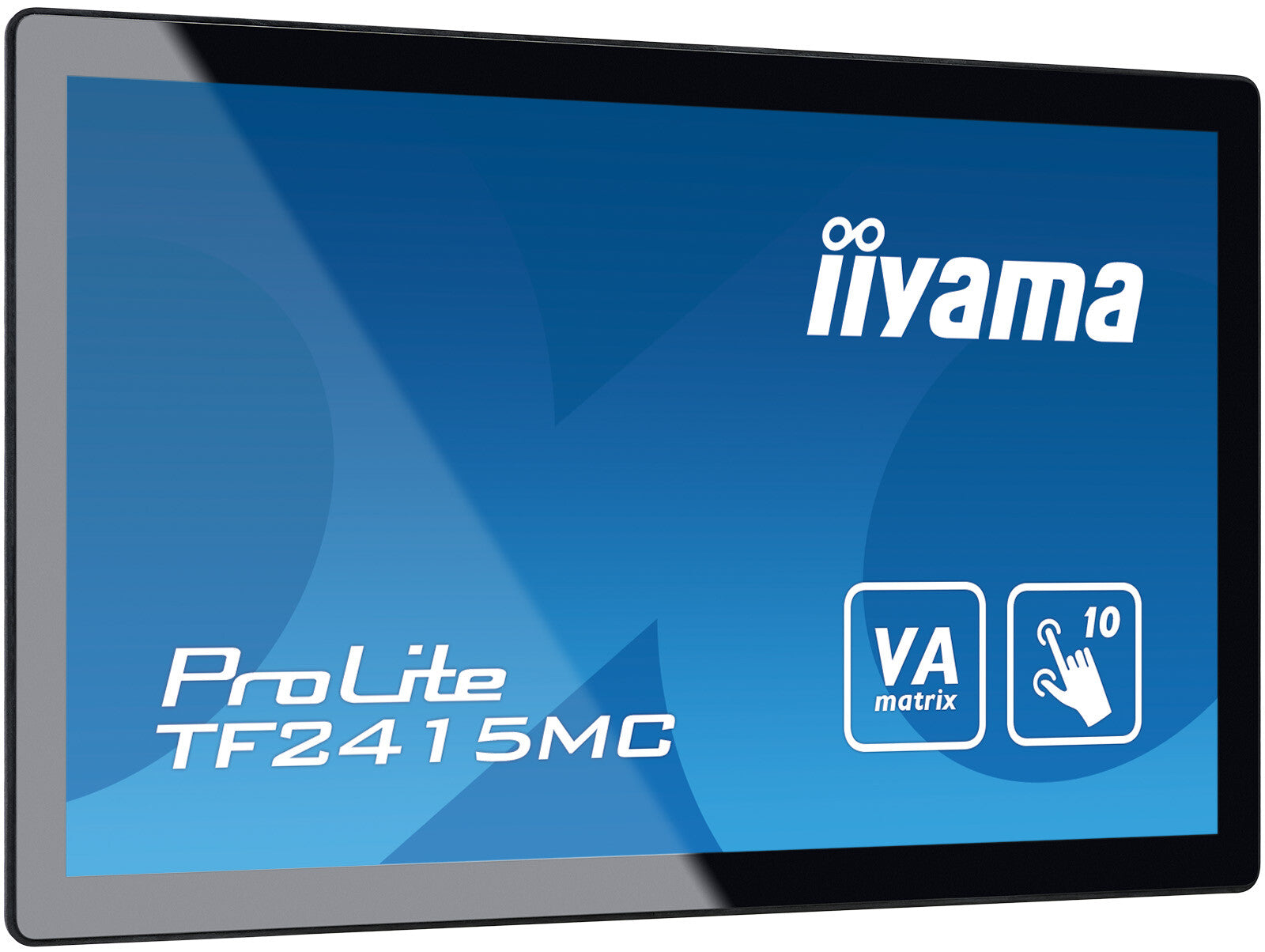

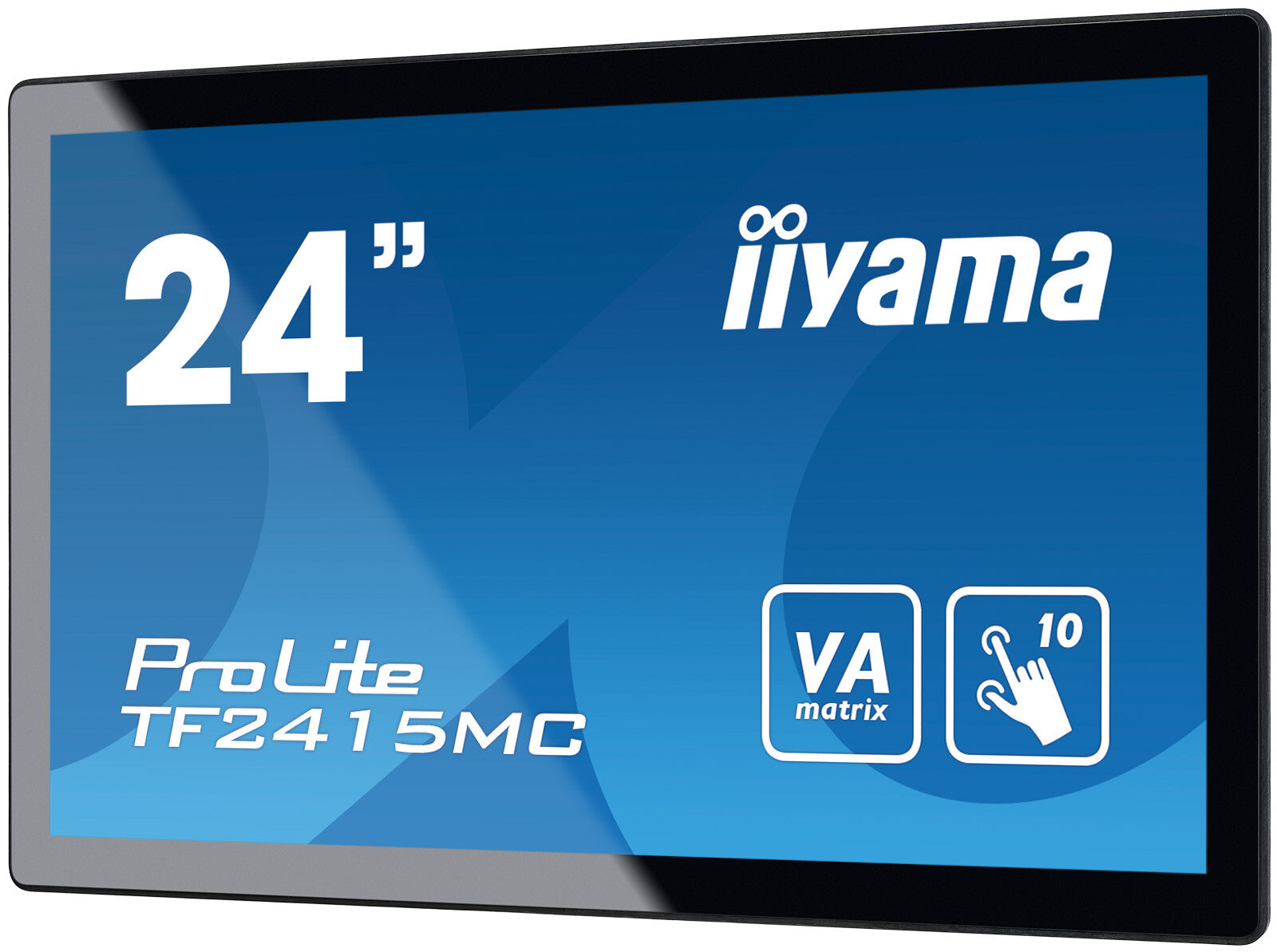

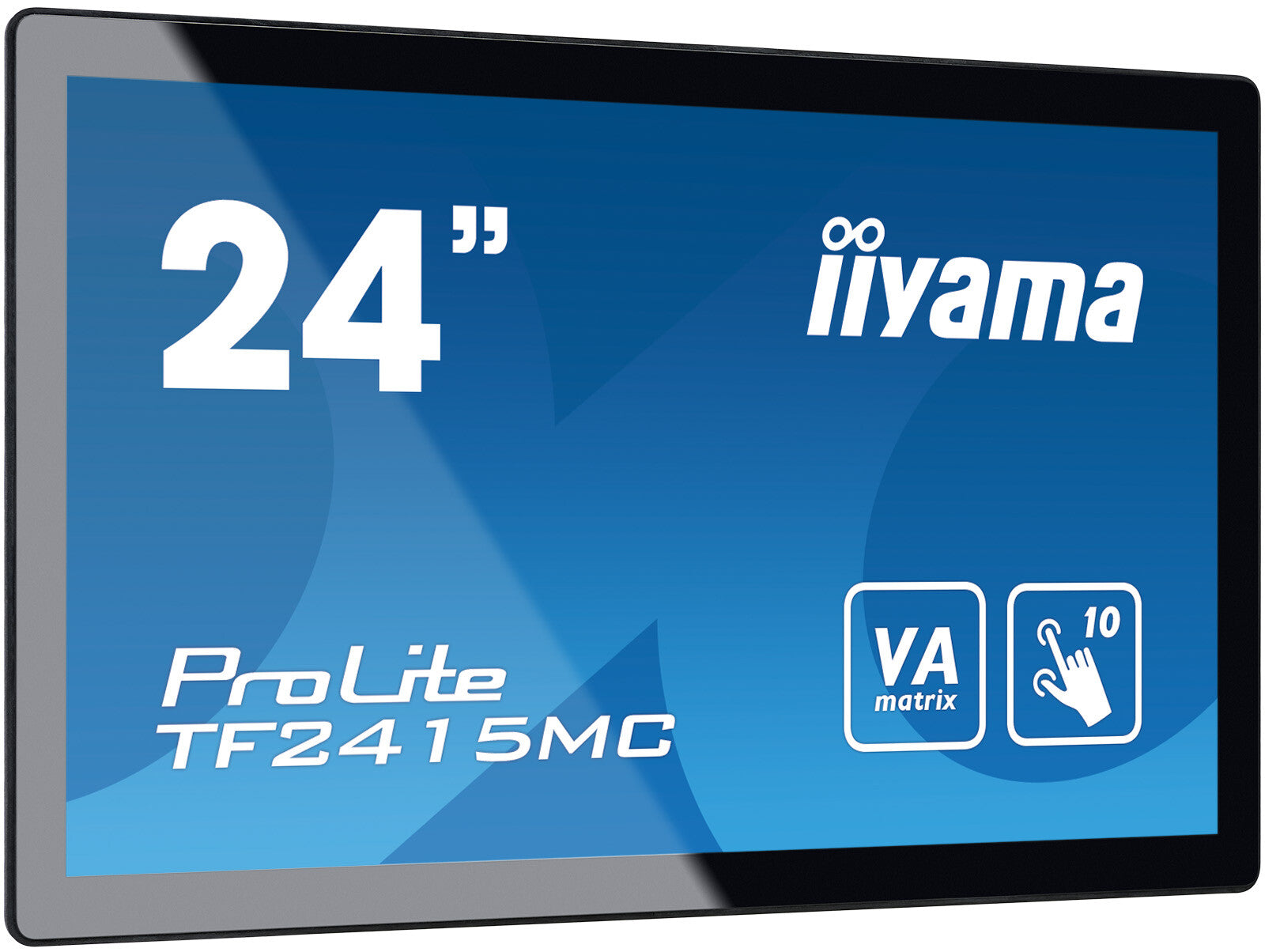

iiyama ProLite Open Frame PCAP 10 point touch screen equipped with touch through glass function. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 16 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

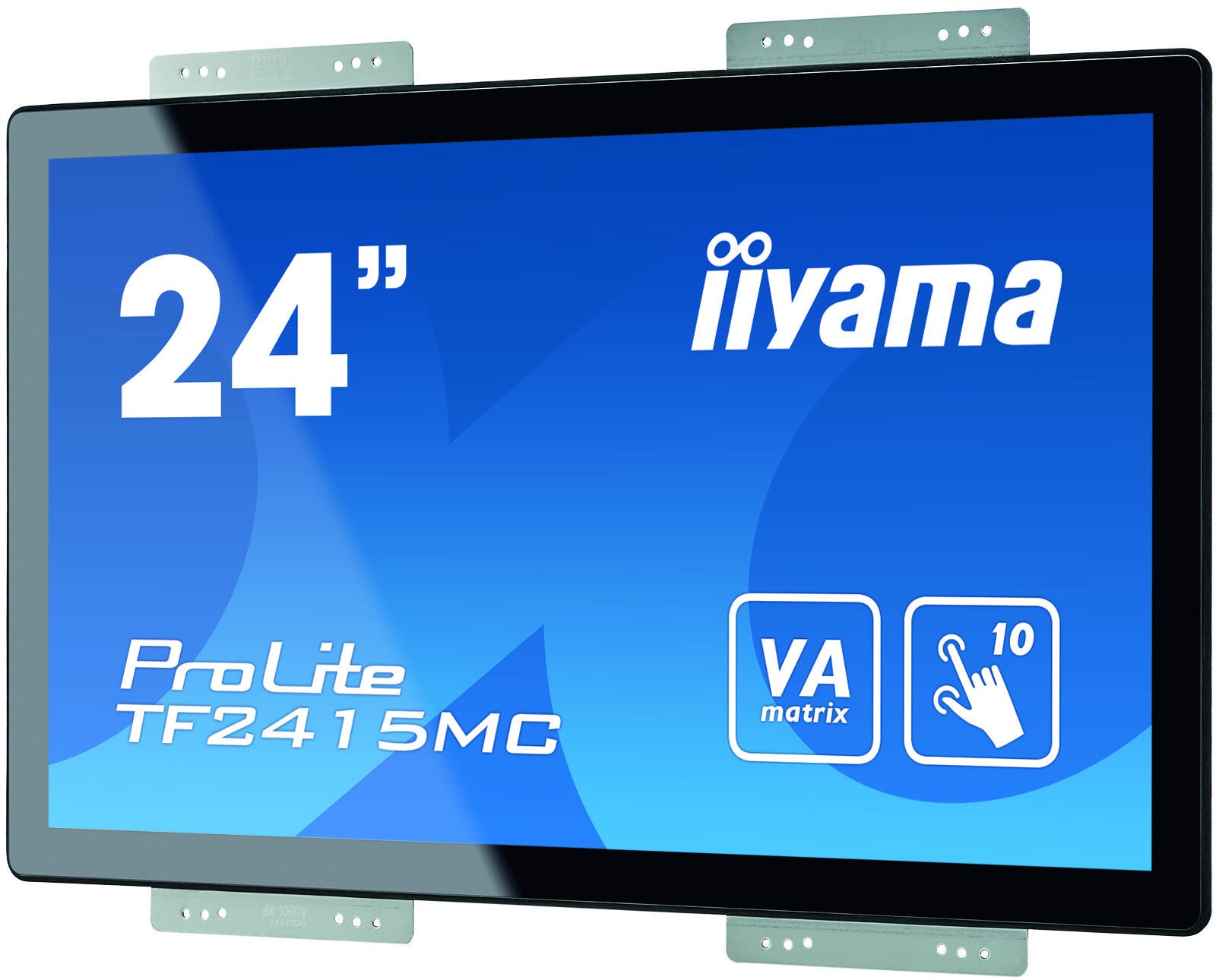

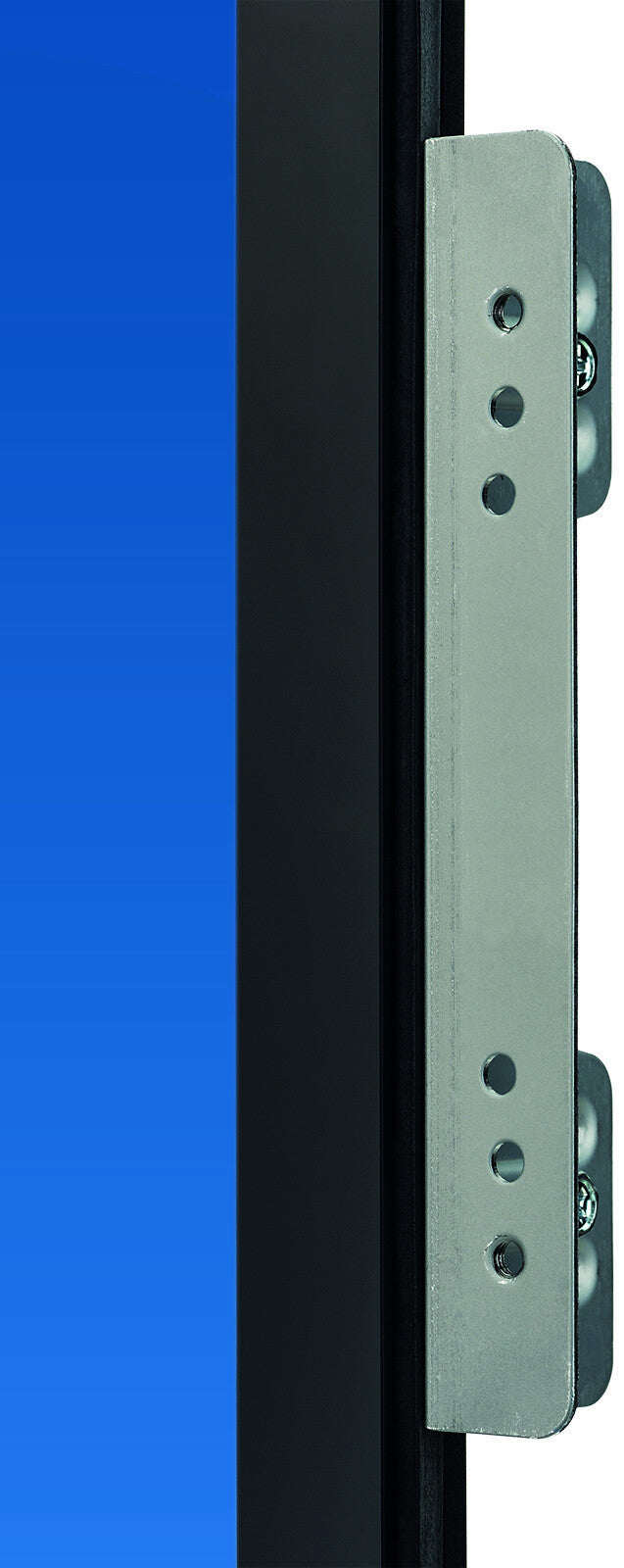

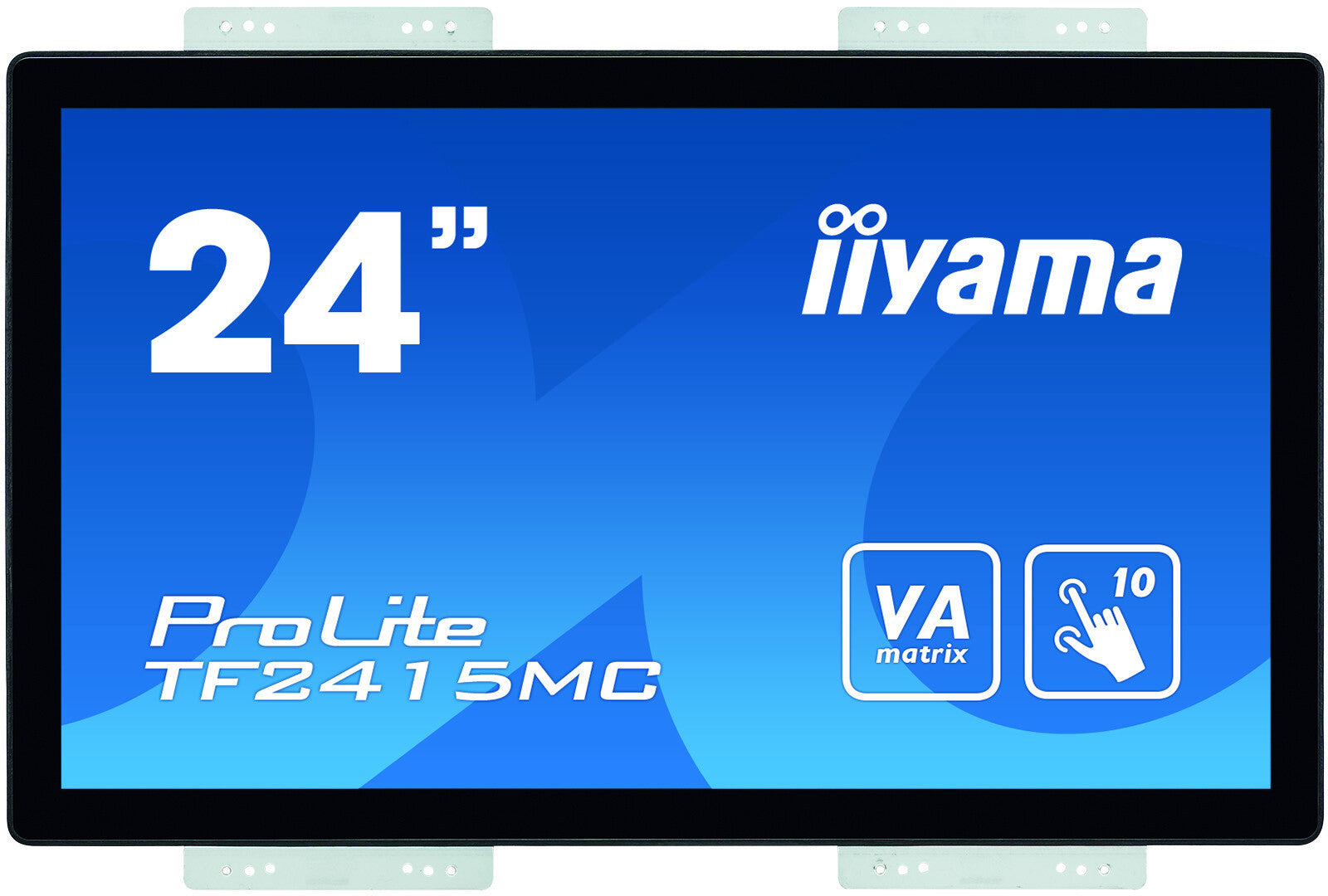

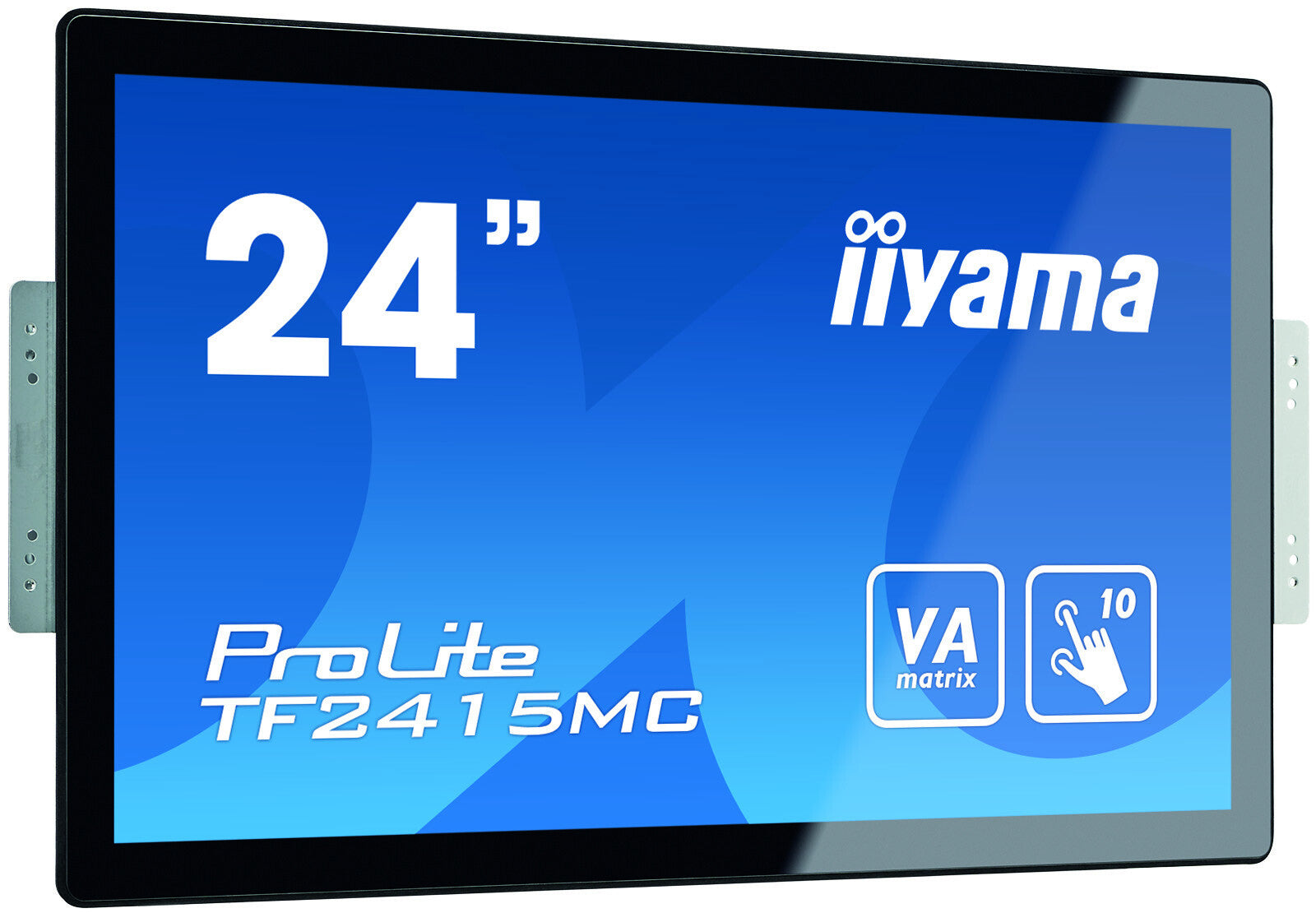

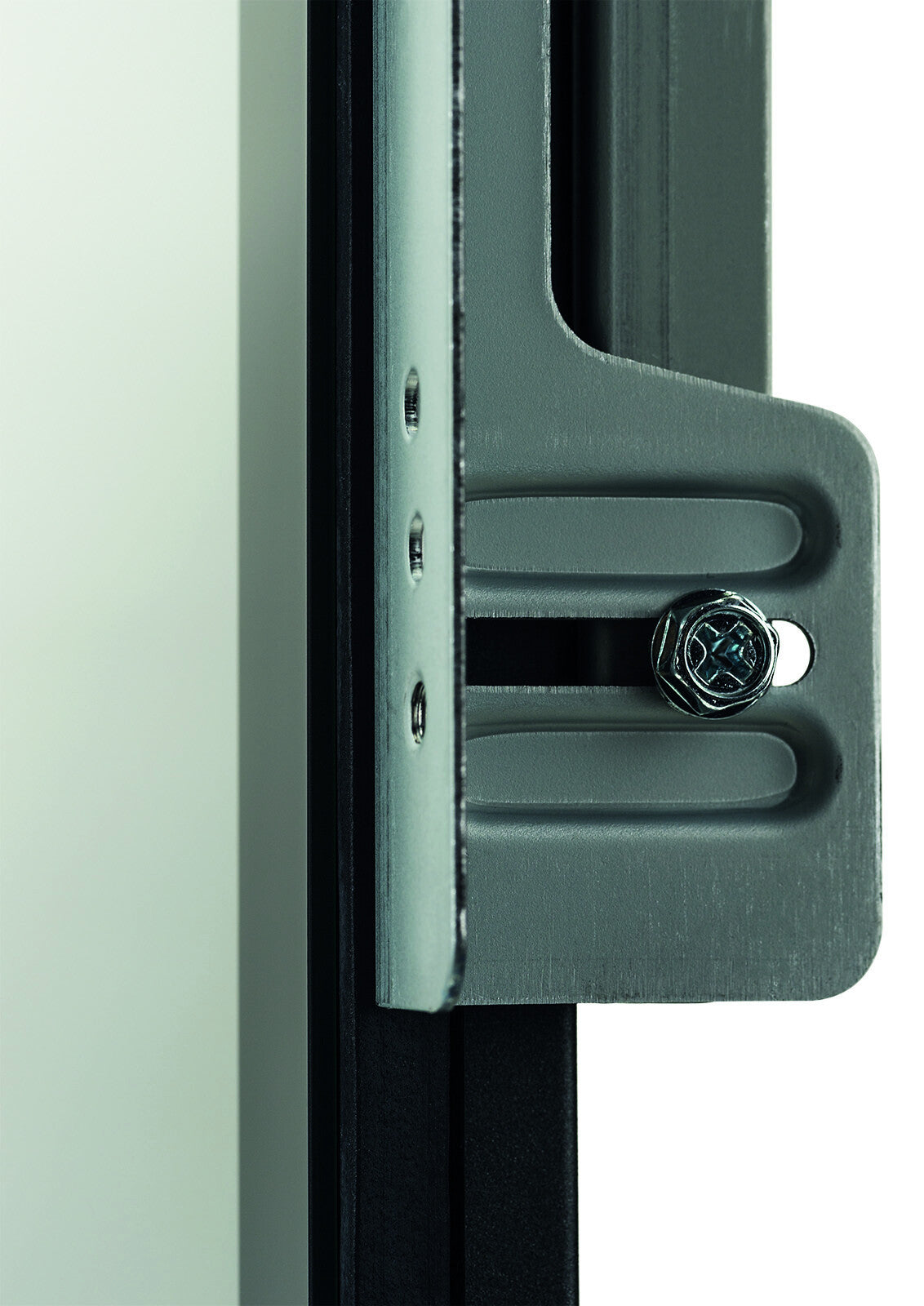

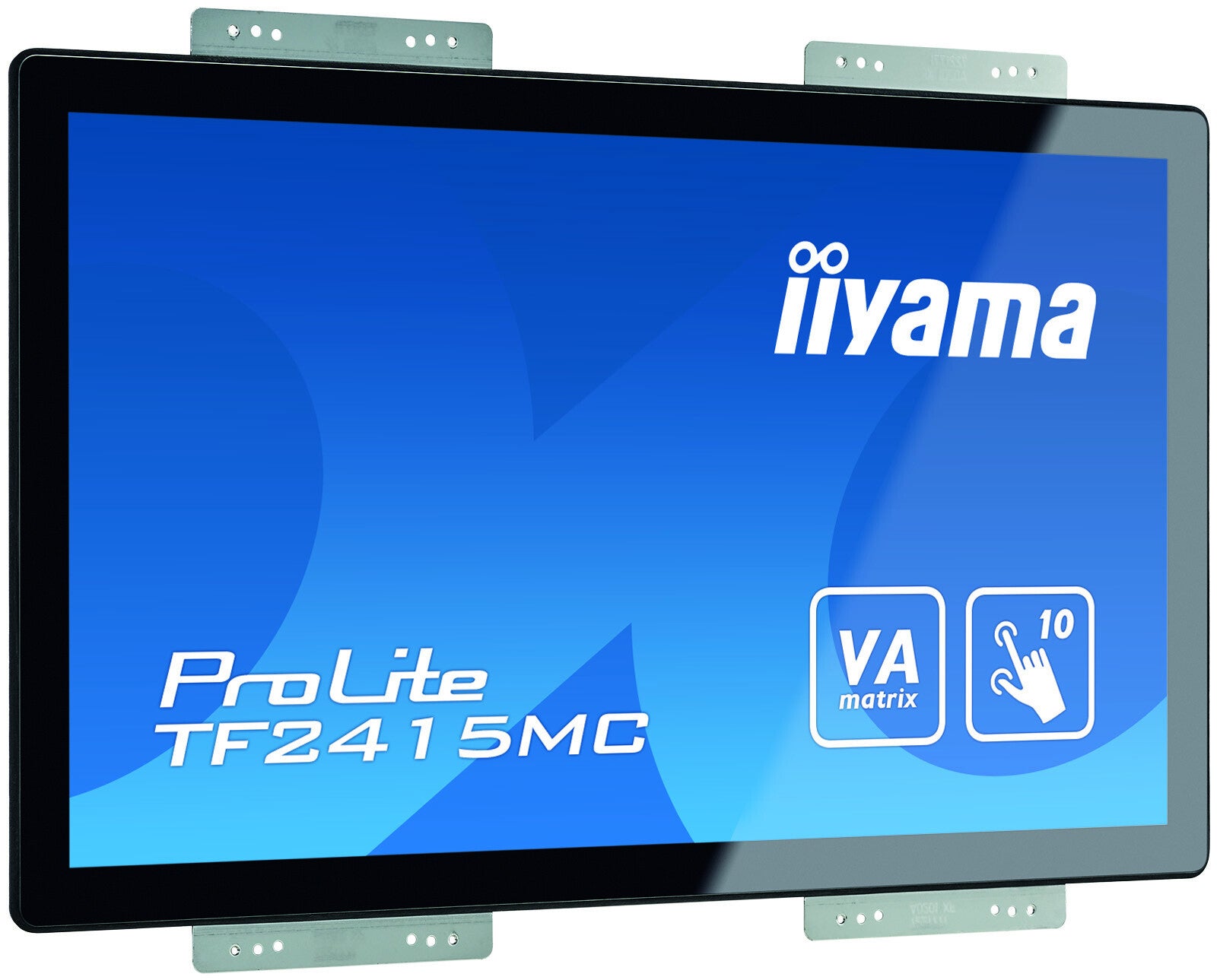

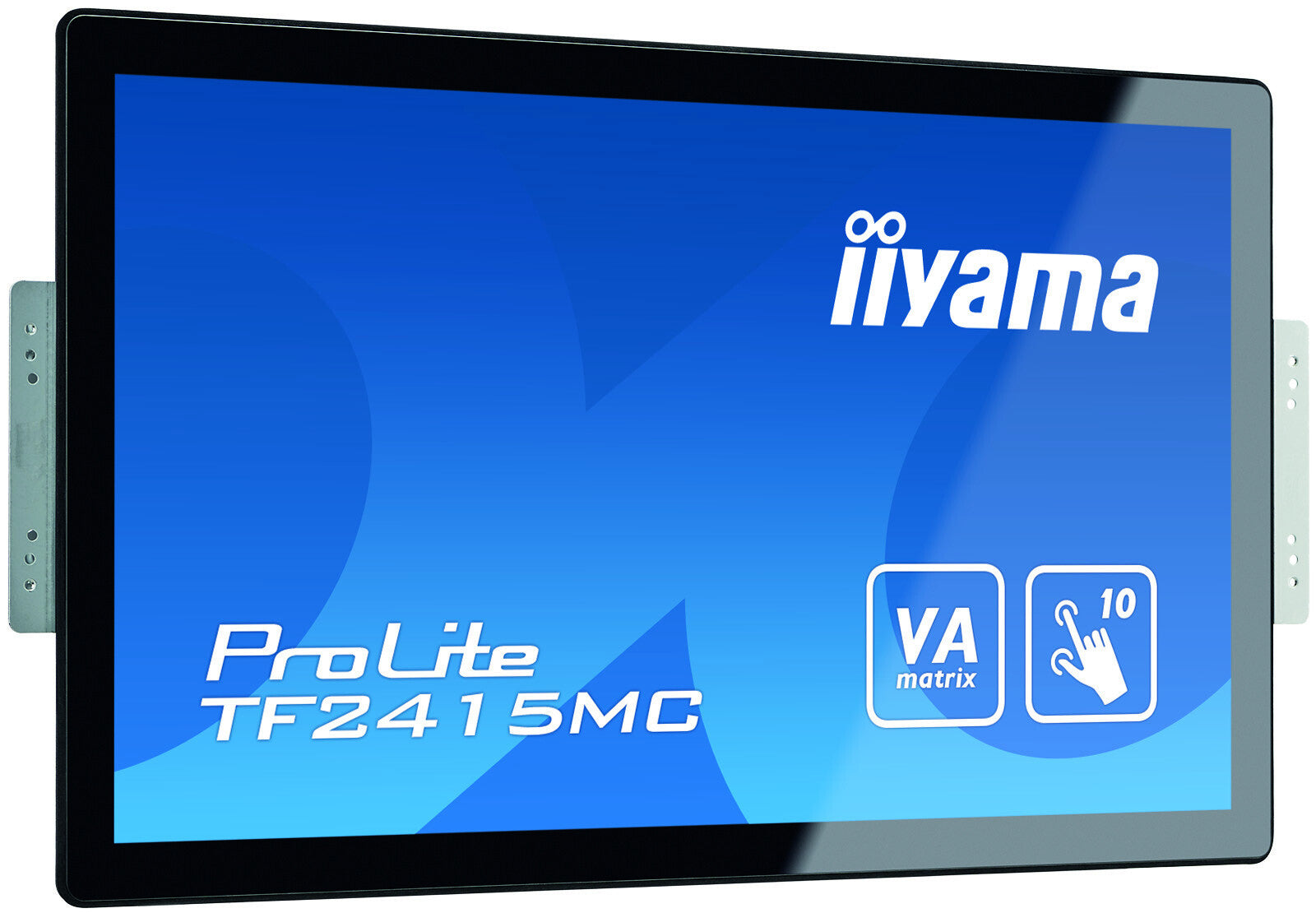

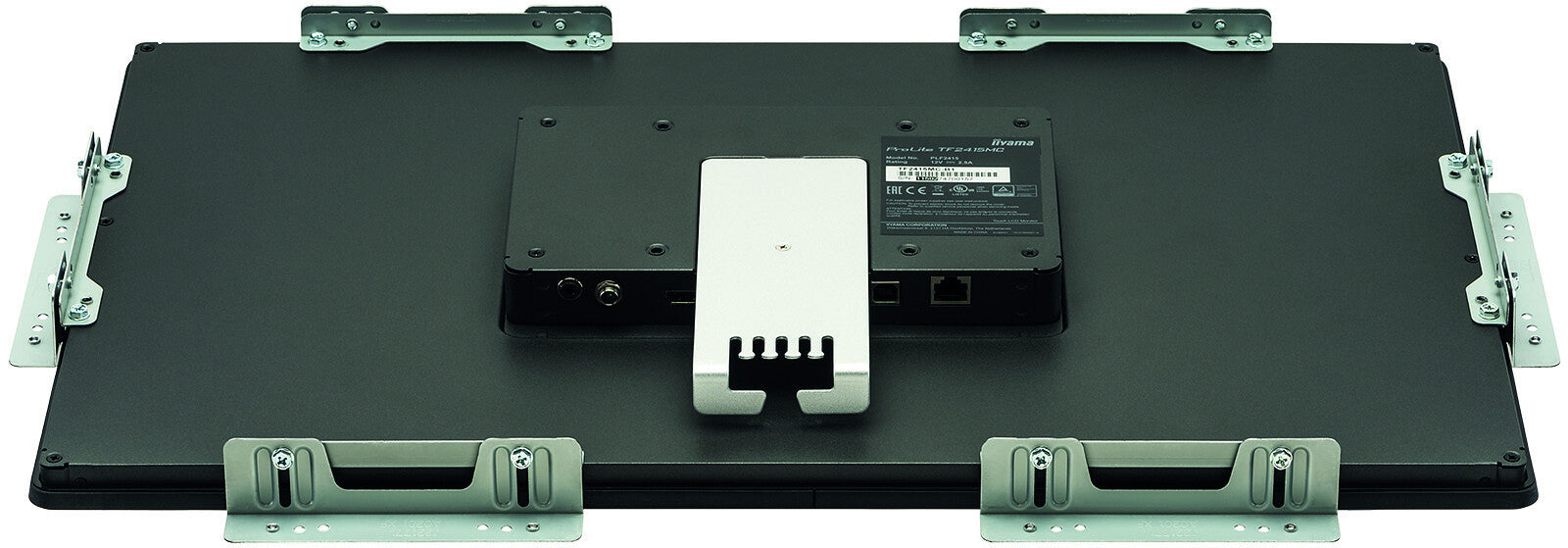

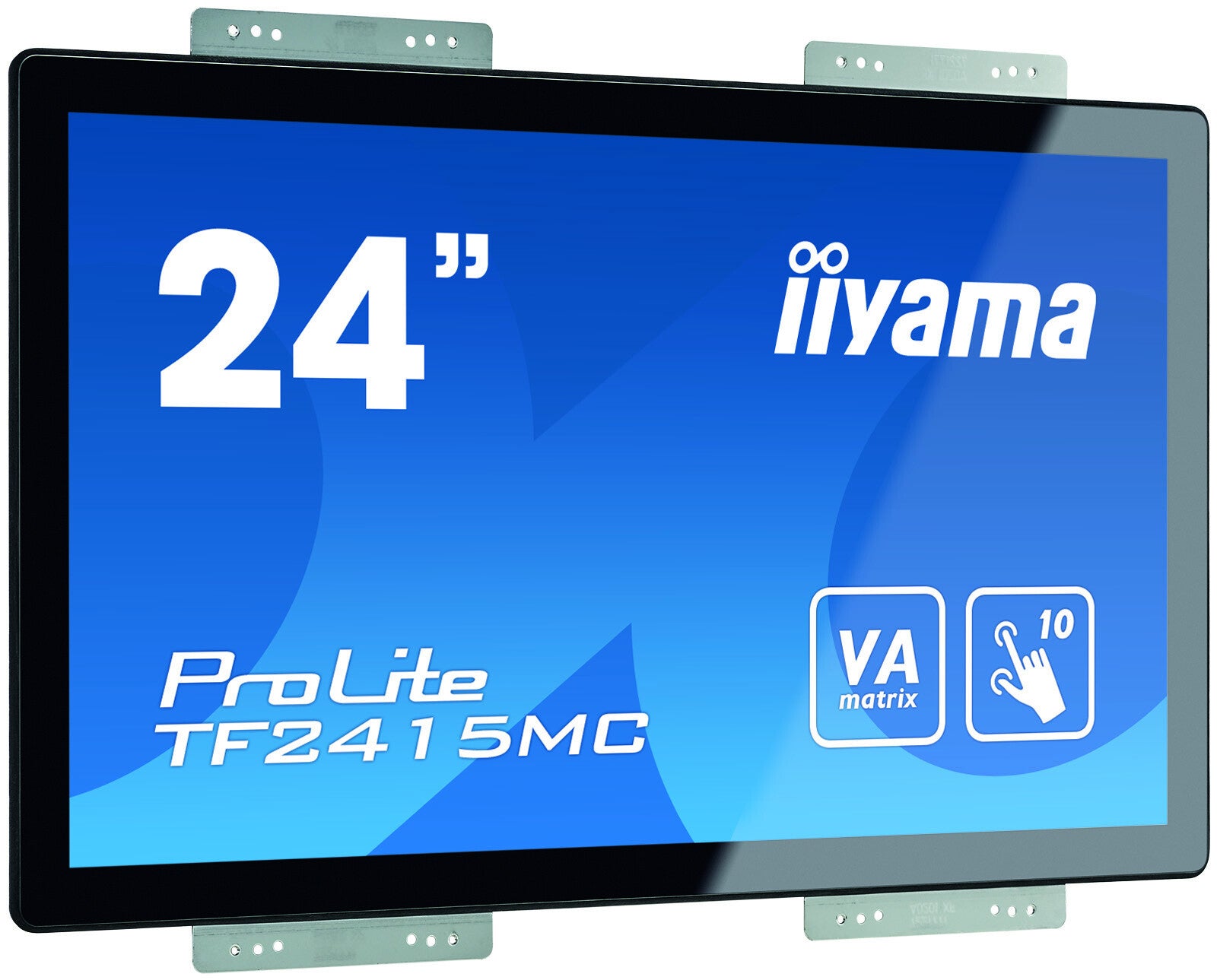

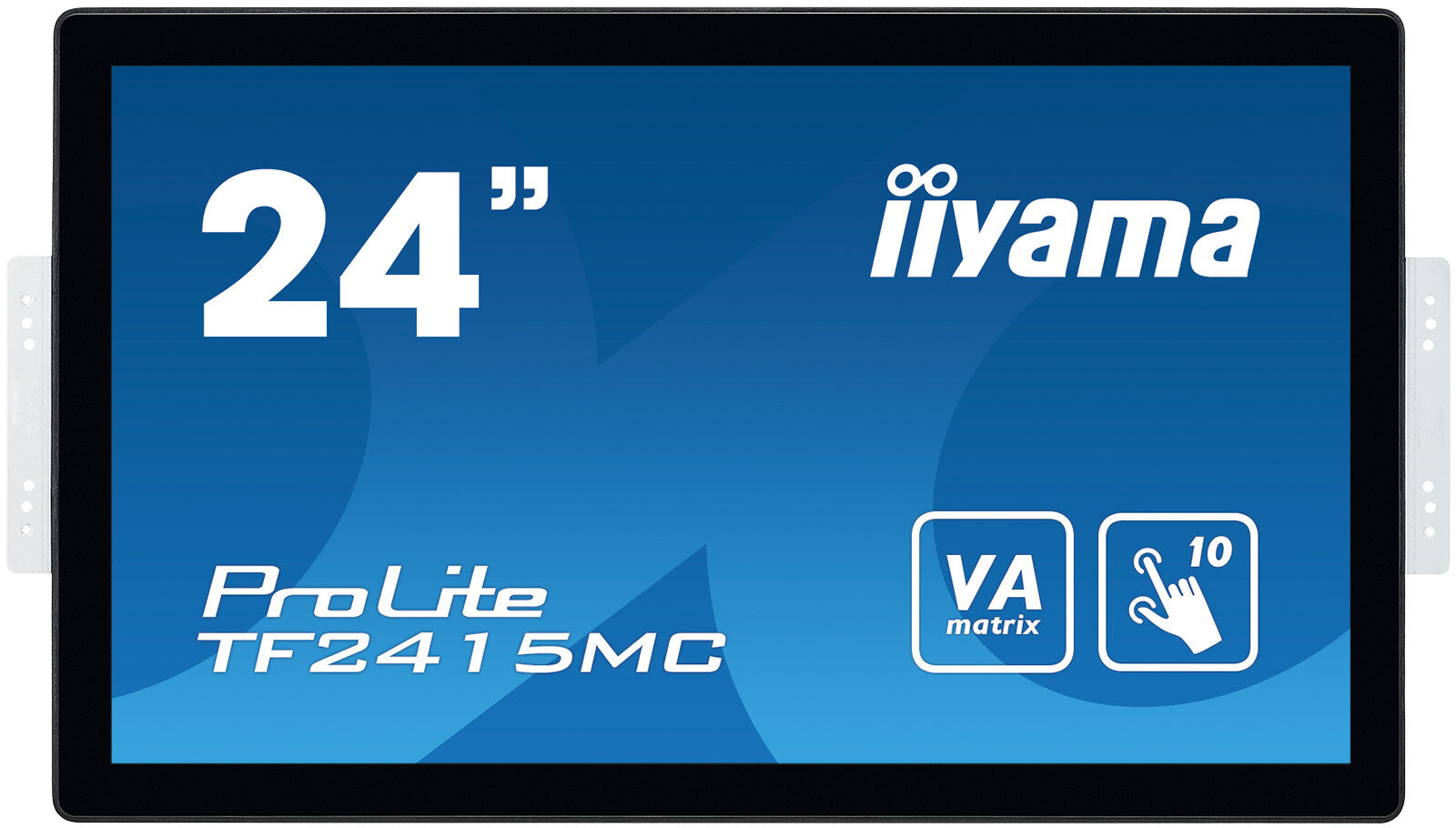

The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display
Display diagonal
60.5 cm (23.8")
Display resolution
1920 x 1080 pixels
Panel type
VA
Touchscreen technology
Projected capacitive system
Display brightness (typical)
350 cd/m²
Response time
16 ms
Display brightness
315 cd/m²
Screen shape
Flat
Aspect ratio
16:9
Contrast ratio (typical)
3000:1
Display number of colours
16.78 million colours
Horizontal scan range
31.4 - 82 kHz
Vertical scan range
56 - 75 Hz
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
Separate H/V sync
Yes
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
OmniTapps Multitouch compatibility
No
Design
Product colour
Black
Front bezel colour
Black
International Protection (IP) code
IP65
Certification
CB, CE, TÜV-Bauart, CU, cULus

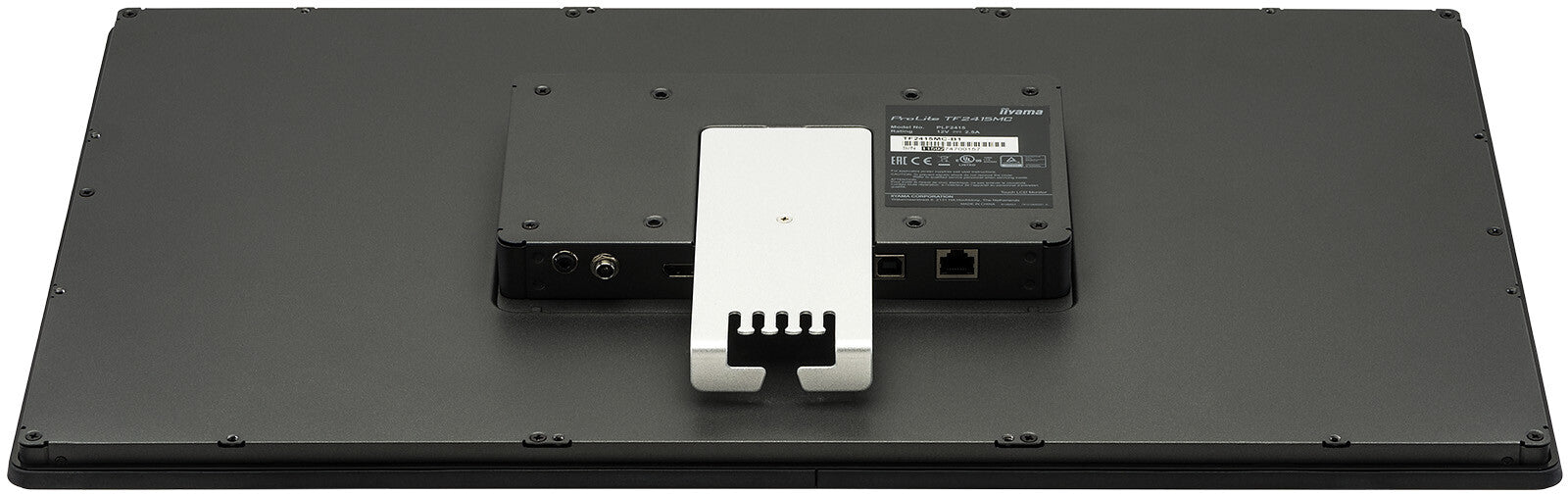

Ports & interfaces
Audio output
1
Ergonomics

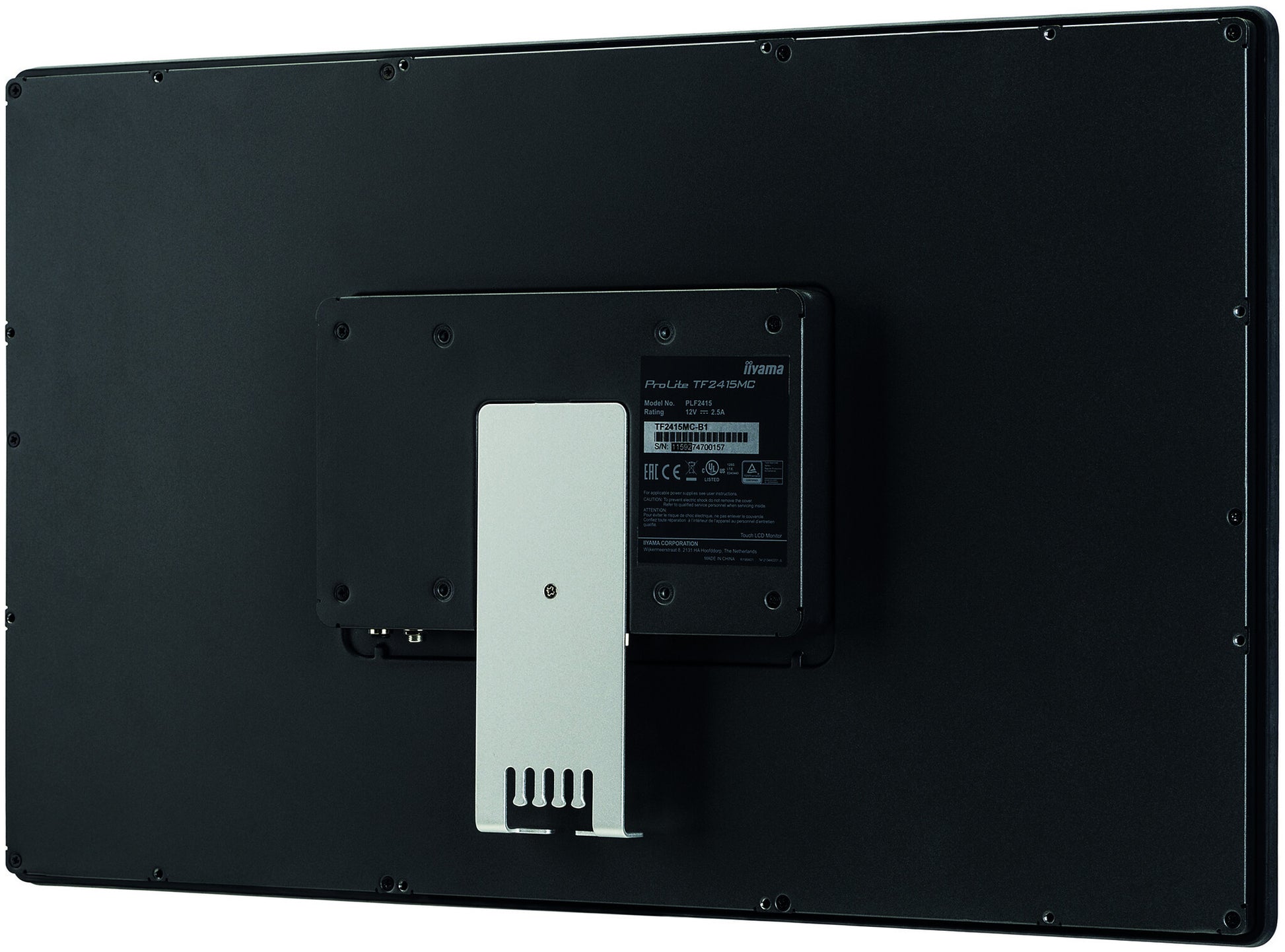

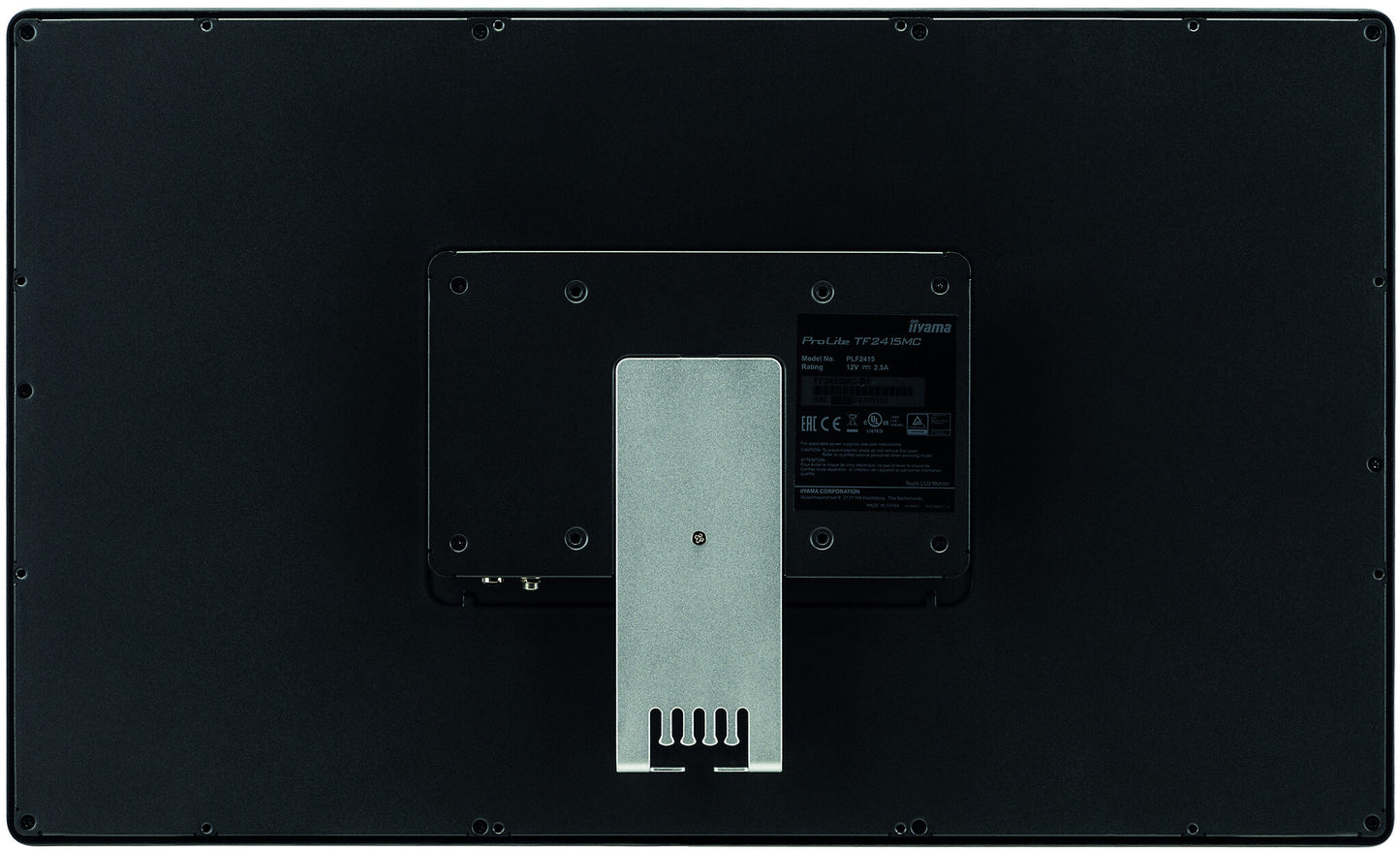

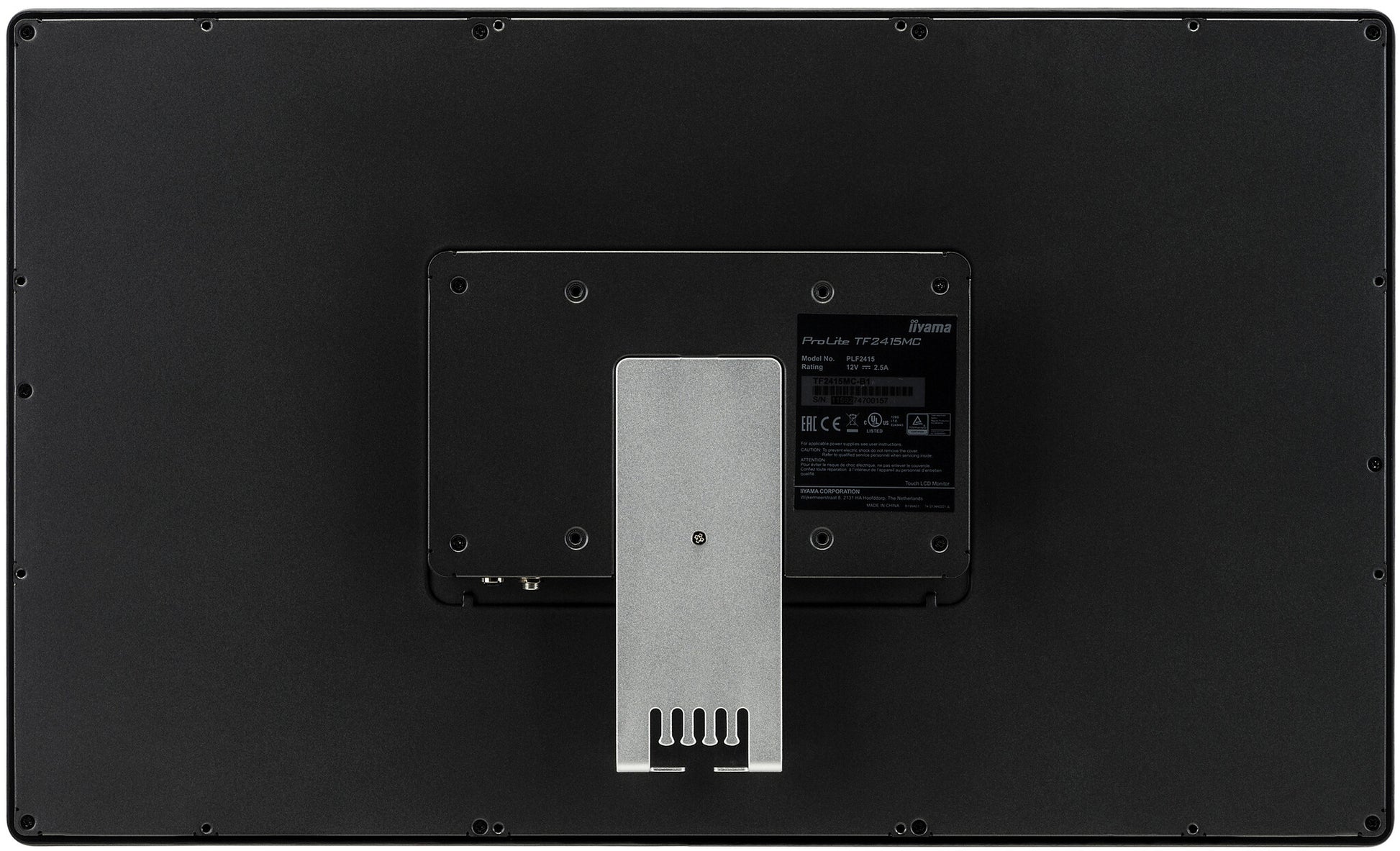

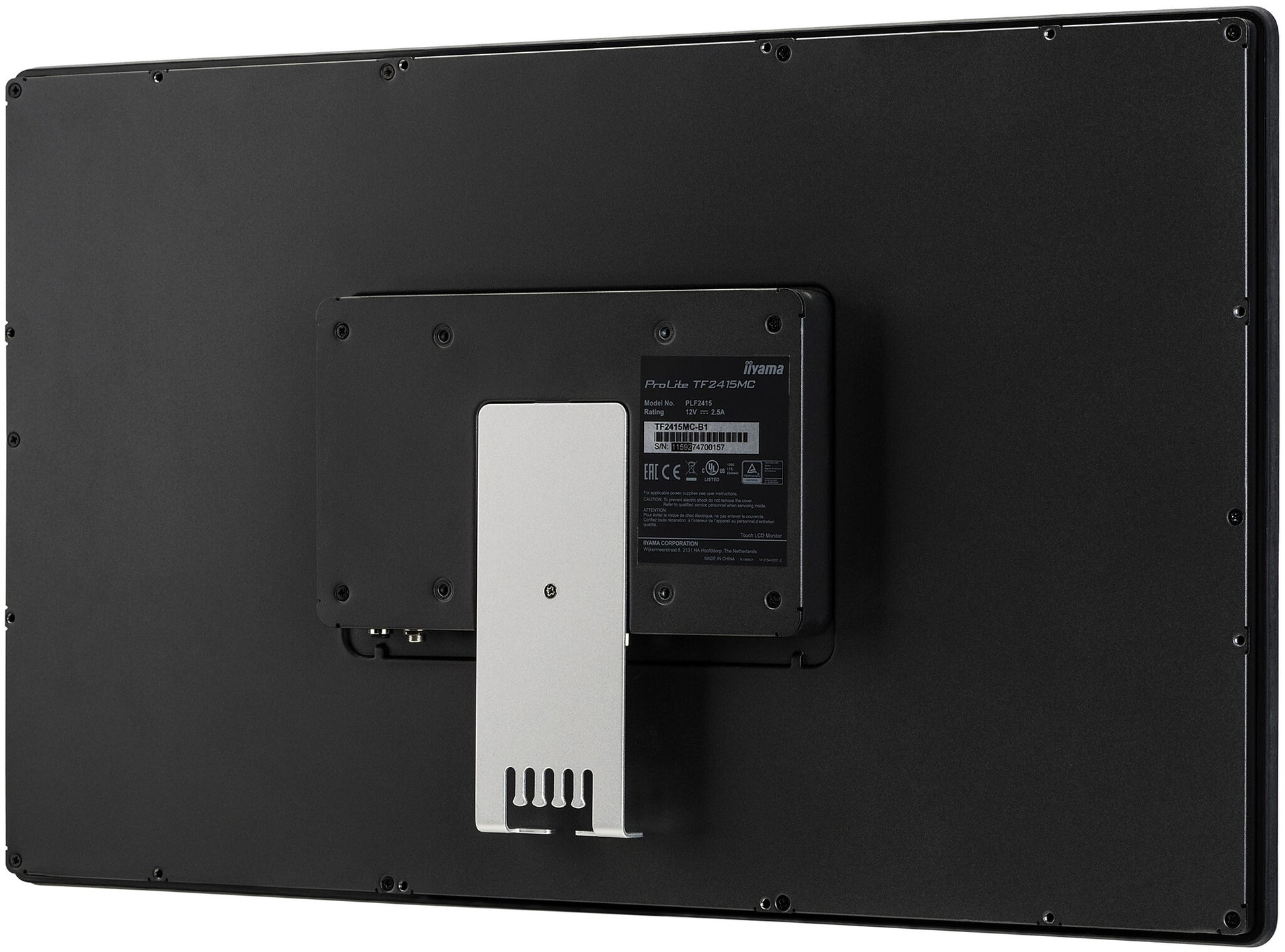

VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
Number of OSD languages
7
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Plug and Play
Yes
Power
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
22 kWh
Power consumption (typical)
24.4 W
Power consumption (standby)
1.06 W
Power consumption (off)
0.32 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Network
Ethernet LAN
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
575 mm
Depth (with stand)
42.5 mm
Height (with stand)
347 mm
Weight (with stand)
5.8 kg
Width (without stand)
575 mm
Depth (without stand)
42.5 mm
Height (without stand)
347 mm
Weight (without stand)
5.8 kg
Packaging data

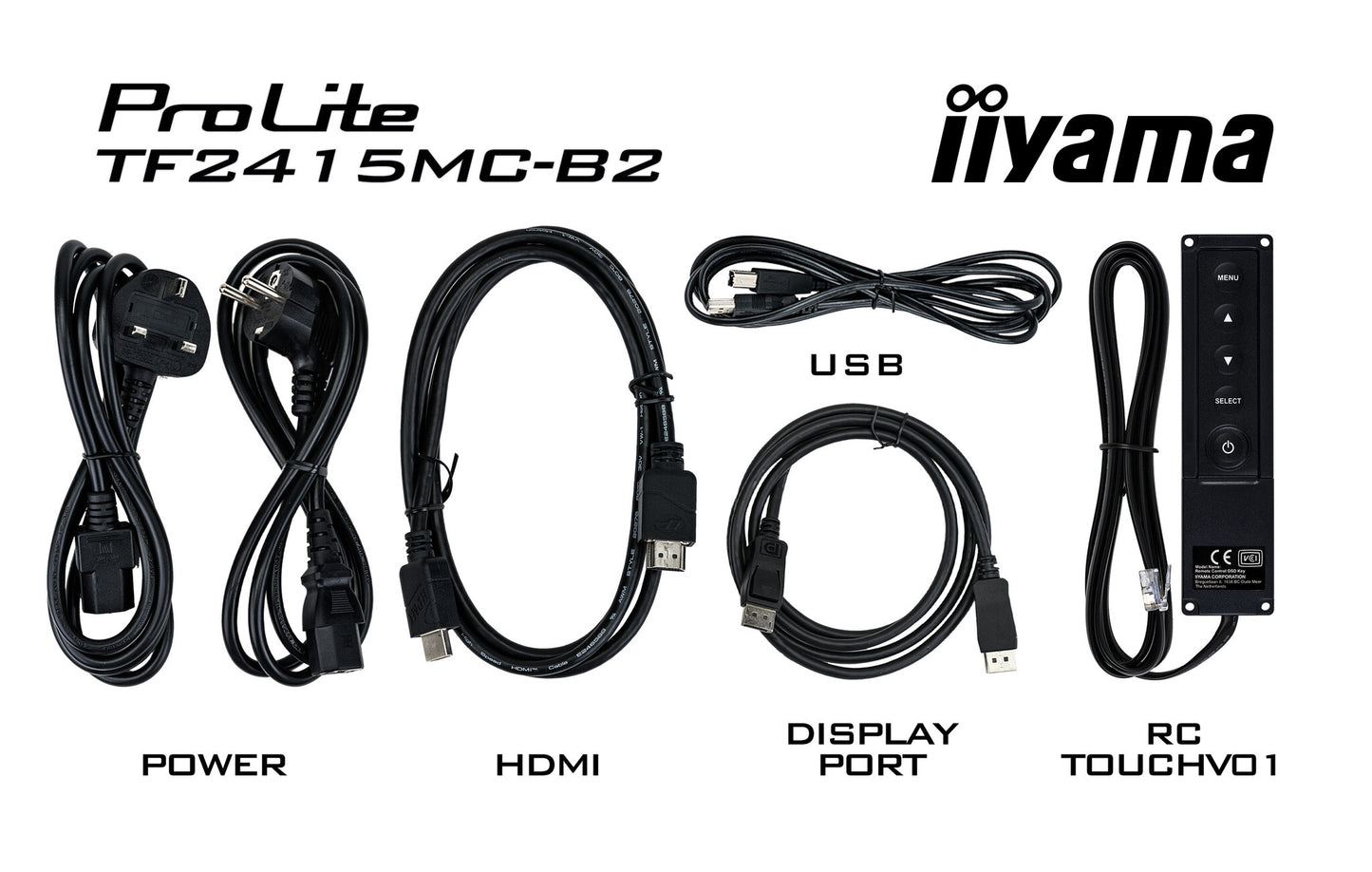

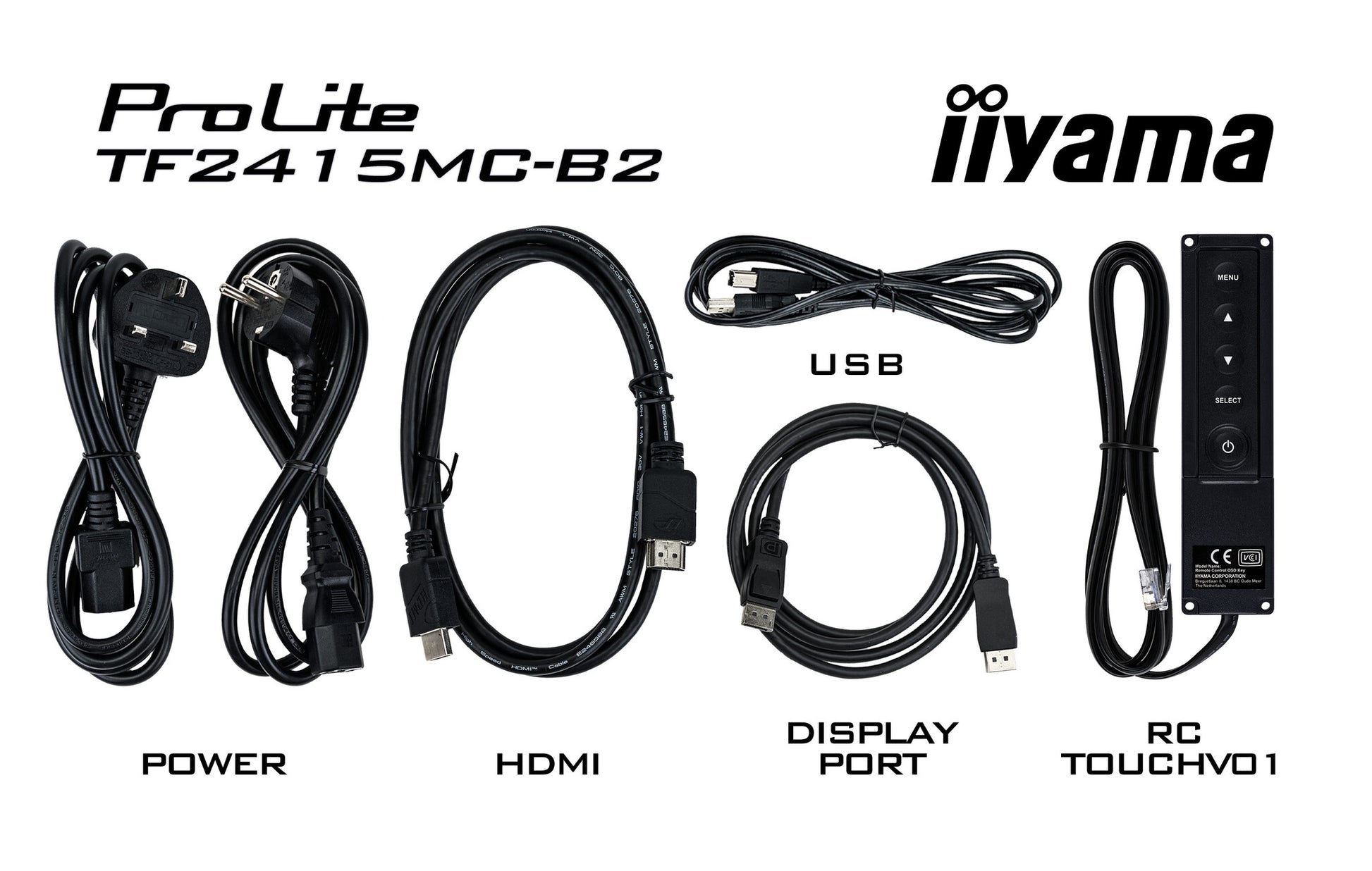

Cables included
AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Logistics data
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
CB, CE, cULus, REACH, RoHS, WEEE
Other features
AC adapter included
Yes
Packaging content
AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Brightness
315 cd/m²
Depth
42.5 mm
Width
575 mm
Height
347 mm
Weight
5.8 kg
Active display area (W x H)
527.04 x 296.46 mm
Glass protection
Yes
Placement supported
Horizontal/Vertical
Display viewable area (HxV)
527.04 x 296.46 mm
Ethernet LAN (RJ-45) ports
1
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Touch method
stylus, finger, glove (latex)
User controls
picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H. position, V. position, touch switch), option (reset, language, source select, display mode, factory)
Supplied AC adapter type
AC
Touchscreen
Touchscreen
Yes
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Built-in camera
No
Touch technology
Multi-touch
Touchscreen type
Multi-user
Number of simultaneous touchpoints
10
USB Touch port
Yes
VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.2745 x 0.2745 mm
Built-in microphone
No
Display diagonal (metric)
60.5 cm
HDCP
Yes
Surface hardness
7H
