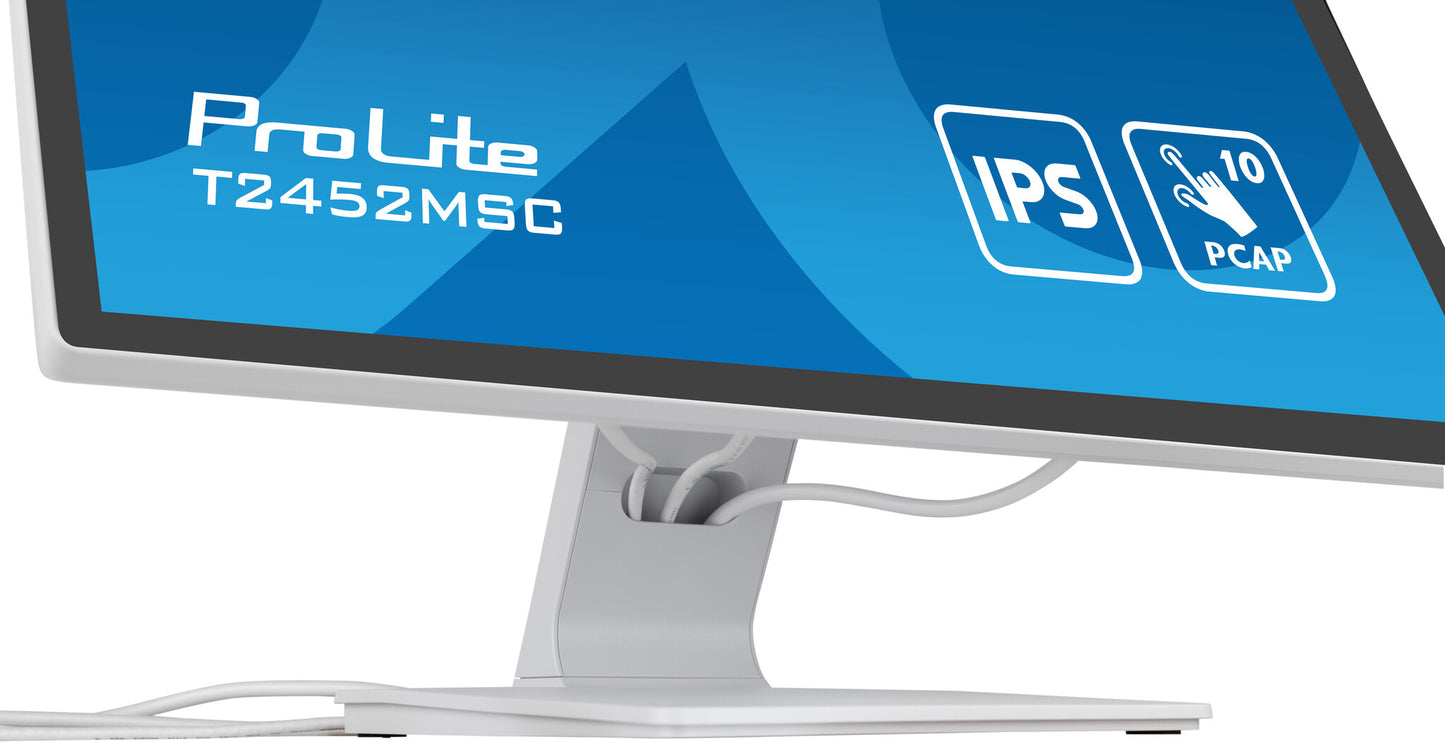

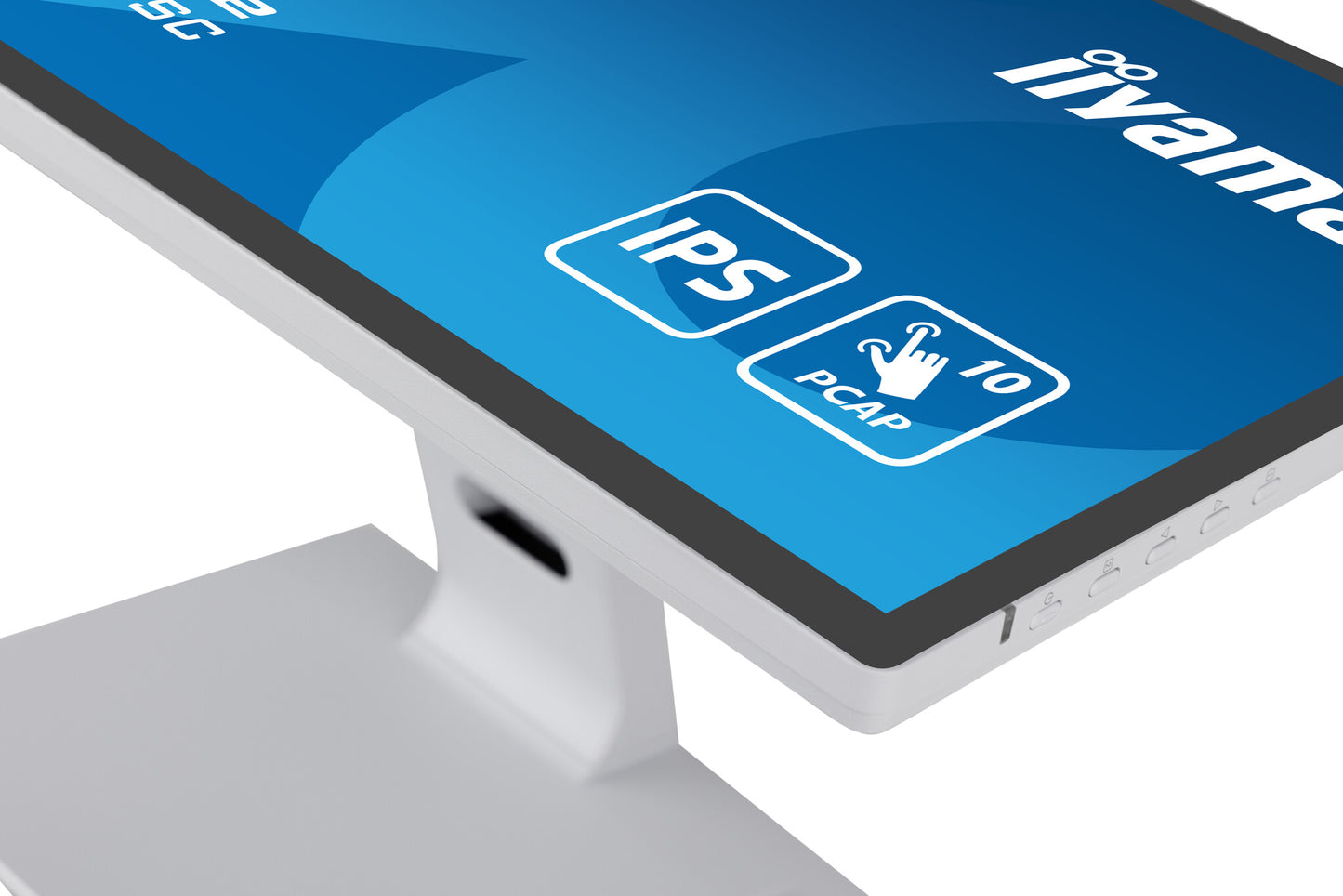

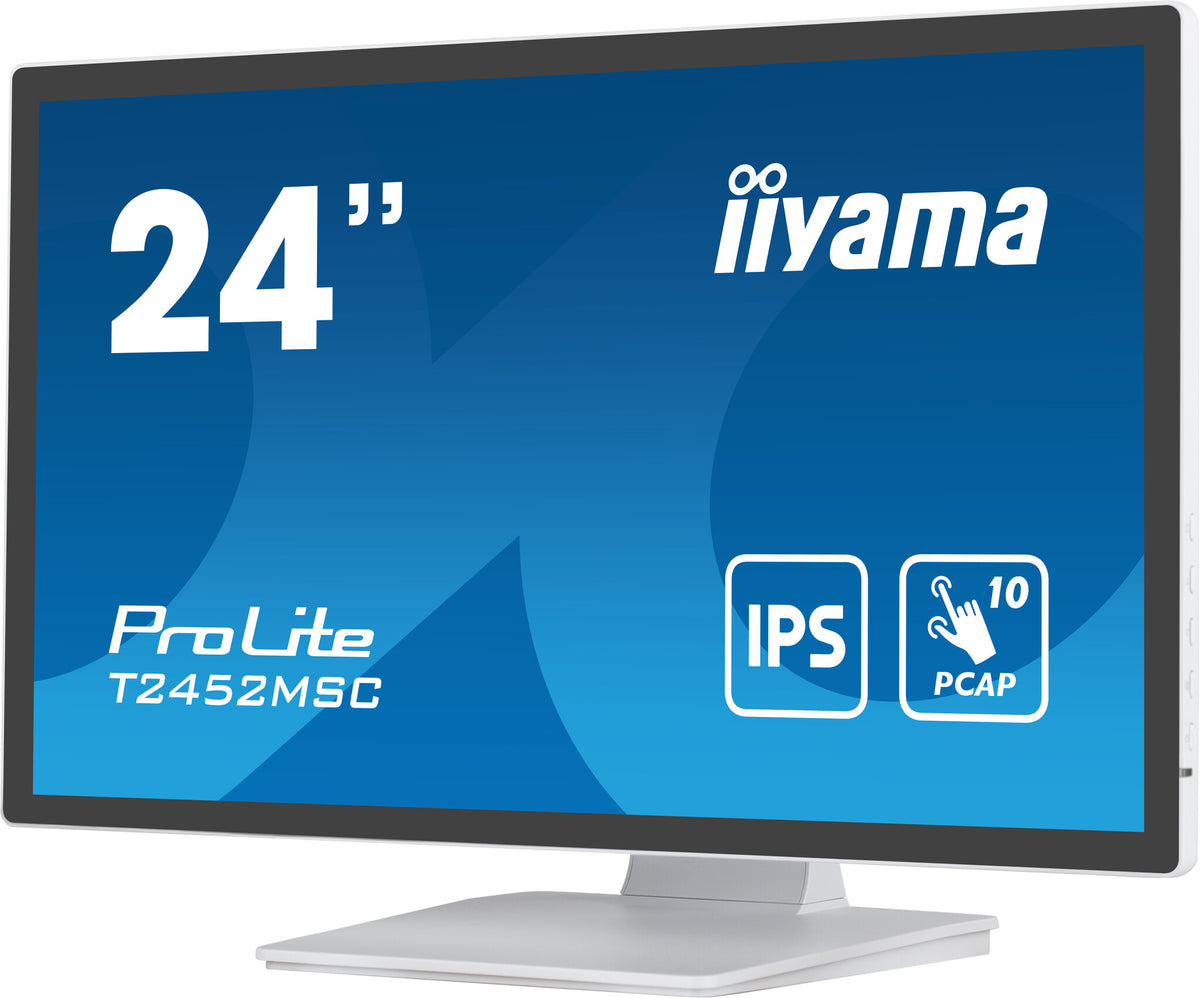

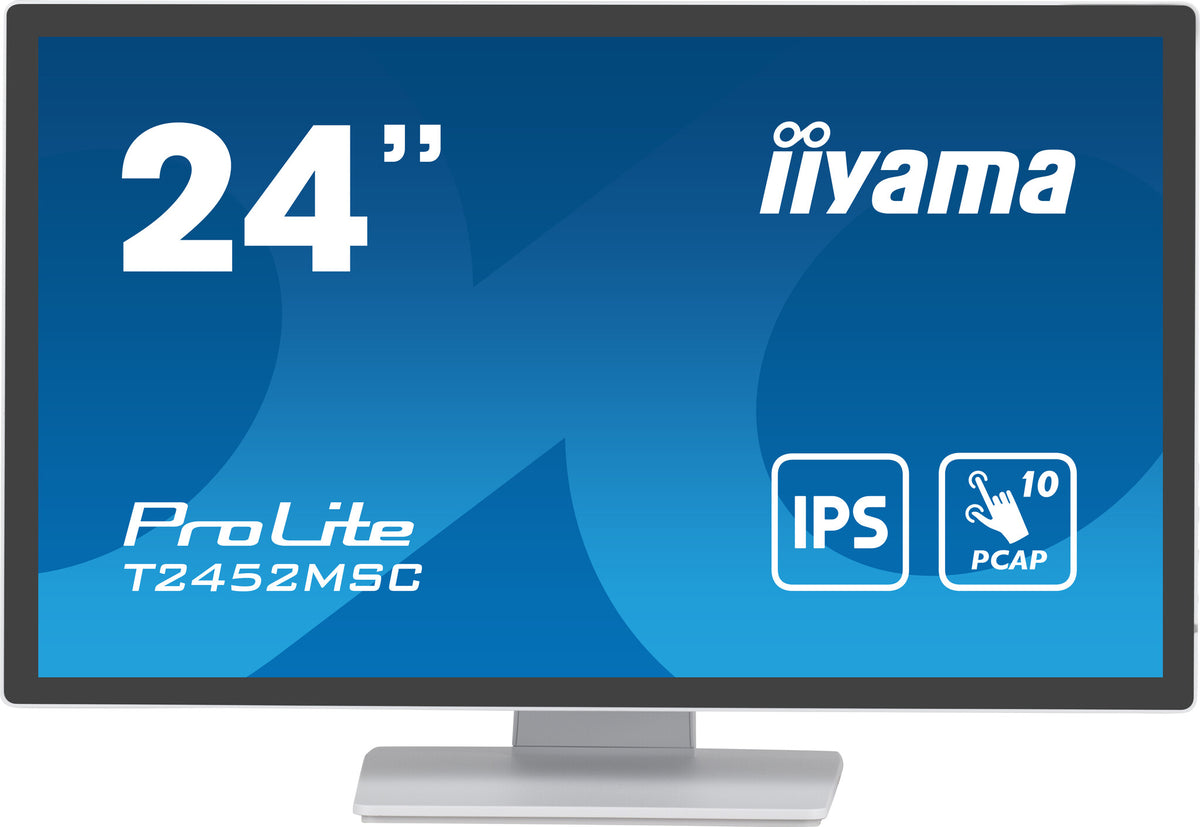

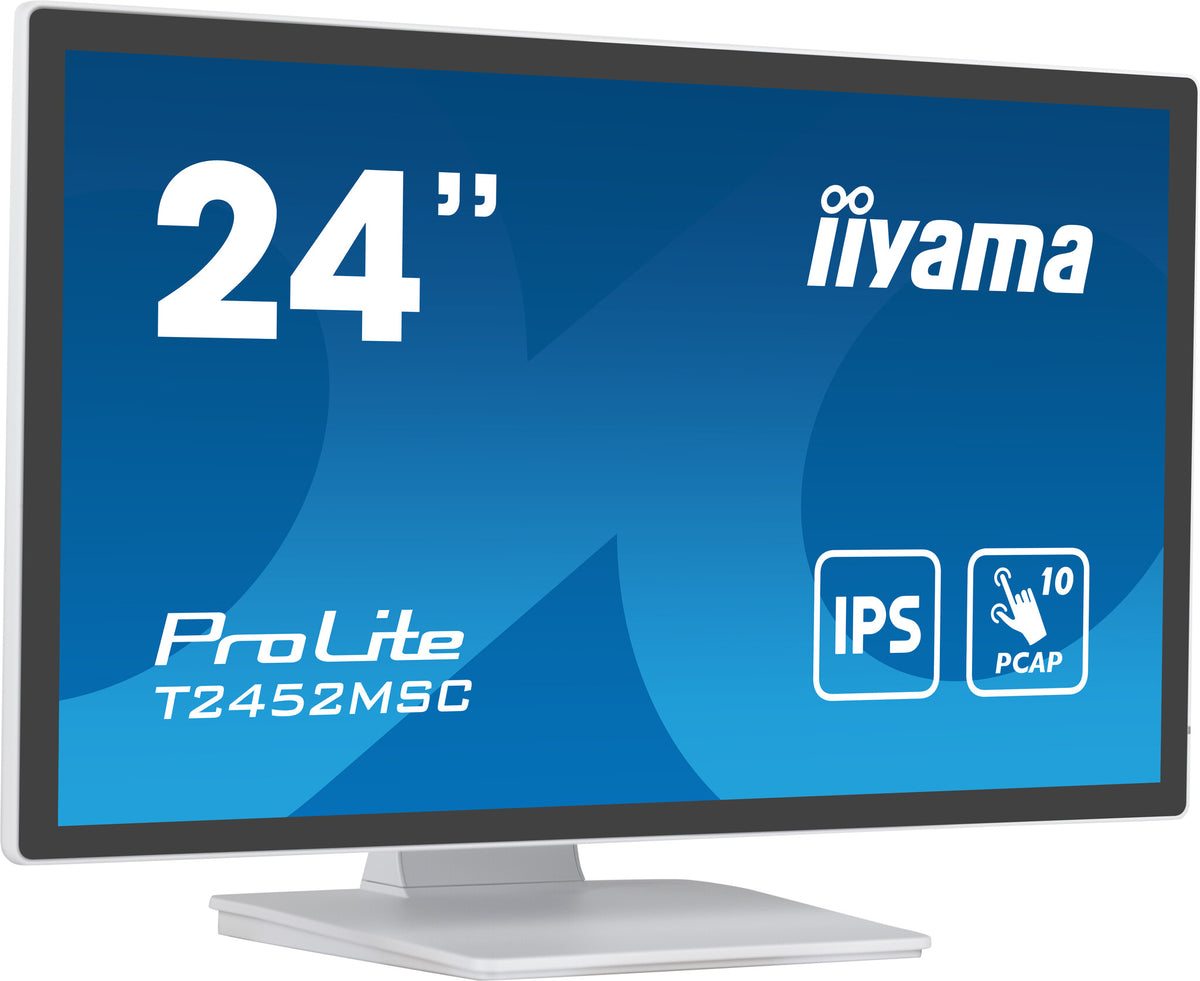

iiyama T2452MSC-W1

iiyama T2452MSC-W1

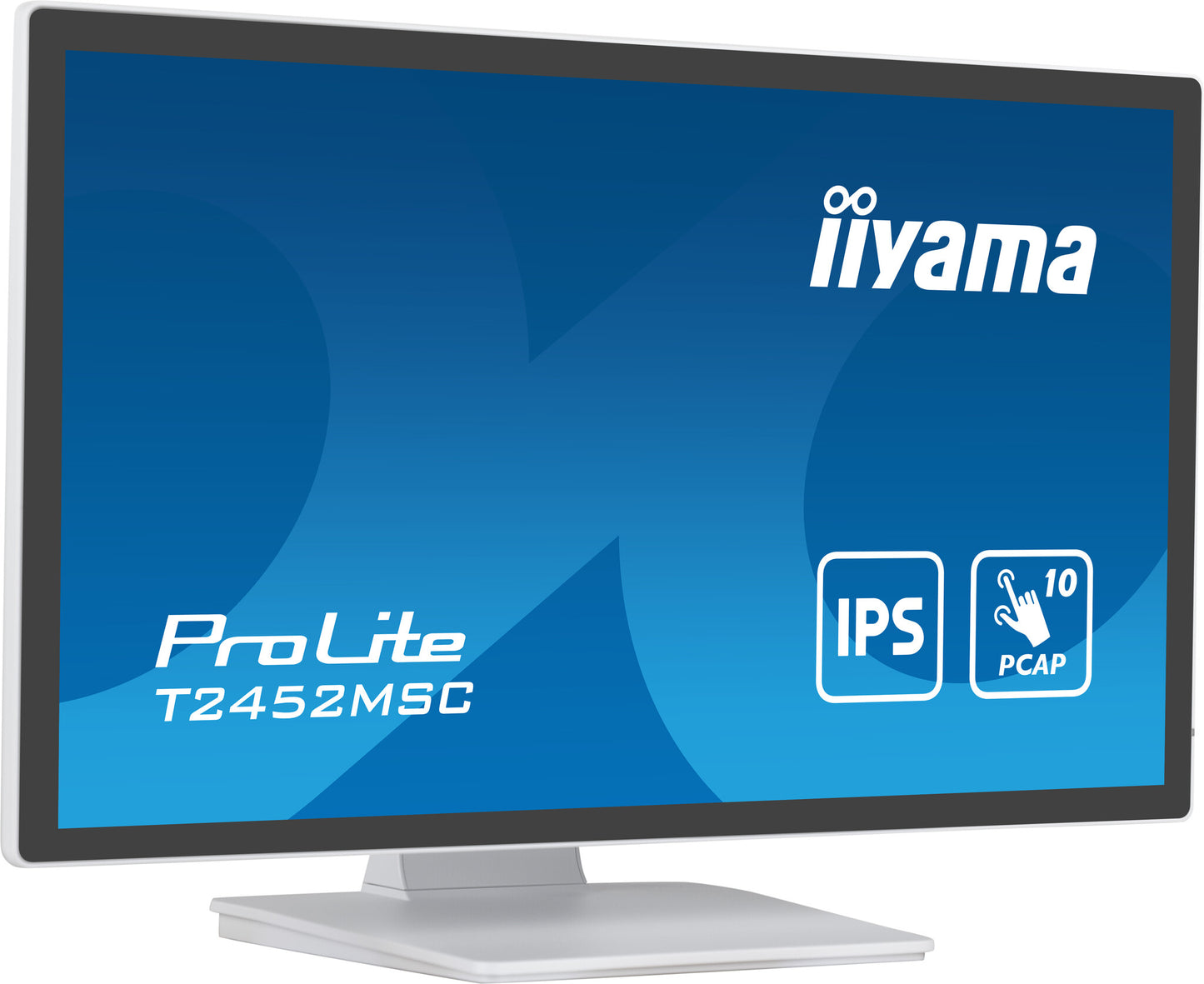

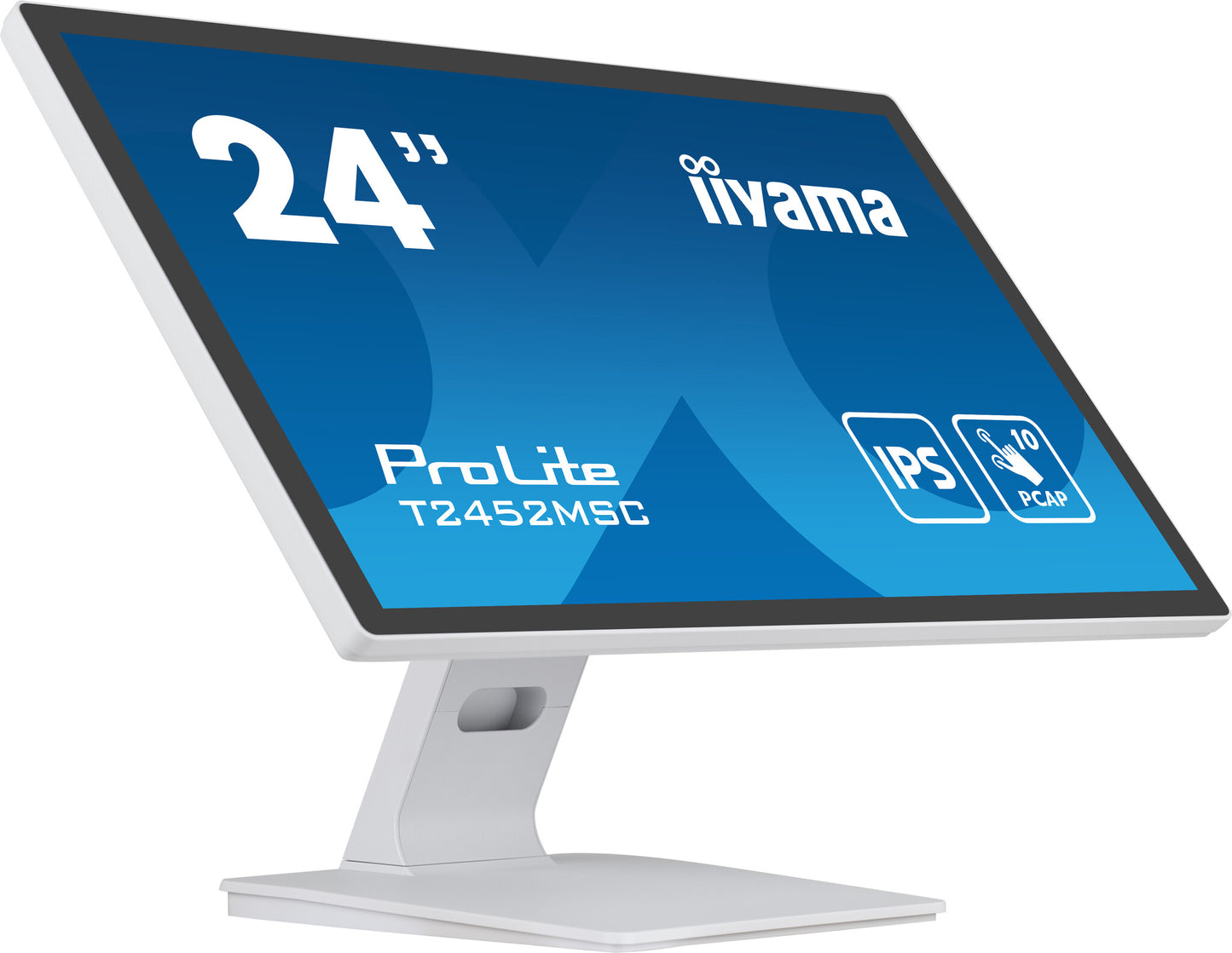

23.8” PCAP 10pt touchscreen monitor featuring IPS panel technology, Edge-to-Edge glass design and anti fingerprint coating

  • TOUCH TECHNOLOGY - CAPACITIVE
  • ANTI-FINGERPRINT COATING
  • SCRATCH RESISTANCE
  • SKU:4948570122066
  • GTIN/EAN:4948570122066
  • MPN:T2452MSC-W1
Add To Favorite

You need to login to view the price.

View full details

iiyama ProLite T2452MSC-W1. Display diagonal: 61 cm (24"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: White

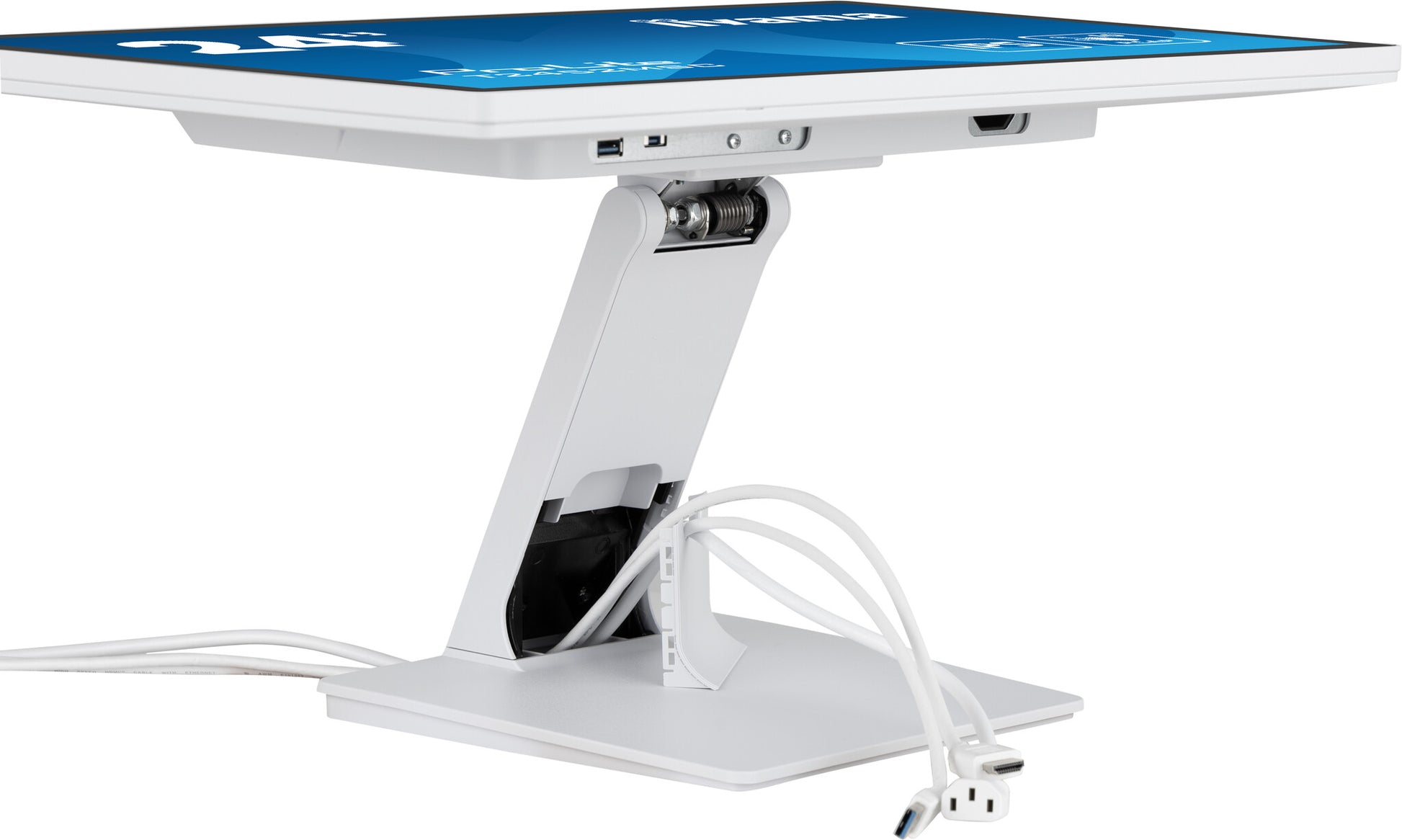

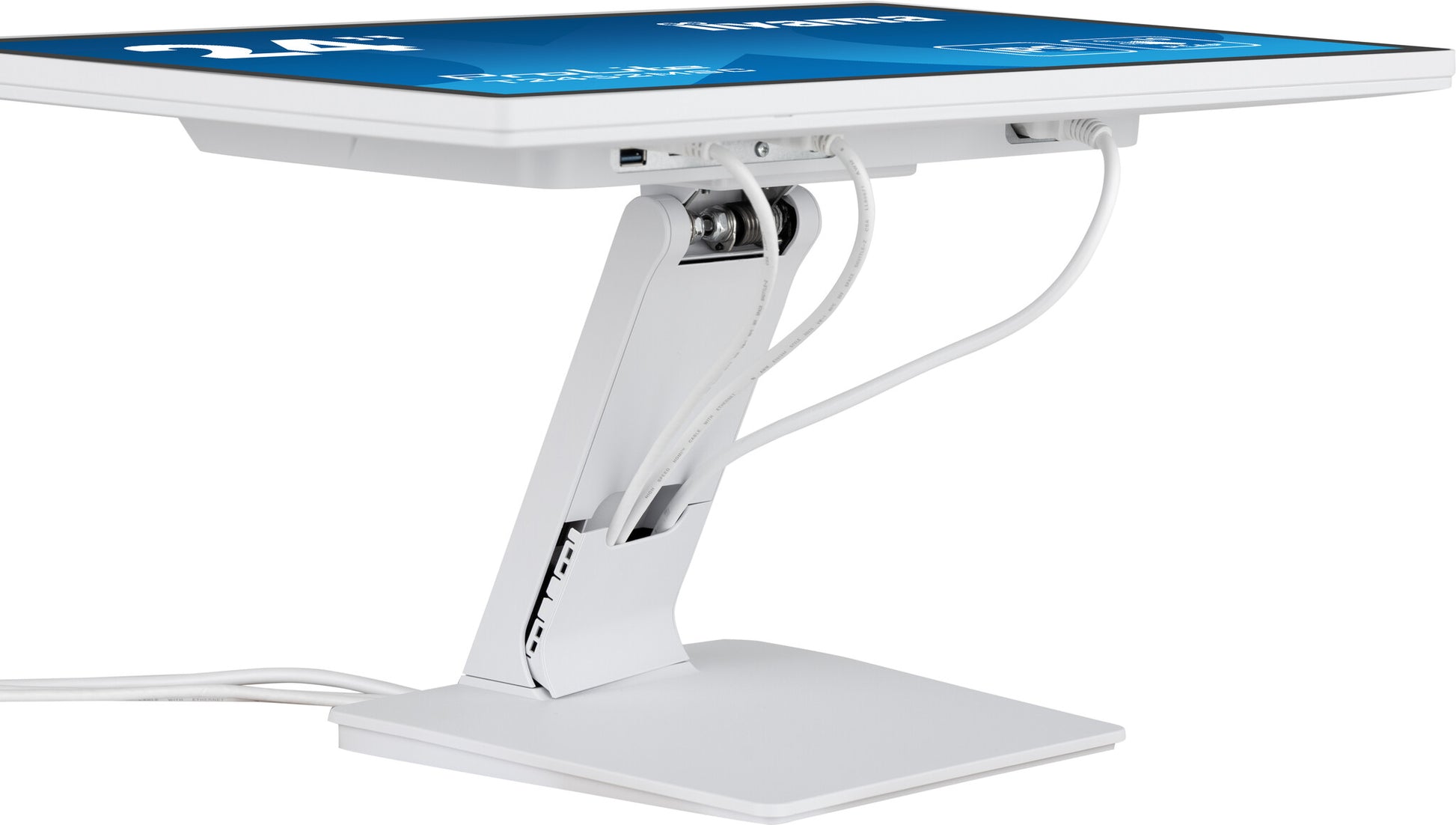

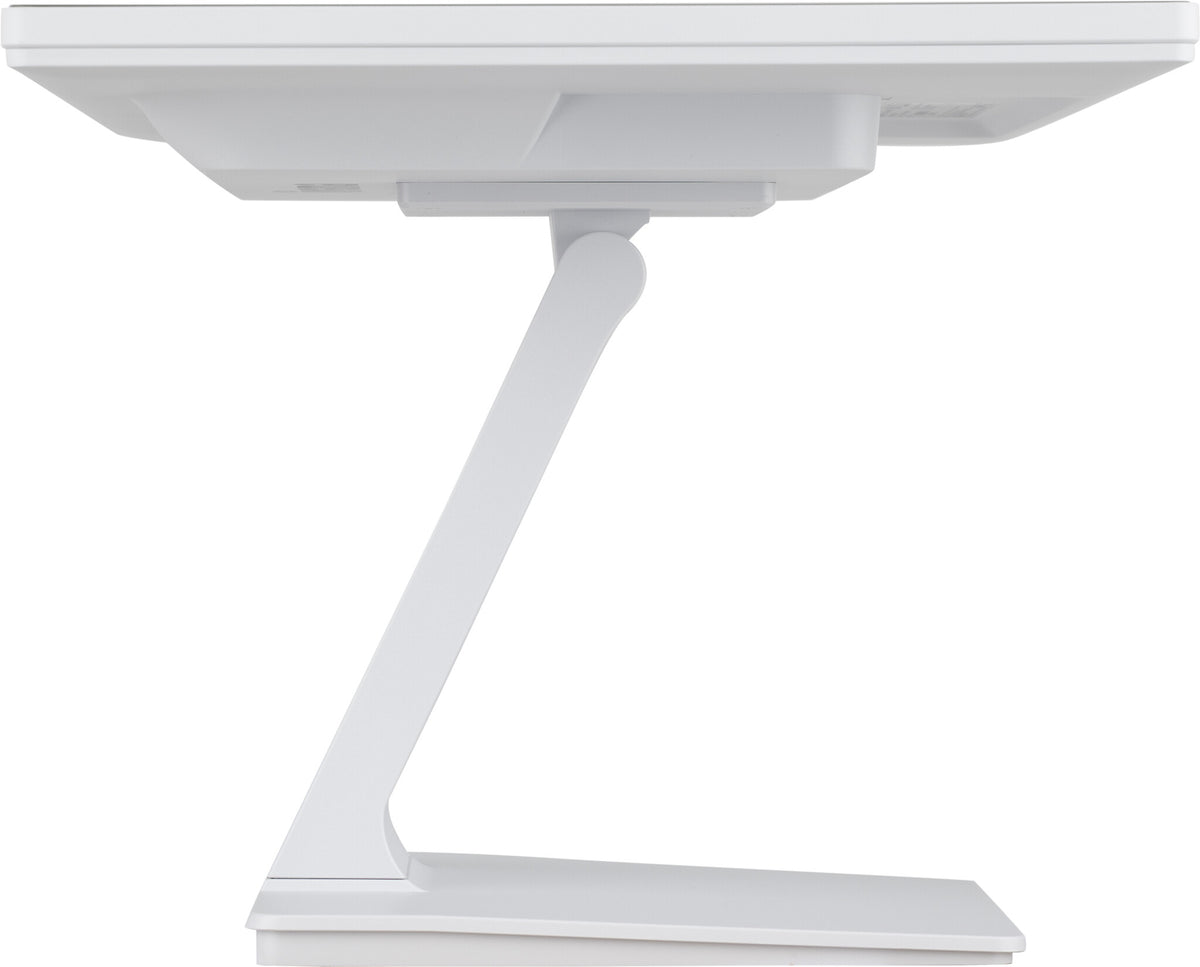

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2452MSC-W1 delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The ProLite T2452MSC-W1 is the ideal solution for interactive signage, instore retail, POS and interactive presentations.

Display
Viewable size, vertical
29.6 cm
Viewable size, horizontal
52.7 cm
Horizontal scan range
30 - 83 kHz
Display number of colours
16.7 million colours
Maximum refresh rate
60 Hz
Contrast ratio (typical)
1000:1
Screen shape
Flat
Display brightness
360 cd/m²
Positional accuracy
2 mm
Colour depth
8 bit
Response time measurement type
GTG (Gray to Gray)
Response time
5 ms
Display brightness (typical)
400 cd/m²
Touchscreen technology
Projected capacitive system
Panel type
IPS
Display resolution
1920 x 1080 pixels
Display diagonal
61 cm (24")
Performance
Palm rejection
Yes
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Low Blue Light technology
Yes
Flicker-free technology
Yes
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
RMS rated power
2 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
Front bezel colour
White
Product colour
White

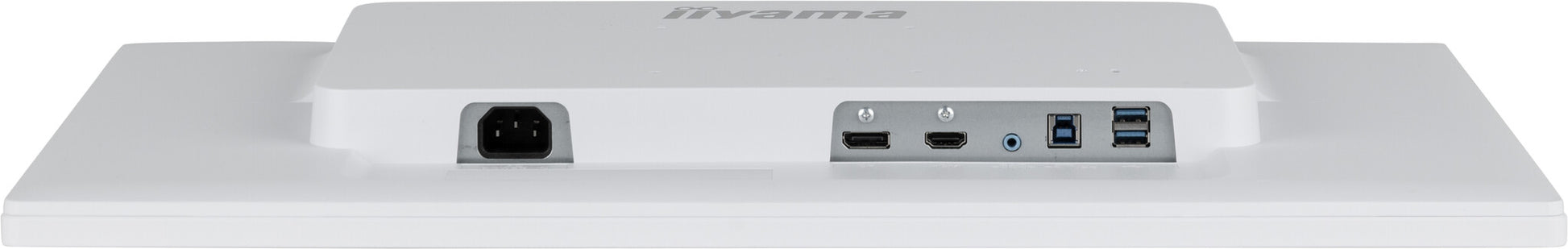

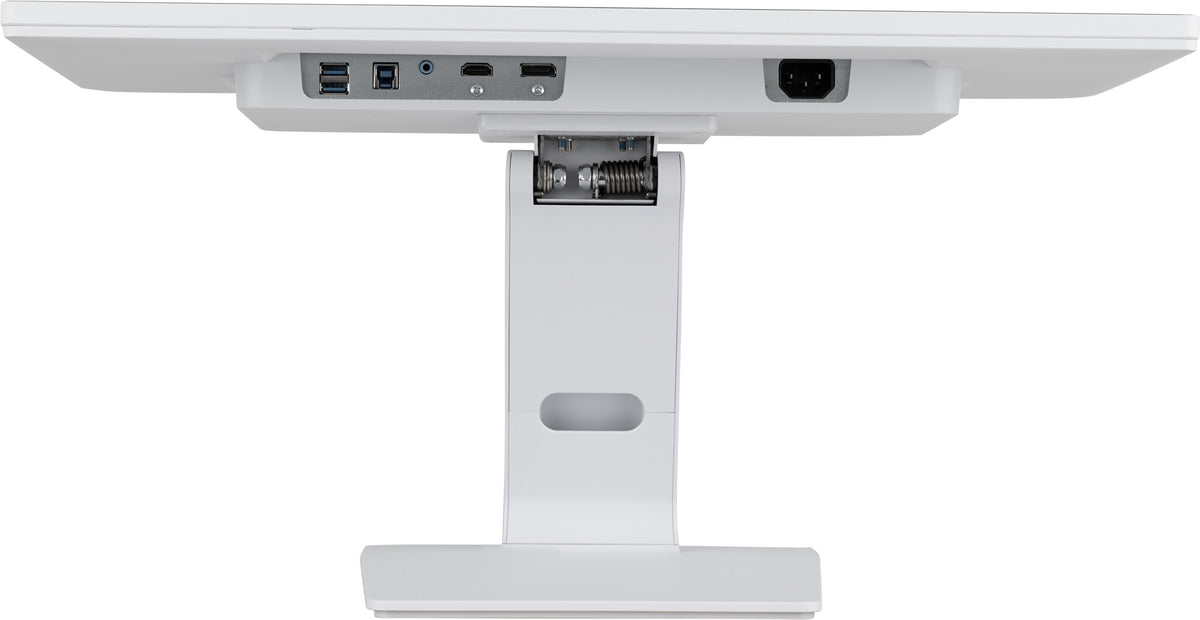

Ports & interfaces
USB Type-A downstream ports quantity
2
Number of downstream ports
2
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub
Yes
Ergonomics
Tilt adjustment
Yes
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
On Screen Display (OSD)
Yes

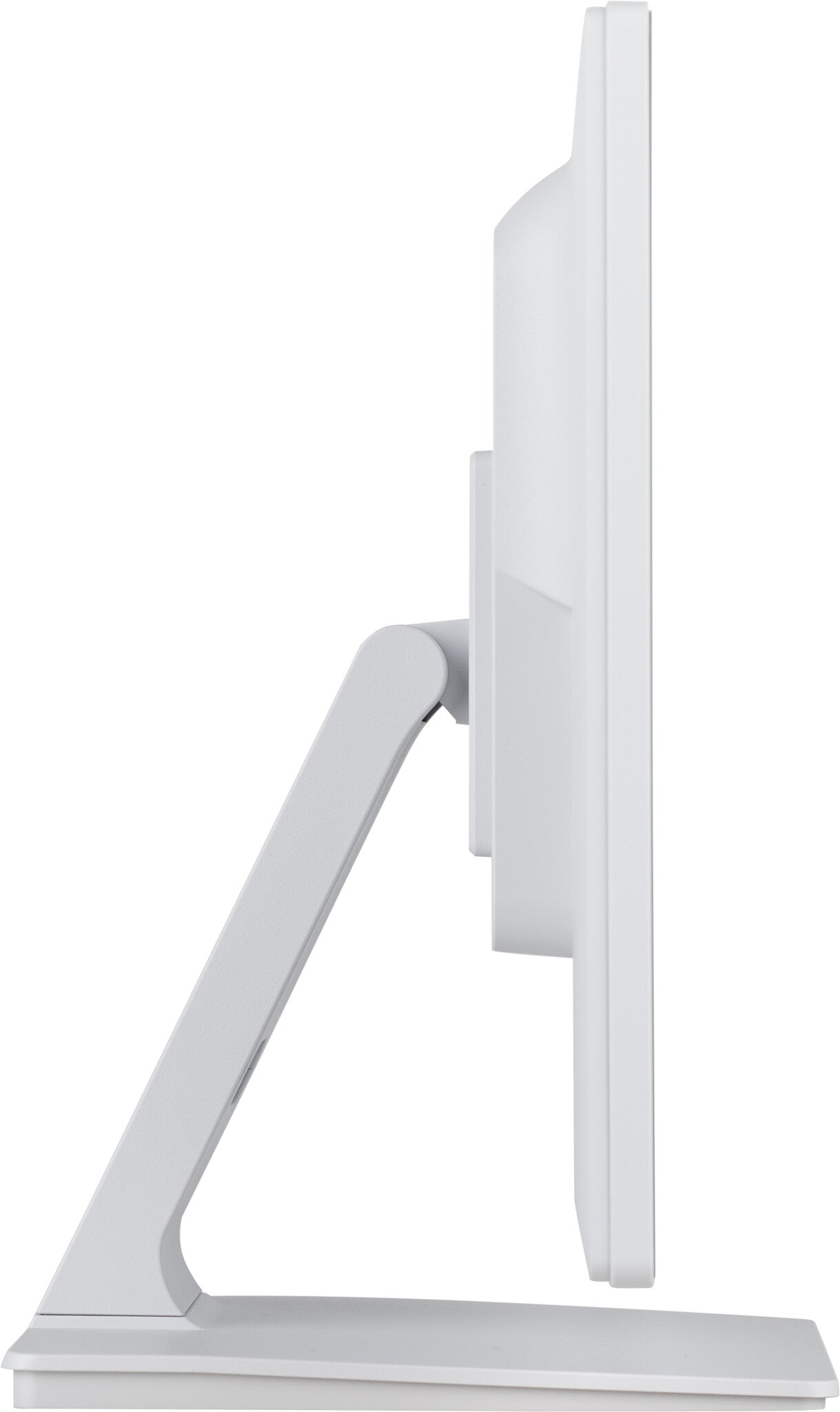

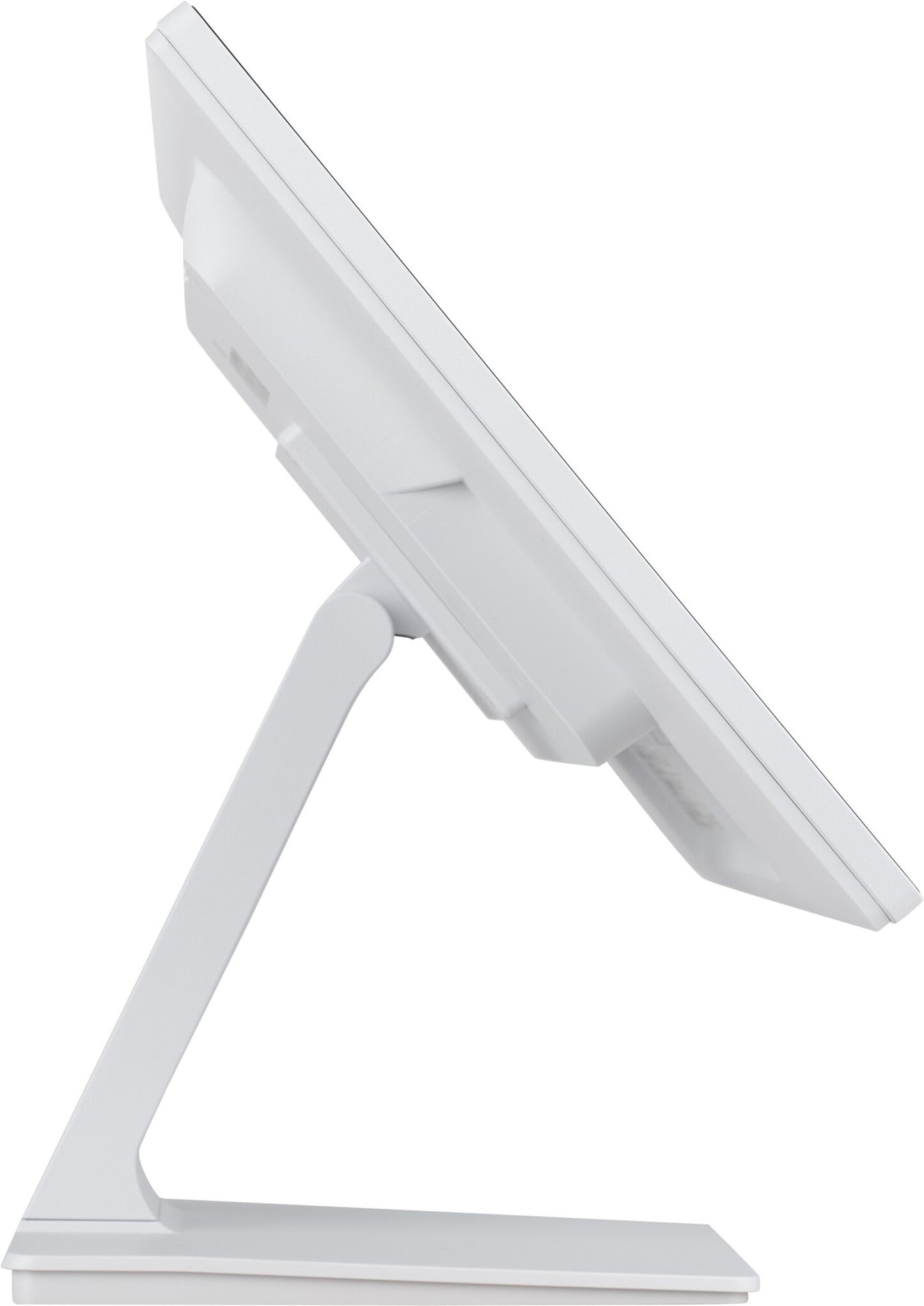

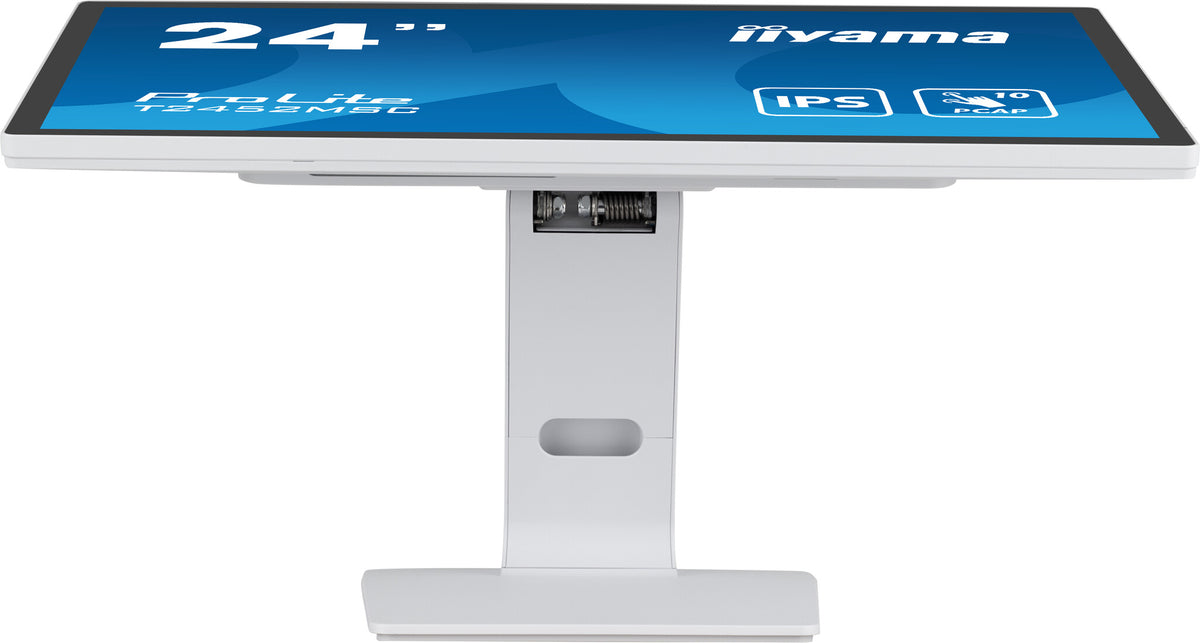

Tilt angle range
-25 - 90°
Height adjustment
No
Cable lock slot type
Kensington
Cable lock slot
Yes

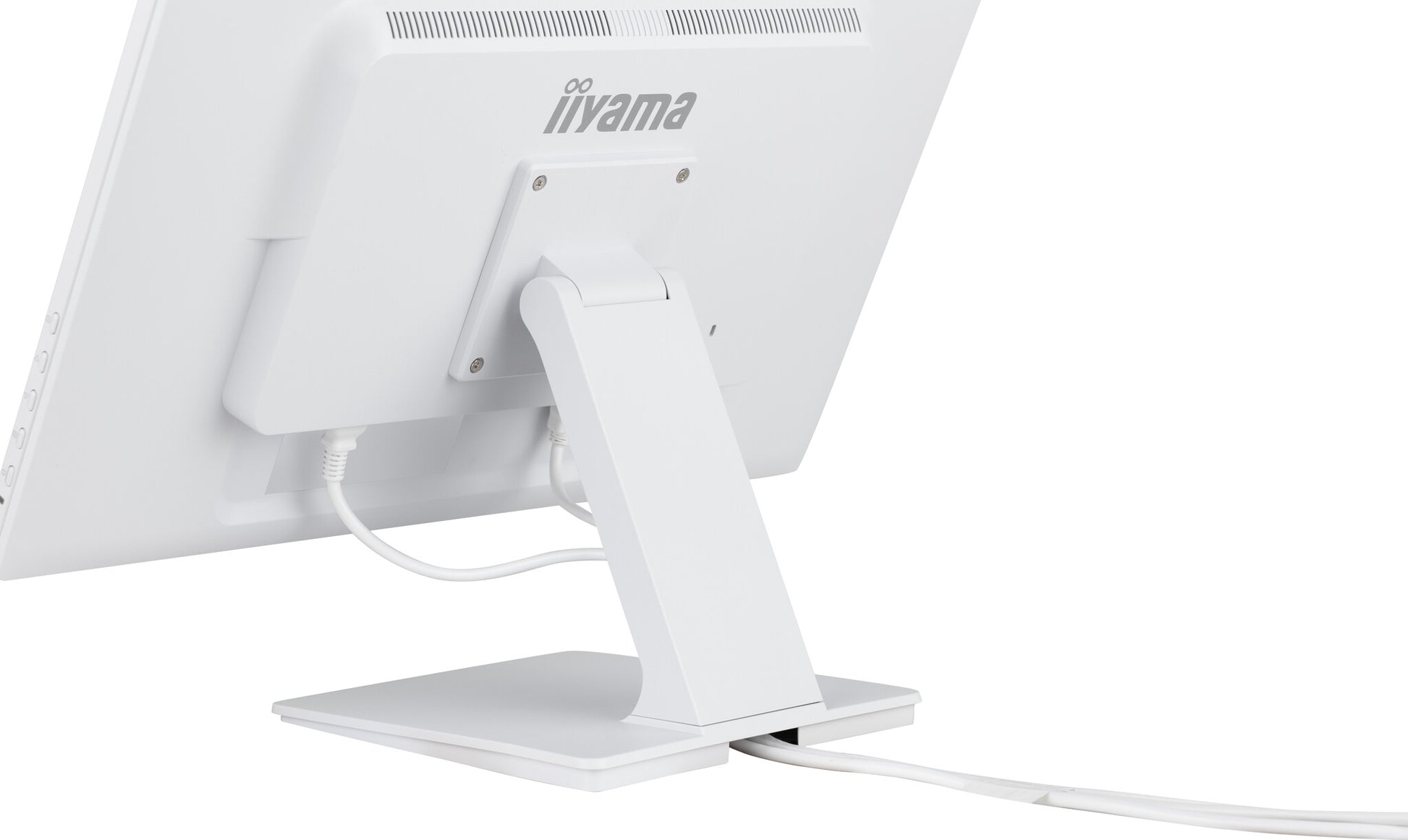

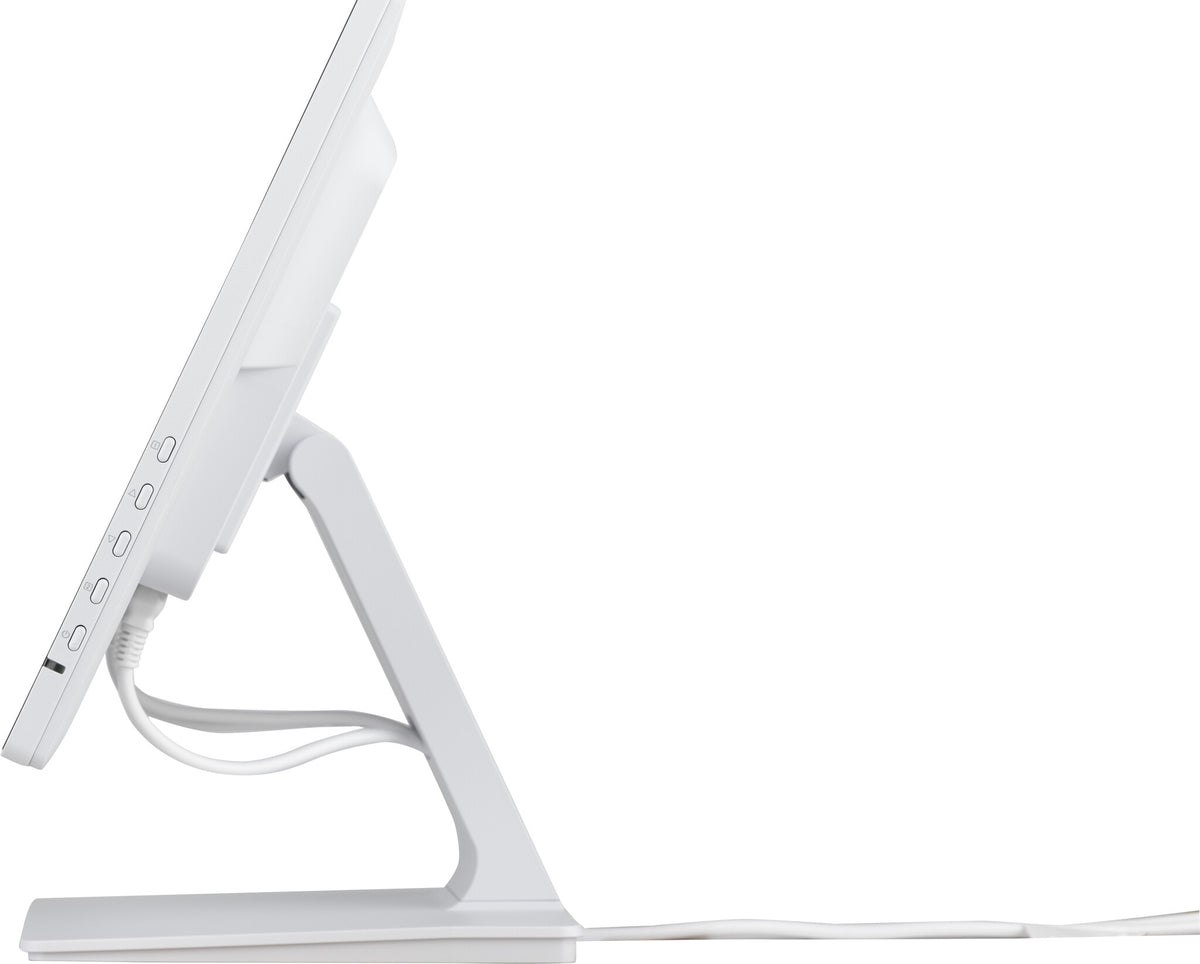

Cable management
Yes

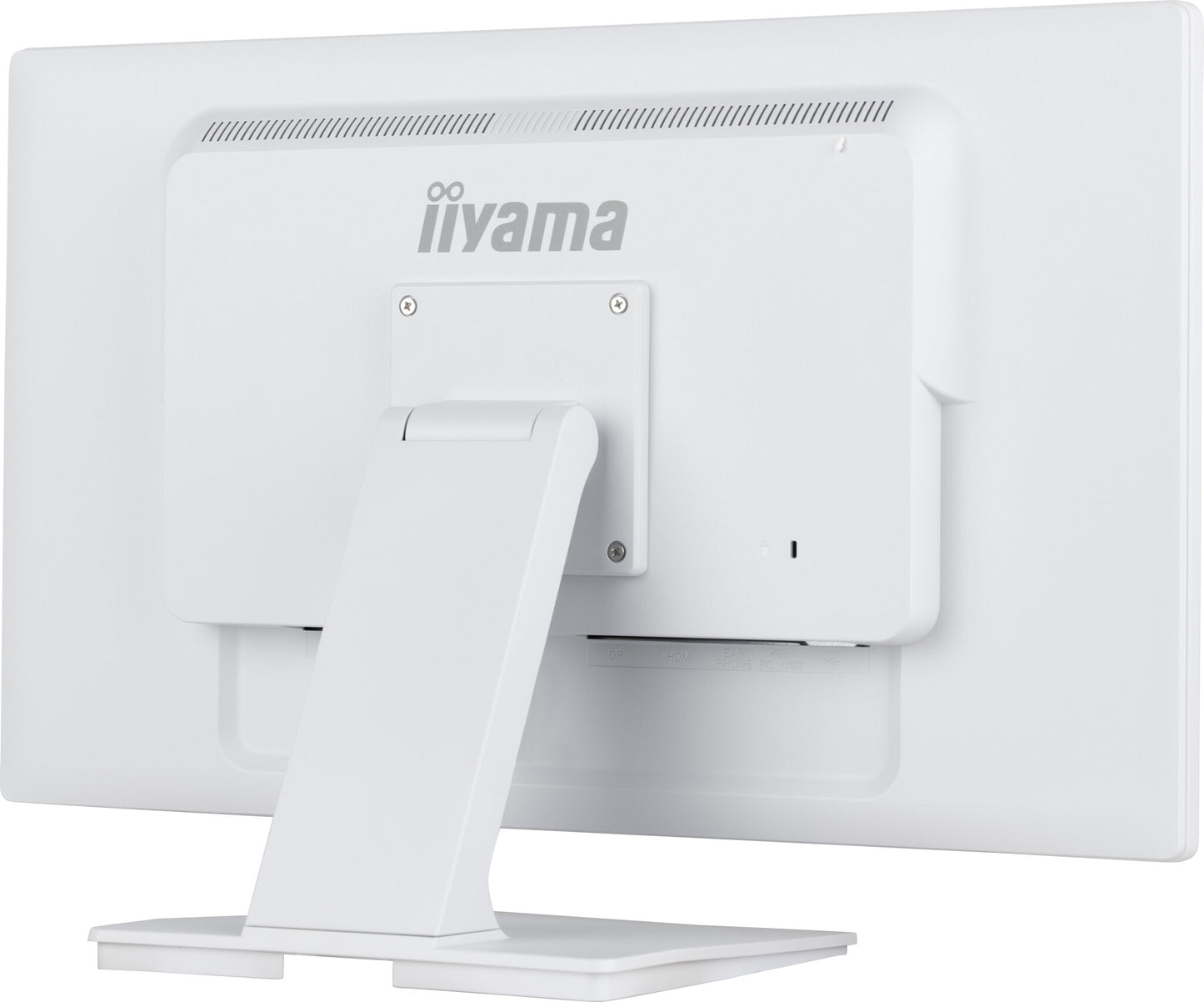

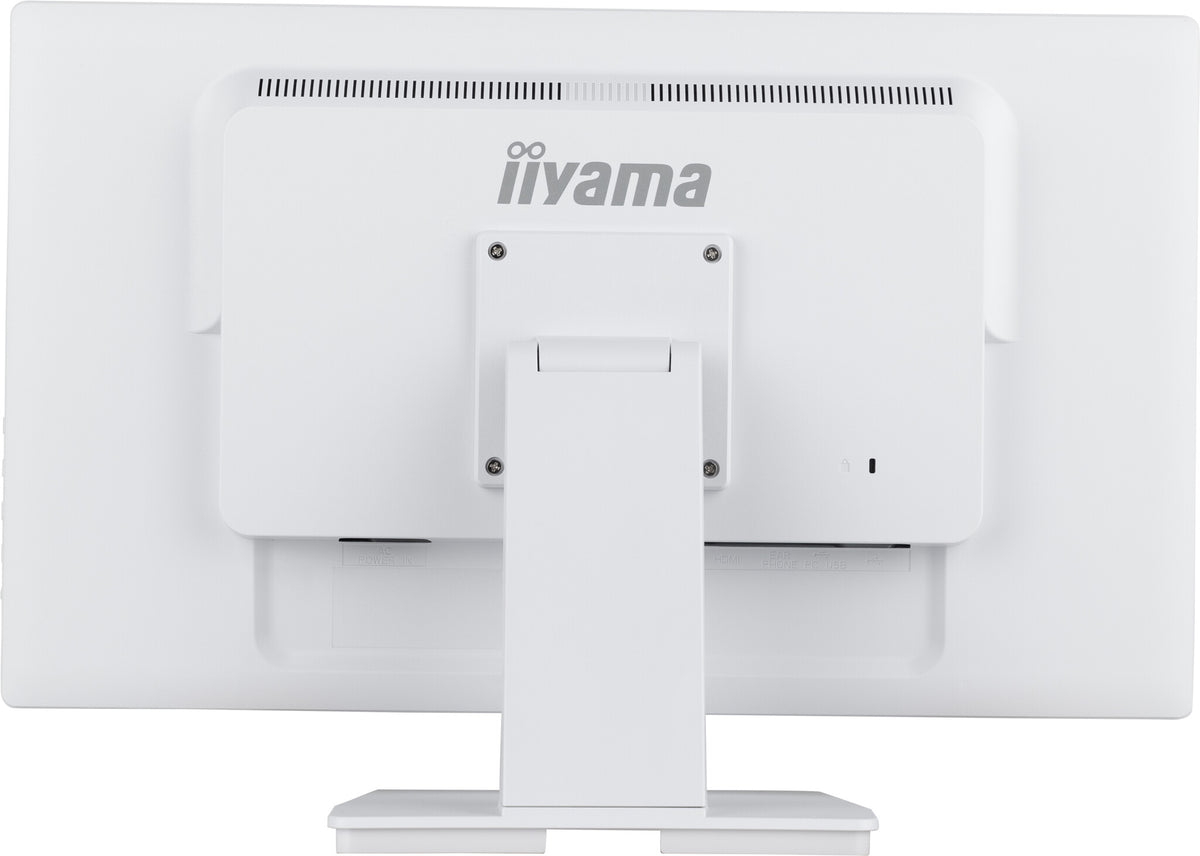

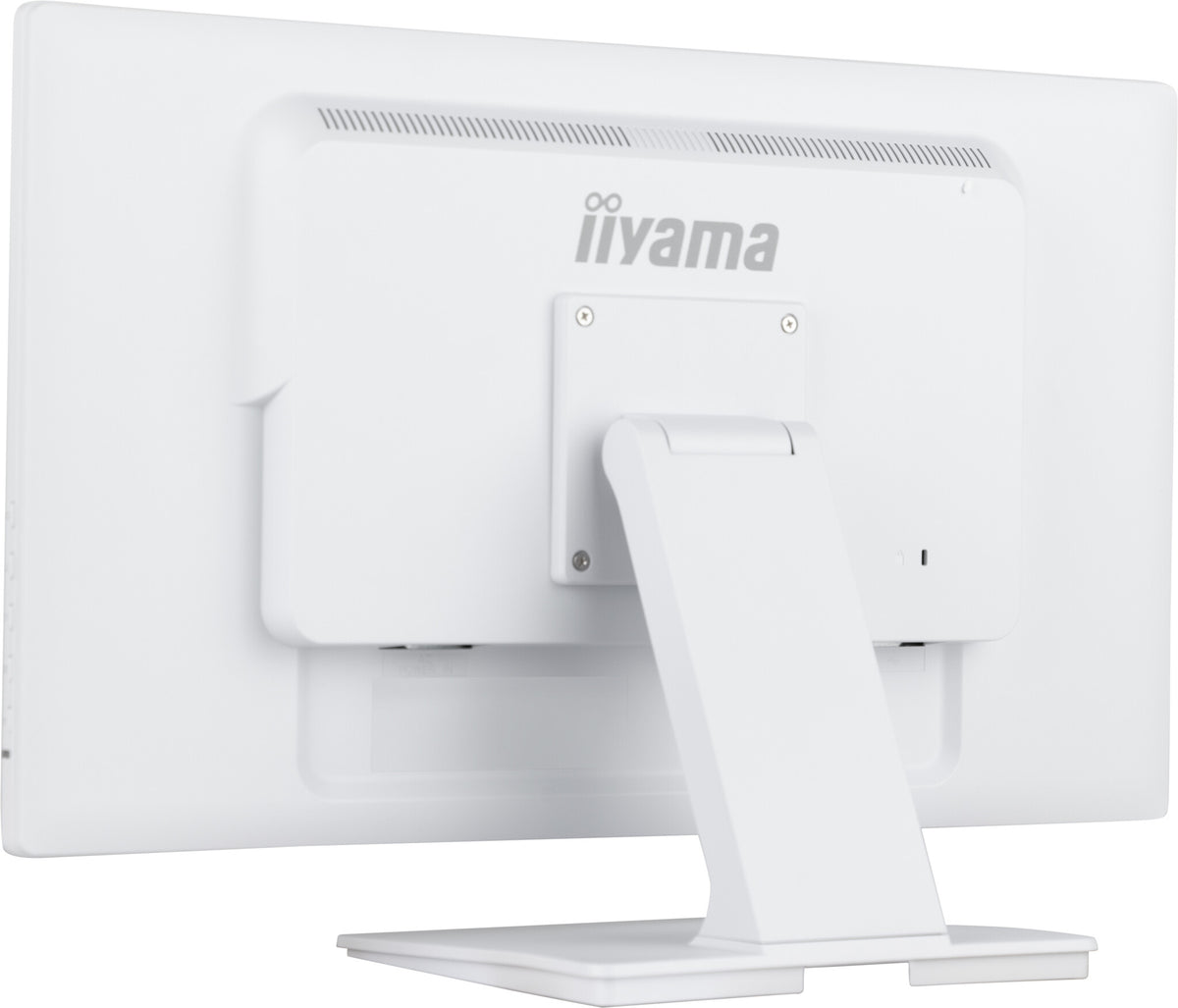

Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Packaging content
Power cable length
1.8 m
HDMI cable length
1.5 m
Power
Power supply type
Internal
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.7 W
Power consumption (typical)
18 W
Energy consumption (SDR) per 1000 hours
15 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
E
Sustainability
Sustainability certificates
ErP
European Product Registry for Energy Labelling (EPREL) code
1545216
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (with stand)
5.6 kg
Height (with stand)
385 mm
Depth (with stand)
253.5 mm
Width (with stand)
567 mm
Packaging data
Package weight
7.2 kg
Package height
405 mm
Package depth
143 mm
Package width
635 mm
Quick start guide
Yes
USB cable length
1.5 m

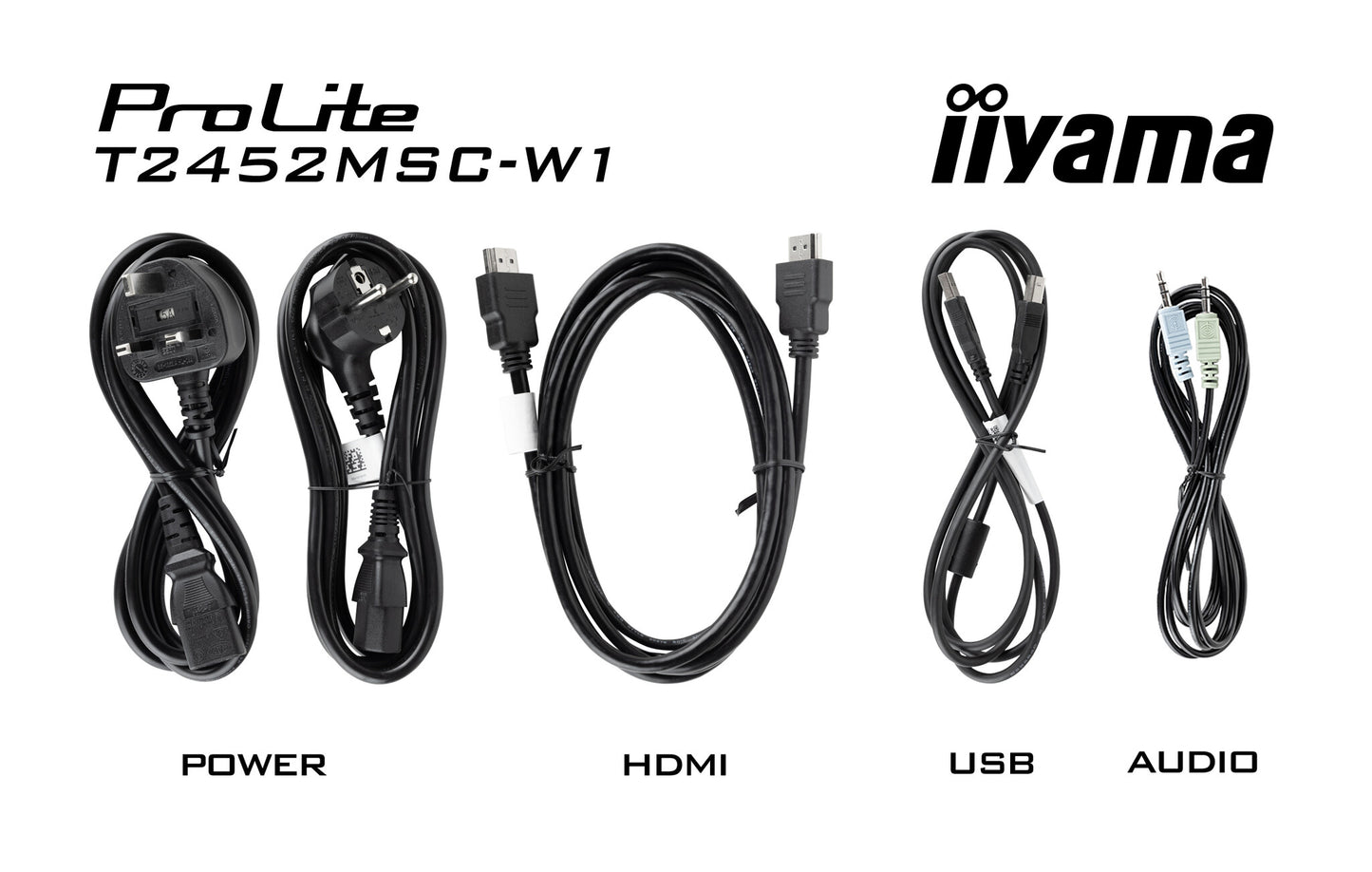

Cables included
AC, USB, HDMI
Technical details
Compliance certificates
CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
User controls
Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, X-Res technology), color settings (gamma, RGB range, color temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (horizontal pos., vertical pos., OSD time, OSD background, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Touch method
stylus, finger, glove (latex)
Control panel
Menu, scroll up / ECO, scroll down / volume, select / input, power
Mean time between failures (MTBF)
50000 h
Weight
5.6 kg
Height
385 mm
Width
567 mm
Depth
253.5 mm
USB ports quantity
2
Brightness
360 cd/m²
Packaging content
Screwdriver
Active display area (W x H)
527 x 296.5 mm
Surface hardness
Surface hardness
7H
HDCP
Yes
Display diagonal (metric)
60.5 cm
Pixel pitch
0.275 x 0.275 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI
Yes
USB Touch port
Yes
Number of simultaneous touchpoints
10
Touchscreen type
Multi-user
Touch technology
Multi-touch
Built-in camera
No
Display technology
LCD
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Yes
