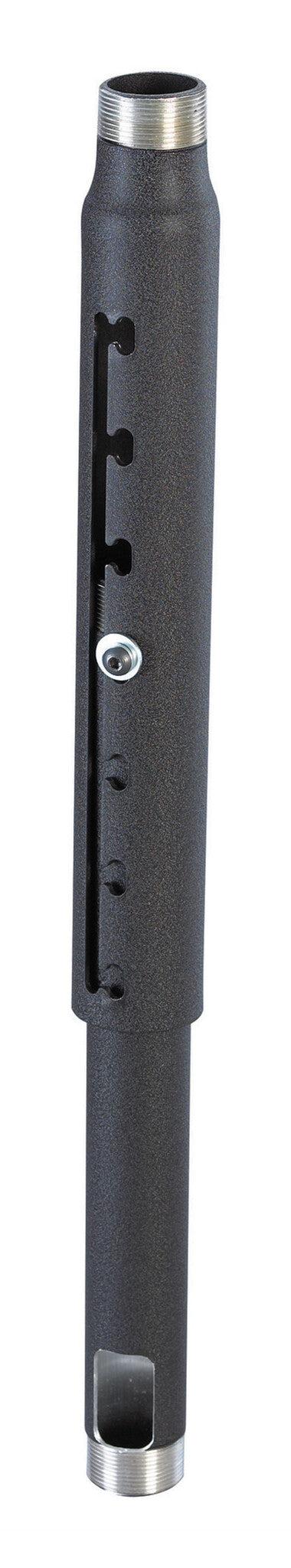

Chief CMS0810, 243.8-304.8 cm, Adjustable — Adjustable ceiling extension column for projectors and displays
The Chief CMS0810 is a heavy-duty adjustable extension column designed for ceiling-mounted projectors and flat panel displays in professional AV environments. Part of Chief's Speed-Connect CMS series, it covers an adjustment range from 243,8 to 304,8 cm and fits any standard 1.5" NPT ceiling mount or accessory. The column is built for integrators who need to dial in the exact drop height on-site — without disassembling the installation. Its robust aluminium construction and high weight capacity make it equally at home in corporate conference rooms, educational facilities, retail environments, and hospitality venues. Available in black, white, and silver to match surrounding architecture.
Tool-Free Height Adjustment On-Site
The CMS0810 uses Chief's notched Speed-Connect design to allow length changes in 2,54 cm increments across the full 243,8–304,8 cm range — without disassembling the mount or removing the projector. In practice this means the installer can fine-tune the drop height after the ceiling bracket is already in place and the projector is test-mounted, rather than having to commit to a fixed length before the ceiling is closed. For integrators working in rooms where the final screen or table position shifts during fit-out, or where building tolerances differ from drawings, this eliminates a costly return visit to swap columns.
Wide NPT Compatibility Across Chief Ecosystem
Both ends of the CMS0810 are threaded to the industry-standard 1.5" NPT specification, which is the dominant thread standard across the Chief projector mount range and broadly compatible with third-party ceiling plates and accessories. This means the column can be dropped into almost any existing Chief ceiling installation as an extension or replacement, and it pairs with all current Chief Speed-Connect ceiling mounts without adapters. For end users managing multi-site AV estates, the universal thread interface simplifies spare-parts stocking: a single column SKU fits many different ceiling bracket models.
Integrated Flow-Through Cable Management
The column is hollow along its full length, with a dedicated cable entry port at one end, so HDMI, power, and control cables run entirely inside the pole rather than being zip-tied along the outside. The result is a clean finish with no exposed cabling between ceiling and projector — important in high-visibility spaces such as boardrooms, museum galleries, or branded retail environments where exposed cabling is unacceptable. It also reduces the risk of cables being knocked loose or damaged during cleaning, contributing to long-term reliability.
Vibration Damping via Set Screw
An included set screw locks the two telescoping column sections together once the desired length is set, eliminating micro-movement between the sections. In buildings with HVAC vibration, foot traffic on upper floors, or regular door impacts, unsecured telescoping columns can transmit oscillation to the projector, causing focus drift and picture wobble that is immediately noticeable to audiences. The set screw removes that failure mode and keeps the image stable throughout the working day.
226,8 kg Capacity with UL Listing and TAA Compliance
The CMS0810 is rated to carry up to 226,8 kg, far exceeding the weight of any commercial projector or flat panel display likely to be hung from it. UL Listing confirms the column has been independently tested to North American safety standards, which is required for many commercial and government installations. TAA Compliance (Trade Agreements Act) makes it eligible for US government procurement contracts — a concrete advantage for integrators tendering on federal, state, or defence projects where domestic-origin compliance is mandatory.
