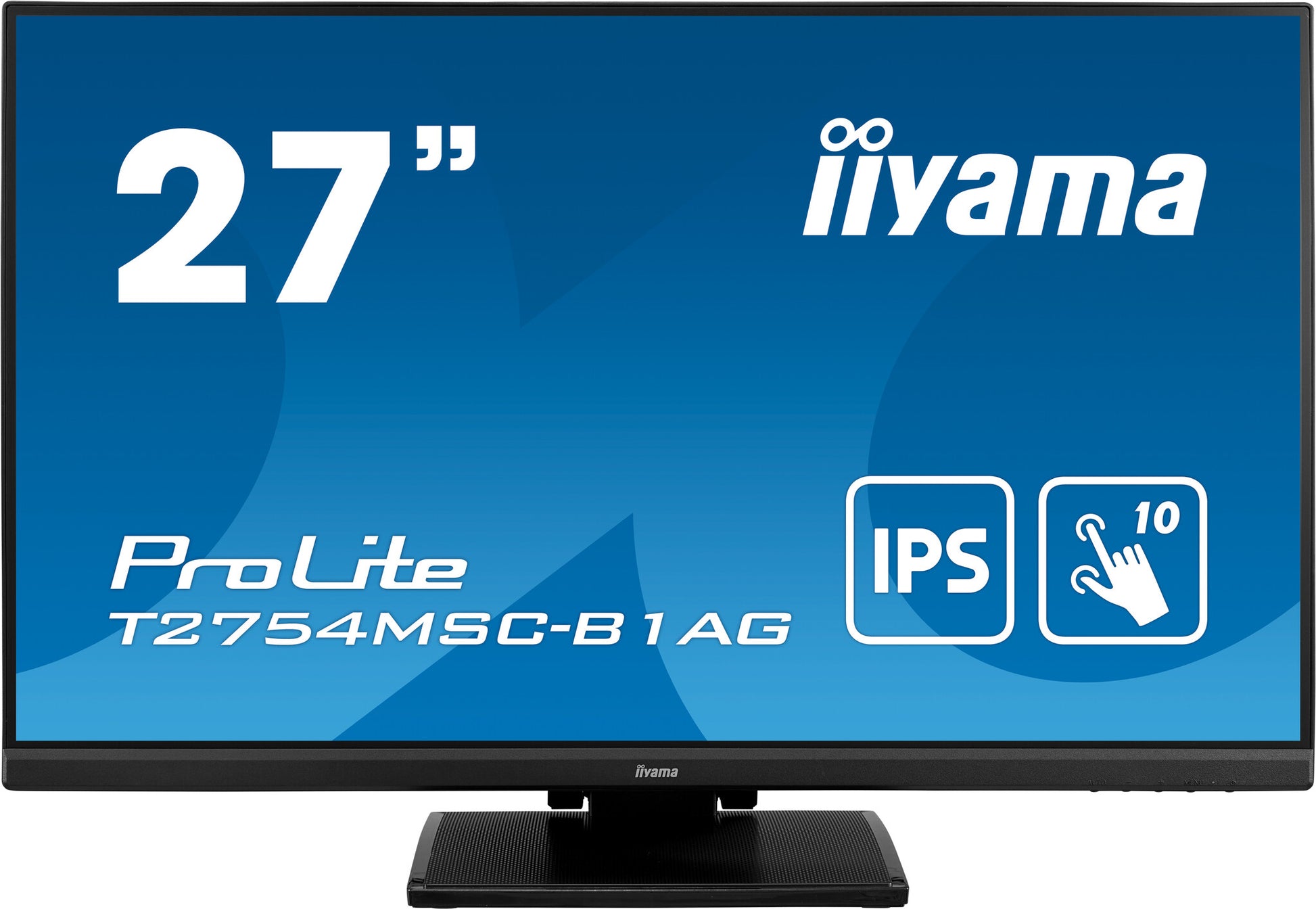

iiyama T2754MSC-B1AG

iiyama T2754MSC-B1AG

27” PCAP 10pt touch screen featuring IPS panel technology and Anti Glare coating

  • Touchscreen 68.6 cm (27") LED IPS
  • Full HD 1920 x 1080 pixels 16:9
  • 60 Hz 4 ms 300 cd/m² 1000:1
  • Flicker-free technology
  • F 26 kWh 27 W
  • SKU:4948570118632
  • GTIN/EAN:4948570118632
  • MPN:T2754MSC-B1AG
Add To Favorite

You need to login to view the price.

View full details

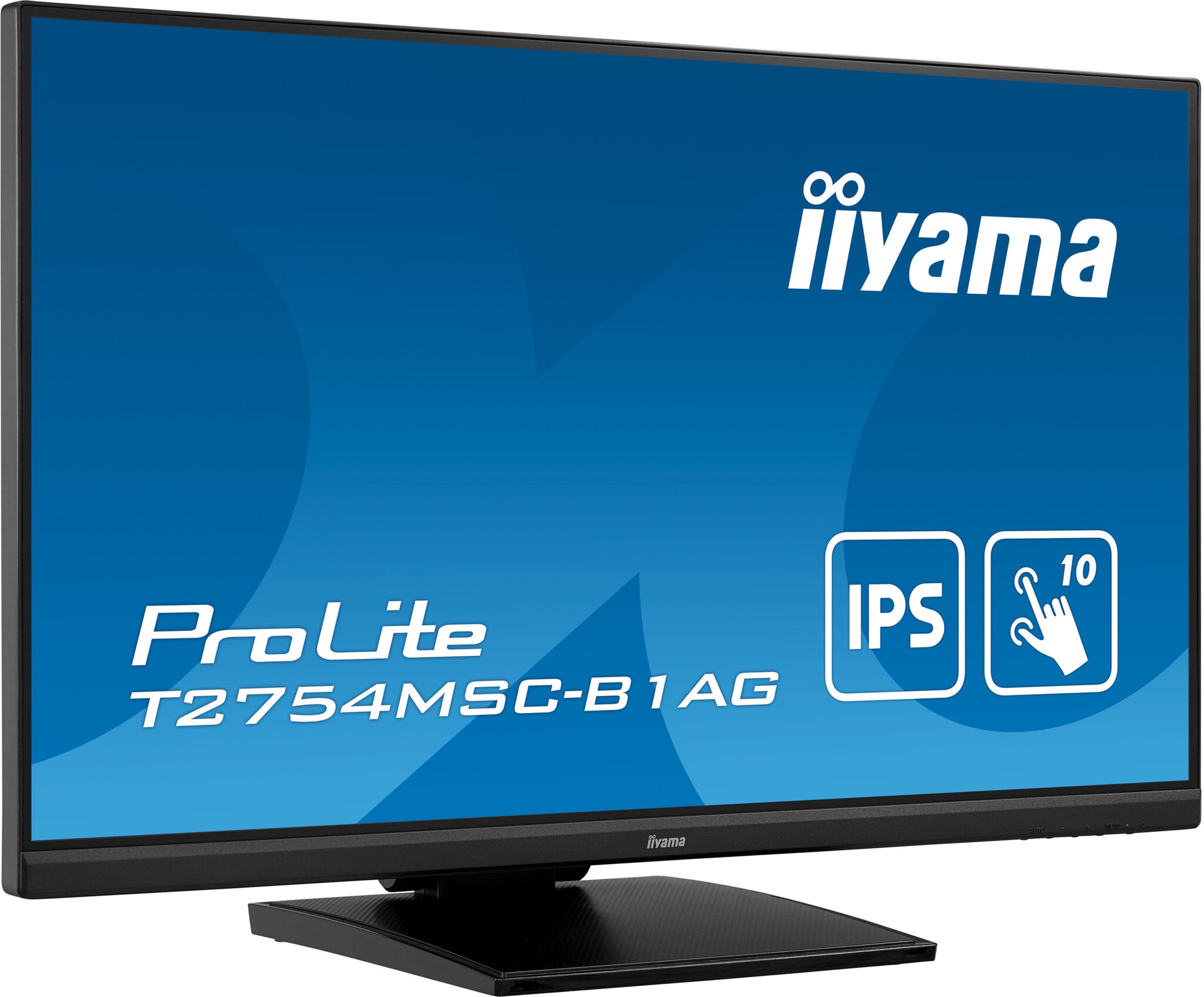

iiyama ProLite T2754MSC-B1AG. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2754MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2754MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.

Display
Digital horizontal frequency
30 - 83 kHz
Viewable size, vertical
33.6 cm
Viewable size, horizontal
59.8 cm
Horizontal scan range
30 - 83 kHz
Display number of colours
16.7 million colours
Maximum refresh rate
60 Hz
Contrast ratio (typical)
1000:1
Screen shape
Flat
Anti-glare screen
Yes
LED backlight
Yes
Display brightness
300 cd/m²
Positional accuracy
2 mm
Colour depth
8 bit
Response time measurement type
GTG (Gray to Gray)
Response time
4 ms
Display brightness (typical)
300 cd/m²
Touchscreen technology
Projected capacitive system
Panel type
IPS
Display resolution
1920 x 1080 pixels
Display diagonal
68.6 cm (27")
Performance
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Low Blue Light technology
Yes
Flicker-free technology
Yes
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
RMS rated power
4 W
Number of speakers
2
Built-in speaker(s)
Yes
Design
Front bezel colour
Black
Product colour
Black

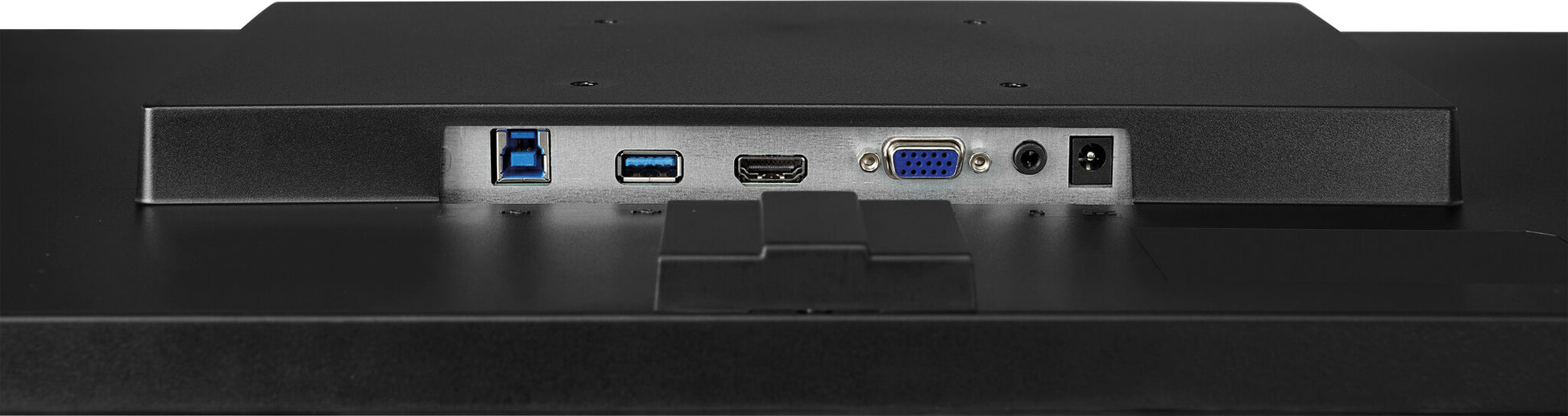

Ports & interfaces
USB Type-A downstream ports quantity
1
Number of downstream ports
1
Number of upstream ports
1
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Audio input
1
Built-in USB hub
Yes
Ergonomics
Tilt adjustment
Yes
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Number of OSD languages
10
On Screen Display (OSD)
Yes

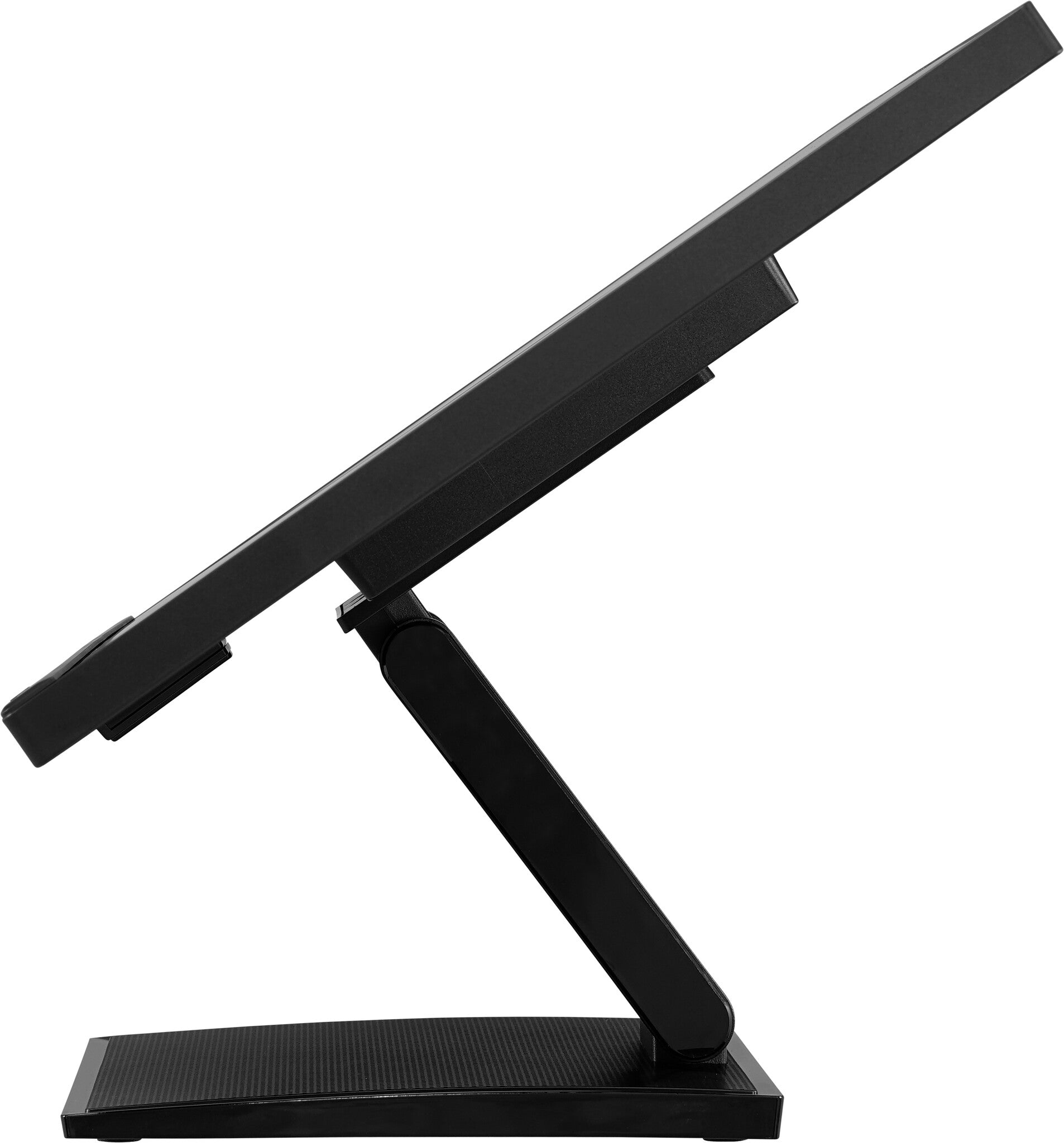

Tilt angle range
5 - 90°
Height adjustment
Yes
Cable lock slot type
Kensington
Cable lock slot
Yes
Adjustable height (max)
29.8 cm
Wall mountable
Yes

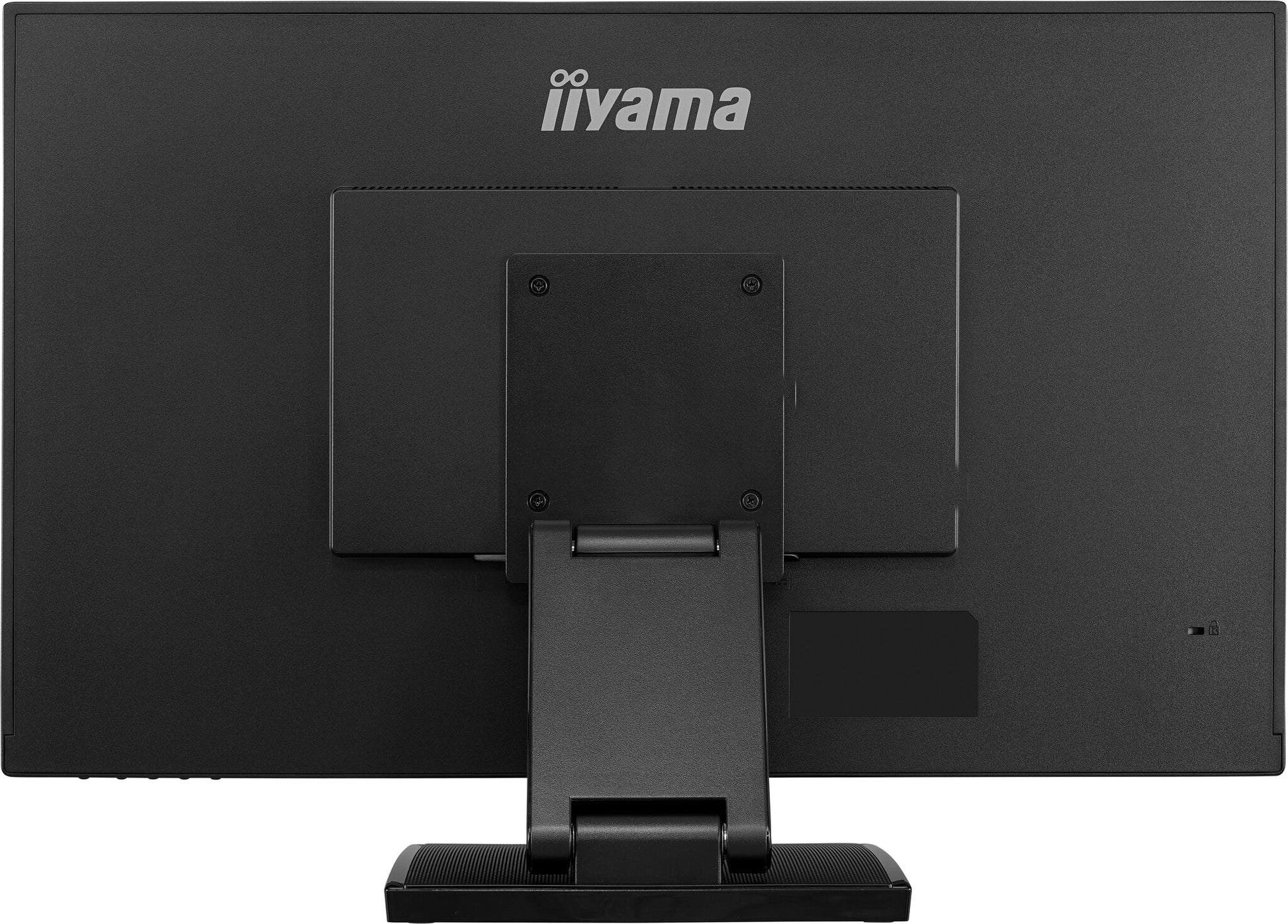

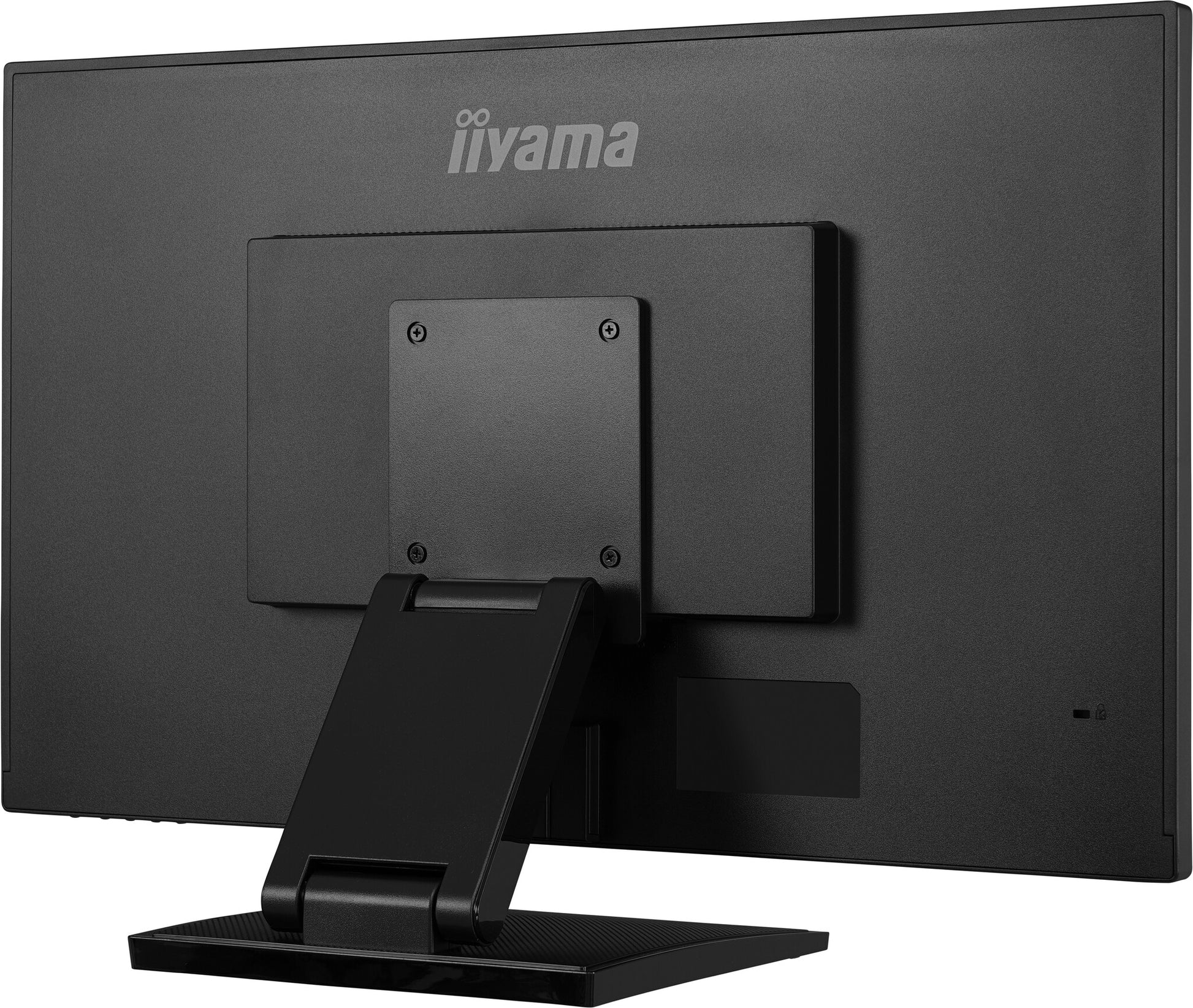

Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Power supply type
External
AC adapter output voltage
19 V
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
27 W
Energy consumption (SDR) per 1000 hours
26 kWh
Energy efficiency class (HDR)
Not available
Energy efficiency class (SDR)
F
Operational conditions
Storage relative humidity (H-H)
5 - 90%
Operating relative humidity (H-H)
10 - 85%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
5 - 35 °C
Sustainability
Sustainability certificates
ErP
European Product Registry for Energy Labelling (EPREL) code
519606
Algemeen
Productfamilie
ProLite
Weight & dimensions
Weight (with stand)
6.6 kg
Height (with stand)
418.5 mm
Depth (with stand)
121 mm
Width (with stand)
612 mm
Packaging data
Package weight
8.4 kg
Package height
477 mm
Package depth
204 mm
Package width
688 mm
Quick start guide
Yes

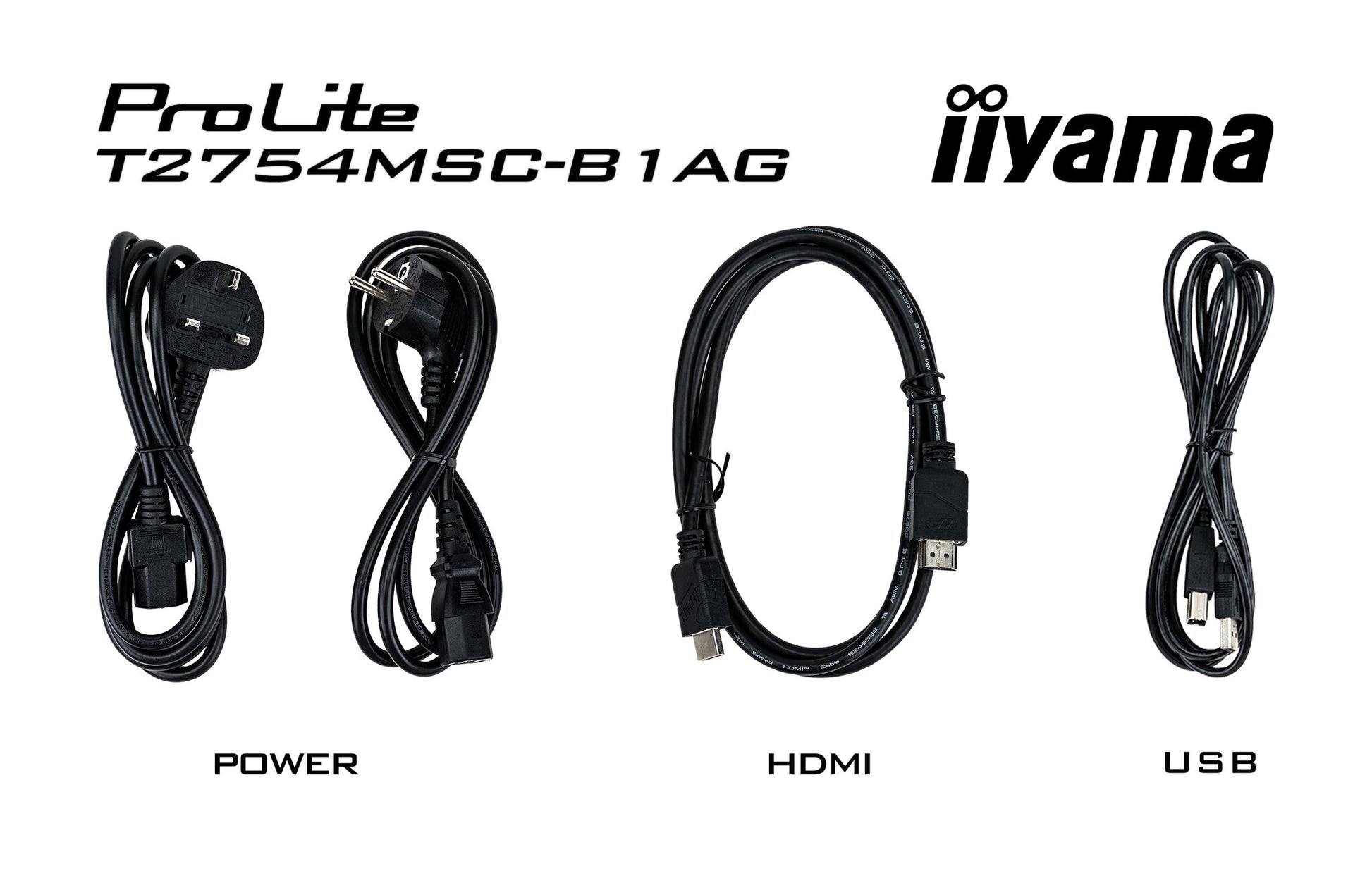

Cables included
AC, USB, HDMI
Logistics data
Pallet net height
2.06 m
Pallet net length
69.8 cm
Pallet net width
124.6 cm
Products per pallet
20 pc(s)
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
User controls
Picture adjust (brightness, contrast, Eco, i-Style Color, adv. contrast), Geometry (pixel clock, phase, horizontal position, vertical position, aspect), Color settings (gamma, color temp), OSD (OSD horizontal position, OSD vertical position, OSD time, language, auto power off, touch wake up), Extra (reset, signal select, audio input, opening logo, LED, Overdrive, Information, volume, auto adjust)
Touch method
stylus, finger, glove (latex)
Control panel
Power, Menu, + / Volume, - / Eco, Select / Exit
Mean time between failures (MTBF)
50000 h
Weight
6.6 kg
Height
418.5 mm
Width
612 mm
Depth
121 mm
USB ports quantity
1
Display viewable area (HxV)
597.89 x 336.31 mm
Active display area (W x H)
597.89 x 336.31 mm
Surface hardness
HDCP
Yes
Display diagonal (metric)
68.6 cm
Built-in microphone
No
Pixel pitch
0.311 x 0.311 mm
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (dynamic)
80000000:1
HDMI ports quantity
1
HDMI
Yes
VGA (D-Sub) ports quantity
1
USB Touch port
Yes
Number of simultaneous touchpoints
10
Touchscreen type
Multi-user
Touch technology
Multi-touch
Built-in camera
No
Display technology
LED
Native aspect ratio
16:9
HD type
Full HD
Touchscreen
Yes
