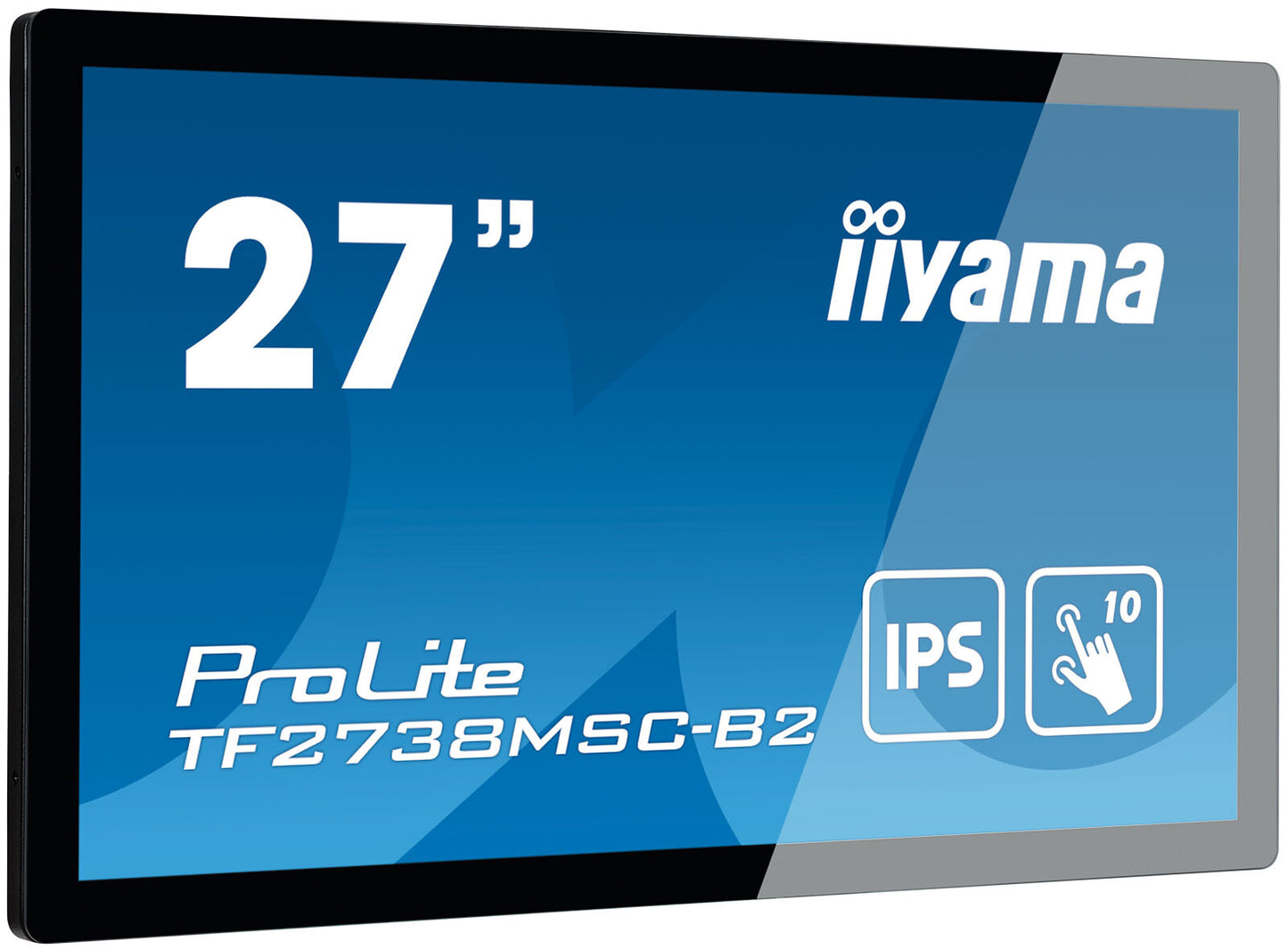

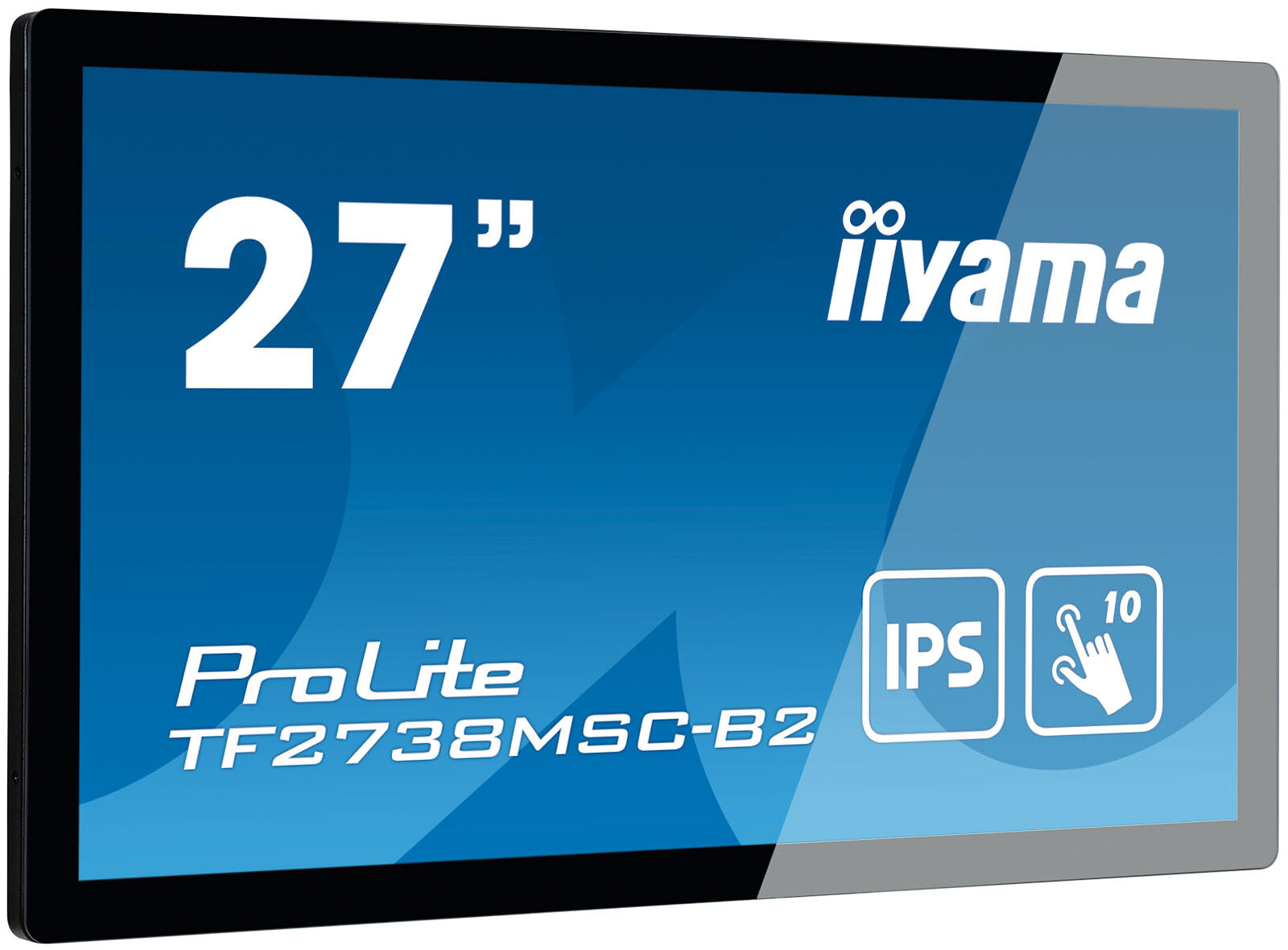

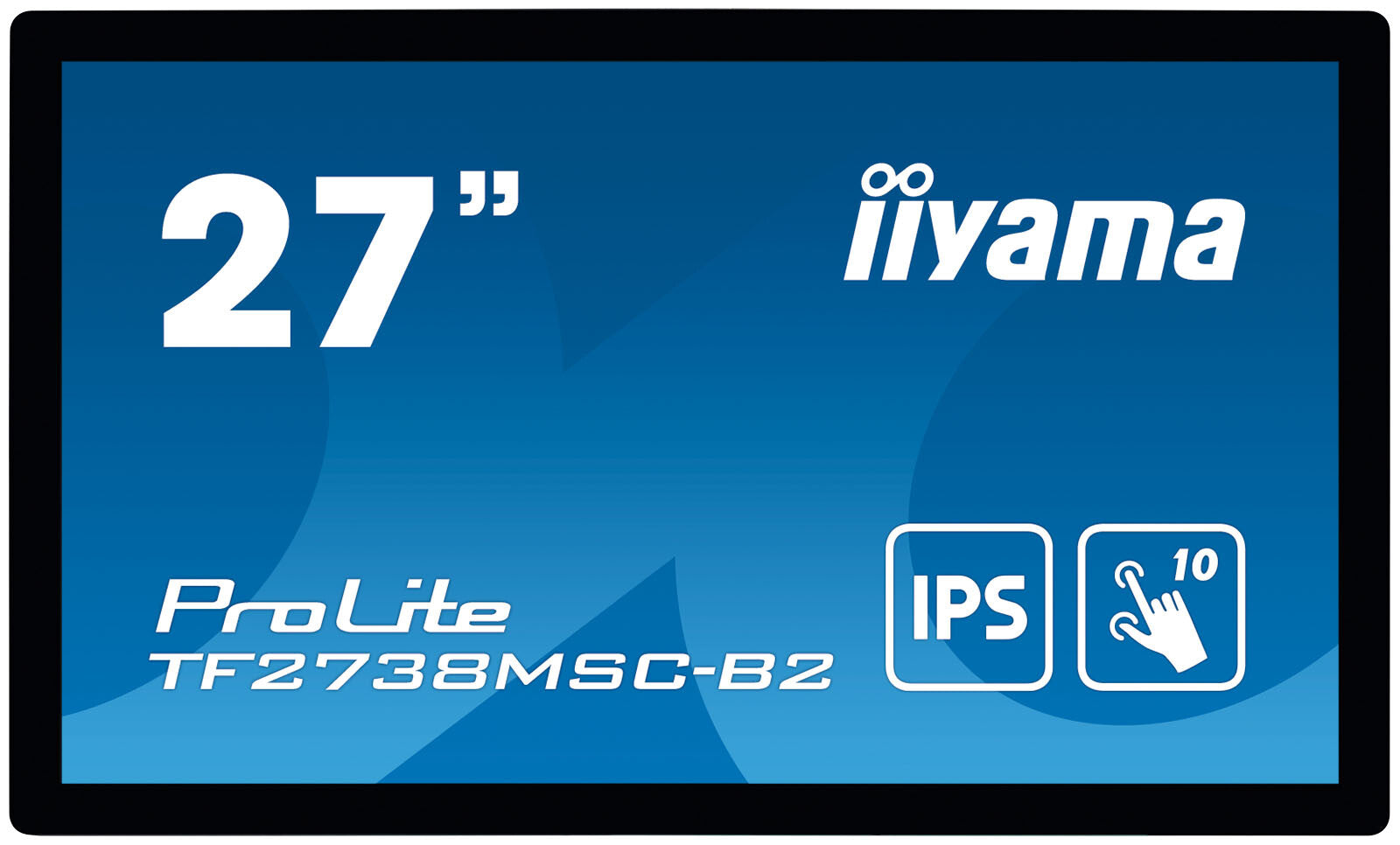

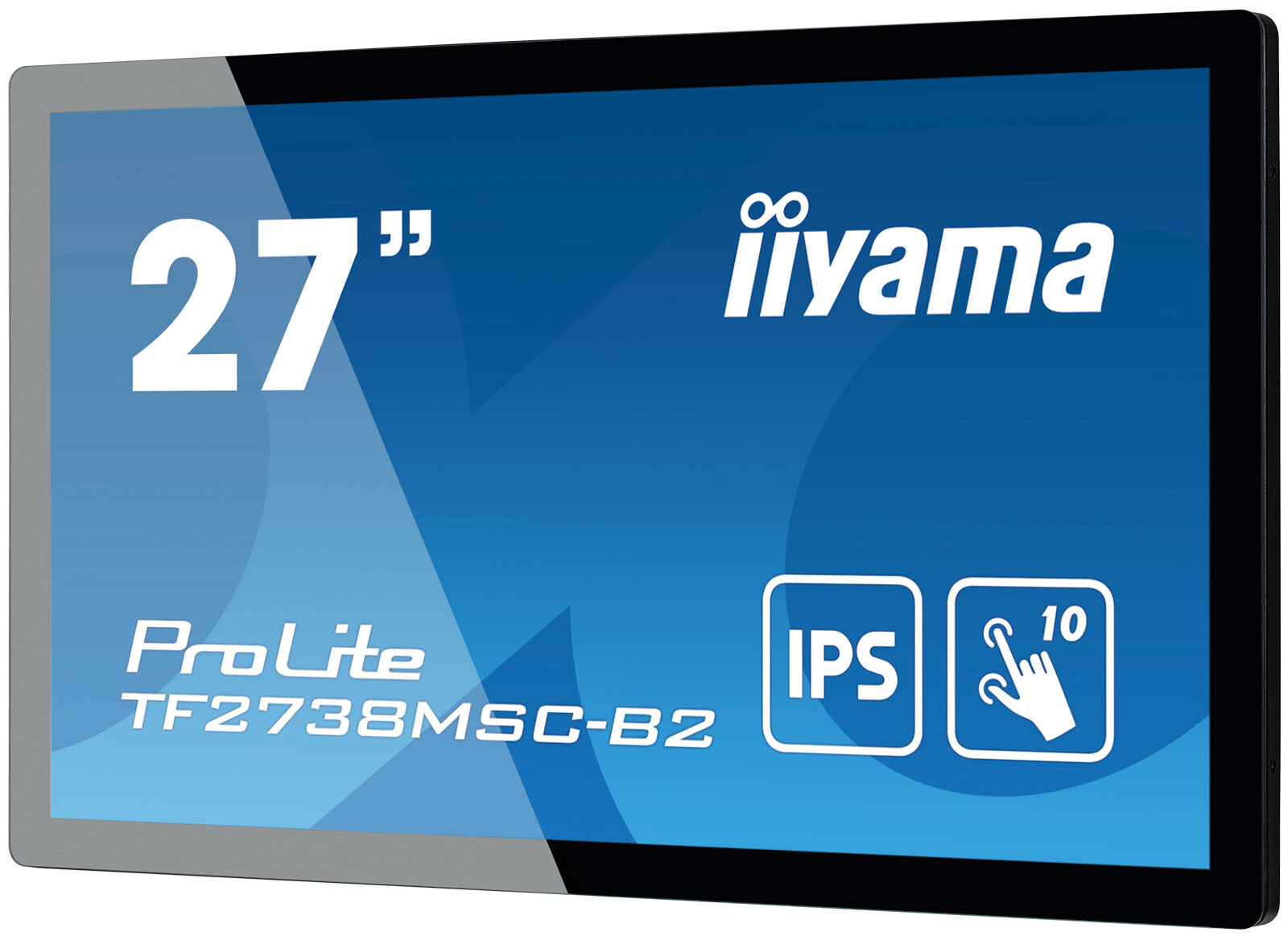

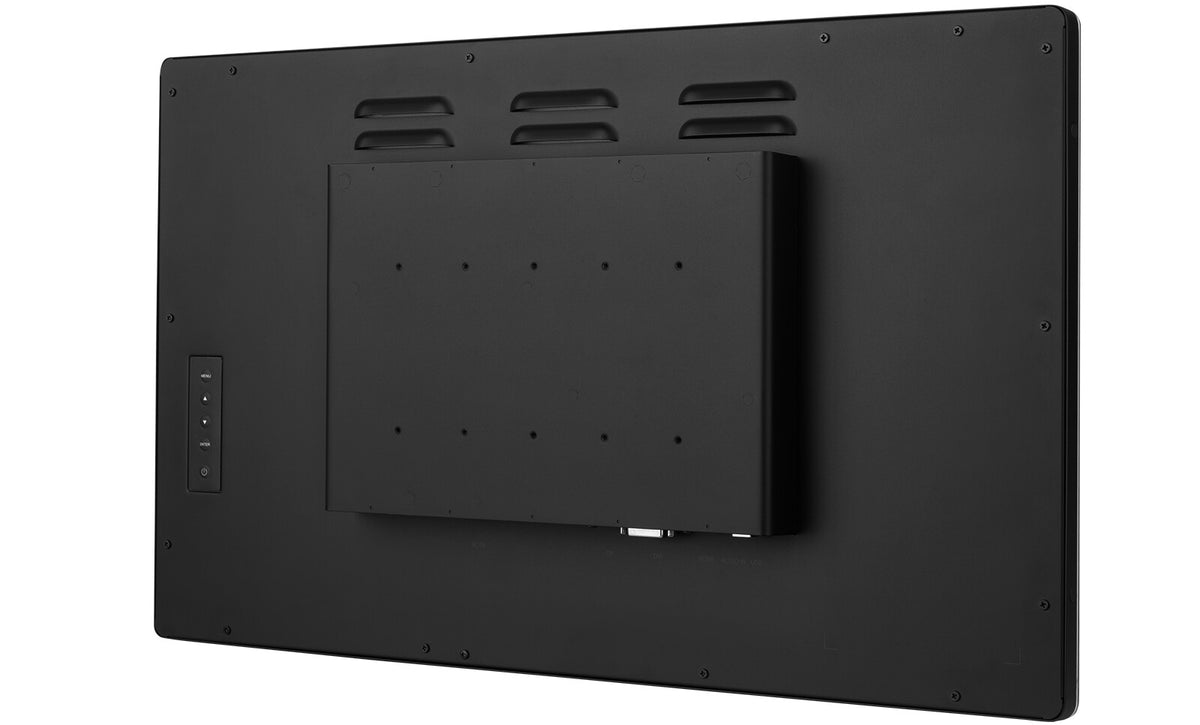

TF2738MSC-B2

27” 10pt open frame touch monitor with edge-to-edge glass

  • 68.6 cm (27") Black
  • Built-in speaker(s)
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Response time: 5 ms Response time measurement type: GTG (Gray to Gray)
  • 1920 x 1080 pixels Full HD Panel type: IPS
  • Energy efficiency class (SDR): E ErP CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
  • SKU:4948570118199
  • GTIN:4948570118199
  • MPN:TF2738MSC-B2

You need to login to view the price.

View full details

iiyama ProLite 27” 10pt open frame touch monitor with edge-to-edge glass. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Product colour: Black

With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite TF2738MSC-B2 delivers seamless and accurate touch response. Featuring IPS LED LCD Screen technology, it offers exceptional colour performance and wide viewing angles. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. In addition, the screen comes with an IPX1 rating, making it water resistant from the front. Equipped with speakers and triple digital input (DVI, HDMI and DisplayPort). The ProLite TF2738MSC-B2 is an ideal screen for kiosk integrators and a perfect solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations..

Display
Display diagonal
68.6 cm (27")
Display resolution
1920 x 1080 pixels
Panel type
IPS
Touchscreen technology
Projected capacitive system
Display brightness (typical)
500 cd/m²
Response time
5 ms
Response time measurement type
GTG (Gray to Gray)
Display brightness
425 cd/m²
Screen shape
Flat
Contrast ratio (typical)
1000:1
Display number of colours
16.7 million colours
Horizontal scan range
30 - 80 kHz
Viewable size, horizontal
59.8 cm
Viewable size, vertical
33.6 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Low Blue Light technology
Yes
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Operating hours (hours/days)
16/7
Multimedia
Built-in speaker(s)
Yes
Number of speakers
2
RMS rated power
6 W
Design
Product colour
Black
Front bezel colour
Black
Glass thickness
3.6 mm
International Protection (IP) code
IP1X
Certification
CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
Ports & interfaces
DVI port
Yes
Ergonomics

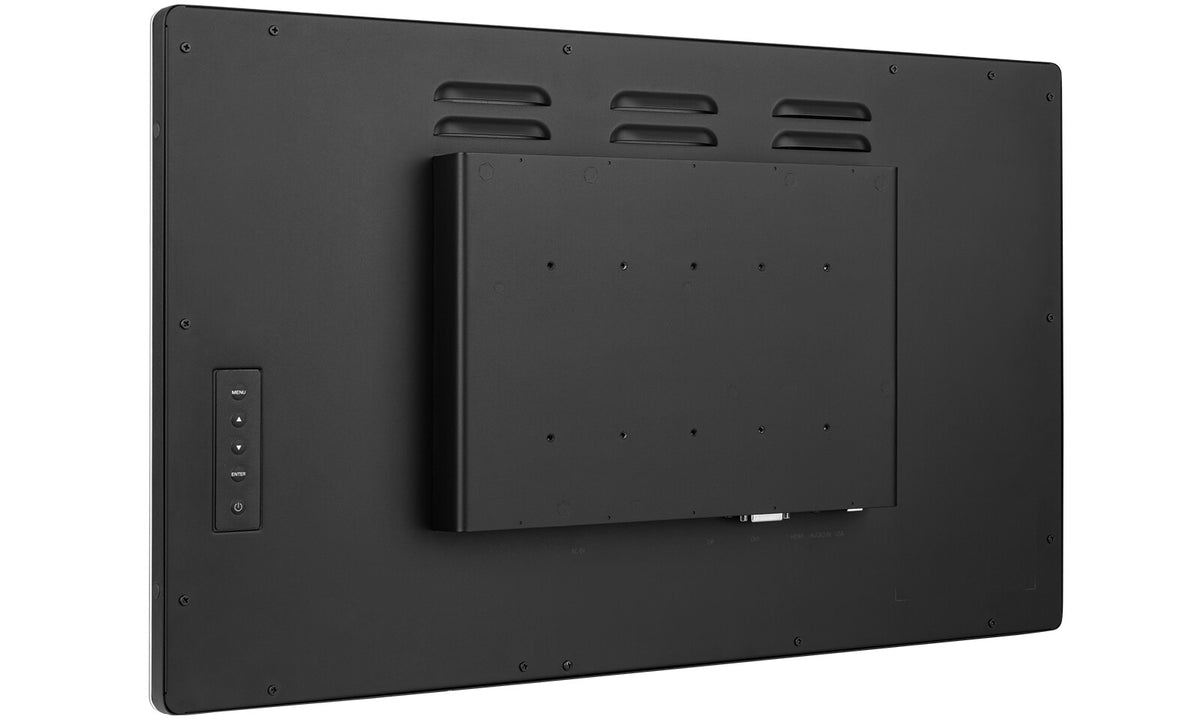

VESA mounting
Yes
Panel mounting interface
100 x 100,200 x 100 mm
Wall mountable
Yes
On Screen Display (OSD)
Yes
Number of OSD languages
8
On Screen Display (OSD) languages
Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian
Power
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
24 kWh
Power consumption (typical)
25 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Bezel width (side)
2.45 cm
Bezel width (top)
2.4 cm
Bezel width (bottom)
2.4 cm
Width (with stand)
648.5 mm
Depth (with stand)
52 mm
Height (with stand)
386.5 mm
Weight (with stand)
8.3 kg
Width (without stand)
648.5 mm
Depth (without stand)
52 mm
Height (without stand)
386.5 mm
Weight (without stand)
8.3 kg
Packaging data
Cables included
AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Package width
746 mm
Package depth
123 mm
Package height
500 mm
Package weight
9.4 kg
Logistics data
Harmonized System (HS) code
85285210
Products per pallet
36 pc(s)
Pallet net width
74.7 cm
Pallet net length
2 m
Pallet net height
110.7 cm
Technical details
Native refresh rate
60 Hz
Compliance certificates
CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Brightness
425 cd/m²
Depth
52 mm
Width
648.5 mm
Height
386.5 mm
Weight
8.3 kg
Active display area (W x H)
597.6 x 336.2 mm
Bezel width
2.4 cm

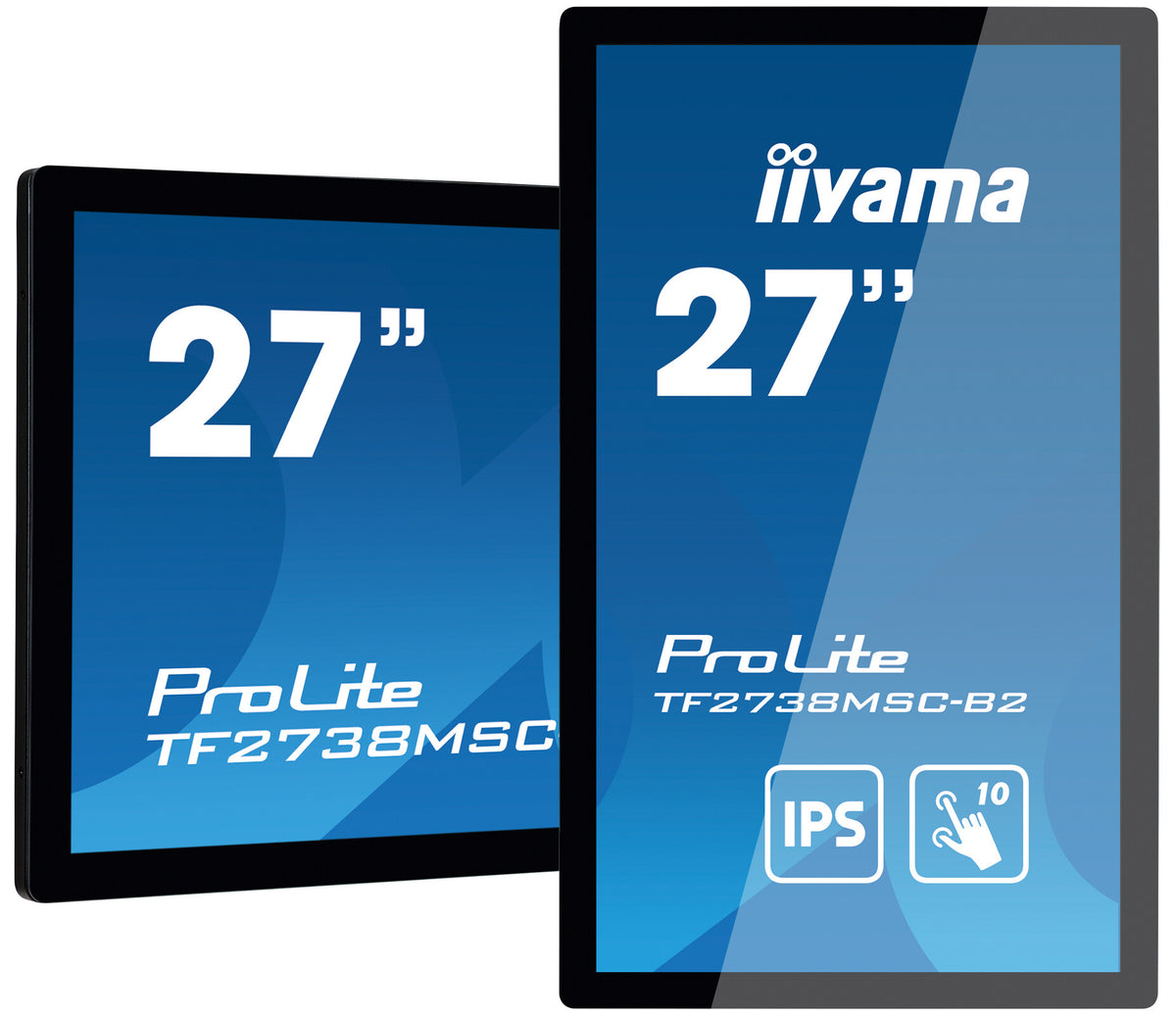

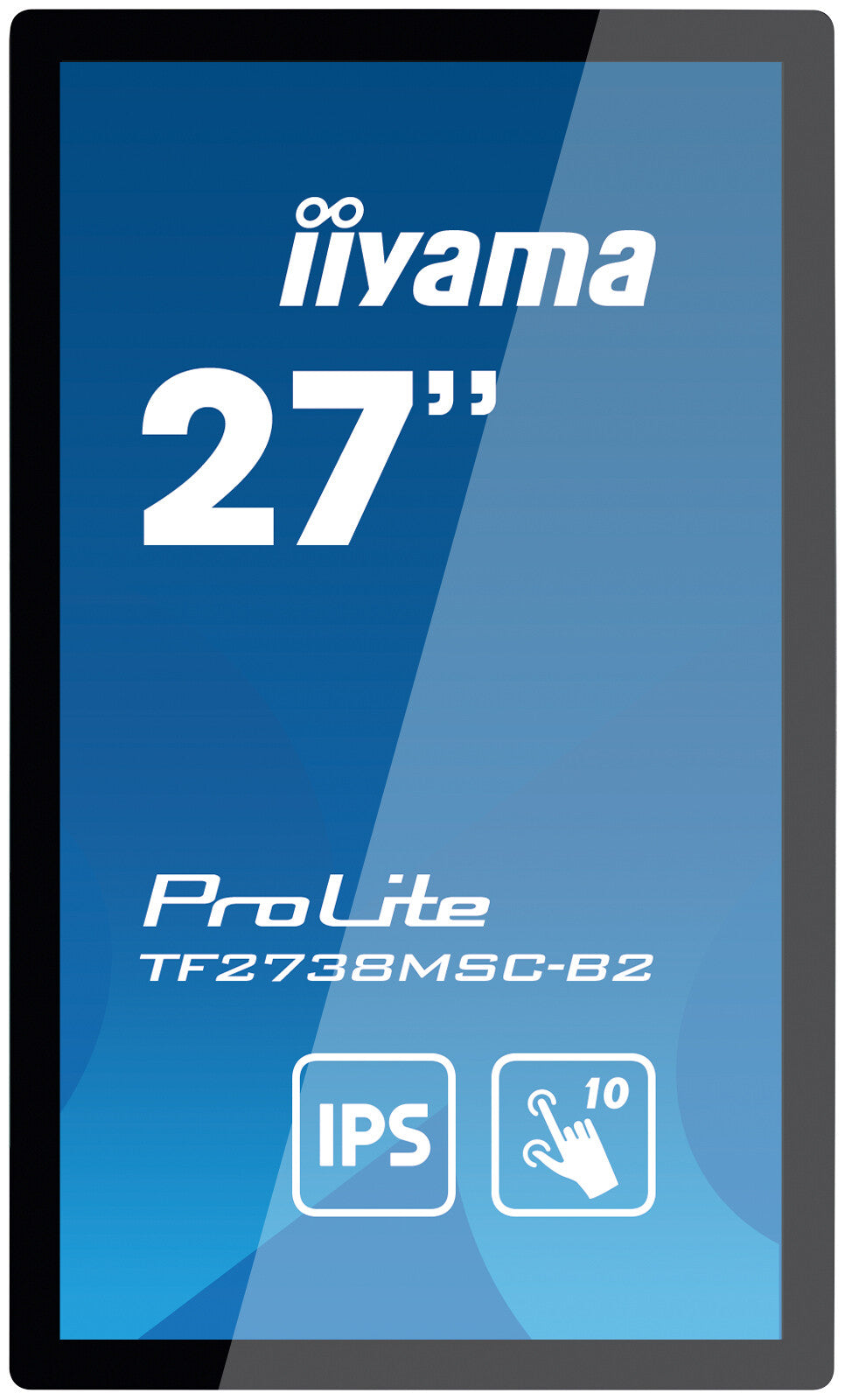

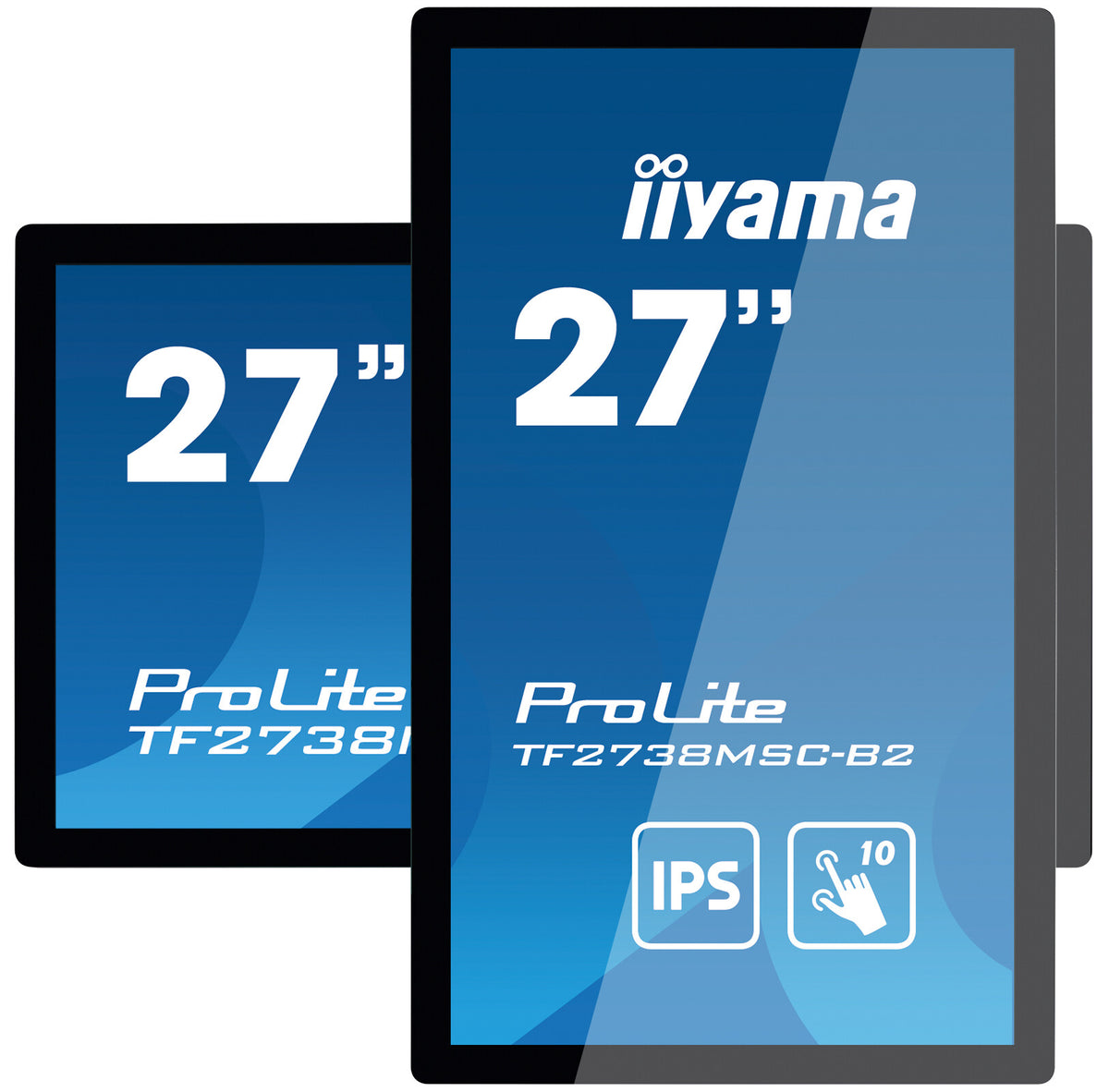

Placement supported
Horizontal/Vertical
Display viewable area (HxV)
597.6 x 336.2 mm
Control panel
Menu, Scroll up/ Audio, Scroll down/ i-Style colour, Select/ Input select, Power
Touch method
stylus, finger, glove (latex)
User controls
picture adjust (contrast, brightness, adv. contrast, ECO mode, OD) input select, audio adjust (volume, mute, audio input) colour adjust (cool, normal, warm, user colour, i-Style colour), information, manual image adjust (sharpness, video mode adjust, blue light reducer, X-res technology), setup menu (language select, OSD position, OSD time out, OSD background, opening logo, LED) memory recall
Touchscreen
Touchscreen
Yes
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Touch technology
Multi-touch
Touchscreen type
Multi-user
Number of simultaneous touchpoints
10
USB Touch port
Yes
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Contrast ratio (dynamic)
12000000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.311 x 0.311 mm
Display diagonal (metric)
68.6 cm
HDCP
Yes
Surface hardness
6H
