SCP 14/2OFC-LSZH-WT
SCP 14/2OFC-LSZH-WT
152 m, LSZH, PVC, White
- 99.97% Oxygen Free bare copper conductors
- High Strand Count
- Ultra Flexibility
- Low Smoke Zero Halogen (LSZH)
- Easy Pull Coated PVC jacket
- Easy Strip Construction
- In-Wall Rated, IEC 60332.1, IEC 60332.3c, IEC 60754.1, IEC 60754.2, IEC 61034.2; RoHS, CE
- SKU:810070016791
- GTIN/EAN:810070016791
- MPN:14/2OFC-LSZH-WT
SCP 14/2OFC-LSZH-WT. AWG wire size: 14, Cable length: 152 m, Product colour: White
Speaker installations in Public Buildings, Other Installations Requiring LSZH, High End Professional Audio Fixed Installations, Home Theater Grade, Speaker Audio, Power Limited Circuit and Communication.

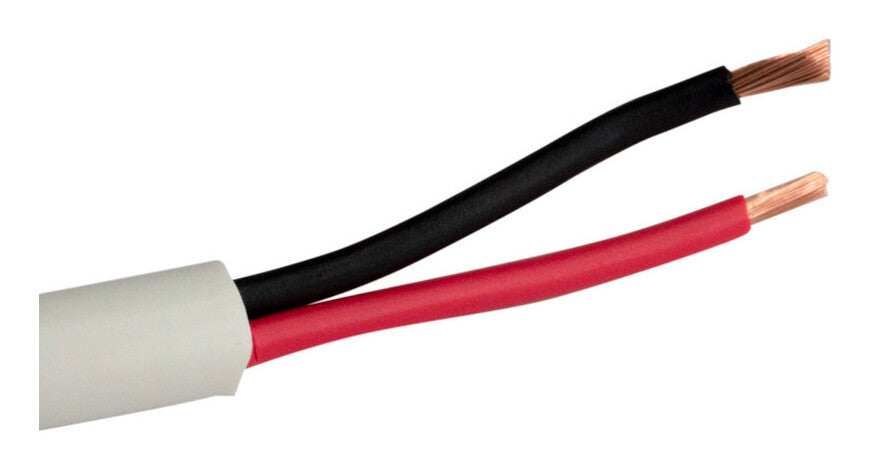

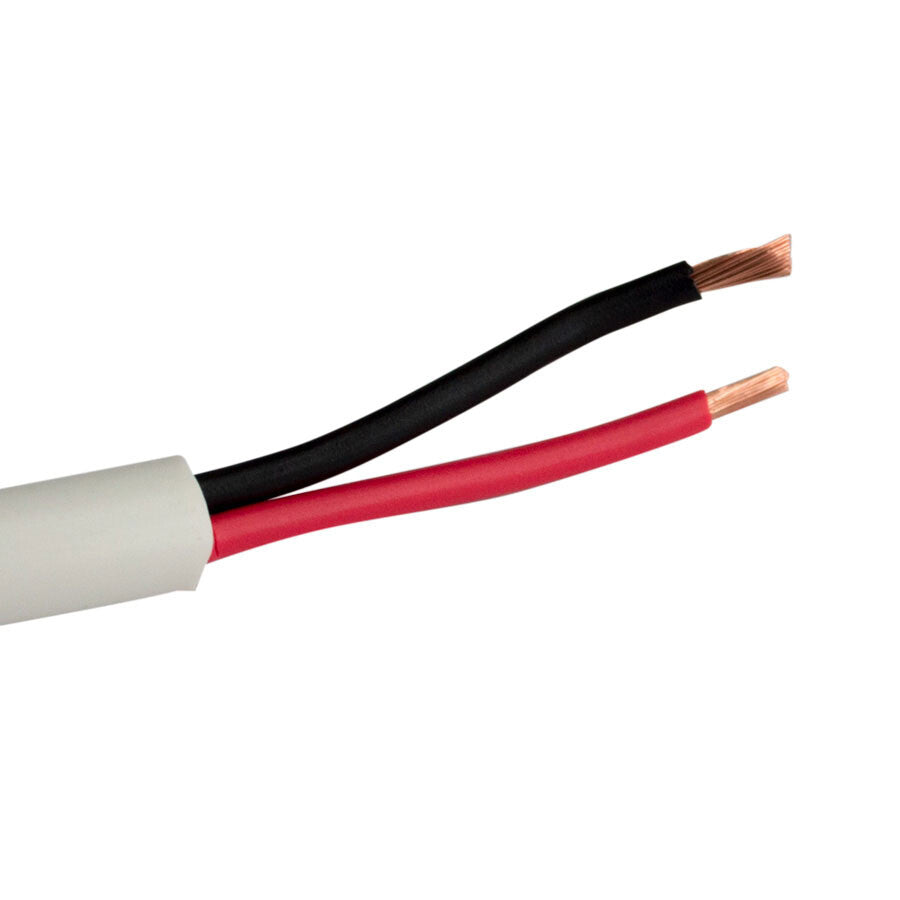

This cable consists of high strand count insulated oxygen free copper conductors in twisted pair construction (unshielded) with easy strip LSZH jacket. Cable includes SCP Cable Labeling System with sequential foot/meter markings, and room/zone/outlet designations for easy cable identification.
Storage temperature (T-T)
0 - 40 °C
Operating temperature (T-T)
-20 - 75 °C
AWG wire size
14
Jacket material
Low smoke zero halogen (LSZH)
Product colour
White
Connector 2 form factor
Straight
Connector 1 form factor
Straight
Connector 2 gender
No
Connector 1 gender
No
Connector 2
No
Connector 1
No
Cable length
152 m
Package type
Box
Package weight
11.2 kg
Package height
320 mm
Package depth
260 mm
Package width
320 mm
Quantity per pack
1 pc(s)
Cable diameter
6.3 mm
