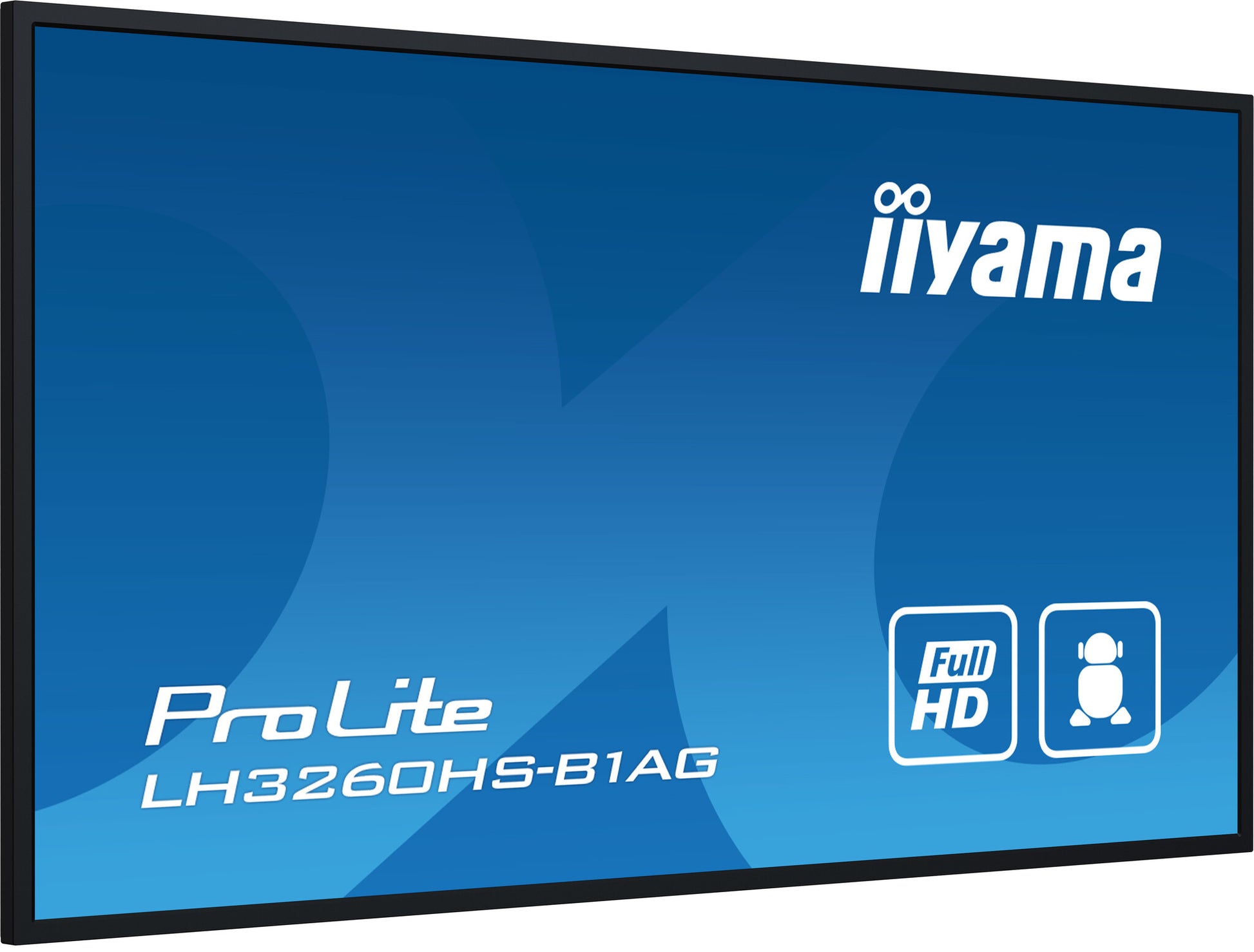

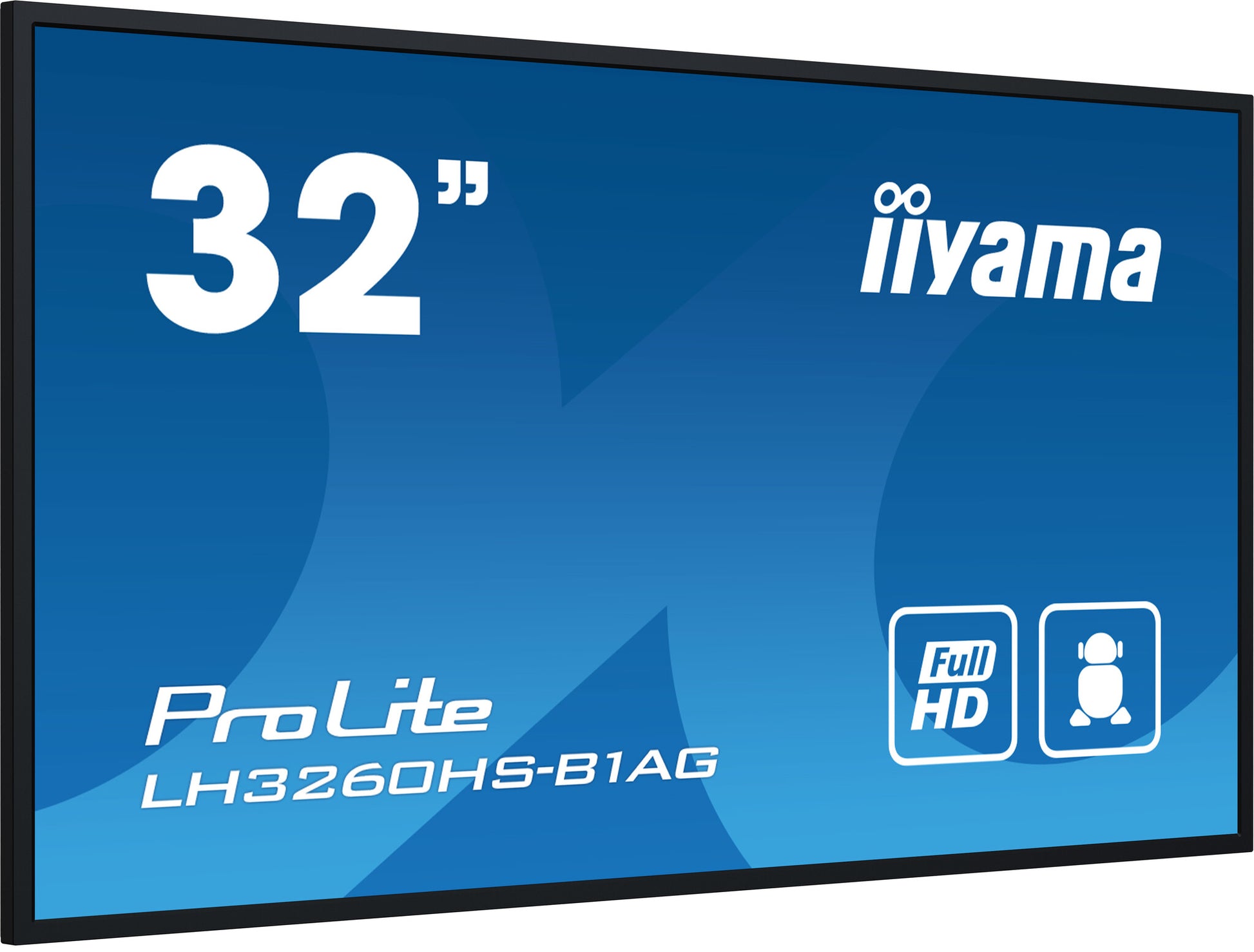

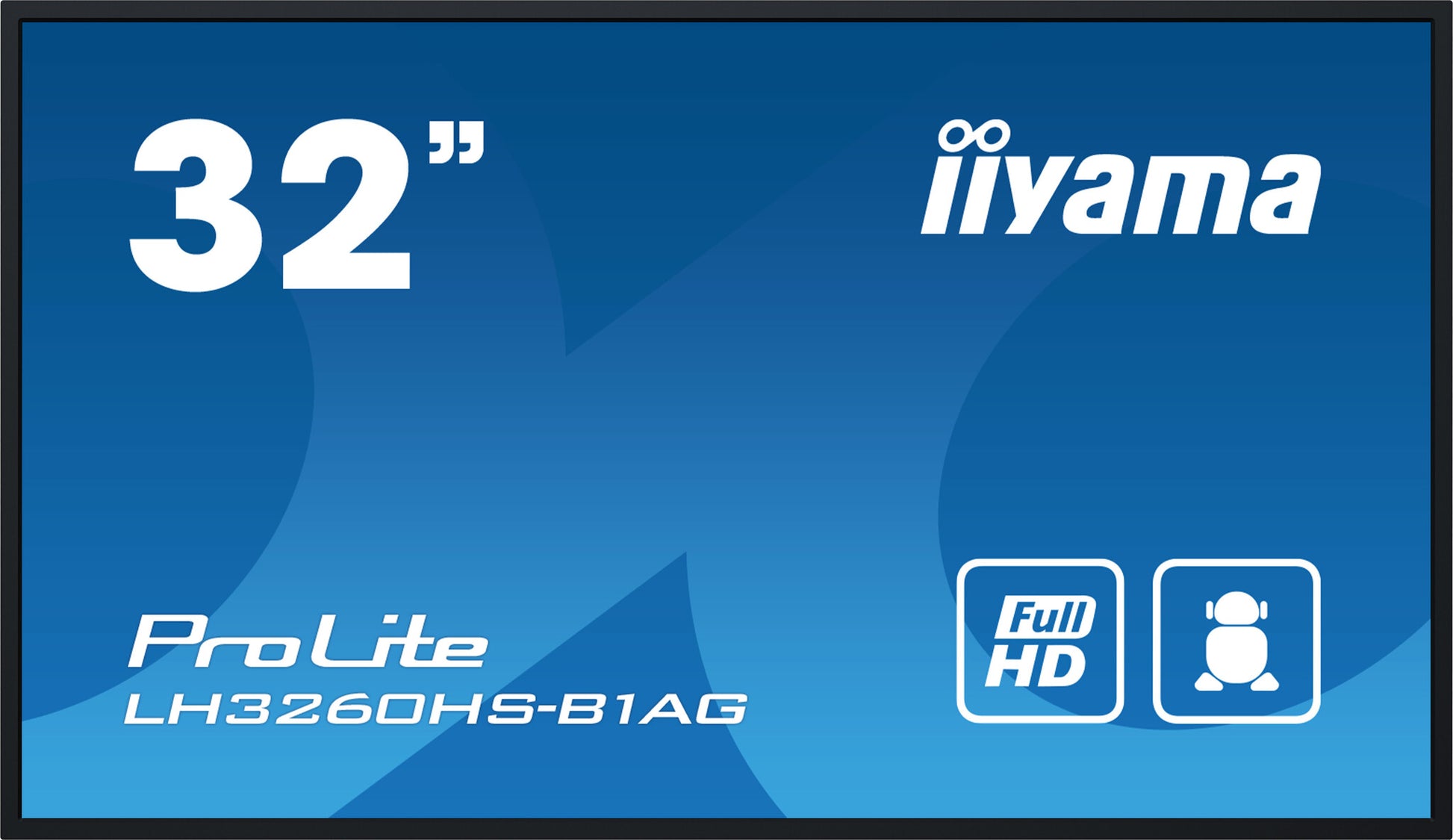

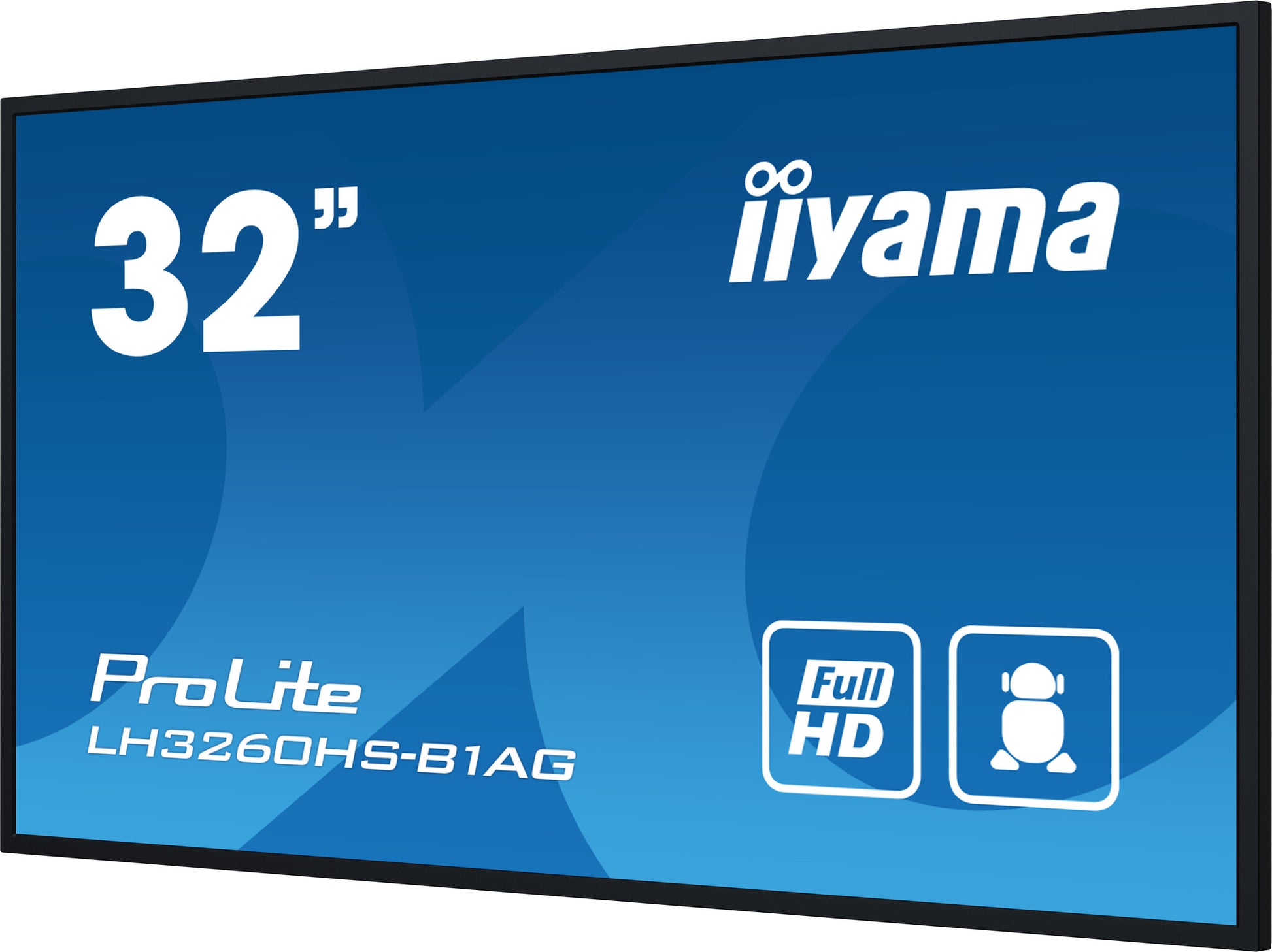

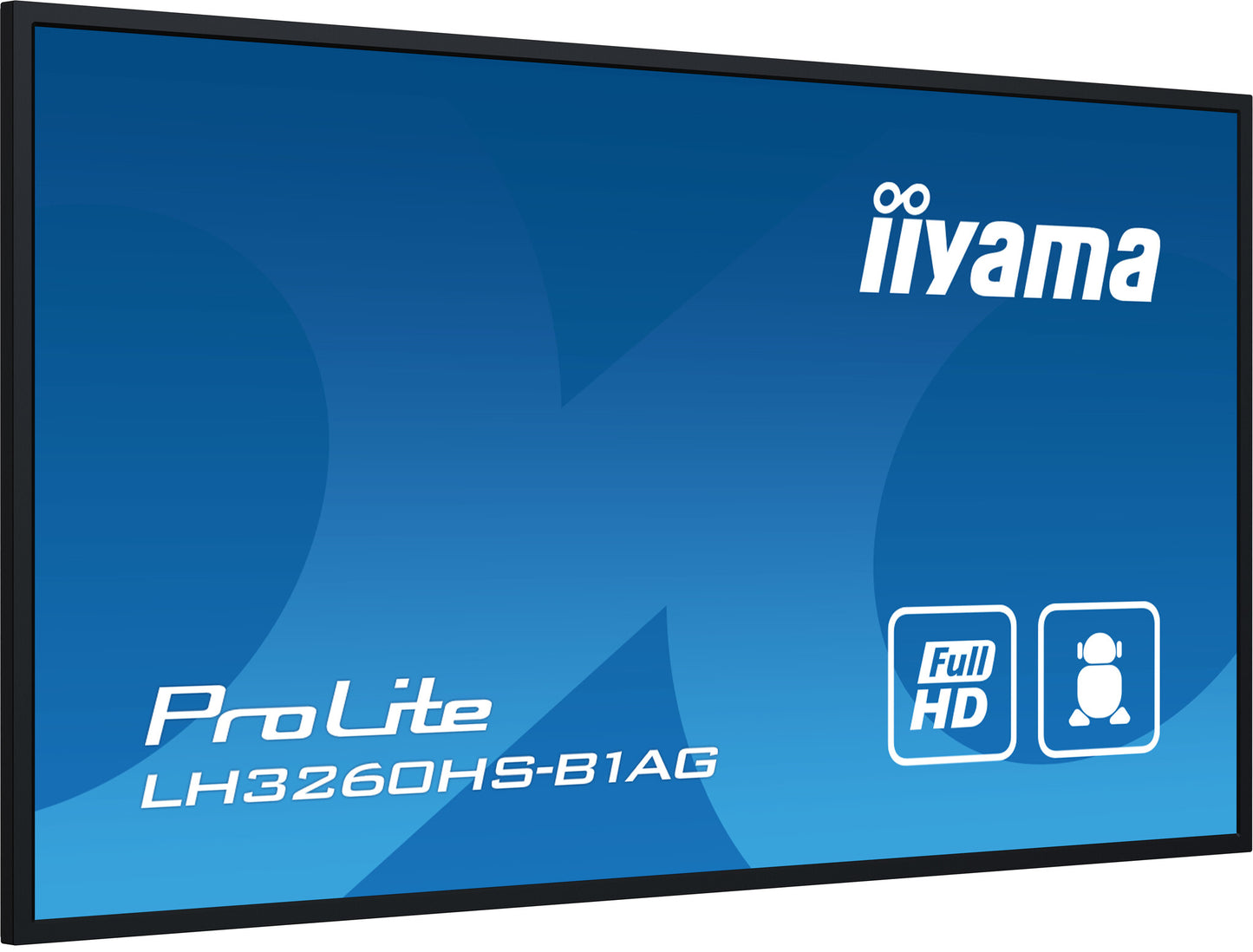

LH3260HS-B1AG

32" Full HD professional digital signage display with advanced control and connectivity options

  • ANDROID OS
  • IISIGNAGE
  • SIGNAL FAILOVER
  • MEDIA PLAYER
  • SKU:4948570122288
  • GTIN:4948570122288
  • MPN:LH3260HS-B1AG

You need to login to view the price.

View full details

iiyama 32" Full HD professional digital signage display with advanced control and connectivity options. Product design: Digital A-board. Display diagonal: 80 cm (31.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

Elevate your visual communication with the LH3260HS-B1AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² content management software, Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH3260HS-B1AG will undoubtedly captivate your audience and leave a lasting impression.

Display
Display diagonal
80 cm (31.5")
Display technology
LED
Display resolution
1920 x 1080 pixels
Display brightness
500 cd/m²
HD type
Full HD
Touchscreen
No
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
4000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.364 x 0.364 mm
Active display area (W x H)
698.4 x 392.85 mm
Display diagonal (metric)
80 cm
Horizontal scan range
28 - 160 kHz
Surface hardness
3H
Native refresh rate
60 Hz
Panel type
VA
Haze rate
25%

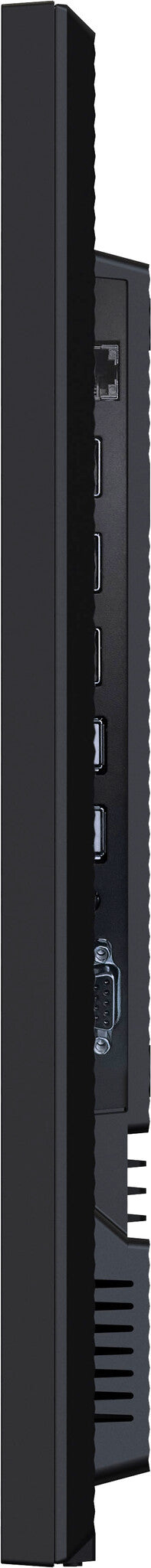

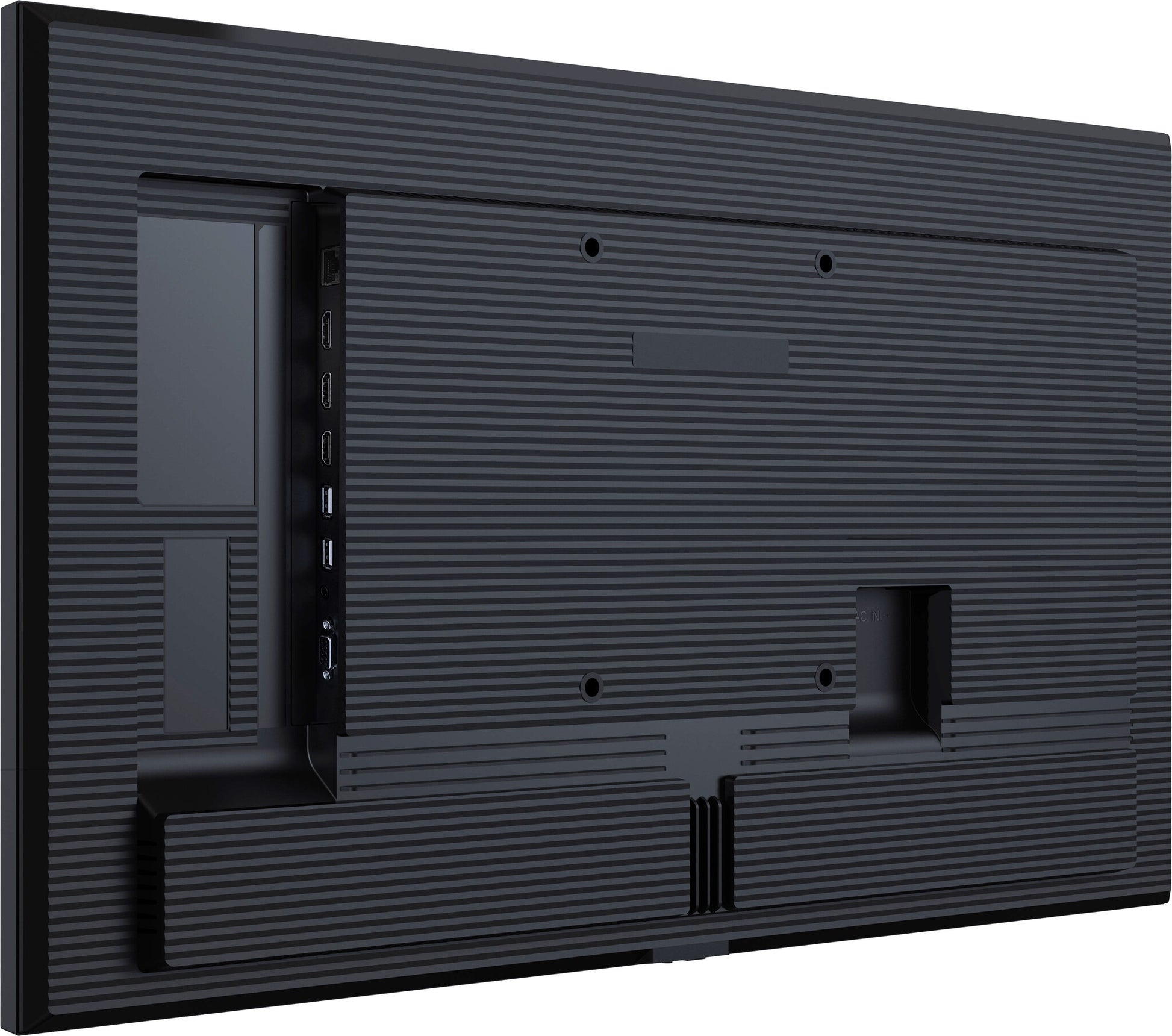

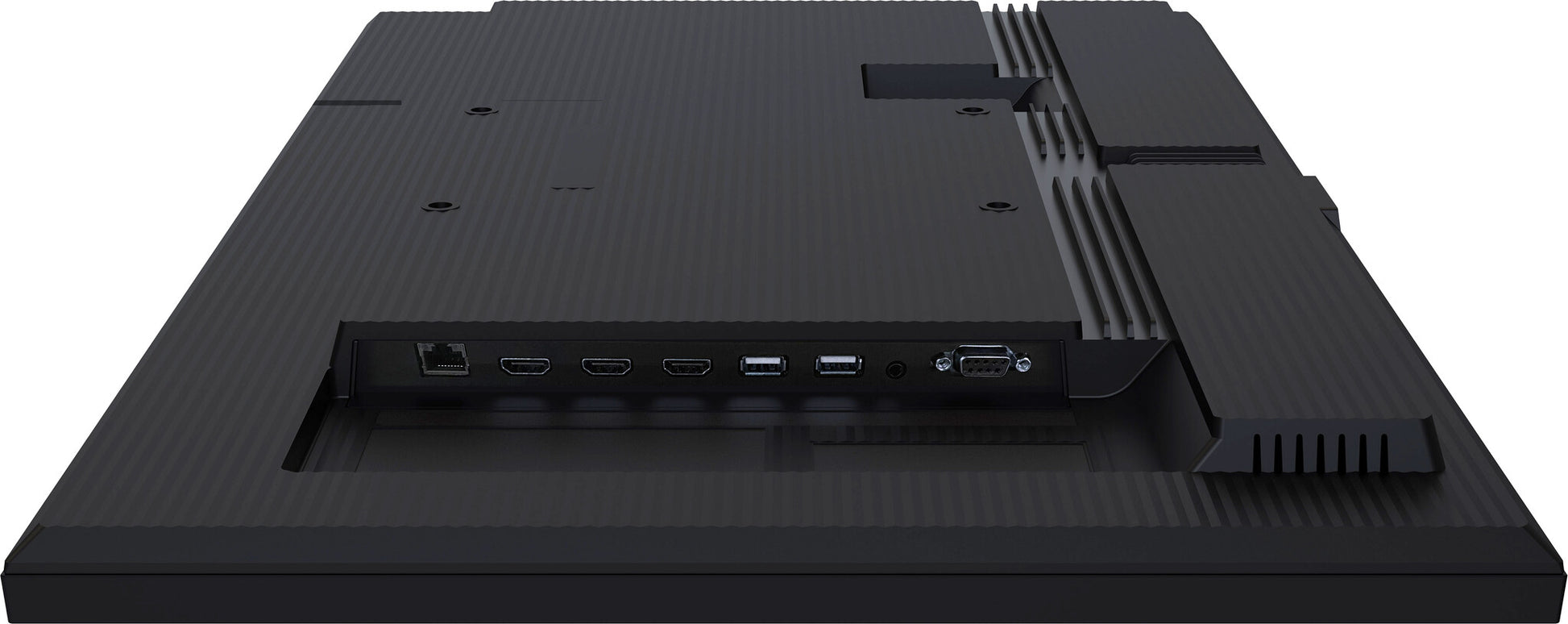

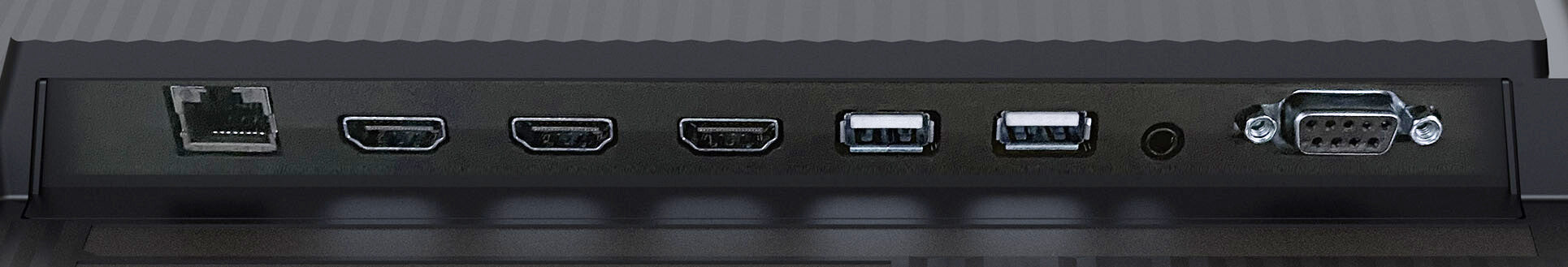

Ports & interfaces
HDMI ports quantity
3
HDMI version
2.0
DVI port
No
USB port
Yes
USB ports quantity
2
USB version
2.0
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Yes
Audio (L/R) in
1
Audio (L/R) out
1
RS-232C
Yes
Remote (IR) input
1
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design
Digital A-board
Product colour
Black
Placement supported
Indoor

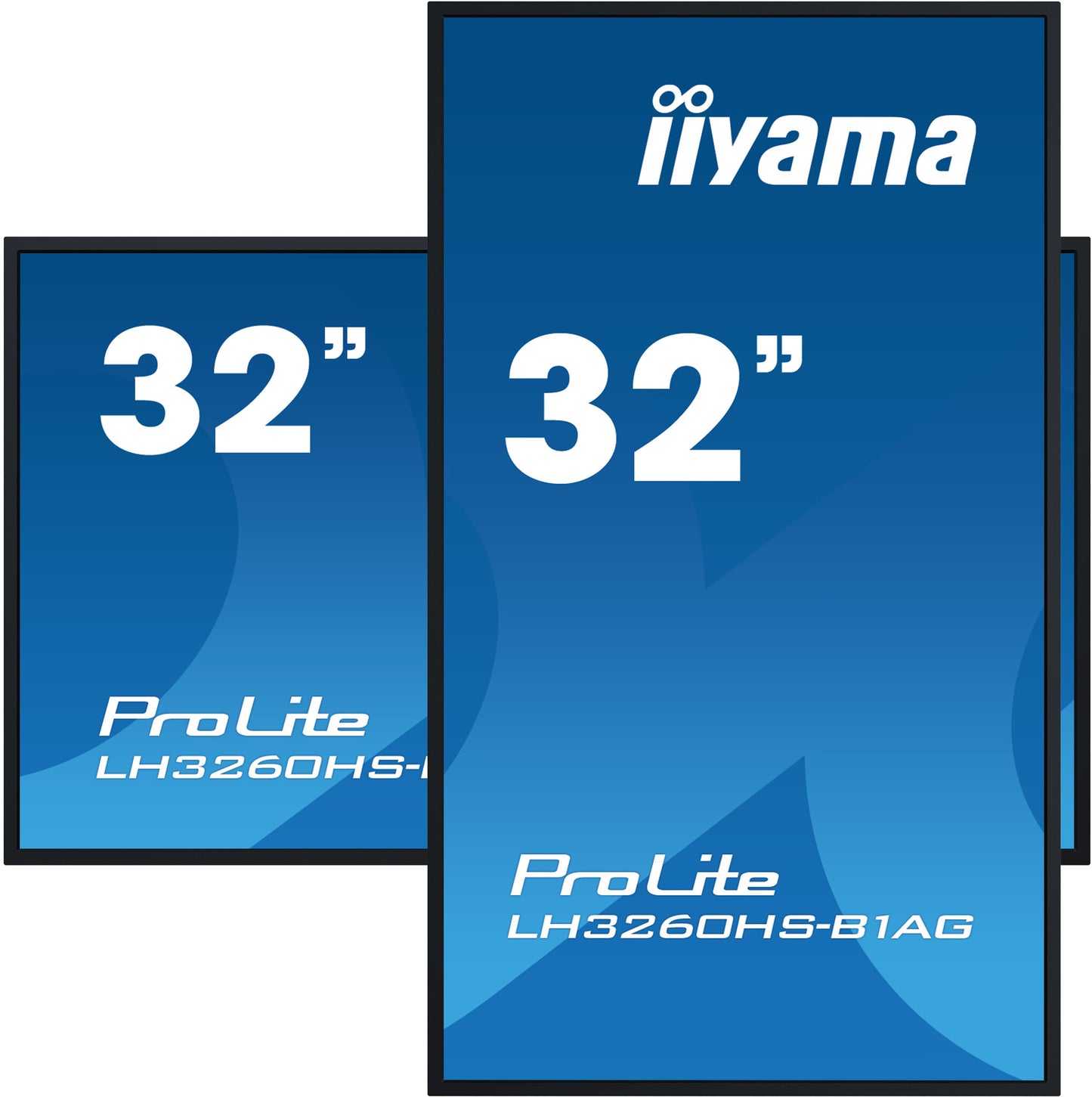

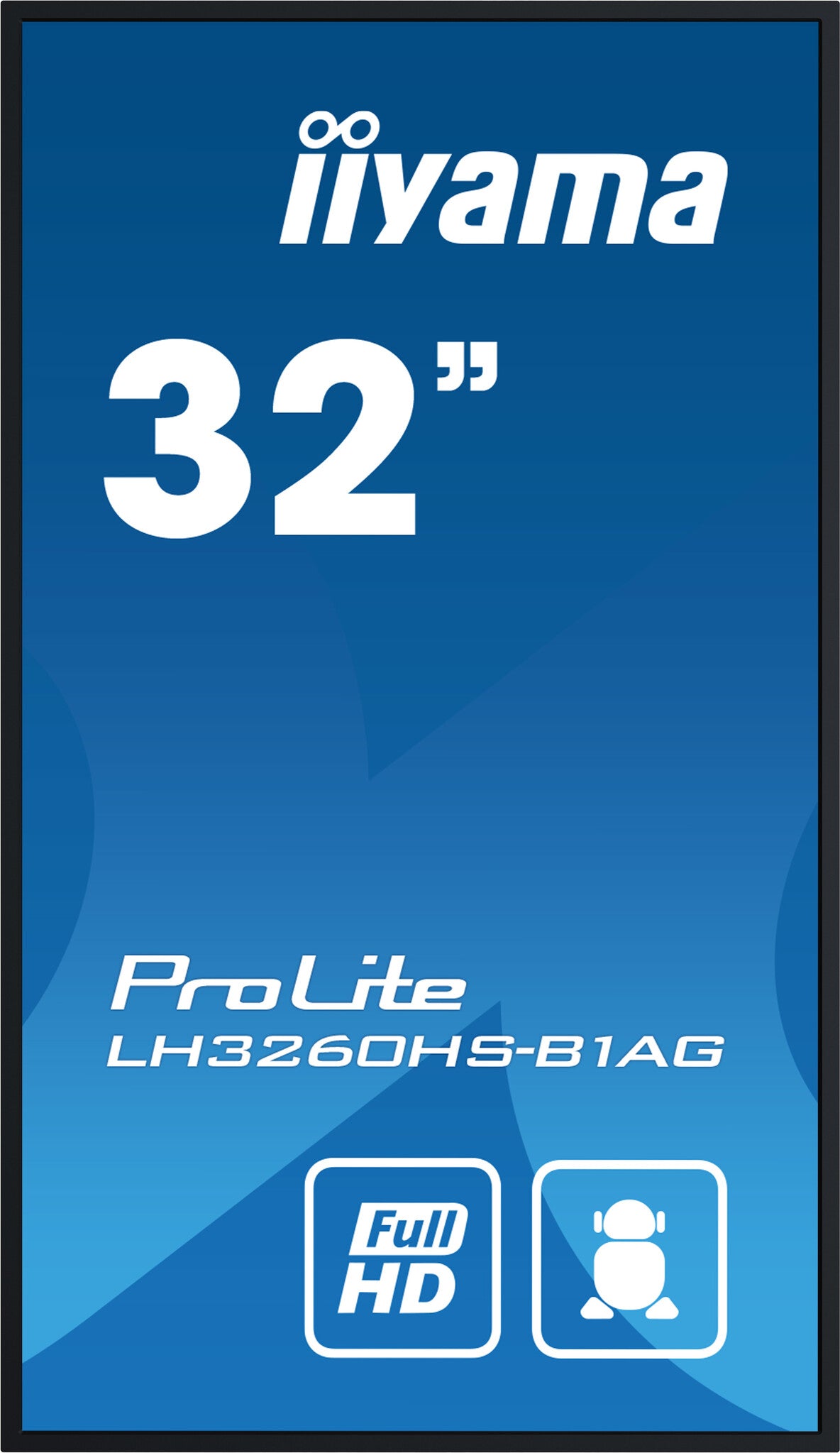

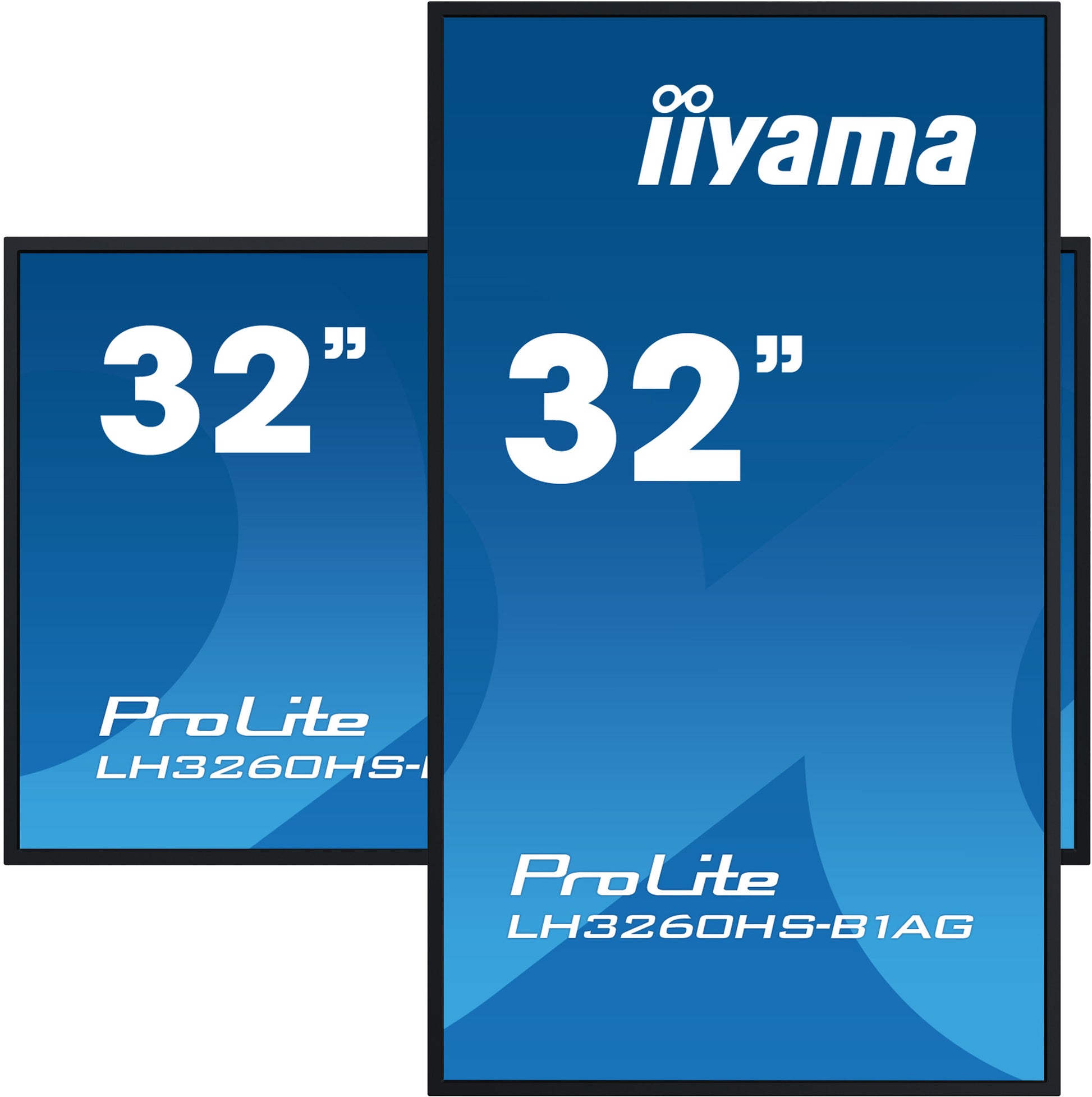

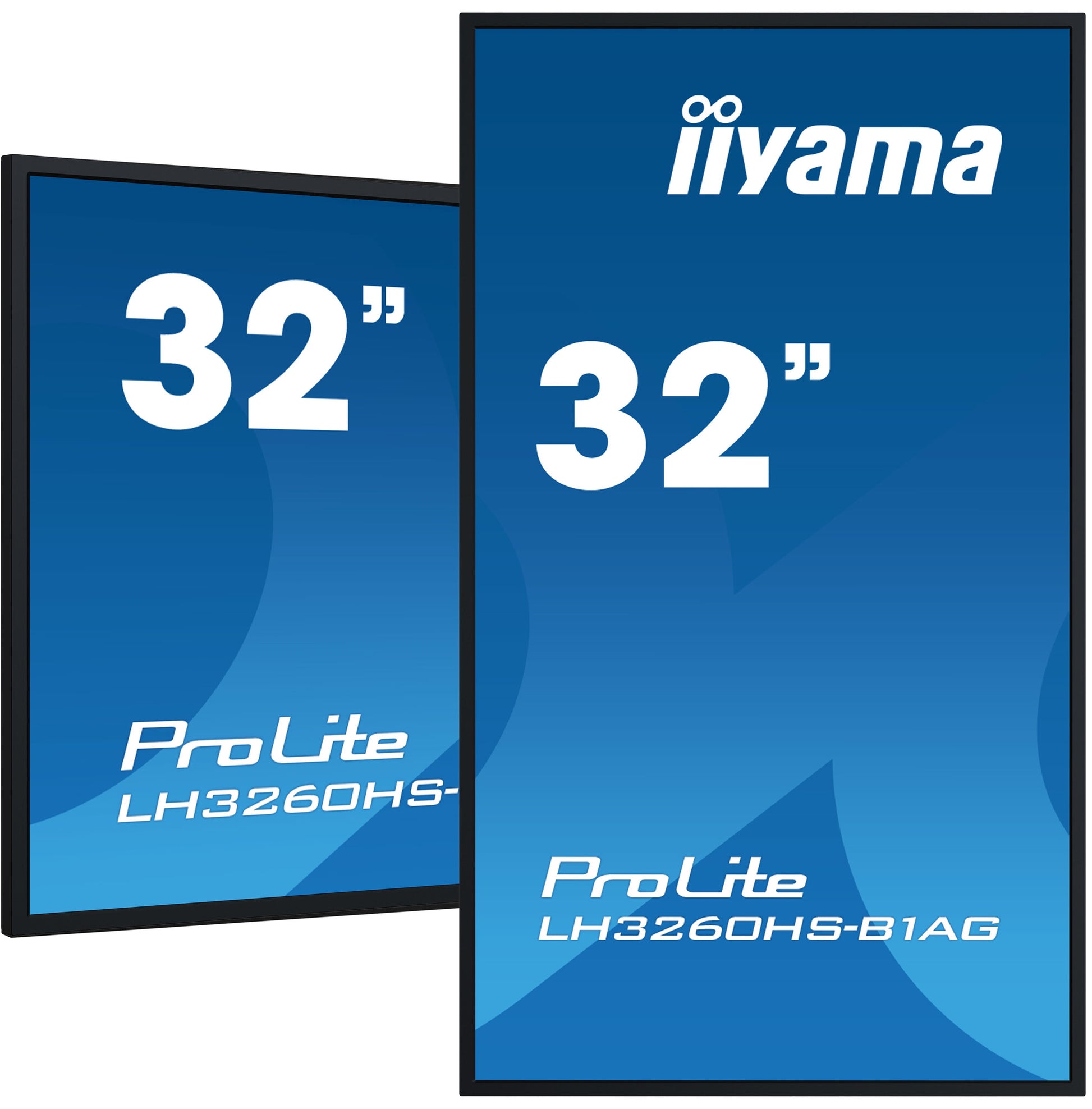

Orientation
Horizontal/Vertical

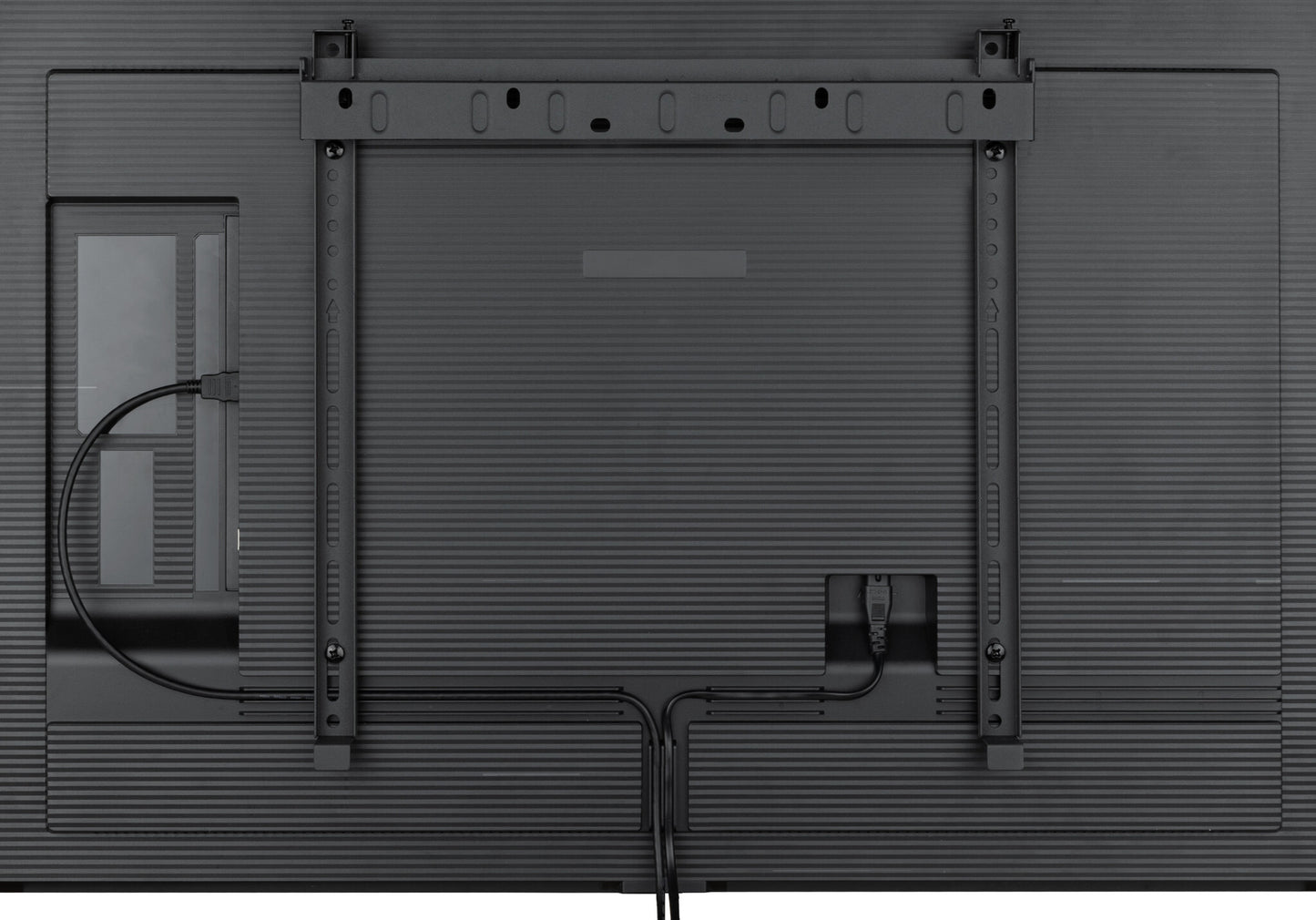

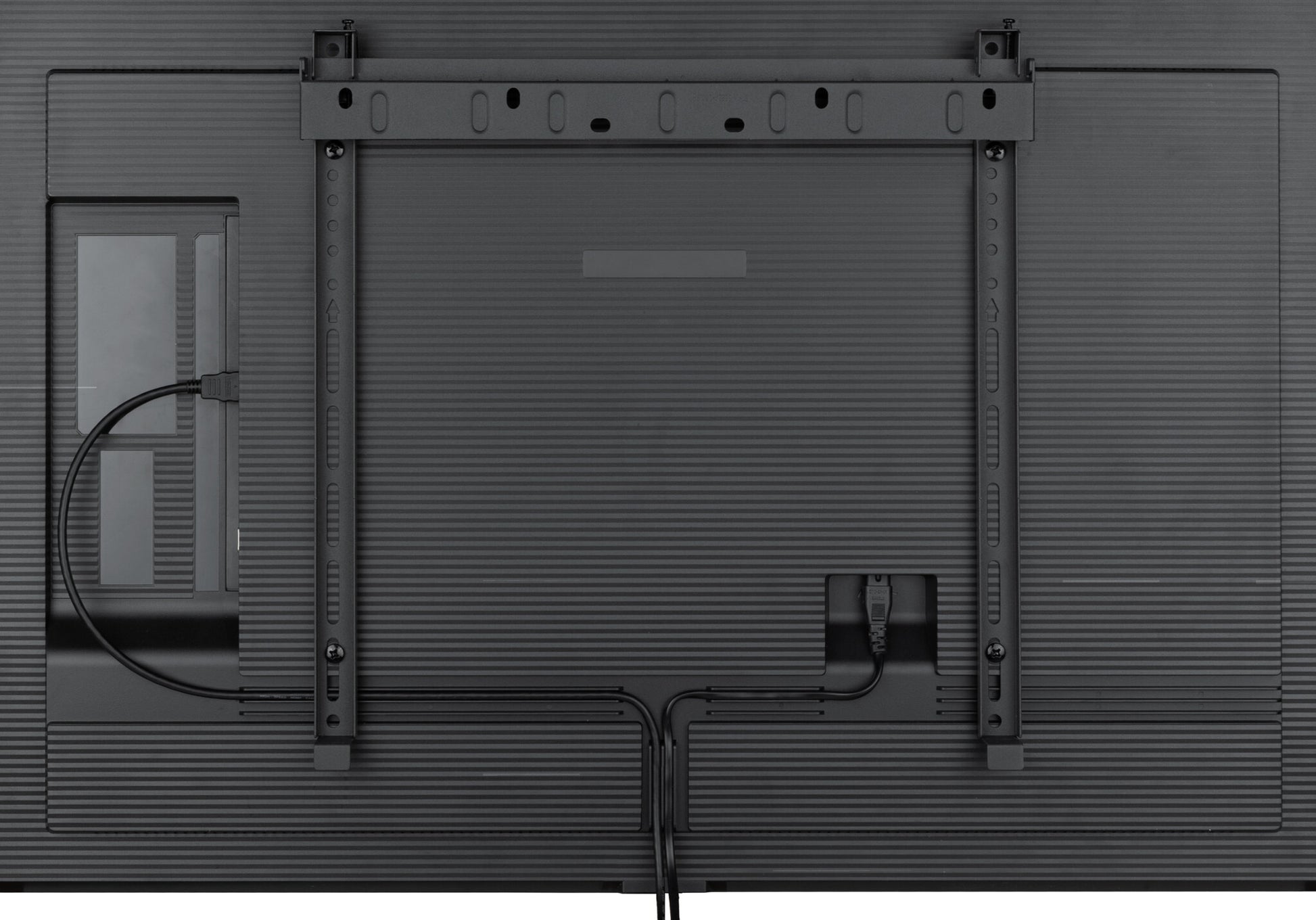

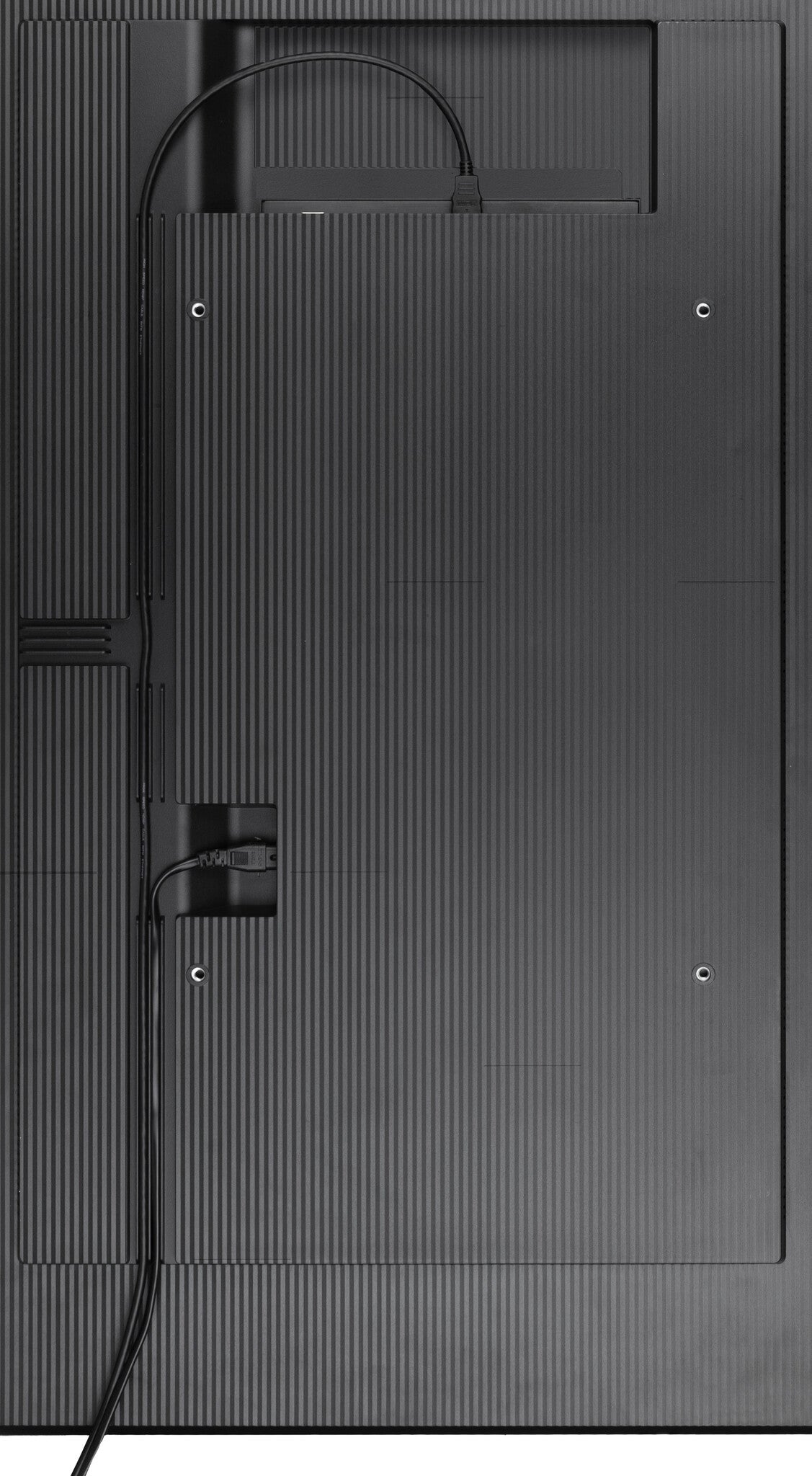

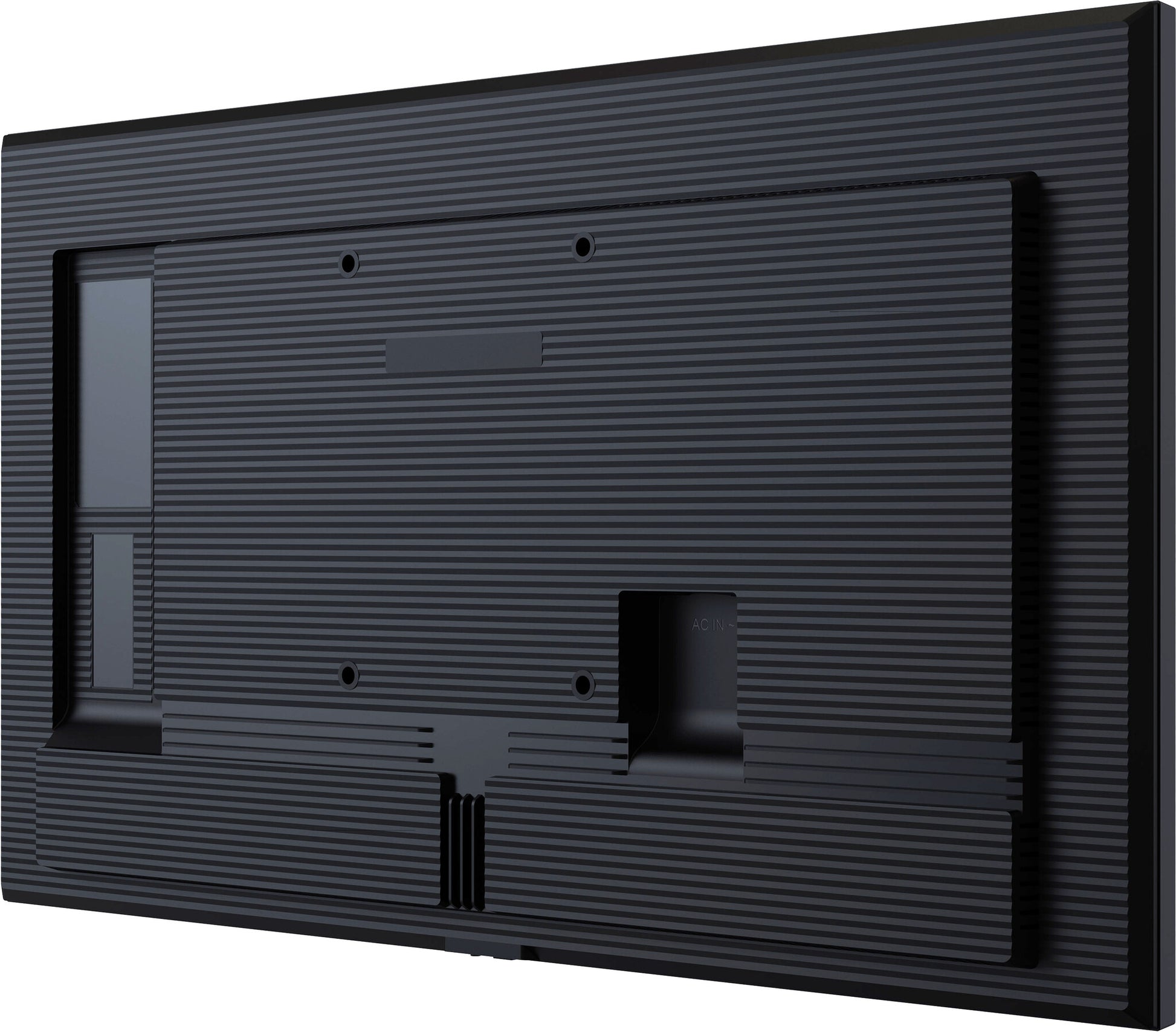

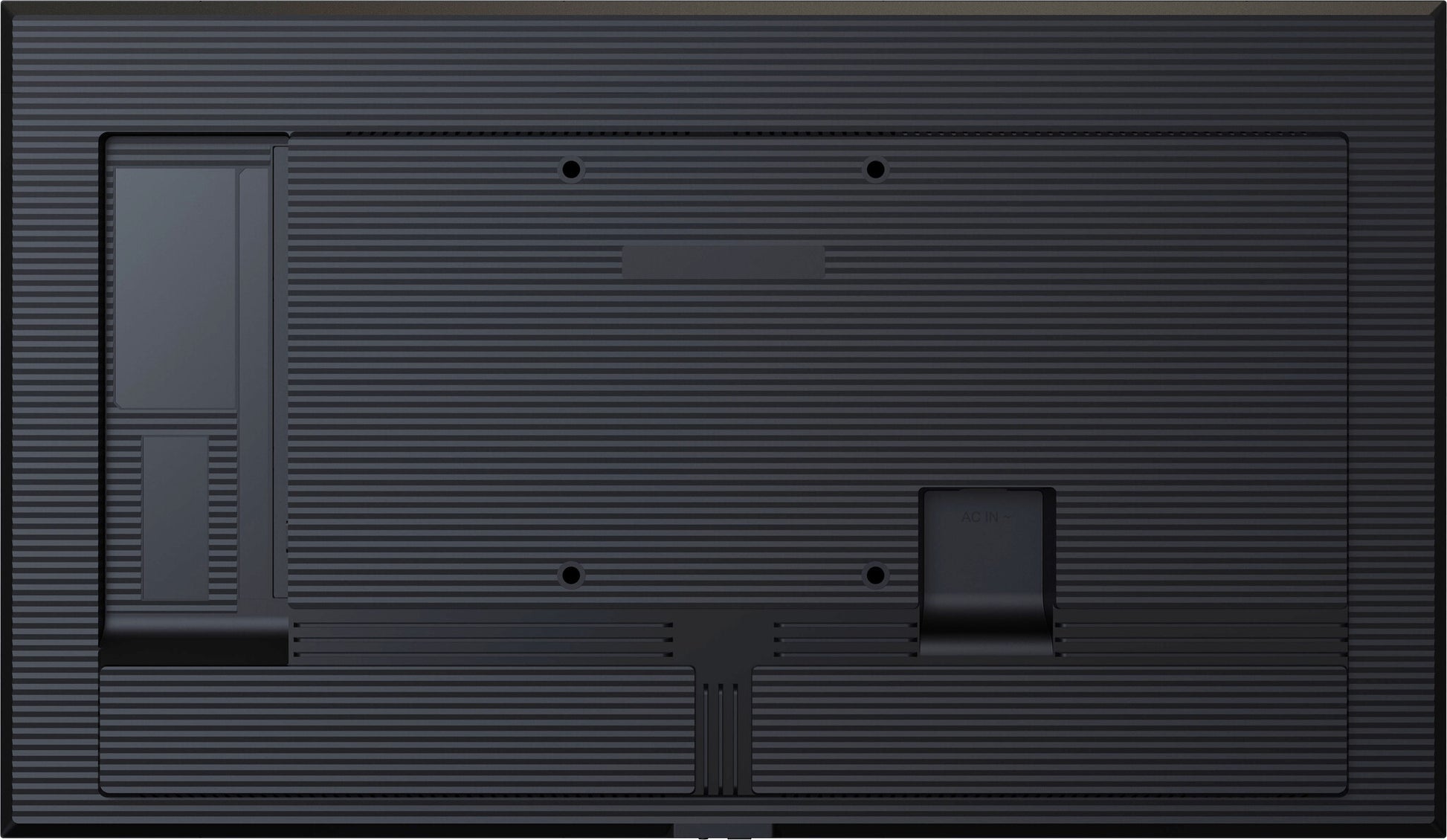

VESA mounting
Yes
Panel mounting interface
150 x 200 mm
Bezel colour
Black
Anti-glare screen
Yes
Bezel width (top)
9 mm
Bezel width (side)
9 mm
Bezel width (bottom)
9 mm
Performance
Purpose
Universal
On Screen Display (OSD) languages
Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP version
1.4/2.2
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)
40 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
39.5 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Computer system
No
Built-in processor
Yes
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor architecture
ARM Cortex-A53
Processor model
A53
Processor cores
4
Internal memory
2 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
16 GB
Operating system installed
Android 11
Weight & dimensions
Display width
724.6 mm

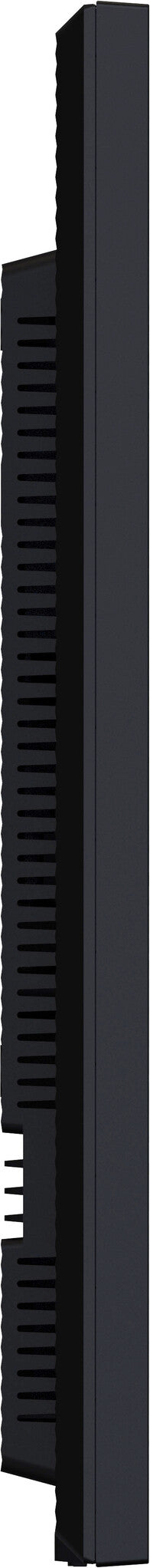

Display depth
40 mm
Display height
419.8 mm
Display weight
5.4 kg
Width
724.6 mm
Depth
40 mm
Height
419.8 mm
Weight
5.4 kg
Packaging data
Package width
795 mm
Package depth
115 mm
Package height
520 mm
Package weight
7.3 kg
Packaging content
Remote control included
Yes
Mounting kit
Yes

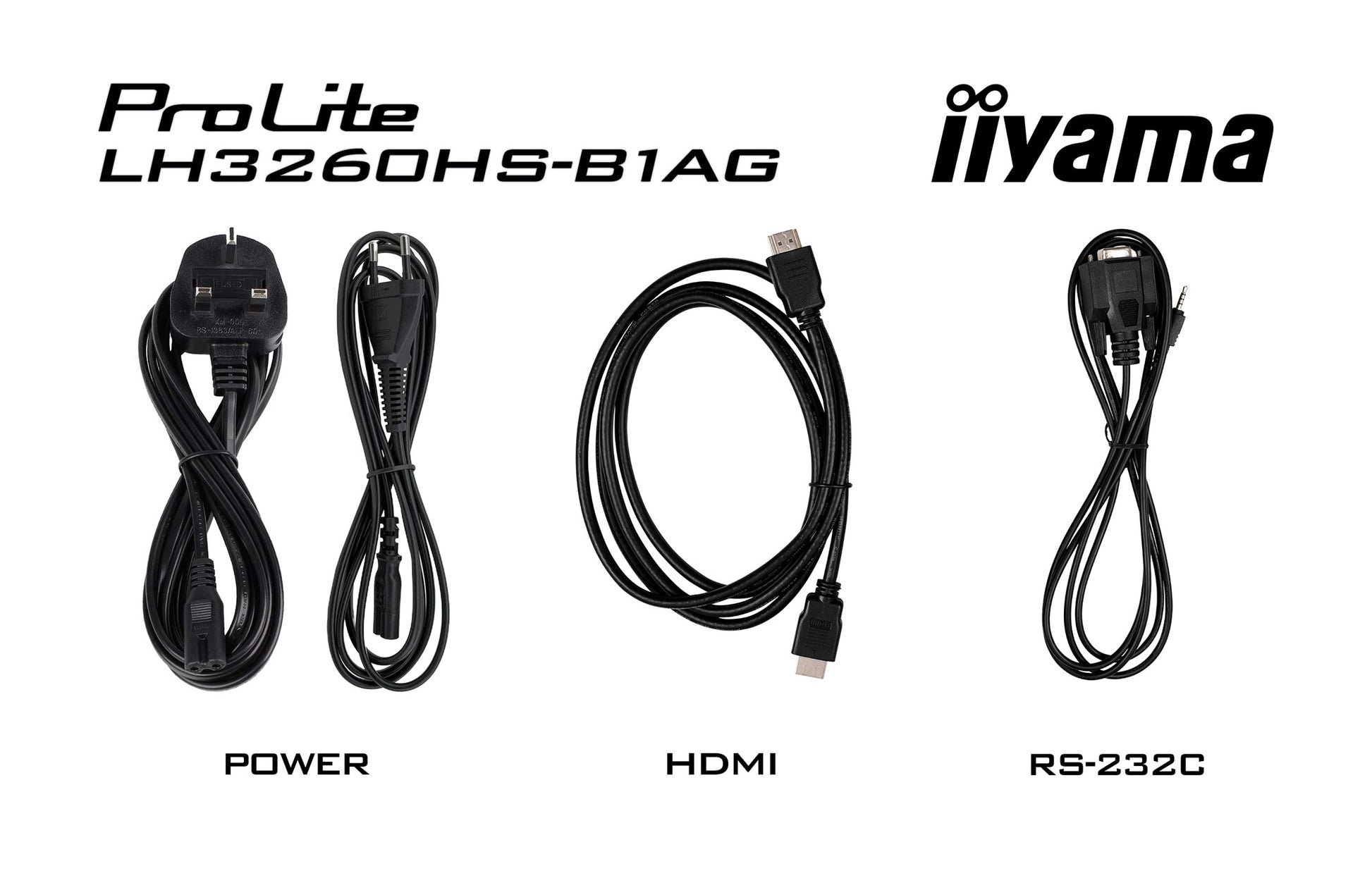

Cables included

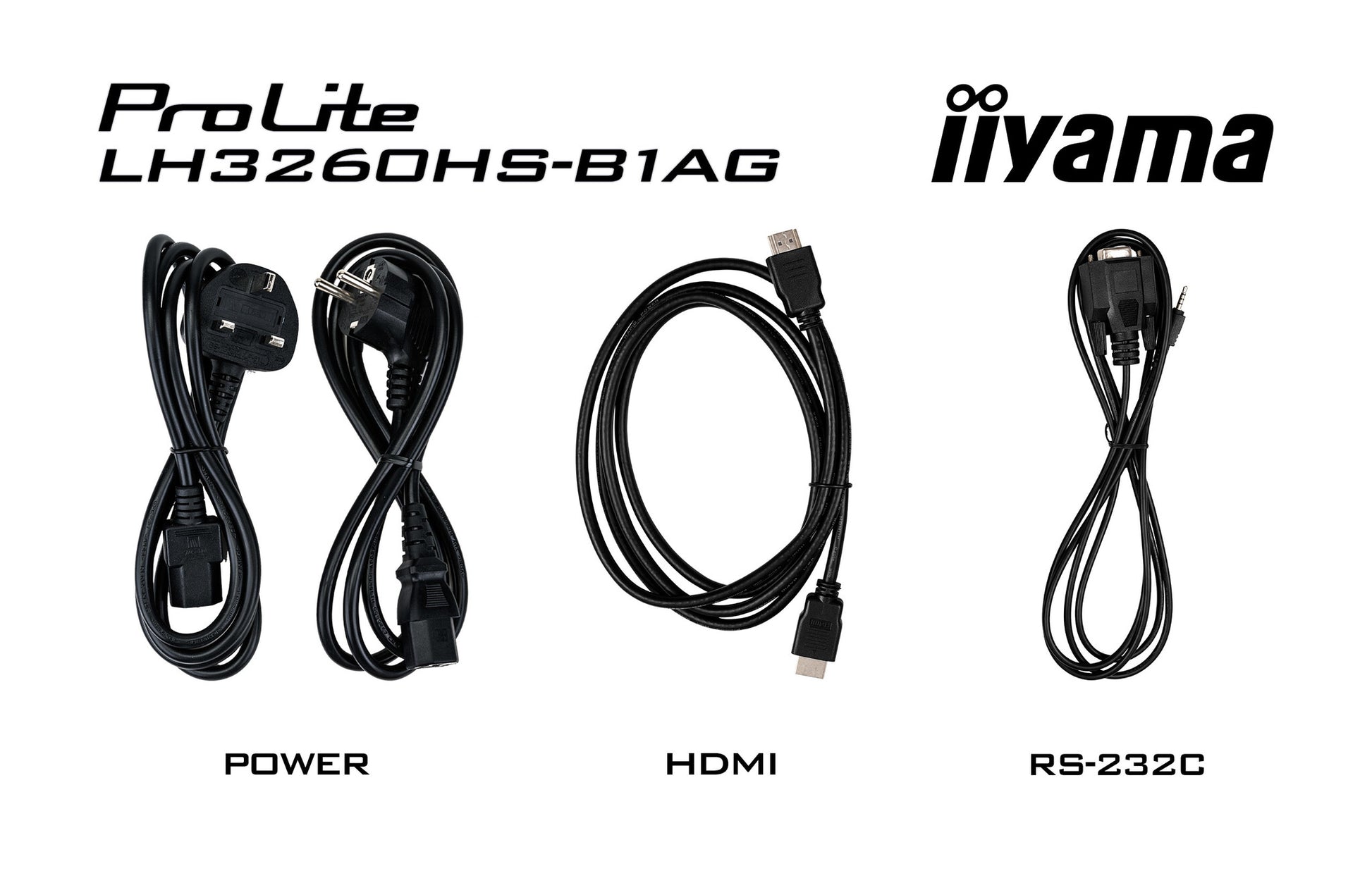

AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
Certification
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Technical details
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Sustainability certificates
ErP
User controls
picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (zoom mode, custom zoom, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio out sync, speaker setting, audio reset), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (IR control, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Playback media
Y
Other features
Power supply type
Internal
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Quick start guide
Yes
