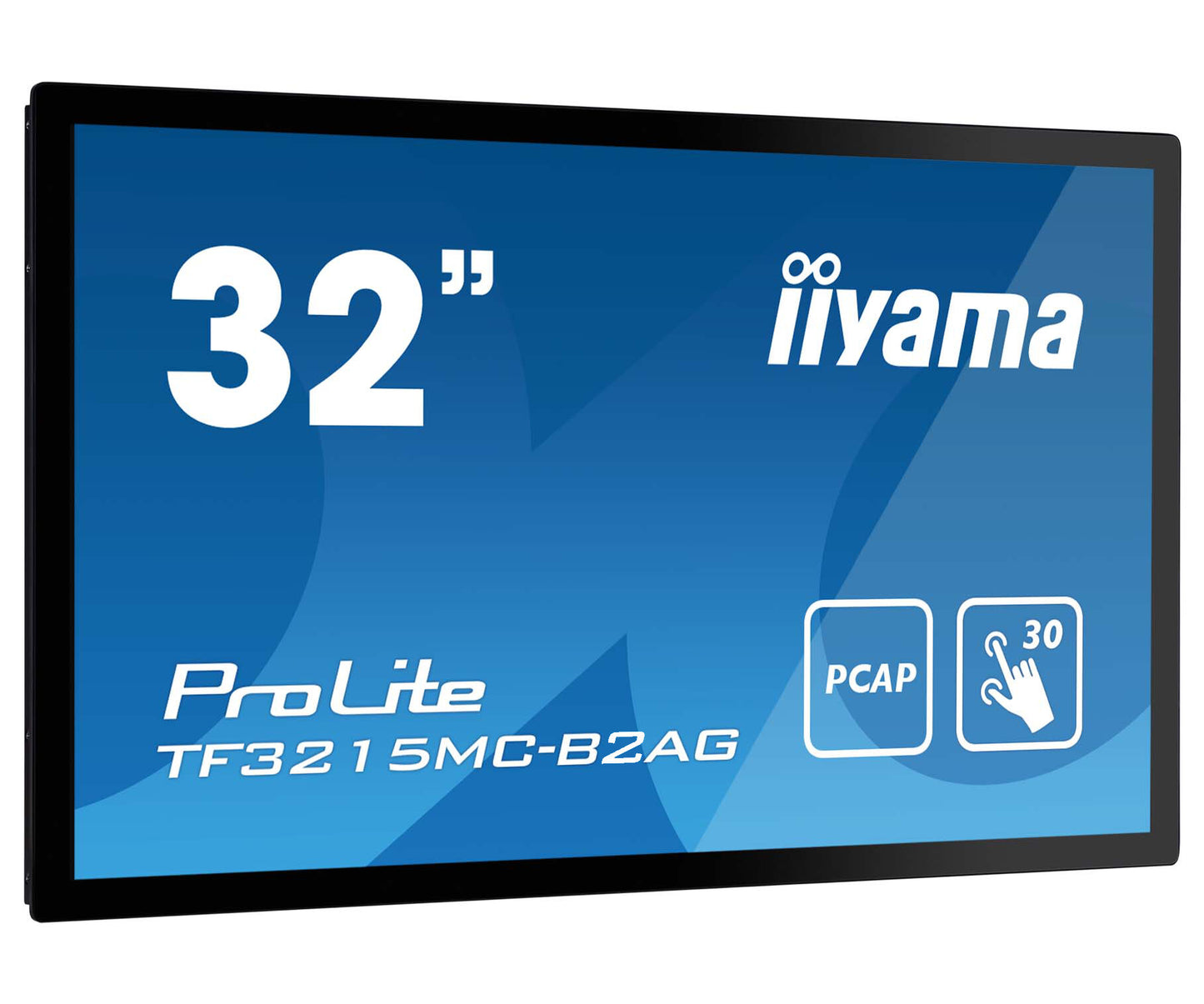

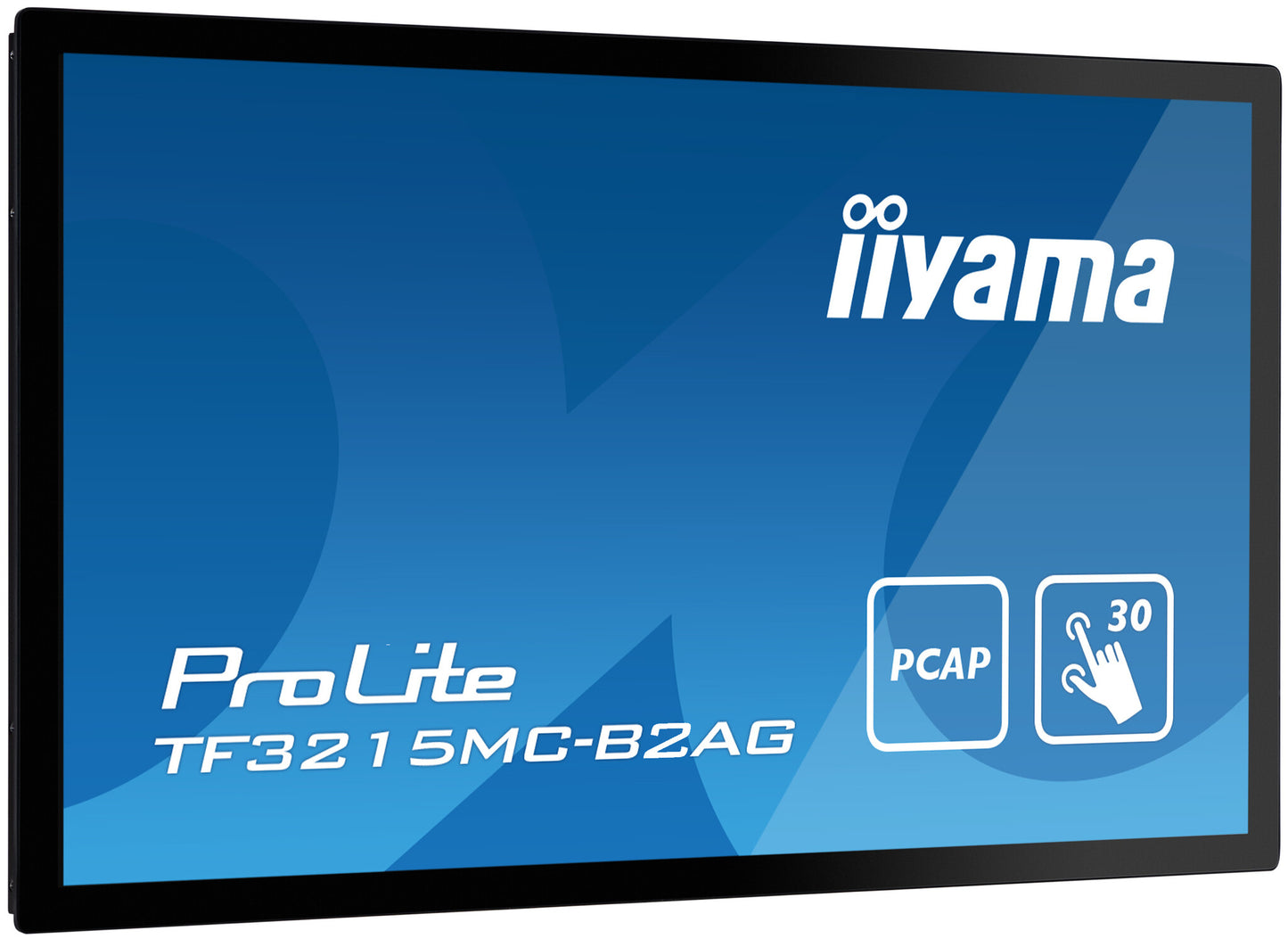

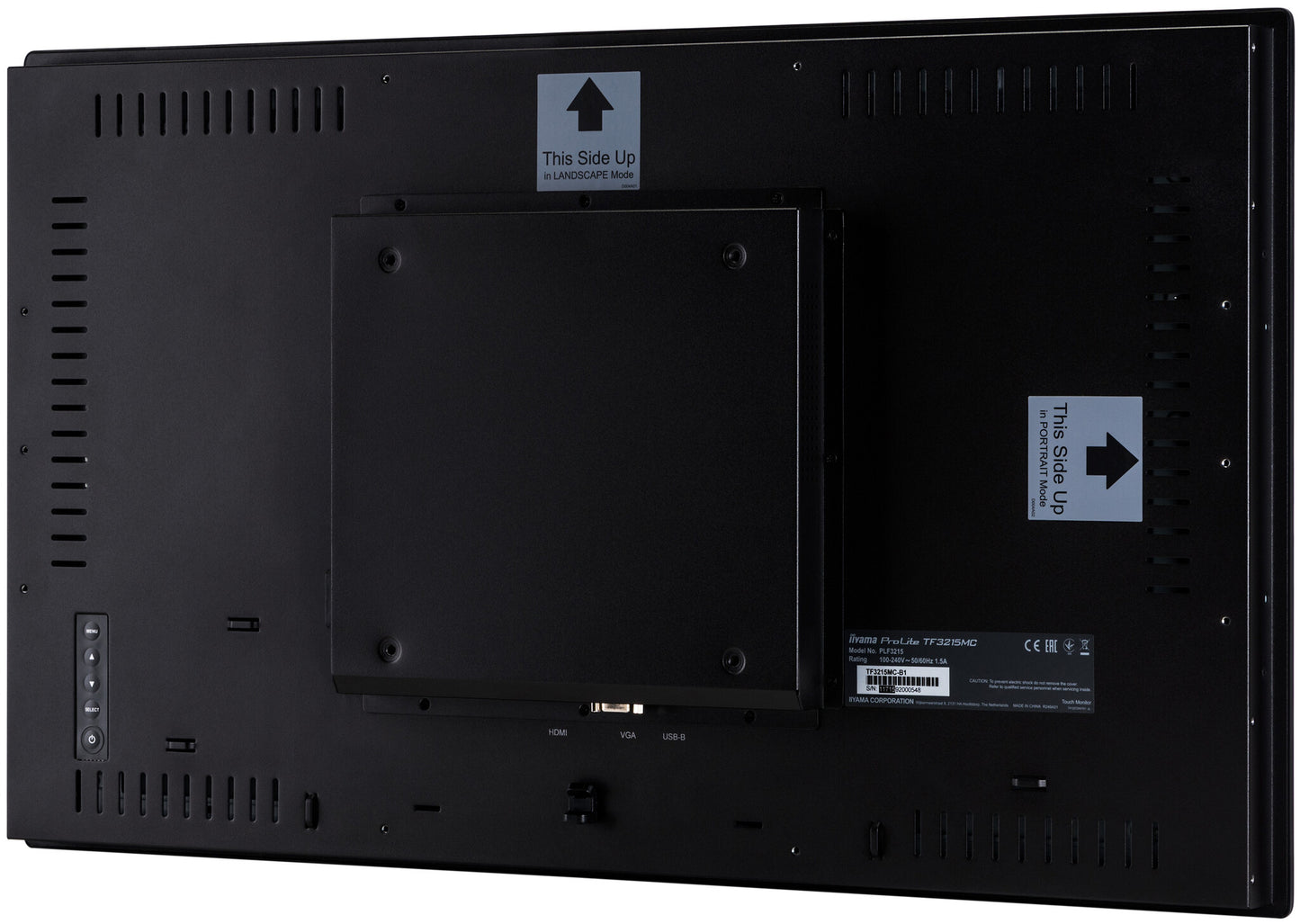

iiyama ProLite TF3215MC-B2AG computer monitor 80 cm (31.5") 1920 x 1080 pixels Full HD LED Touchscreen Kiosk Black

iiyama ProLite TF3215MC-B2AG computer monitor 80 cm (31.5") 1920 x 1080 pixels Full HD LED Touchscreen Kiosk Black

Open Frame PCAP 30-point Touch monitor with AG coating equipped with a foam seal finish for seamless integration

  • 80 cm (31.5") Black
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Response time: 8 ms Response time measurement type: GTG (Gray to Gray)
  • 1920 x 1080 pixels Full HD Panel type: VA
  • Energy efficiency class (SDR): F REACH
  • SKU:4948570123674
  • GTIN/EAN:4948570123674
  • MPN:TF3215MC-B2AG

You need to login to view the price.

View full details

iiyama ProLite TF3215MC-B2AG. Display diagonal: 80 cm (31.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

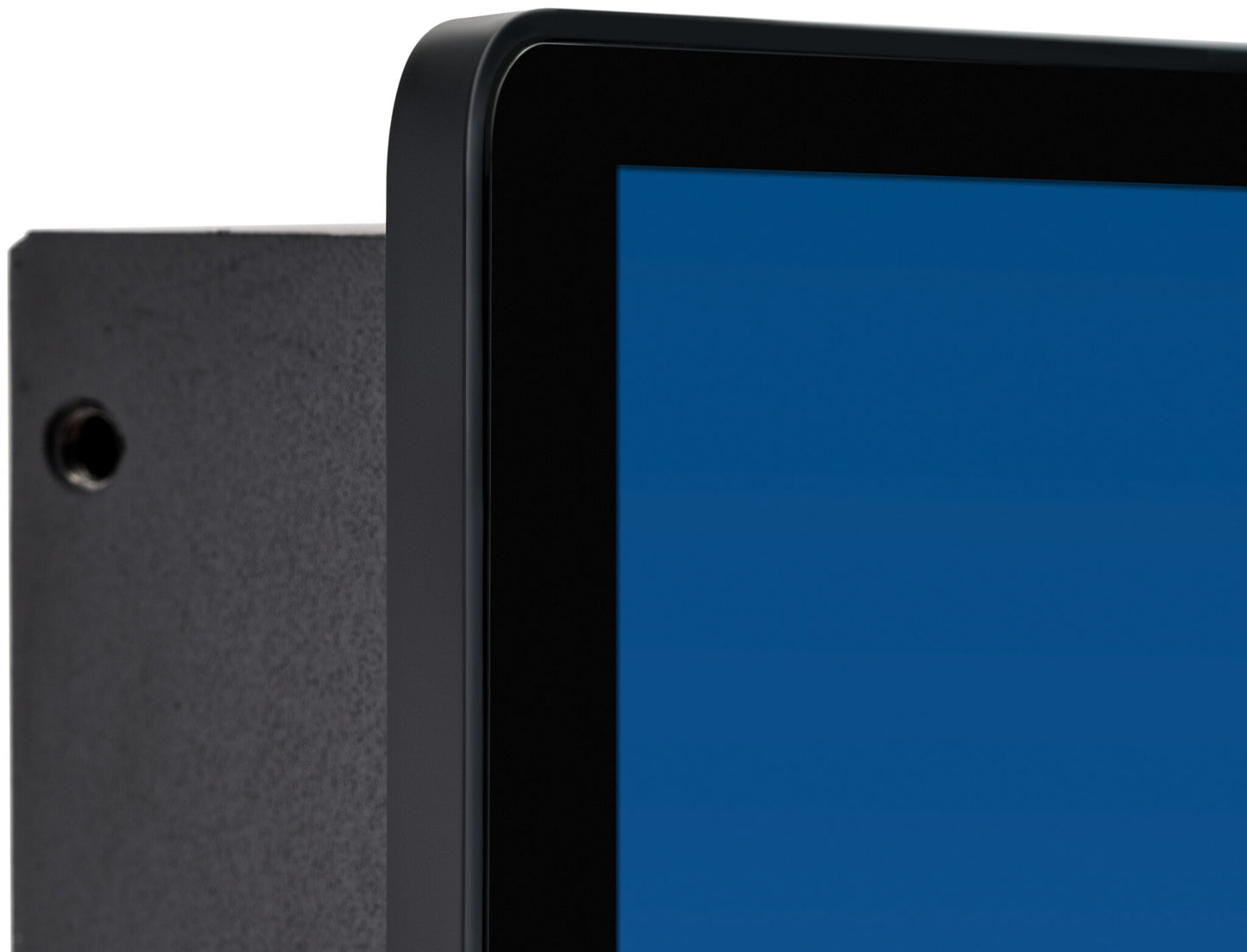

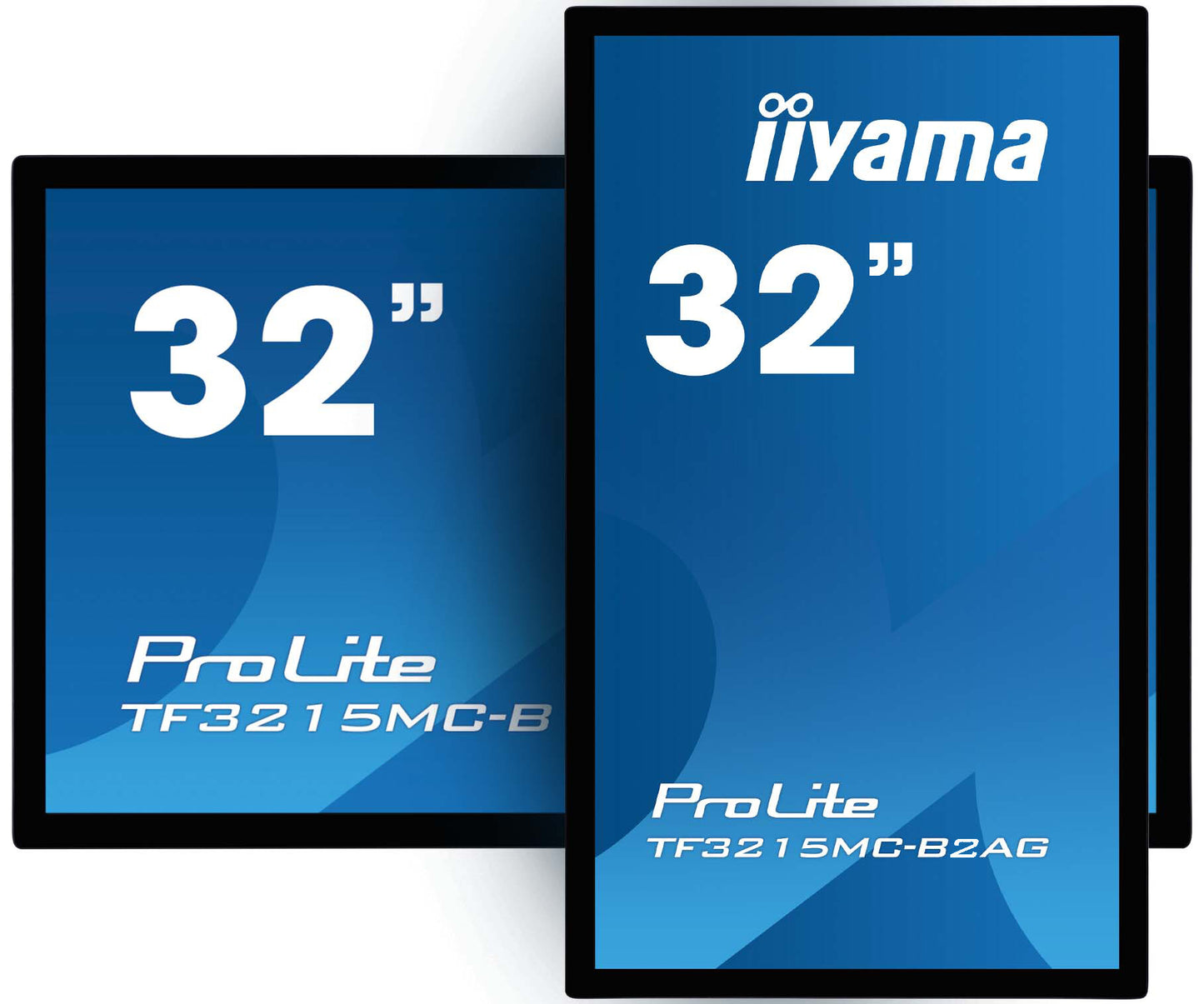

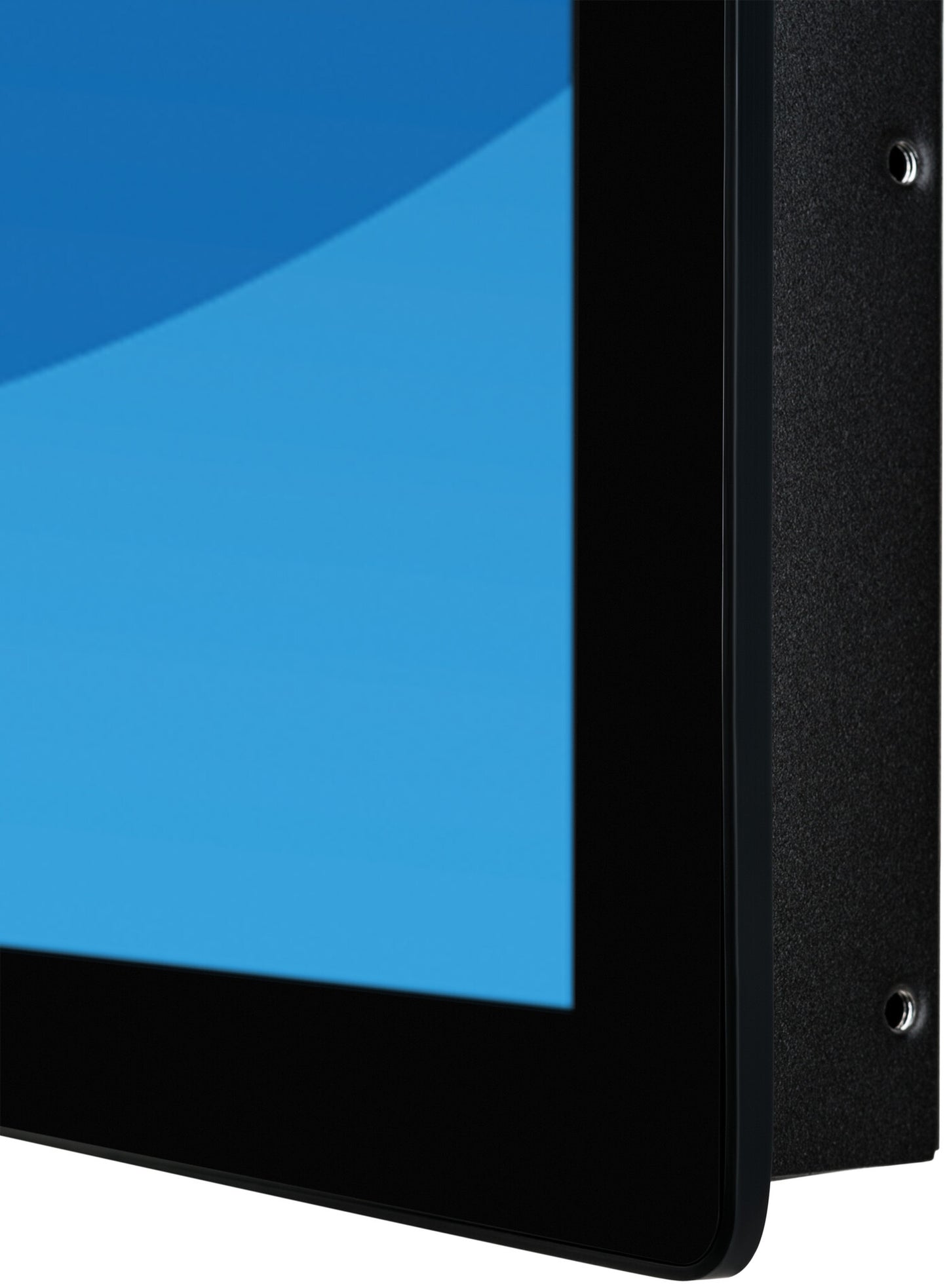

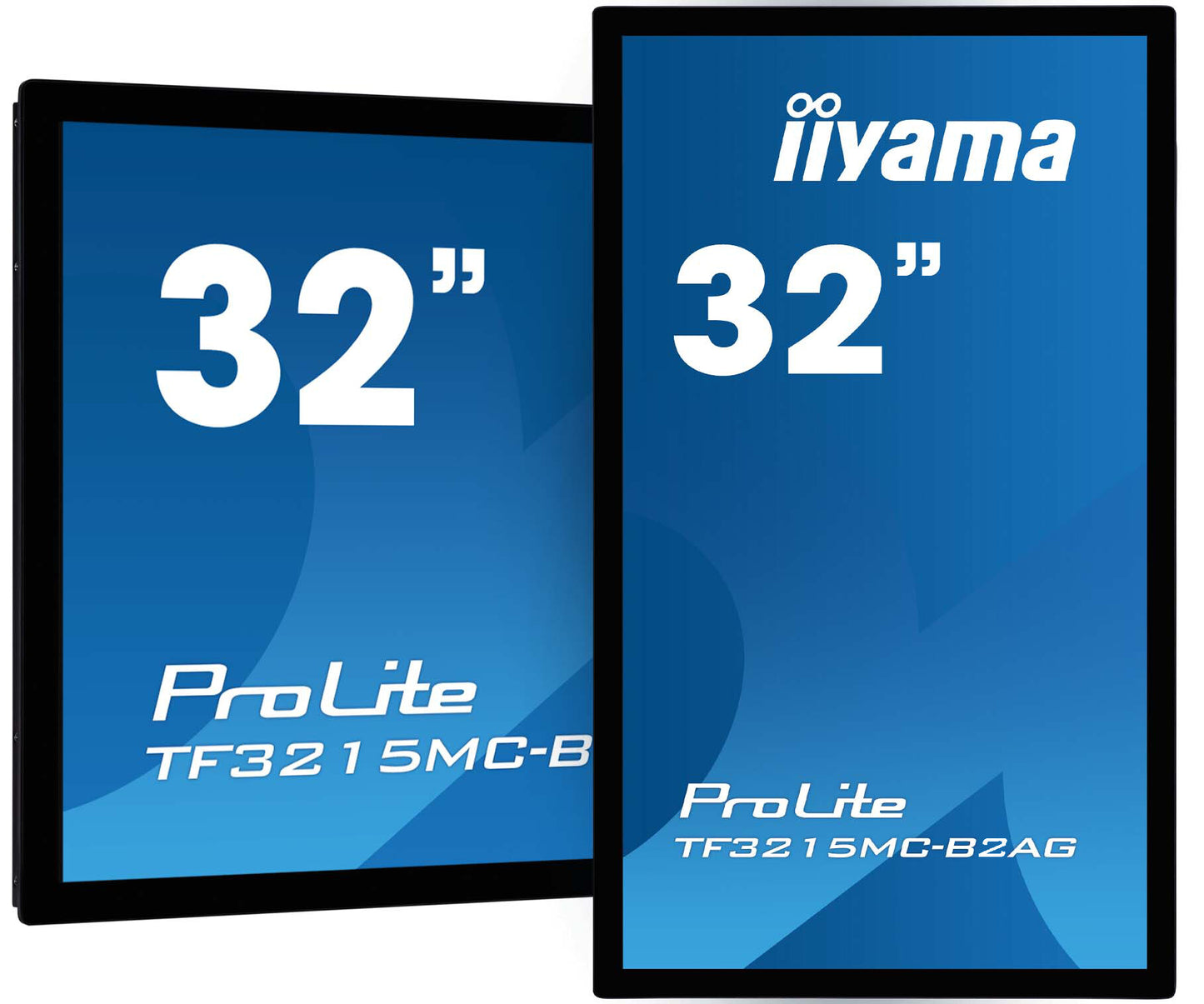

The ProLite TF3215MC-B2AG uses PCAP Touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B2AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

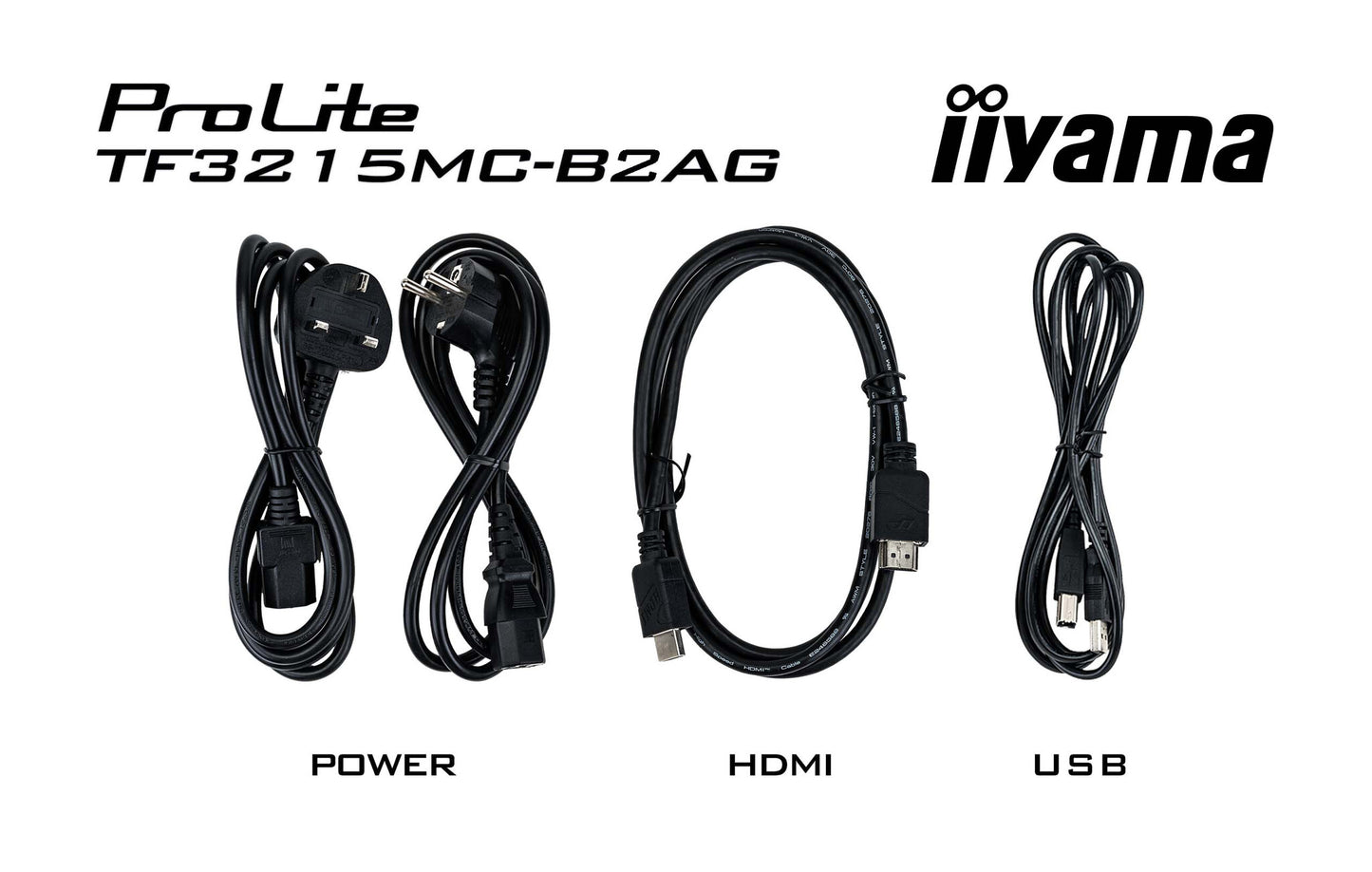

Accessories included:
Cables:  Power, USB, HDMI
Guides:  Quick start guide, safety guide

Display
Display diagonal
80 cm (31.5")
Display resolution
1920 x 1080 pixels
Panel type
VA
Touchscreen technology
Projected capacitive system
Display brightness (typical)
500 cd/m²
Response time
8 ms
Response time measurement type
GTG (Gray to Gray)
Colour depth
8 bit
Positional accuracy
2 mm
Display brightness
425 cd/m²
Anti-glare screen
Yes
Screen shape
Flat
Contrast ratio (typical)
3000:1
Display number of colours
16.7 million colours
Horizontal scan range
30 - 68 kHz
Viewable size, horizontal
69.8 cm
Viewable size, vertical
39.3 cm
Digital horizontal frequency
30 - 68 kHz
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Operating hours (hours/days)
24/7
Design
Market positioning
Business
Product colour
Black
Front bezel colour
Black
Housing material
Metal
Glass thickness
6 mm
International Protection (IP) code
IP65
Ports & interfaces
Built-in USB hub
No
Ergonomics
VESA mounting
Yes
Panel mounting interface
200 x 200 mm

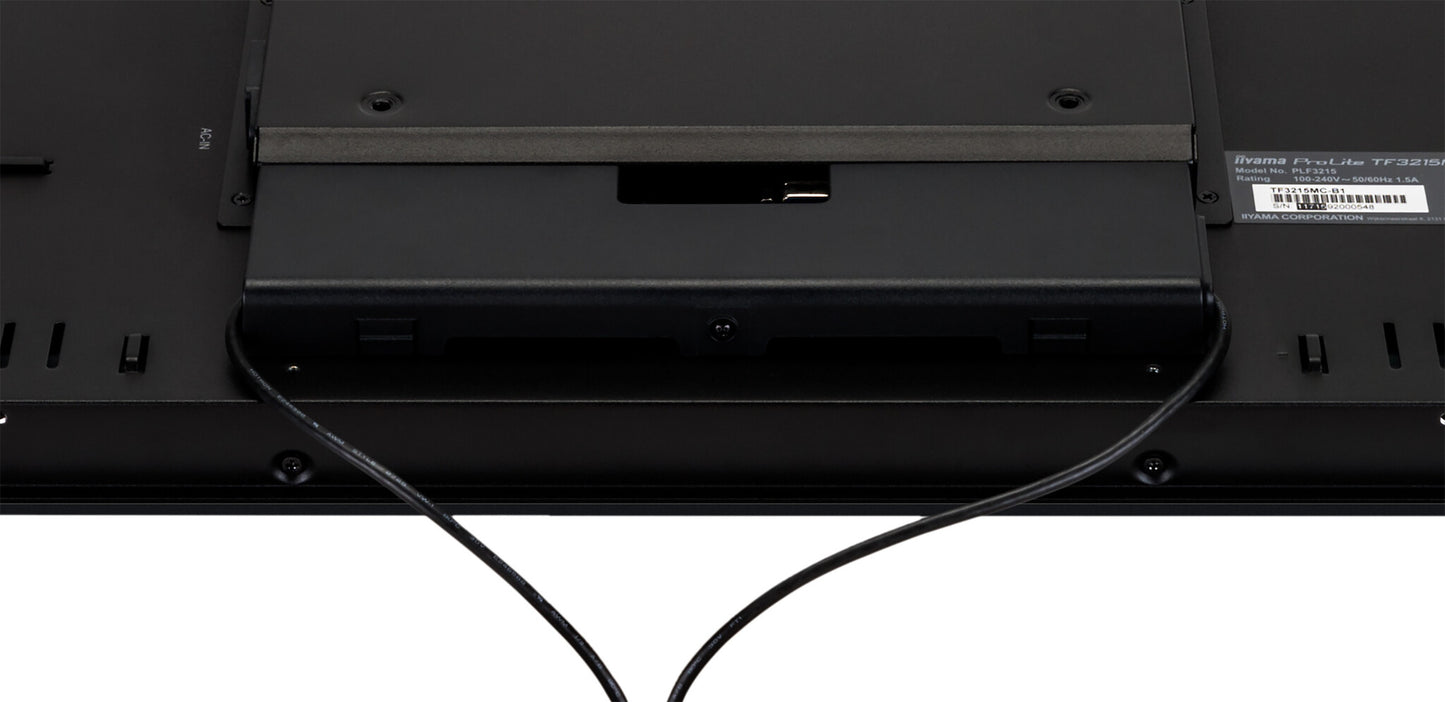

Cable management
Yes
On Screen Display (OSD)
Yes
Number of OSD languages
7
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Plug and Play
Yes
Power
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
27.4 kWh
Power consumption (typical)
32 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
743 mm
Depth (with stand)
61 mm
Height (with stand)
437 mm
Weight (with stand)
10 kg
Width (without stand)
745.5 mm
Depth (without stand)
61 mm
Height (without stand)
437 mm
Weight (without stand)
10 kg
Packaging data
Cables included
AC, USB, HDMI
Quick start guide
Yes
Package width
890 mm
Package depth
155 mm
Package height
630 mm
Package weight
12.8 kg
Logistics data
Products per pallet
21 pc(s)
Pallet net width
100 cm
Pallet net length
120 cm
Pallet net height
2.04 m
Technical details
Compliance certificates
REACH
Other features
IK code
IK07
Brightness
425 cd/m²
Depth
61 mm
Width
743 mm
Height
437 mm
Weight
10 kg
Active display area (W x H)
698.4 x 392.8 mm
Mean time between failures (MTBF)
50000 h
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Touch method
finger, glove (latex), capacitive stylus
User controls
contrast, brightness, auto adjust, H.position, V.position, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, sharpness, touch switch (normal, glove, through-glass)
Touchscreen
Touchscreen
Yes
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Touch technology
Multi-touch
Touchscreen type
Kiosk
Number of simultaneous touchpoints
30
USB Touch port
Yes

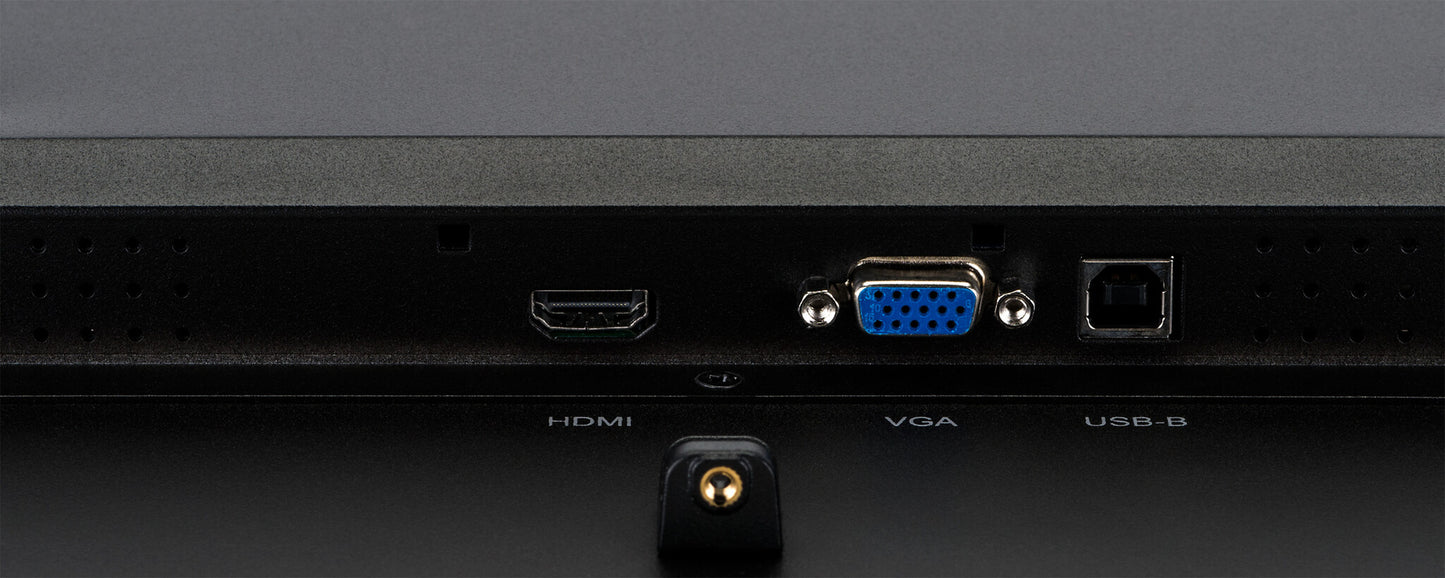

VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.3637 x 0.3637 mm
Display diagonal (metric)
80 cm
HDCP
Yes
Surface hardness
6H
