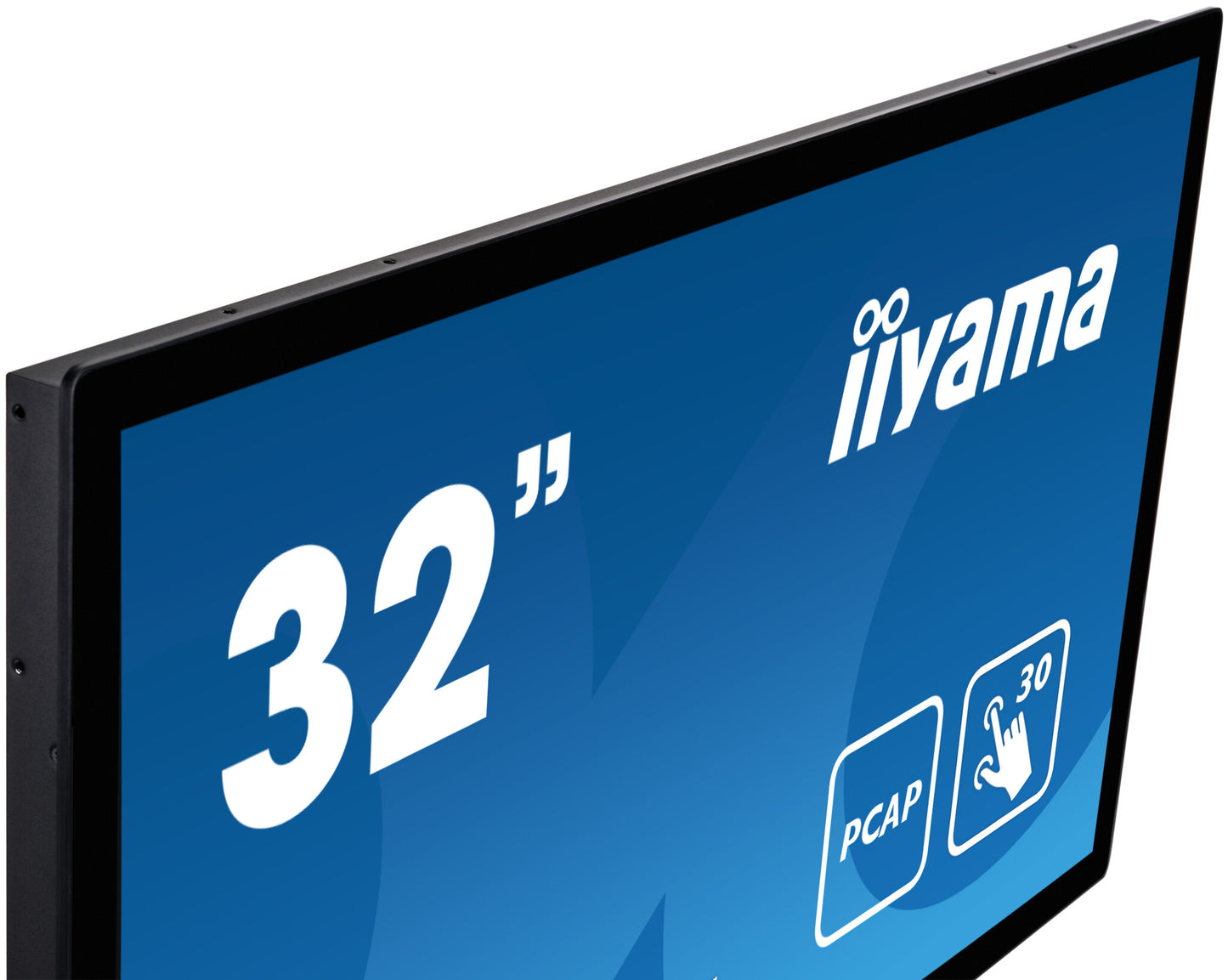

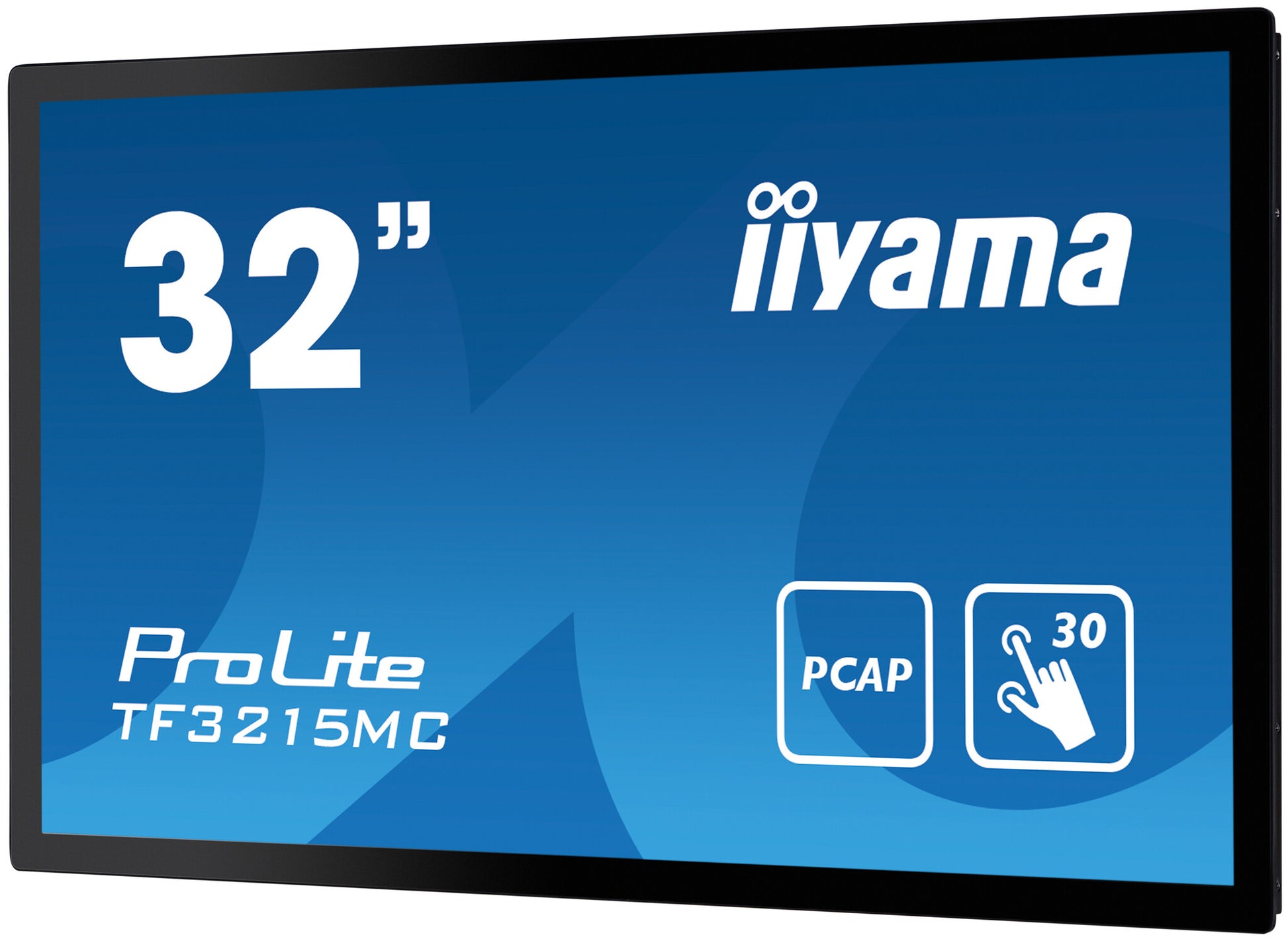

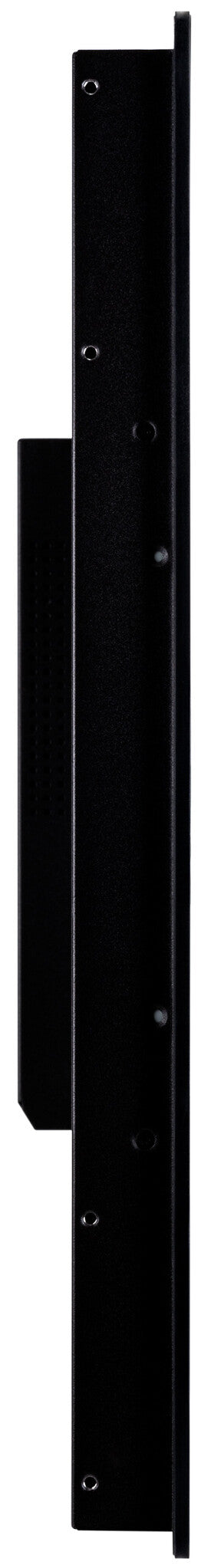

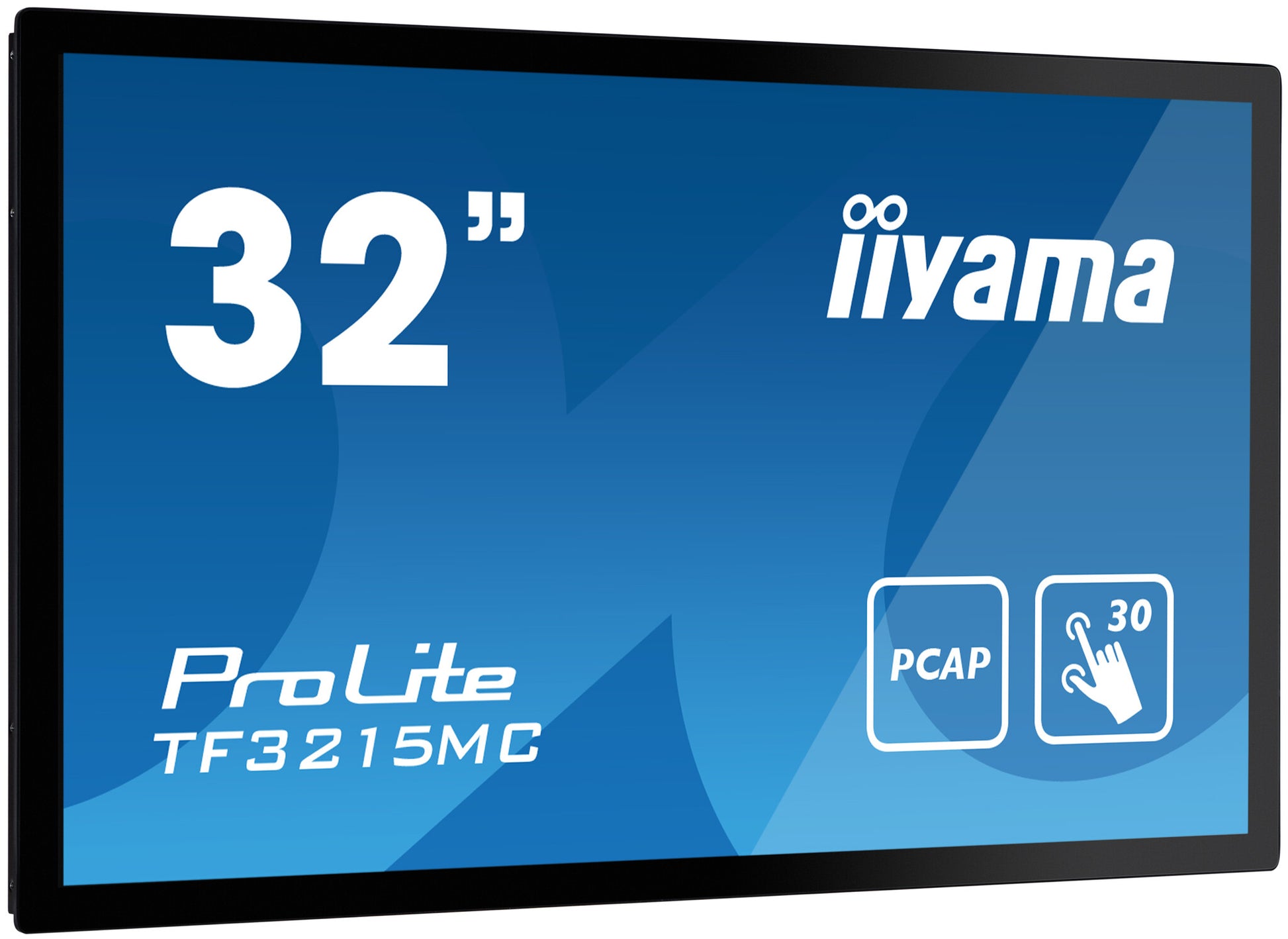

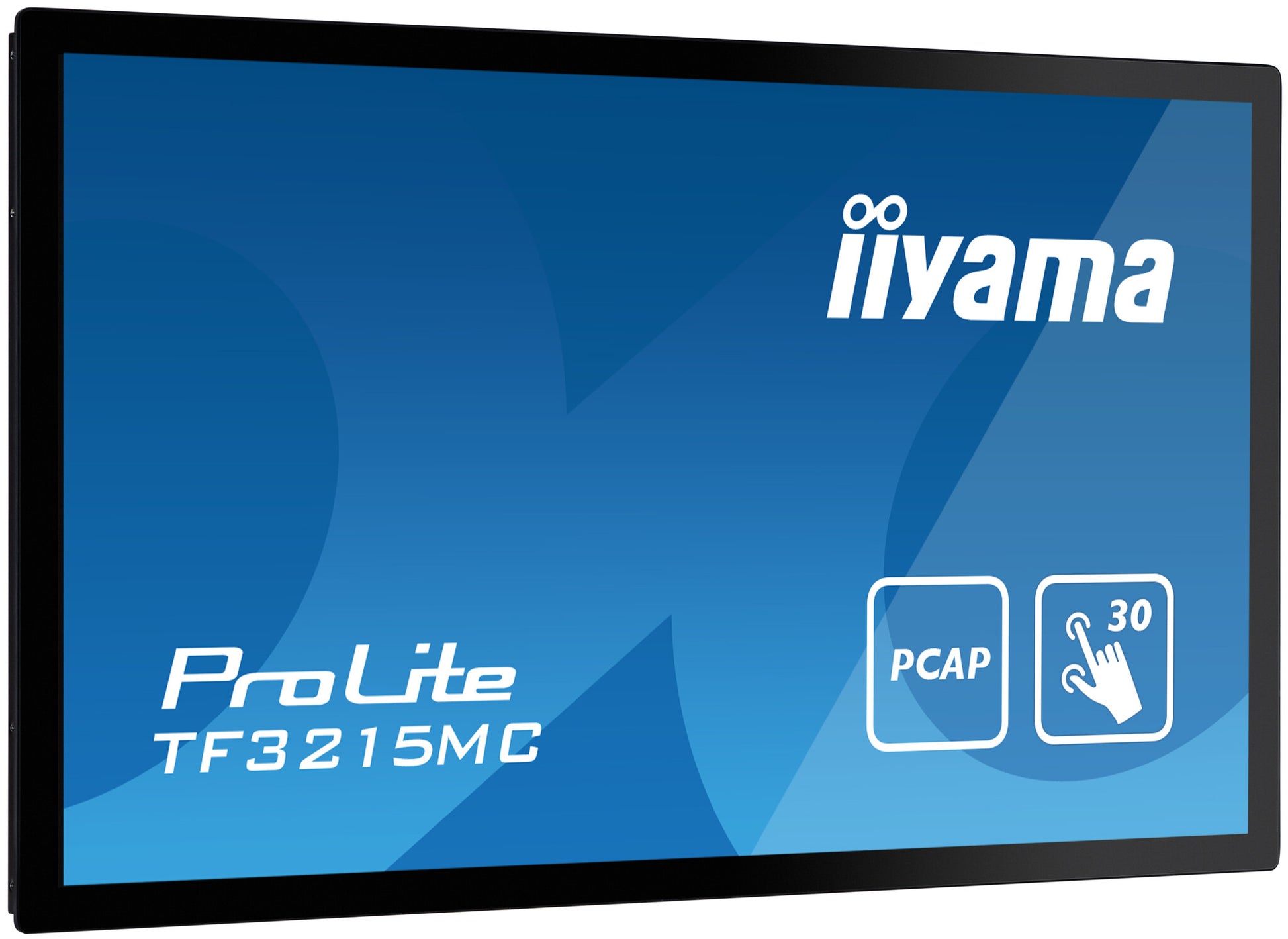

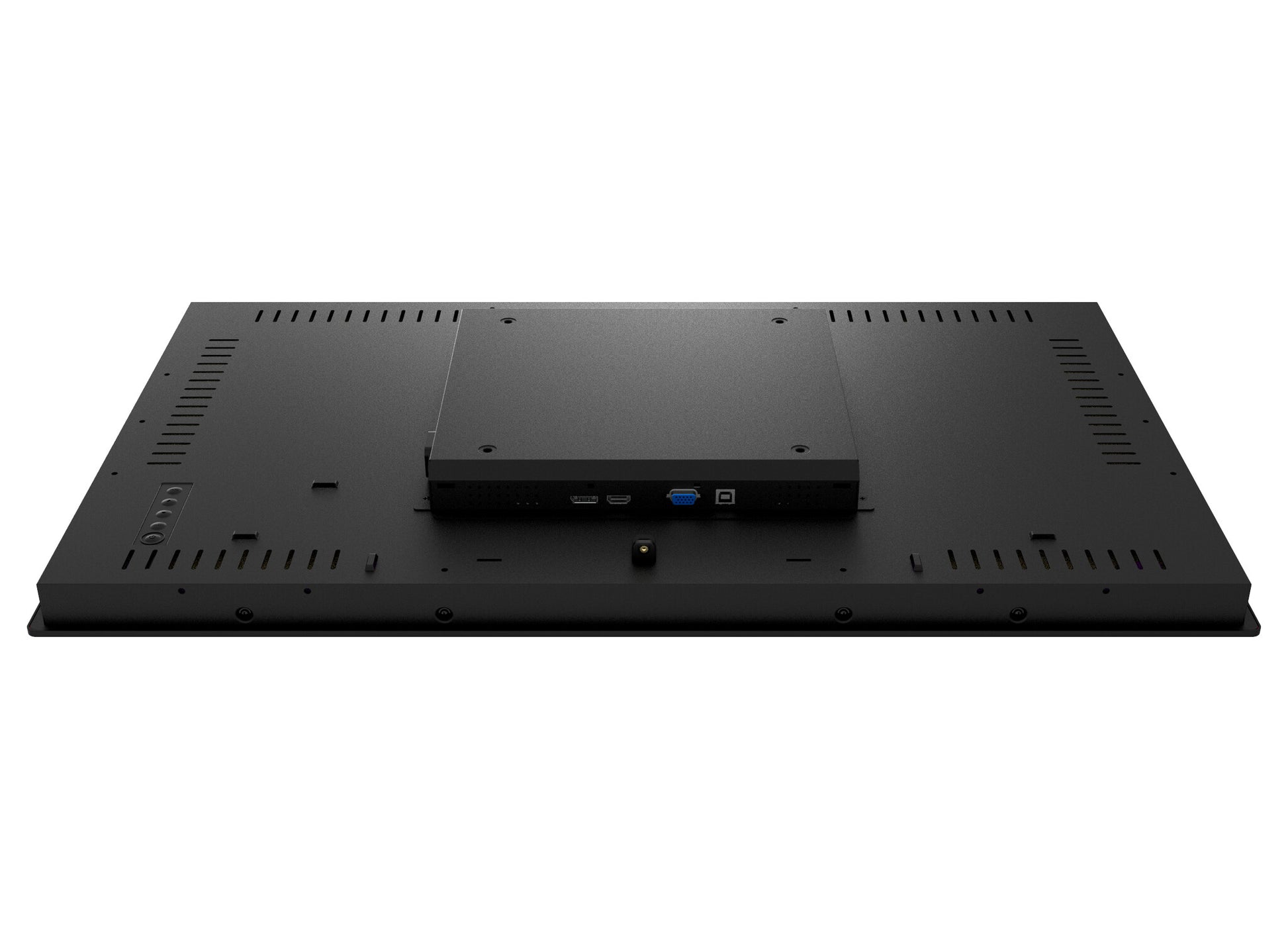

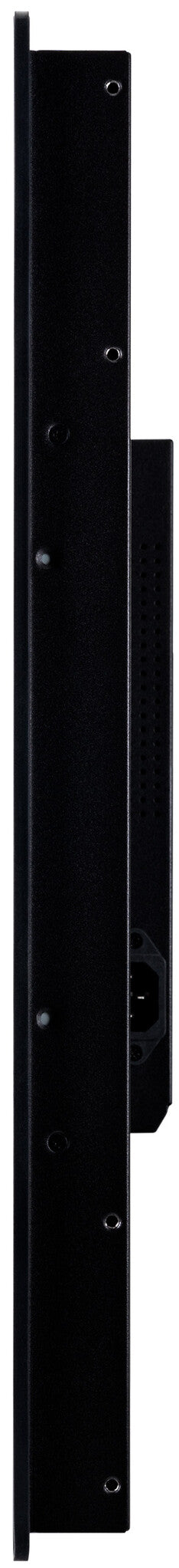

iiyama ProLite TF3215MC-B2 computer monitor 80 cm (31.5") 1920 x 1080 pixels Full HD LED Touchscreen Kiosk Black

iiyama ProLite TF3215MC-B2 computer monitor 80 cm (31.5") 1920 x 1080 pixels Full HD LED Touchscreen Kiosk Black

Open Frame PCAP 30-point touch monitor with equipped with a foam seal finish for seamless integration

  • 80 cm (31.5") Black
  • HDMI DisplayPorts quantity: 1
  • Screen shape: Flat
  • Response time: 8 ms Response time measurement type: GTG (Gray to Gray)
  • 1920 x 1080 pixels Full HD Panel type: VA
  • Energy efficiency class (SDR): F ErP CE, EAC, REACH, RoHS, UKCA, WEEE
  • SKU:4948570123667
  • GTIN/EAN:4948570123667
  • MPN:TF3215MC-B2

You need to login to view the price.

View full details

iiyama ProLite TF3215MC-B2. Display diagonal: 80 cm (31.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

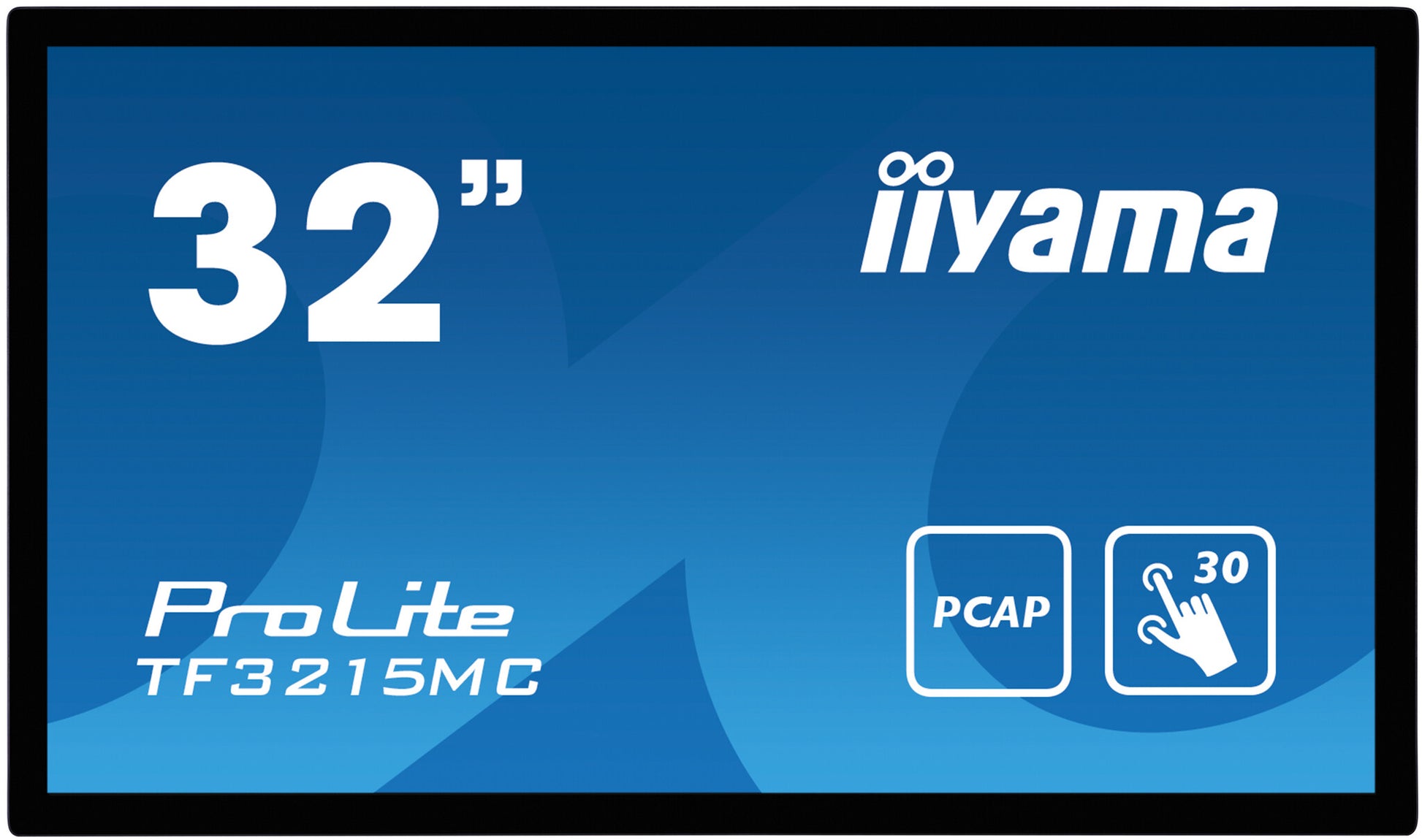

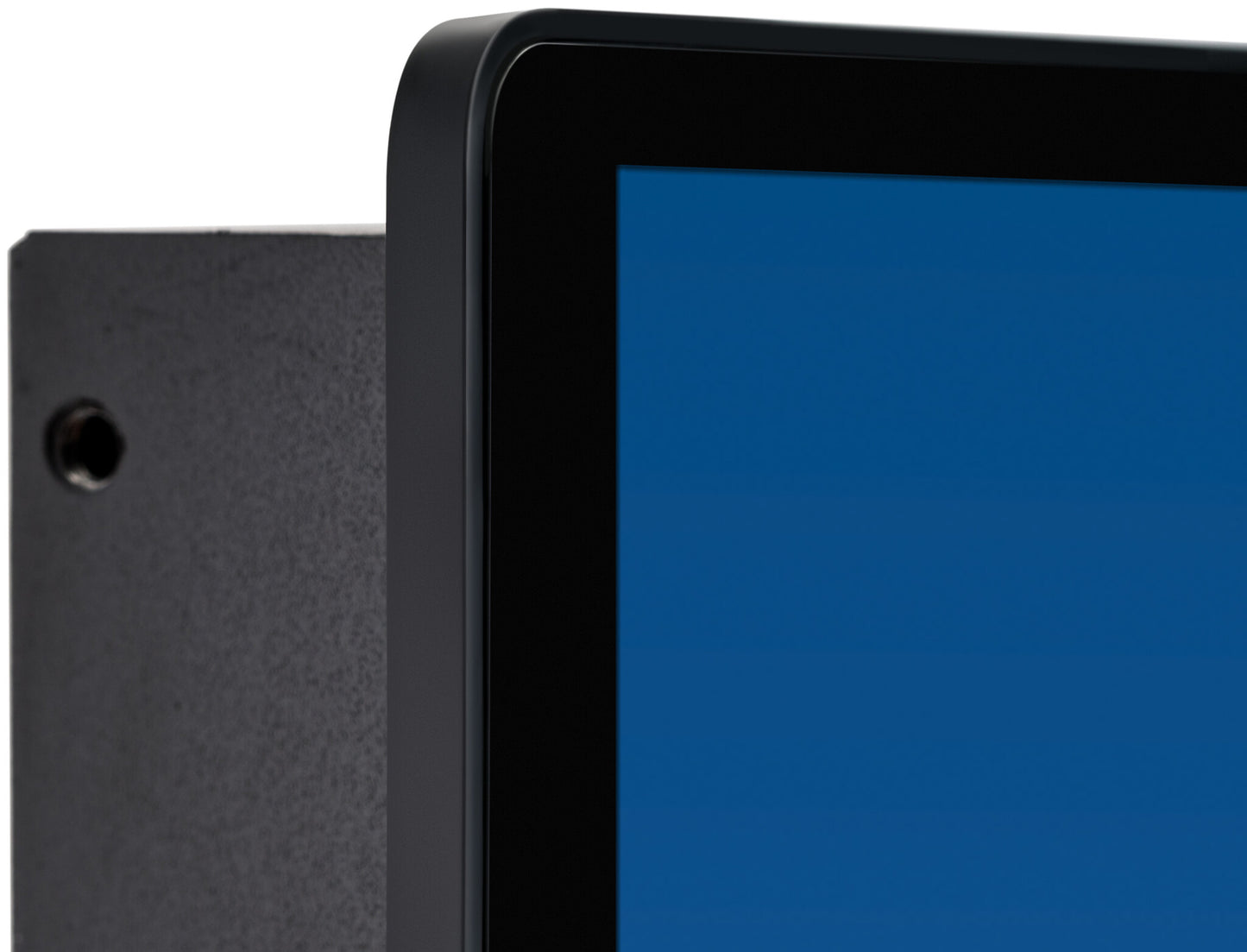

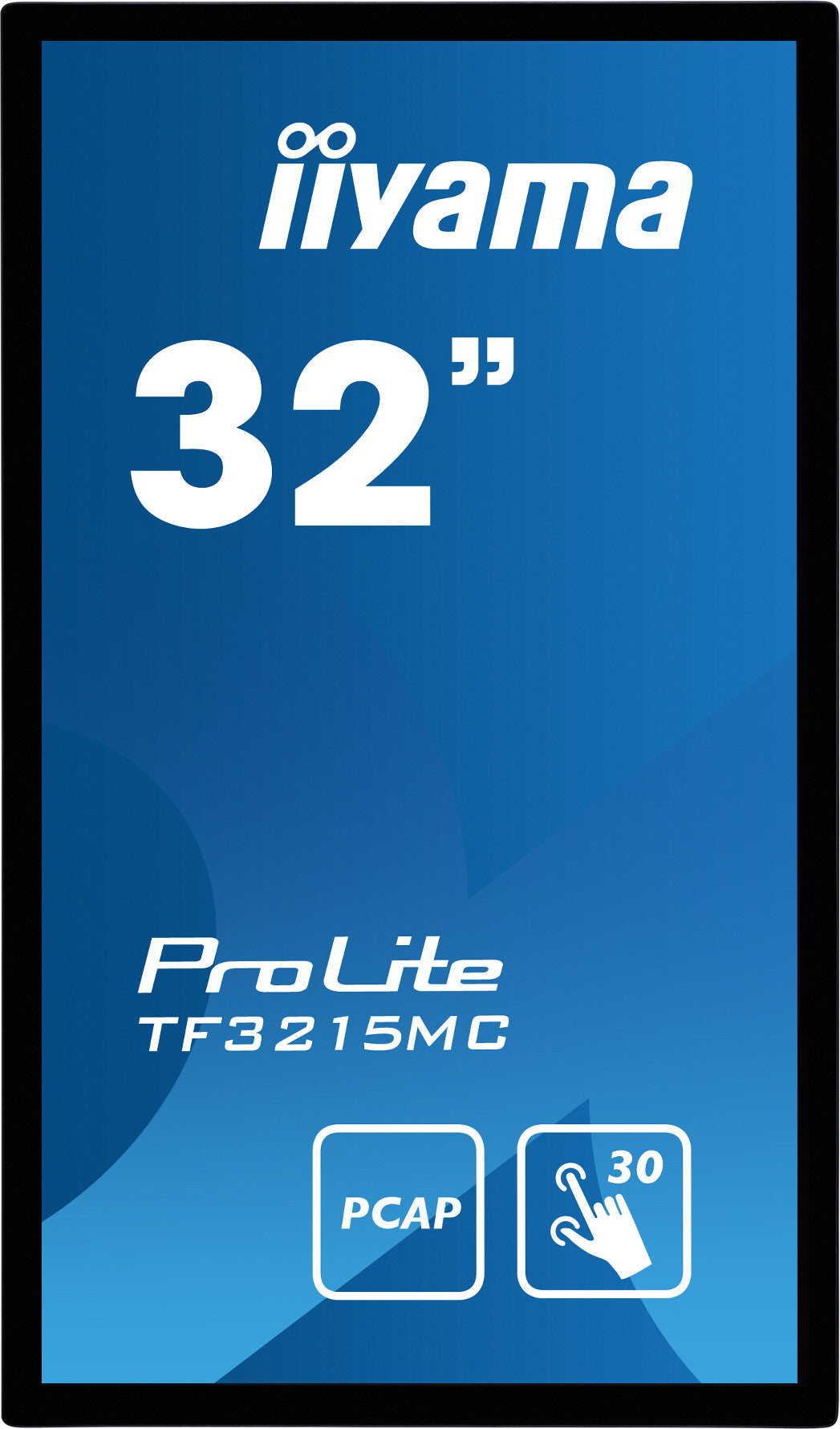

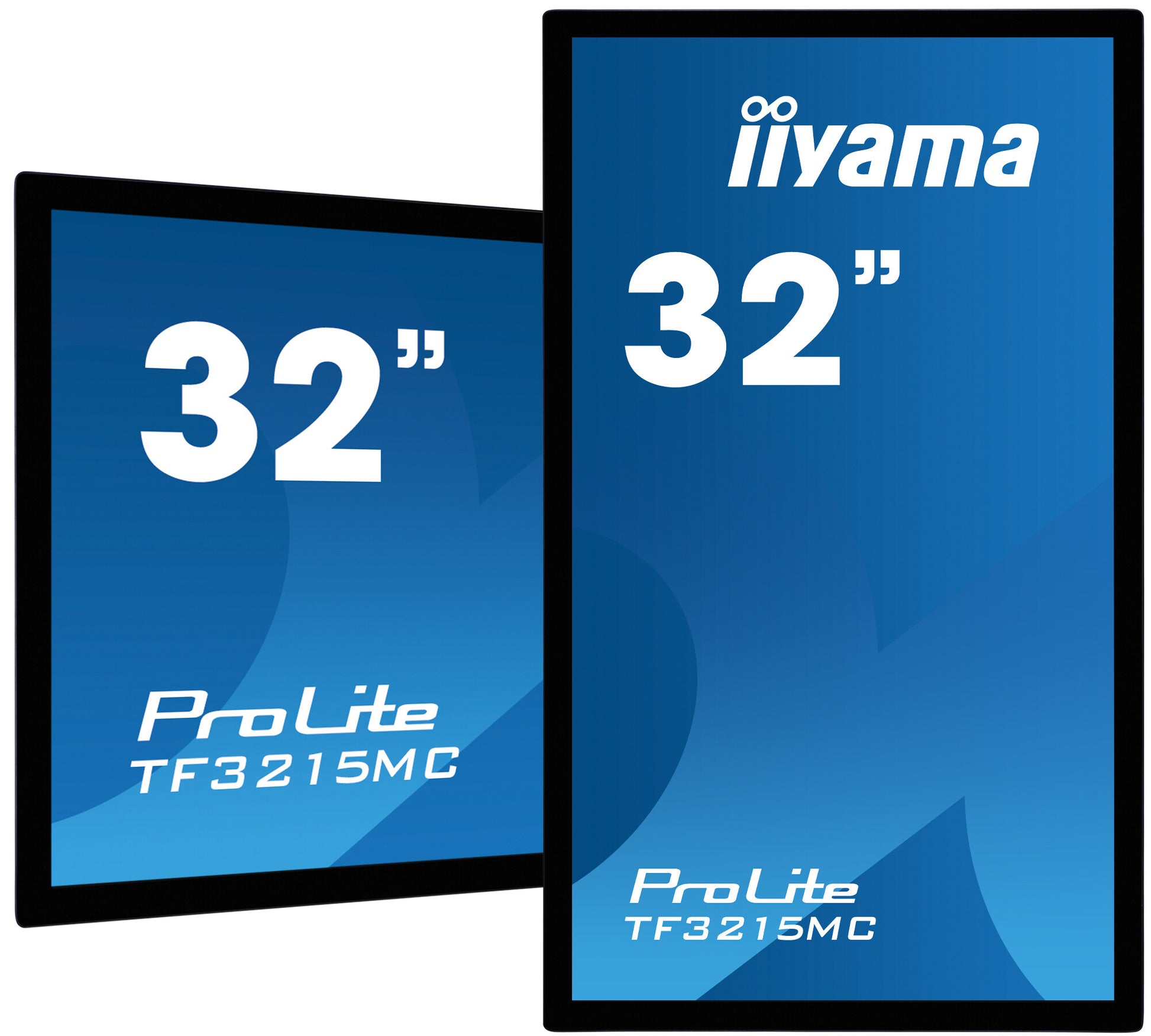

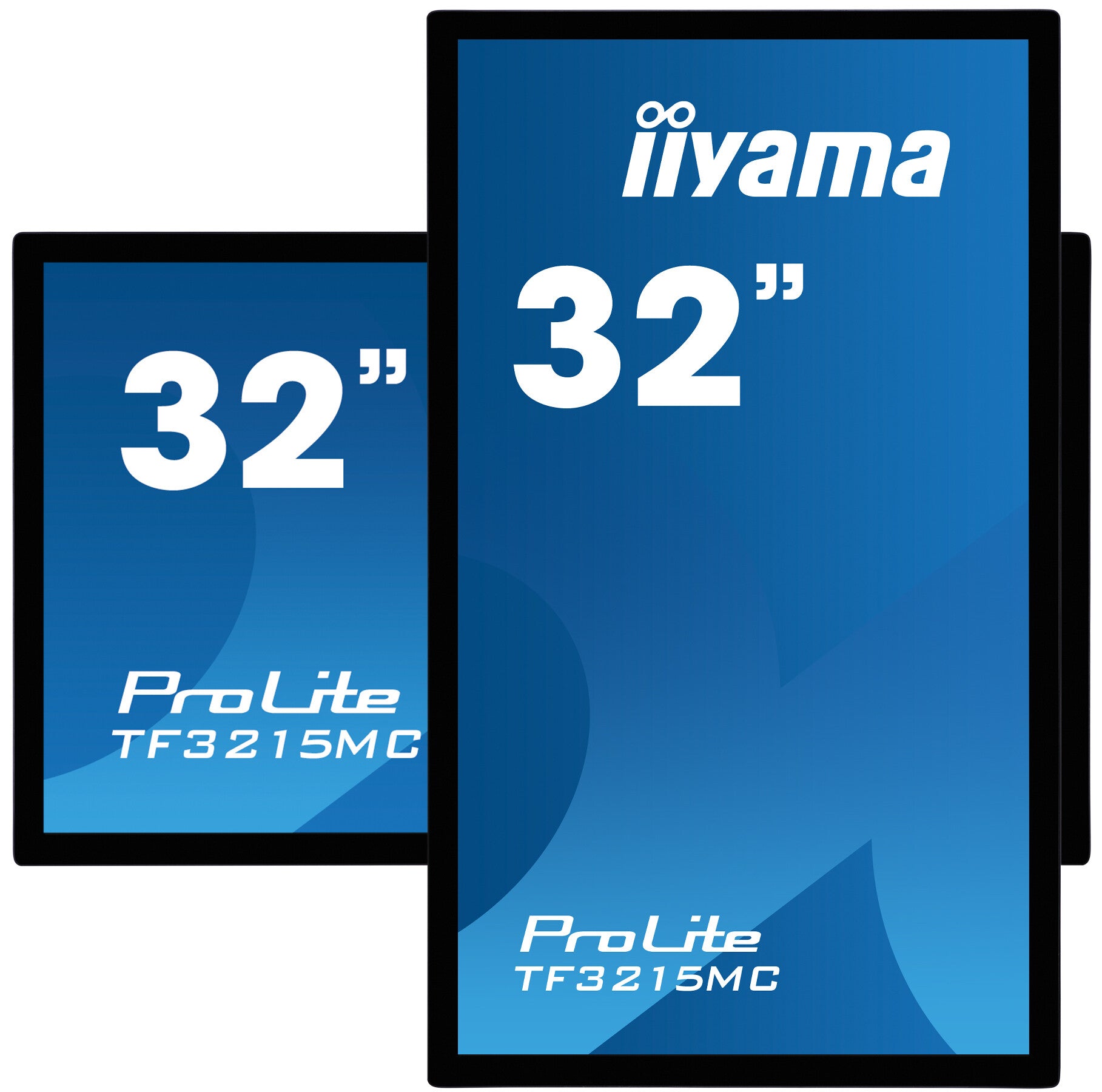

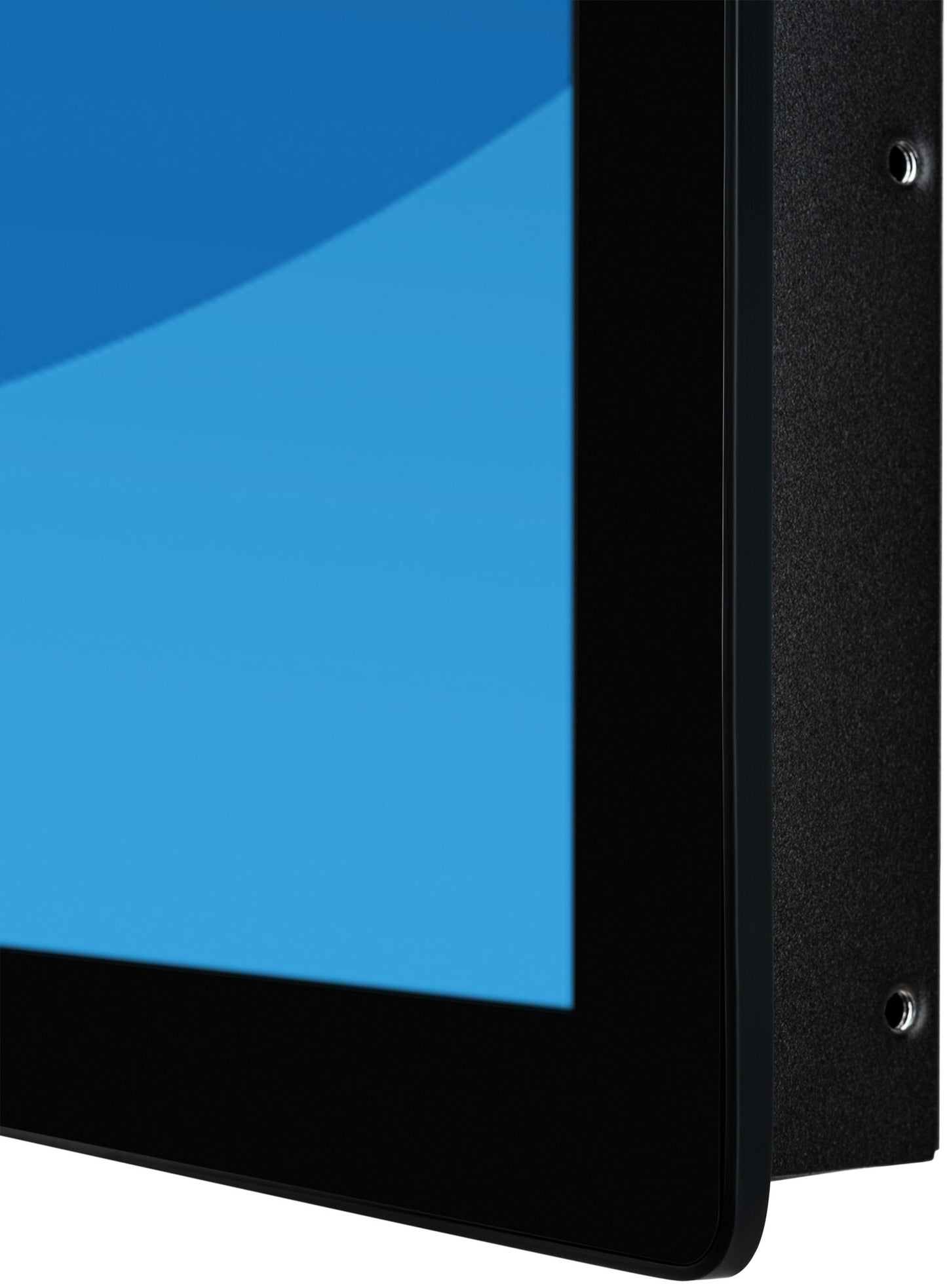

The ProLite TF3215MC-B2 with 30-point PCAP touch technology is a open frame monitor with an eye-catching edge-to-edge glass design. Thanks to this completely frame-less glass surface, it guarantees high durability and scratch resistance, making it perfect for kiosk systems and high-traffic public applications. The VA panel technology offers higher contrast and darker blacks. Equipped with a foam seal, the monitor supports seamless integration and the IP65 rating ensures dust and water resistance from the front. Portrait and landscape orientation ensures flexible mounting options for 24/7 operation in almost any installation. The TF3215MC-B2 is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media applications.

Display
Display diagonal
80 cm (31.5")
Display resolution
1920 x 1080 pixels
Panel type
VA
Touchscreen technology
Projected capacitive system
Display brightness (peak)
500 cd/m²
Display brightness (typical)
500 cd/m²
Response time
8 ms
Response time measurement type
GTG (Gray to Gray)
Colour depth
8 bit
Positional accuracy
2 mm
Display brightness
460 cd/m²
Screen shape
Flat
Contrast ratio (typical)
3000:1
Display number of colours
16.7 million colours
Horizontal scan range
30 - 68 kHz
Vertical scan range
47 - 63 Hz
Viewable size, horizontal
69.8 cm
Viewable size, vertical
39.3 cm
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Operating hours (hours/days)
24/7
Multimedia
Built-in speaker(s)
No
Design
Market positioning
Office
Product colour
Black
Front bezel colour
Black
Housing material
Metal
Glass thickness
3 mm
International Protection (IP) code
IP65
Ergonomics

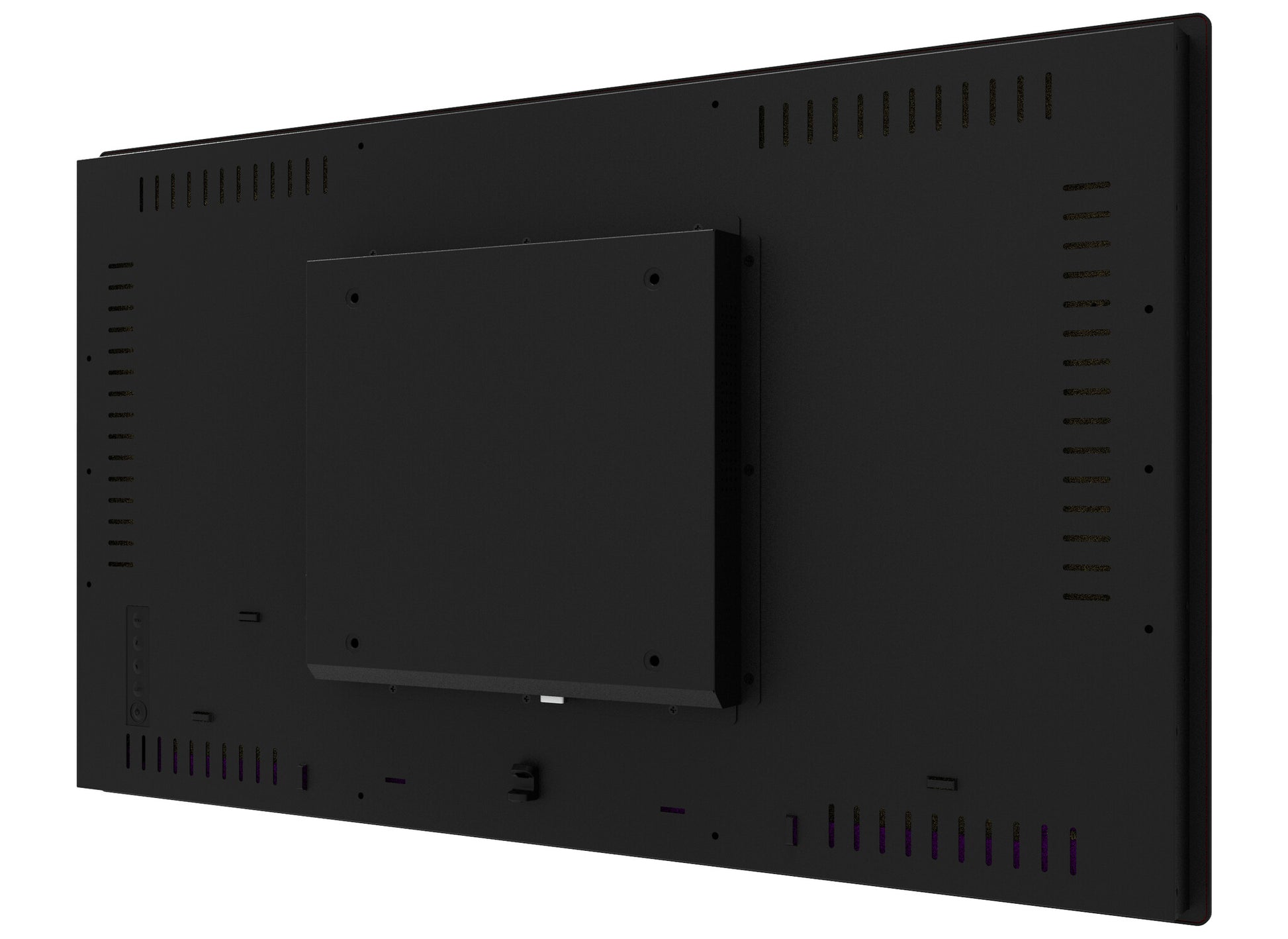

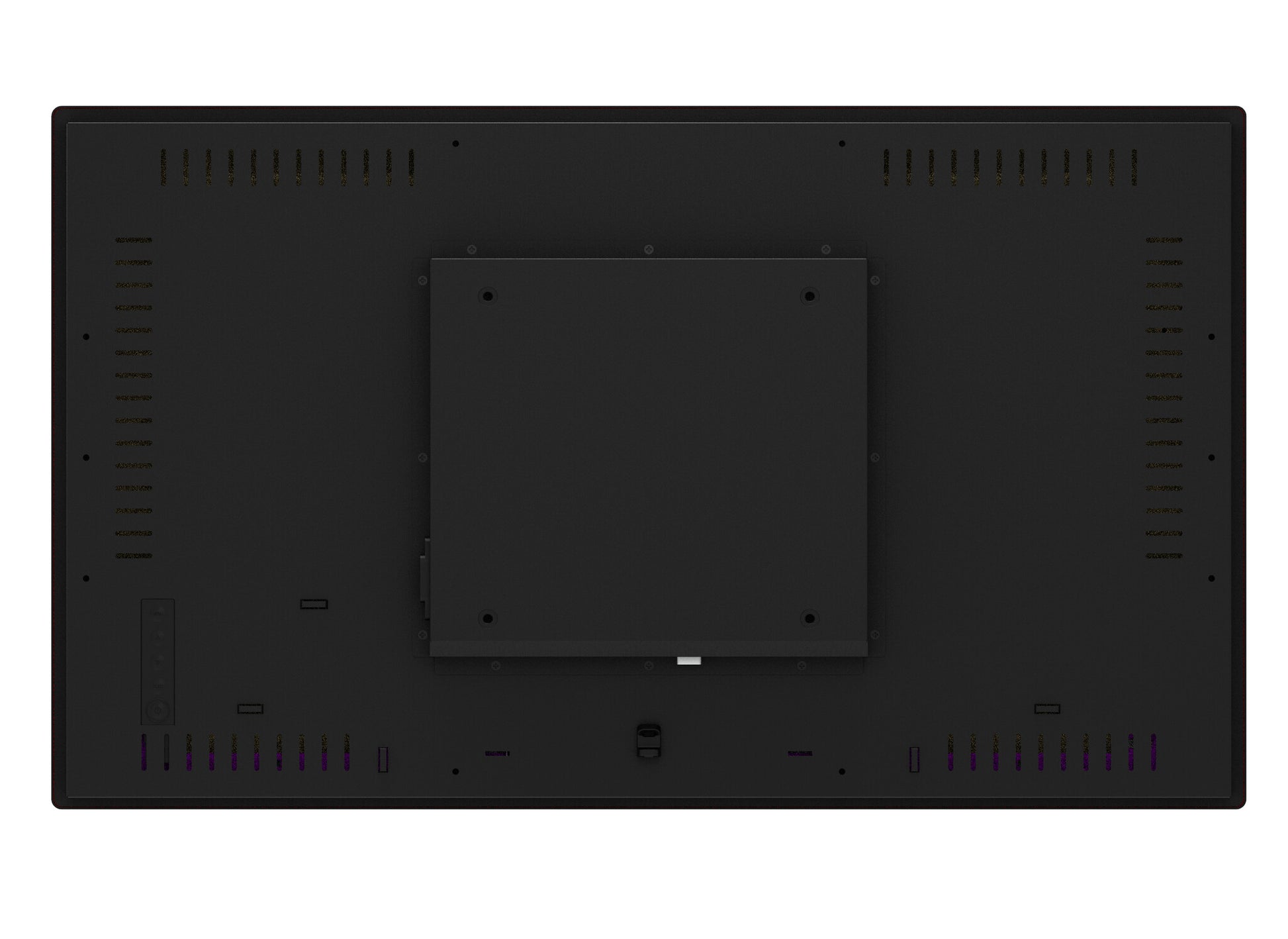

VESA mounting
Yes
Panel mounting interface
200 x 200 mm
Wall mountable
Yes
Cable management
Yes
Cable lock slot
No
On Screen Display (OSD)
Yes
Number of OSD languages
7
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Plug and Play
Yes
Power
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
27.5 kWh
Power consumption (typical)
32 W
Power consumption (standby)
1.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Sustainability
Sustainability certificates
ErP
Algemeen
Productfamilie
ProLite
Weight & dimensions
Width (with stand)
743 mm
Depth (with stand)
61 mm
Height (with stand)
437 mm
Weight (with stand)
10 kg
Width (without stand)
742.5 mm
Depth (without stand)
61 mm
Height (without stand)
437 mm
Weight (without stand)
10 kg
Packaging data

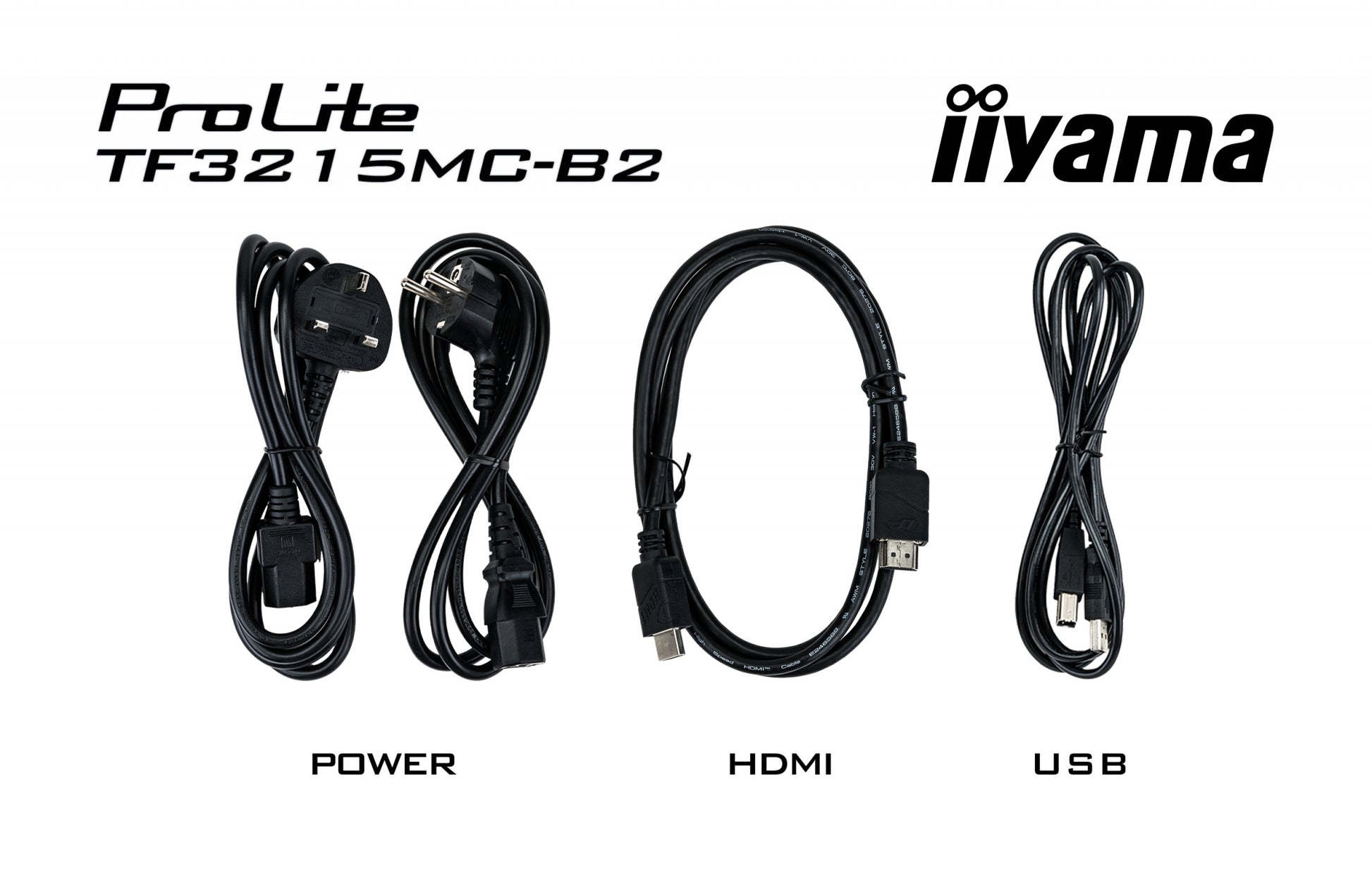

Cables included
AC, USB, HDMI
Quick start guide
Yes
Package width
890 mm
Package depth
155 mm
Package height
630 mm
Package weight
13.3 kg
Technical details
Compliance certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Brightness
460 cd/m²
Depth
61 mm
Width
743 mm
Height
437 mm
Weight
10 kg
Active display area (W x H)
698.4 x 392.8 mm
Mean time between failures (MTBF)
50000 h
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Touch method
finger, glove (latex), capacitive stylus
User controls
Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, poition, H-Position, V-Position, touch switch), option (reset, language, source select, display mode, factory)
Supplied AC adapter type
AC
Touchscreen
Touchscreen
Yes
HD type
Full HD
Native aspect ratio
16:9
Display technology
LED
Built-in camera
No
Touch technology
Multi-touch
Touchscreen type
Kiosk
Number of simultaneous touchpoints
30
USB Touch port
Yes

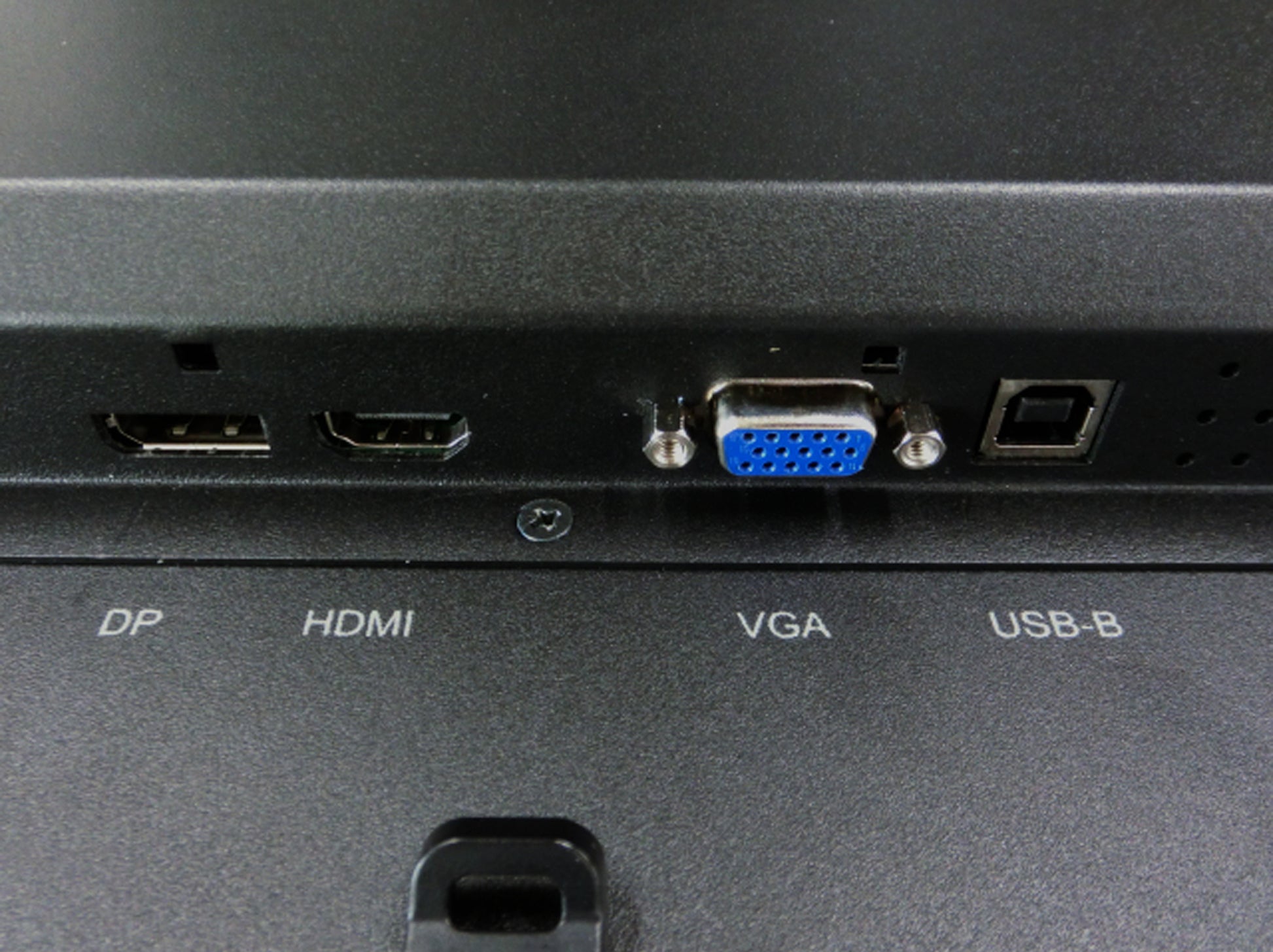

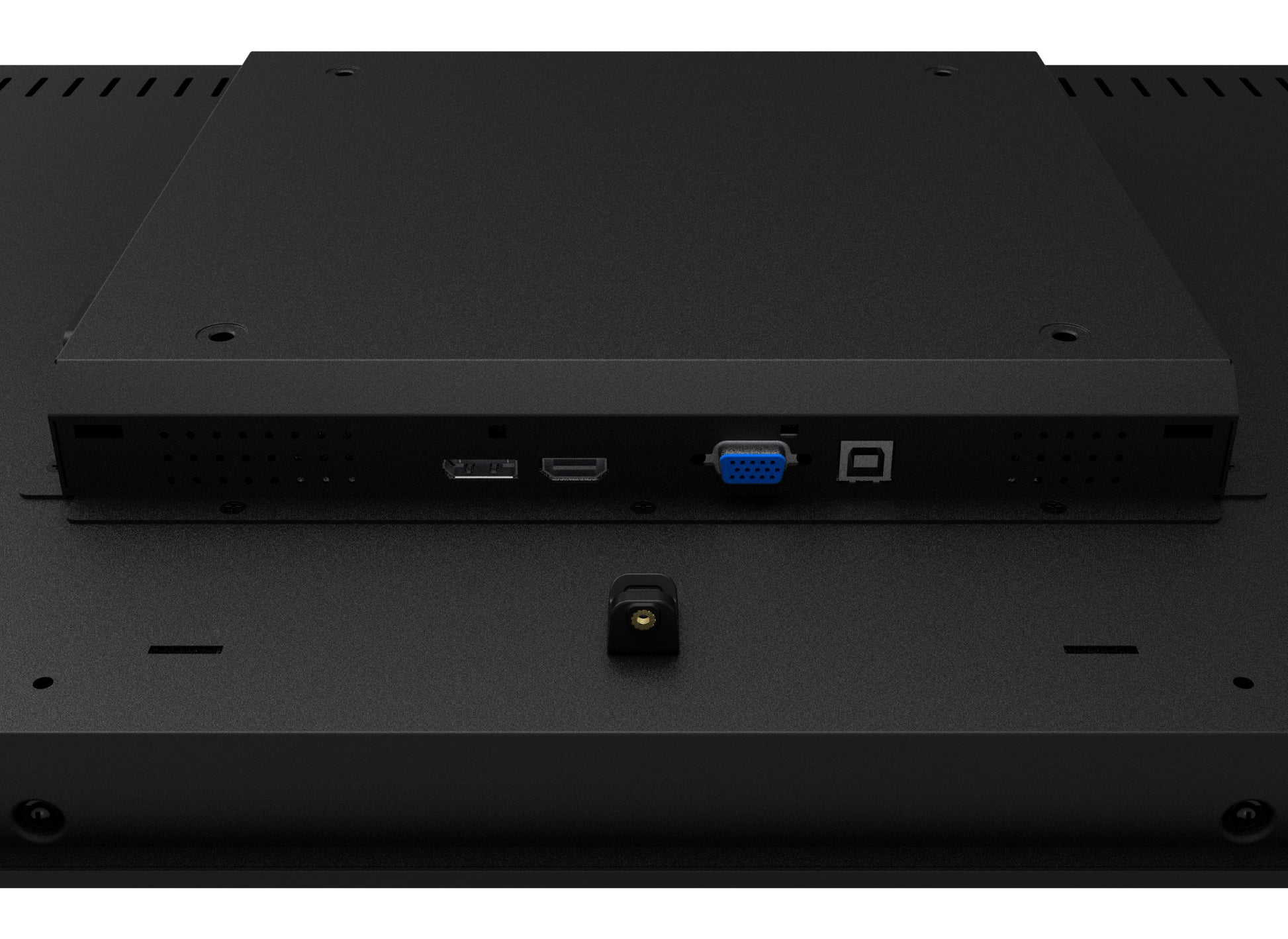

VGA (D-Sub) ports quantity
1
HDMI
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
Contrast ratio (dynamic)
3000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.3637 x 0.3637 mm
Display diagonal (metric)
80 cm
HDCP
Yes
Surface hardness
7H
