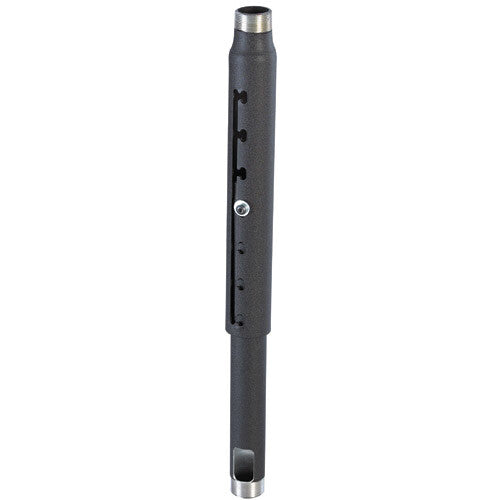

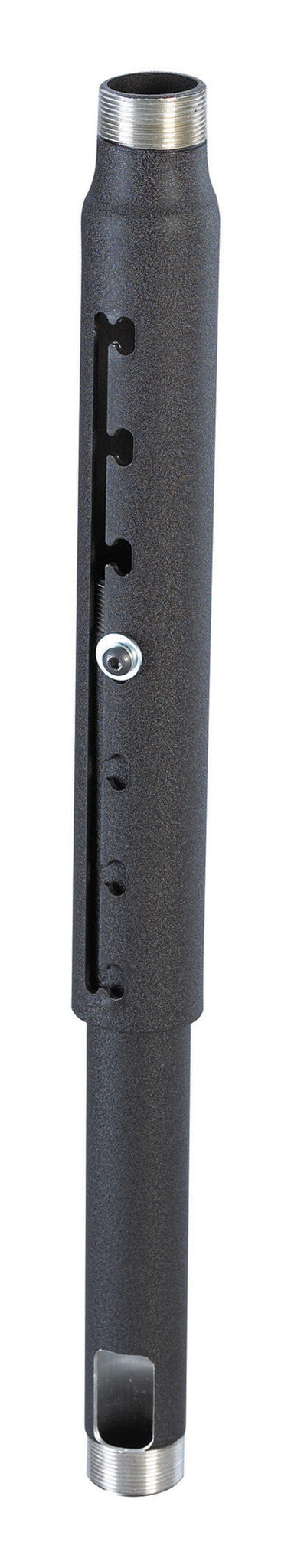

Chief CMS1012, 304.8-365.8 cm, Adjustable — Heavy-duty adjustable ceiling extension column
The Chief CMS1012 is a heavy-duty adjustable extension column designed for ceiling-mounted AV installations where precise drop height is critical. Compatible with any 1.5" NPT ceiling mount or accessory, it allows integrators to position projectors and large-format flat panel displays at exactly the right height below the ceiling — without dismantling the system during adjustment. Made from aluminium with a black finish, the column is suited to professional AV environments in corporate, educational, government and house-of-worship settings. It is UL Listed, TAA Compliant, and backed by Chief's 10-year warranty, making it a reliable long-term choice for permanent installations.
Tool-Free Height Adjustment in the Field
The CMS1012 uses a patented notched design that lets installers change the column length in 2,54 cm increments without disassembling any part of the mounting system. With an adjustment range of 304,8 to 365,8 cm, this means the final drop height can be dialled in precisely once the ceiling structure is confirmed on site — a common scenario where pre-calculated measurements don't match actual ceiling conditions. Avoiding disassembly saves significant labour time and eliminates the risk of disturbing already-connected cabling during fine-tuning.
Integrated Flow-Through Cable Management
Cables can be routed through the hollow interior of the column, with a dedicated port at one end for clean cable entry and exit. In permanent ceiling installations, exposed cables running alongside a projection column create a poor visual impression and create snag and damage risks. Routing cables internally keeps the installation tidy, protects the signal path, and delivers a professional finish that end clients expect in boardrooms, lecture theatres and houses of worship.
226,8 kg Load Capacity with Anti-Vibration Security
The aluminium column is rated to support up to 226,8 kg and includes a set screw that locks the adjusted position and adds structural rigidity. In large-venue installations — auditoriums, conference centres, worship spaces — building HVAC systems and foot traffic can create low-frequency vibrations that cause a ceiling-hung projector to drift or wobble, degrading image sharpness. The set screw damps this movement, protecting both image quality and the long-term integrity of the mount connection.
Universal 1.5" NPT Compatibility
Both ends of the column are threaded with the industry-standard 1.5" NPT (National Pipe Thread) profile, which is the de facto standard for professional AV ceiling mounts and accessories. This means the CMS1012 is compatible across the full Chief ceiling mount ecosystem — and with third-party 1.5" NPT accessories — giving integrators maximum flexibility to combine it with existing or future hardware without compatibility constraints.
UL Listed, TAA Compliant, 10-Year Warranty
The column carries UL certification, confirming it has been independently tested for structural and safety compliance. TAA Compliance makes it eligible for US government procurement contracts, removing a potential barrier for federal, state and education projects operating under Trade Agreements Act requirements. The 10-year Chief warranty provides long-term cover in installations where replacing a ceiling column would require significant scaffolding or access equipment — reducing lifecycle risk for the integrator and the end client.
