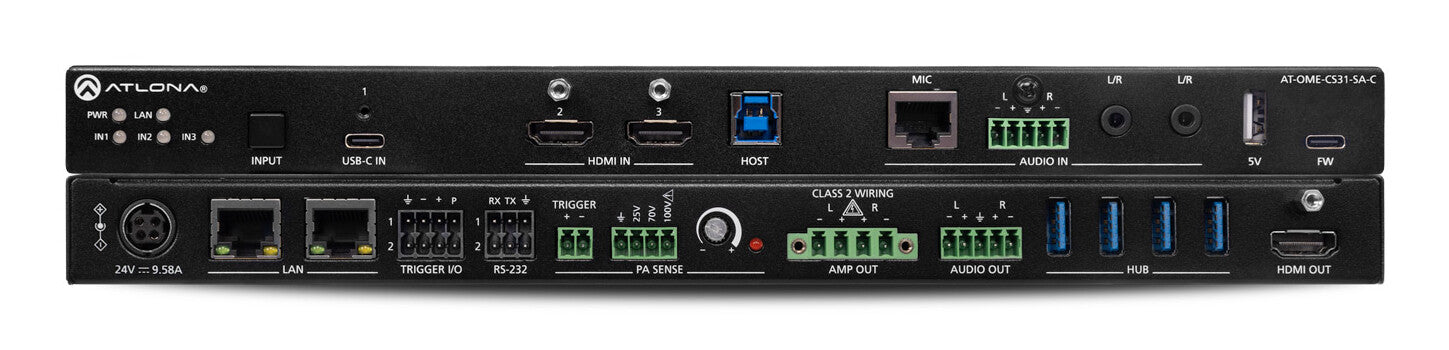

Atlona AT-OME-CS31-SA-C

Atlona AT-OME-CS31-SA-C

Three-Input USB-C and HDMI Switcher, Mixer Amplifier, and USB Hub

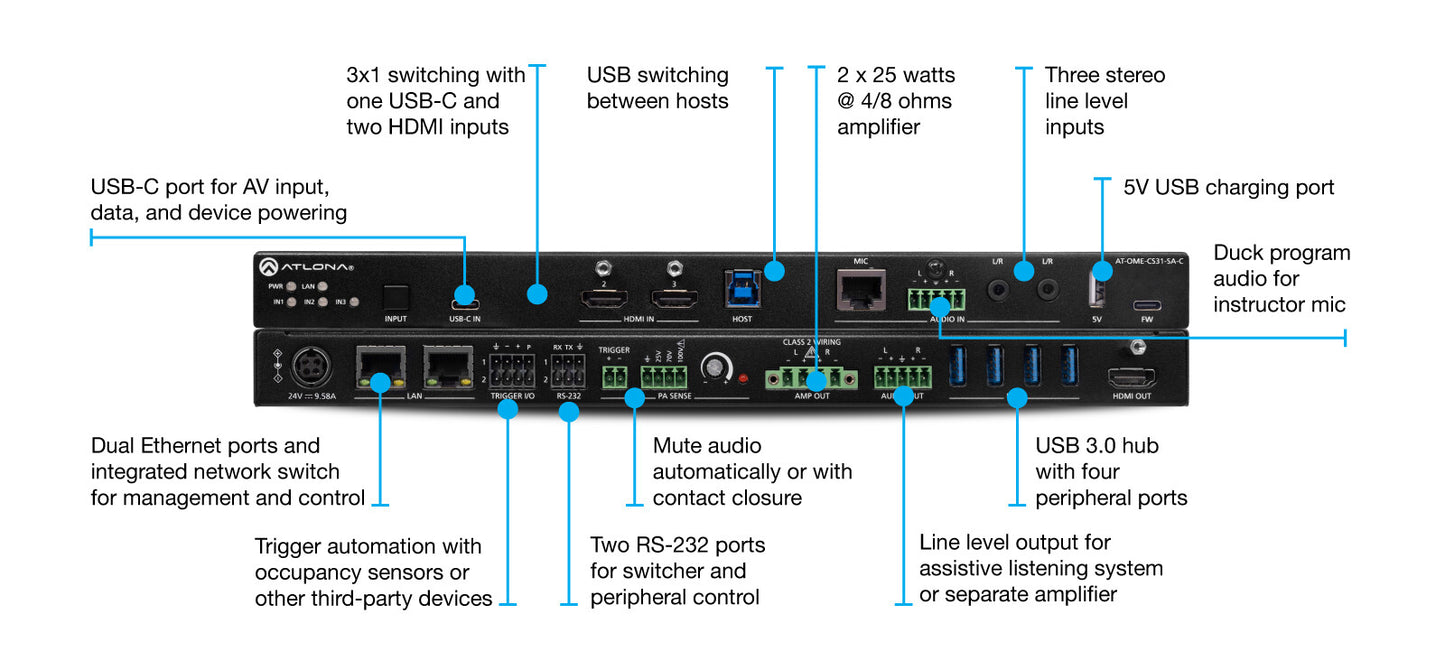

  • 1 USB-C and 2 HDMI® inputs, 1 HDMI output
  • USB routing between 2 hosts and 4 peripherals
  • 2 x 25 watts @ 4/8 ohms amplifier
  • Powerful digital signal processing for audio mixing, AEC, and more
  • Duck program audio when signal detected on balanced input
  • Mute audio with PA sense or contact closure
  • Automatic display control via activity or occupancy
  • Also available: AT-OME-CS31-SA with 3 HDMI inputs and AT-OME-CS31-SA-HDBT with 1 HDBaseT™ and 2 HDMI inputs
  • SKU:846352007737
  • GTIN/EAN:846352007737
  • MPN:AT-OME-CS31-SA-C
Add To Favorite

You need to login to view the price.

View full details

Atlona AT-OME-CS31-SA-C. Maximum pixel clock: 600 MHz, Maximum resolution: 4096 x 2160 pixels, Ethernet LAN data rates: 10,100,1000 Mbit/s. Housing colour: Black, Certification: CE, RoHS, FCC CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC. USB connector type: USB Type-A, USB Type-B, USB Type-C. AC input voltage: 100 – 240, AC input frequency: 50/60 Hz, Input current: 9.58 A. Width: 300 mm, Depth: 210 mm, Height: 25 mm

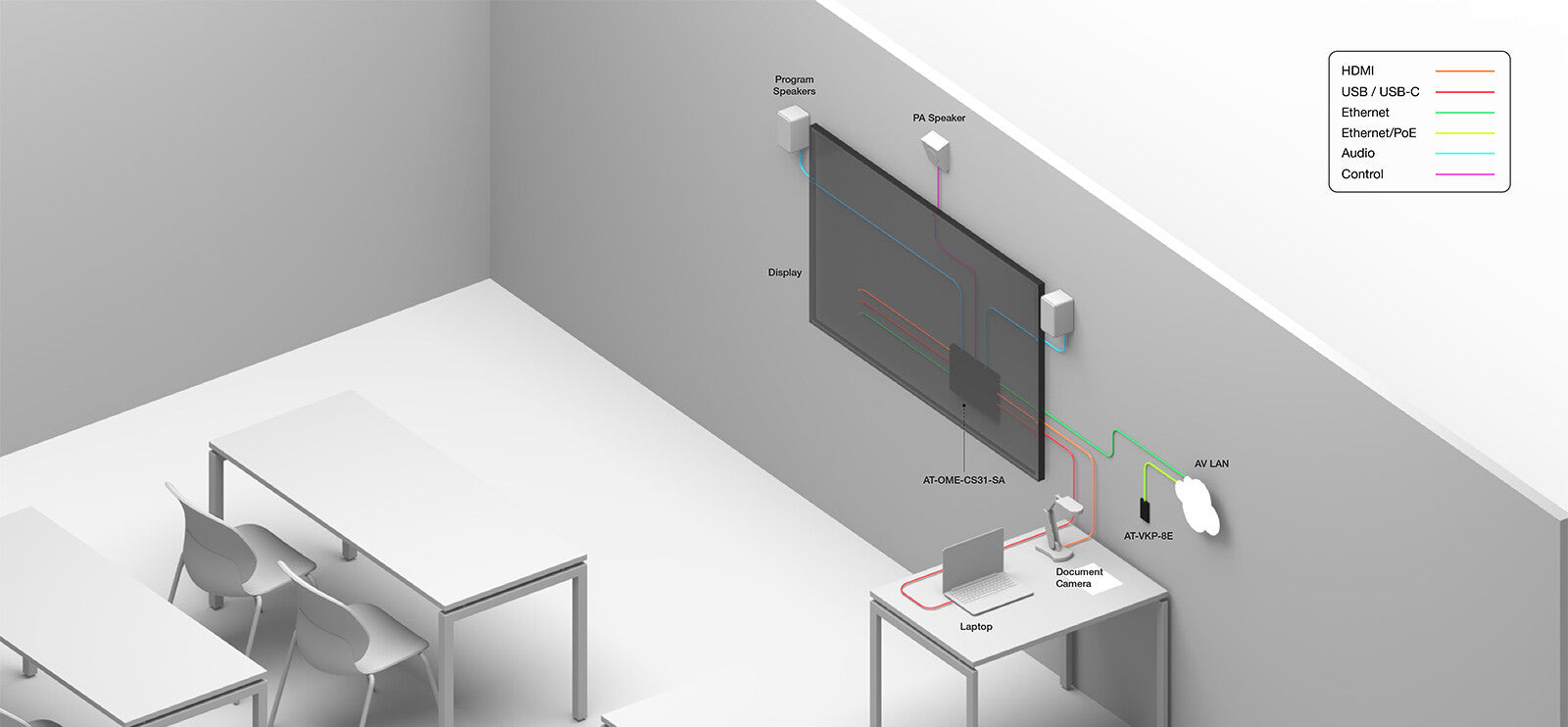

Full-featured AV solution for classrooms and meeting rooms
The AT-OME-CS31-SA-C is an AV presentation and collaboration system featuring a 3×1 switcher with USB-C and HDMI inputs, 50 watt mixer amplifier, and USB routing.

Specialized Classroom Capabilities
Ducking lowers program audio levels when the teacher speaks into their microphone connected to the balanced line input. Mute audio when a PA message is detected or with a contact closure. Both features ensure important lesson material and announcements are heard clearly.

Flexible Control
Automate system operation based on switcher activity, integration with occupancy sensors, or use with a Velocity control system.

Features
Supported resolutions
4096×2160 (DCI) @ 24/25/30/50/60 Hz3840×2160 (UHD) @ 24/25/30/50/60 Hz1920x1080p @ 23.97/24/25/29.97/30/50/60 Hz1920x1080i @ 50/60 Hz1280x720p @ 30/50/60 Hz720x576p @ 50 Hz720x576i @ 25/50 Hz720x480p @ 60 Hz640x480p @ 60 Hz640x480i @ 60 Hz
Supported chroma subsampling
4:2:2, 4:4:4, 4:2:0
Audio formats supported
DTS, LPCM
Ethernet LAN data rates
10,100,1000 Mbit/s
High Dynamic Range (HDR) supported
Yes
HDCP version
2.2
HDCP
Yes
Audio channels
2
Maximum resolution
4096 x 2160 pixels
Maximum pixel clock
600 MHz
Design
Certification
CE, RoHS, FCCCE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC
LED indicators
Yes
Housing colour
Black
Ports & interfaces
Audio (L/R) in
2
RS-232 ports
2
USB ports quantity
8
USB connector type
USB Type-A, USB Type-B, USB Type-C
RJ-45 output ports
2
RJ-45 input ports
1
HDMI output ports quantity
1
HDMI input ports quantity
2
Power
Output voltage
24 V
Input current
9.58 A
AC input frequency
50/60 Hz
AC input voltage
100 – 240
Operational conditions
Storage relative humidity (H-H)
20 - 90%
Operating relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Weight
1.7 kg
Height
25 mm
Depth
210 mm
Width
300 mm
Packaging content
Manual
Yes
