LUXUL SW-100-04P-E
LUXUL SW-100-04P-E
4 Port Unmanaged PoE+ Switch
- 4 port Gb PoE+ switch w/ uplink 58W total power budget
- Includes rubber feet and keyhole features for surface mounting options
- Fanless for silent operation
- Durable compact metal case
- SKU:IM1_SW-100-04P-E
- GTIN/EAN:655003921649
- MPN:SW-100-04P-E
Luxul Wireless SW-100-04P-E. Switch type: Unmanaged. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

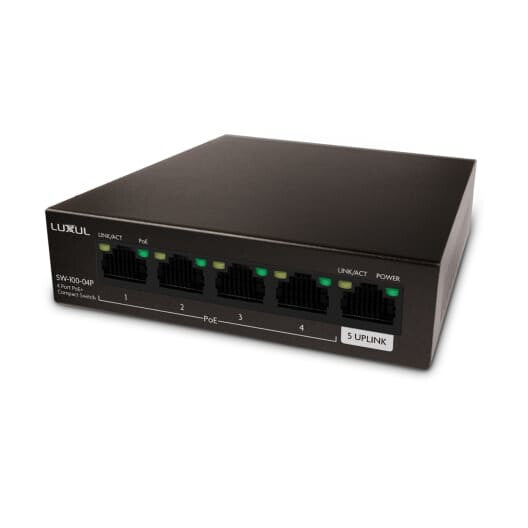

The SW-100-04P is a compact Gigabit PoE Plus switch that provides four PoE Plus capable ports of Gb Ethernet connectivity with a total power budget of 58 watts. It is an excellent choice for expanding your network when using PoE-enabled devices such as IP cameras, wireless access points, AV over IP devices, control panels and easily fits into the widest range of environments. The durable metal case includes rubber feet and keyhole features for surface mounting options.
3 years
Switch type
Unmanaged
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Switching capacity
10 Gbit/s
LED indicators
Activity, Link, PoE, Power
Housing material
Metal
Product colour
Black
Power consumption (max)
63 W
Power consumption (typical)
5.8 W
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Power supply included
Yes
Total Power over Ethernet (PoE) budget
58 W
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE)
Yes
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
32 - 104 °C
Weight
560 g
Height
26 mm
Width
100 mm
Certification
FCC, IC, RCM, CE-EMC, CE-LVD (IE-62368-1), CB Report
