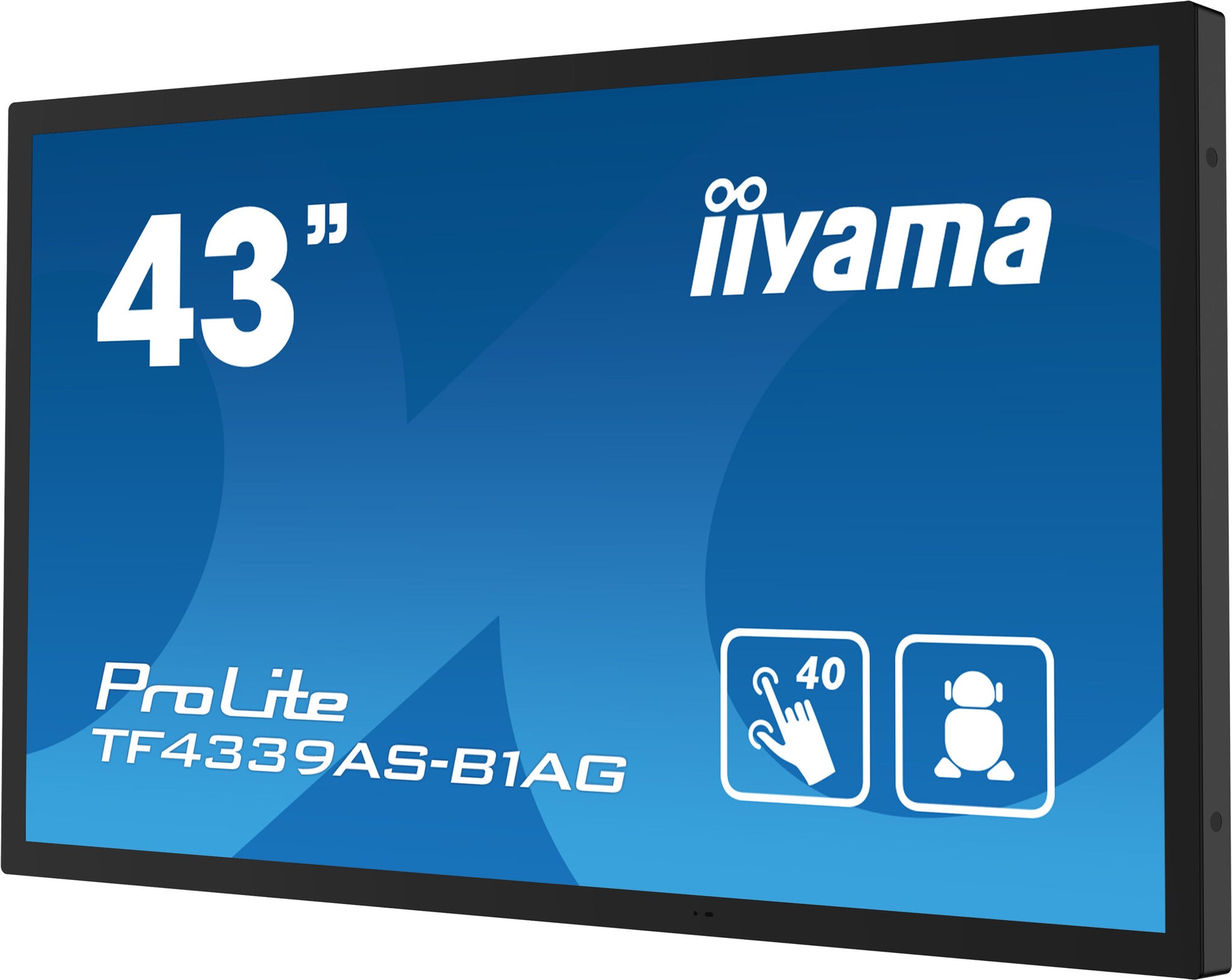

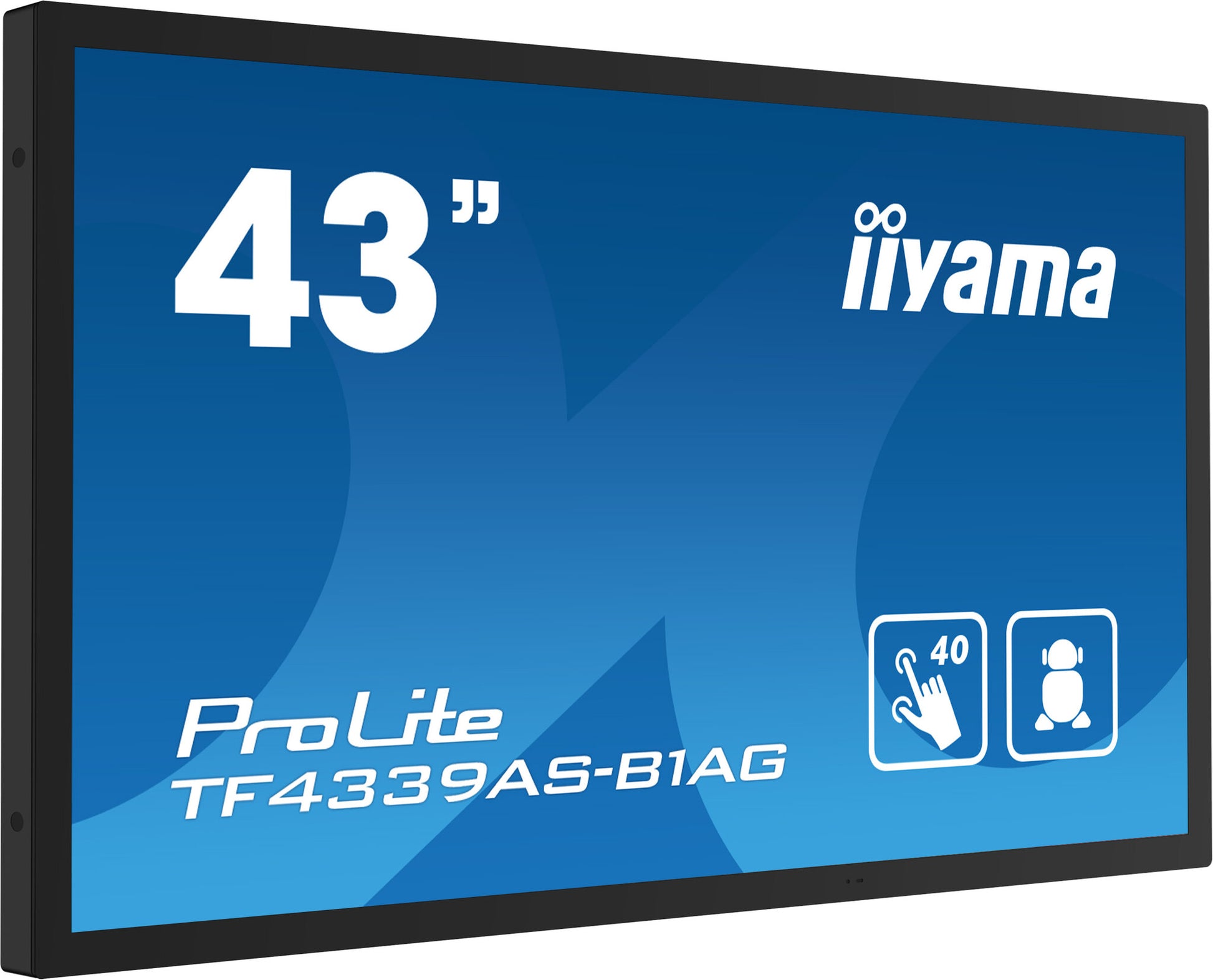

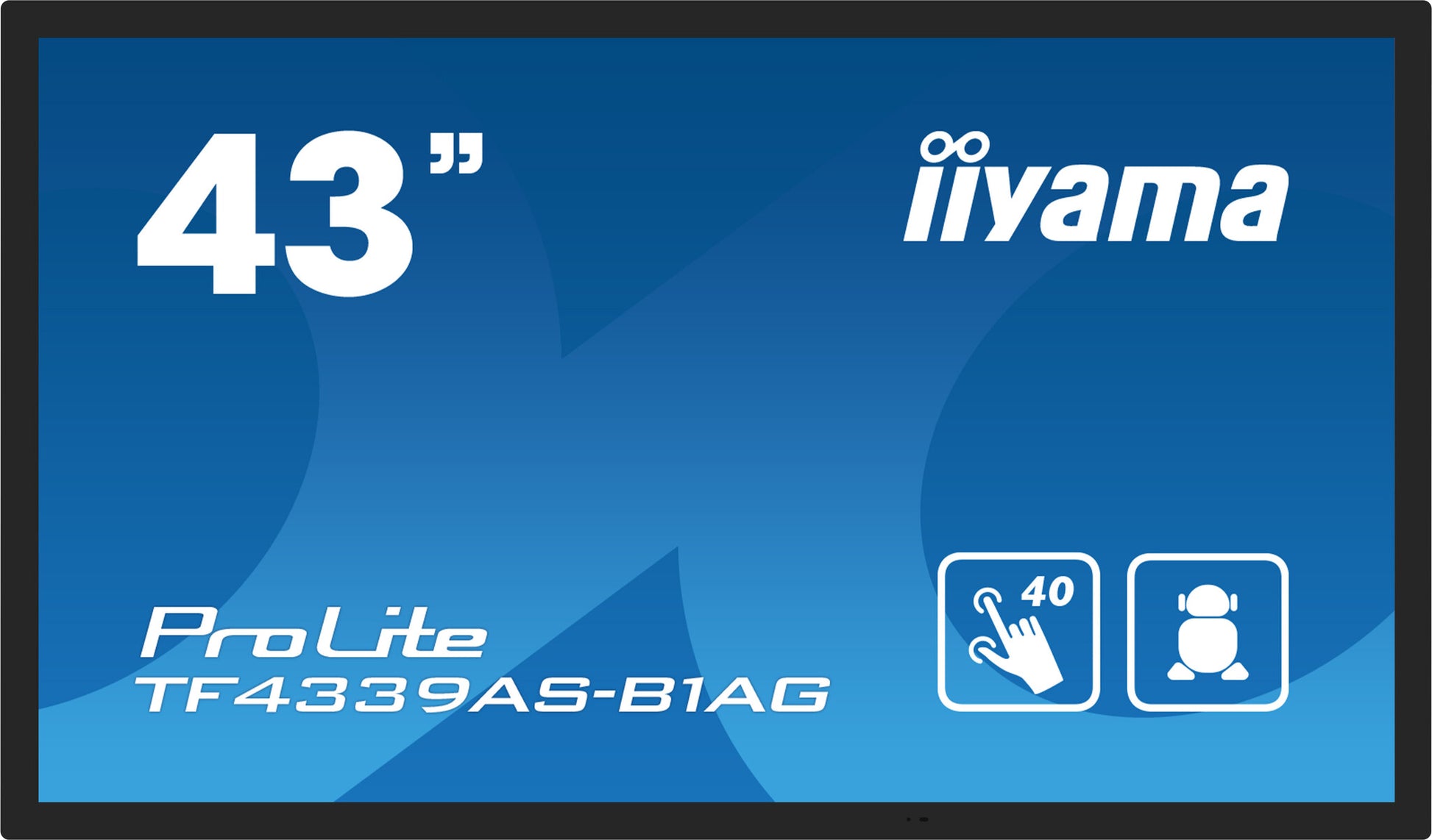

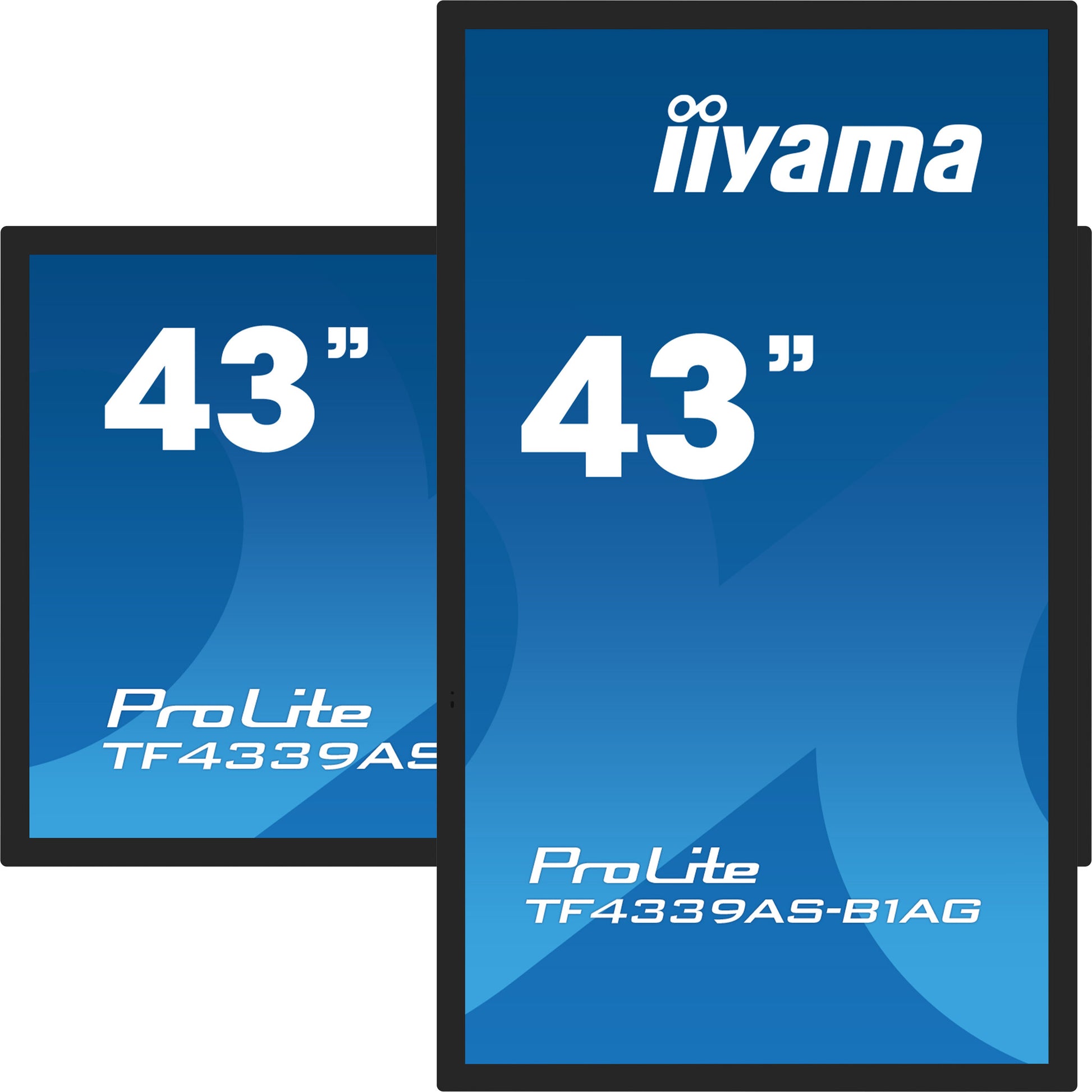

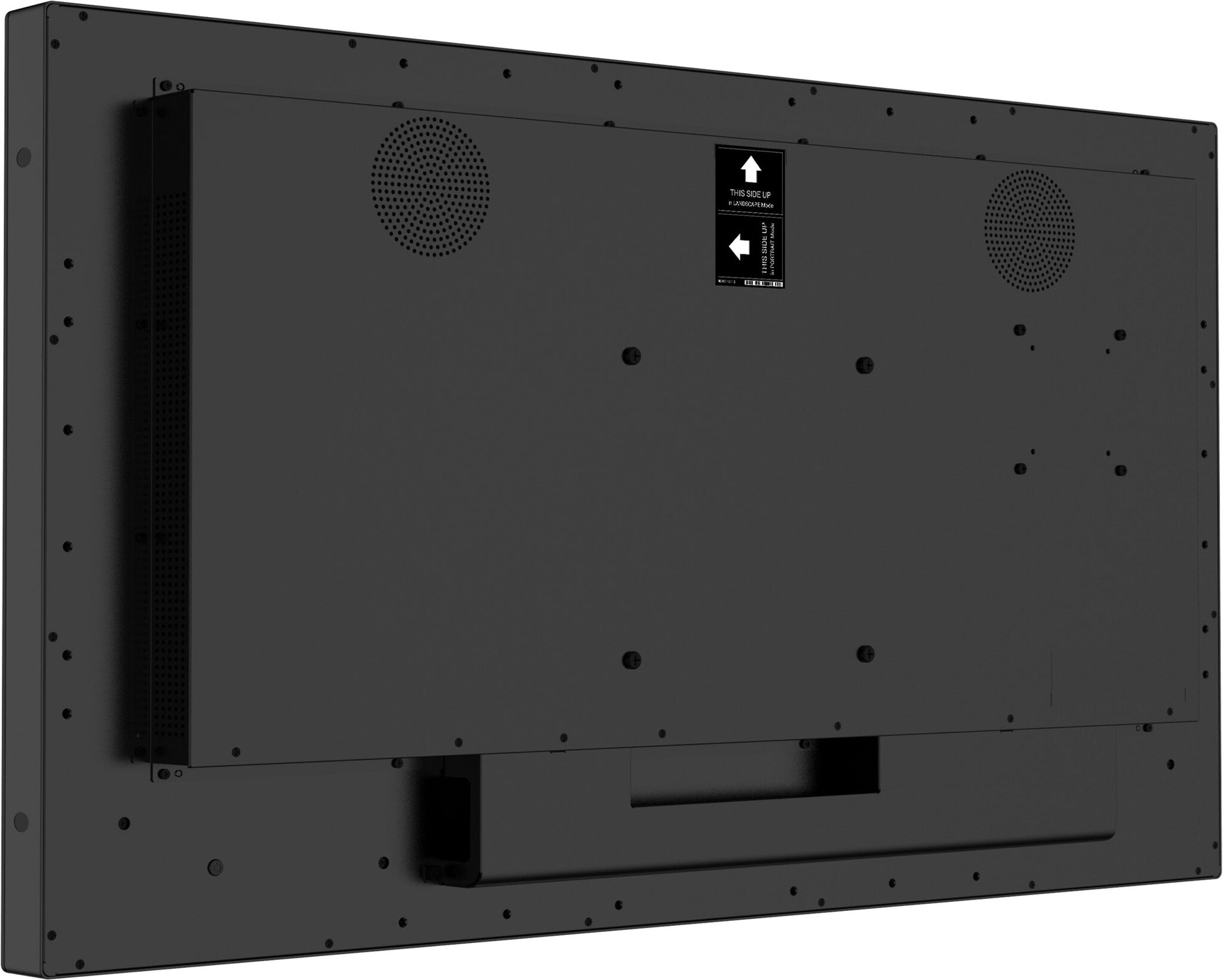

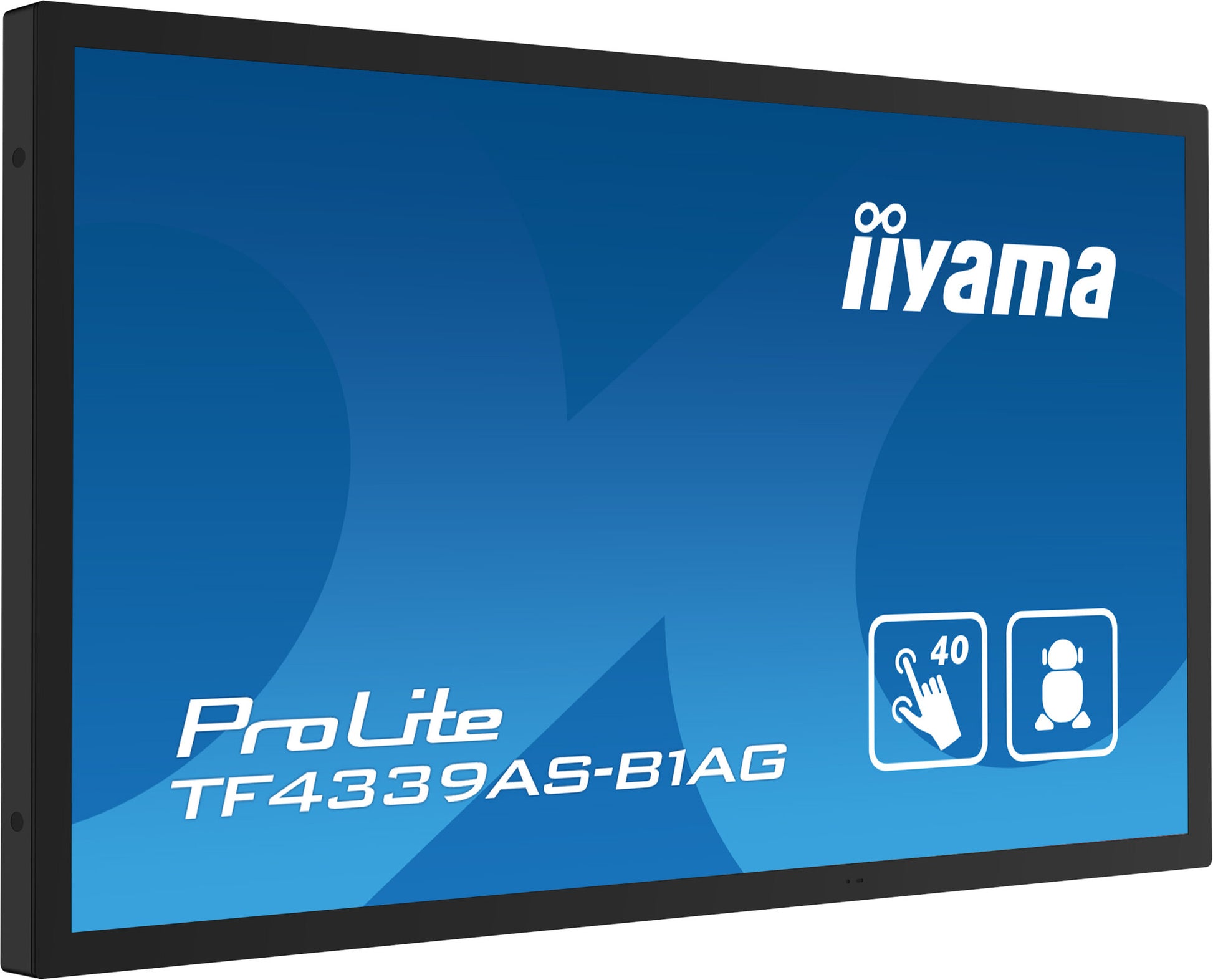

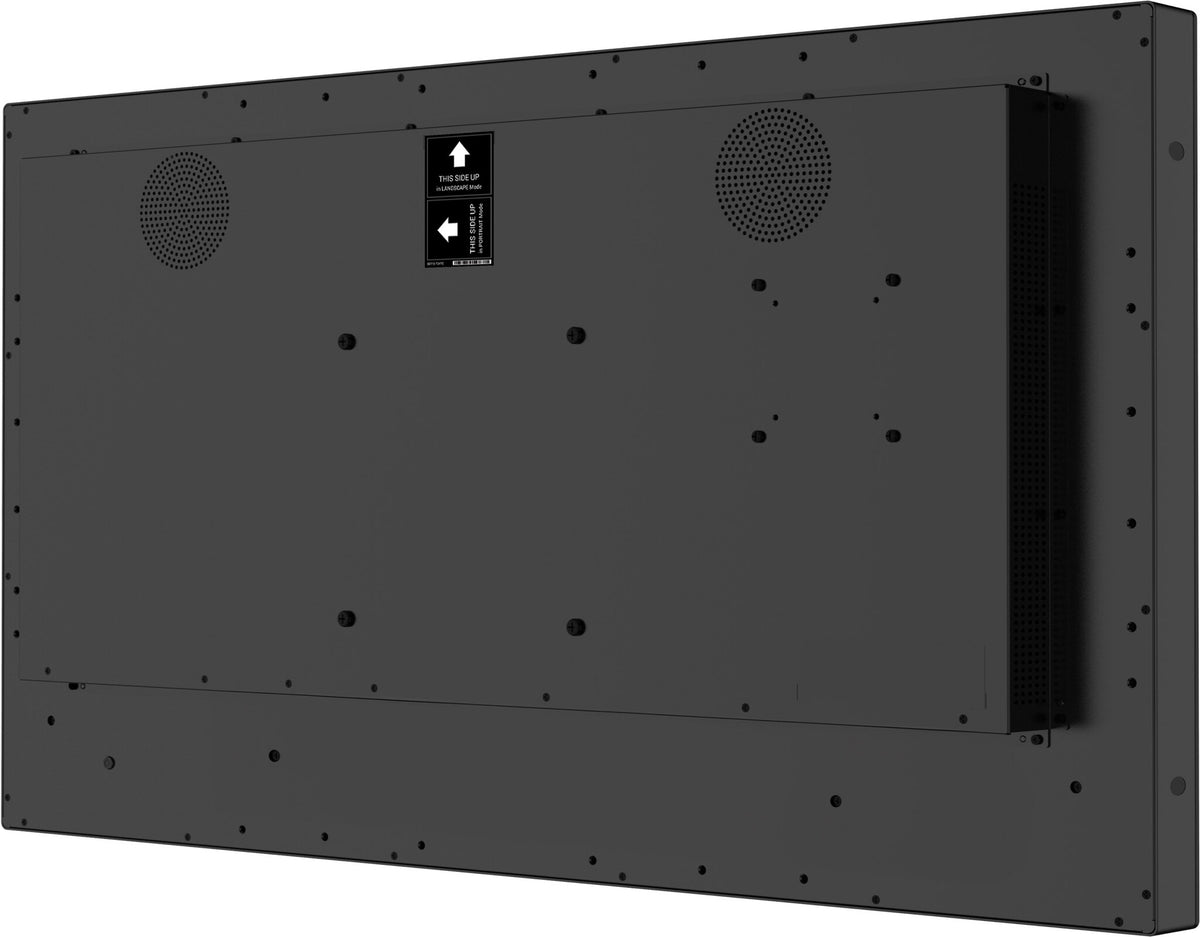

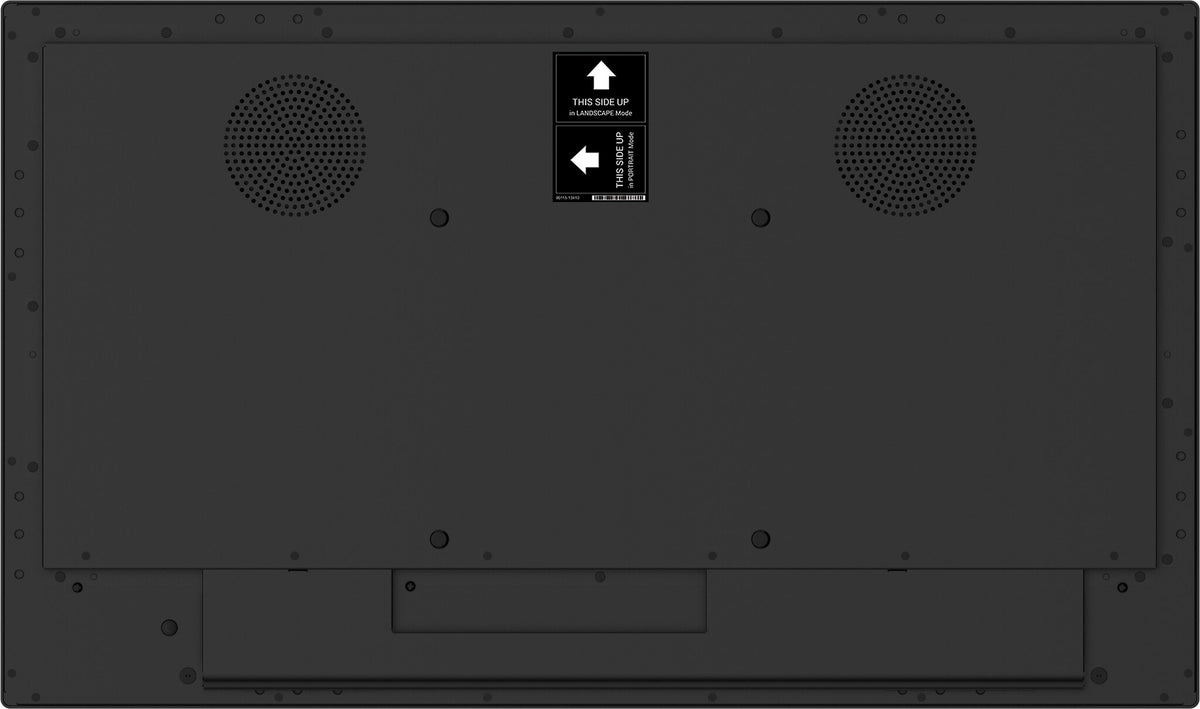

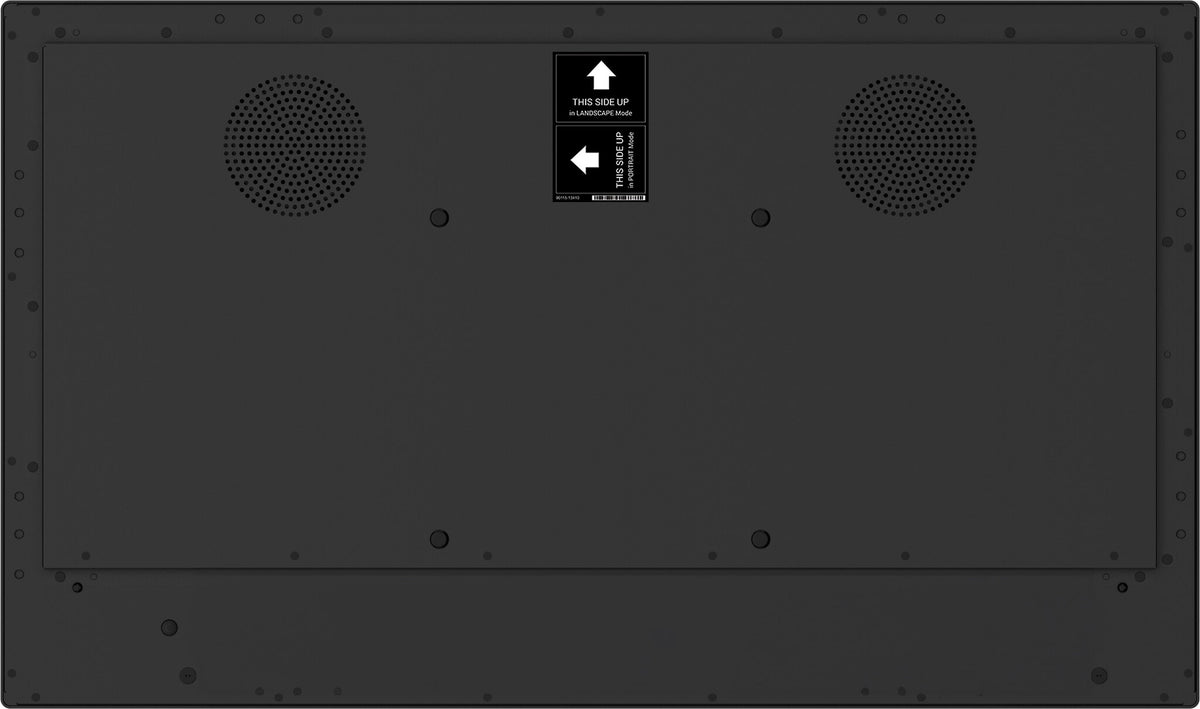

iiyama TF4339AS-B1AG

iiyama TF4339AS-B1AG

42.5", 108cm, IPS LED, 3840 x 2160, 16:9, 1200:1, 8 ms, 40 Touchpoints, HDMI x 2, DP x1, RJ-45, Black

  • Indoor Digital signage flat panel Black
  • 108 cm (42.5") 3840 x 2160 pixels LED 500 cd/m²
  • Touchscreen 60 Hz 8 ms
  • Ethernet LAN
  • Built-in speaker(s) 20 W
  • SKU:4948570123872
  • GTIN/EAN:4948570123872
  • MPN:TF4339AS-B1AG
Add To Favorite

You need to login to view the price.

View full details

43" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.

The refined edge-to-edge glass design of the TF4339AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks.

The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before; while the FailOver feature ensures your content is always actively displayed through your choice of inputs

For ease of integration, the TF4339AS-B1AG can be equipped with optional external mounting brackets (OMK4-3).

Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Retail Instalations
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.

Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.

Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

Touch through-glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

Display
Horizontal scan range
23 - 85 kHz
Haze rate
25%
Panel type
IPS
Native refresh rate
60 Hz
Glass thickness
3 mm
Surface hardness
3H
Display diagonal (metric)
108 cm
Active display area (W x H)
941.2 x 529.4 mm
Pixel pitch
0.245 x 0.245 mm
Display number of colours
16.7 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Contrast ratio (typical)
1200:1
Response time
8 ms
Native aspect ratio
16:9
Number of simultaneous touchpoints
40
Multi-touch
Yes
Touchscreen
Yes
HD type
4K Ultra HD
Display brightness
500 cd/m²
Display resolution
3840 x 2160 pixels
LED backlight
Yes
Display technology
LED
Display diagonal
108 cm (42.5")
Ports & interfaces
RS-232C
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
USB 2.0 Type-B ports quantity
1
USB ports quantity
3
USB port
Yes
DisplayPorts quantity
1
DVI port
No
HDMI version
2.0
HDMI ports quantity
2
Audio
RMS rated power
20 W
Number of built-in speakers
2
Built-in speaker(s)
Yes
Design
Bezel width (bottom)
2.6 cm
Bezel width (side)
2.6 cm
Bezel width (top)
2.6 cm

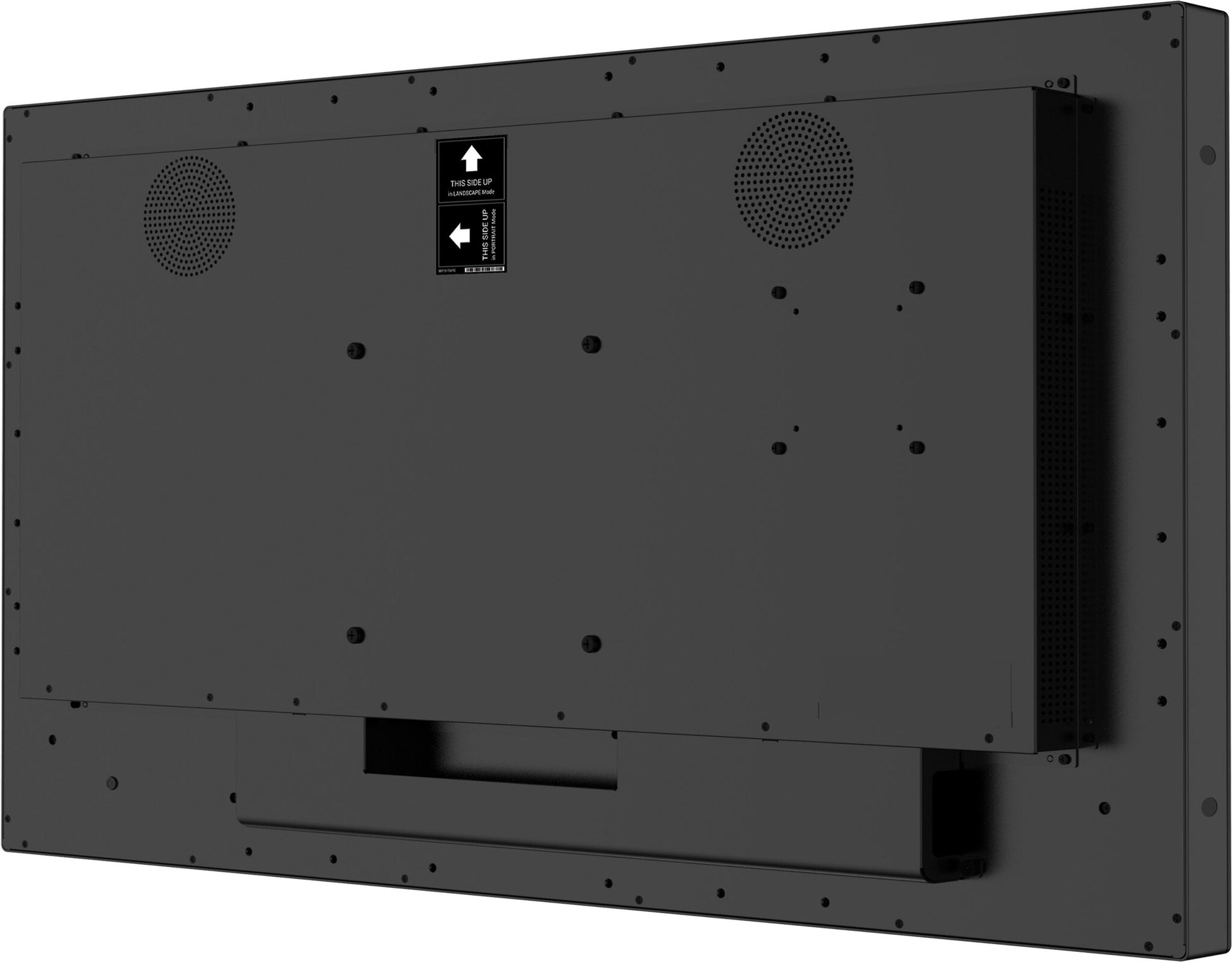

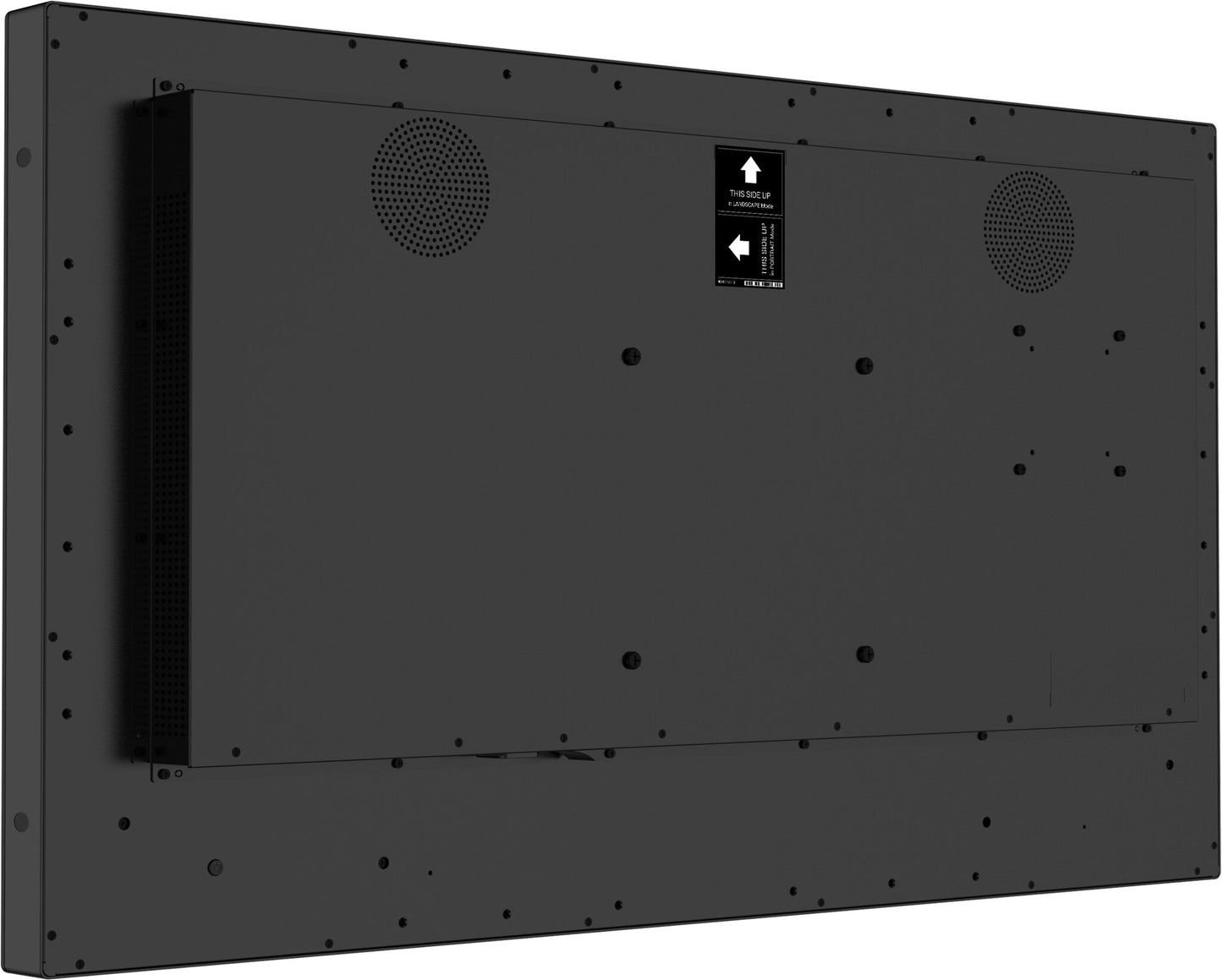

Panel mounting interface
100 x 100,200 x 200 mm
VESA mounting
Yes
Screen shape
Flat

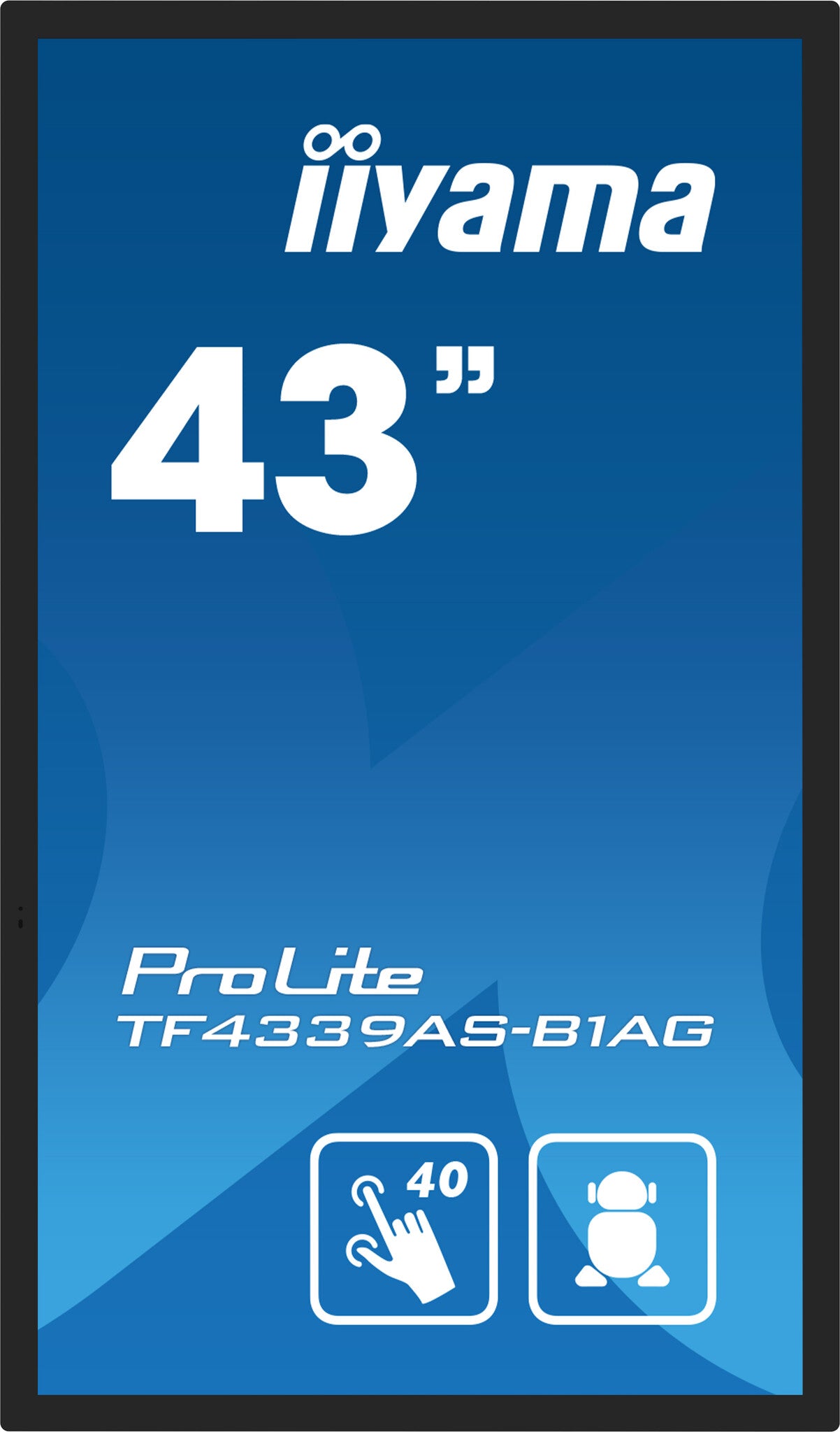

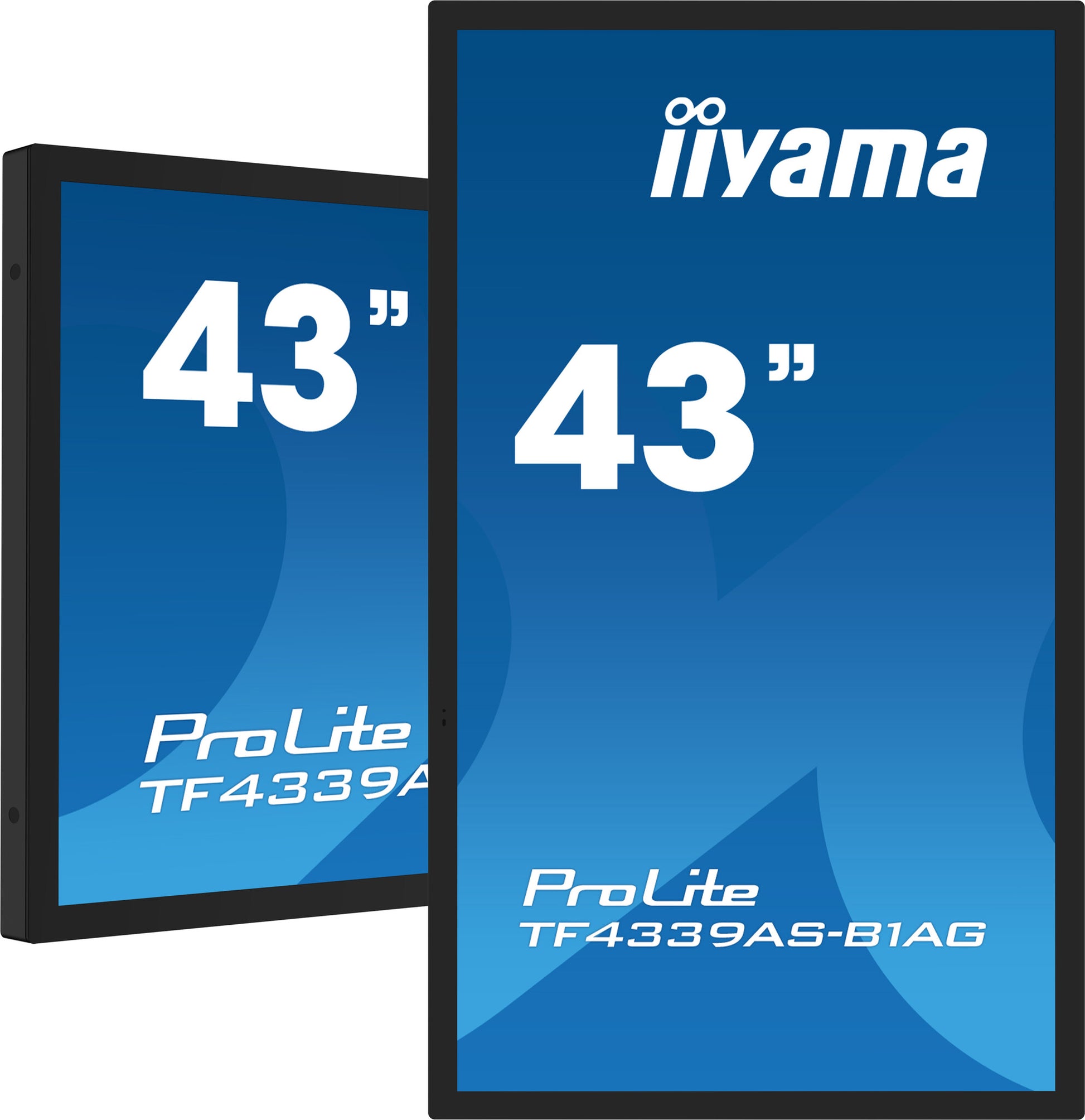

Orientation
Horizontal/Vertical
Placement supported
Indoor
Product colour
Black
Product design
Digital signage flat panel
Performance
Mean time between failures (MTBF)
50000 h
HDCP
Yes
HDCP version
2.2
International Protection (IP) code
IP54
Operating hours (hours/days)
24/7
On Screen Display (OSD)
Yes
Number of OSD languages
13
On Screen Display (OSD) languages
Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian
Purpose
Universal
Power
Energy efficiency scale
A to G
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Energy consumption (SDR) per 1000 hours
52 kWh
Energy efficiency class (SDR)
F
Power consumption (off)
0.3 W
Power consumption (standby)
0.5 W
Power consumption (typical)
52.1 W
Computer system
Operating system version
11
Operating system installed
Android
Internal storage capacity
32 GB
Internal memory
4 GB
Processor architecture
ARM Cortex-A53+Cortex-A73
Processor manufacturer
ARM
Built-in processor
Yes
Computer system
Yes
Weight & dimensions
Display weight
22.1 kg
Display height
585.4 mm
Display depth
63.4 mm
Display width
997.2 mm
Packaging data
Package volume
27000 cm³
Package height
712 mm
Package depth
157 mm
Package width
1105 mm
Packaging content
Cables included
AC, DisplayPort, USB
Remote control included
Yes
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Certificates
Certification
TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Other features
USB connector type
USB Type-A, USB Type-B
DisplayPort version
1.2
