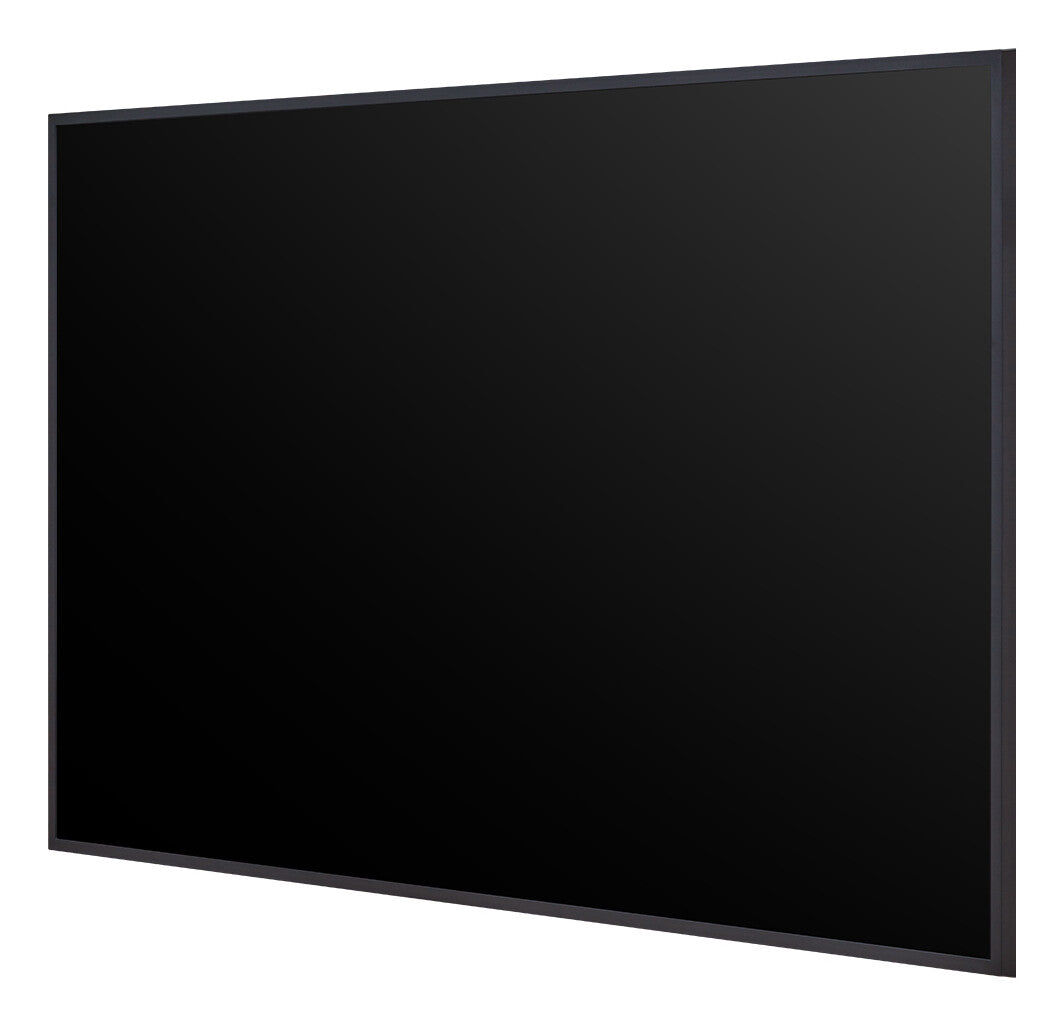

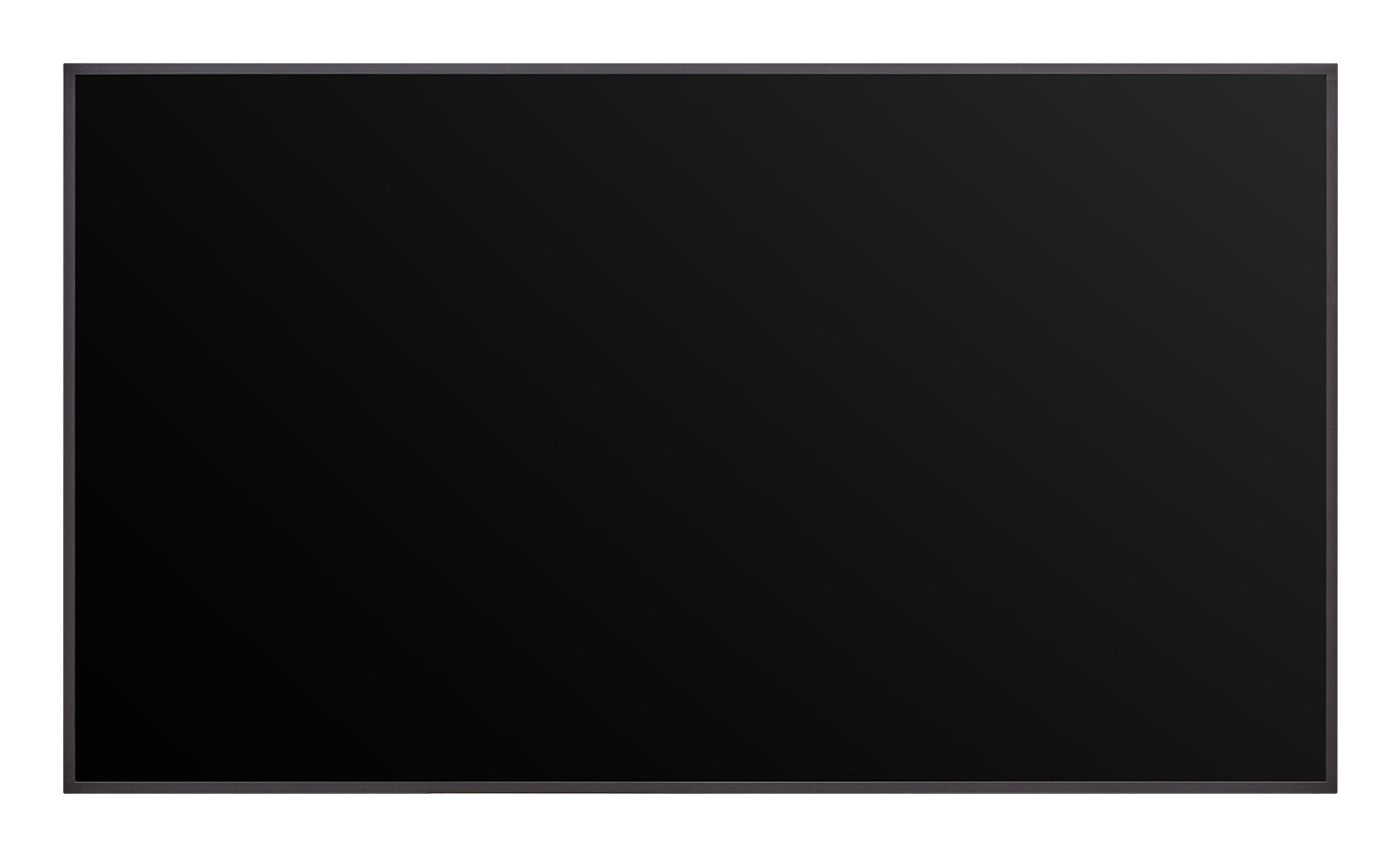

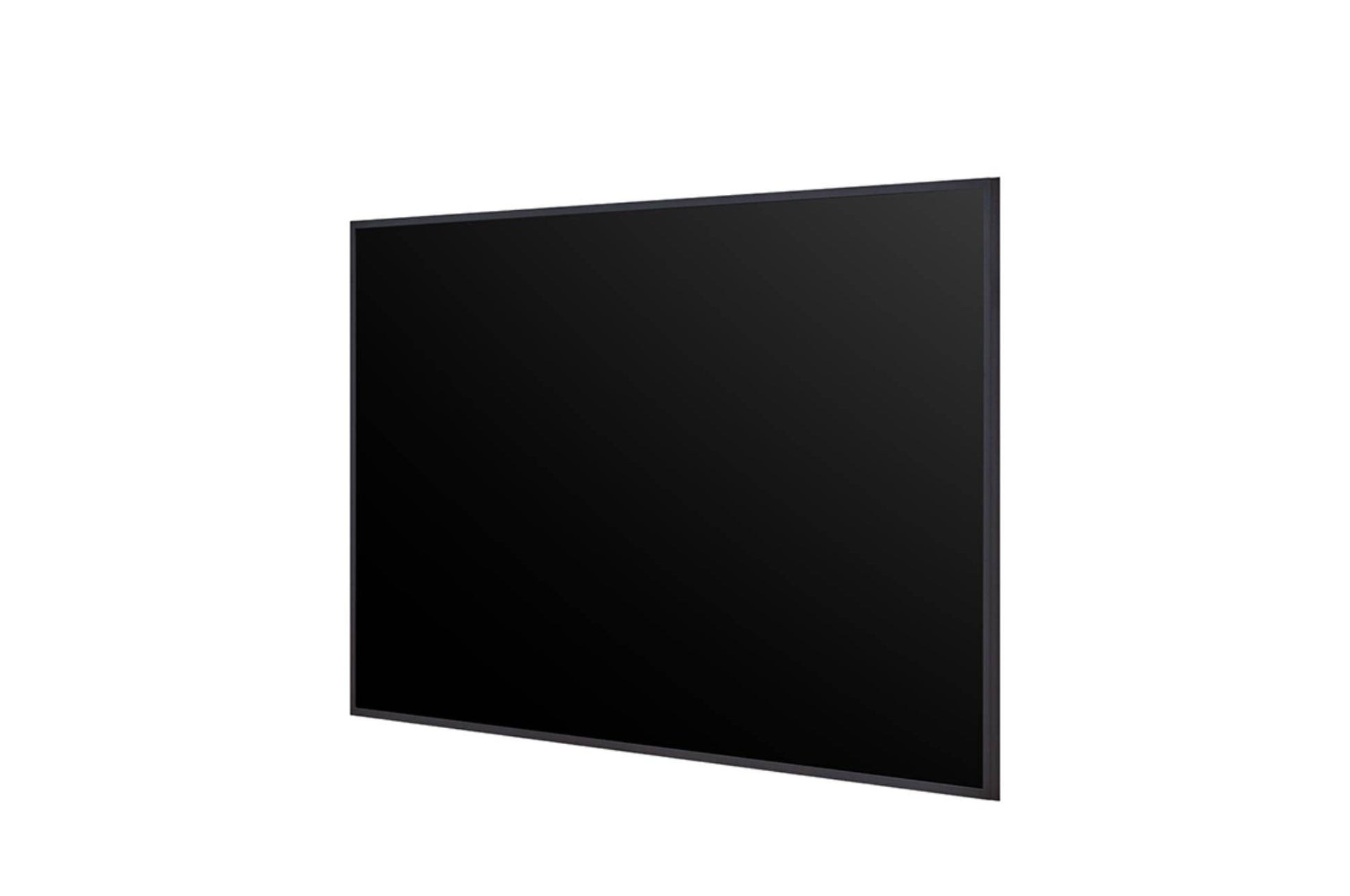

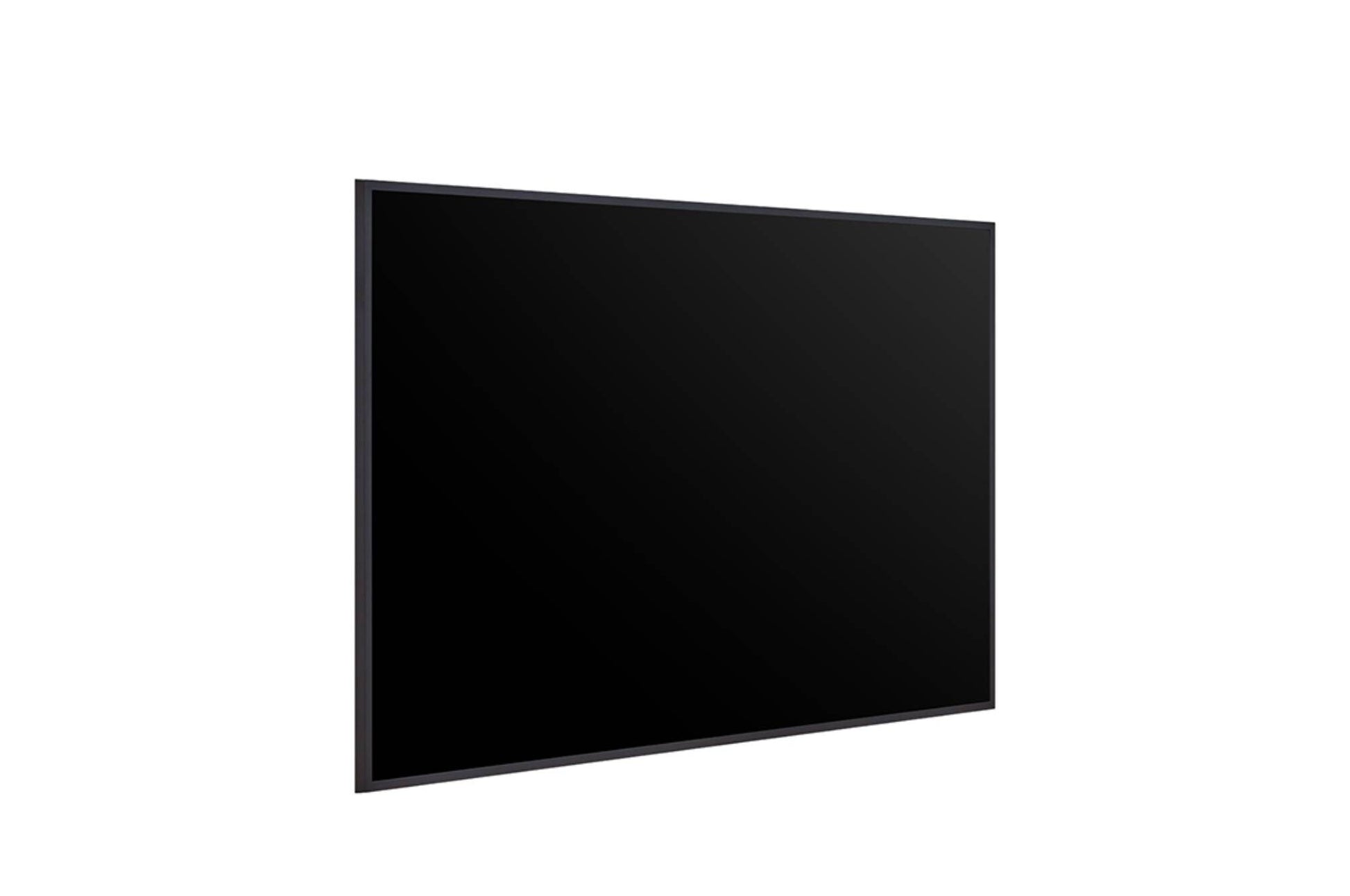

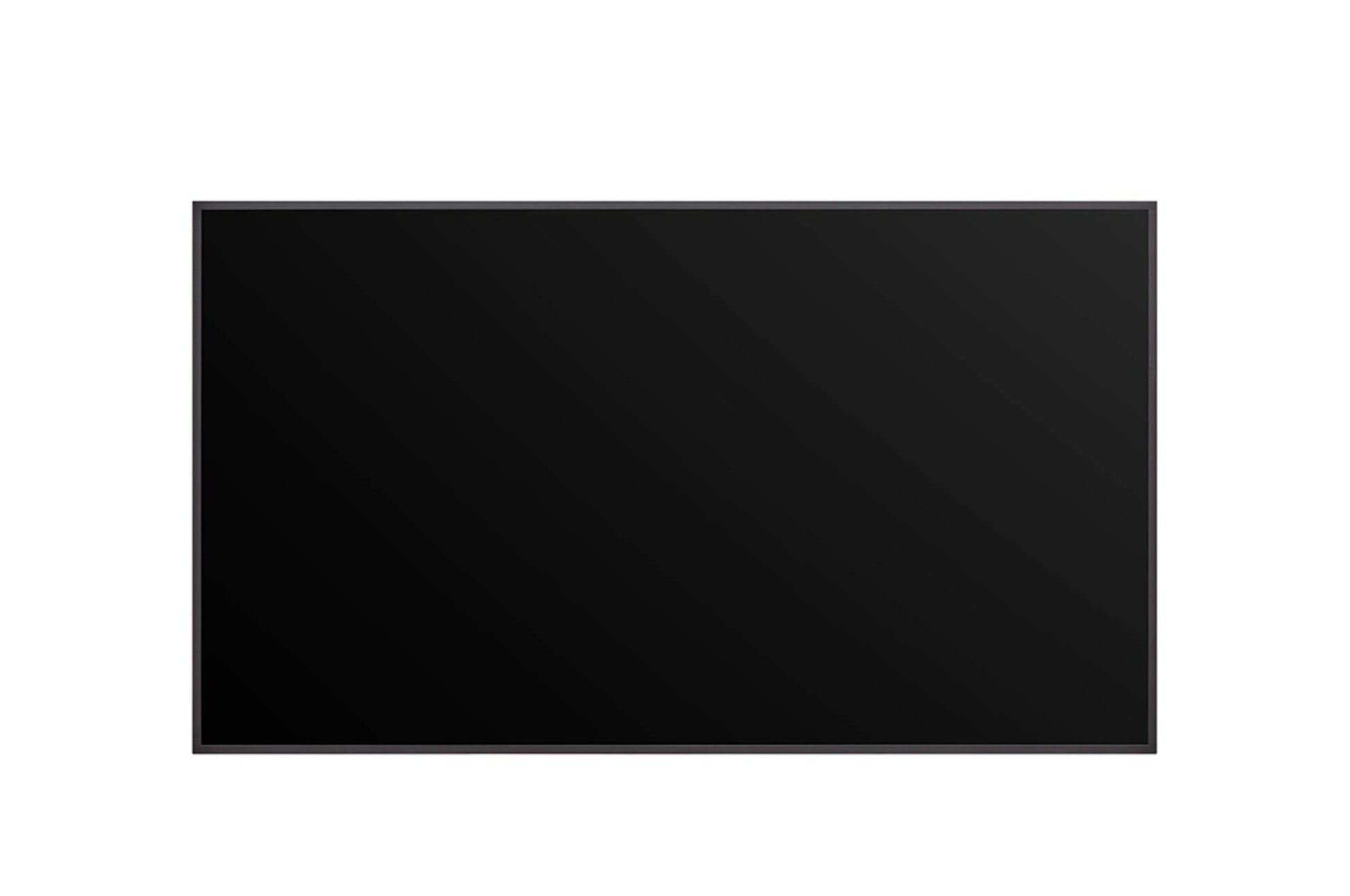

49UH7Q-E

49-inch 4K UHD commercial signage display with 700-nit IPS panel, built-in webOS 8.0, Wi-Fi, Bluetooth, and IP5X-rated dust protection, rated for 24-7 continuous operation.

  • 49" 4K UHD IPS panel with 700 nits brightness — vivid even under bright retail lighting
  • Built-in webOS 8.0 SoC enables standalone signage playback — no external media player needed
  • Even 11.4 mm bezel on all sides — works seamlessly in both landscape and portrait orientations
  • Certified 24-7 operation with IP5X dust protection and conformal coating for long-term reliability
  • Built-in Wi-Fi and Bluetooth, wired LAN, 3x HDMI and DisplayPort for flexible connectivity
  • LG Shield five-layer security and SuperSign CMS compatibility for enterprise-grade content management
  • SKU:8806096654576
  • GTIN:8806096654576
  • MPN:49UH7Q-E

You need to login to view the price.

View full details
BRIGHTNESS700 nit (Typ.)Typical
RUNTIME24-724 h x 7 days
VESA MOUNT300 x 300 mmVESA
ORIENTAIONLands./PortraitMounting
BEZEL WIDTH11.4 mmAll sides

Slim Design 49" UHD Signage with webOS 8.0

LG 49UH7Q-E

The LG 49UH7Q-E is a 49-inch 4K UHD professional digital signage display built for demanding, always-on business environments — including retail stores, corporate lobbies, airports, and public information points. Its IPS panel delivers 700 nits of brightness and wide 178° viewing angles, keeping content sharp and vivid even under strong ambient lighting. Running LG's webOS 8.0 platform on a built-in high-performance SoC, the display operates as a fully standalone signage player without any external media device. The even 11.4 mm bezel on all four sides and slim 29.7 mm depth make it equally at home in portrait or landscape installations, while the hidden power inlet enables near-flush wall mounting for a clean, professional finish.

Standalone webOS 8.0 Smart Platform

Standalone webOS 8.0 Smart Platform

The 49UH7Q-E runs LG's webOS 8.0 directly on a built-in high-performance SoC (System on Chip), meaning it can schedule, play and manage content entirely on its own — no external media player, PC or set-top box required. The platform supports local content scheduling, USB Plug & Play, Play via URL, gapless playback, PIP and 4-way PBP. It also provides app development tools, webOS partner app integration, and compatibility with LG SuperSign Cloud, SuperSign CMS, SuperSign Control+ and Mobile CMS. For end users, this translates to a simpler infrastructure, fewer points of failure, and easy remote monitoring and control from a phone or PC anywhere on the network.

700-Nit Brightness for Bright Environments

700-Nit Brightness for Bright Environments

With a typical brightness of 700 nits, the 49UH7Q-E is well above standard commercial display brightness levels, making it clearly legible in brightly lit retail, hospitality or transportation settings where overhead lighting and daylight compete for viewer attention. The IPS panel adds a wide 178° horizontal and vertical viewing angle so content stays consistent in colour and contrast from virtually any position in front of the screen — critical in open-plan spaces where viewers approach from varying angles. The 28% haze anti-glare surface treatment further reduces specular reflections without introducing a milky appearance.

700 nits. 24-7 rated. webOS 8.0 built in.

IP5X dust protection · Conformal coating · 3-year manufacturer warranty

Even 11.4 mm Bezel — Portrait and Landscape Ready

Even 11.4 mm Bezel — Portrait and Landscape Ready

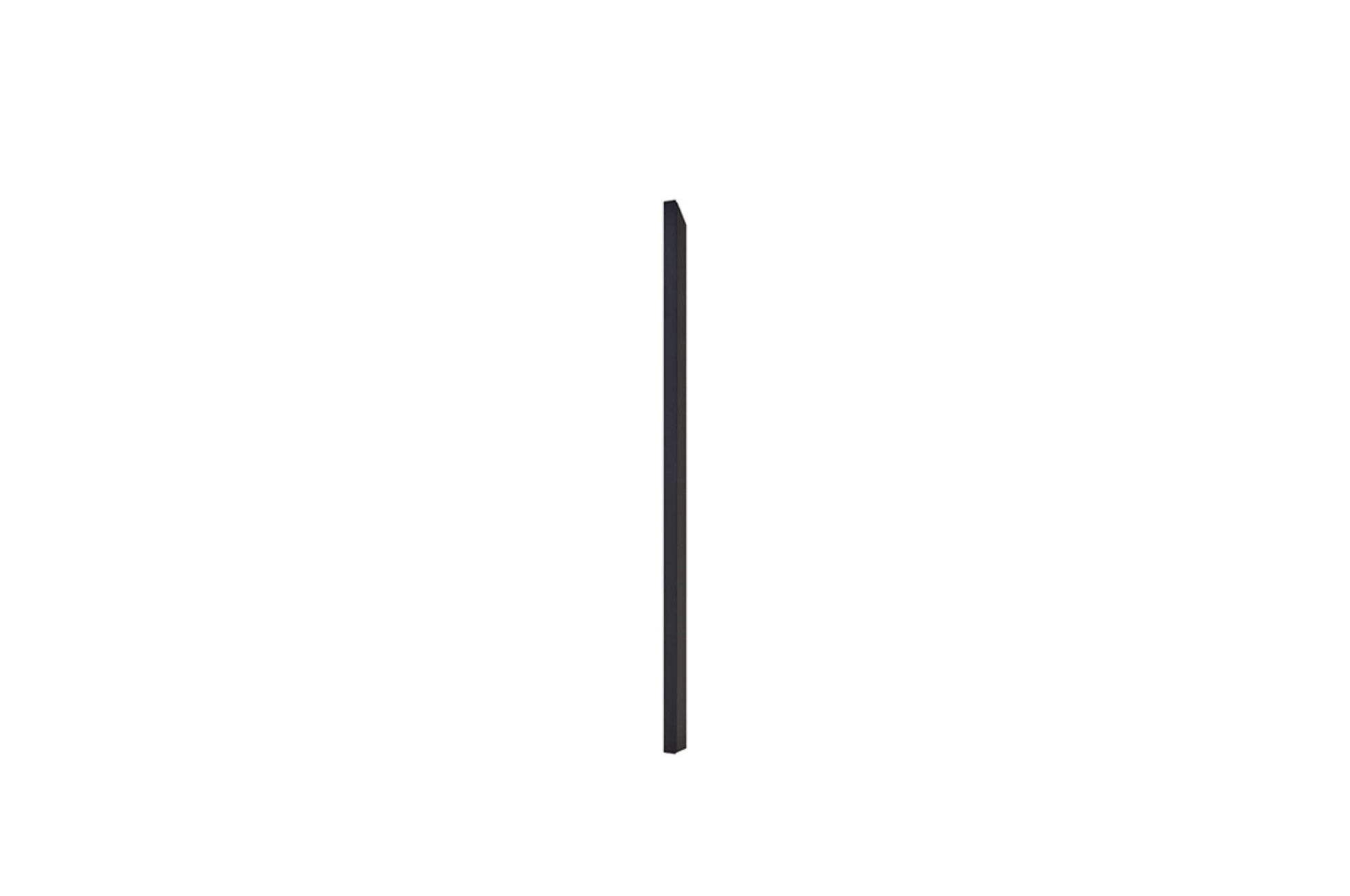

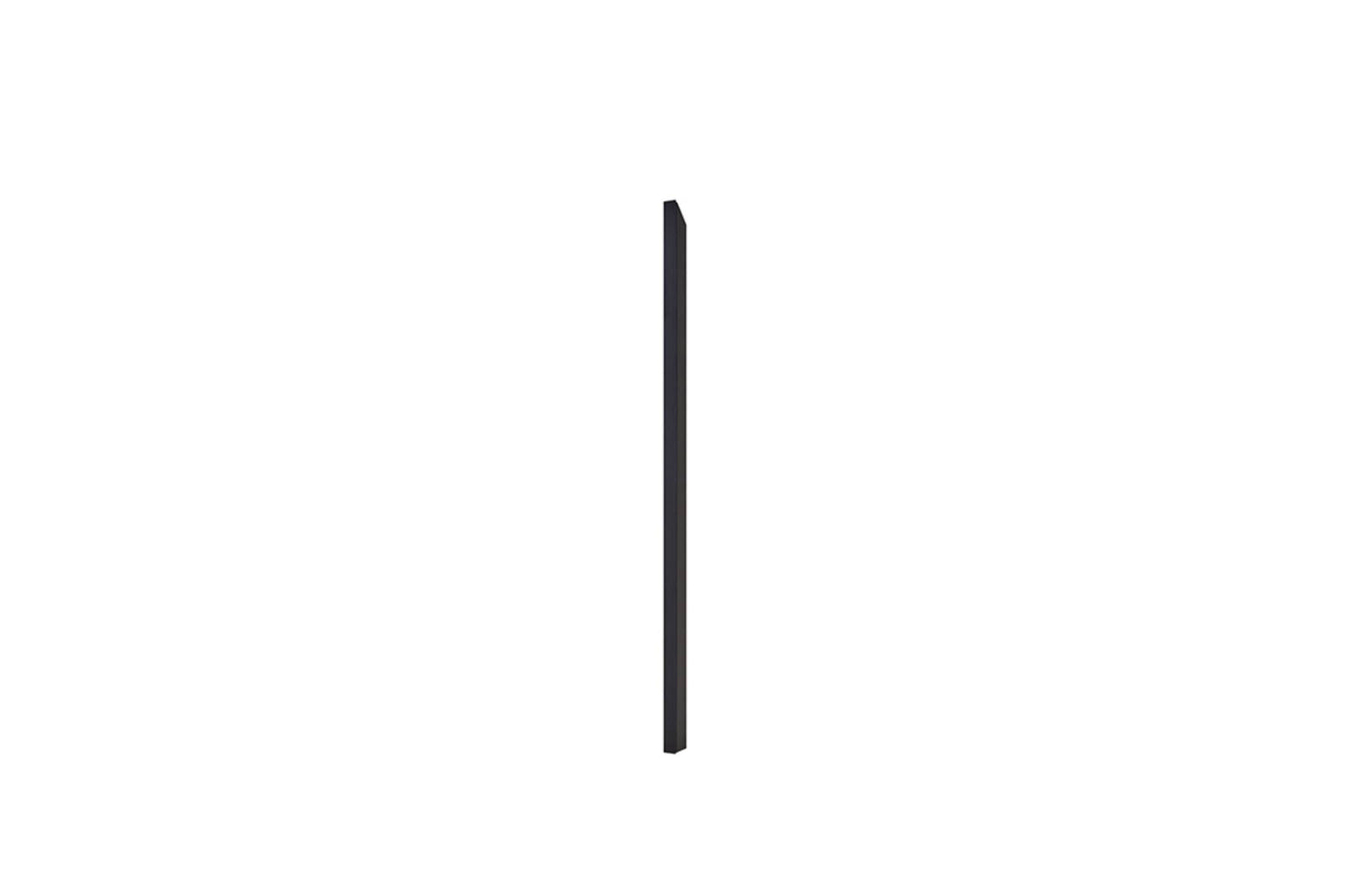

The UH7Q-E's uniform 11.4 mm bezel runs identically on all four sides of the panel. This is a meaningful design decision for installations that mix orientations or rotate screens: in portrait mode the top-to-bottom and side-to-side framing remains perfectly symmetrical, so the display looks intentional rather than improvised. The 29.7 mm slim depth and hidden power inlets allow installation just 13.5 mm from the wall when combined with LG's slim bracket — a genuine space-saver in tight retail or lobby fixtures. The built-in gyro (acceleration) sensor detects the physical orientation automatically, simplifying setup.

Certified 24-7 Operation with IP5X and Conformal Coating

Certified 24-7 Operation with IP5X and Conformal Coating

The 49UH7Q-E is rated for continuous 24-hours-a-day, 7-days-a-week operation with a panel lifetime of 50,000 hours minimum. For environments where downtime is costly — transport hubs, 24-hour retail, hotel lobbies — this is a foundational requirement. Beyond the operating hours rating, the display carries IP5X dust ingress protection and has conformal partial coating applied to the power board, shielding internal electronics against salt, humidity, dust and iron powder. A built-in shock monitoring feature alerts administrators via the media controller when the display receives a physical impact, enabling proactive maintenance before damage escalates.

LG Shield: Five-Layer Enterprise Security

LG Shield: Five-Layer Enterprise Security

LG Shield is a multi-tiered security architecture built into webOS Signage that goes significantly beyond OS-level hardening. It operates across five independent layers — hardware, system, operating system, application, and server — so a compromise at one layer does not cascade to others. The platform is also aligned with ETSI EN 303 645 (the IoT cybersecurity standard) and holds Cisco certification, making it easier to deploy in enterprise networks with strict security policies. For operators managing fleets of public-facing displays, this provides meaningful assurance that content and network credentials are protected against tampering.

Versatile Connectivity: Wired, Wireless and Serial

Versatile Connectivity: Wired, Wireless and Serial

The 49UH7Q-E provides a comprehensive connectivity matrix: 3x HDMI 2.0 (HDCP 2.2/1.4), 1x DisplayPort 1.4 (HDCP 2.2), RS-232C in and out, RJ45 LAN, IR input, and 2x USB 2.0 Type-A. Built-in Wi-Fi and Bluetooth remove the need for additional network adapters in wireless deployments. RS-232C sync and Local Network Sync allow multiple displays to be coordinated without a dedicated server. Wake on LAN and SNMP support ease fleet management in IT-managed environments. The dual USB ports allow simultaneous use — for example, running a presentation from USB storage while a mouse or keyboard is connected for interactive use.

Integrated 20W Stereo Speakers

Integrated 20W Stereo Speakers

Two built-in 10W speakers deliver stereo audio directly from the display, eliminating the need for a separate audio system in most retail or information-point installations. This keeps the installation clean, reduces cabling, and lowers overall system cost. For deployments where higher audio output is needed — larger spaces or background music zones — an external speaker output is also available on the connectivity panel.

Display23 specifications
Display diagonal124.5 cm (49")
Native resolution3840 x 2160 (4K UHD)
Panel technologyIPS
Backlight typeEdge
Aspect ratio16:9
Refresh rate60 Hz
Brightness700 nit (Typ.)
Contrast ratio1,100 : 1 (Typ.)
Dynamic contrast ratio1,000,000 : 1
Color gamutBT709 95%
Viewing angle (H x V)178 × 178
Color depth10 bits (D), 1.07 Billion Colors
Response timeTr : 8 ms / Tf : 10 ms (Typ.)
Surface treatment (haze)28% (Typ.)
Display surfaceMatt
Panel lifetime (min.)50,000 h
Operation hours24/7
OrientationLandscape / Portrait
TransparencyNo
BacklightWhite LED
Screen size49" (124.5 cm)
Brightness (typ.)700 cd/m²
Portrait / landscapeYes / Yes
Ports & interfaces18 specifications
HDMI inputs3 (3,840 × 2,160 @ 60 Hz, HDCP 2.2/1.4)
DisplayPort inputs1 (3,840 × 2,160 @ 60 Hz, HDCP 2.2/1.4)
DVI-D inputNo
RGB inputNo
Audio inputNo
RS-232C inputYes (4 Pin Phone-Jack)
RJ45 (LAN) inputYes (1)
IR inputYes (5 Pin Phone-Jack / support internal IR)
USB inputsUSB 2.0 Type A (2)
HDMI outputNo
DisplayPort outputNo
Audio outputYes
RS-232C outputYes (4 Pin Phone-Jack)
RJ45 (LAN) outputNo
IR outputNo
Daisy chainNo
Touch USBNo
External speaker outNo
Audio1 specification
Built-in speakersYes (10 W x 2)
Design7 specifications
Bezel colorBlack
Bezel width11.4 mm (Even)
HandleNo
Built-in fanNo
Kensington lock slotYes
Product colourBlack
Power indicatorNo
Computer system8 specifications
Operating systemwebOS 8.0
Internal memory (eMMC)16 GB
System on chip (SoC)Yes
Temperature sensorYes
Auto brightness sensorYes (IR/Light Sensor Receiver)
Acceleration (gyro) sensorYes
Local key operationYes
Pixel / proximity / humidity sensorNo
Network5 specifications
Wi-Fi / BluetoothBuilt-in
Wake on LANYes
Network ReadyYes
SNMPYes
Status mailingYes
Power12 specifications
Power supplyAC 100-240V~, 50/60 Hz
Power typeBuilt-in power
Power consumption (typ.)87 W
Power consumption (max.)131 W
Smart energy saving (70%)61 W
DPM0.5 W
Power off0.5 W
Heat dissipation297 BTU/h (typ.), 448 BTU/h (max.)
Energy efficiency classG
Energy efficiency class rangeA - G
Energy consumption87 kWh / 1000 h
EPREL ID2583506
Weight & dimensions3 specifications
Dimensions (W x H x D)1104.3 x 635.5 x 29.7 mm
Weight (head)11.4 kg
VESA mount300 x 300 mm
Packaging data2 specifications
Packed weight14.2 kg
Carton dimensions (W x H x D)1215.0 x 742.0 x 142.0 mm
Packaging content3 specifications
Included accessoriesRemote controller (incl. 2 batteries), power cord, QSG, regulation book, phone to RS-232C gender, IR/light sensor receiver (EU/EK only), magnetic sheet (2 ea, EU/EK only)
Optional accessoriesSlim Wall Mount (WB21LMA/B), Normal Wall Mount (OLW480A/B), IR/Light Sensor Receiver (ACC-L)
Cable holderCable Holder (For Power Cord)
Operational conditions3 specifications
Operating temperature0 – 40 °C
Operating humidity10 – 80 %
Tilt (face down)Max. 15° (at 40 °C)
Certificates4 specifications
SafetyCB / NRTL
EMCFCC Class "B" / CE / KC
ErP / Energy StarYes / Yes
ePEAT (US only)Yes
Other features12 specifications
IP ratingIP5X
Conformal coating (power board)Yes (Partial Space Coating)
SecurityLG Shield (five-tier)
ETSI EN 303 645 supportSupported (webOS platform)
Shock monitoringYes
Tile mode settingYes (Max. 15 × 15)
Software featuresLocal Contents Scheduling, Group Manager, USB Plug & Play, Fail over, Booting Logo/No Signal Image, RS-232C Sync, Local Network Sync, PIP, PBP (4), Screen Share, Video Tag (4), Play via URL, Screen Rotation, Gapless Playback, Tile Mode, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Wake on LAN, Beacon, HDMI-CEC, webRTC, Pro:Idiom
Software compatibilitySuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare
Third-party compatibilityCrestron Connected
OPS compatibilityNo
OSD languagesEnglish, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski
EAN8806096654576
