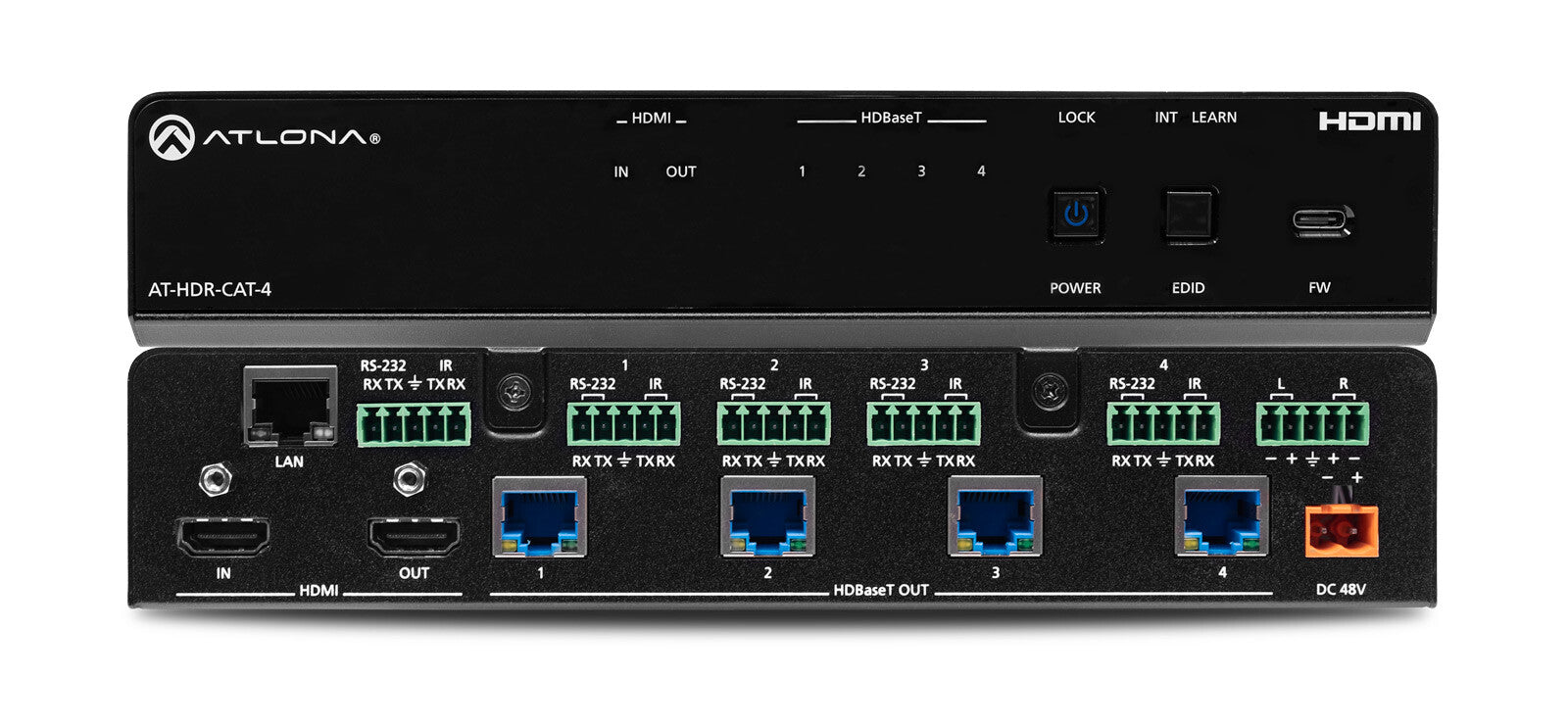

Atlona AT-HDR-CAT-4

Atlona AT-HDR-CAT-4

Four-Output 4K HDR HDBaseT Distribution Amplifier, HDR10, HLG, and Dolby Vision

  • One HDMI input and four HDBaseT outputs
  • Extend 4K/60 4:4:4 up to 130’ (40 m)
  • Supports HDR10, HLG, and Dolby Vision
  • Pass-through HDMI output
  • CEC display control on each output
  • Audio de-embedding with volume control
  • Also available with 2 outputs, 8 outputs, or 4 extended distance outputs
  • SKU:846352007300
  • GTIN/EAN:846352007300
  • MPN:AT-HDR-CAT-4

You need to login to view the price.

View full details

Atlona AT-HDR-CAT-4. Maximum resolution: 4096 x 2160 pixels, Ethernet LAN data rates: 10,100 Mbit/s, Audio formats supported: DTS, LPCM, PCM. Housing colour: Black, Certification: CE, RoHS, FCC CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC. USB connector type: USB Type-C. Power consumption (max): 70.6 W, AC input voltage: 100 – 240, AC input frequency: 50/60 Hz. Width: 219.5 mm, Depth: 254 mm, Height: 44 mm

Long Distance HDBaseT Distribution
Send a single HDMI source to four displays at distances up to 130′ (40 m) for video distribution applications including hospitality and retail, commercial reception areas or warehouses, and educational AV systems that require multiple screens.

4K HDR Support
Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats for very high, pristine image quality.

Sophisticated Integration Capabilities

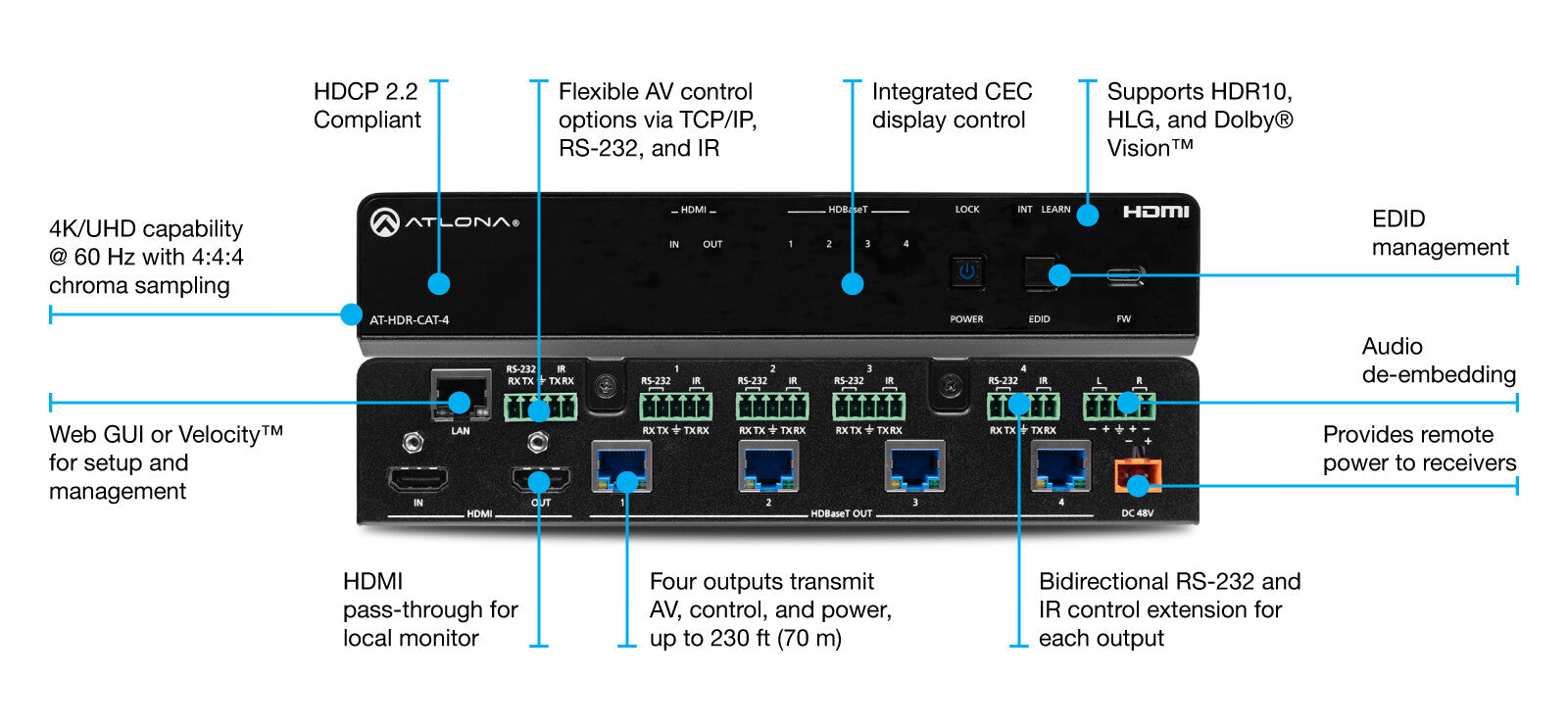

Features and capabilities designed to ease integration in commercial AV distribution applications include HDMI signal pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing.

Features
Maximum resolution
4096 x 2160 pixels
Audio channels
2
HDCP
Yes
HDCP version
2.2
High Dynamic Range (HDR) supported
Yes
Ethernet LAN data rates
10,100 Mbit/s
Audio formats supported
DTS, LPCM, PCM
Supported chroma subsampling
4:2:2, 4:4:4, 4:2:0
Supported resolutions
4096×2160 (DCI) @ 24/25/30/50/60 Hz3840×2160 (UHD) @ 24/25/30/50/60 Hz1920x1080p @ 23.97/24/25/29.97/30/50/60 Hz1920x1080i @ 50/60 Hz1280x720p @ 30/50/60 Hz720x576p @ 50 Hz720x576i @ 25/50 Hz720x480p @ 60 Hz640x480p @ 60 Hz
Design
Housing colour
Black
LED indicators
Yes
Certification
CE, RoHS, FCCCE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC
Display
Built-in display
No
Ports & interfaces
HDMI input ports quantity
1
HDMI output ports quantity
1
RJ-45 output ports
4
USB connector type
USB Type-C
USB ports quantity
1
Ethernet LAN (RJ-45) ports
1
RS-232 ports
5
DC-in jack
Yes
Power
Power consumption (max)
70.6 W
AC input voltage
100 – 240
AC input frequency
50/60 Hz
Output voltage
48 V
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Heat dissipation
36.2 BTU/h
Weight & dimensions
Width
219.5 mm
Depth
254 mm
Height
44 mm
Weight
1.7 kg
