Atlona Rondo 442

Atlona Rondo 442

4K HDR Two-Output HDMI Distribution Amplifier, 4096 × 2160, YUV, RGB

  • 1×2 HDMI® distribution amplifier
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
  • HDCP 2.2 compliant
  • EDID management
  • Supports cascading up to eight units
  • SKU:846352004941
  • GTIN/EAN:846352004941
  • MPN:AT-RON-442
Add To Favorite

You need to login to view the price.

View full details

Atlona Rondo 442. Converter type: Active video converter, Product colour: Black, Certification: CE, FCC. Maximum video resolution: 4096 x 2160 pixels, Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, Colour depth: 12 bit. Host interface: HDMI, Output interface: HDMI, Video in: HDMI. Input voltage: 100 - 240 V, Input frequency: 50 - 60 Hz, Operating voltage: 5 V. Width: 109 mm, Depth: 89 mm, Height: 26 mm

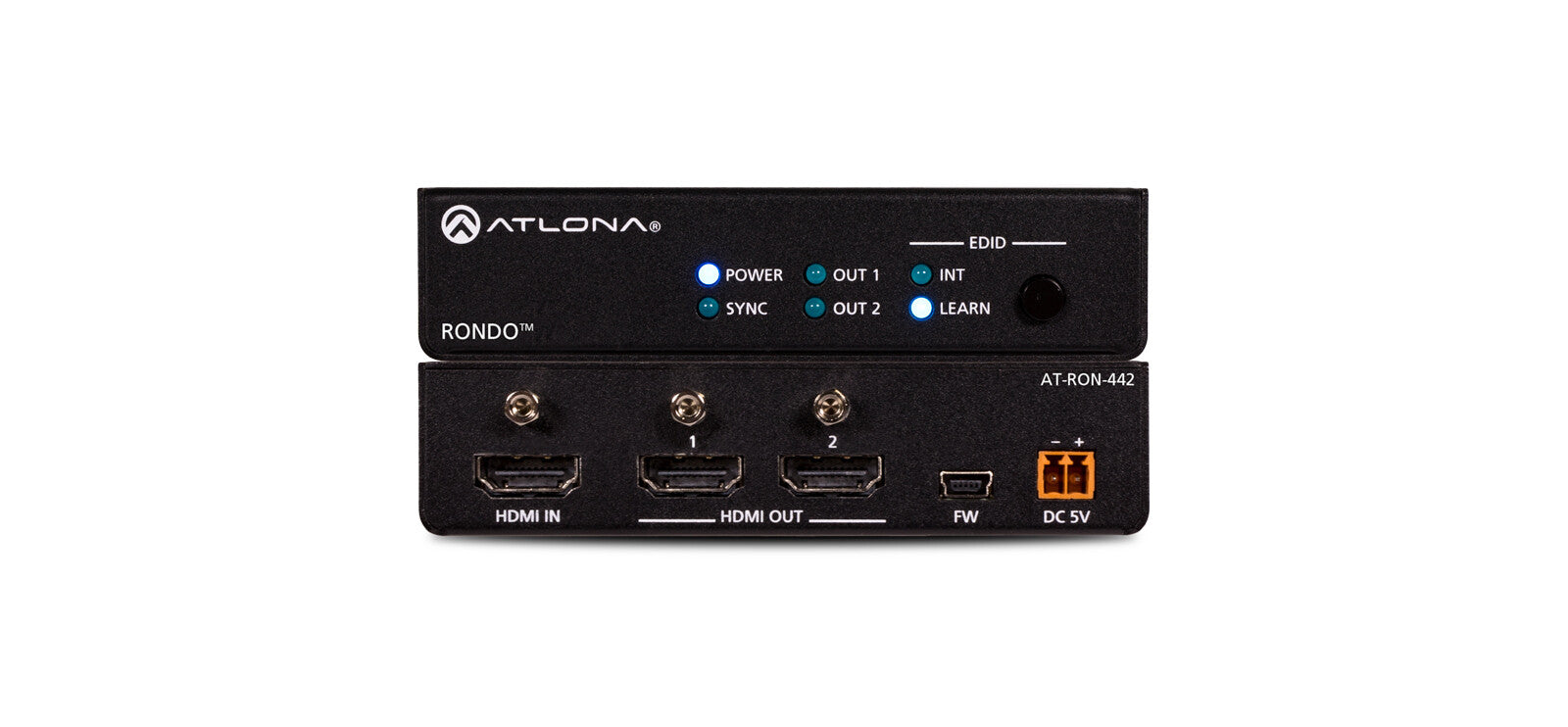

The Atlona Rondo™ 442 (AT-RON-442) is a 1×2 HDMI distribution amplifier for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The Rondo 442 is ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0a specification, plus the ability to pass metadata for HDR content. This Rondo Series HDMI distribution amplifier includes EDID management features, front panel LED indicators for power and signal status, and the capability to cascade several units without compromising performance.

The Rondo 442 is designed to deliver dependable, pristine-quality image presentations in commercial and residential applications. It includes Atlona’s award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.

Features
Certification
CE, FCC
Product colour
Black
Converter type
Active video converter
Video
HDCP
Yes
Bandwidth
18 Gbit/s
Colour depth
12 bit
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Maximum video resolution
4096 x 2160 pixels
Ports & interfaces
Video in
HDMI
Video out
HDMI
Output interface
HDMI
Host interface
HDMI
Power
Power consumption (typical)
6 W
Operating voltage
5 V
Input voltage
100 - 240 V
Input frequency
50 - 60 Hz
Operational conditions
Operating relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Weight
200 g
Height
26 mm
Depth
89 mm
Width
109 mm
Packaging data
Quantity
1
Other features
Supported resolutions
4096×2160, 3840×2160, 2048×1080
Logistics data
Harmonized System (HS) code
85176990
