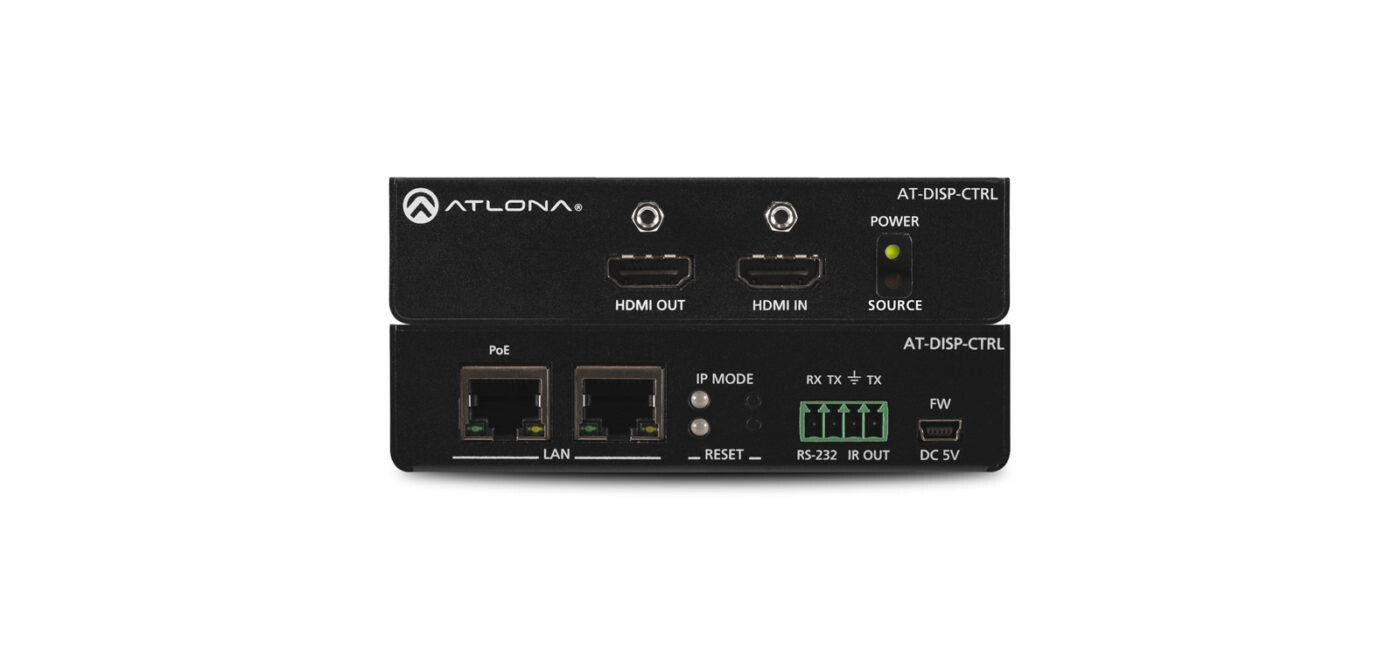

Atlona AT-DISP-CTRL
Atlona AT-DISP-CTRL
HDMI, HDCP, 4K
- Automatically changes display power state based on HDMI device connection or disconnection. Control signals to display are transmitted via IP, RS-232, IR, or CEC
- Enables display, volume control, and input selection
- Avoids the need for a handheld remote control which may be misplaced or non-functional
- SKU:846352006310
- GTIN/EAN:846352006310
- MPN:AT-DISP-CTRL
Atlona AT-DISP-CTRL. Housing colour: Black. Connected load: 5.3 W, AC input voltage: 5 V, Current: 0.5 A. Width: 109 mm, Depth: 89 mm, Height: 26 mm
The Atlona AT-DISP-CTRL is a compact display controller, designed for small meeting spaces and huddle rooms. The DISP-CTRL detects connection of a source device with an active signal, and then automatically sends a control command to power up a display. Similarly, when the device is disconnected, the DISP-CTRL delivers a command to power down the display. The DISP-CTRL can be configured to deliver pre-stored or user-programmed display control commands through TCP/IP, RS-232, IR, or CEC. Additionally, this controller includes EDID and HDCP management features, and can be powered locally or through Power over Ethernet (PoE). The DISP-CTRL is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI® data rates up to 18 Gbps.
