Atlona UHD-EX-100CE-RX

Atlona UHD-EX-100CE-RX

4K/UHD HDMI Over 100 M HDBaseT Receiver with Ethernet, Control, and PoE, CAT5e/6/6a/7, HDMI, 10.2 Gbps, HDCP 2.2, 27x119x89 mm

  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
  • HDCP 2.2 compliant
  • Supports 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
  • HDBaseTTM receiver for HDMI®, Ethernet, power, and control up to 330 feet (100 meters)
  • Remotely powered via PoE (Power over Ethernet)
  • Receives RS-232, IR, CEC, and Ethernet control signals over HDBaseT
  • Multi-channel audio compliant for all PCM, Dolby®, and DTS® formats
  • SKU:846352004439
  • GTIN/EAN:846352004439
  • MPN:AT-UHD-EX-100CE-RX

You need to login to view the price.

View full details

Atlona UHD-EX-100CE-RX. Type: AV receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a, Cat7. Connectivity technology: Wired. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Output current: 0.83 A. Width: 119 mm, Depth: 89 mm, Height: 27 mm

The AT-UHD-EX-100CE-RX is part of the Atlona UHD-EX Series of HDBaseT extenders. See below for a complete listing of transmitters, receivers, and extender kits.

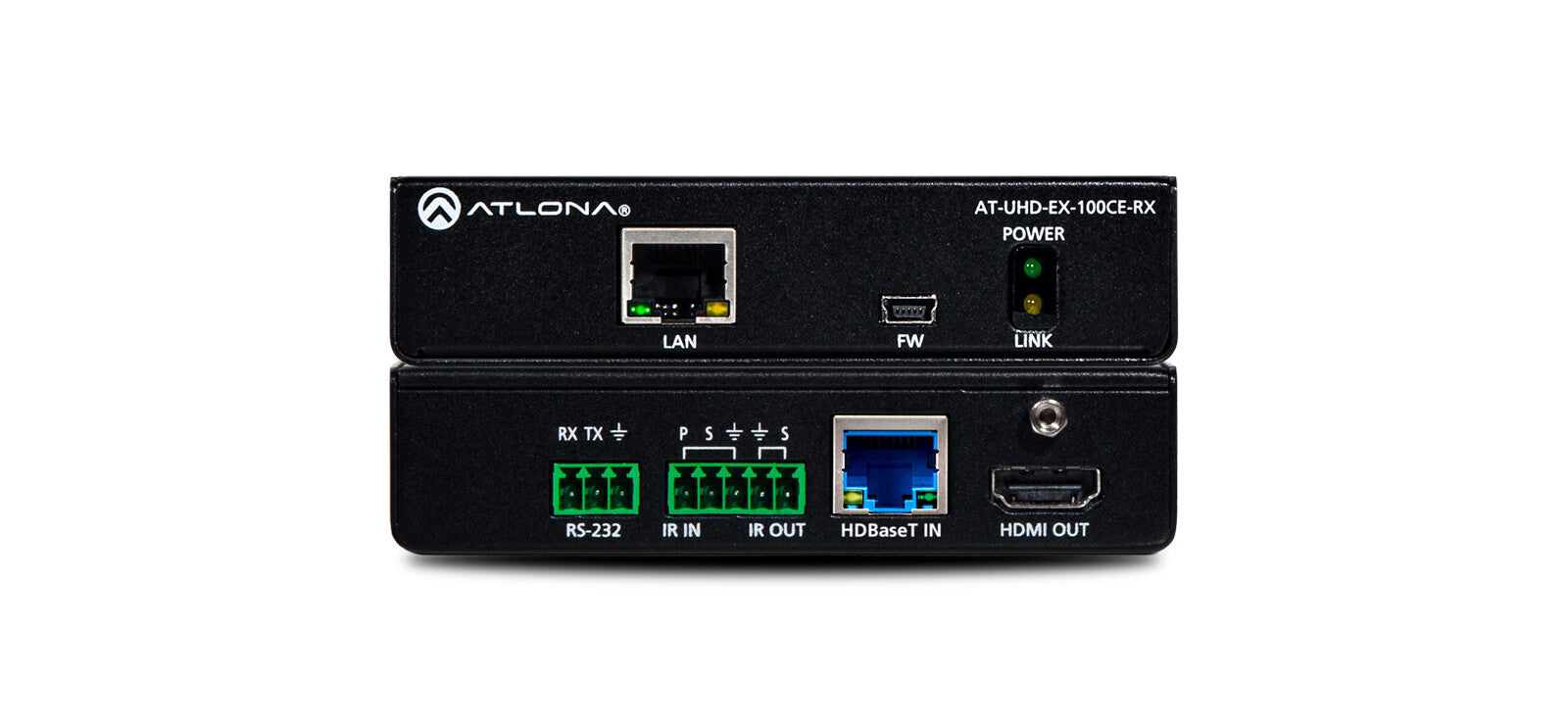

The Atlona AT-UHD-EX-100CE-RX is a 4K/UHD HDMI over 100M HDBaseT receiver for AV signals up to 330 feet (100 meters) over category cable with Ethernet pass through, RS-232 and IR control, plus Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power for the receiver. The AT-UHD-EX-100CE-RX is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter rack width metal enclosure for installation with rear panel I/O ports for uncluttered wire management. Use with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system control.

This receiver is used in commercial and applications that call for an HDBaseT receiver with a compact form factor that allows for simple mounting behind displays and at projectors. These applications will not require an AC outlet for the receiver, since the receiver is powered by the Atlona switching product. This receiver will also be used to simplify control of the AV system by working with 12 volt-based IR receivers as well as passing through Ethernet and RS-232 commands.

Features
Type
AV receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a, Cat7
Maximum transfer distance
100 m
Maximum refresh rate
60 Hz
Bandwidth
10.2 Gbit/s
Colour depth
12 bit
HDCP
Yes
Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1080, 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 2560 x 2048, 3840 x 2160, 4096 x 2160
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Product colour
Black
Certification
CE, FCC
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN
Yes
RJ-45 input ports
1
HDBaseT port
Yes
Number of HDMI outputs
1
RS-232 input ports
1
Remote (IR) output
1
Remote (IR) input
1
Power
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Operating voltage (receiver)
48 V
Output current
0.83 A
Power consumption (typical)
12 W
Operational conditions
Operating relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Width
119 mm
Depth
89 mm
Height
27 mm
Weight
390 g
Technical details
Colour
Yes
