Atlona AT-UHD-EX-70C-RX

Atlona AT-UHD-EX-70C-RX

4K/UHD HDMI Over HDBaseT Receiver with Control and PoE, CAT5e/6/6a/7, HDMI, 10.2 Gbps, HDCP 2.2, 25x109x89 mm

  • AV receiver 4096 x 2160 pixels Black
  • Maximum transfer distance: 70 m
  • 60 Hz
  • HDCP
  • Wired Ethernet LAN
  • 7.19 W
  • SKU:846352004507
  • GTIN/EAN:846352004507
  • MPN:AT-UHD-EX-70C-RX

You need to login to view the price.

View full details

Atlona AT-UHD-EX-70C-RX. Type: AV receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a, Cat7. Connectivity technology: Wired, USB connector type: Mini-USB B. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Power consumption (typical): 7.19 W. Width: 109 mm, Depth: 89 mm, Height: 25 mm

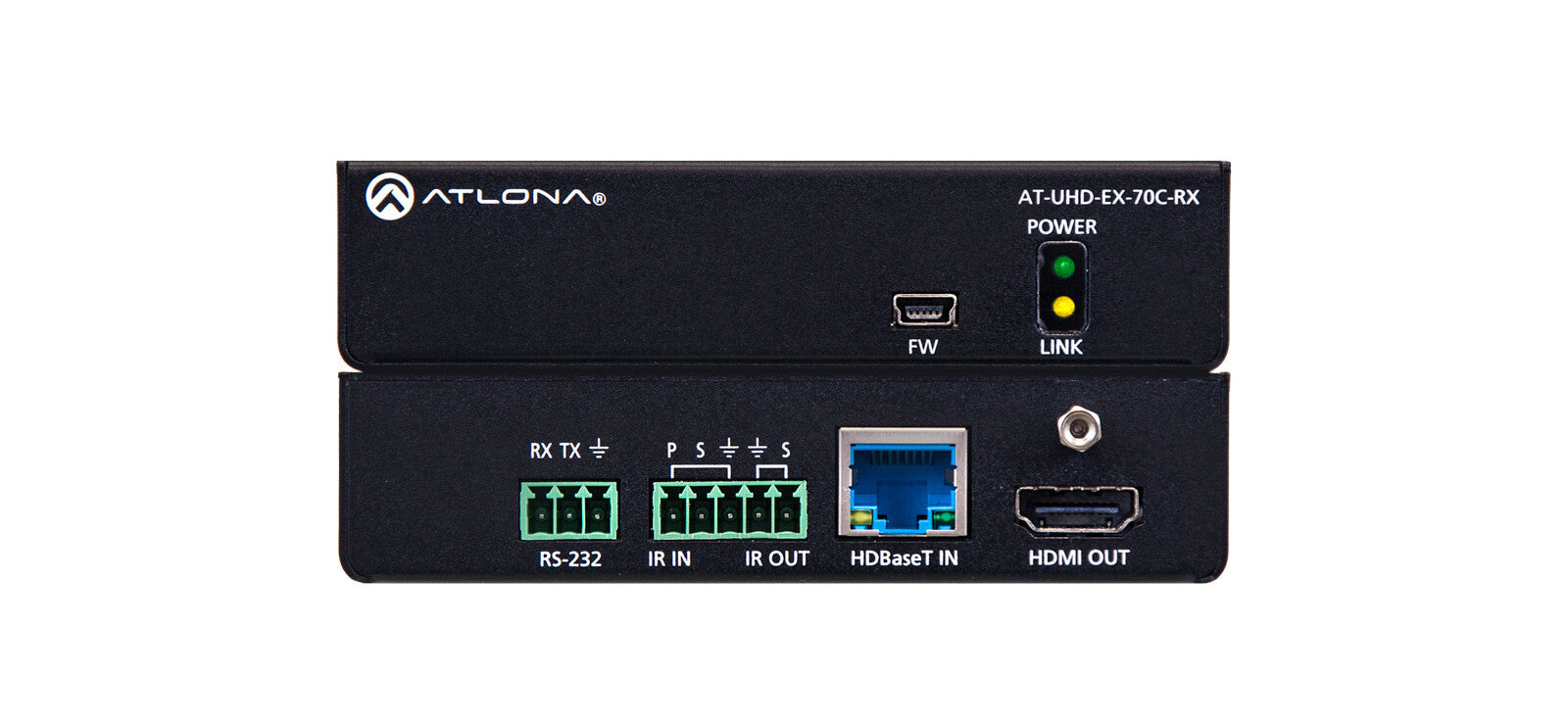

The Atlona AT-UHD-EX-70C-RX is an HDBaseT receiver for AV signals up to 230 feet (70 meters) over category cable with RS-232 and IR control plus Power over Ethernet capability. It is compatible with video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V Power over Ethernet. The AT-UHD-EX-70C-RX is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter rack width metal enclosure for easy installation with rear panel I/O ports for uncluttered wire management. Use with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system control.

This receiver is used in commercial and applications that call for an HDBaseT receiver with a compact form factor that allows for simple mounting behind displays and at projectors. These applications will not require an AC outlet for the receiver, since the receiver is powered by an Atlona switching product. This receiver will also be used to simplify control of the AV system by working with 12 volt-based IR receivers as well as passing through RS-232 commands.

Features
Type
AV receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a, Cat7
Maximum transfer distance
70 m
Maximum refresh rate
60 Hz
Bandwidth
10.2 Gbit/s
Colour depth
12 bit
HDCP
Yes
Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1080, 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 2560 x 2048, 3840 x 2160, 4096 x 2160
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Product colour
Black
Certification
CE, FCC
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN
Yes
HDBaseT port
Yes
Number of HDMI outputs
1
USB connector type
Mini-USB B
RS-232 output ports
1
Remote (IR) output
1
Remote (IR) input
1
Power
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
7.19 W
Operational conditions
Operating relative humidity (H-H)
20 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Width
109 mm
Depth
89 mm
Height
25 mm
Weight
330 g
Technical details
Colour
Yes
