KD-VW4X4Pro

KD-VW4X4Pro

  • 4 HDMI/Analog sources to 4 HDMI outputs
  • Key Digital® app ready
  • Bandwidth: TMDS bandwidth 4.95 Gb/s
  • DDC Communication: EDID and HDCP Bi-directional Transparency from Display to Source
  • SKU:IM3_KD-VW4X4PRO
  • GTIN/EAN:819505002941
  • MPN:KD-VW4X4Pro
Add To Favorite

You need to login to view the price.

View full details

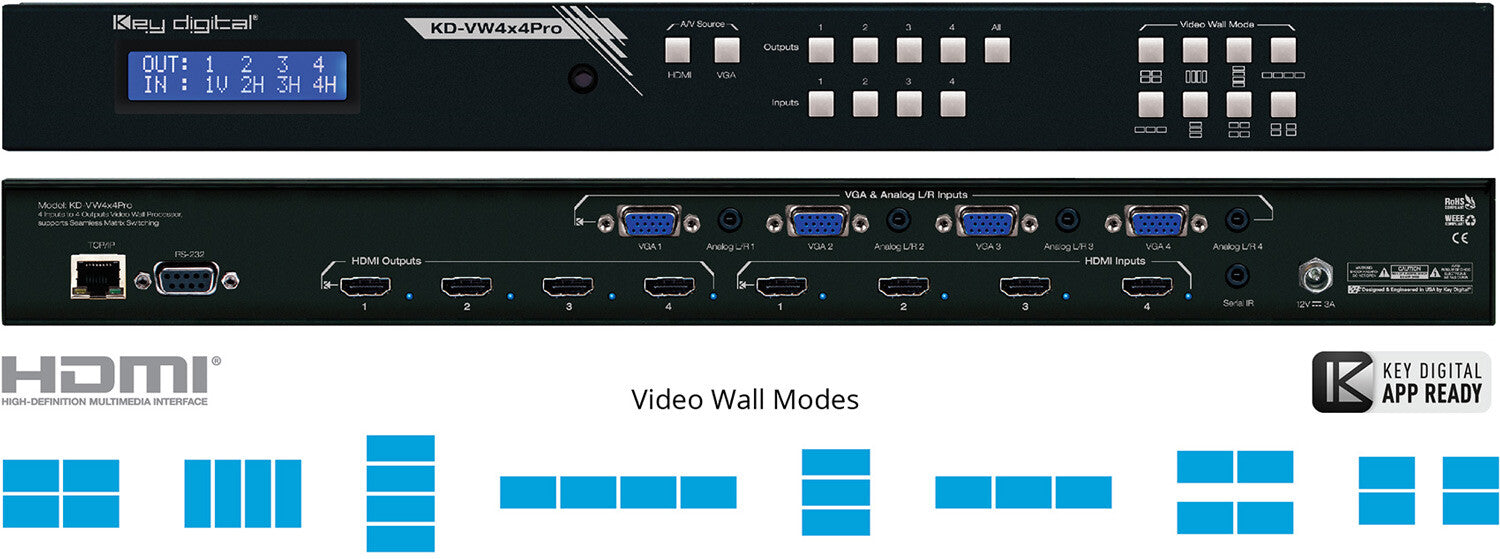

  • HDMI Matrix Switching: 4 HDMI/Analog sources to 4 HDMI outputs, independent when in matrix mode
  • Seamless Switching: Un-interrupted screen transitions during source selections
  • Video Wall Processing: Transform consumer and professional displays into a video wall with eight video wall modes
    • Horizontal (4): 1x4 Rotated, 1x4, 1x3, and two sets of 1x2
    • Vertical (3): 4x1, 3x1, and two sets of 2x1
    • 2x2
  • Panel Flip: Enables use of consumer displays by mounting top row upside down
  • Bezel Control: Create a fluid screen transition by removing pixels from top, bottom, left, and right border independently
  • EDID: Internal library with 5 default EDID configurations for each input, in addition to native EDID data for any Output/Display
  • Full Buffer™ Technology: Full buffering of HDCP and EDID, for the fastest possible switching and viewing of any source/input to any display/output, regardless of multiple output viewing relation
  • TMDS re-clocking: Support for long HDBaseT/CAT5e/6 or HDMI connections and many layers of connectivity.
  • Deep Color Support: Up to 12 bits/color
  • Control: Front panel buttons, Serial IR, Optical IR, RS-232, and TCP-IP, including video wall mode select, matrix switching, EDID Control and discrete on and off via IR
  • Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

  • Key Digital App ReadyKey Digital® App Ready: Can be controlled over TCP/IP
    • Design
    Product colour
    Black
    Ports & interfaces
    HDMI input ports quantity
    4
