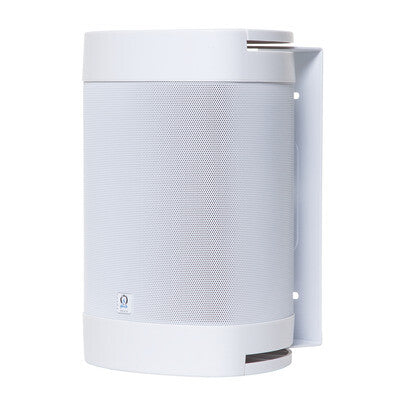

Origin Acoustics OS54W

The Origin Acoustics OS54W is a 2-way outdoor on-wall loudspeaker from the Seasons Collection, designed for decks, patios, poolsides, and garden spaces where both sound quality and weather resistance are non-negotiable. Sold individually and finished in white, it fits seamlessly into residential and light commercial outdoor audio projects. The triangular HDPE enclosure houses a 5.25" IMG woofer and a 1" aluminum dome tweeter firing forward, with dual passive radiators firing out the back sides — delivering genuine low-end weight and high volume levels that can fill large outdoor areas without distortion. With 8 ohm impedance and 5–70 W power handling, it integrates cleanly with virtually any standard amplifier or multi-zone system.

Passive Radiator Bass Architecture

The OS54W uses a triangular cabinet where the active 5.25" IMG woofer and tweeter fire forward toward the listener, while two passive radiators fire off the back two sides of the enclosure. Passive radiators act like tuned ports but without a hole in the cabinet — they move air in sympathy with the woofer to extend bass response well below what a simple sealed enclosure of the same size could achieve. In practice this means listeners in a garden, on a deck, or around a pool experience real low-end weight and higher achievable SPL without needing a dedicated subwoofer for background-level and moderate-volume outdoor music. The sealed main cavity also means no port noise or wind chuffing — a common nuisance with ported outdoor speakers.

X-Wave Surround for Lower Distortion

Origin Acoustics fits the woofer with their proprietary X-Wave surround — a suspension ring engineered to absorb unwanted resonant frequencies that would otherwise reflect up and down the cone. These reflections cause harmonic distortion that colors the sound and makes music fatiguing at higher volumes. By damping those reflections at the surround, the OS54W maintains cleaner, more linear cone travel, which translates to cleaner sound at the volume levels typically needed outdoors. For end users playing music for a party or ambient background audio on a deck, this means the system stays controlled and musical even when pushed harder than typical indoor speakers.

Forward-firing drivers. Side-firing passives. Full outdoor sound.

Limited Lifetime Warranty · Sold individually · Available in black (OS54B) or white (OS54W)

Flexible Orientation and Aiming

The OS54W can be mounted vertically or horizontally, and the pivoting bracket lets the installer fine-tune the aiming direction by loosening the top and bottom knobs and rotating the speaker body to face the desired listening zone. This is a practical advantage in real outdoor installs where walls, overhangs, or structural constraints often prevent placing the speaker in the ideal default orientation. The installation manual also notes the logo can be rotated when horizontal so the branding reads correctly from any mounting position — a small but appreciated detail on a visible outdoor fixture. The included template simplifies marking and drilling, keeping installs clean and repeatable.

Weather-Resistant Build for Permanent Outdoor Installation

The enclosure is molded from HDPE (high-density polyethylene) — the same material used in outdoor furniture and marine applications — chosen for its resistance to UV degradation, moisture, and temperature cycling. The grille is powder-coated aluminum, which handles rain and humidity far better than painted plastic alternatives. Together these materials are designed for permanent, year-round outdoor installation rather than seasonal setup and takedown. The white OS54W finish is UV-stabilized to resist yellowing over time. This build quality reduces the risk of premature failure in exposed locations and lowers maintenance overhead — important for residential multi-zone installs where replacing a single speaker requires revisiting the whole install.

Compression-Molded IMG Woofer Basket

The woofer basket is computer-designed and compression-molded from Injection-Molded Graphite (IMG) composite — a process that produces precisely shaped, highly rigid support structures with complex internal venting geometries that would be impossible to achieve with stamped metal or basic injection-molded plastic. The result is a basket that holds the woofer cone and surround in exact alignment under all operating conditions, minimising voice coil rub and long-term performance degradation. For end users this means the speaker maintains its specified performance characteristics over years of outdoor use, not just during initial installation.
