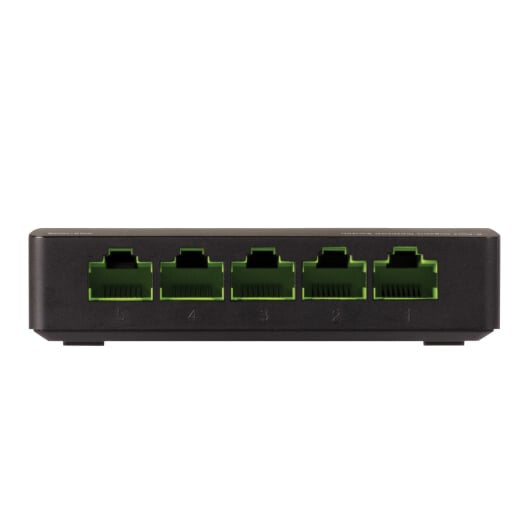

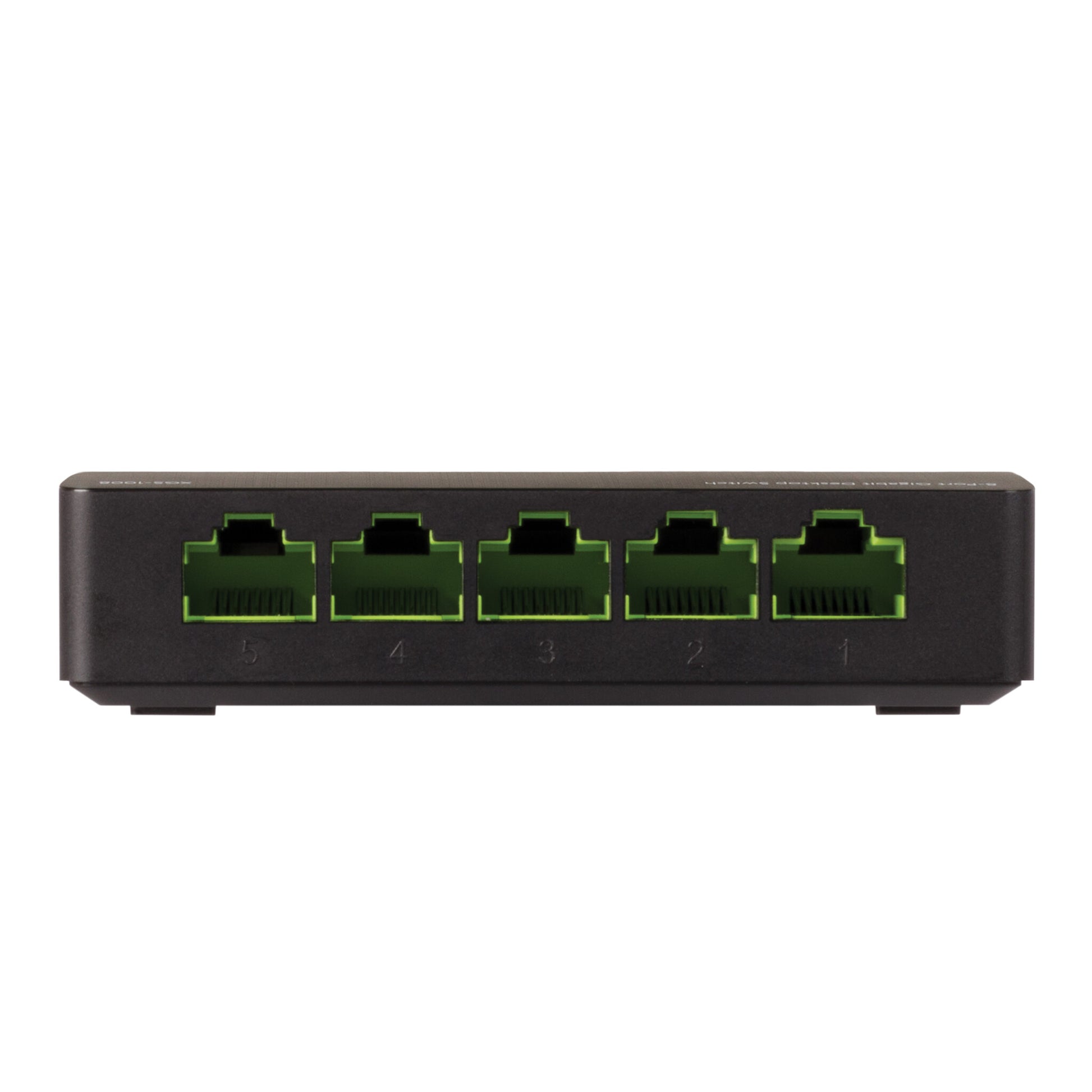

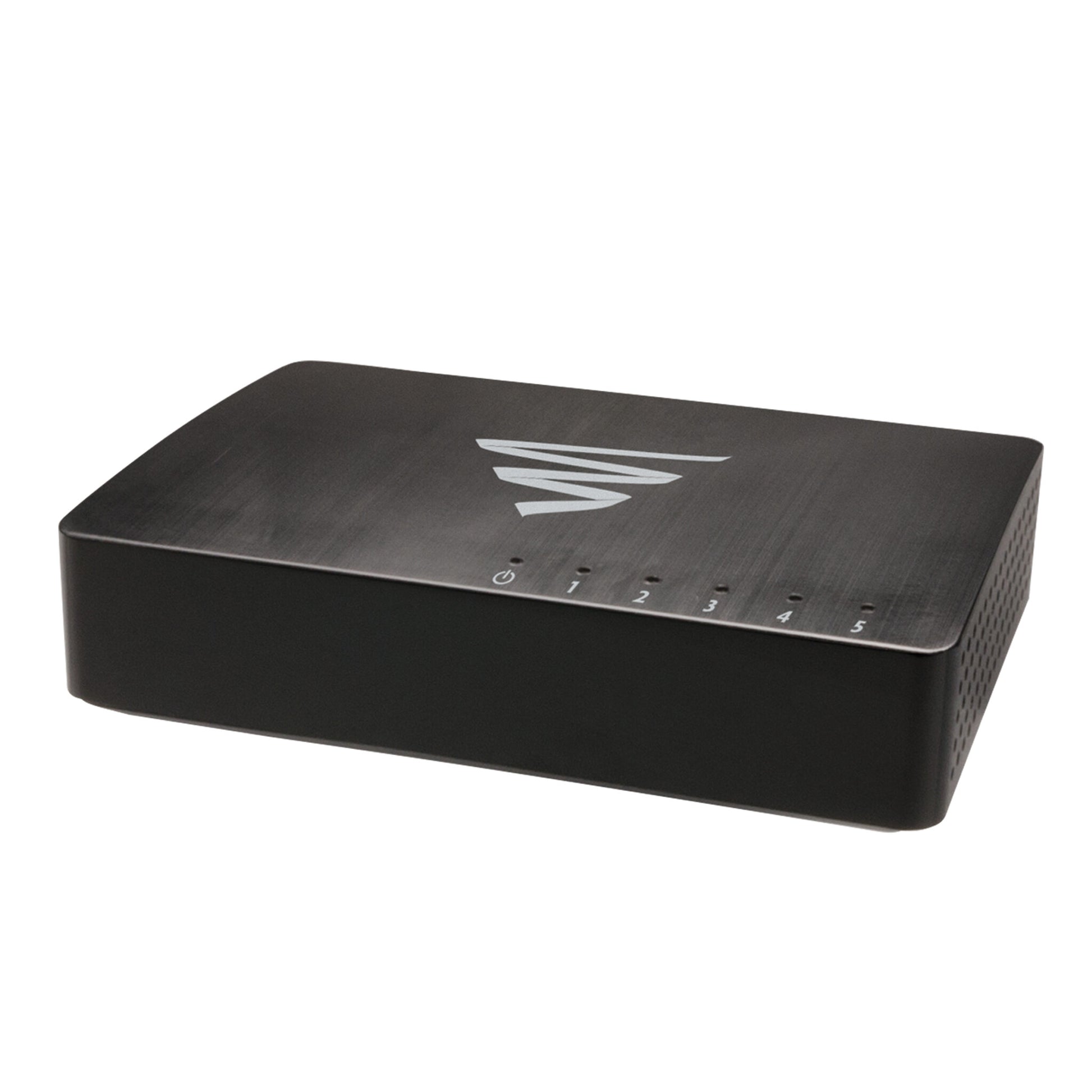

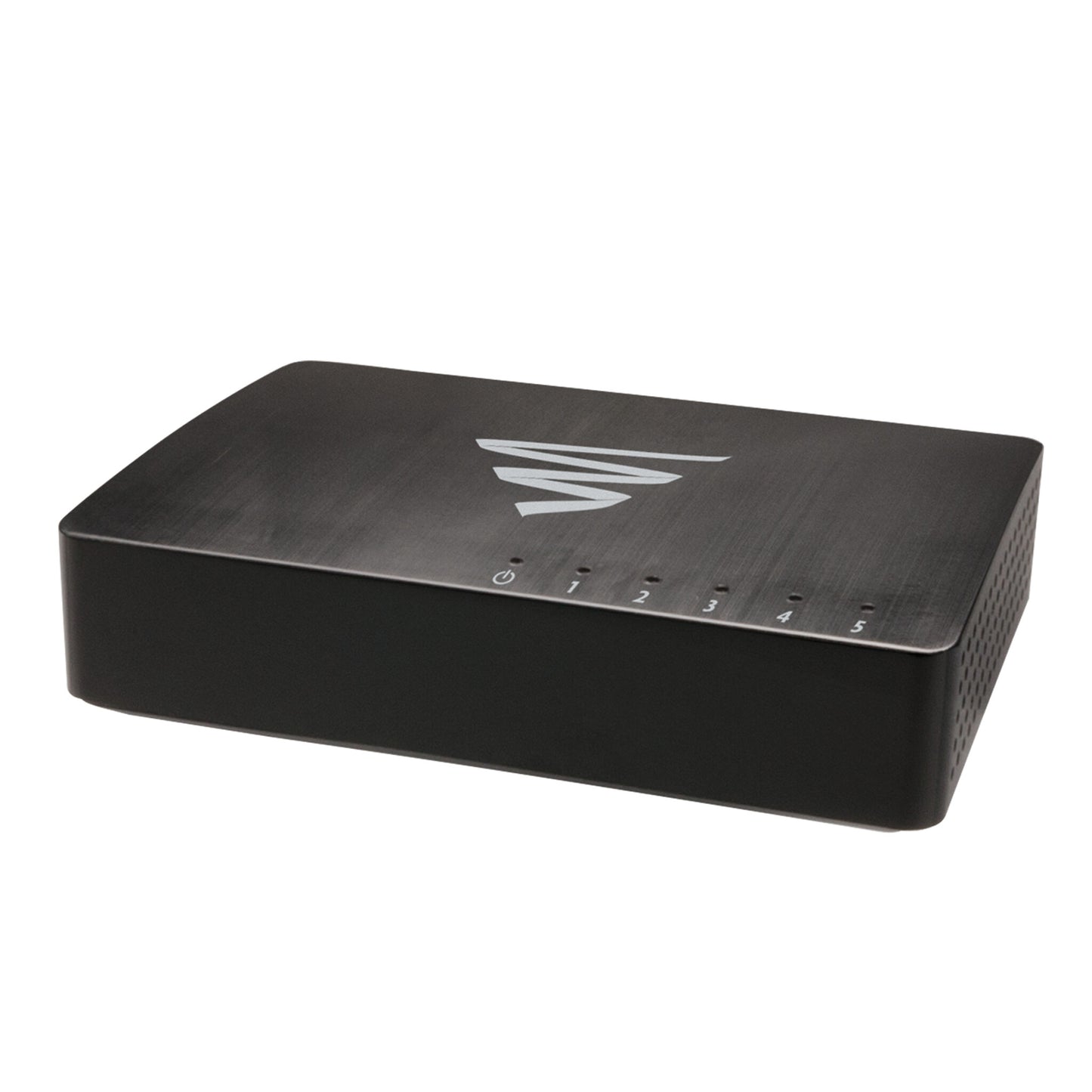

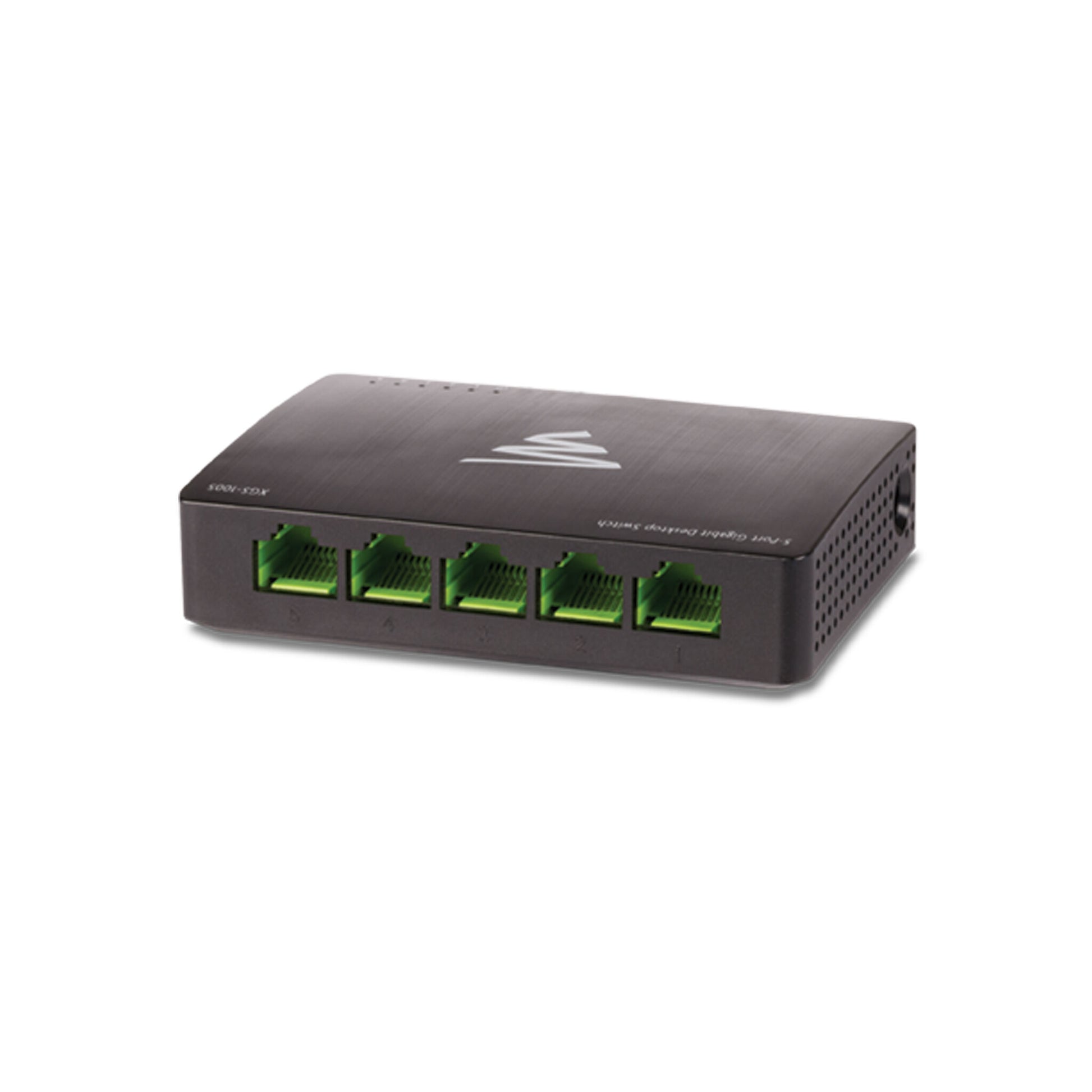

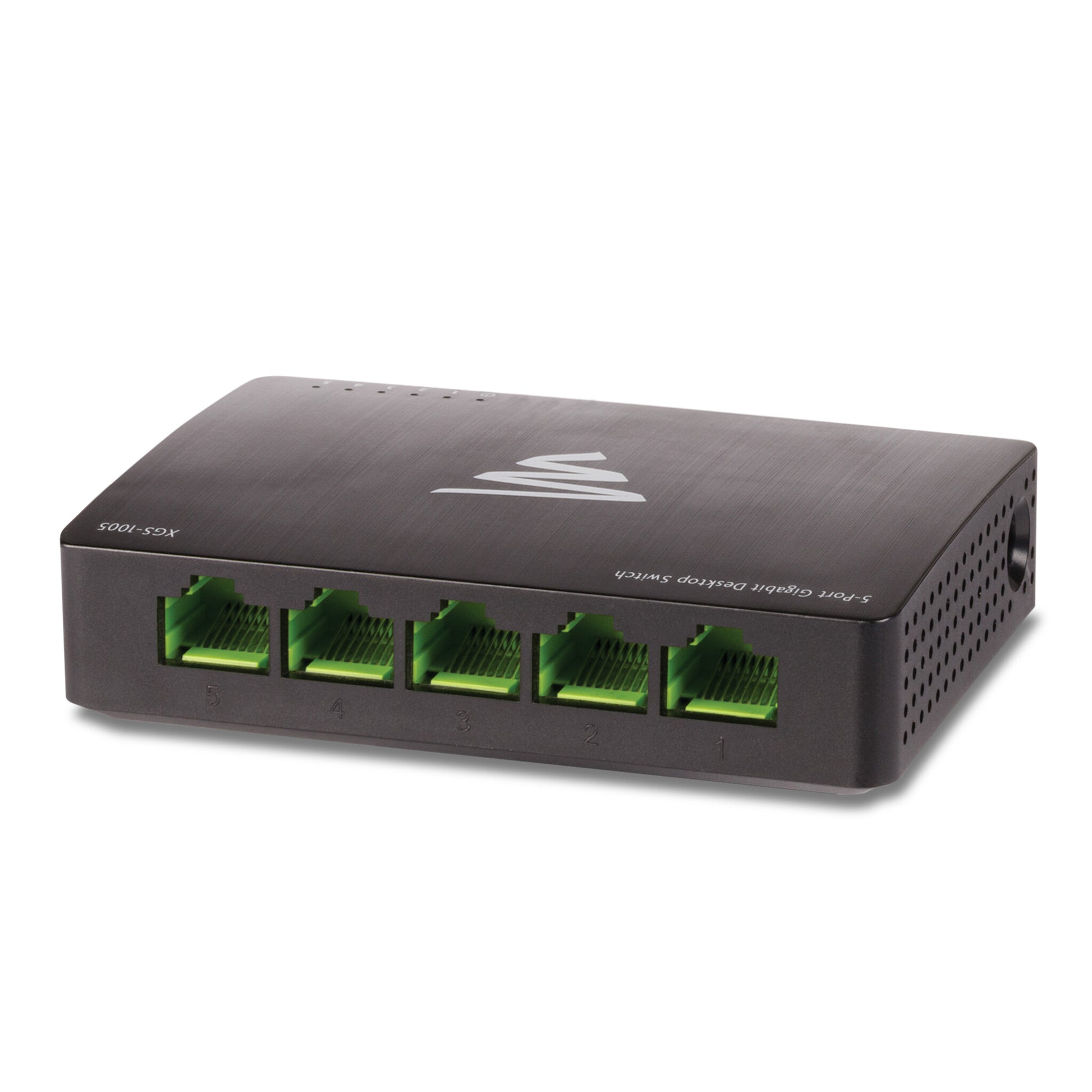

LUXUL XGS-1005-E

LUXUL XGS-1005-E

5-Port Gigabit Desktop Switch with EU Power Cord

  • Five 10/100/1000Mbps RJ45 Ports
  • 10Gbps Switching Capacity
  • Full-Duplex Flow Control
  • NWay Auto Negotiation
  • Auto Uplink (MDI/MDI-X)
  • Non-Blocking Architecture
  • Plug and Play
  • Designed for Desktop or Wall-Mount
  • SKU:IM1_XGS-1005-E
  • GTIN/EAN:655003920338
  • MPN:XGS-1005-E
Add To Favorite

You need to login to view the price.

View full details

Luxul Wireless XGS-1005-E. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

The Luxul 5-Port Desktop Gigabit Ethernet Switch (XGS-1005) provides exceptional performance, quality and reliability. It is a great choice for expanding your wired network or setting up a VoIP, multimedia or extreme gaming environment. This 5-port Gigabit Switch lets you network up to five Ethernet-enabled devices at speeds of up to 1000Mbps. While designed to support Gigabit devices, it is also compatible with Fast Ethernet devices.

3 years

Management features
Switch layer
L2
Switch type
Unmanaged
Ports & interfaces
Gigabit Ethernet (copper) ports quantity
2
Fast Ethernet (copper) ports quantity
2
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
5
Network
Ethernet LAN data rates
10,100,1000 Mbit/s
Flow control support
Yes
Auto MDI/MDI-X
Yes
Full duplex
Yes
Half duplex
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps
Throughput
2000 Mpps
Switching capacity
10 Gbit/s
MAC address table
8 entries
Design
LED indicators
Activity, Link, Power
Product colour
Black
Power
Power consumption (max)
2.5 W
Power supply included
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
32 - 104 °C
Weight & dimensions
Weight
70 g
Height
19 mm
Width
63.5 mm
Certificates
Certification
FCC, IC, Class B, CE, RoHS
