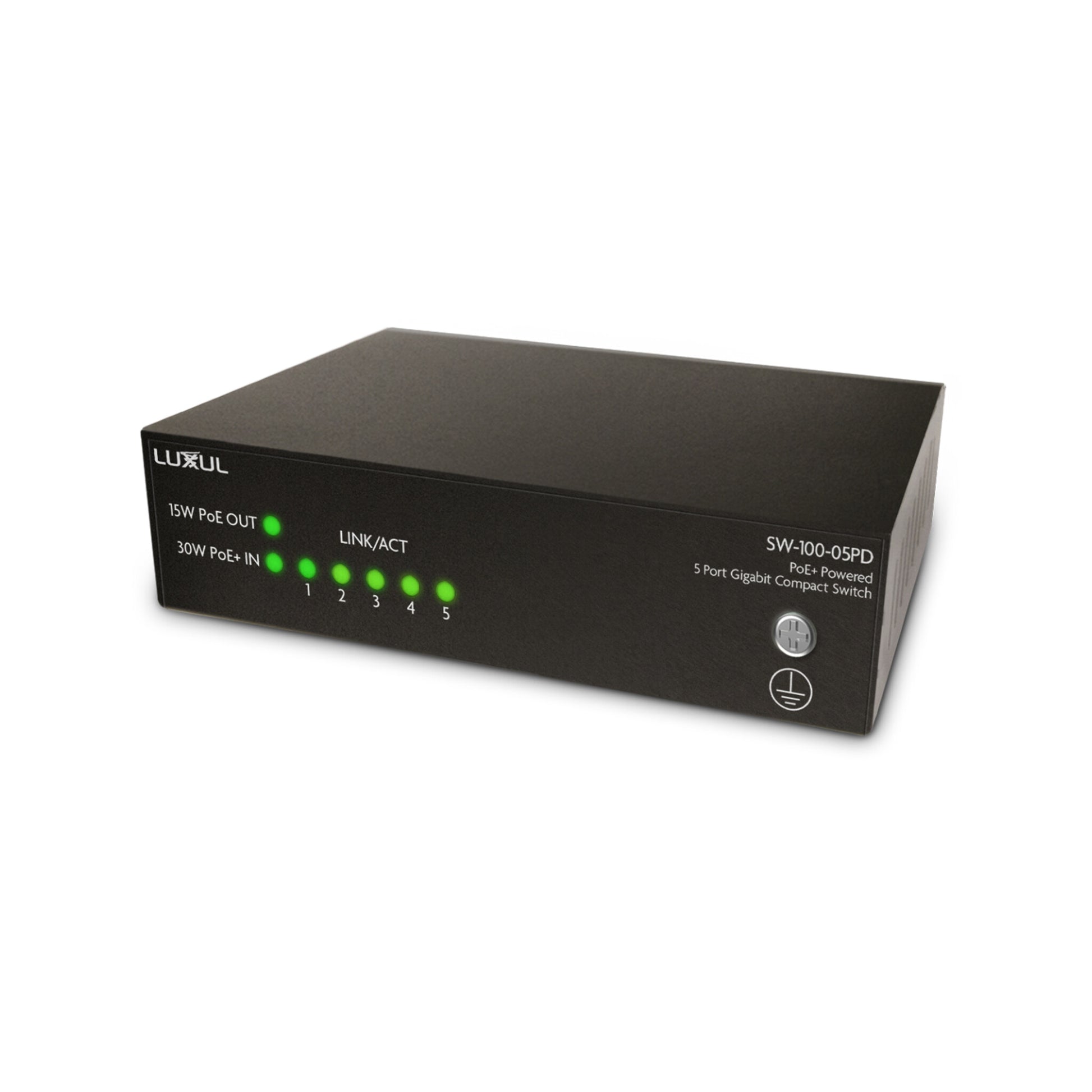

LUXUL SW-100-05PD

LUXUL SW-100-05PD

5 Port Unmanaged PoE+ Switch With POE Passthrough

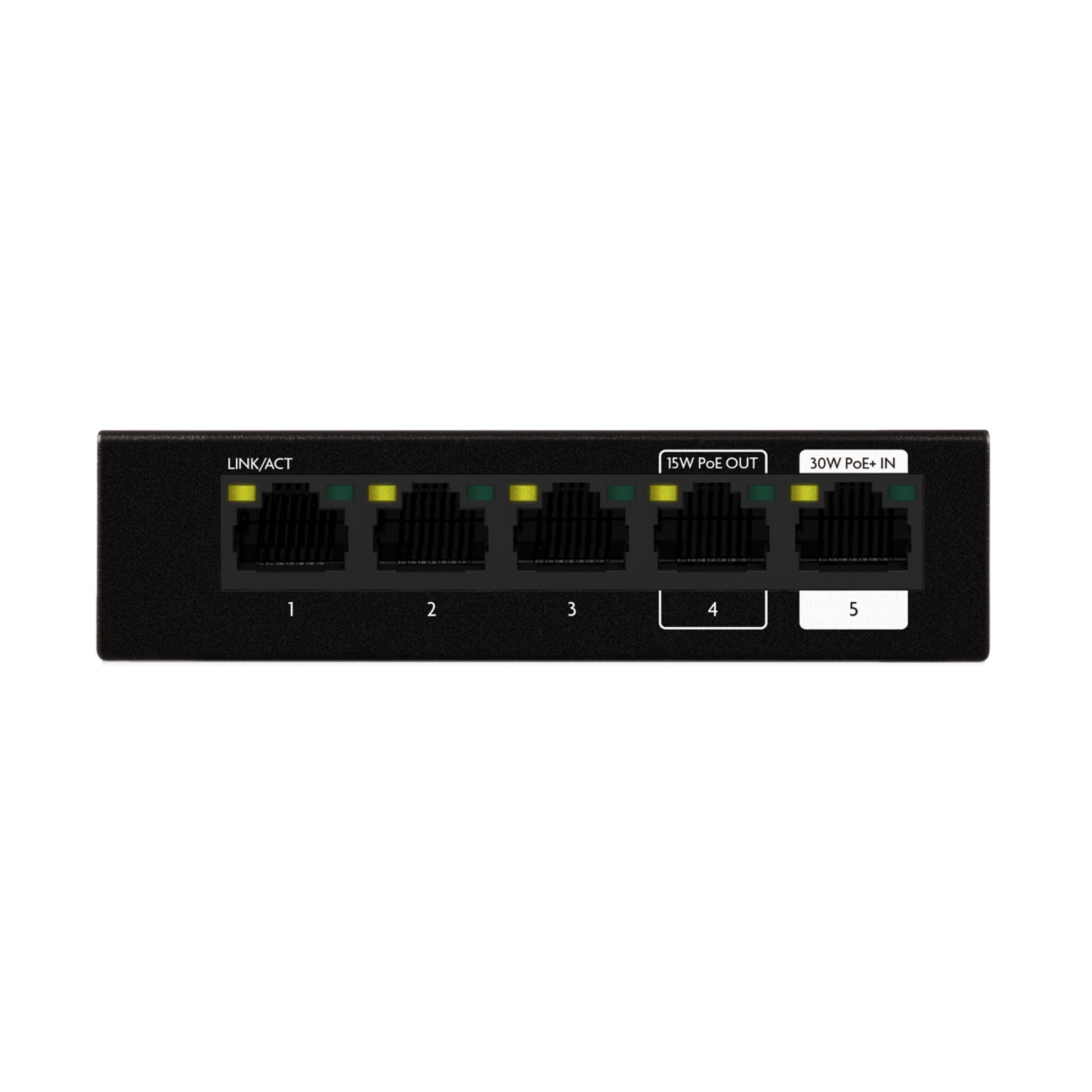

  • 5 auto-negotiation Gigabit ports
  • 1 PoE+ PD Gb port to power the switch (30 watts required)
  • 1 PoE output port to power a PoE device (15 watts maximum)
  • Durable metal case
  • Multiple mounting options
  • SKU:IM1_SW-100-05PD
  • GTIN/EAN:655003921328
  • MPN:SW-100-05PD
Add To Favorite

You need to login to view the price.

View full details

Luxul Wireless SW-100-05PD. Switch type: Unmanaged. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

The SW-100-05PD is a 5 port PoE Plus powered switch that is powered from a PoE Plus switch or injector powered uplink and provides an additional four ports of Gb Ethernet connectivity. One of the Gb Ethernet ports allows the powering of a PoE 802.3af device (pass through port) such as a camera, control system interface, or AV over IP receiver. The durable metal enclosure includes detachable wing brackets for mounting and attachable magnet feet for easy mounting to metal surfaces.

3 years

Management features
Switch type
Unmanaged
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Data transmission
Switching capacity
10 Gbit/s
Design
LED indicators
Activity, Link, PoE, Power
Housing material
Metal
Product colour
Black
Power
Power consumption (max)
30 W
Power consumption (typical)
5.8 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
15 W
Power over Ethernet (PoE) ports quantity
5
Power over Ethernet (PoE)
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
32 - 104 °C
Weight & dimensions
Weight
230 g
Height
25 mm
Width
100 mm
Certificates
Certification
FCC, IC, RCM, CE-EMC, CE-LVD (IEC-62368-1), CB Report
