Origin Acoustics D50-8

The Origin Acoustics Director D50-8 is a compact, high-performance in-ceiling loudspeaker from the Director Collection, engineered for residential whole-home audio installations where sound quality and discretion are equally important. Designed to align with standard 5- or 6-inch recessed lighting footprints, the D50-8 delivers full-bodied audio from a minimal 7-inch finished footprint, making it ideal for living rooms, bedrooms, kitchens, hallways, and multi-room systems. Its pivoting silk tweeter lets installers fine-tune sound dispersion toward the listening position, while proprietary technologies including the X-Wave woofer surround and compression-molded basket keep distortion low across the frequency range. The included Bayonet Ring and Zip-Klip mounting system allows for secure, repeatable installation without specialty tools.

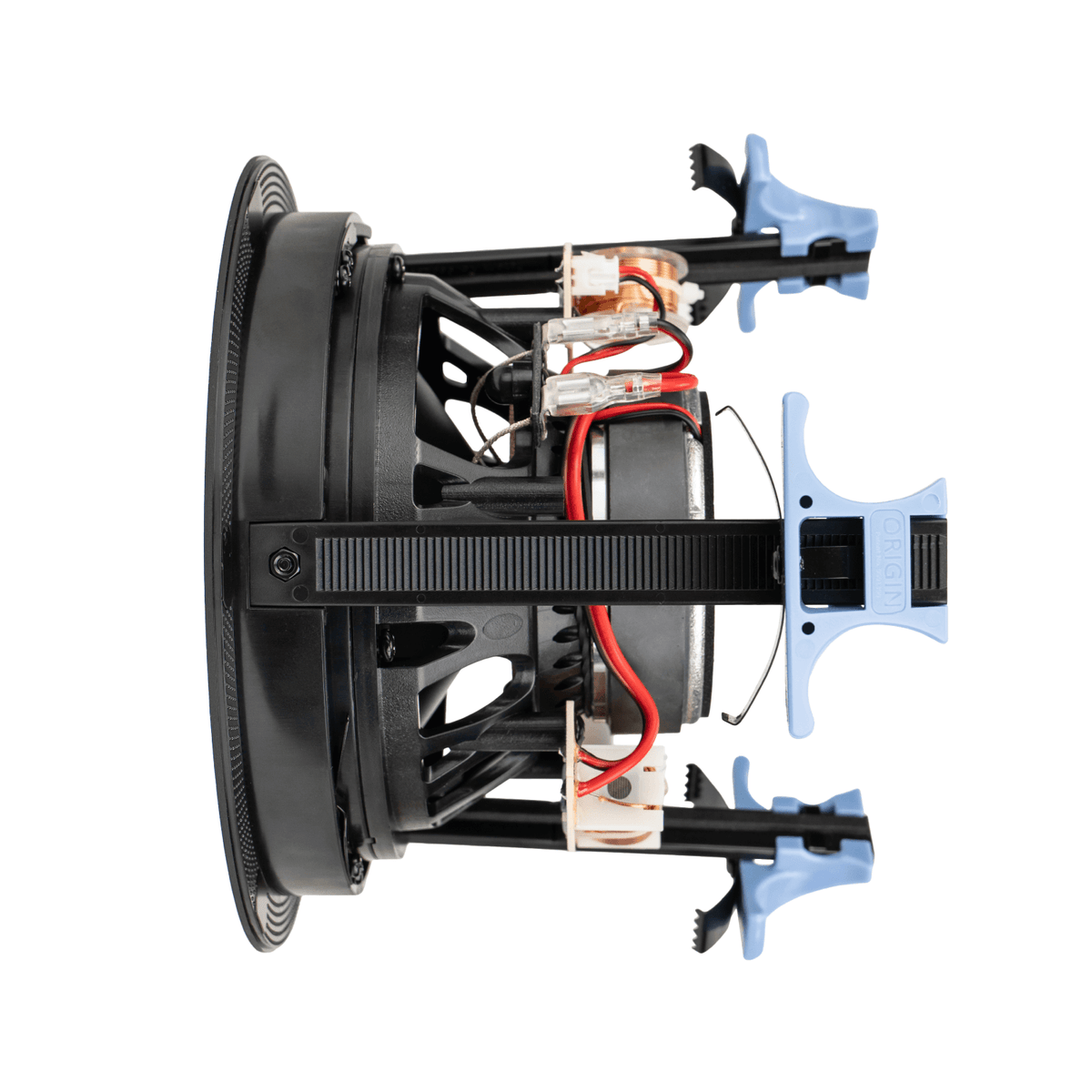

Tool-Less Zip-Klip Mounting System

The D50-8 ships pre-loaded in its Bayonet Ring and installs without any mounting tools. The patented Zip-Klip grips (Patent #9591390) slide down integrated rails inside the Bayonet Ring and grip the drywall at multiple contact points — secured with a simple 15° twist to lock. Compared to traditional dog-leg clips, this distributes clamping force more evenly, reducing the risk of ceiling damage and minimising vibration transfer from the basket to the structure. In practice, this means faster rough-in on multi-room jobs, consistent torque every time regardless of the installer, and a finished installation that sits flush and stays put even in high-vibration environments such as above busy living areas or next to HVAC ducts.

Pivoting Silk Tweeter for Precise Aiming

The 1-inch silk tweeter on the D50-8 pivots freely, allowing the installer to direct high-frequency energy toward the listening zone after the speaker is fully mounted in the ceiling. This matters in real rooms where the speaker cannot always be centred on the listening position — off-axis rooms, open-plan spaces, or home-cinema rear positions where the ceiling is behind and above the listener. Pivoting the tweeter toward the seated area restores the correct stereo image and tonal balance without repositioning the speaker or cutting a new hole. The result is a noticeably more focused, lifelike soundstage that end users can hear immediately when switching from a fixed-tweeter alternative.

Big sound. Tiny footprint. Zero visible hardware.

Limited Lifetime Warranty · Available through authorised dealers only

X-Wave Woofer Surround Reduces Distortion

When a speaker cone reaches the limit of its travel and reverses direction, unwanted reflected waves ripple back across the cone surface — a key source of harmonic distortion at higher volumes. Origin Acoustics addresses this with the X-Wave surround, a progressively compliant surround design that absorbs those reflected waves rather than letting them travel freely up and down the cone. The practical outcome is cleaner, more natural bass and midrange at elevated listening levels: music retains definition when a room is filled with guests, and dialogue in TV and home-cinema contexts stays intelligible rather than becoming muddied by cone breakup artefacts.

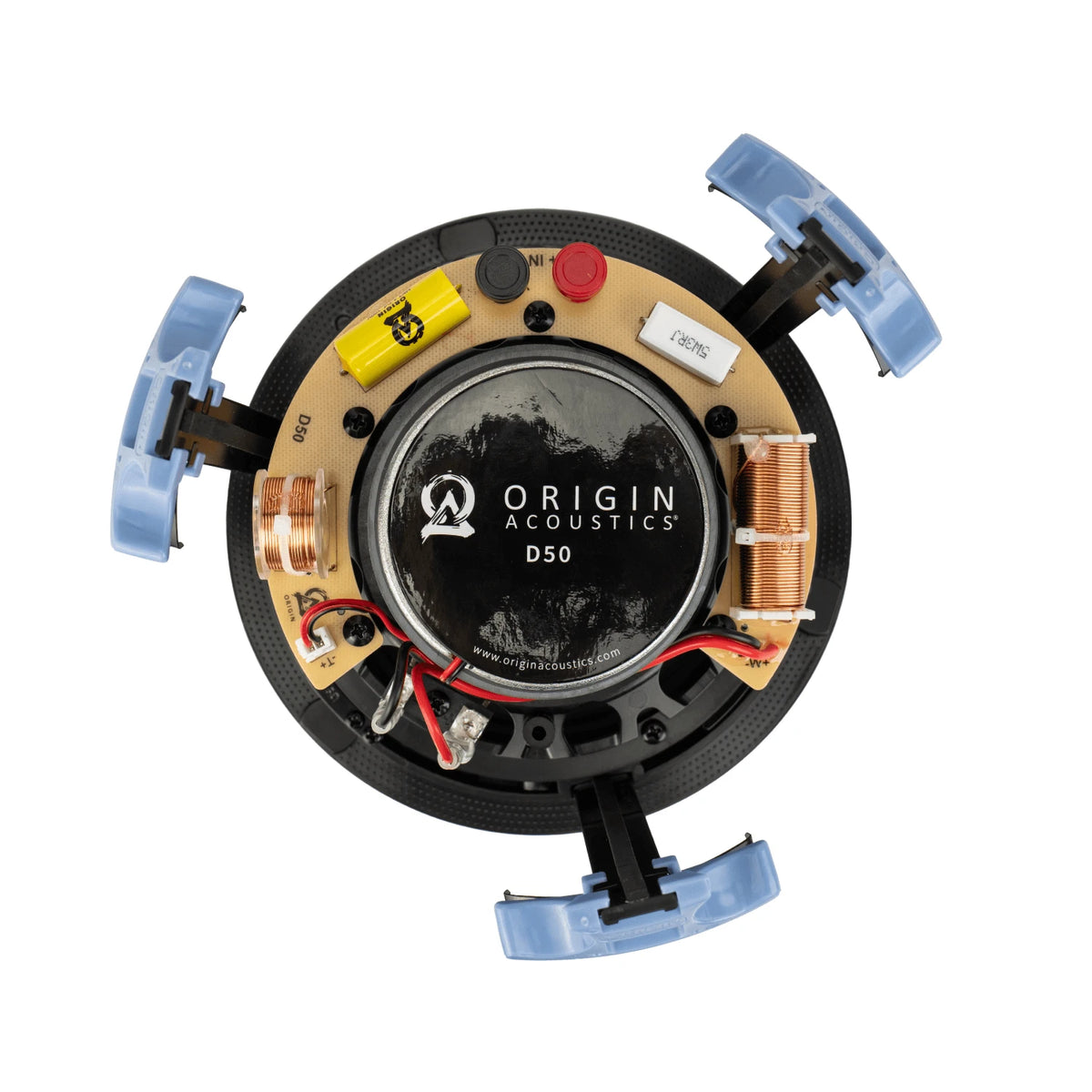

Compression-Molded Woofer Basket

The woofer basket is computer-designed and manufactured using compression moulding — a technique that produces highly rigid, dimensionally consistent baskets with precisely placed venting channels. A rigid basket prevents the basket itself from resonating and adding its own colouration to the sound, which is a common weakness in budget stamped-steel alternatives. The result is a mechanically quiet, acoustically neutral platform for the driver, contributing to the D50-8's clean, accurate tonal character across music genres and playback sources.

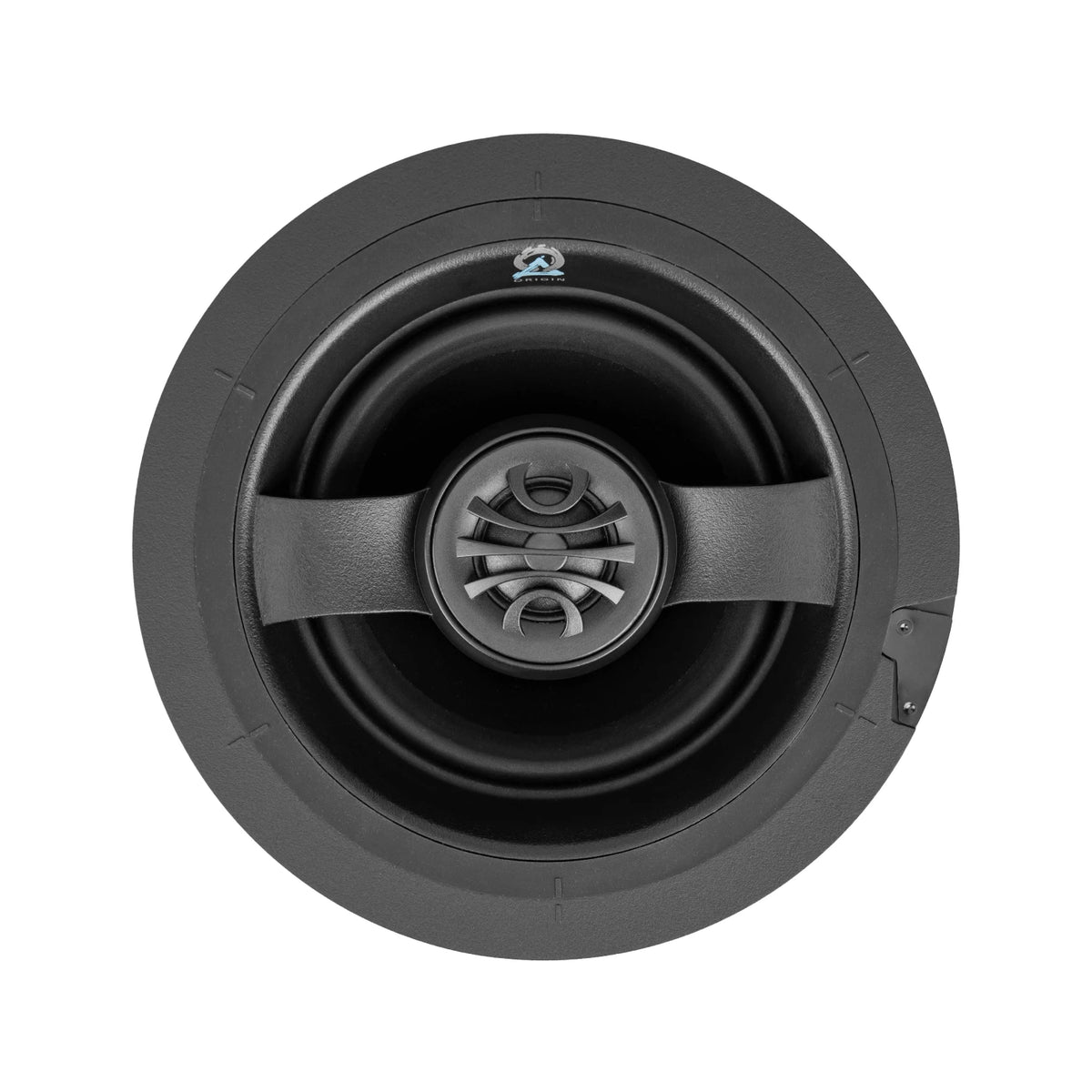

Paintable Magnetic Micro-Bezel Grille

The D50-8's grille attaches magnetically — no clips to align, no grille tabs to break — and its micro-bezel design minimises the visible ring around the grille perimeter so the speaker nearly disappears into the ceiling. The perforated grille is designed to be painted with standard spray paint to match any ceiling colour; the grille cloth is removable before painting and replaced afterwards. For integrators, this means post-paint touch-ups on completed installations are simple, and clients who redecorate can repaint the grille without replacing the speaker, protecting the long-term value of the installation.

Compact Footprint Matches Standard Recessed Lighting

With a cutout diameter of only 5 7-8 inches (150 mm) and a 7-inch finished grille diameter, the D50-8 fits precisely into the same ceiling footprint as the most common size of recessed downlighter. This is a significant installation advantage: in homes where downlighters are already installed on the same circuit grid, the speaker positions can be planned to align aesthetically with the lighting layout, creating a uniform, intentional ceiling appearance. The shallow mounting depth of 3.5 inches (90 mm) also makes the D50-8 compatible with low-profile ceiling cavities above insulated joists or concrete decks with a shallow void.
