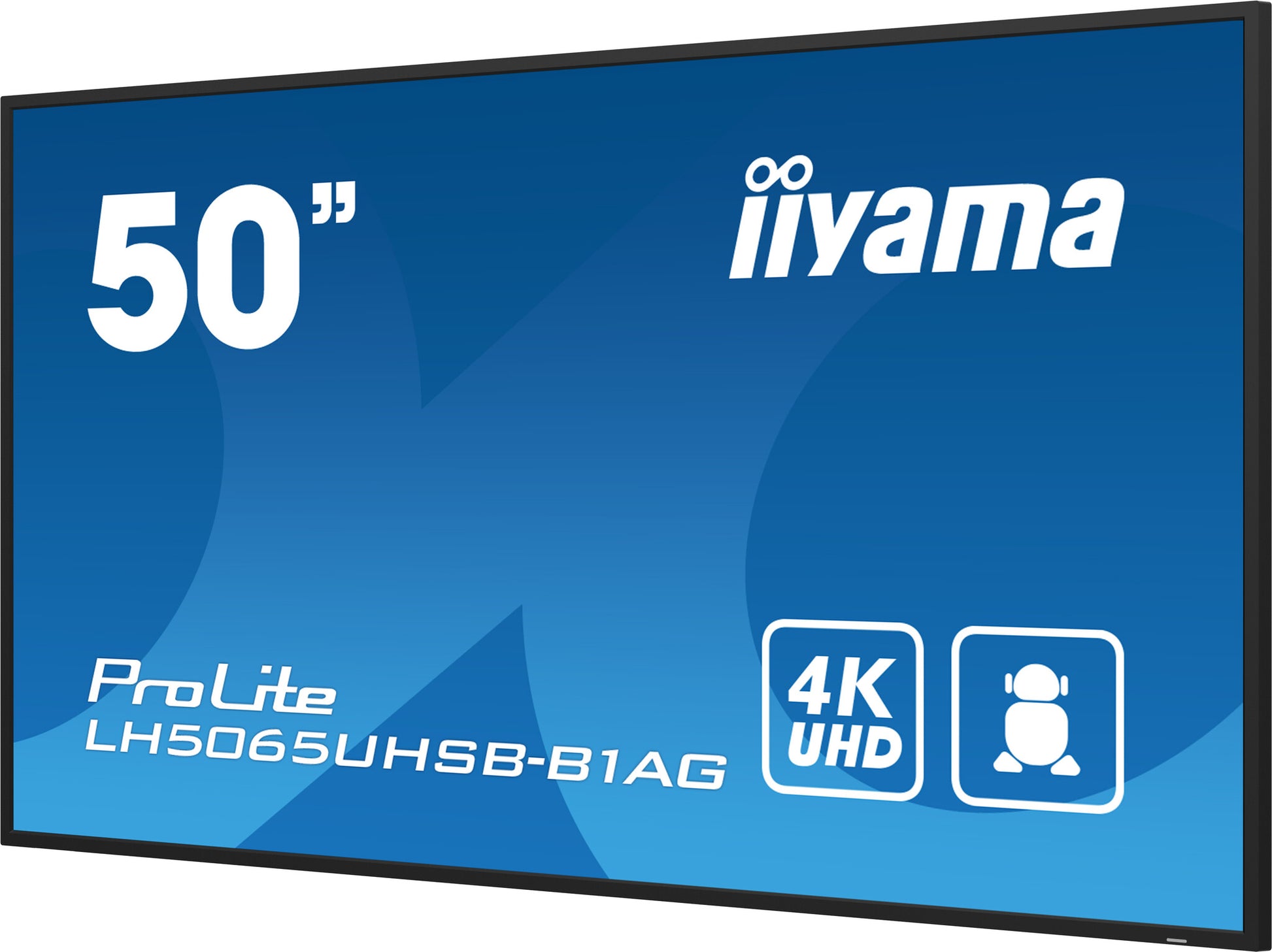

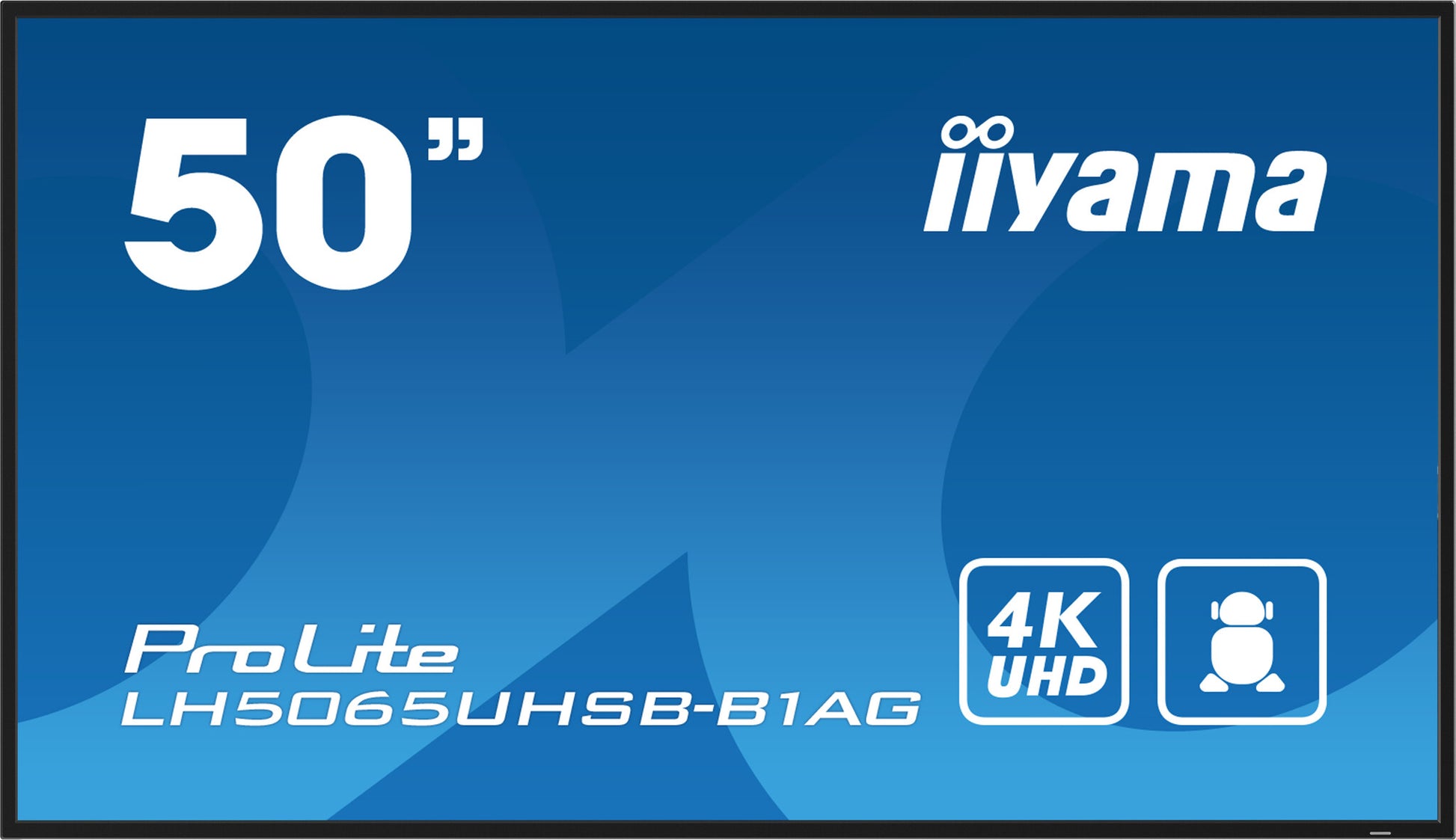

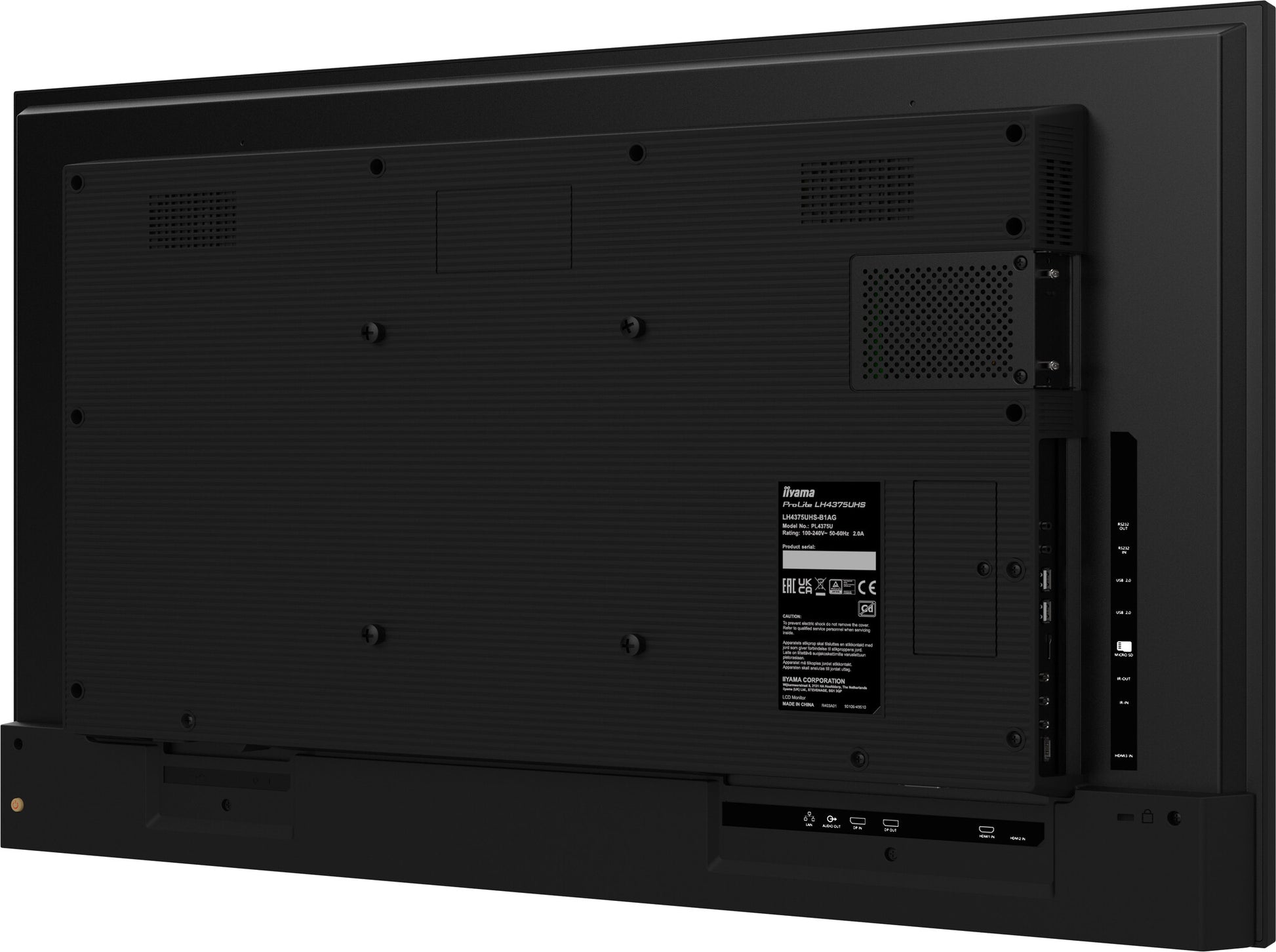

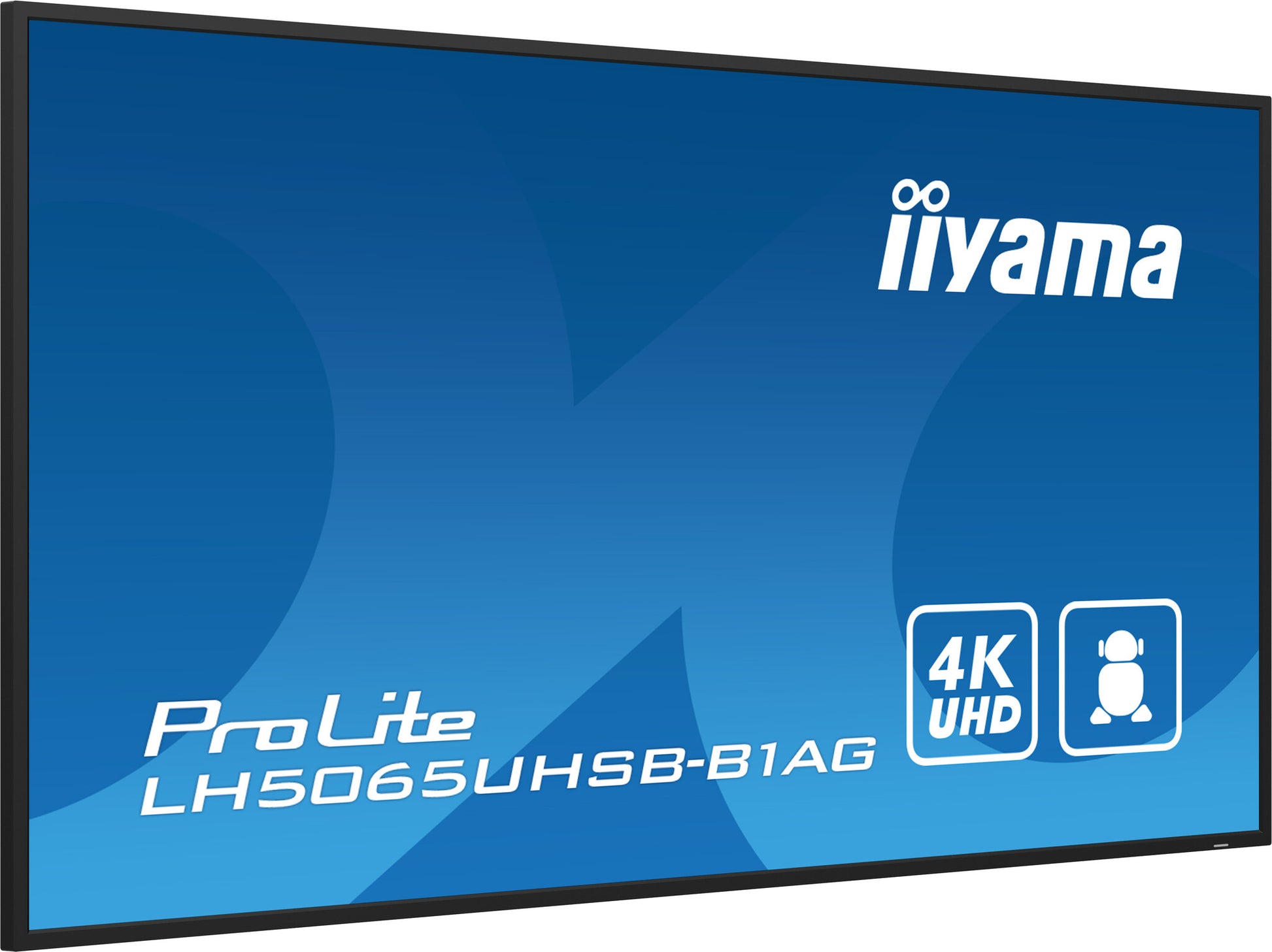

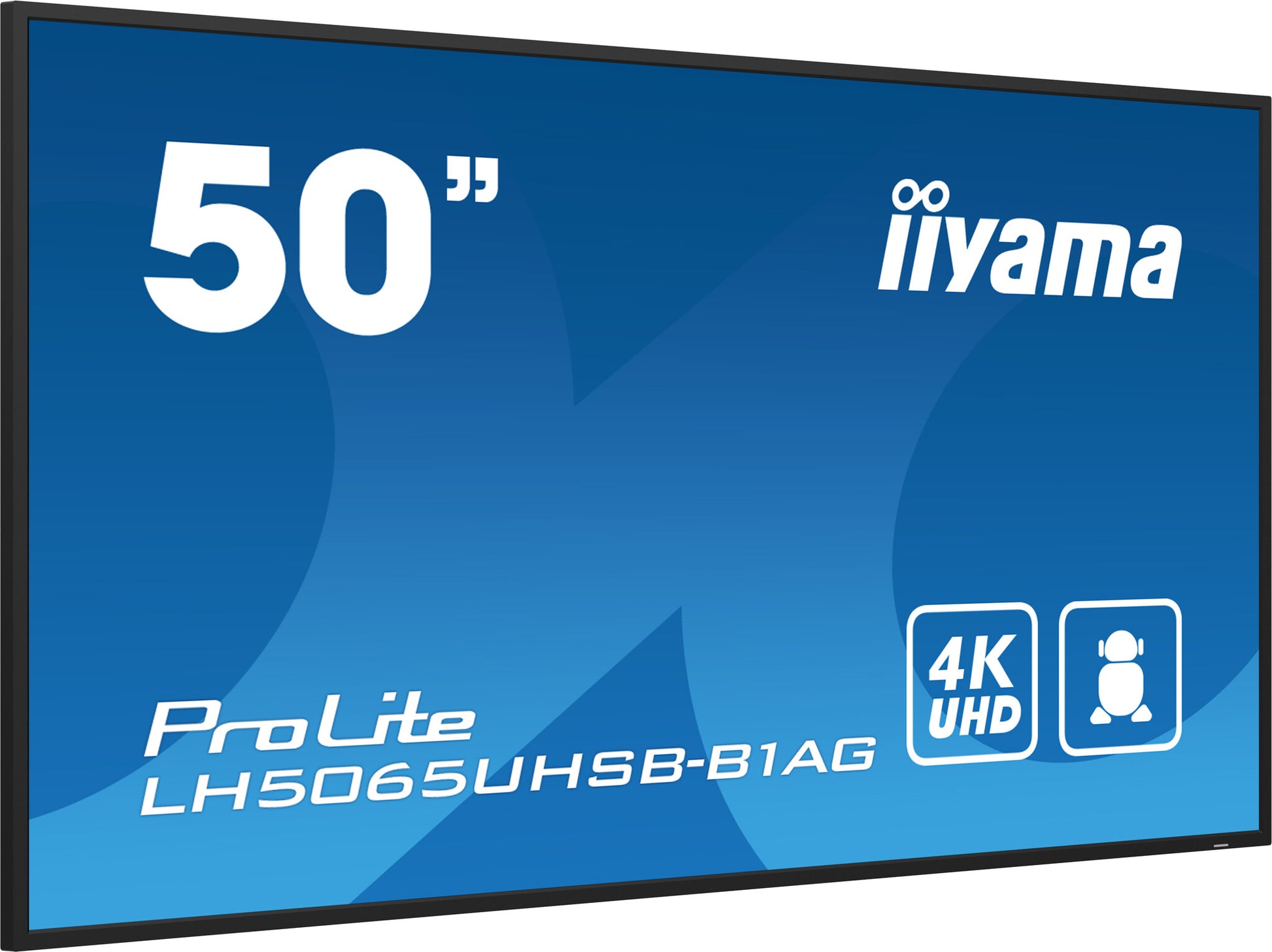

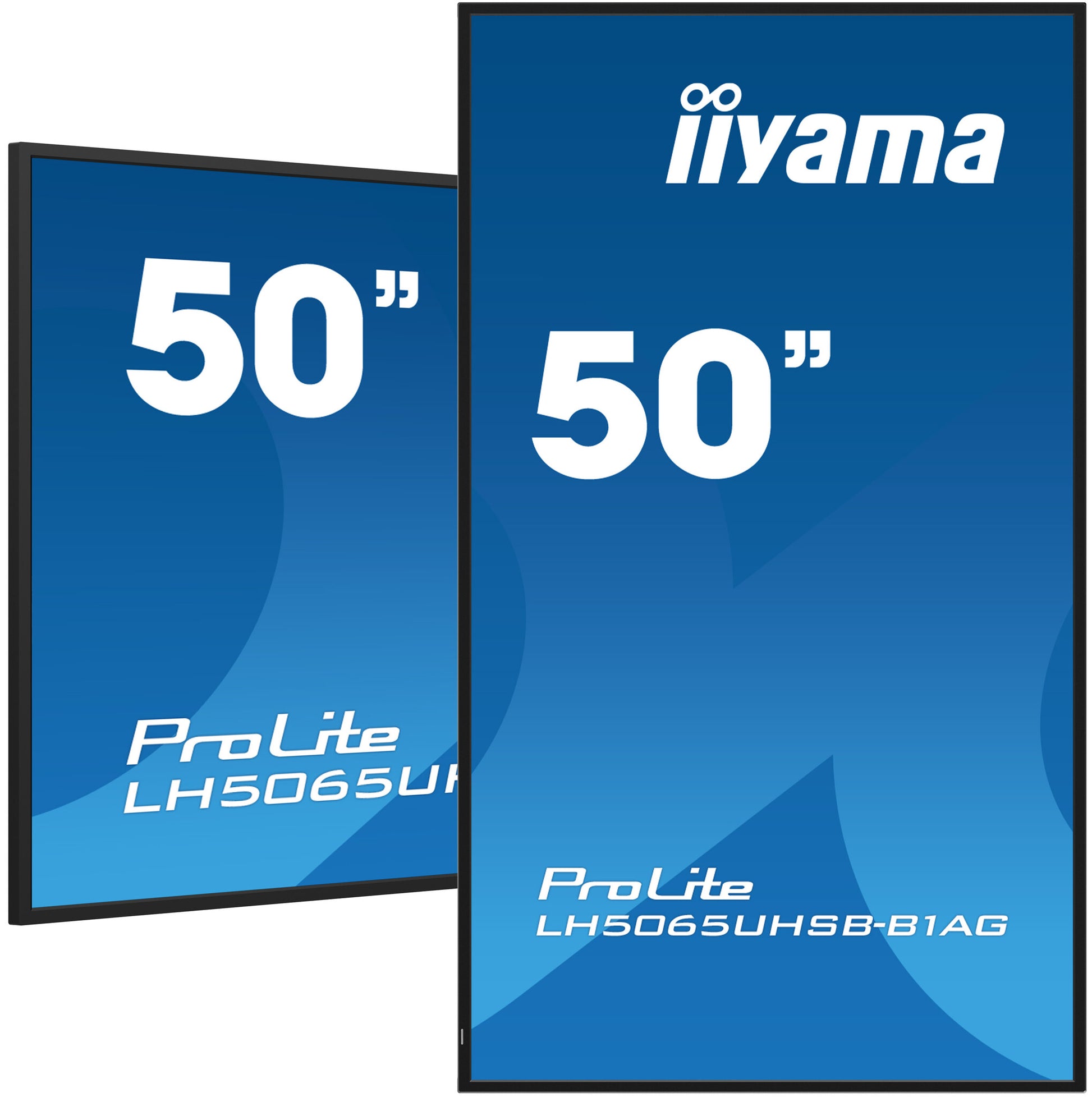

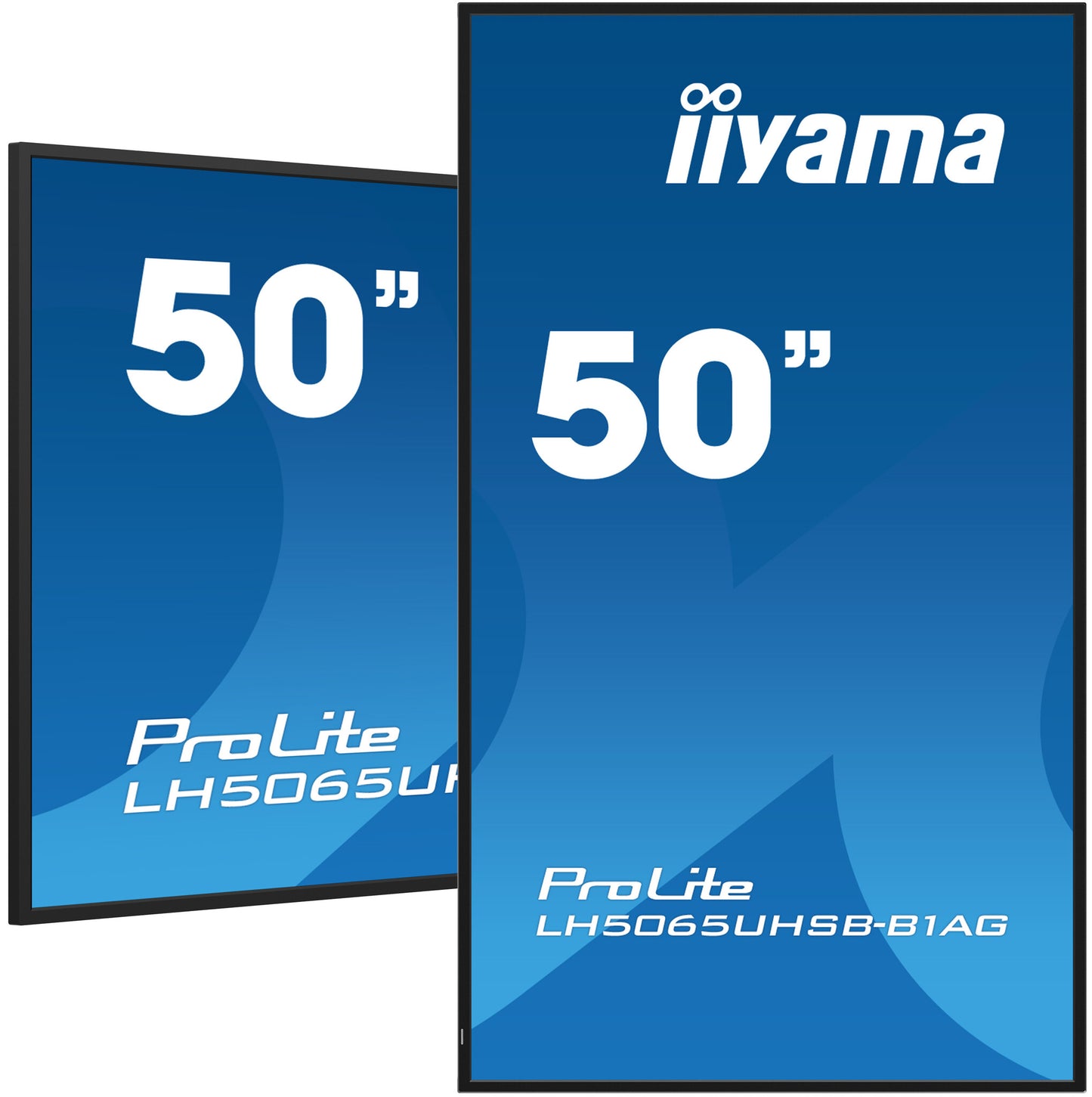

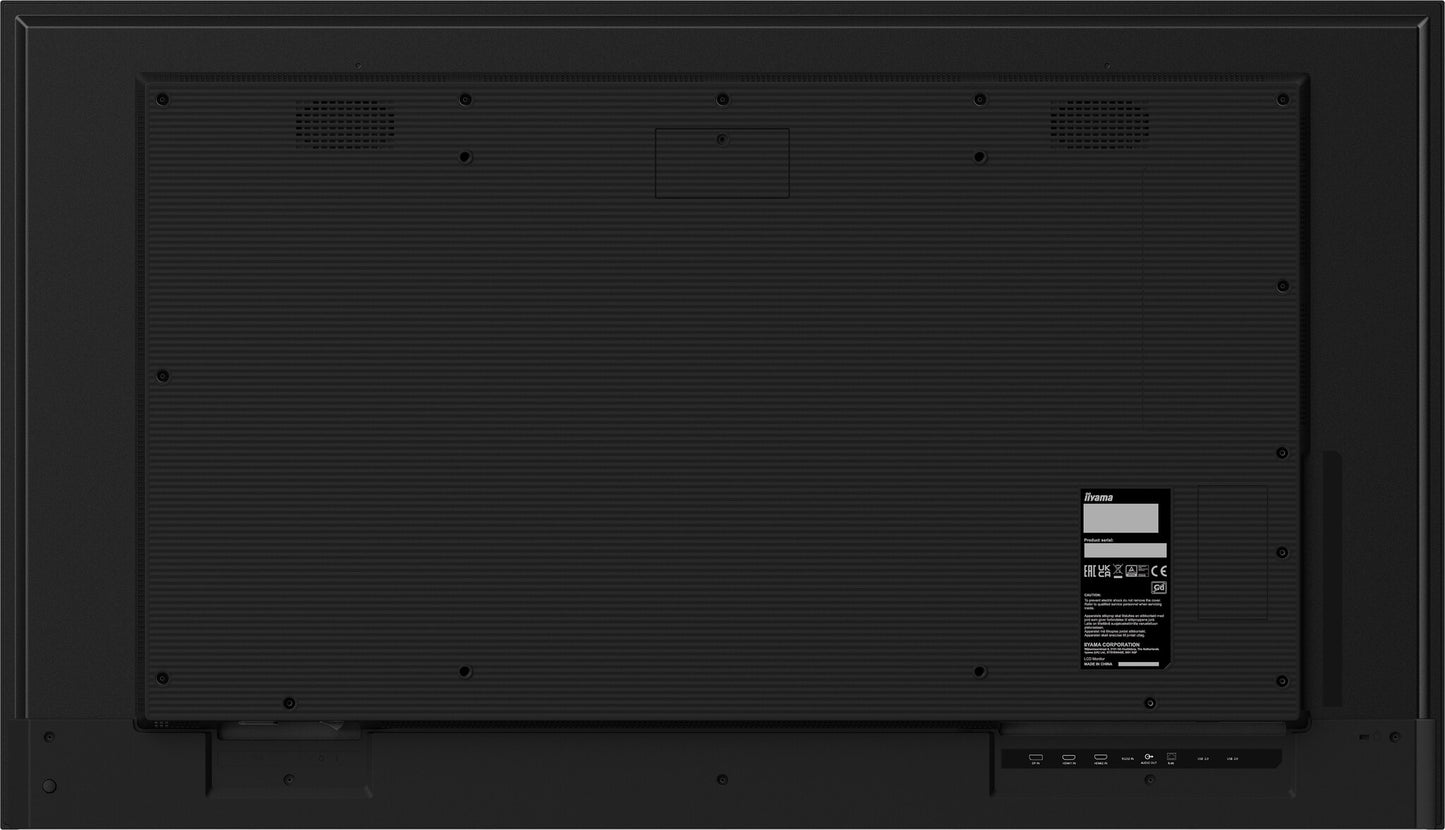

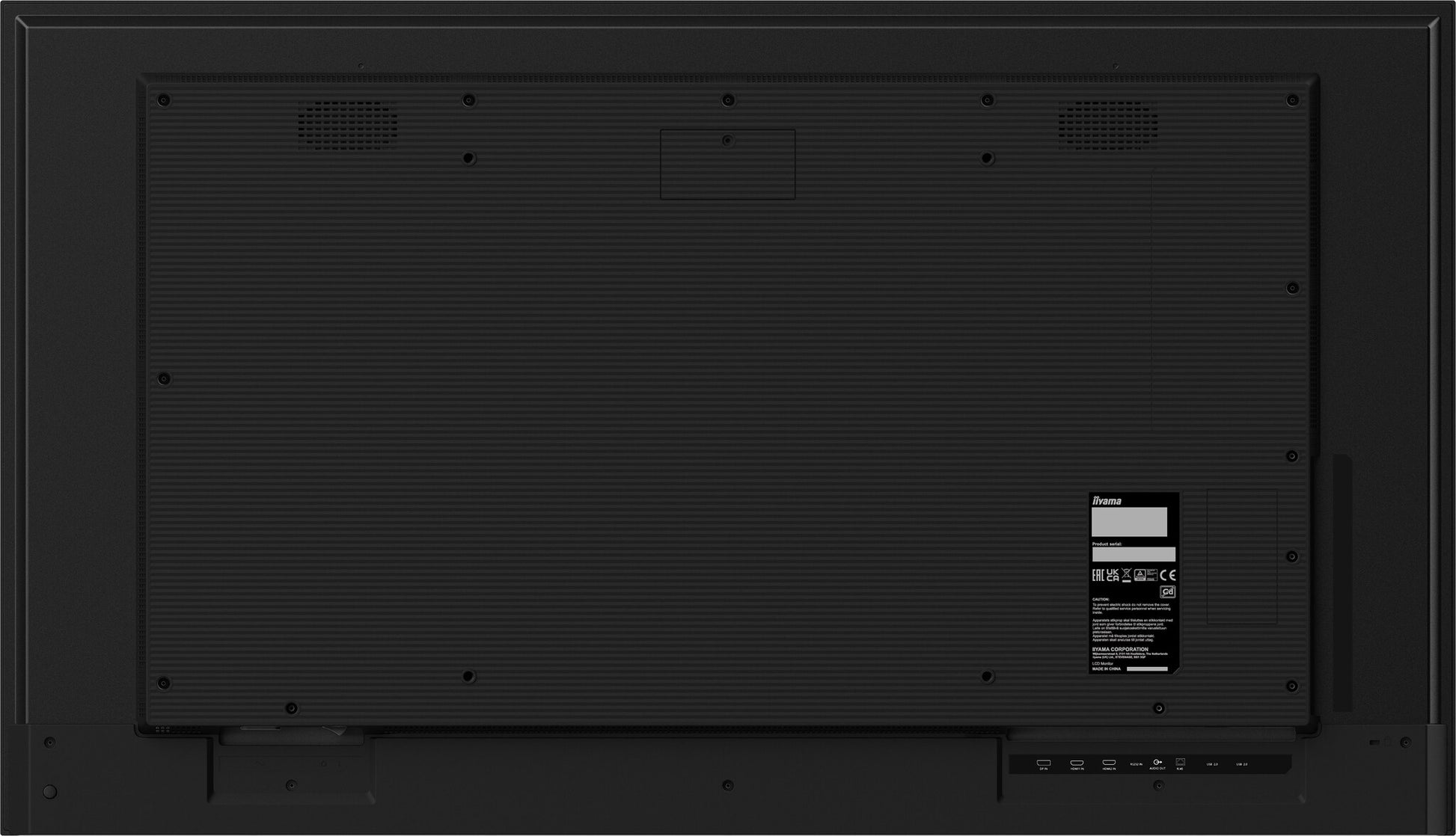

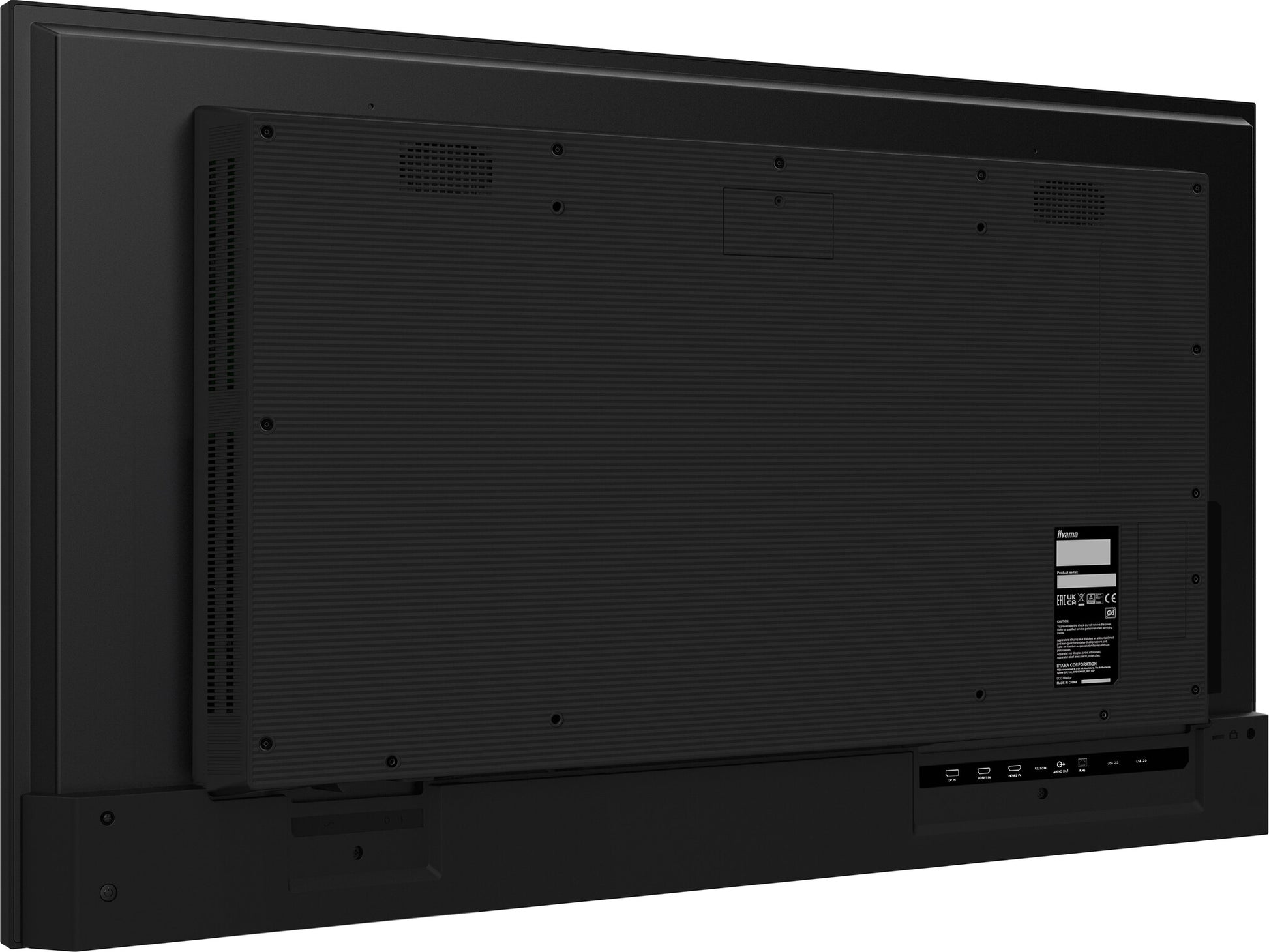

iiyama LH5065UHSB-B1AG

iiyama LH5065UHSB-B1AG

50" Vivid-Bright Display with 4K resolution and 800cd/m² panels for illuminating communication

  • Digital signage flat panel Black
  • 125.7 cm (49.5") 3840 x 2160 pixels LCD 800 cd/m²
  • 60 Hz 9.5 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
  • SKU:4948570123568
  • GTIN/EAN:4948570123568
  • MPN:LH5065UHSB-B1AG

You need to login to view the price.

View full details

iiyama LH5065UHSB-B1AG. Product design: Digital signage flat panel. Display diagonal: 125.7 cm (49.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 800 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

Create dynamic, show stopping content, designed to entice and captivate your audience. The LH5065UHSB vivid-bright display, boasting 800cd/m², can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and smoothly run third party applications, including multiple CMS platforms. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Display
Display diagonal
125.7 cm (49.5")
Display technology
LCD
Display resolution
3840 x 2160 pixels
Display brightness
800 cd/m²
HD type
4K Ultra HD
Touchscreen
No
Native aspect ratio
16:9
Response time
9.5 ms
Contrast ratio (typical)
5000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.285 x 0.285 mm
Active display area (W x H)
1096 x 616.5 mm
Display diagonal (metric)
125.7 cm
Horizontal scan range
28 - 160 kHz
Native refresh rate
60 Hz
Panel type
VA
Haze rate
25%
RGB colour space
NTSC

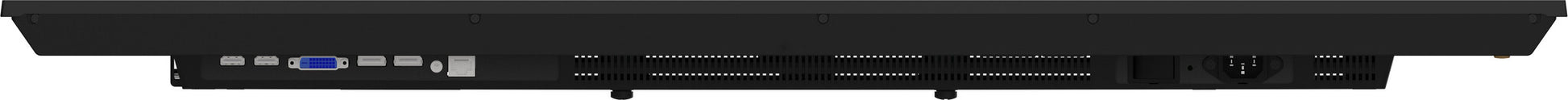

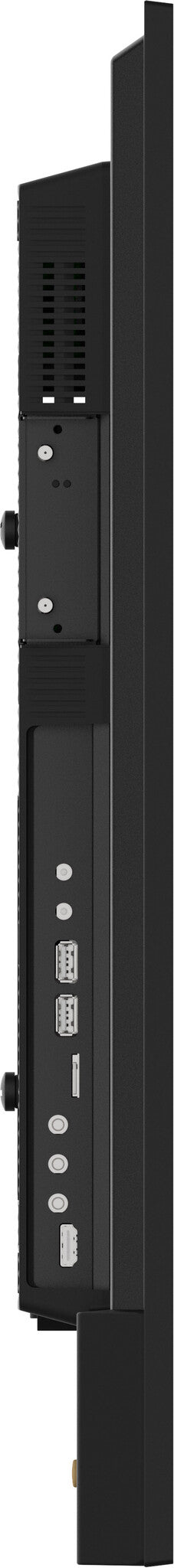

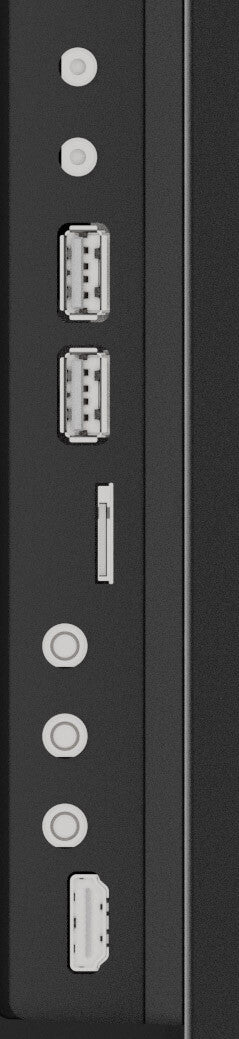

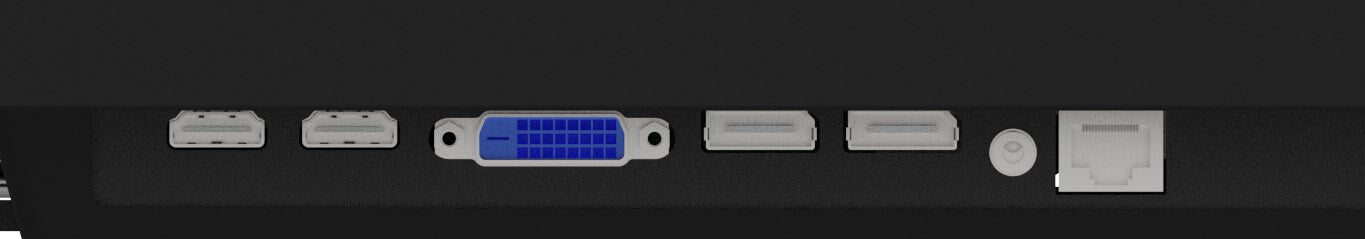

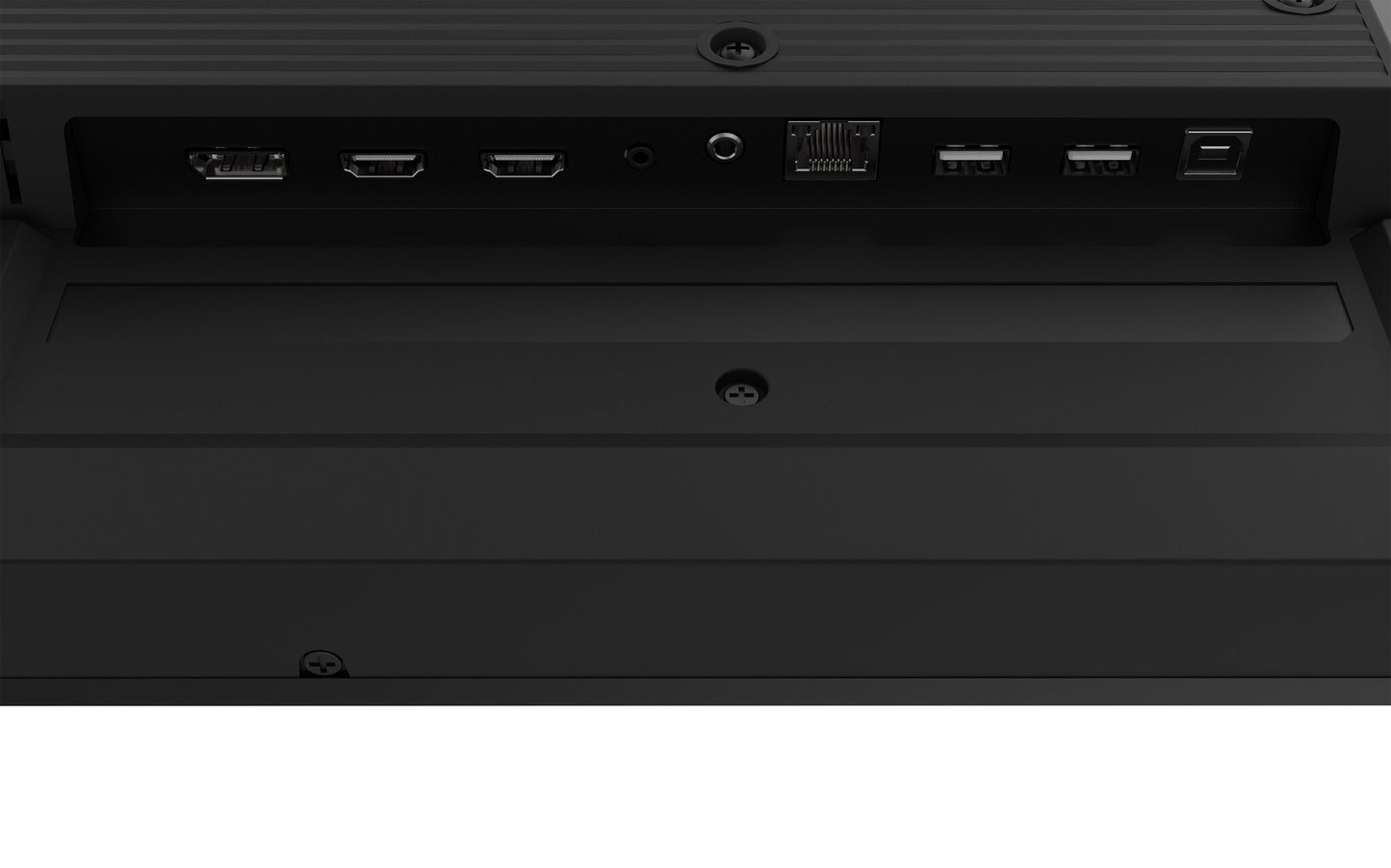

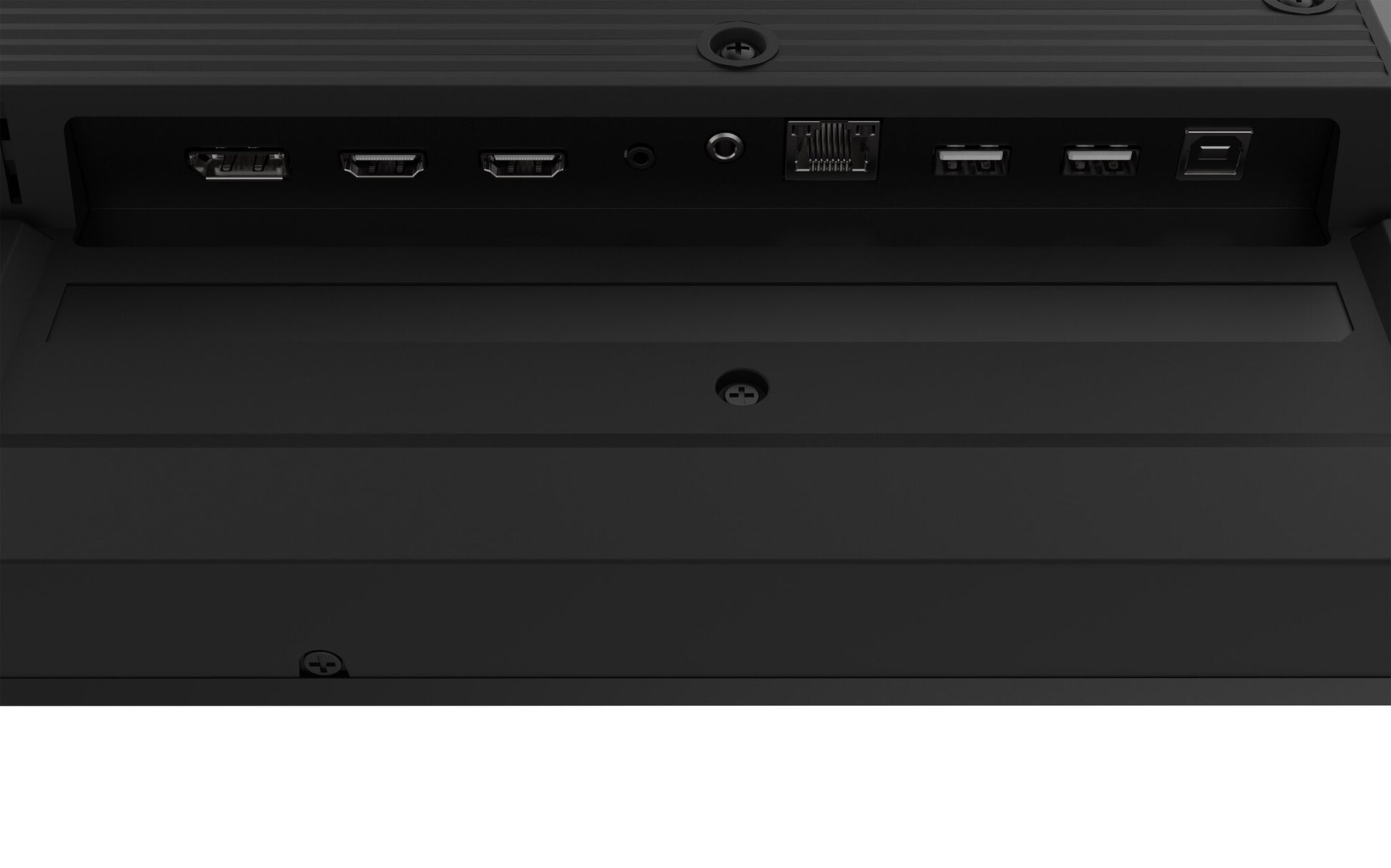

Ports & interfaces
HDMI ports quantity
2
HDMI version
2.0
DisplayPorts quantity
1
USB port
Yes
USB ports quantity
2
USB version
2.0
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Yes
Audio (L/R) in
1
RS-232 interface
Yes
RS-232C
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design
Digital signage flat panel
Product colour
Black

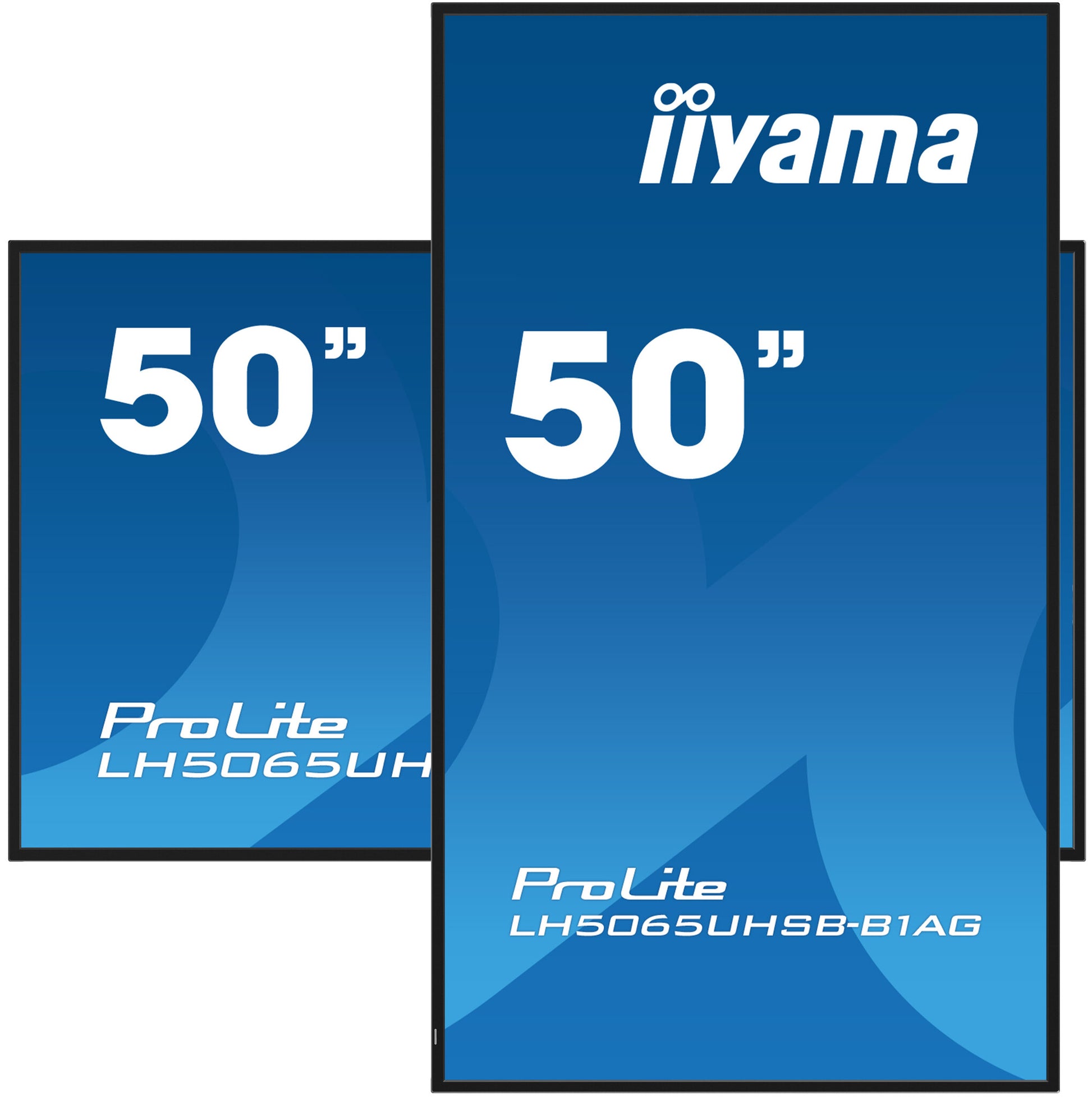

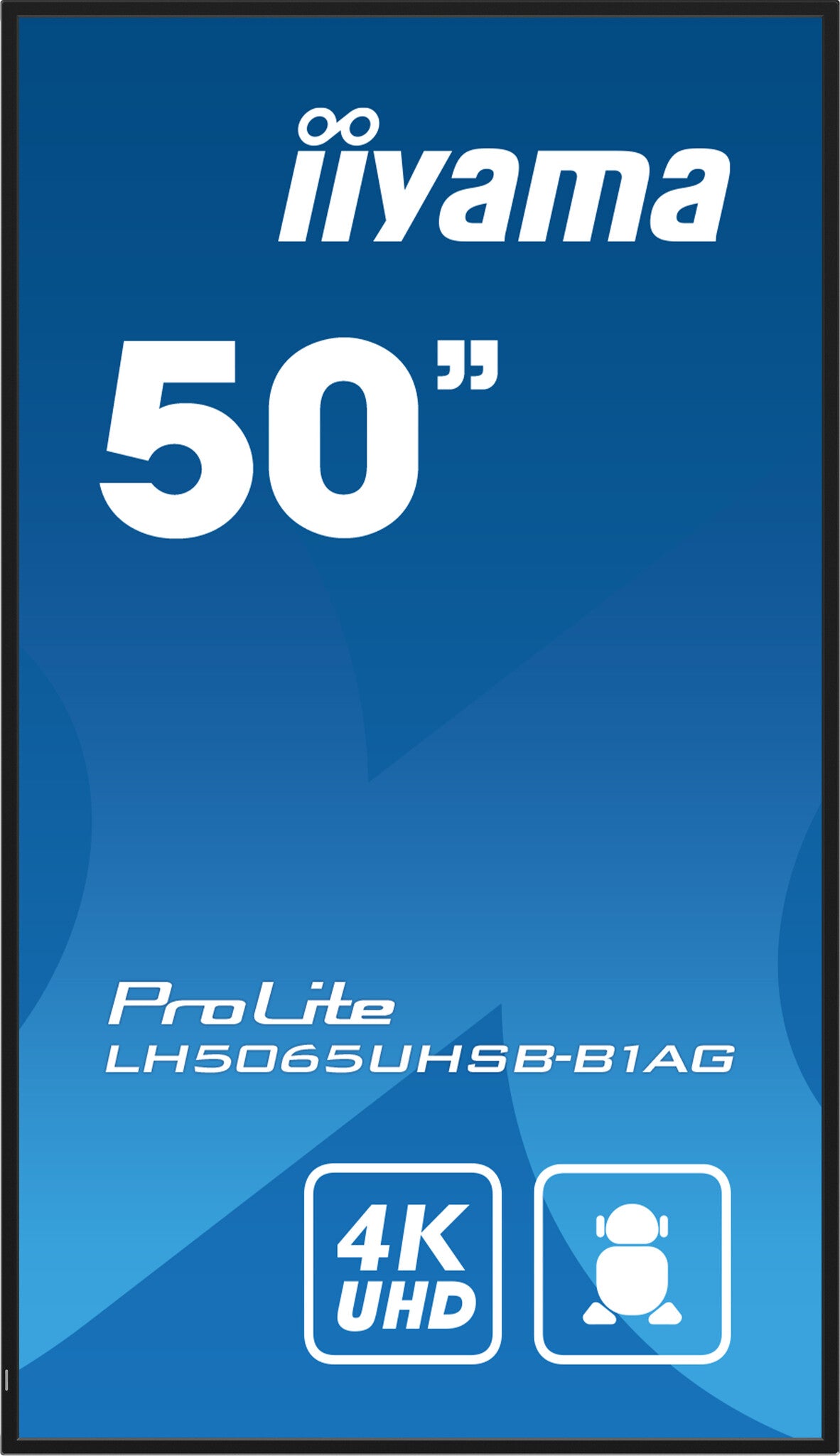

Orientation
Horizontal/Vertical

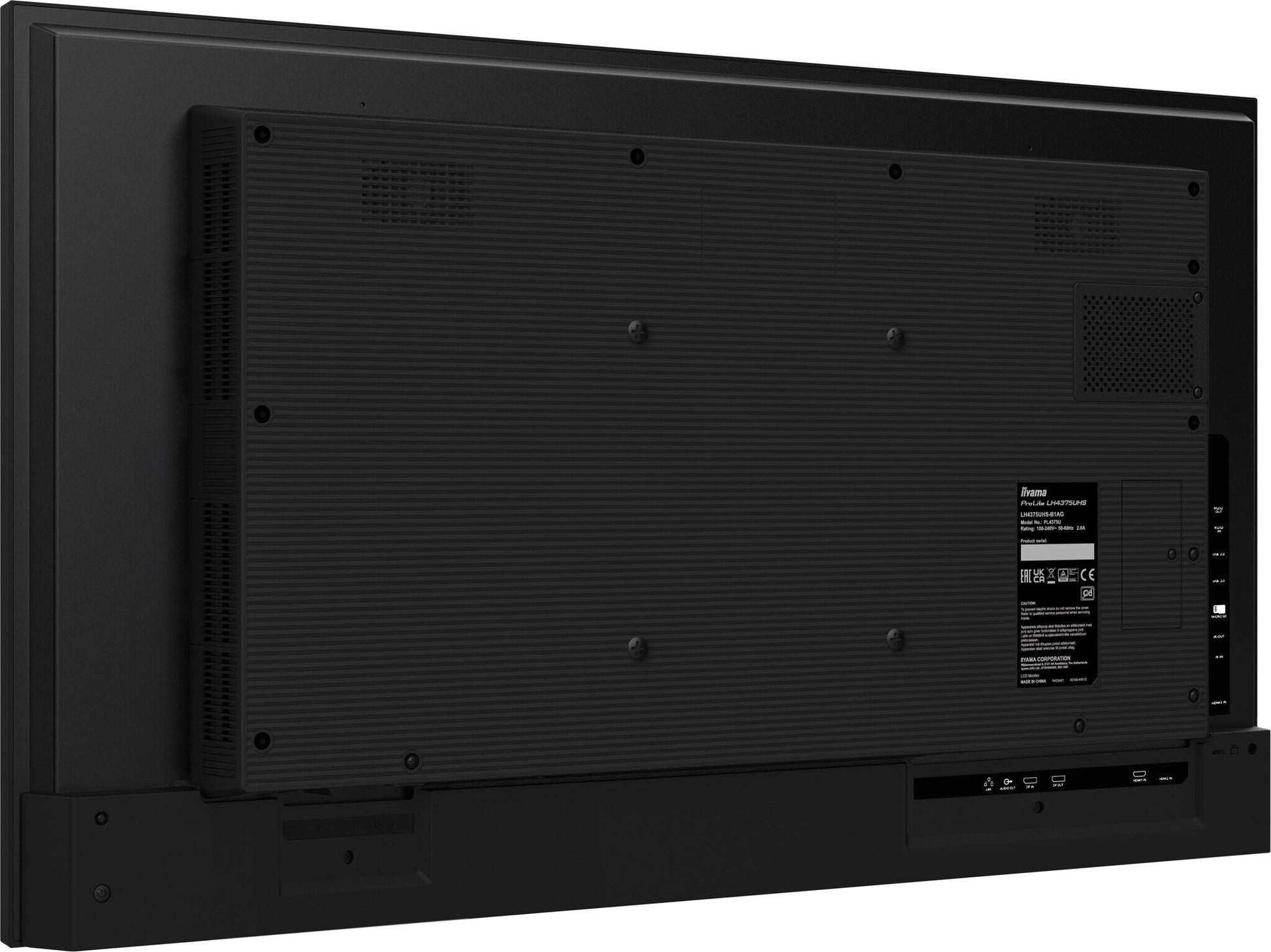

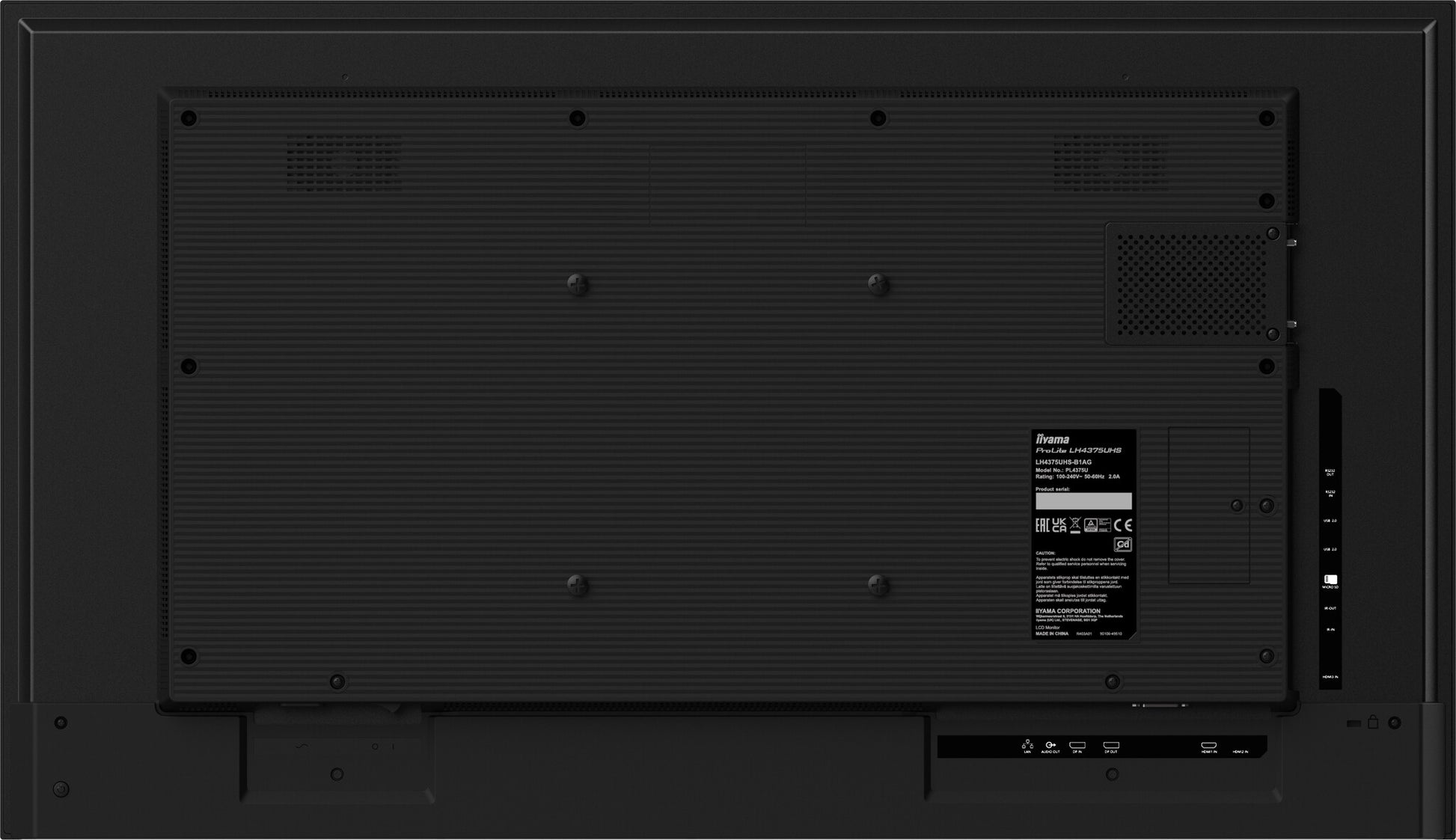

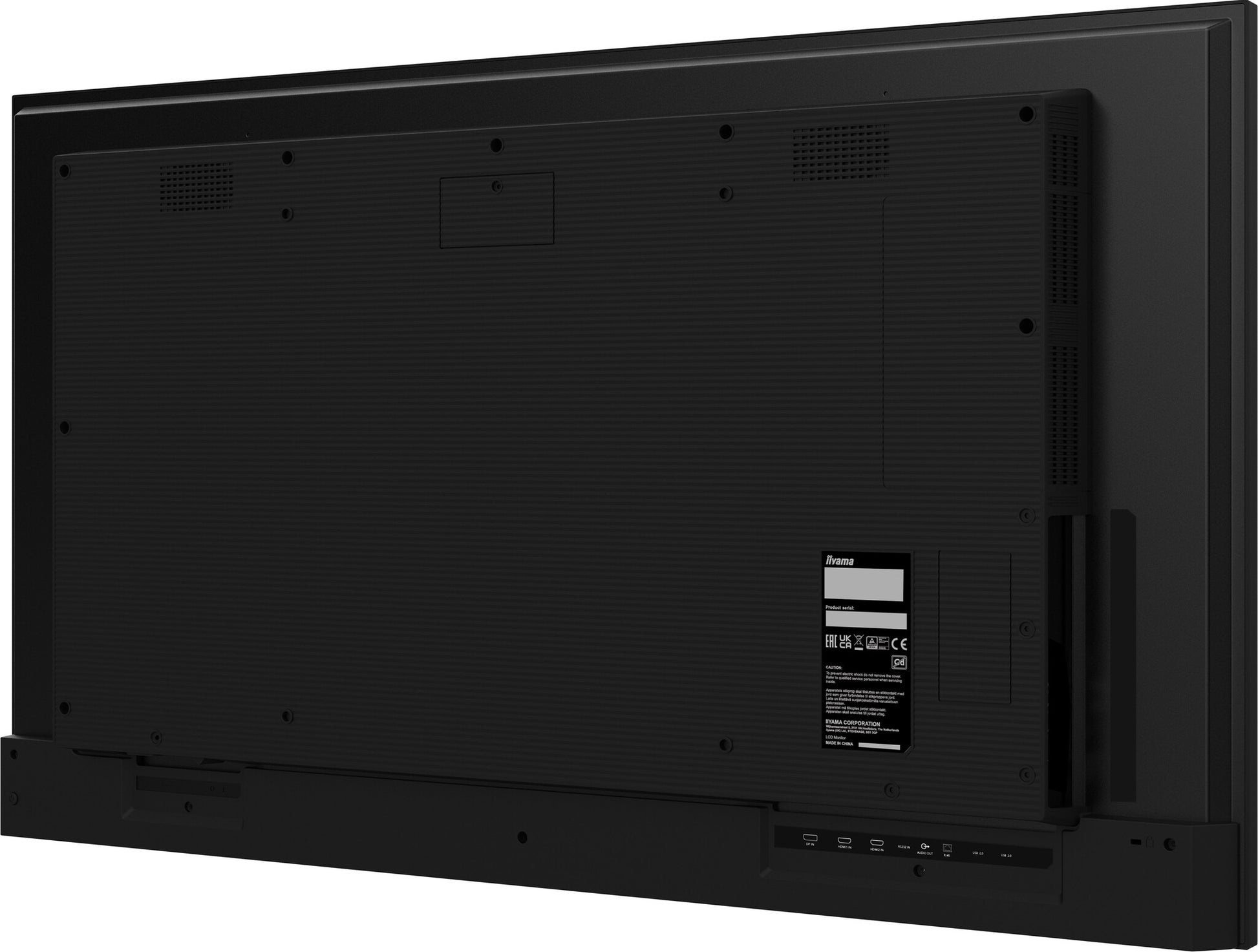

VESA mounting
Yes
Panel mounting interface
400 x 400 mm
Bezel colour
Black
Anti-glare screen
Yes
Bezel width (top)
1.35 cm
Bezel width (side)
1.32 cm
Bezel width (bottom)
1.35 cm
Performance
Purpose
Commercial
On Screen Display (OSD) languages
Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
On Screen Display (OSD)
Yes
Operating hours (hours/days)
24/7
HDCP version
2.2
HDCP
Yes
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)
65 W
Power consumption (standby)
0.4 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
E
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
65 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Computer system
Yes
Built-in processor
Yes
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor architecture
ARM Cortex-A73
Processor cores
8
Internal memory
4 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
32 GB
Operating system installed
Android 11
Weight & dimensions
Display width
1127.6 mm
Display depth
55 mm
Display height
643.5 mm
Display weight
11.3 kg
Width
1127.6 mm
Depth
55 mm
Height
643.5 mm
Weight
11.3 kg
Packaging data
Package width
1370 mm
Package depth
156 mm
Package height
850 mm
Package weight
14.8 kg
Packaging content
Remote control included
Yes

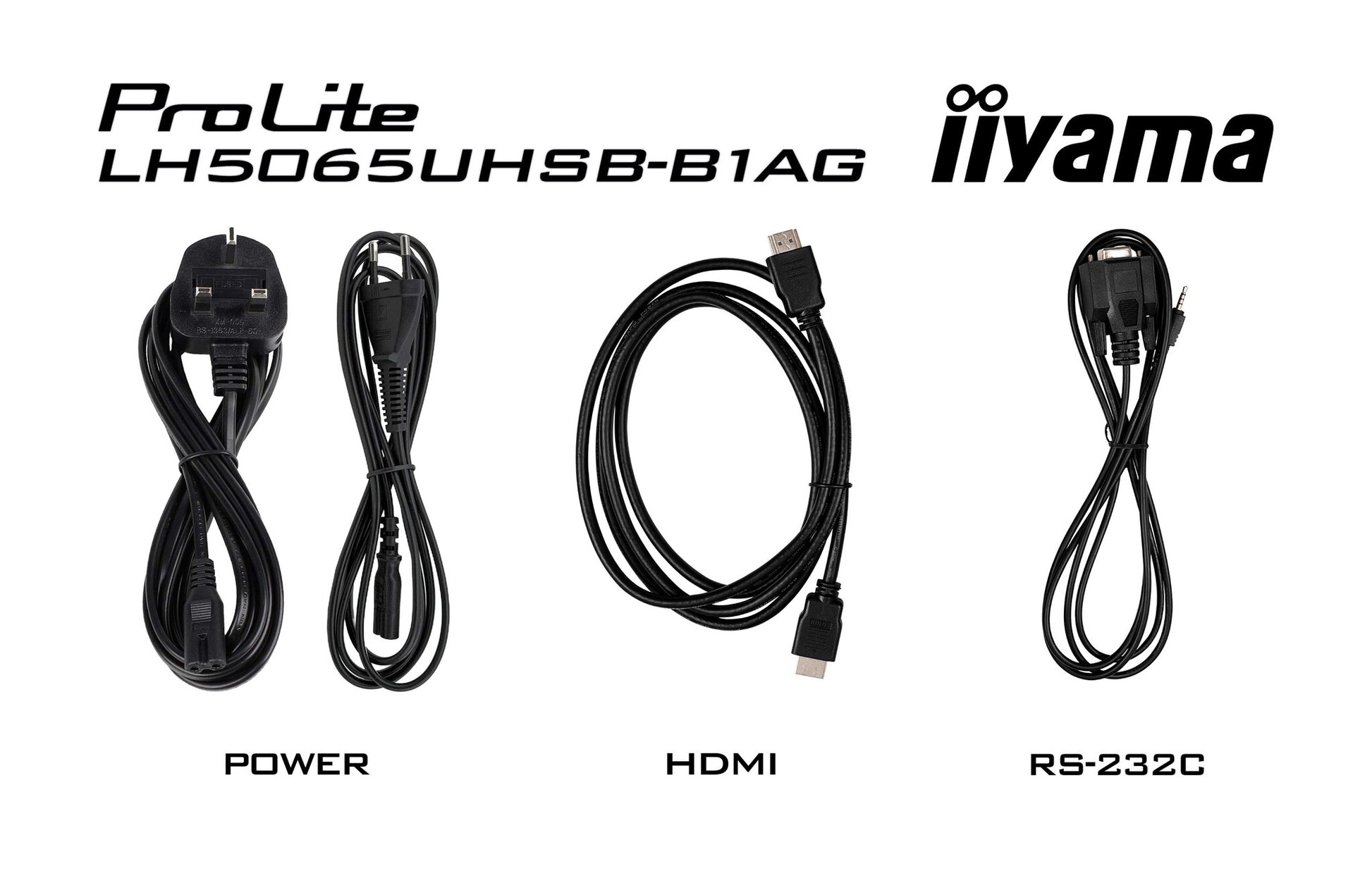

Cables included
AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
-20 - 60%
Storage temperature (T-T)
-20 - 60 °C
Certificates
Certification
CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
Technical details
Compliance certificates
CE, REACH, RoHS, TÜV mark, UKCA, WEEE
Sustainability certificates
ErP
User controls
picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, advanced option reset)
Playback media
Y
Other features
DisplayPort version
1.2
Power supply type
Internal
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Quick start guide
Yes
