54-inch flip-chip COB LED signage panel with 1.25mm pitch, HDMI daisy-chain, VESA mount, and built-in VisionInfo CMS for seamless video wall installations.

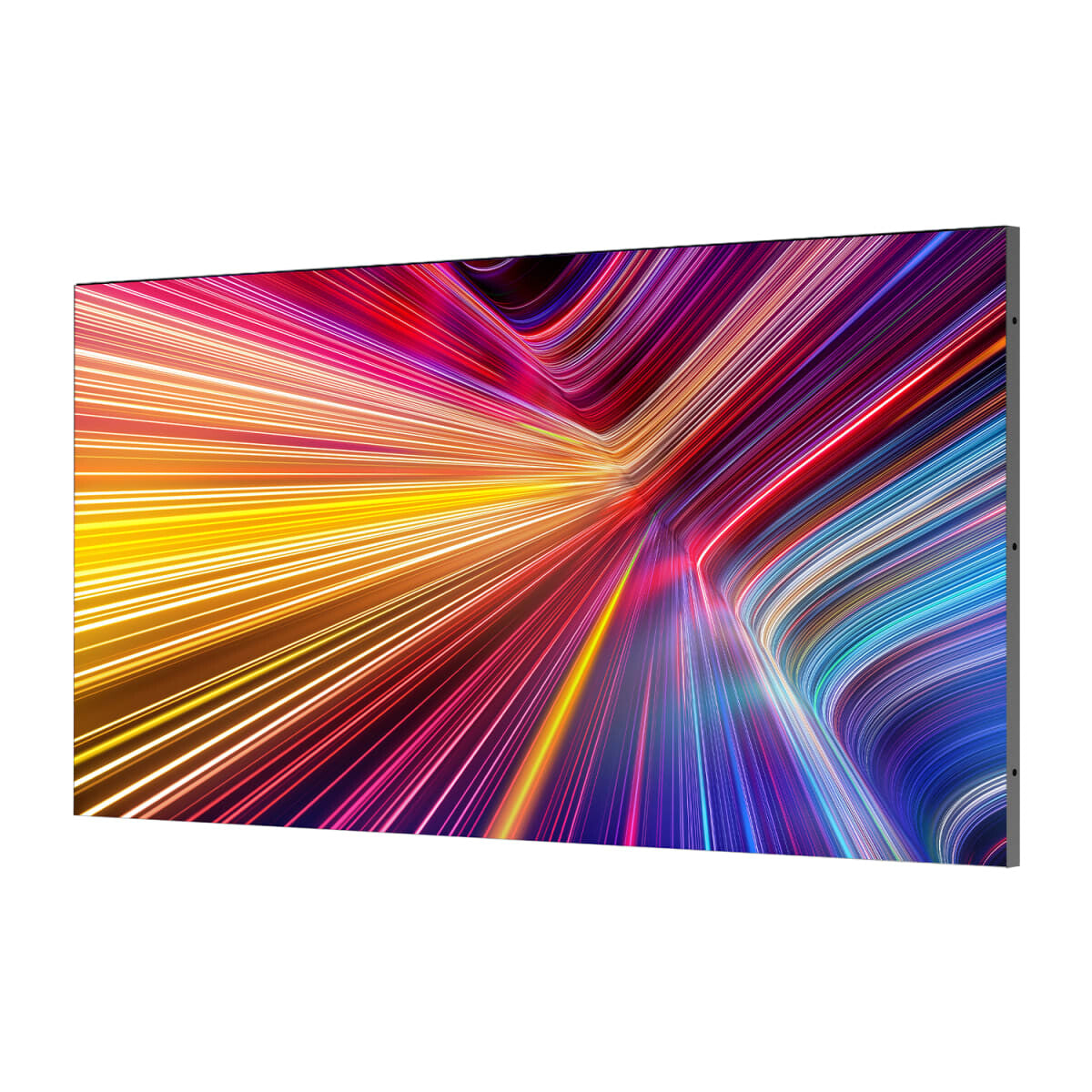

Hisense 54DS012FE — 54-inch COB LED digital signage display panel
The Hisense 54DS012FE is a professional 54-inch COB LED digital signage display engineered for mission-critical and high-impact environments. Powered by a proprietary ASIC chipset, it delivers breathtaking image quality with ultra-high contrast and wide viewing angles — outperforming traditional video wall technologies. Designed for command centres, XR virtual production stages, broadcast facilities, conference venues, and exhibition spaces, the 54DS012FE combines outstanding visual performance with rapid, controller-free installation and built-in cloud-based content management via Hisense VisionInfo. Its standard VESA mounting and HDMI daisy-chain capability make it an ideal choice for system integrators seeking a scalable, future-proof LED wall solution.
 |
ASIC-Driven Image Precision
The dedicated proprietary ASIC chipset replaces legacy FPGA-based architecture, enabling true 4K 60Hz signal transmission without sending or receiver cards. Proprietary enhanced LVDS protocol delivers 16× the bandwidth of conventional solutions, ensuring visually lossless image reproduction across the entire display.
|
Controller-Free HDMI Daisy Chain
Native HDMI daisy-chaining allows single-cable signal transmission between panels, eliminating the need for complex video wall controllers. This enables perfectly synchronised, seamless tiling across NxN (N < 4) LED walls with full 1:1 pixel mapping — reducing installation complexity and cost significantly.
|
 |
 |
Rapid, Simplified Installation

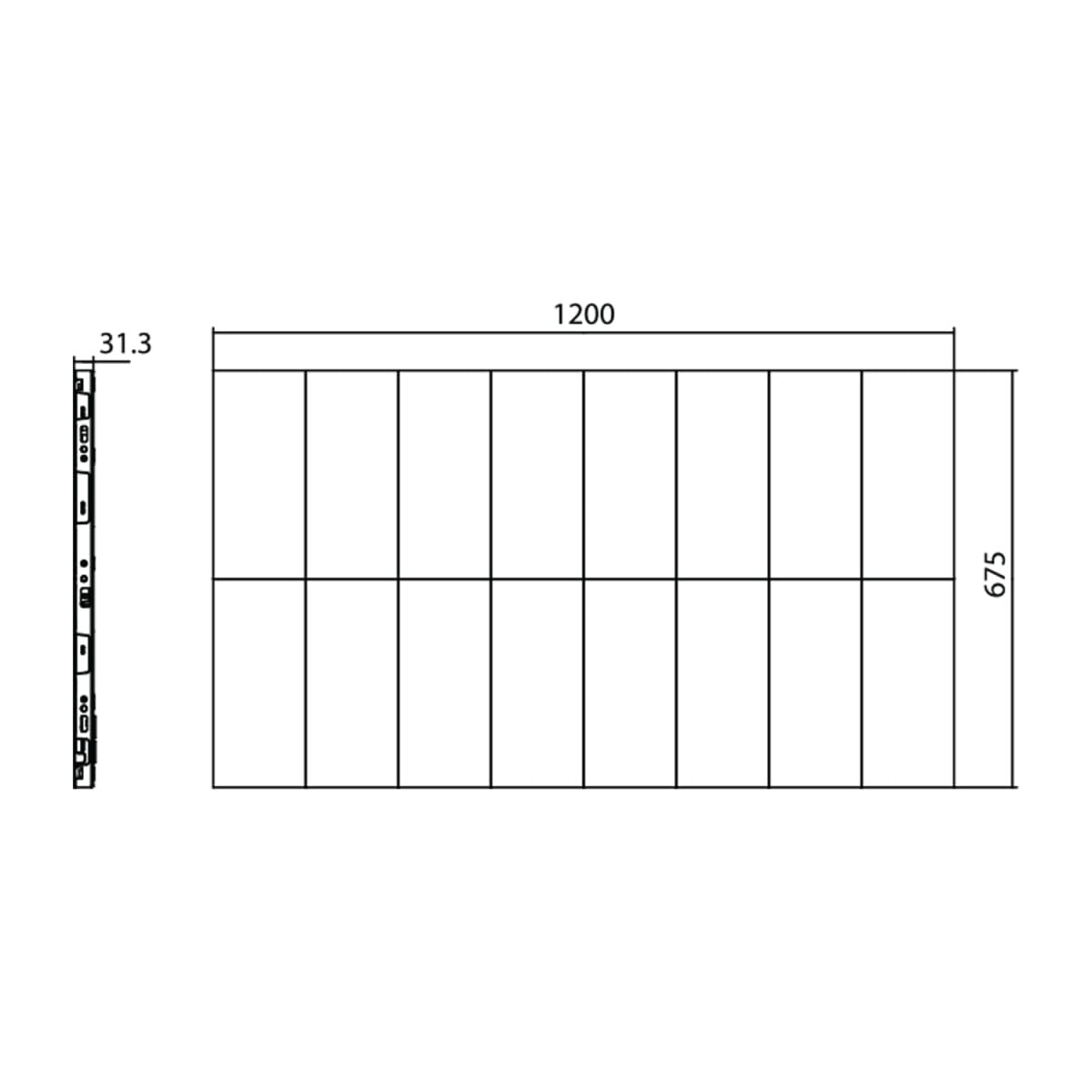

The 54-inch panel features 16 large-format modules and carton-based packaging that mirrors the logistical simplicity of standard LCD video walls. Controller-free installations scale up to 216 inches, delivering a 3× faster setup process compared to traditional LED display systems.
|

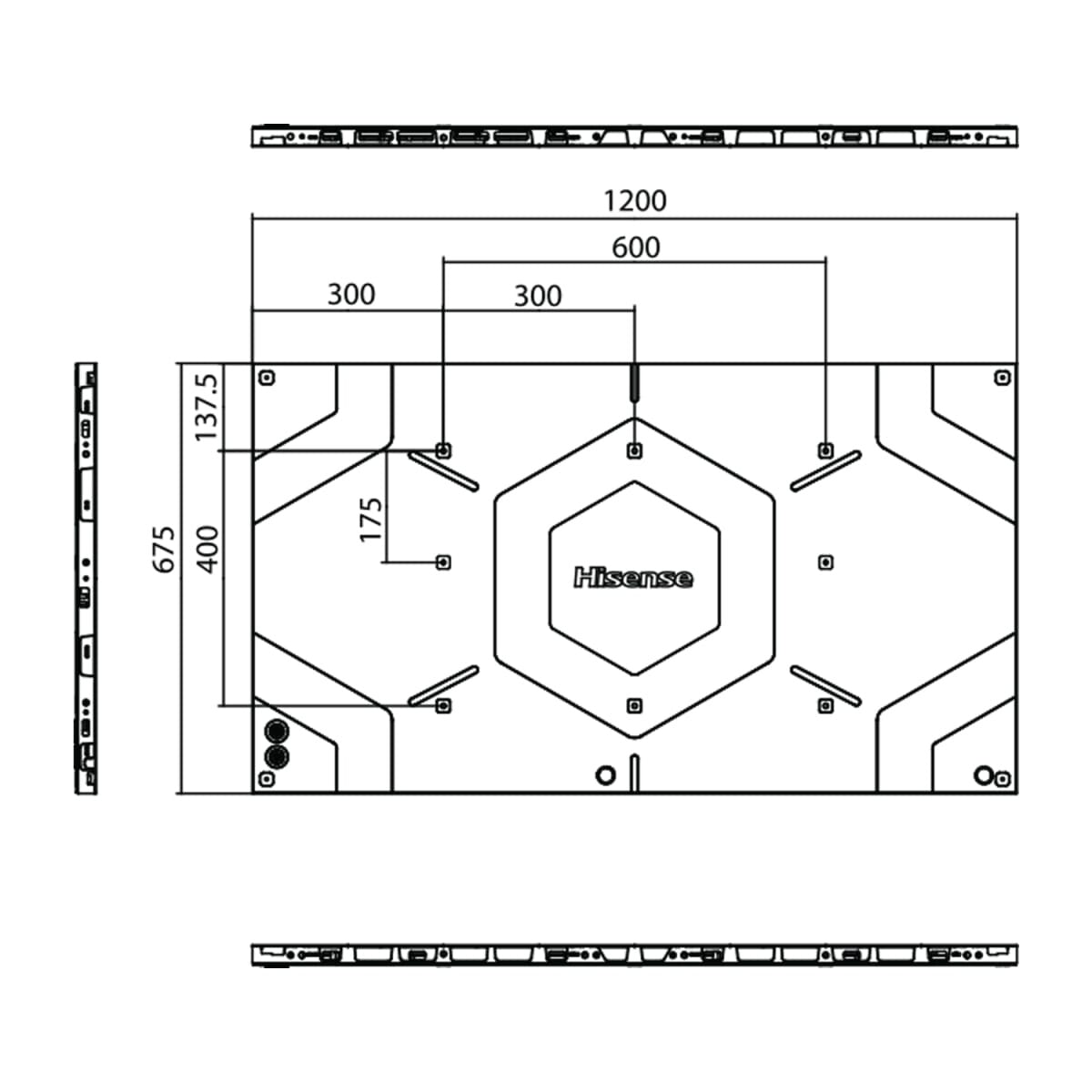

Standard VESA Mounting Compatibility
Full compatibility with industry-standard VESA mounting means existing brackets can be reused without additional hardware investment. The plug-and-play design minimises downtime during installation and ensures vibration-resistant, consistent alignment post-installation.
|
 |
 |
Energy-Efficient COB Technology
The 3-in-1 ASIC architecture combined with optimised common cathode drivers and advanced energy-saving algorithms reduces power consumption by nearly 20% compared to the previous COB generation. Maximum screen temperature stays below 40°C, extending product lifespan and enhancing user comfort in any environment.
|
Built-in VisionInfo CMS
The integrated Hisense VisionInfo platform provides comprehensive cloud-based device management, monitoring, and content control across all connected displays. This end-to-end system simplifies remote operation and centralises control for large-scale installations.
|
 |
